Power and Grounding Component Views. Buick Allure 2005

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2005 🢒 Allure 🢒 Vehicle Control Systems 🢒 Vehicle DTC Information 🢒 Power and Grounding Component Views

Figure 1:

Figure 2:

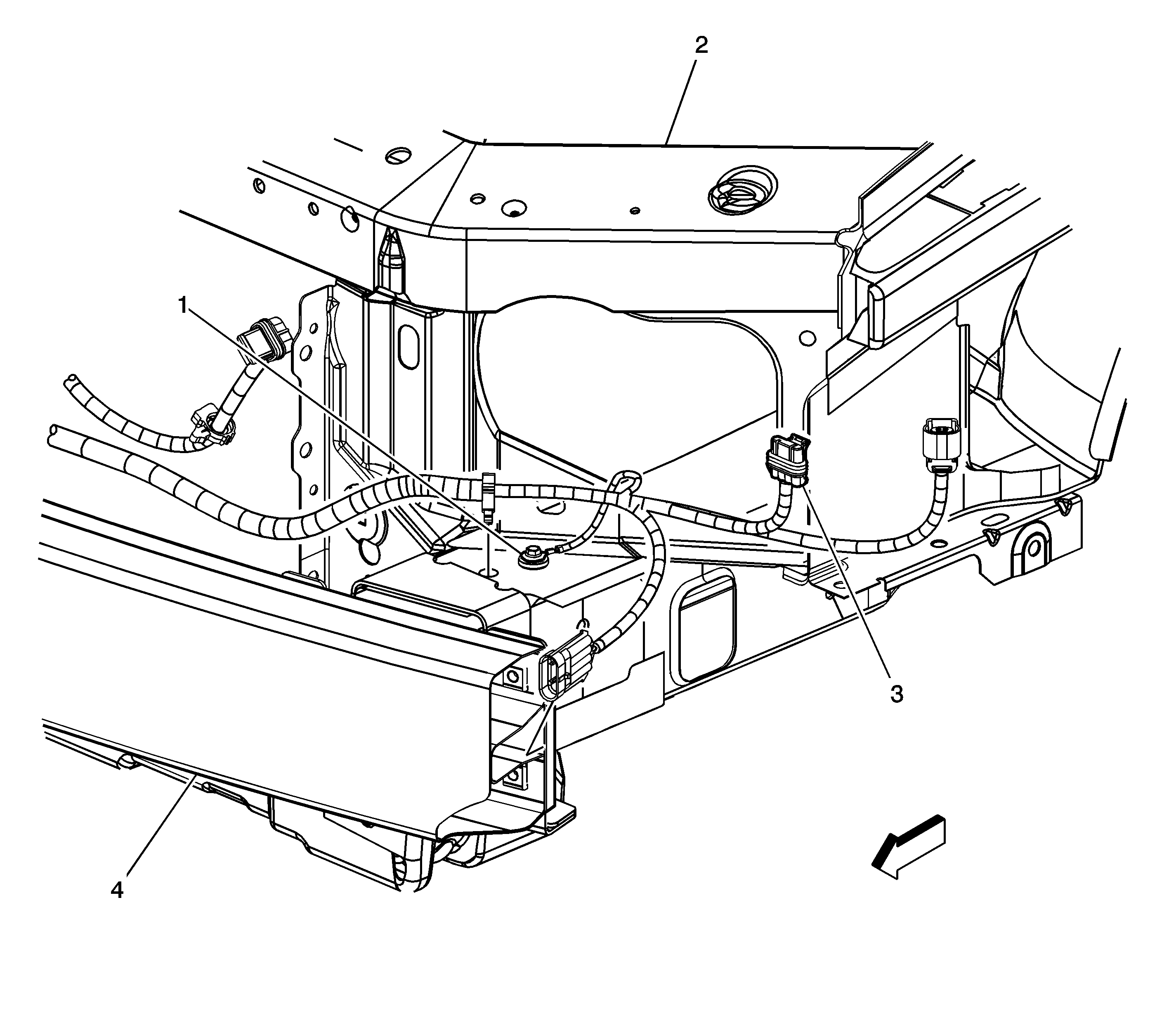

Figure 3:


(1)	Headlamp Connector
(2)	Core Support - RF
(3)	G100
(4)	Washer Level Sensor Connector
(5)	Washer Pump Connector

Figure 4:

Figure 5:

Figure 6:

Figure 7:

Figure 8:

Figure 9:

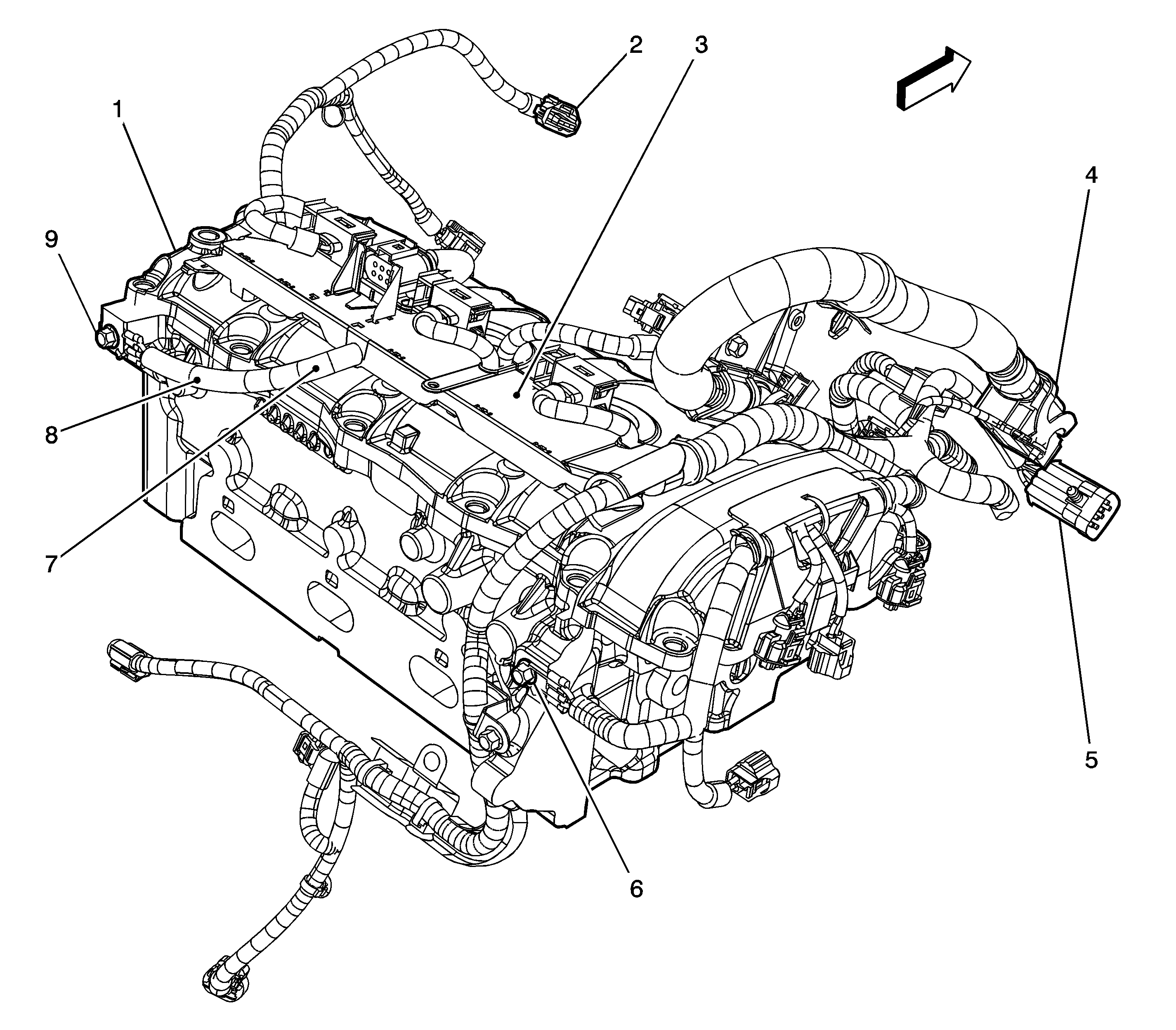

Figure 10:

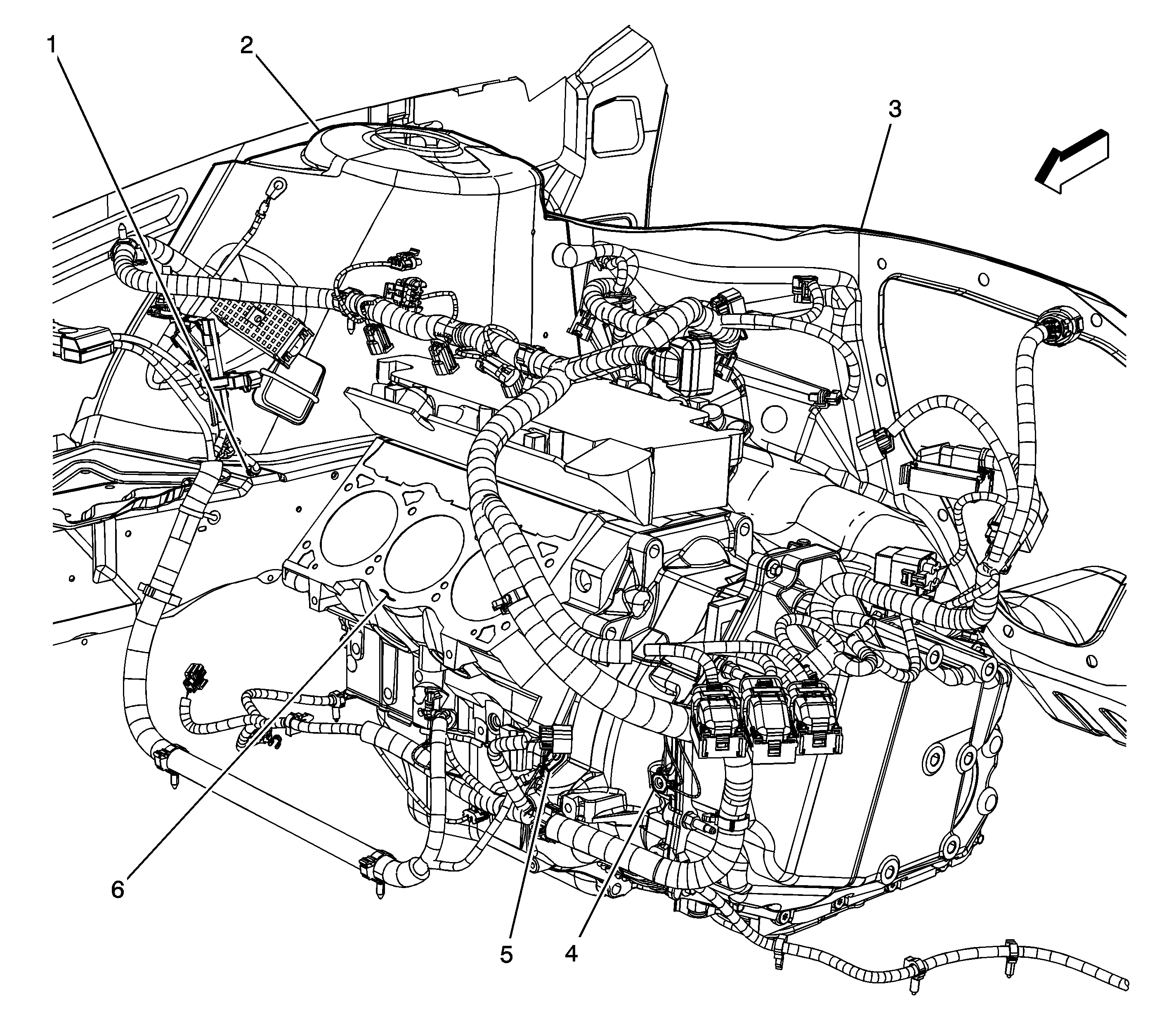

(1)	Cylinder Block
(2)	Throttle Actuator Control (TAC) Module Connector
(3)	S108
(4)	Engine Control Module (ECM) C1 Connector
(5)	C107
(6)	G115
(7)	S131
(8)	S130
(9)	G130

Figure 11:

Figure 12:


(1)	I/P Compartment Lamp
(2)	HVAC Control Module
(3)	Radio
(4)	Air Temperature Sensor - Inside
(5)	Steering Wheel
(6)	Instrument Panel Cluster (IPC)
(7)	Body Control Module (BCM)
(8)	Steering Angle Sensor
(9)	Vehicle Communication Interface Module (VCIM)
(10)	Cigar Lighter
(11)	Fuse Block - I/P

Figure 13:

Figure 14:

Figure 15:
