Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

1. Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
2. Remove the rear seat back. Refer to Rear Seat Back Replacement .
3. Remove the rear upper quarter trim panel. Refer to Quarter Upper Trim Panel Replacement .

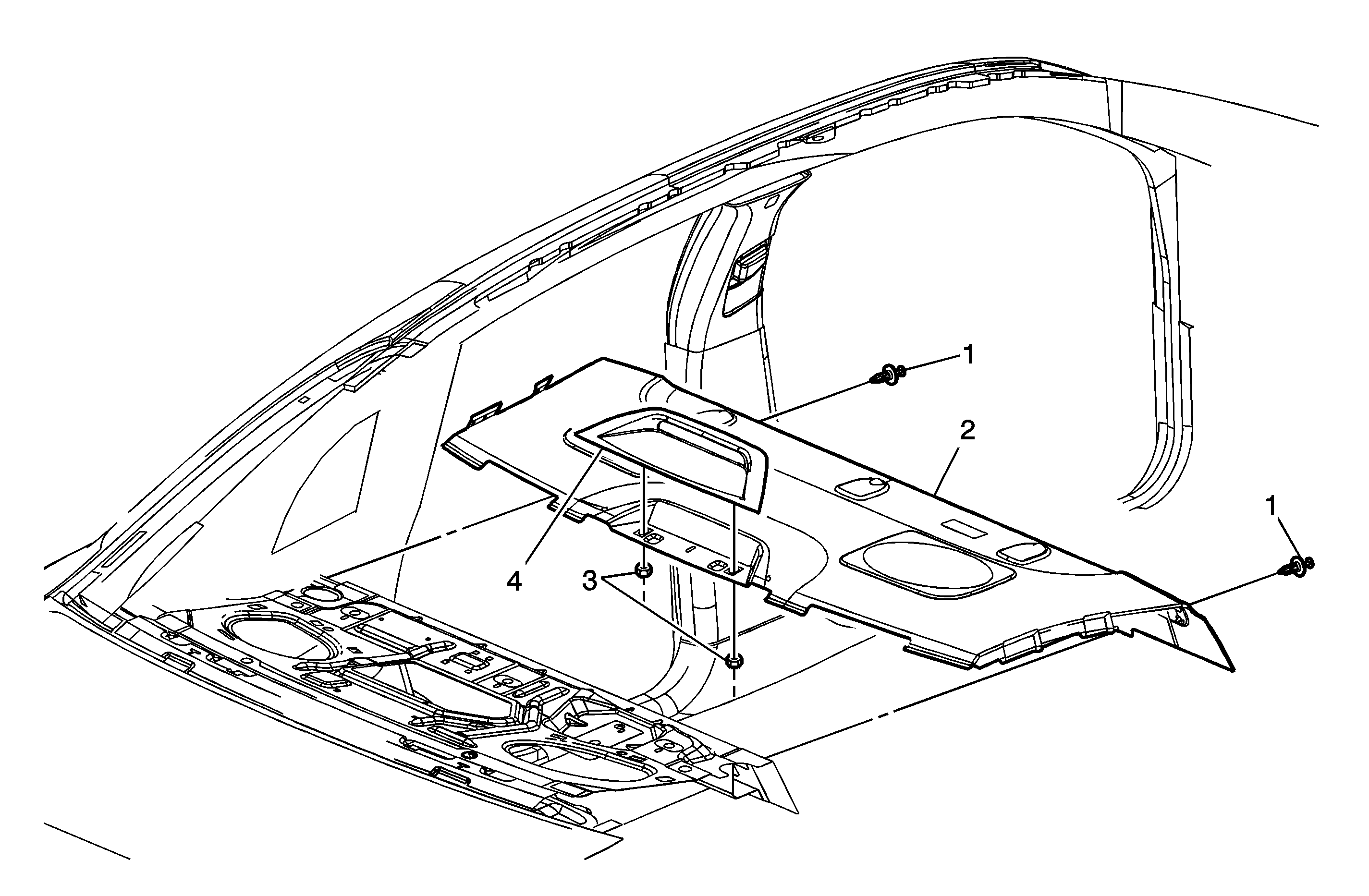

1

Retainer, Rear Window Panel Trim (Qty: 2)

2

Trim Assembly, Rear Window Panel

Tip

1. Lift the panel and remove the outside seat belts through the slots in the trim panel.
2. Lift the panel and remove the center seat belt escutcheon, then pass it and the center seat belt through the slot in the trim panel.
3. Slide the panel forward to disengage the integral hook from the retaining hole.
4. Disconnect the electrical connector from the high mount stop lamp.

3

Nut, High Mount Stop Lamp (Qty: 2)

Tighten
2 N·m (18 lb in)

4

Lamp, High Mount Stop

Tip
The high mount stop lamp uses LED bulbs and must be serviced as an assembly.
