Preliminary Procedures

1. Remove the front bucket seat. Refer to Front Seat Replacement - Bucket .
2. Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Rezeroing .

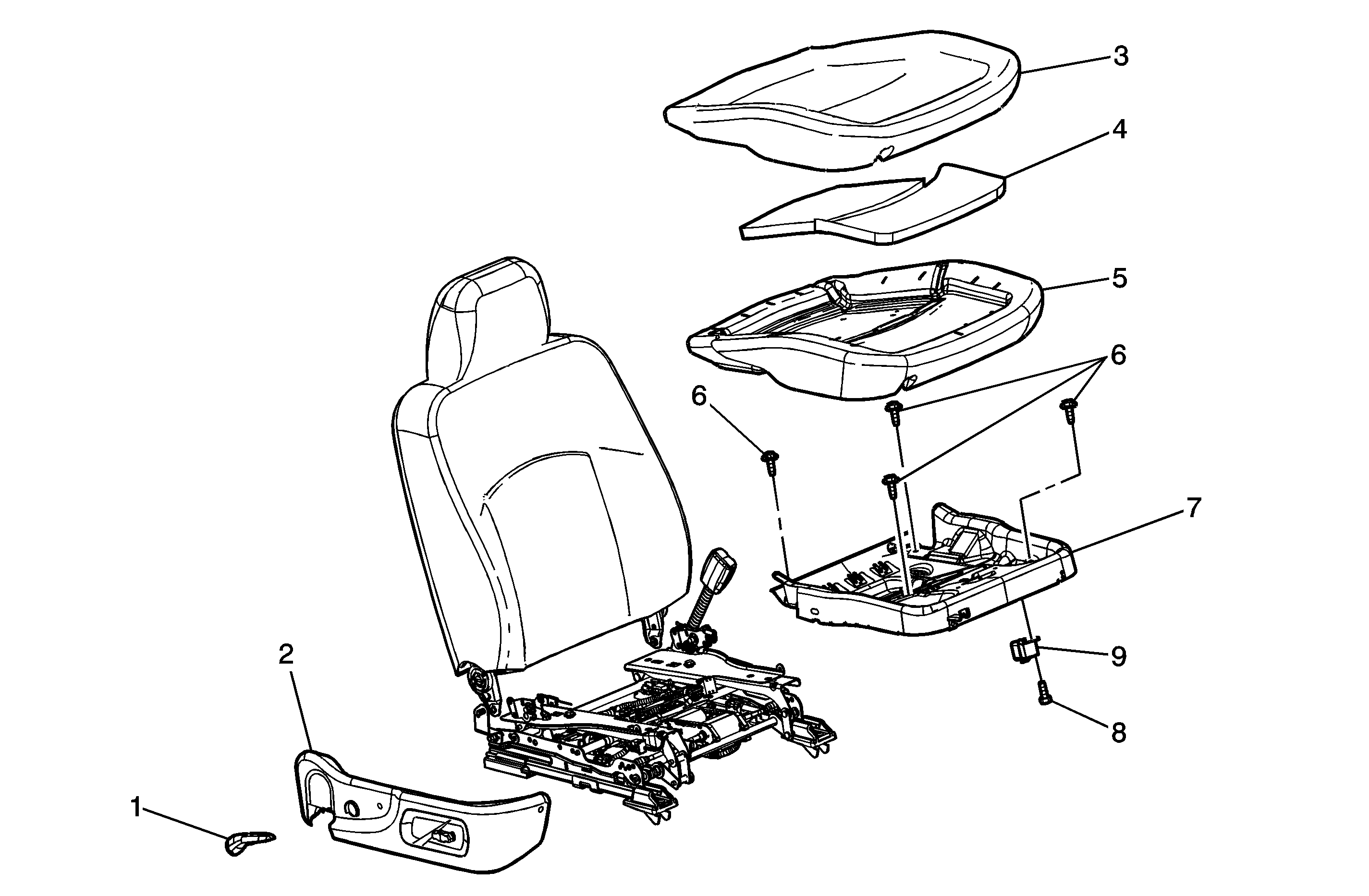

1

Seat Recliner Handle

Refer to Driver Seat and Passenger Seat Recliner Handle Replacement .

2

Seat Adjuster Finish Cover

Refer to Front Seat Adjuster Track Finish Cover Replacement .

3

Seat Cushion Cover

Refer to Front Seat Cushion Cover Replacement .

4

Seat Cushion Heater Assembly

Tip
Disconnect the electrical connector.

5

Seat Cushion Pad

6

Seat Cushion Bolt (Qty: 4)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
25 N·m (18 lb ft)

7

Seat Cushion Frame Assembly

8

Seat Cushion Heater Relay Screw

9

Seat Cushion Heater Relay
