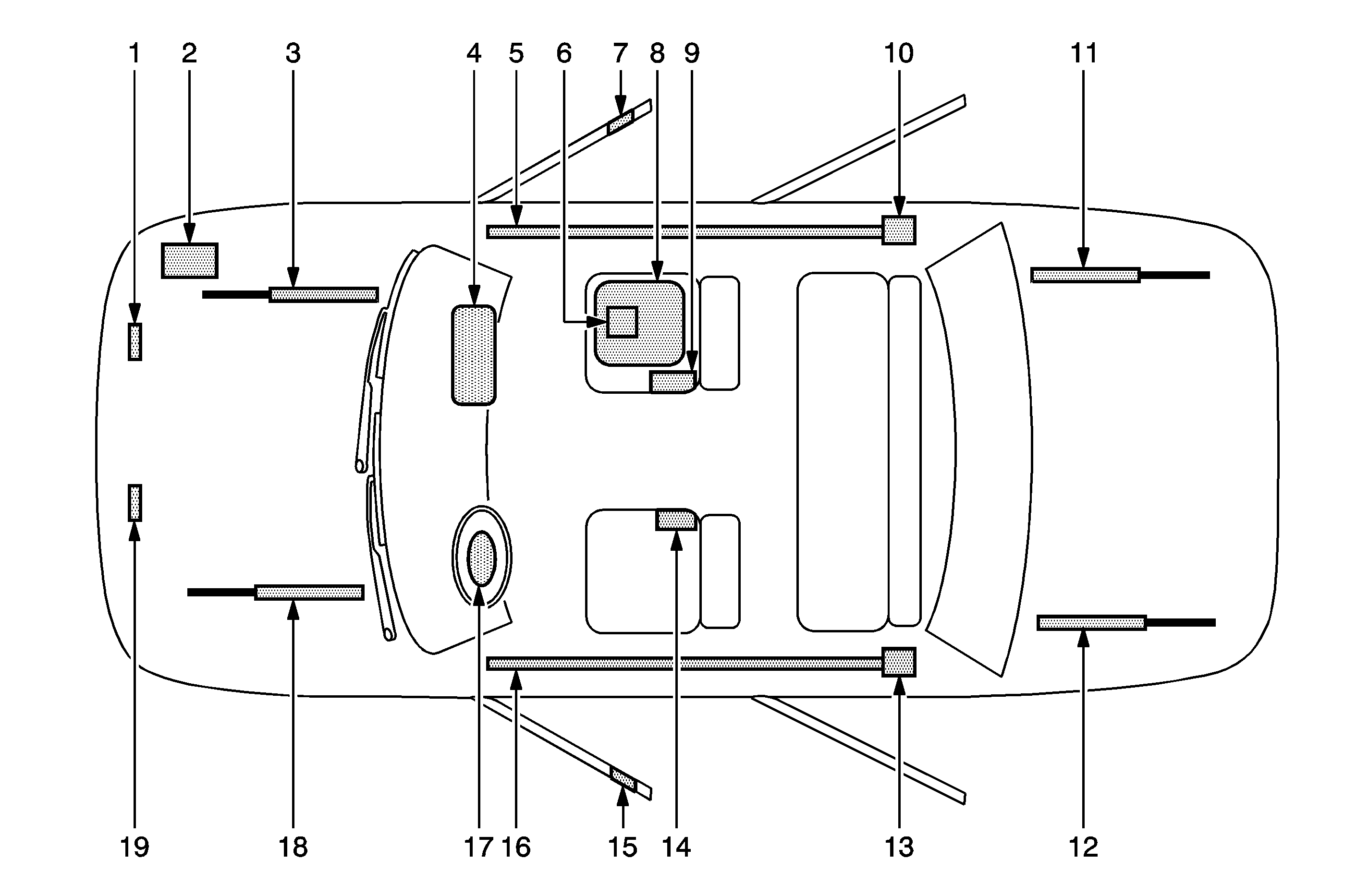

| (1) | Right Front
End Sensor-Located on the front of the vehicle in the engine compartment |
| (2) | Vehicle Battery-Located
under the hood on the right side |
| (3) | Front Hood
Assist Rod-A gas shock located under the front hood on the passenger side |
| (4) | I/P Air Bag-Located
at the top right under the instrument panel |
| (5) | Right Roof
Rail Air Bag-Located under the headliner, extending from the passenger front
windshield pillar to the passenger rear windshield pillar |
| (6) | Sensing and
Diagnostic Module (SDM)-Located underneath the passenger front seat |
| (7) | Side Impact
Sensor (SIS)-Located on passenger door under door trim panel |
| (8) | Passenger Presence
System (PPS)-Located on the passenger front seat underneath the seat bottom
trim |
| (9) | Seat Belt Pretensioner-Located
on the inboard side of the passenger front seat |
| (10) | Inflator
Module for Right Roof Rail Air Bag-Located above door opening near rear pillar
on passenger side |
| (11) | Rear Compartment
Lid Assist Rod-A gas shock is located under the rear trunk lid on the passenger
side |
| (12) | Rear Compartment
Lid Assist Rod-A gas shock is located under the rear trunk lid on the driver
side |
| (13) | Inflator
Module for Left Roof Rail Air Bag-Located above door opening near rear pillar
on driver side |
| (14) | Seat Belt
Pretensioner-Located on the inboard side of the driver seat |
| (15) | Side Impact
Sensor (SIS)-Located on driver door under door trim panel |
| (16) | Left Roof
Rail Air Bag-Located under the headliner, extending from the driver front windshield
pillar to the driver rear windshield pillar |
| (17) | Steering Wheel
Air Bag-Located on the steering wheel |
| (18) | Front Hood
Assist Rod-A gas shock located under the front hood on the driver side |
| (19) | Left
Front End Sensor-Located on the front of the vehicle in the engine compartment |
