Ground Distribution Schematics. Buick Allure 2008

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2008 🢒 Allure 🢒 Engine 🢒 Engine Electrical 🢒 Ground Distribution Schematics

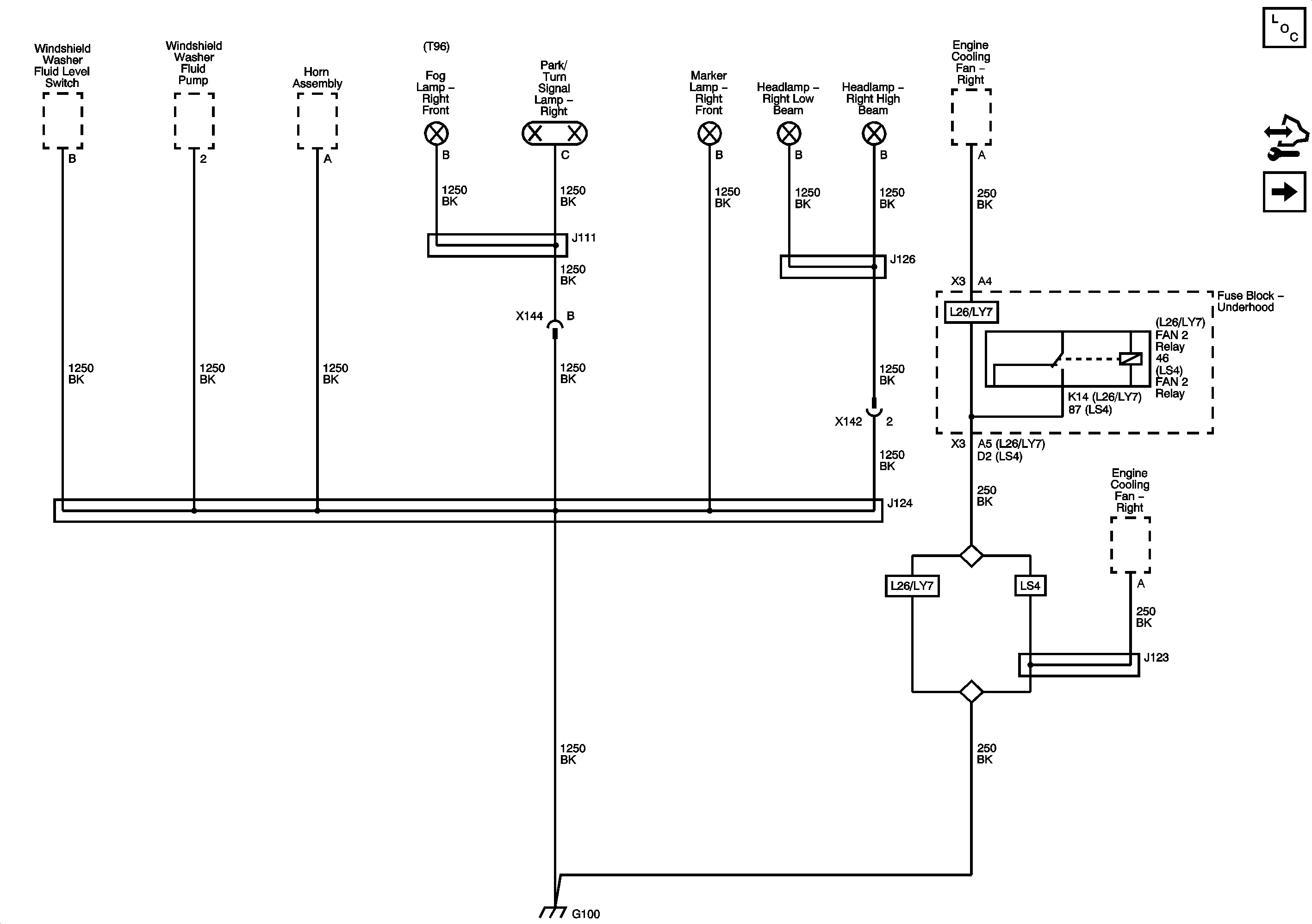

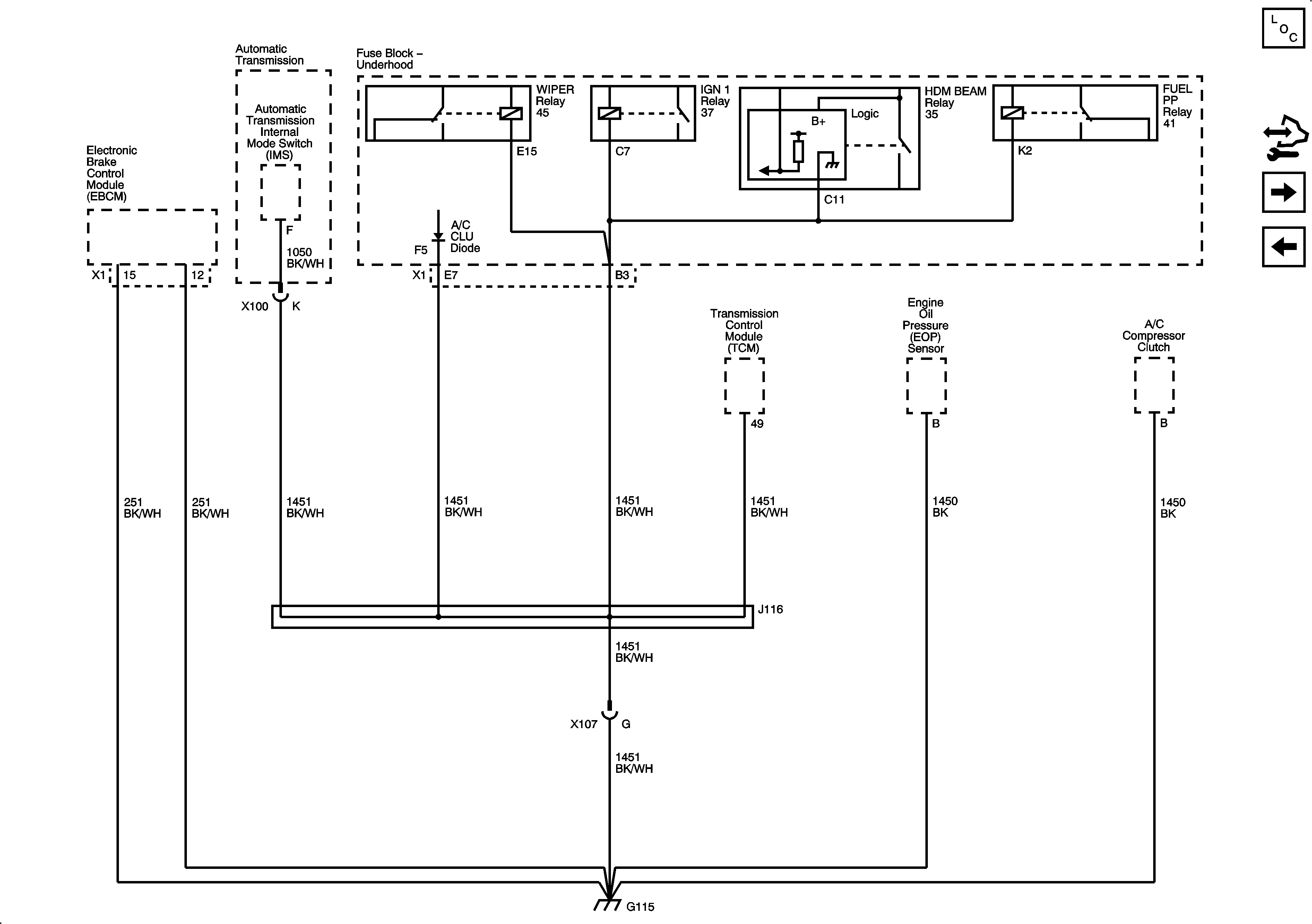

Figure 1:	G100 Master Electrical Component List Control Module References G101, G102, G103 (LY7), G111, G112 (L26), and G113 (L26)

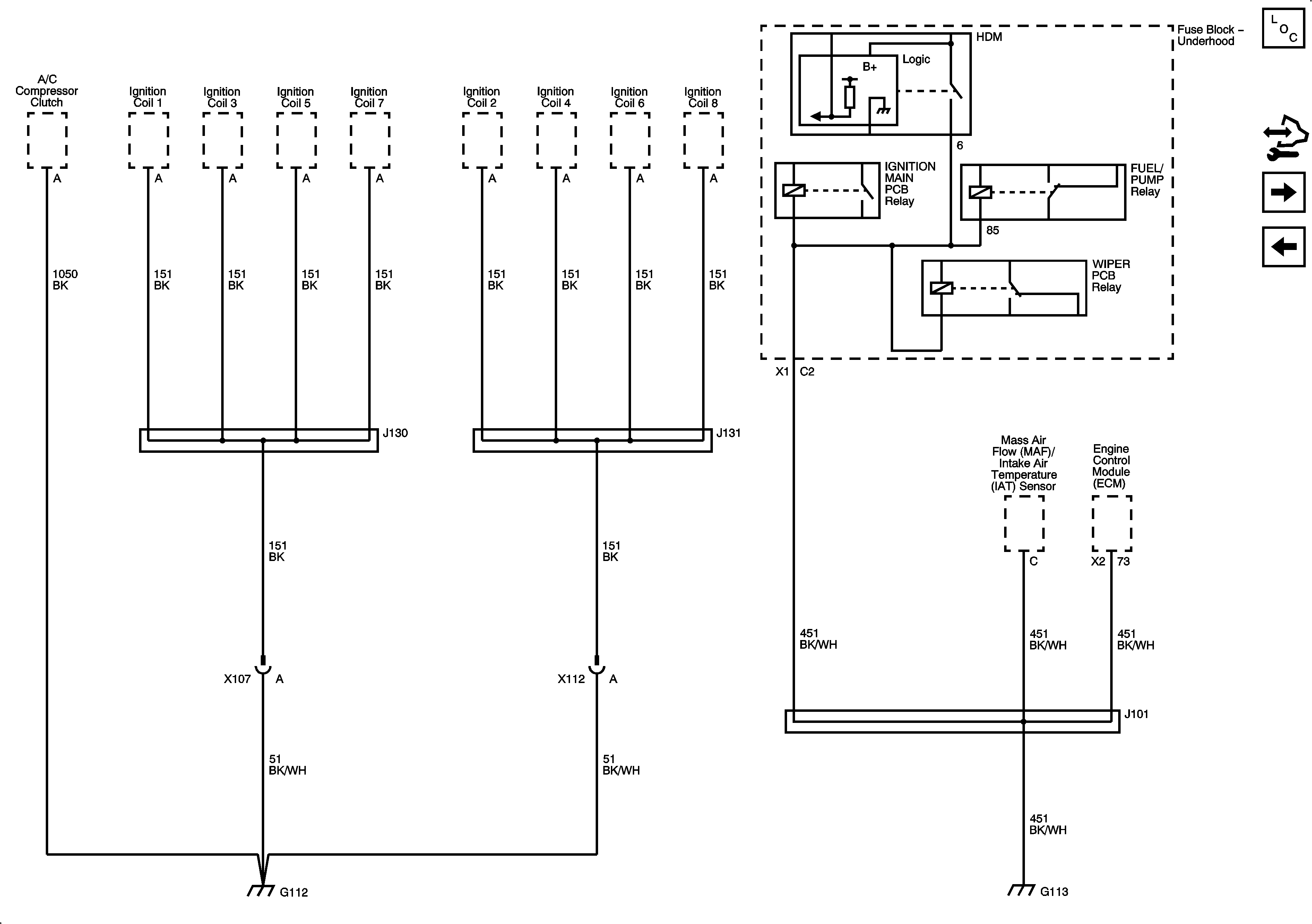

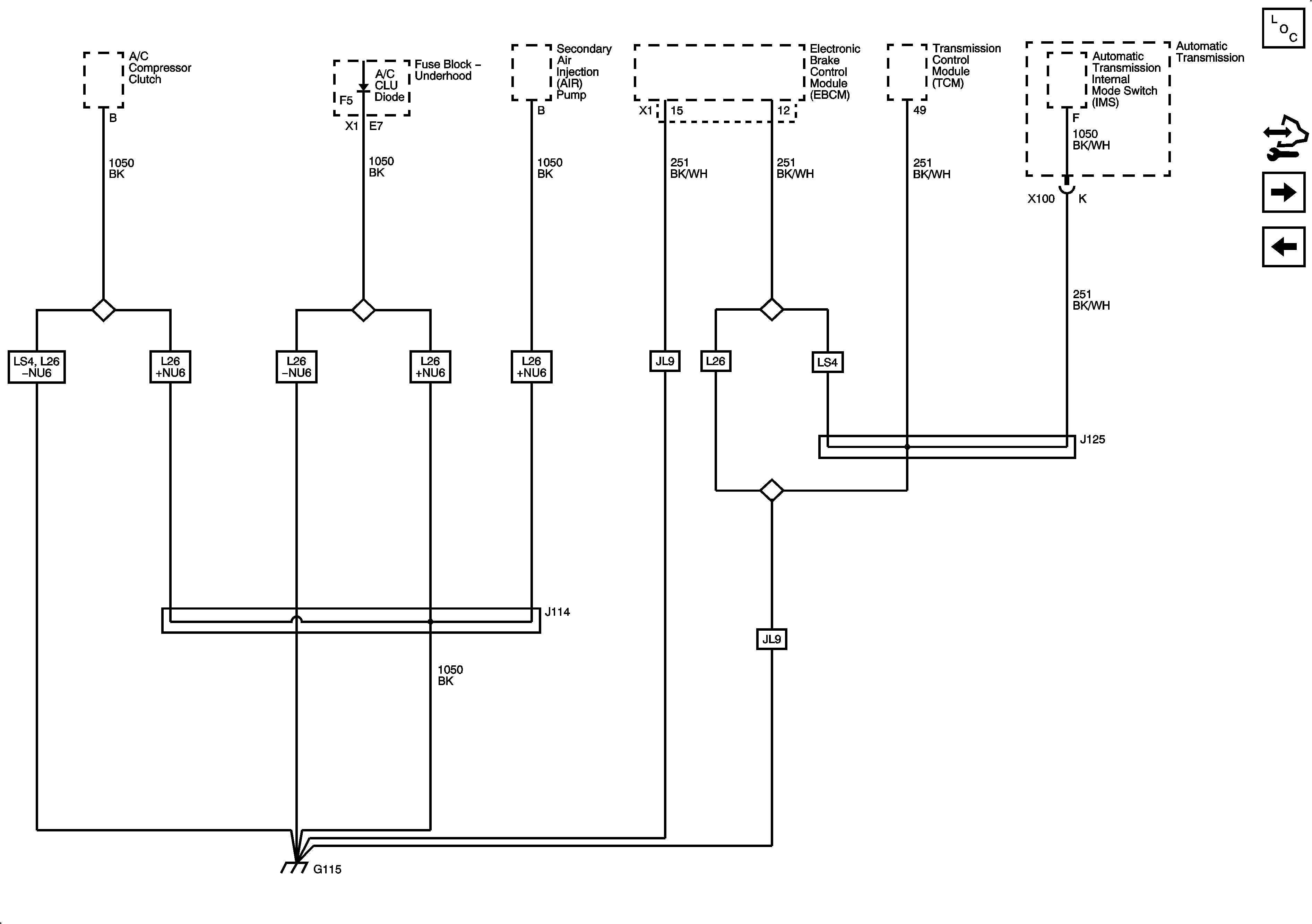

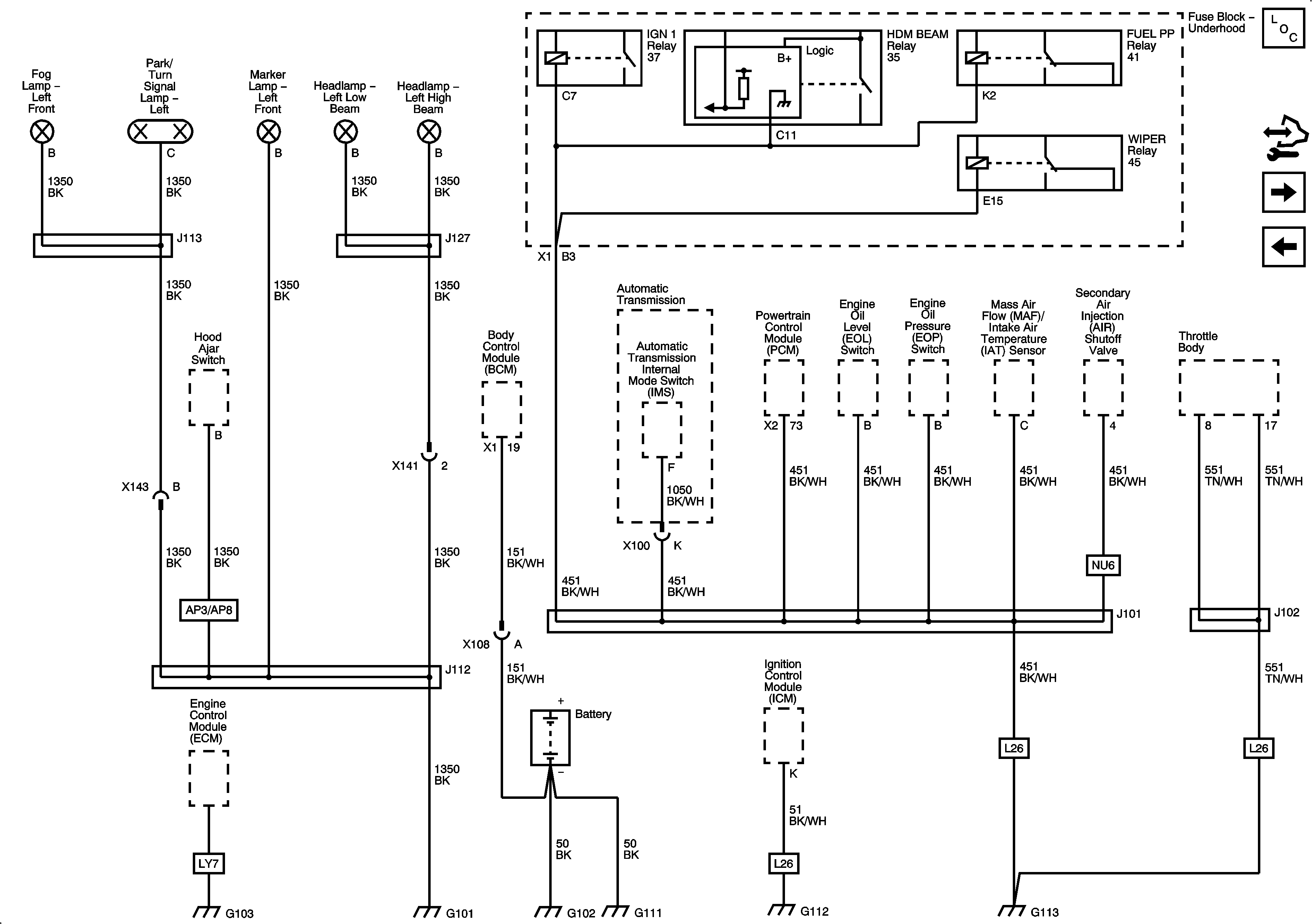

Figure 2:	G101, G102, G103(LY7), G111, G112 (L26), and G113 (L26) Master Electrical Component List Control Module References G115 - L26 or LS4 07 Ground Distribution G100
Figure 3:	G112 and G113 (LS4) Master Electrical Component List Control Module References G115 - L26 or LS4 G101, G102, G103 (LY7), G111, G112 (L26), and G113 (L26)
Figure 4:	G115 - L26 Master Electrical Component List Control Module References G115 - LY7 G101, G102, G103 (LY7), G111, G112 (L26), and G113 (L26)
Figure 5:	G115 - LY7 Master Electrical Component List Control Module References G200 G115 - L26 or LS4

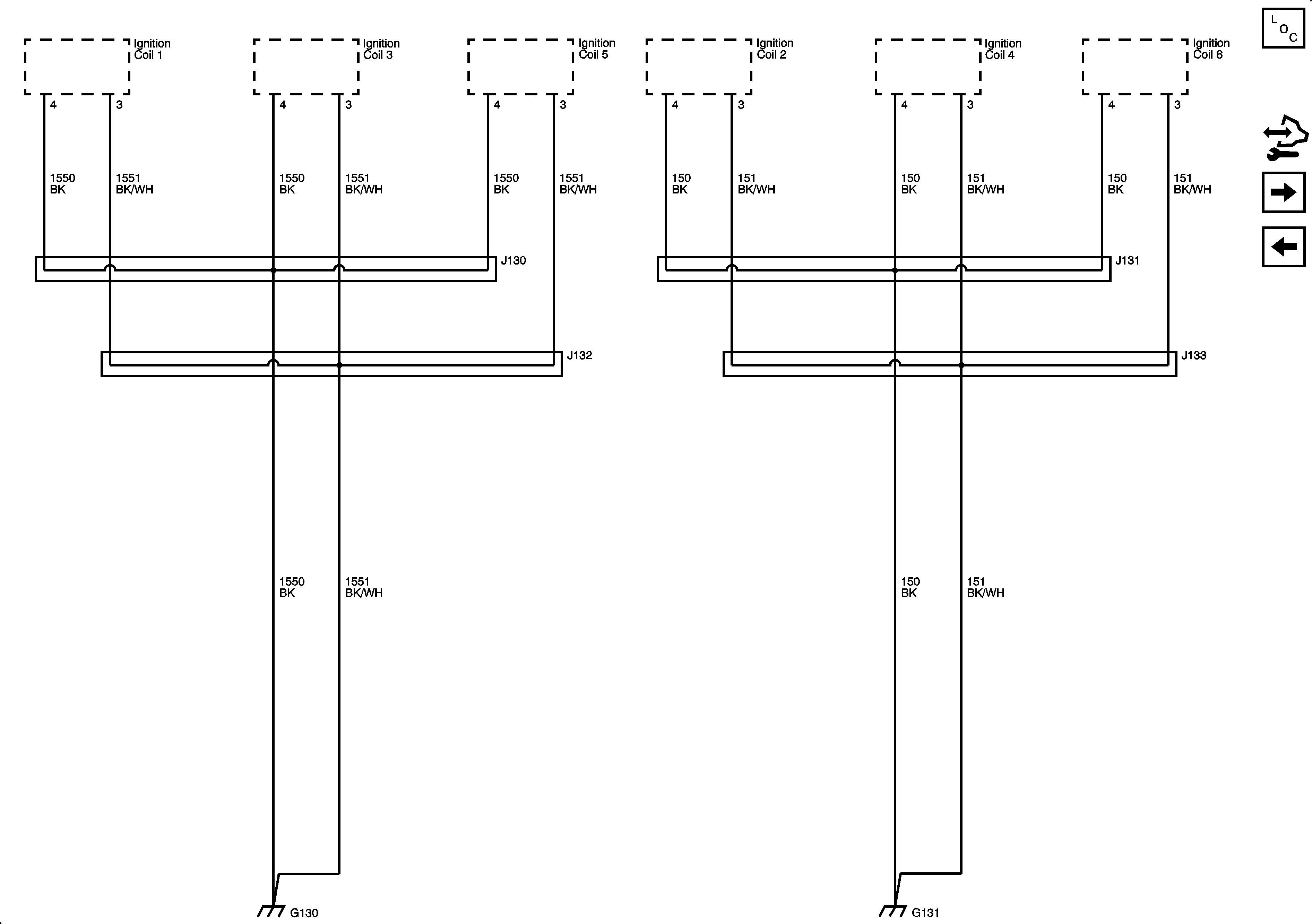

Figure 6:	G130, G131 - LY7 Master Electrical Component List Control Module References G302

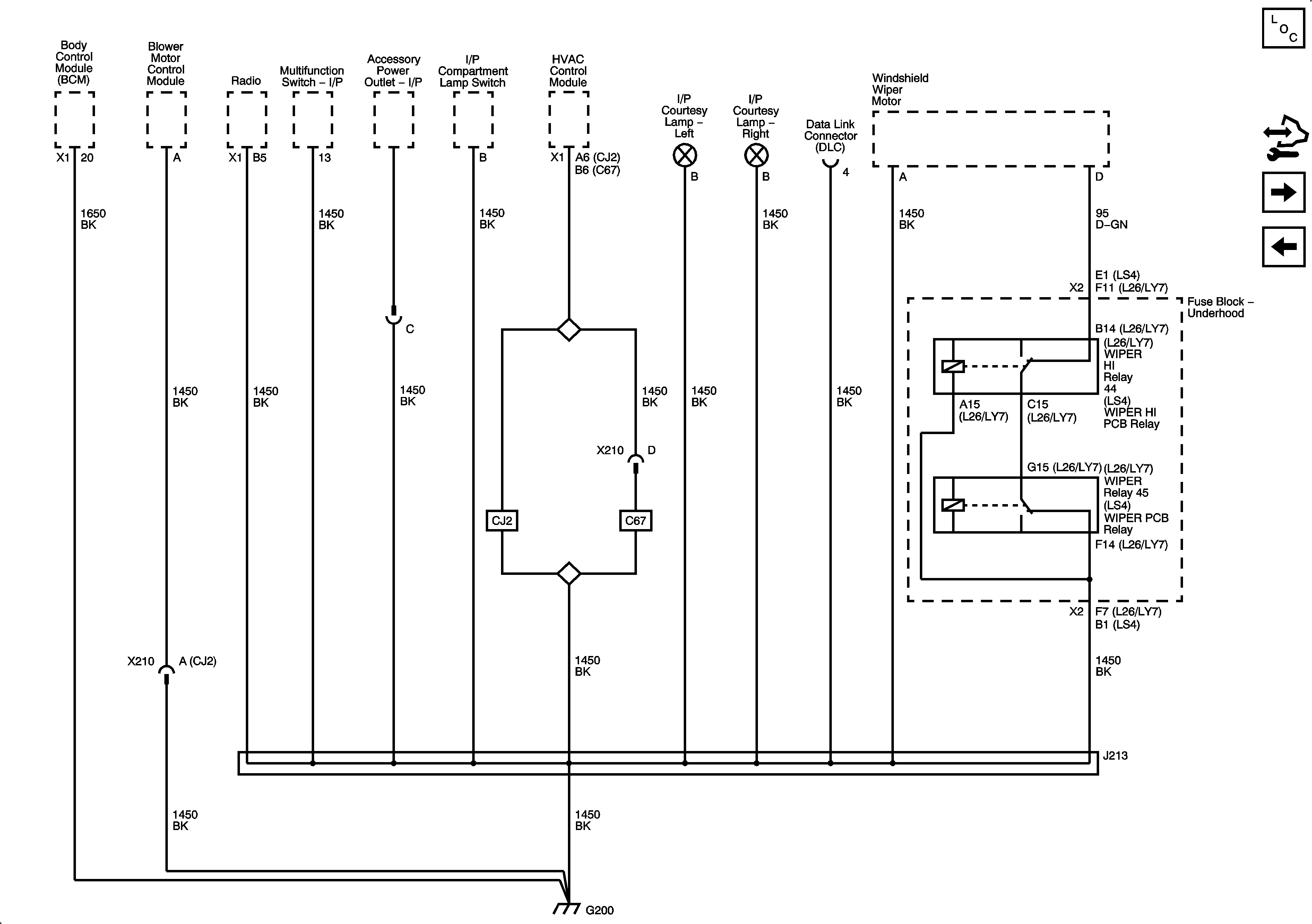

Figure 7:	G200 Master Electrical Component List Control Module References G201 G115 - LY7

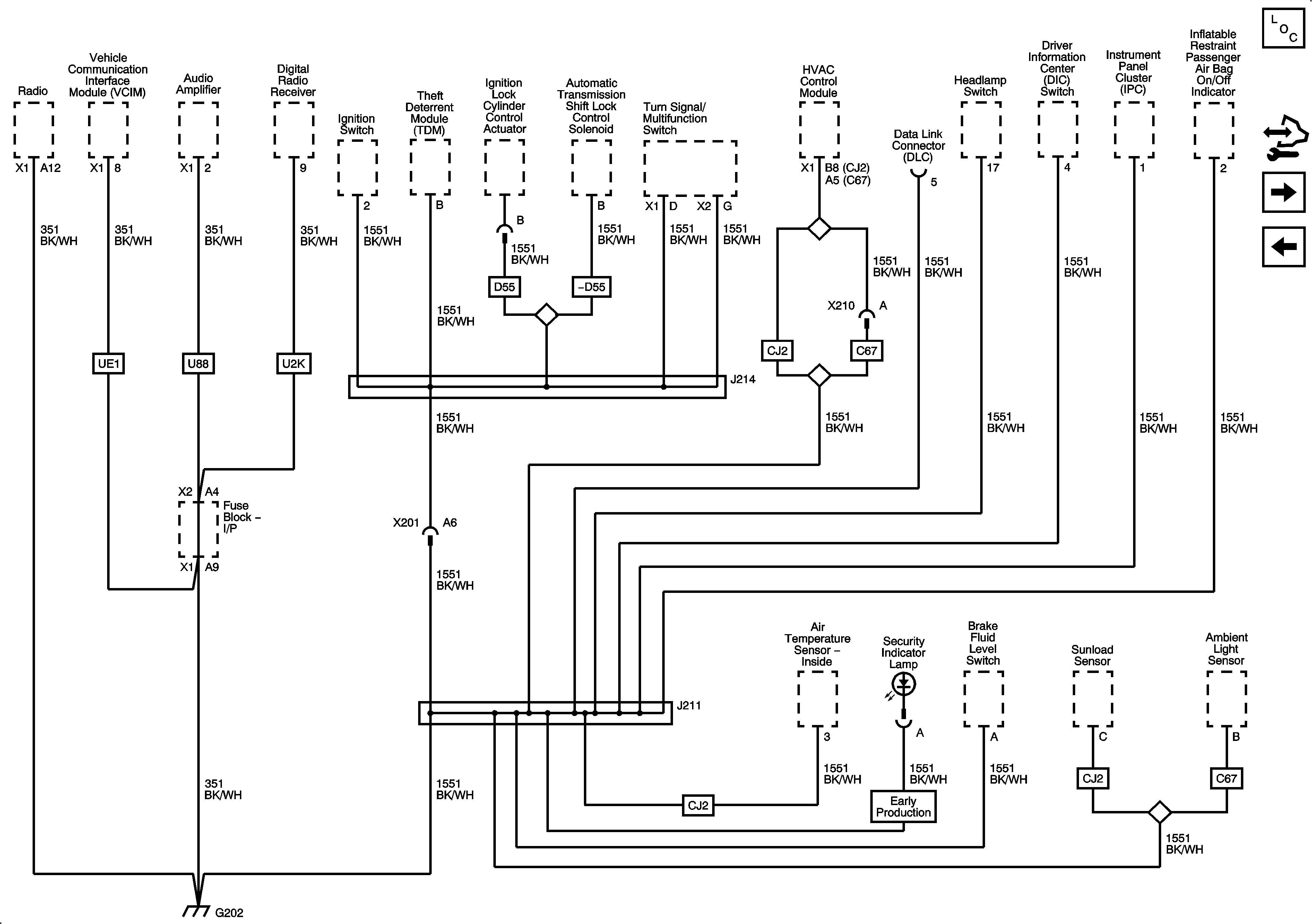

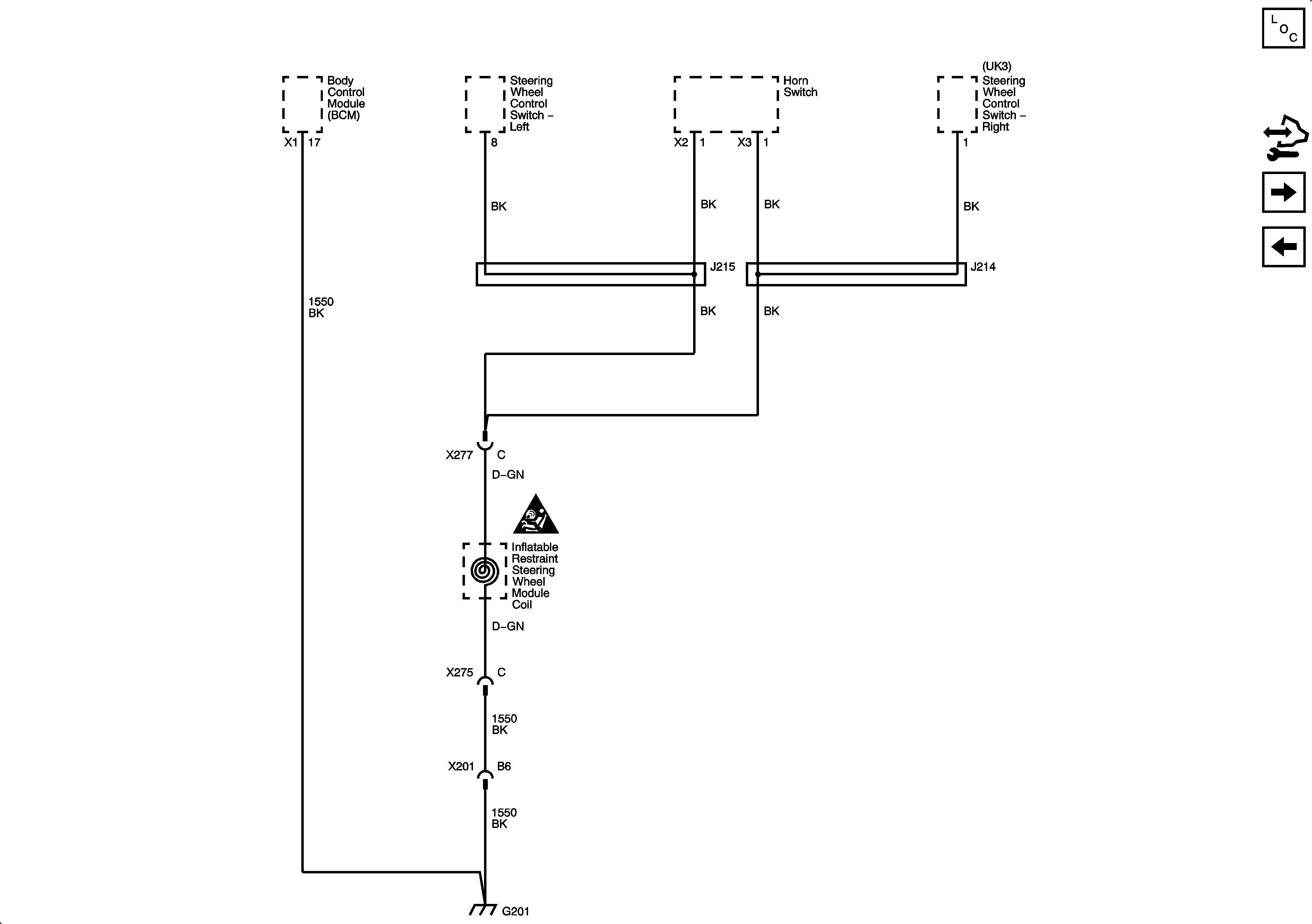

Figure 8:	G201 Master Electrical Component List Control Module References G202 G200
Figure 9:	G202 Master Electrical Component List Control Module References G301 G201
Figure 10:	G301 Master Electrical Component List Control Module References G302 G202

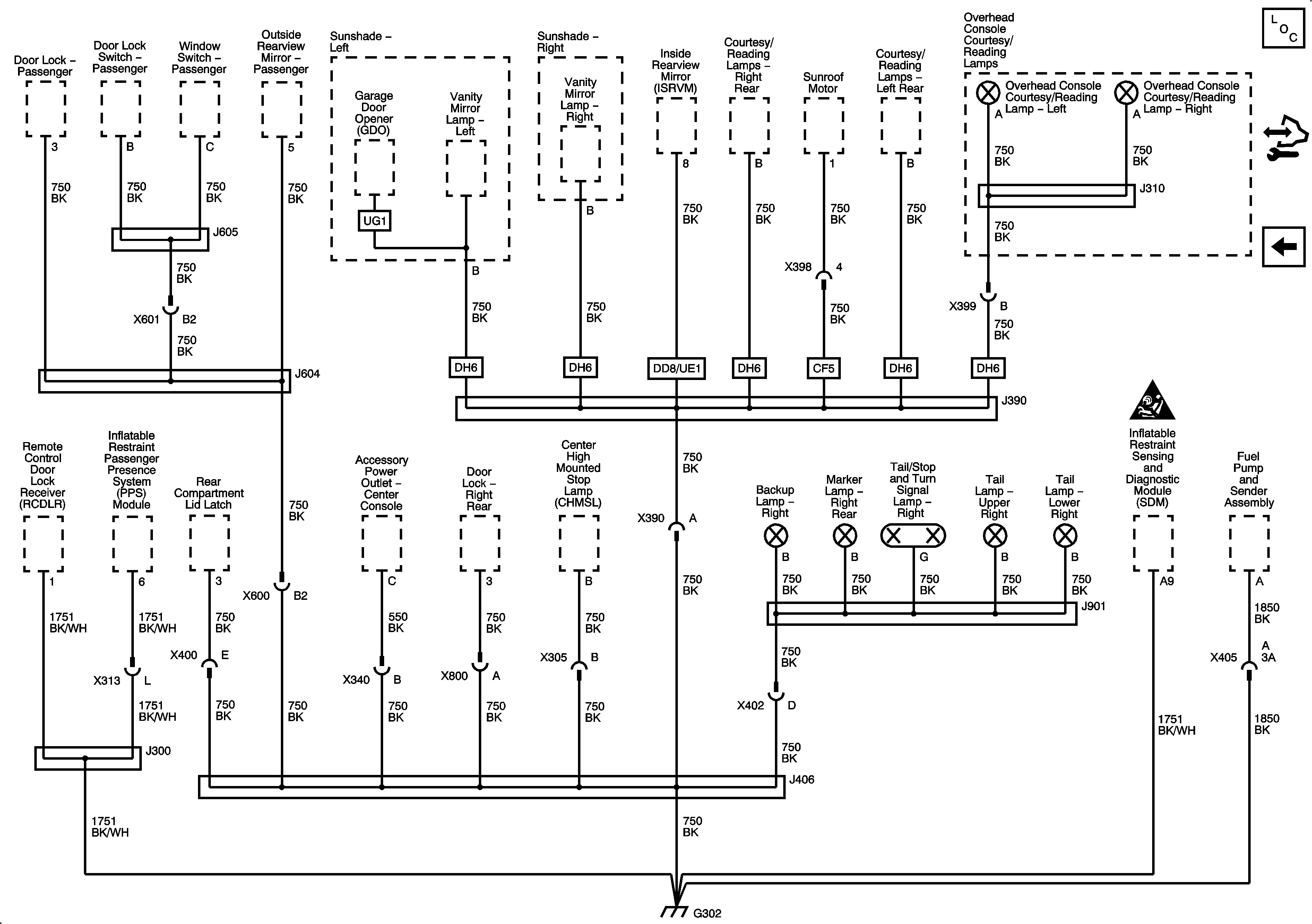

Figure 11:	G302 Master Electrical Component List Control Module References G130, G131, LY7 G301
