Instrument Cluster Schematics. Buick Allure 2008

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2008 🢒 Allure 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Instrument Cluster Schematics

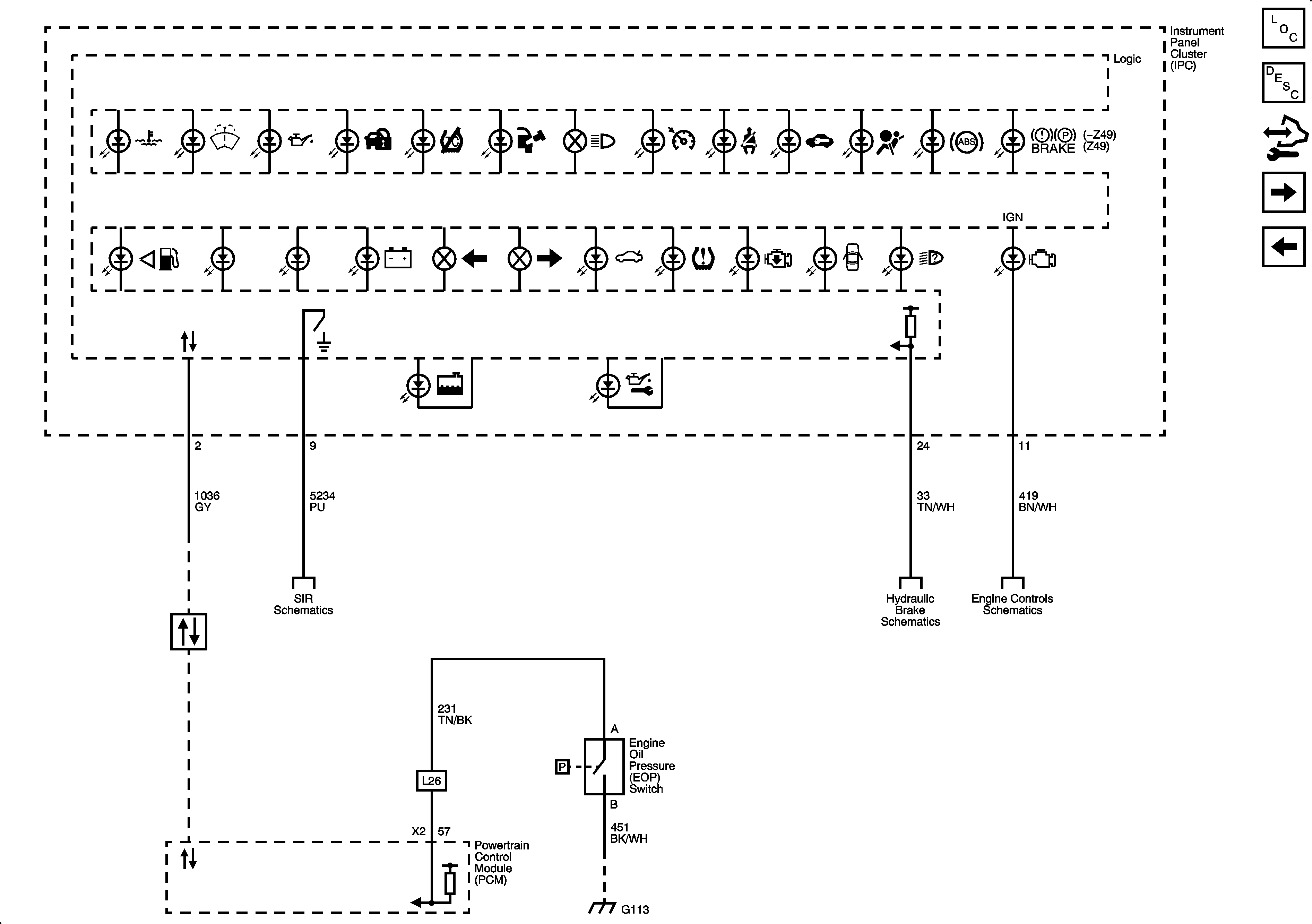

Figure 1:	Power, Ground, Serial Data, and Gages - L26 Master Electrical Component List Instrument Cluster Description and Operation Control Module References Power, Ground, Serial Data, and Gages LY7

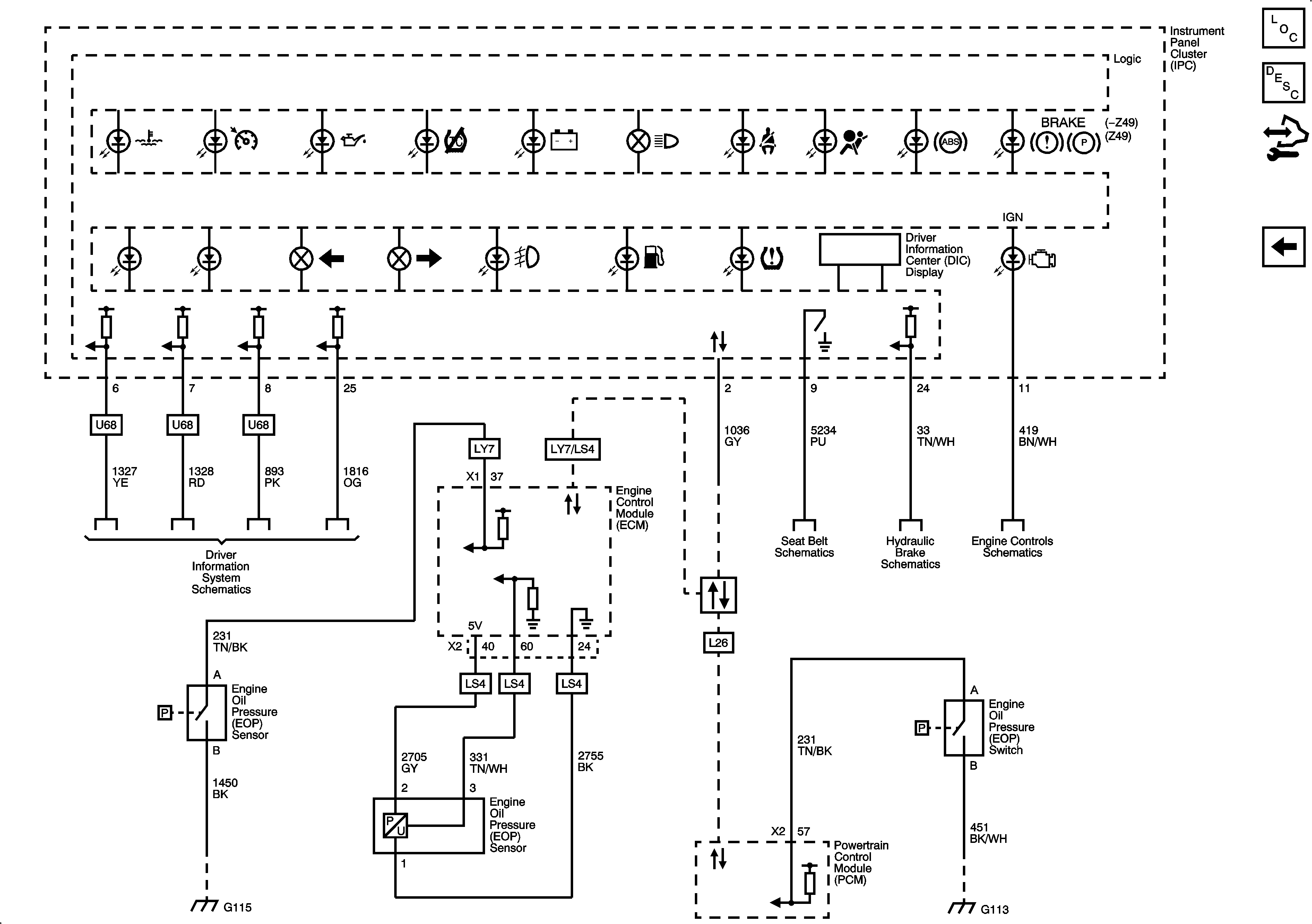

Figure 2:	Power, Ground, Serial Data, and Gages - LY7 Master Electrical Component List Instrument Cluster Description and Operation Control Module References Indicators U2E Power, Ground, Serial Data, and Gages L26

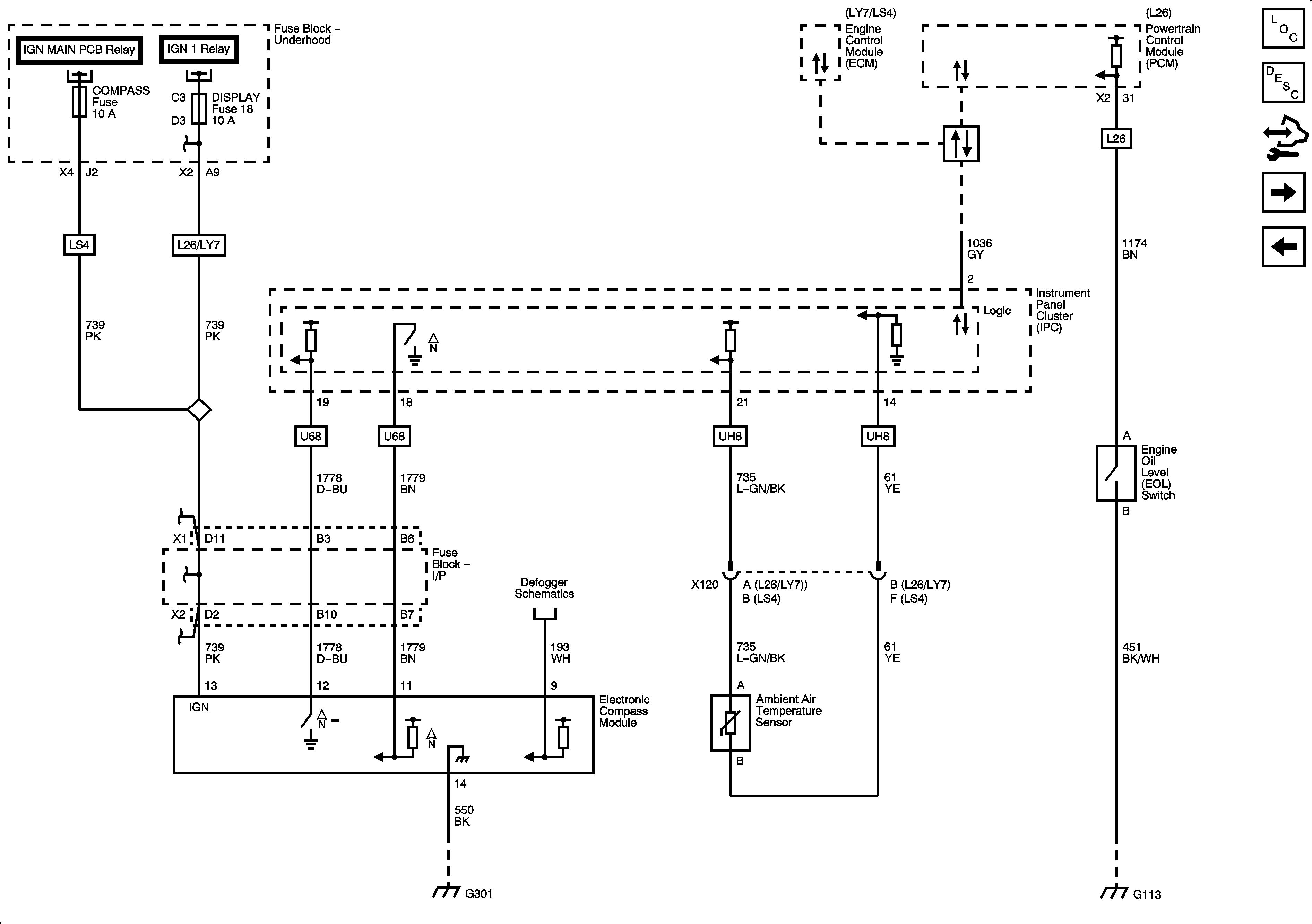

Figure 3:	Ambient Air Temperature Sensor, Electronic Compass Module, and Oil Level Switch Master Electrical Component List Indicator/Warning Message Description and Operation Control Module References Indicators UH8

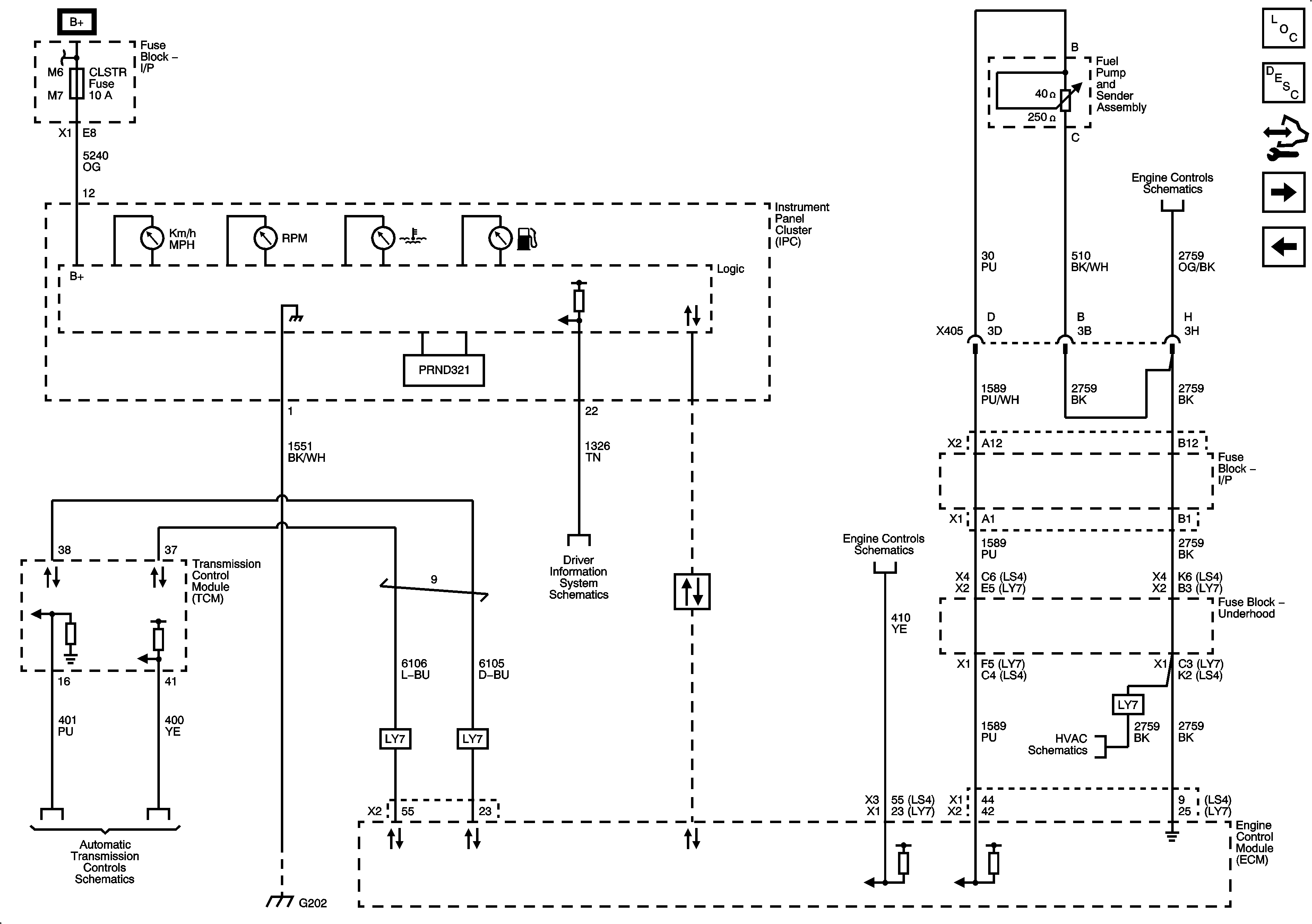

Figure 4:	Indicators - U2E Master Electrical Component List Indicator/Warning Message Description and Operation Control Module References Indicators UH8 Power, Ground, Serial Data, and Gages LY7

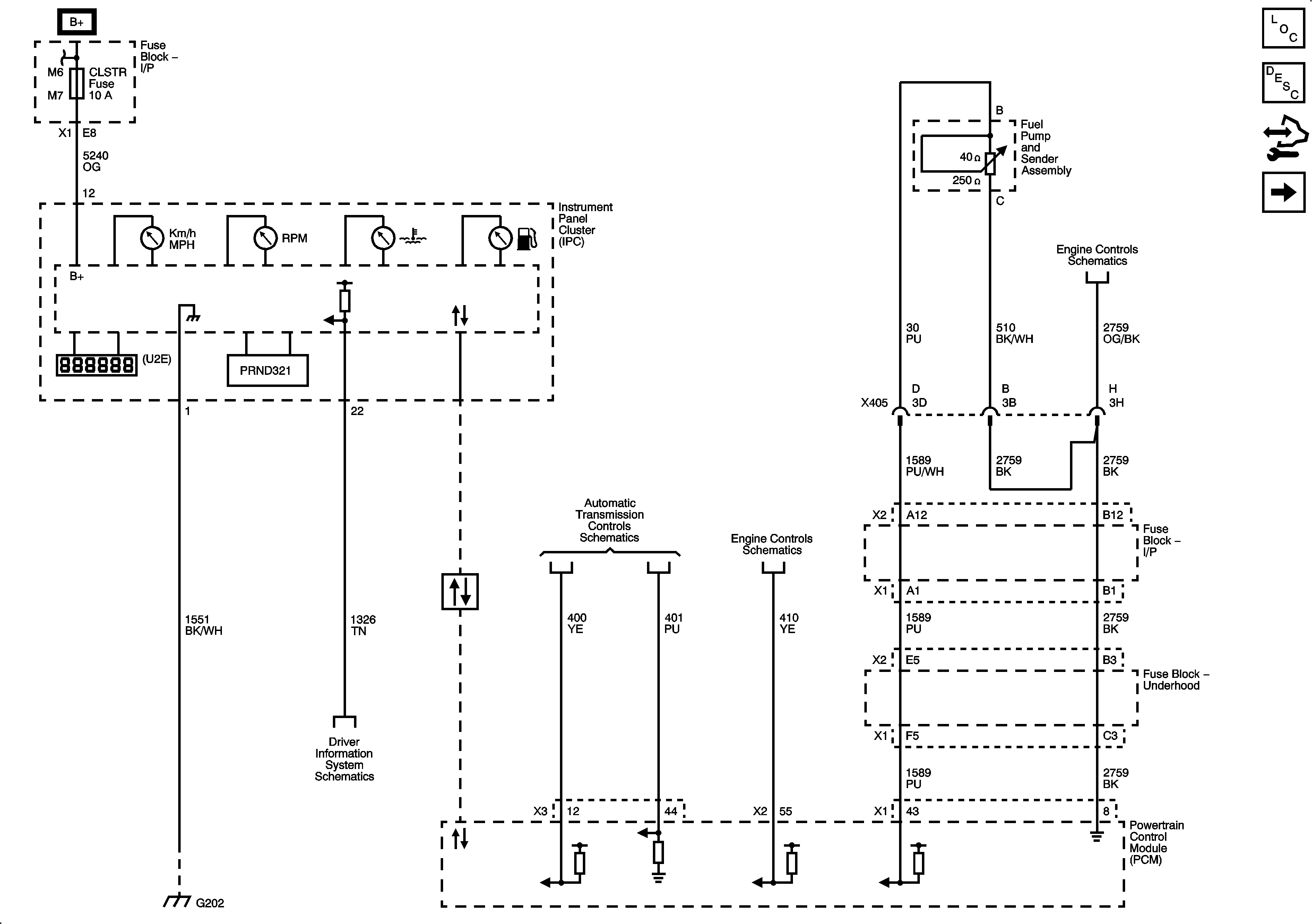

Figure 5:	Indicators - UH8 Master Electrical Component List Indicator/Warning Message Description and Operation Control Module References Ambient Air Temperature Sensor, Electronic Compass Indicators U2E
