Makes 🢒 Buick 🢒 2009 🢒 Allure 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Instrument Panel/Center Console Component Views

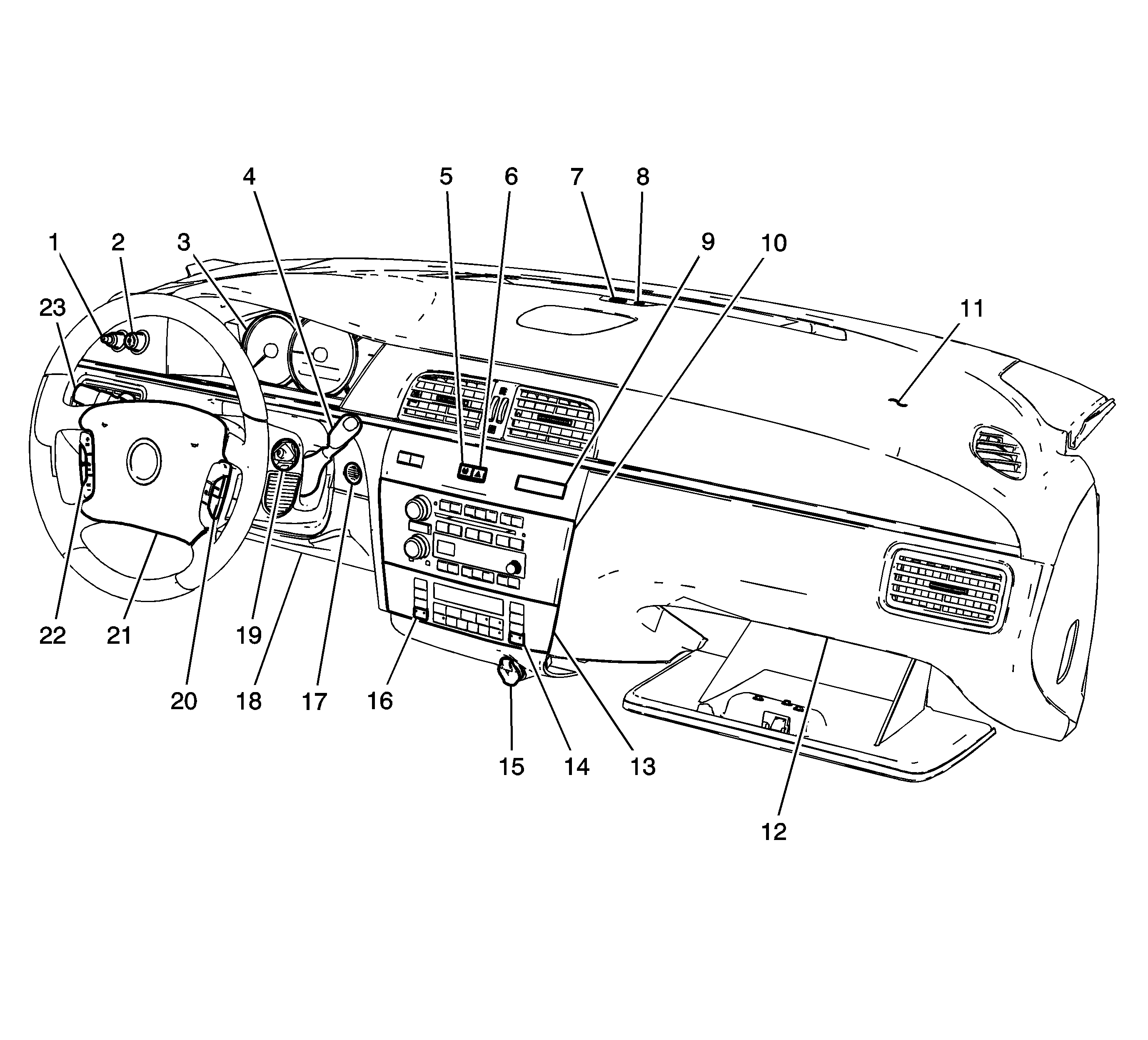

Figure 1:

Instrument Panel Overview
Object Number: 2039862 Size: LF
(1)Multifunction Switch - I/P (Exterior Lamps)
(2)Multifunction Switch - I/P (Interior Lamps)
(3)Instrument Panel Cluster (IPC)
(4)Automatic Transmission Shift Lock Control Solenoid (without D55)
(5)Traction Control Switch (Part of Driver information Center (DIC) Switch)
(6)Hazard Switch (Part of Driver information Center (DIC) Switch)
(7)Sunload Sensor (CJ2)
(8)Ambient Light Sensor (C67)
(9)Driver Information Center (DIC) Switch
(10)Radio
(11)Inflatable Restraint I/P Module
(12)I/P Compartment Lamp Switch
(13)HVAC Control Module
(14)Heated Seat Switch - Passenger (Part of HVAC Control Module) (KA1)
(15)Cigar Lighter
(16)Heated Seat Switch - Driver (Part of HVAC Control Module) (KA1)
(17)Air Temperature Sensor - Inside (CJ2)
(18)Data Link Connector (DLC)
(19)Ignition Switch
(20)Steering Wheel Control Switch - Right (UK3)
(21)Inflatable Restraint Steering Wheel Module
(22)Steering Wheel Control Switch - Left (UK3)
(23)Turn Signal/Multifunction Switch
Figure 2:

Behind the I/P Components
Object Number: 1510569 Size: LF
(1)I/P Compartment Lamp Switch
(2)HVAC Control Module
(3)Radio
(4)Air Temperature Sensor - Inside (CJ2)
(5)Steering Wheel
(6)Instrument Panel Cluster (IPC)
(7)Body Control Module (BCM)
(8)Steering Angle Sensor (JL4)
(9)Vehicle Communication Interface Module (VCIM) (UE1)
(10)Cigar Lighter
(11)Fuse Block - I/P
Figure 3:

Left Front of the Passenger Components
Object Number: 525021 Size: LF
(1)Ignition Switch
(2)Theft Deterrent Module (TDM)
(3)Ignition lock Cylinder Control Actuator (D55)
Figure 4:

Left Side I/P Components
Object Number: 1552087 Size: LF
(1)Instrument Panel
(2)I/P Courtesy Lamp - Left
Figure 5:

Right Side I/P Components
Object Number: 1552086 Size: LF
(1)Instrument Panel
(2)Fuse Block - I/P
(3)I/P Courtesy Lamp - Right
Figure 6:

Center of I/P Components
Object Number: 1507662 Size: LF
(1)Air Temperature Sensor - Inside (CJ2)
(2)Air Temperature Sensor - Upper Left (CJ2)
(3)Air Temperature Sensor - Upper Right (CJ2)
(4)Air Temperature Sensor - Lower Right (CJ2)
(5)Air Temperature Sensor - Lower Left (CJ2)
(6)Recirculation Actuator
(7)Blower Motor
(8)Blower Motor Control Module
(9)Air Temperature Actuator - Right (CJ2) or Air Temperature Actuator (CJ2)
(10)Mode Actuator
(11)HVAC Control Module
(12)Air Temperature Actuator - Left (CJ2)
Figure 7:

Left Kick Panel Components
Object Number: 1507645 Size: LF
(1)G202
(2)G200
(3)Data Link Connector (DLC)
(4)Steering Column
Figure 8:

Steering Column Components
Object Number: 1456738 Size: LF
(1)Steering Angle Sensor (JL4)
(2)X201
(3)Automatic Transmission Shift Lock Control Solenoid Connector (without D55)
(4)Horn Switch Connector
(5)Inflatable Restraint Steering Wheel Module Coil X5 Connector
(6)Steering Wheel Control Switch - Left (UK3)
(7)Turn Signal/Multifunction Switch
(8)Body Control Module (BCM) X3 Connector
Figure 9:

Center Console Components 1 of 2 (D55)
Object Number: 1211267 Size: LF
(1)Automatic Transmission Shift Lock Control Solenoid
(2)Automatic Transmission Shift Lever Position Indicator
(3)X341
(4)X340
Figure 10:

Center Console Components 2 of 2 (D55)
Object Number: 1456699 Size: LF
(1) Accessory Power Outlet
(2)X340
Figure 11:

Lower Left Footwell Components 1 of 2
Object Number: 1266788 Size: MF
(1)Park Brake Switch
Figure 12:

Lower Left Footwell Components 2 of 2
Object Number: 1320525 Size: LF
(1)Accelerator Pedal Position (APP) Sensor
(2)Brake Pedal Position (BPP) Sensor
