Entertainment Component Views ALL

Figure 1:

Radio -- Center of Instrument Panel
Object Number: 305327 Size: SH
(1)Radio
(2)Antenna Lead
(3)C290
Figure 2:

Radio/Cellular Communication
Object Number: 329656 Size: LF
(1)Radio
(2)C252
(3)C250
(4)Cellular Communication Jumper Harness
Figure 3:

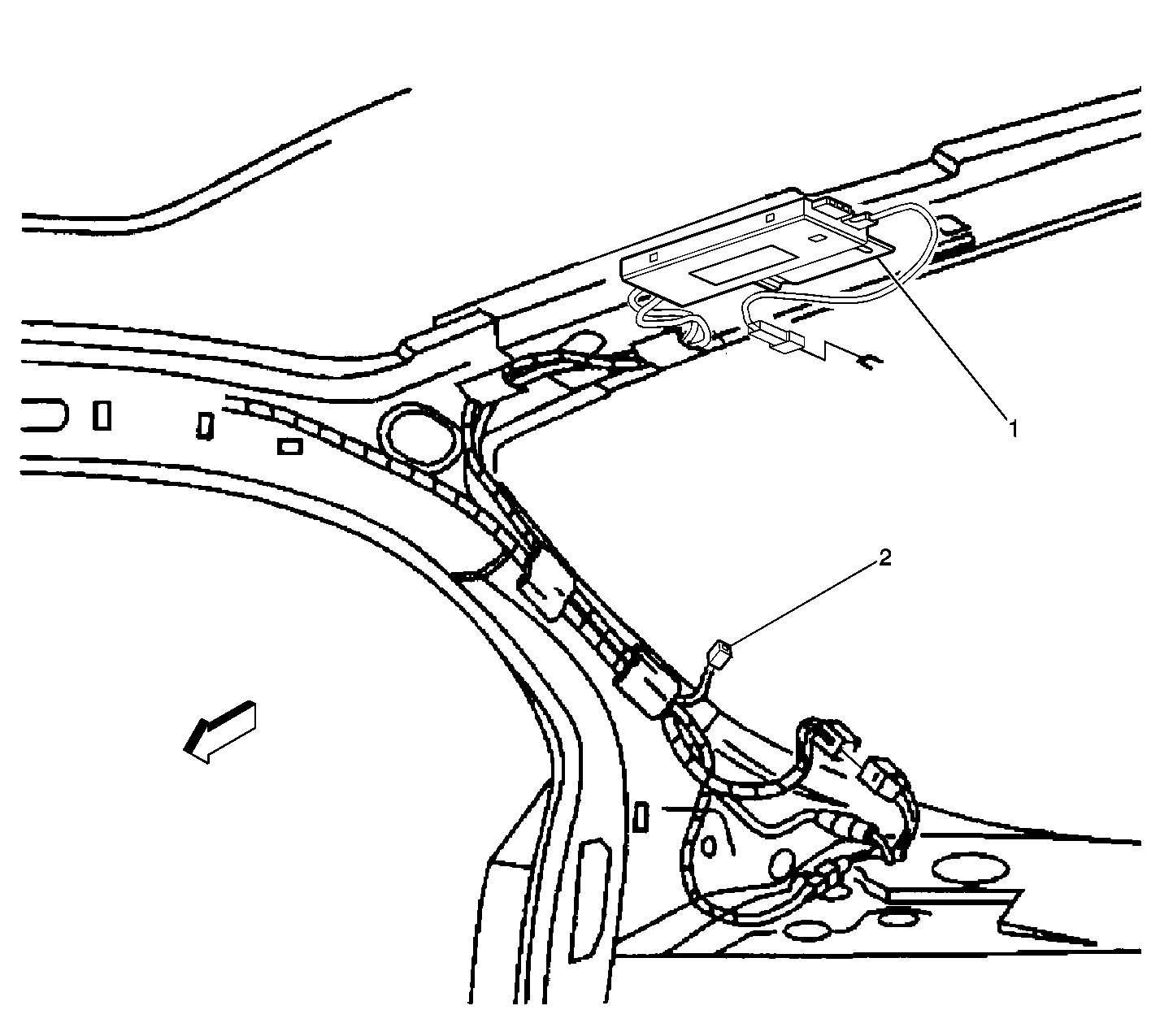

Right Side of Pillar C
Object Number: 401013 Size: LF
(1)Radio Antenna Module
(2)Rear Window Defogger Grid Connector
Figure 4:

Steering Wheel Component View
Object Number: 389029 Size: LF
(1)Cruise Control Switch
(2)Turn Signal and Headlamp Dimmer and Windshield Wiper/Washer Switch (Lever)
(3)Inflatable Restriant Steering Wheel Module Coil
(4)Radio Control Switches Connector
(5)Inflatable Restraint Steering Wheel Module Coil Connector
(6)Inflatable Restraint Steering Wheel Module
(7)Horn Switch B+ Connector
(8)Horn Switch Ground Connector
(9)Radio Control Switch

Entertainment Component Views w/ Bose RPO U85

Figure 1:

Rear Compartment Below Rear Deck
Object Number: 388932 Size: LF
(1)Low Freguency Audio Amplifier Connector
(2)Low Freguency Audio Amplifier
Figure 2:

Bose® Speaker (w/ RPO U85 Only) -- LH Side of Rear Window Panel (RH Side Similar)
Object Number: 305360 Size: LF
(1)Radio Rear Bose® Speaker
(2)Rear Window Panel
(3)Body Wiring Harness

Entertainment Component Views w/o Bose U85

Left Front Door
Object Number: 389002 Size: LF
(1)Radio Front Door Speaker
(2)Radio Front Door Speaker (Tweeter) Connector
(3)Door Courtesy Lamp
(4)Door Courtesy Lamp Connector

Entertainment Component Views RPO U1S

CD Player -- RH Side of Rear Compartment
Object Number: 305364 Size: LF
