Power and Grounding Component Views. Buick Century 2005

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2005 🢒 Century 🢒 Engine 🢒 Engine Electrical 🢒 Power and Grounding Component Views

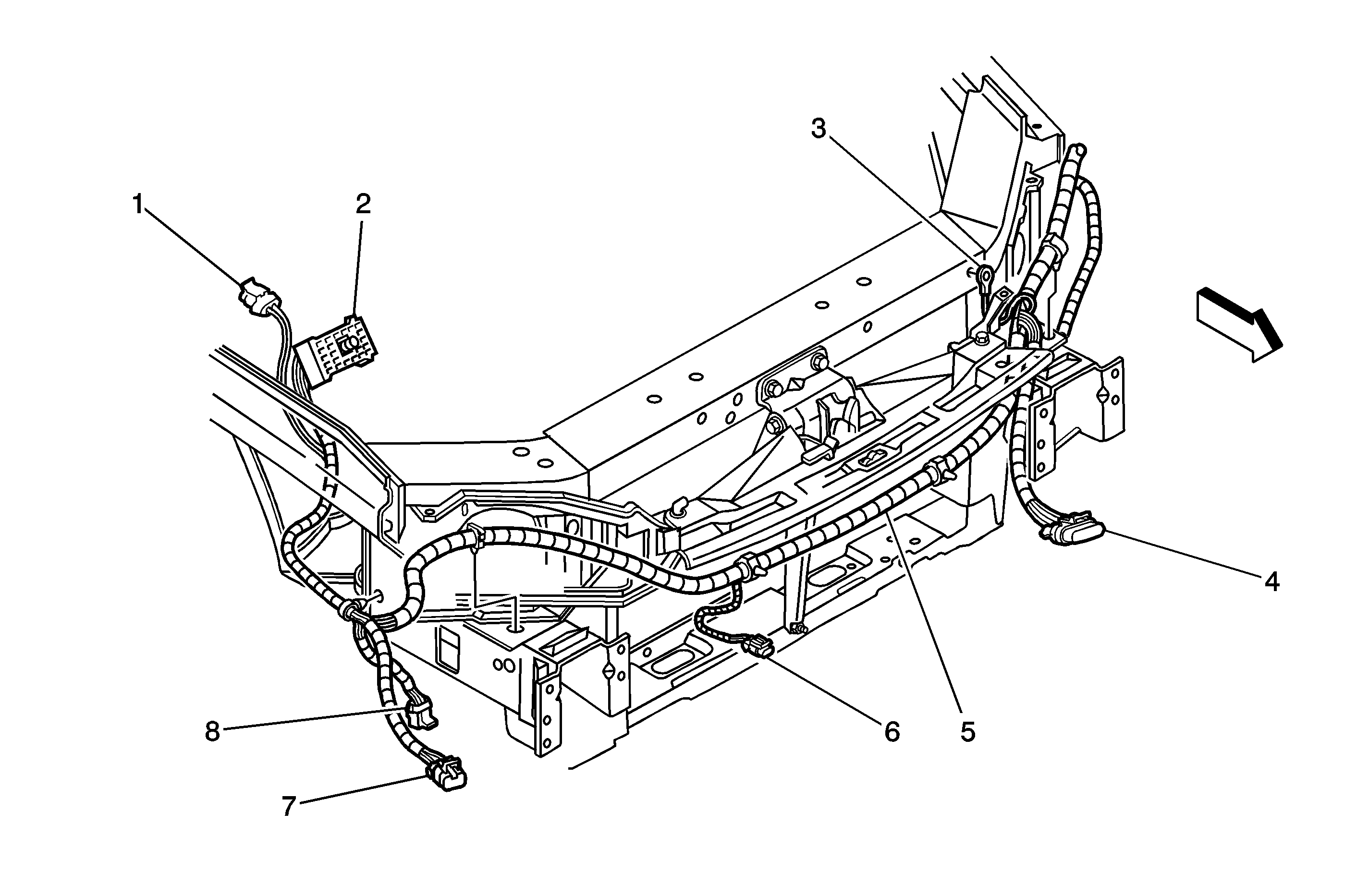

Figure 1:


(1)	C120 (CJ2)
(2)	Fuse Block - Underhood, C3
(3)	G101
(4)	C106
(5)	Forward Lamp Wiring Harness
(6)	Ambient Outside Air Temperature Sensor Connector (CJ2)
(7)	C107
(8)	C103

Figure 2:

Figure 3:


(1)	Underhood Accessory Wiring Junction, C6
(2)	Underhood Accessory Wiring Junction Block, C3 (Forward Lamp)
(3)	Underhood Accessory Wiring Junction Block, C2 (Instrument Panel)
(4)	Underhood Accessory Wiring Junction Block, C1 (Engine)
(5)	Underhood Accessory Wiring Junction Block, C7
(6)	Underhood Accessory Wiring Junction Block, C5
(7)	Underhood Accessory Wiring Junction Block, C4

Figure 4:


(1)	G111
(2)	G113
(3)	C113
(4)	Electronic Brake Control Module (EBCM) Connector (JL9)
(5)	C101
(6)	A/C Refrigerant Pressure Sensor Connector
(7)	Wheel Speed Sensor (WSS) - LF (JL9)

Figure 5:


(1)	P103
(2)	I/P Wiring Harness
(3)	Cruise Control Module (CCM) Connector
(4)	Cruise Control Module (CCM) (K34)
(5)	Electronic Brake Control Module (EBCM) (JL9)
(6)	Electronic Brake Control Module (EBCM) Connector (JL9)
(7)	Engine Wiring Harness
(8)	Brake Fluid Level Switch
(9)	C101
(10)	A/C Refrigerant Pressure Sensor
(11)	Engine Wiring Harness
(12)	G171 (JL9)

Figure 6:


(1)	Steering Wheel
(2)	Cruise Control On/Off Switch (K34)
(3)	Turn Signal/Multifunction Switch
(4)	Ignition Lock Cylinder
(5)	Ignition Switch
(6)	Inflatable Restraint Steering Wheel Module Coil
(7)	C203 (UK3)
(8)	Inflatable Restraint Steering Wheel Module Connector

Figure 7:

Figure 8:

Figure 9:

Figure 10:


(1)	Speaker - RR Connector
(2)	G401
(3)	P425
(4)	Evaporative Emissions (EVAP) Canister Vent Solenoid Connector
(5)	C402
