HVAC Component Views. Buick Century (China) 2000

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2000 🢒 Century (China) 🢒 HVAC 🢒 HVAC Systems - Manual 🢒 HVAC Component Views

Figure 1:


(1)	Foward Lamp Wiring Harness
(2)	Ambient Outside Air Temperature Sensor

Figure 2:


(1)	Vacuum/ Electric Solenoid
(2)	Accessory Time Delay (RAP) Relay, Rear Window Defogger Relay, Rear Compartment Lid Release Relay and Driver Unlock Relay

Figure 3:


(1)	Bank 1 Knock Sensor
(2)	Engine Oil Pressure Indicator Switch
(3)	C172 (Inline to RF Wheel Speed Sensor)
(4)	A/C Compressor Clutch Coil
(5)	Underhood Accessory Wiring Junctin Block, C3 (Forward Lamp Harness)

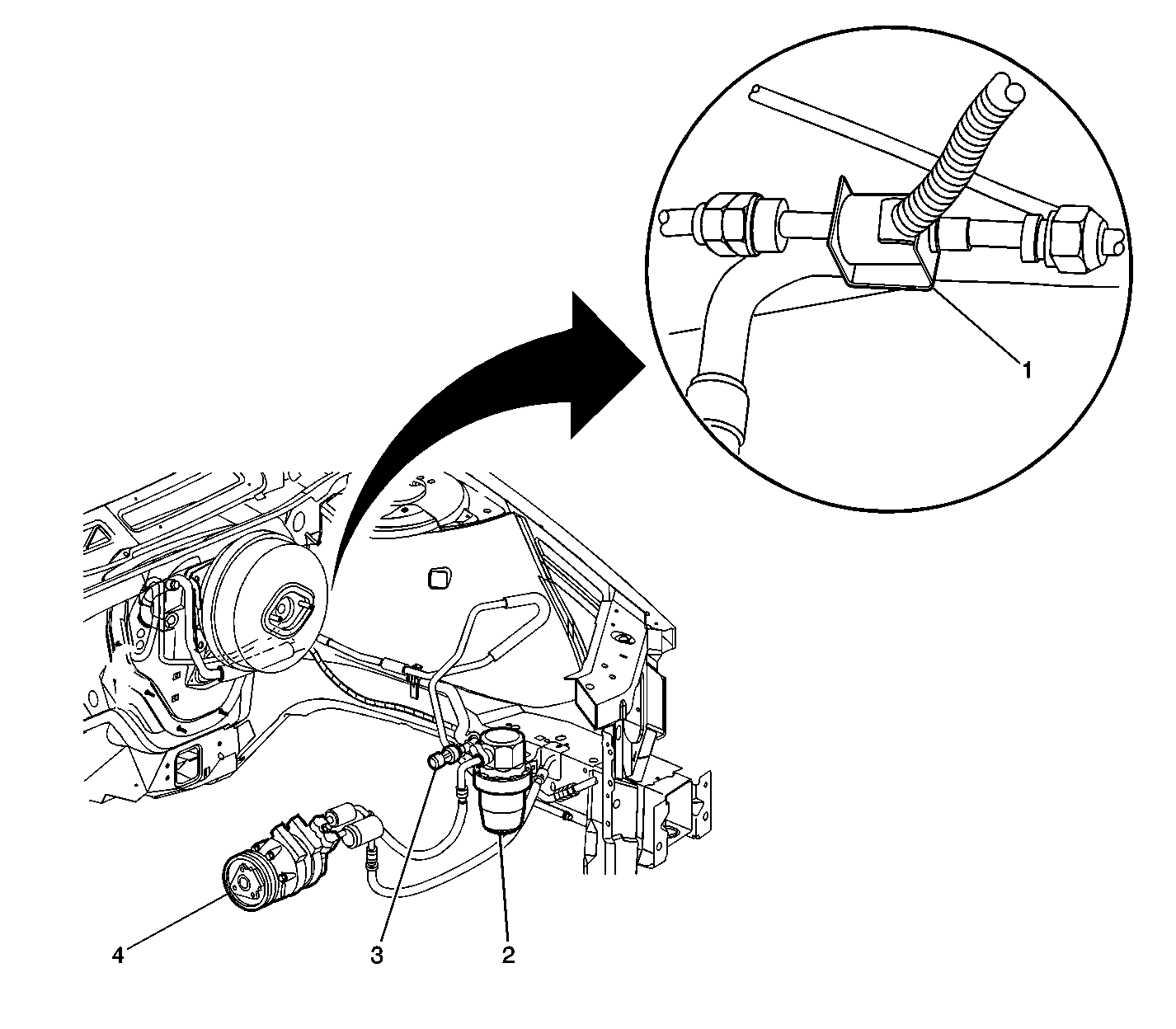

Figure 4:


(1)	Two (2) Stage Orifice
(2)	A/C Accumulator
(3)	A/C Refrigerent Pressure Sensor
(4)	A/C Compressor

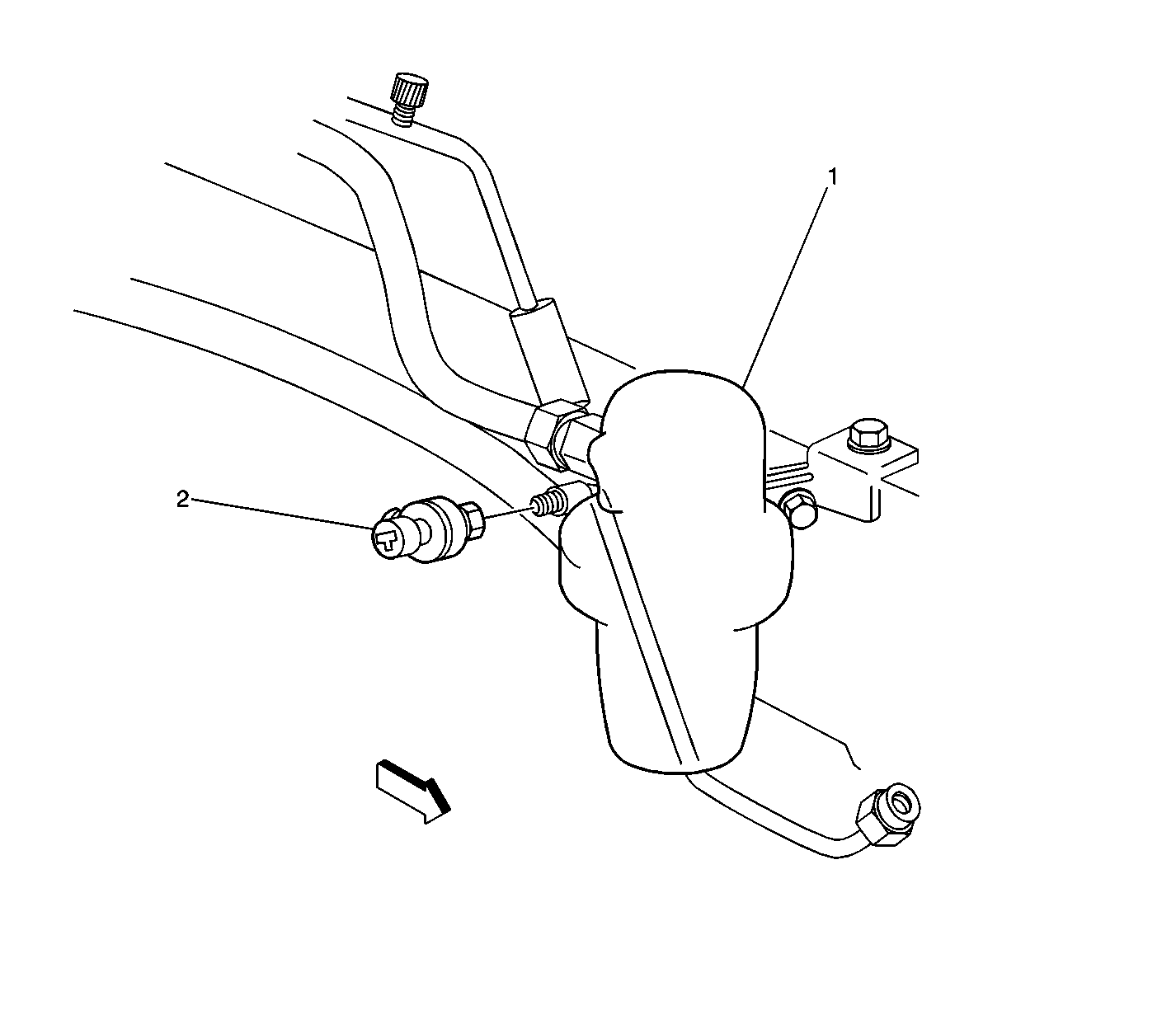

Figure 5:


(1)	Accumulator
(2)	A/C Refrigerent Pressure Sensor

Figure 6:


(1)	HVAC Control Connector
(2)	HVAC Control Assembly

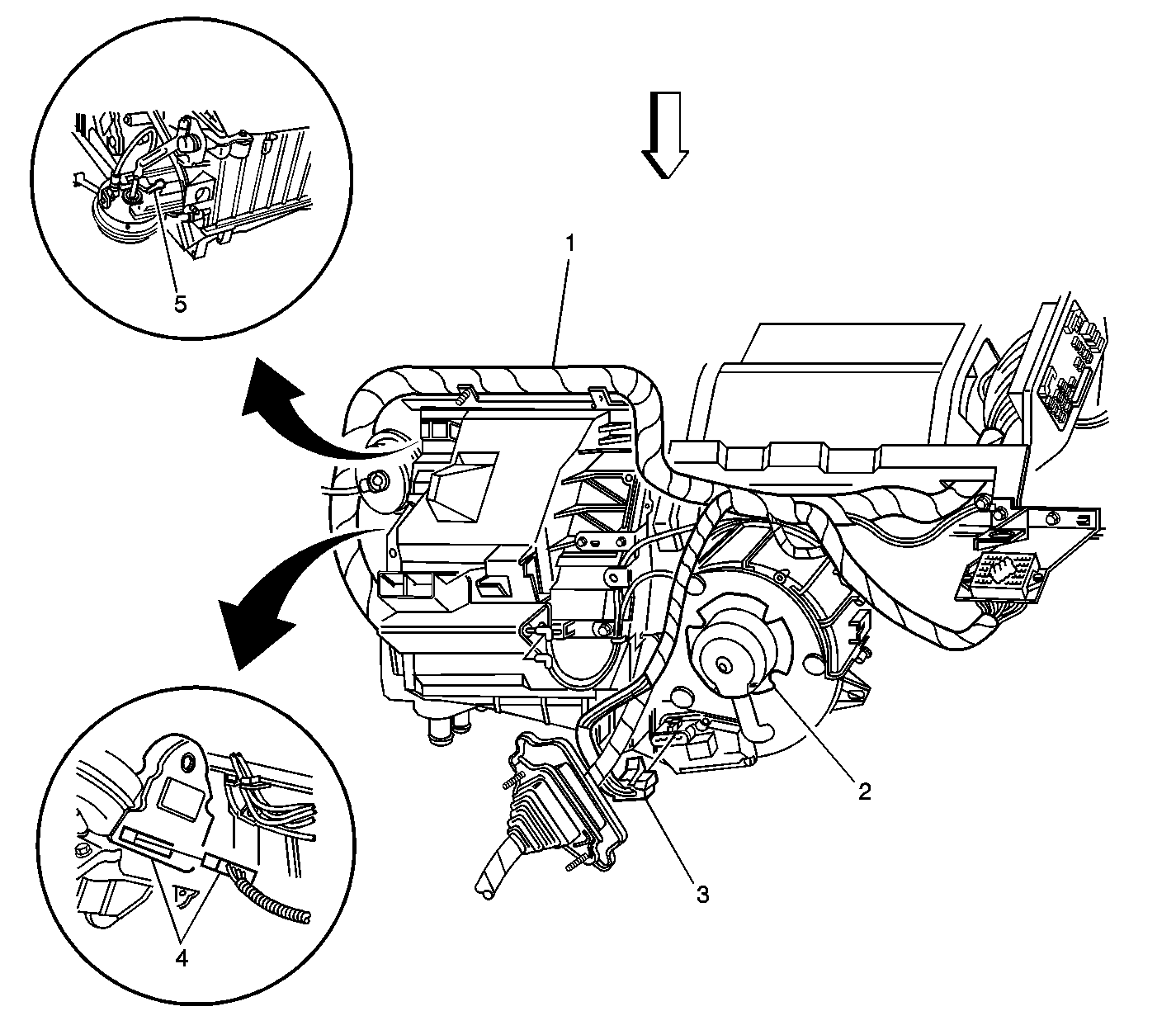

Figure 7:


(1)	Instrument Panel Wiring Harness
(2)	Blower Motor
(3)	Blower Motor Resistor Connector
(4)	LH Temperature Actuator
(5)	Mode Actuator Vacuum Line

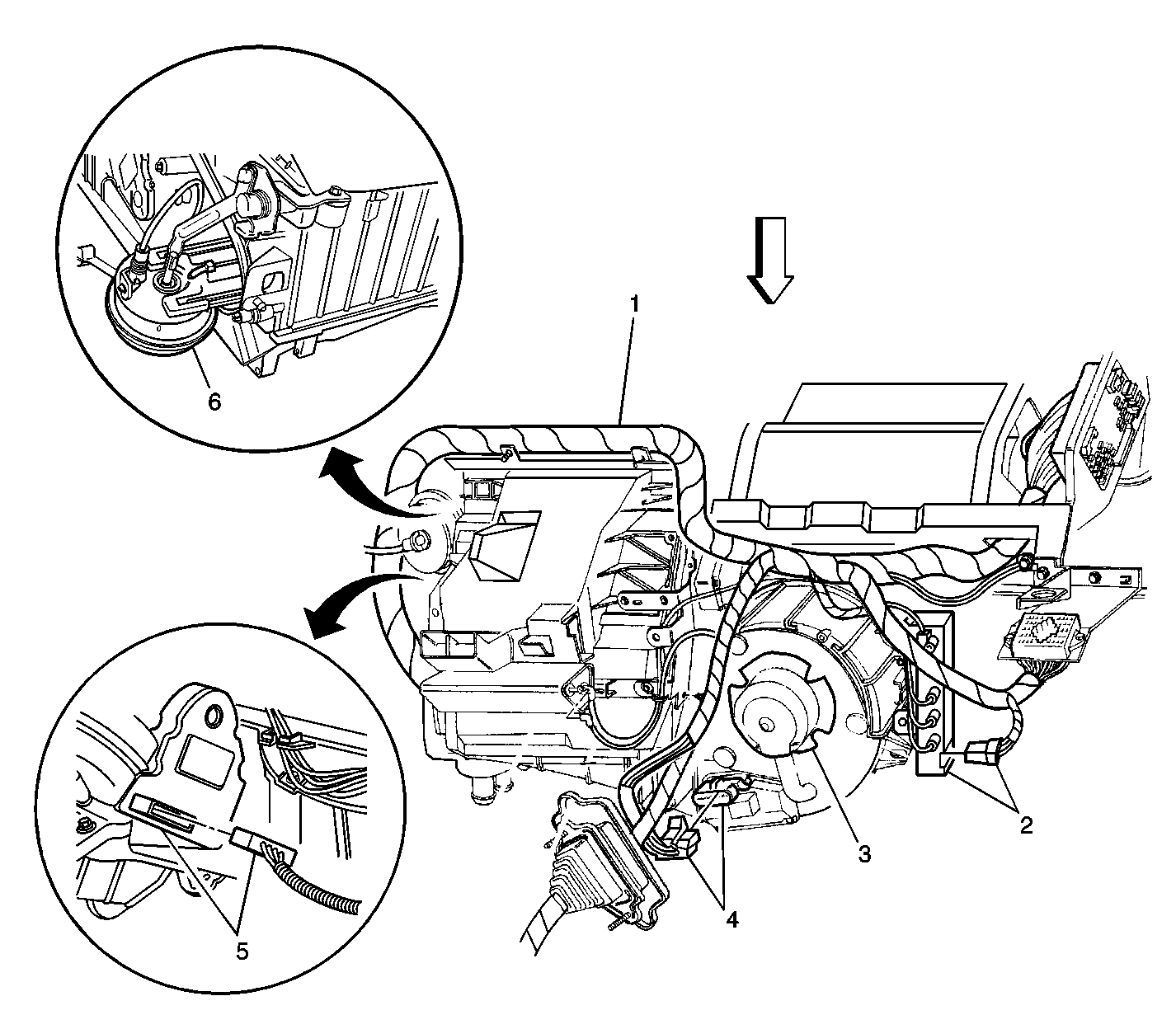

Figure 8:

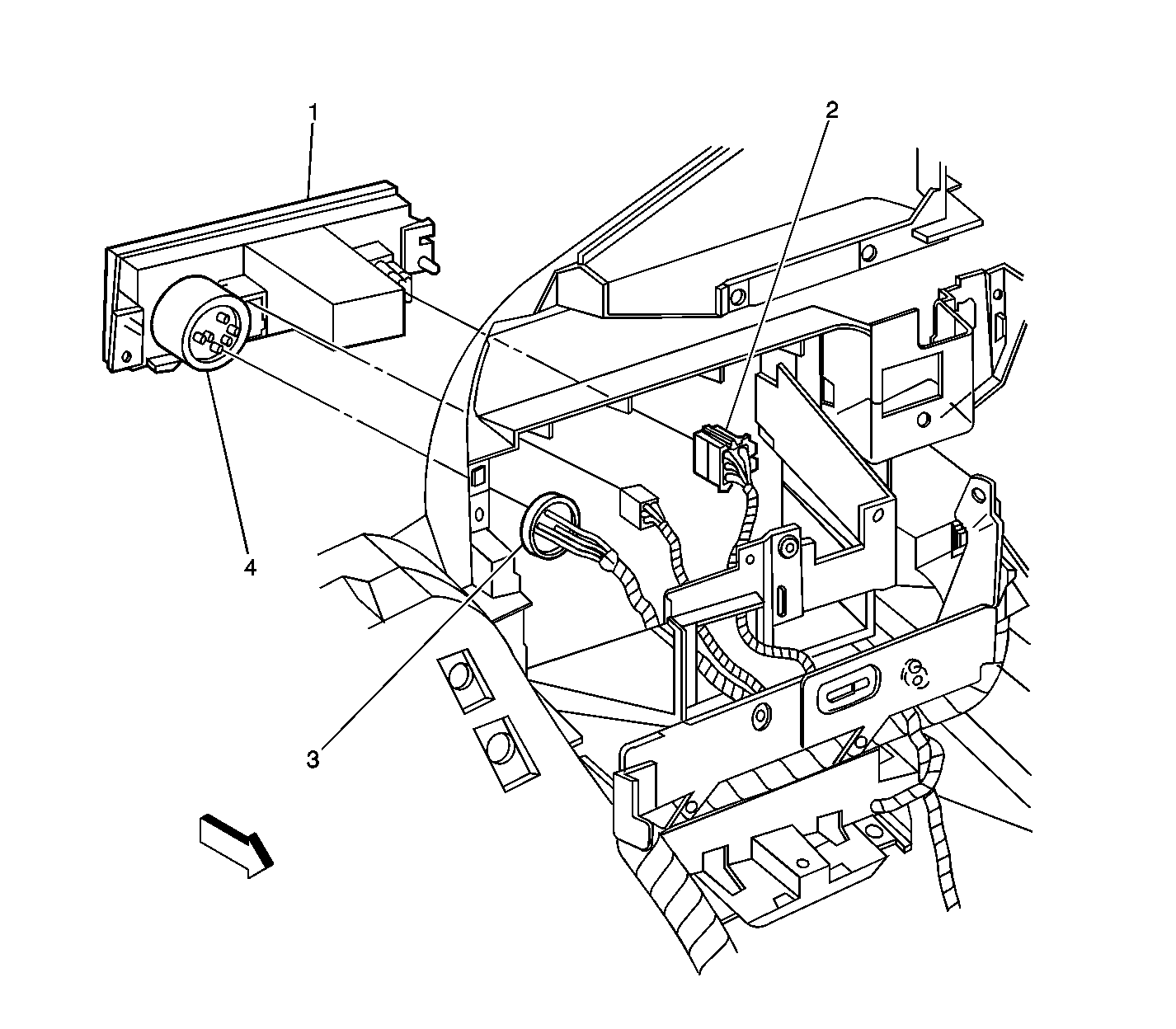

Figure 9:


(1)	HVAC Control Assembly (C60)
(2)	HVAC Control Assembly (C60) Connector
(3)	HVAC Vacuum Connector (C60)
(4)	HVAC Vacuum Control Head (C60)

Figure 10:


(1)	Instrument Panel Wiring Harness
(2)	Air Temperature Actuator-- Left Connector
(3)	Air Temperature Actuator-- Left

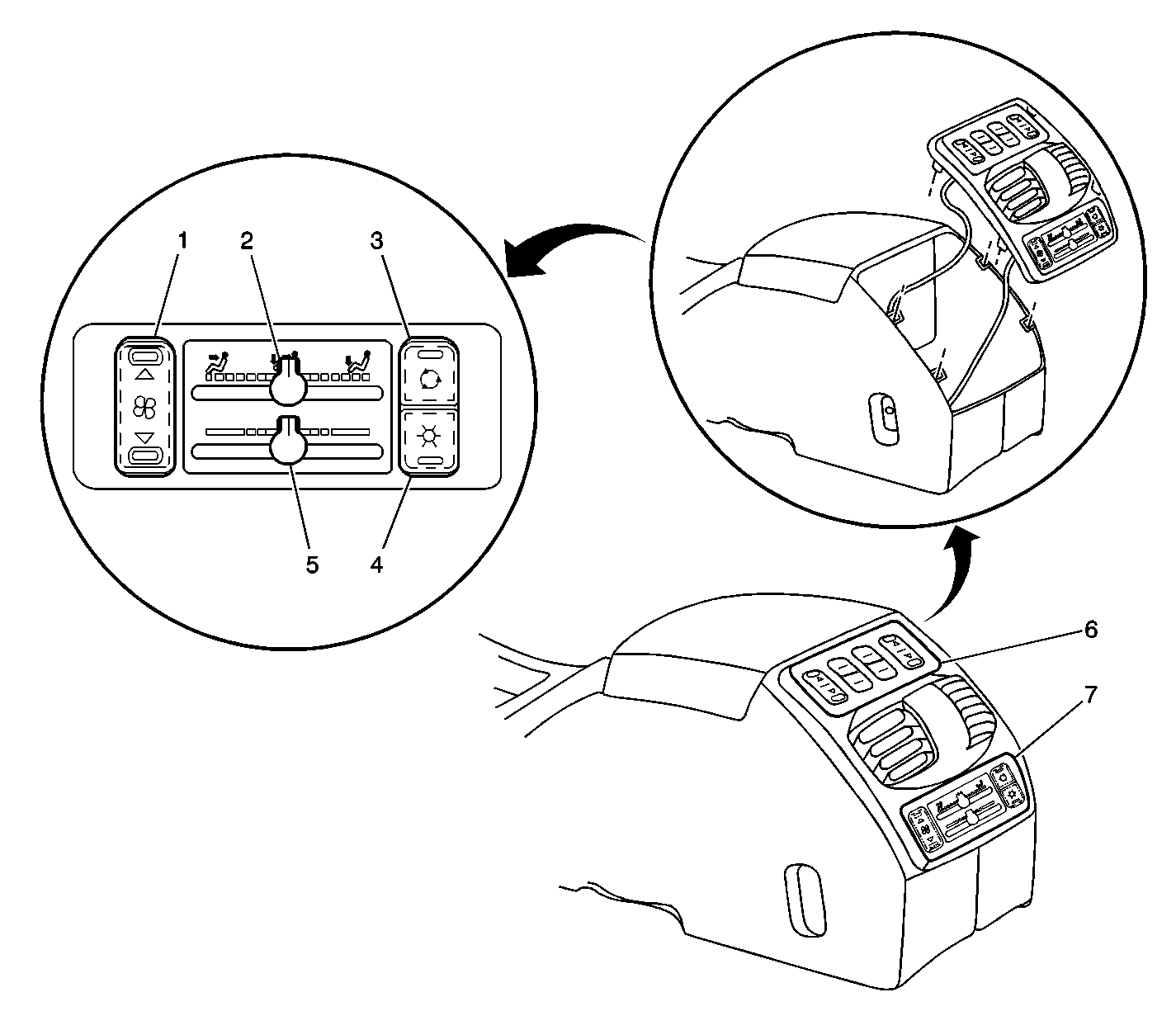

Figure 11:


(1)	Fan Control
(2)	Mode Control
(3)	Recirculation Button
(4)	A/C Button
(5)	Temperaturer Control
(6)	Rear Radio Control Module
(7)	Rear HVAC Control Module (RPO CJ4)

Figure 12:
