Figure 1:

Top of Instrument Panel, Inside Defogger Vent
Object Number: 492751 Size: LF
(1)Automatic Headlamp Ambient Light Sensor
Figure 2:

Lower Left Side of Instrument Panel
Object Number: 500478 Size: LF
(1)Driver Information Center (DIC)
Figure 3:

Left Lower Instrument Panel
Object Number: 492749 Size: LF
(1)Instrument Panel Wiring Harness
(2)Automatic Headlamp Control Module
(3)Automatic Headlamp Control Module Connector, C1
(4)Automatic Headlamp Control Module Connector, C2
Figure 4:

Below Instrument Panel, Above Steering Wheel
Object Number: 492748 Size: LF
(1)Brake Lamp Switch Connector, C1
(2)Brake Lamp Switch Connector, C2
(3)Brake Switch
Figure 5:

Rear Package Shelf
Object Number: 492752 Size: LF
(1)Center High Mounted Stop Lamp (CHMLS)
Figure 6:

Left Front Door (Driver's)
Object Number: 492755 Size: LF
(1)Door Courtesy Lamp
(2)Door Courtesy Lamp Connector
Figure 7:

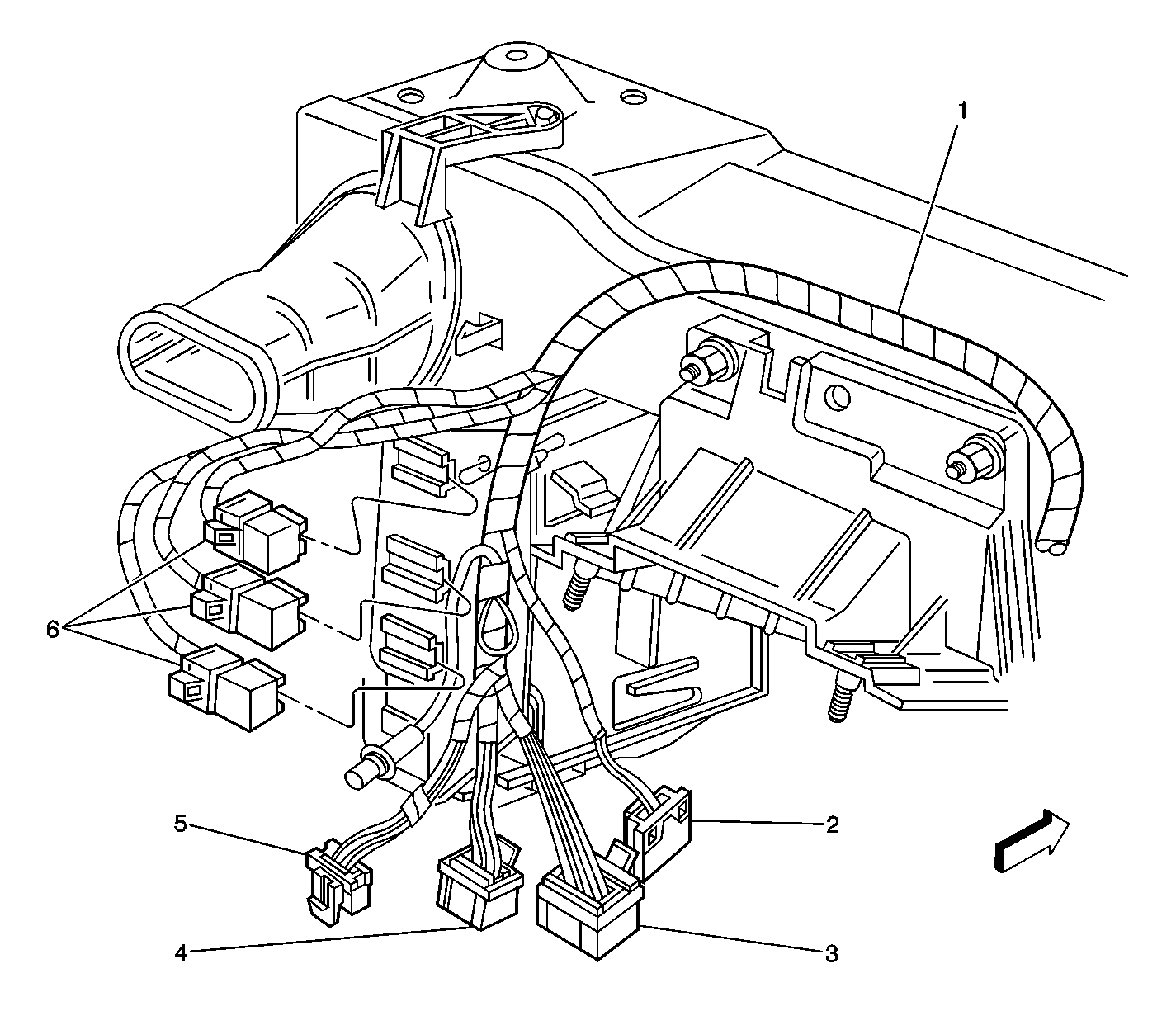

Behind Left Side of Instrument Panel (GLX)
Object Number: 490902 Size: LF
(1)Instrument Panel Wiring Harness
(2)Fog Lamp and Deck Lid Switch Conector
(3)Body Control Module Connector, C1
(4)Body Control Module Connector, C2
(5)Body Control Module Connector, C3
(6)Backup Relay, Rear Fog Lamp Relay and Hazard Lamp and Turn SIgnal Flasher
Figure 8:

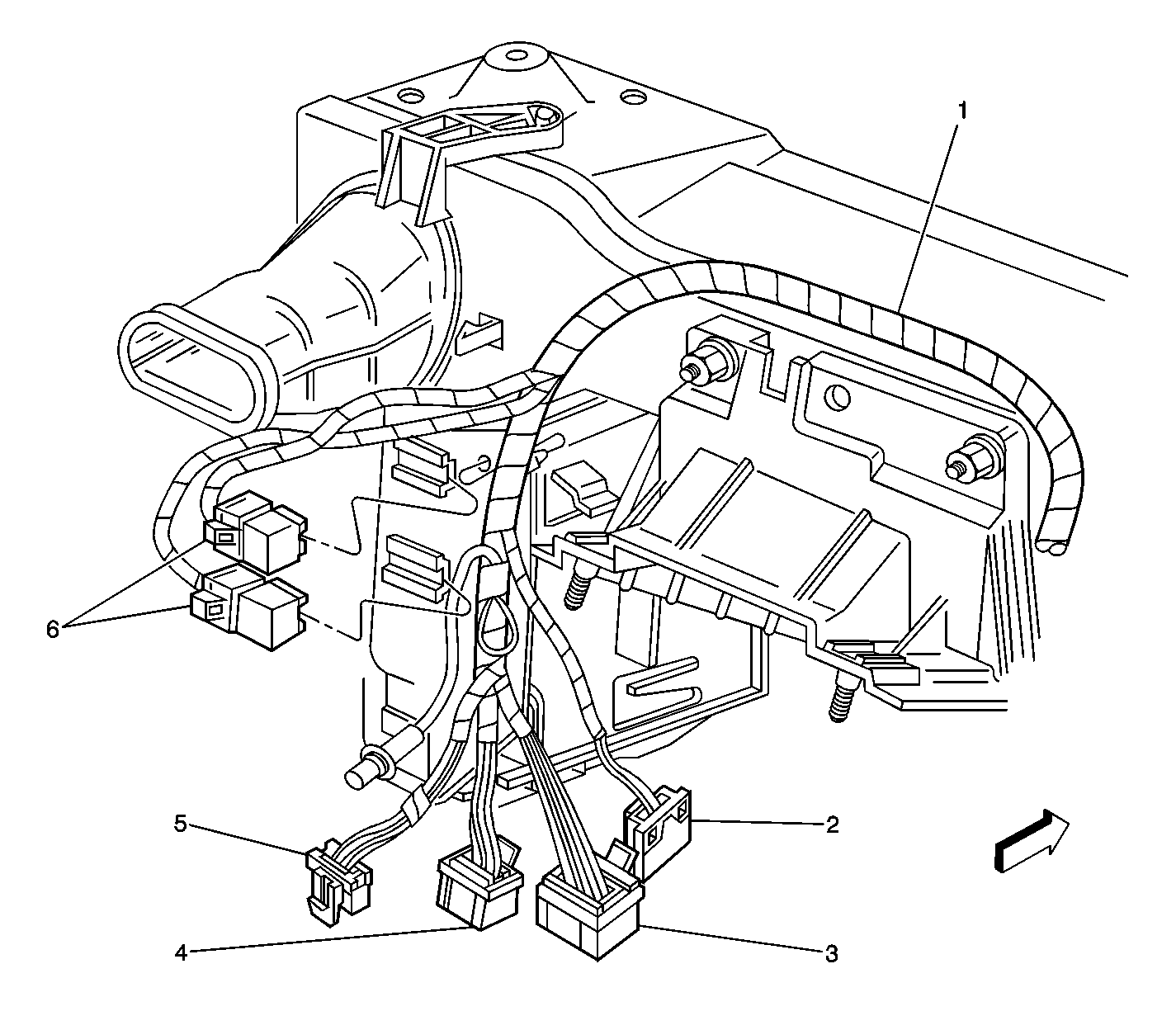

Behind Left side of Instrument Panel
Object Number: 490903 Size: LF
(1)Instrument Panel Wiring Harness
(2)Fog Lamp and Deck Lid Switch Connector
(3)Body Control Module Connector, C1
(4)Body Control Module Connector, C2
(5)Body Control Module Connector, C3
(6)Rear Fog Lamp, Hazard Lamp and Turn Signal Flasher
Figure 9:

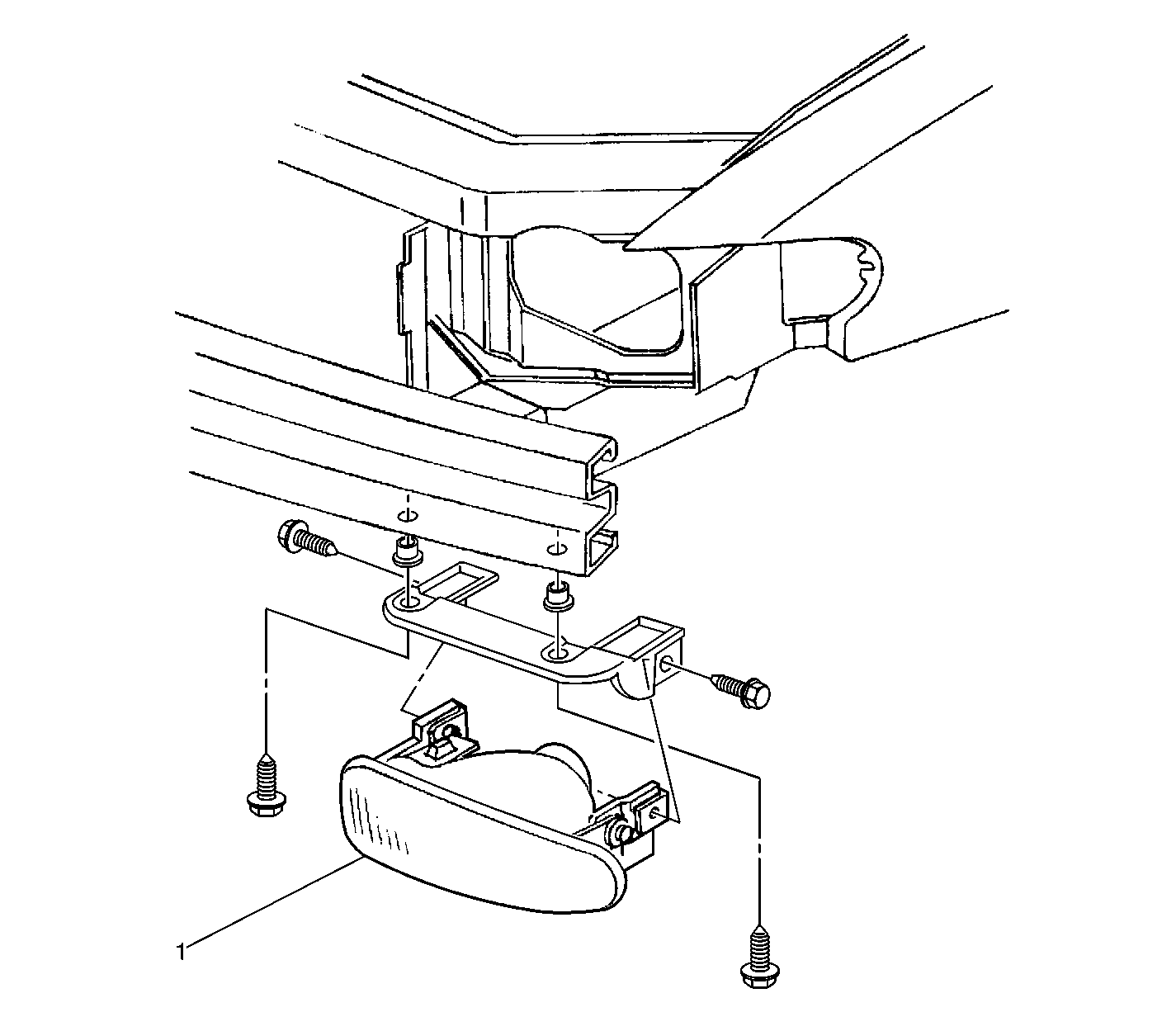

Lower Fornt of Vehicle
Object Number: 492250 Size: LF
(1)Front Fog Lamp
Figure 10:

Front of Vehicle (LH Shown, RH Similar)
Object Number: 472448 Size: LF
(1)C141 (LH Shown), C142 (RH Similar)
(2)Cornering Lamp
(3)Turn Signal Lamp
(4)Position Lamp
(5)Headlamp, High Beam
(6)Headlamp, Low Beam

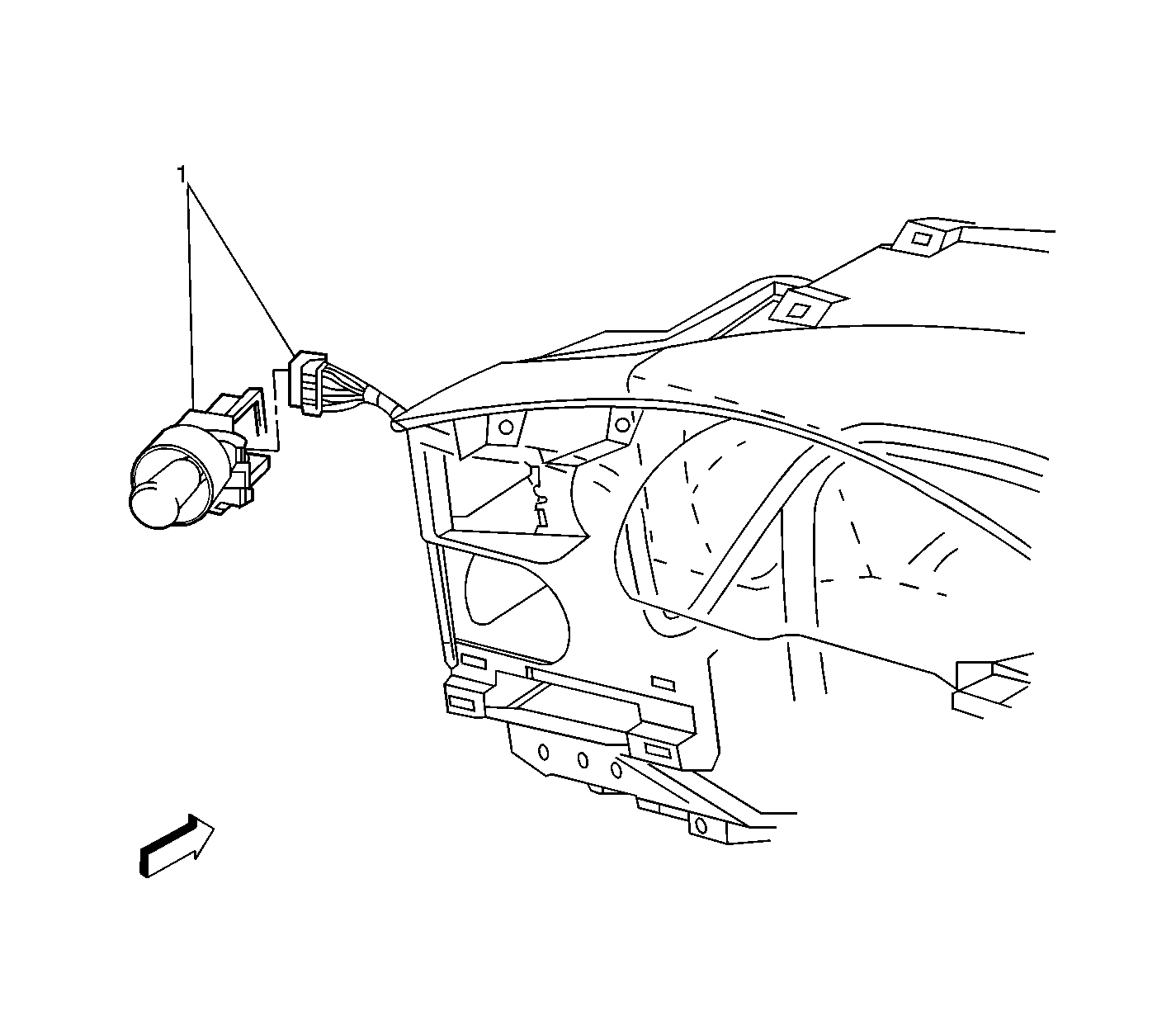

Figure 11:

Left Side of Instrument Panel
Object Number: 492244 Size: LF
(1)Headlamp Switch Connector and Switch
Figure 12:

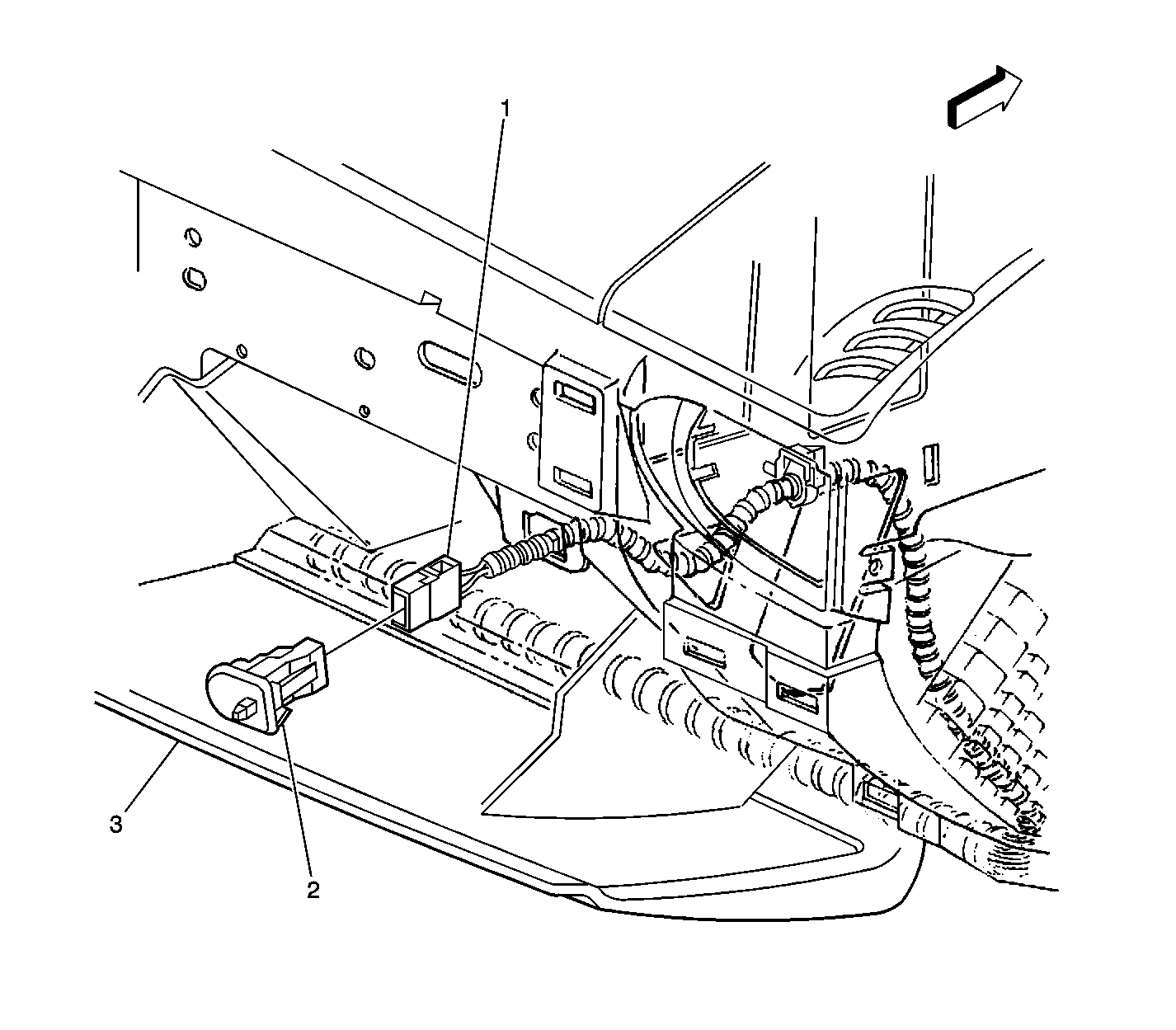

Inside of Instrument Panel
Object Number: 492245 Size: LF
(1)Instrument Panel Compartment Lamp Switch Connector
(2)Instrument Panel Compartment Lamp Switch
(3)Instrument Panel Lid
Figure 13:

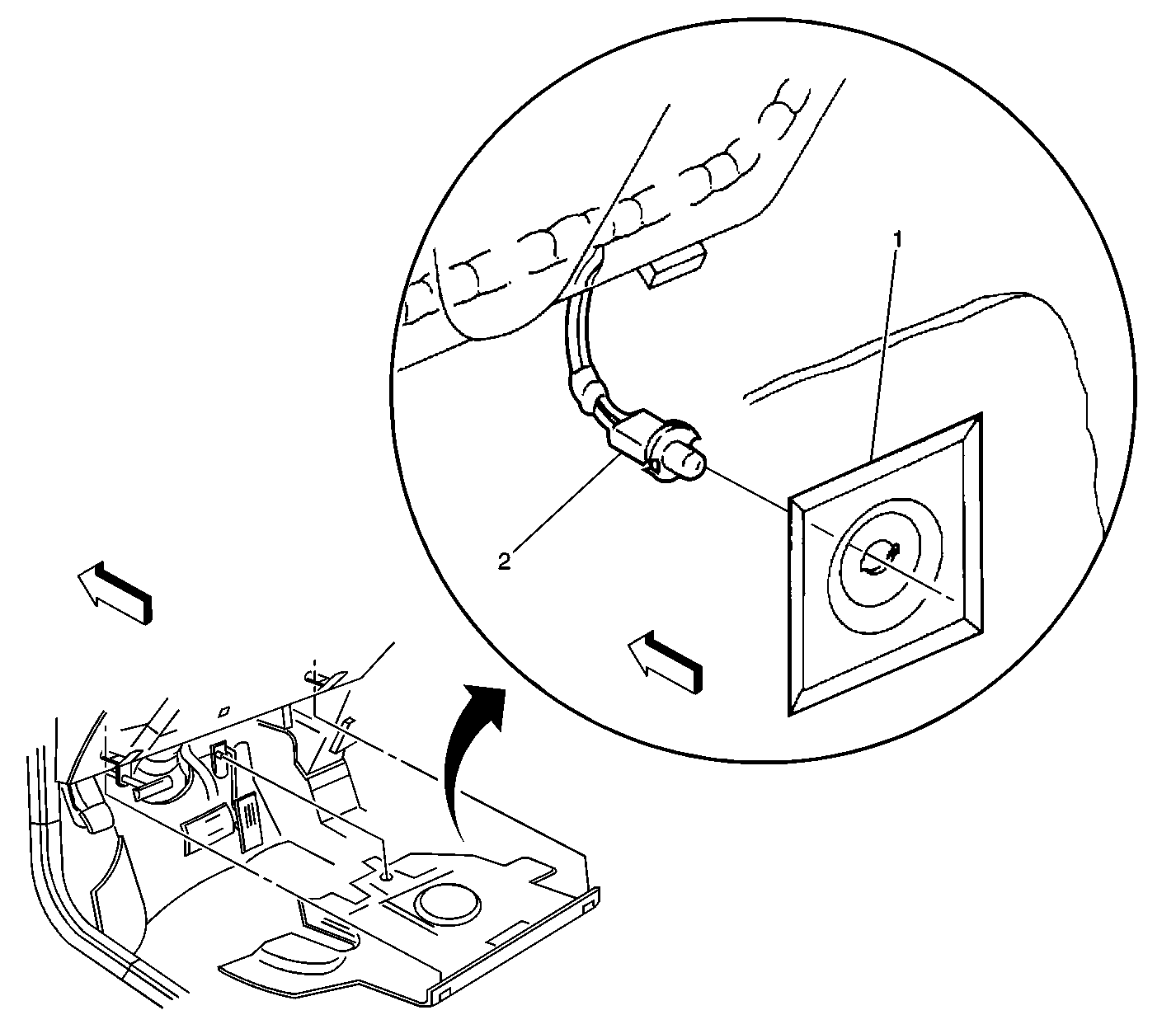

LH Lower Side of Passenger Compartment
Object Number: 492248 Size: LF
(1)LH Bolster Knee Panel
(2)LH IP Courtesy Lamp
Figure 14:

RH Lower Side Passenger Compartment

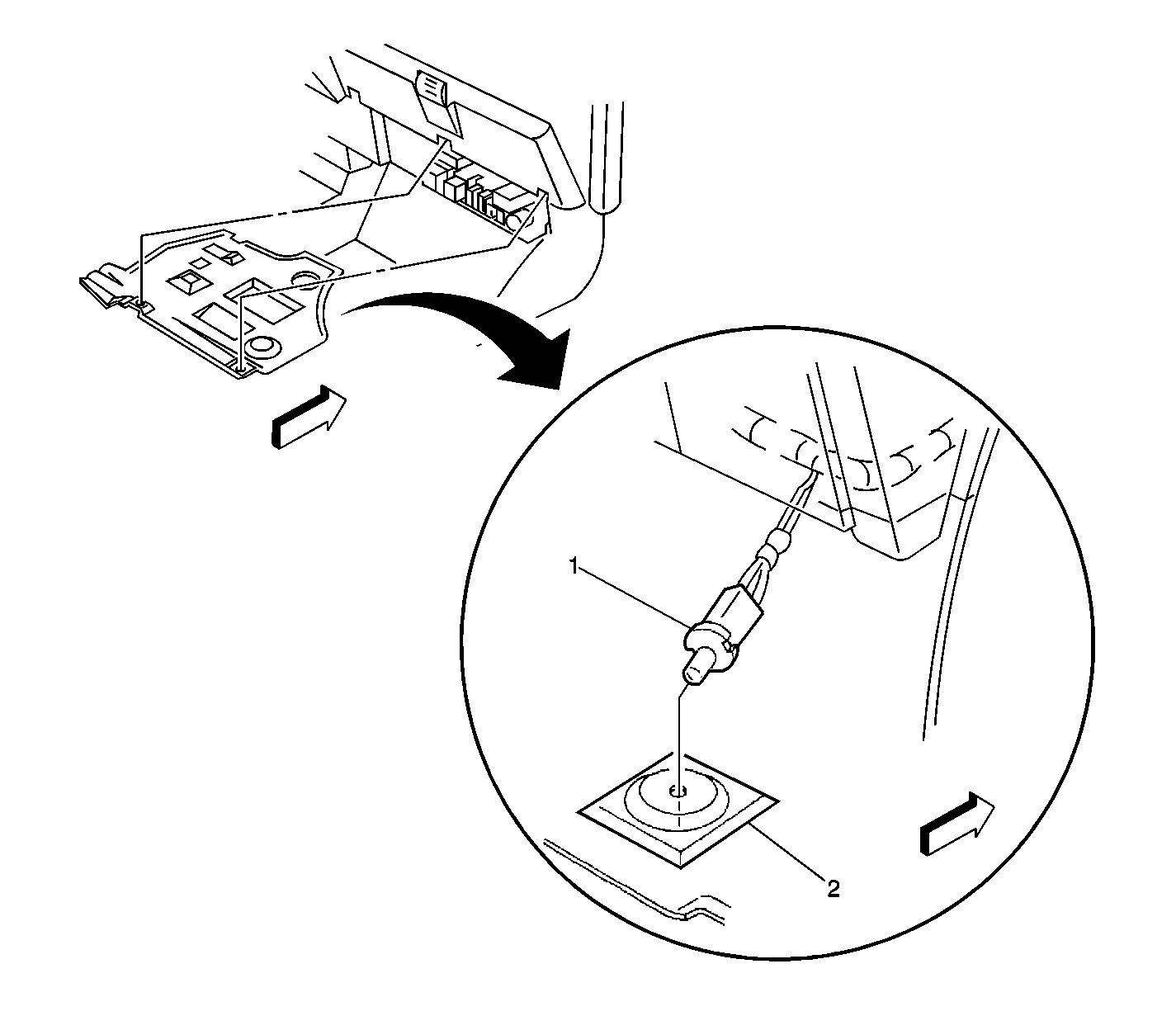

Object Number: 492247 Size: LF
(1)RH Bolster Knee Panel
(2)RH IP Compartment Lamp
Figure 15:

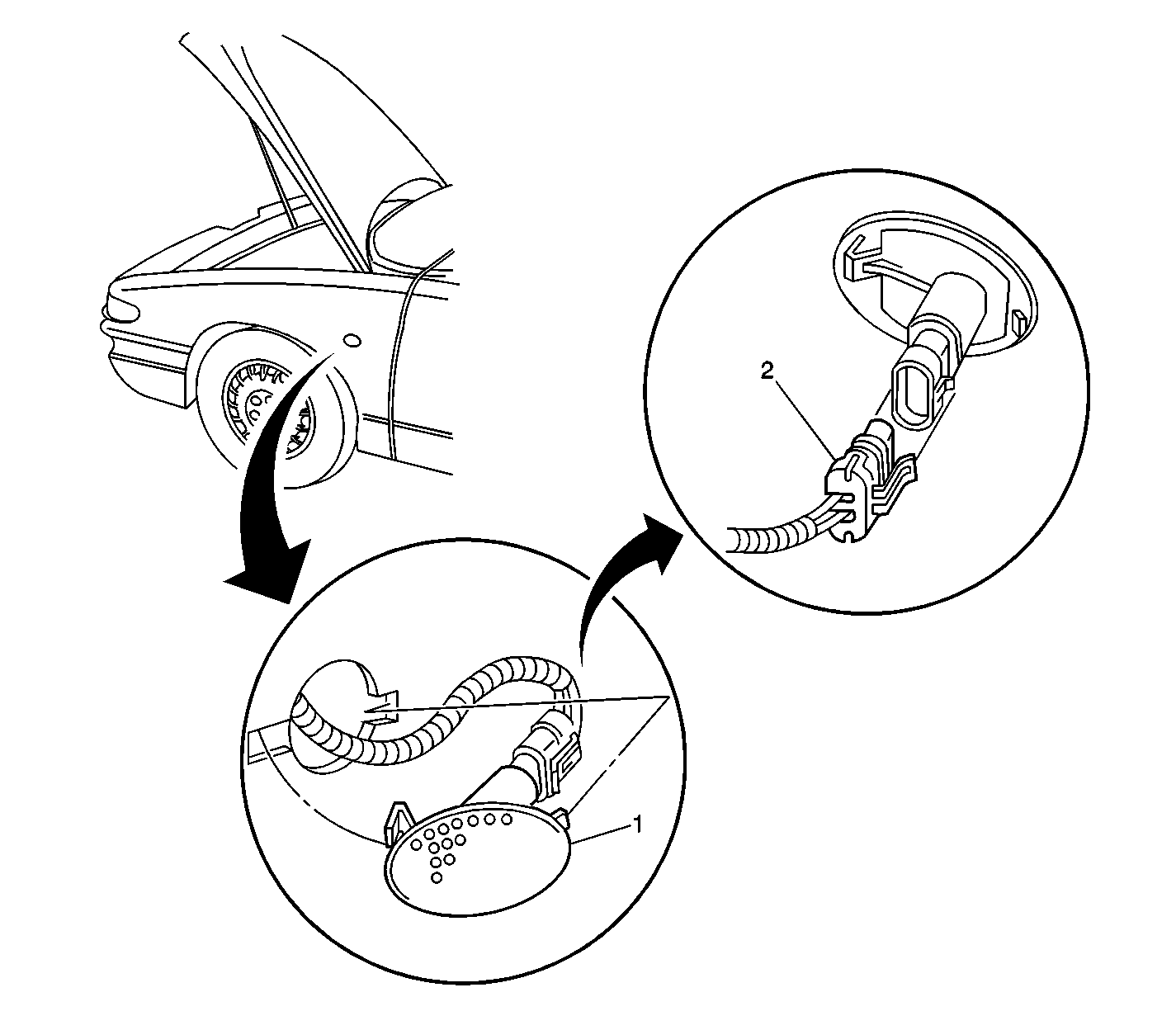

Forward Side of Vehicle (LH Shown, RH Similar)
Object Number: 492253 Size: LF
(1)Front Side Repeater Lamp
(2)Front Side Repeater Lamp Connector
Figure 16:

Roof Rail Inside Passenger Compartment
Object Number: 492758 Size: LF
(1)Roof Rail Courtesy/Reading Lamp
(2)Roof Rail Courtesy/Reading Lamp Connector
Figure 17:

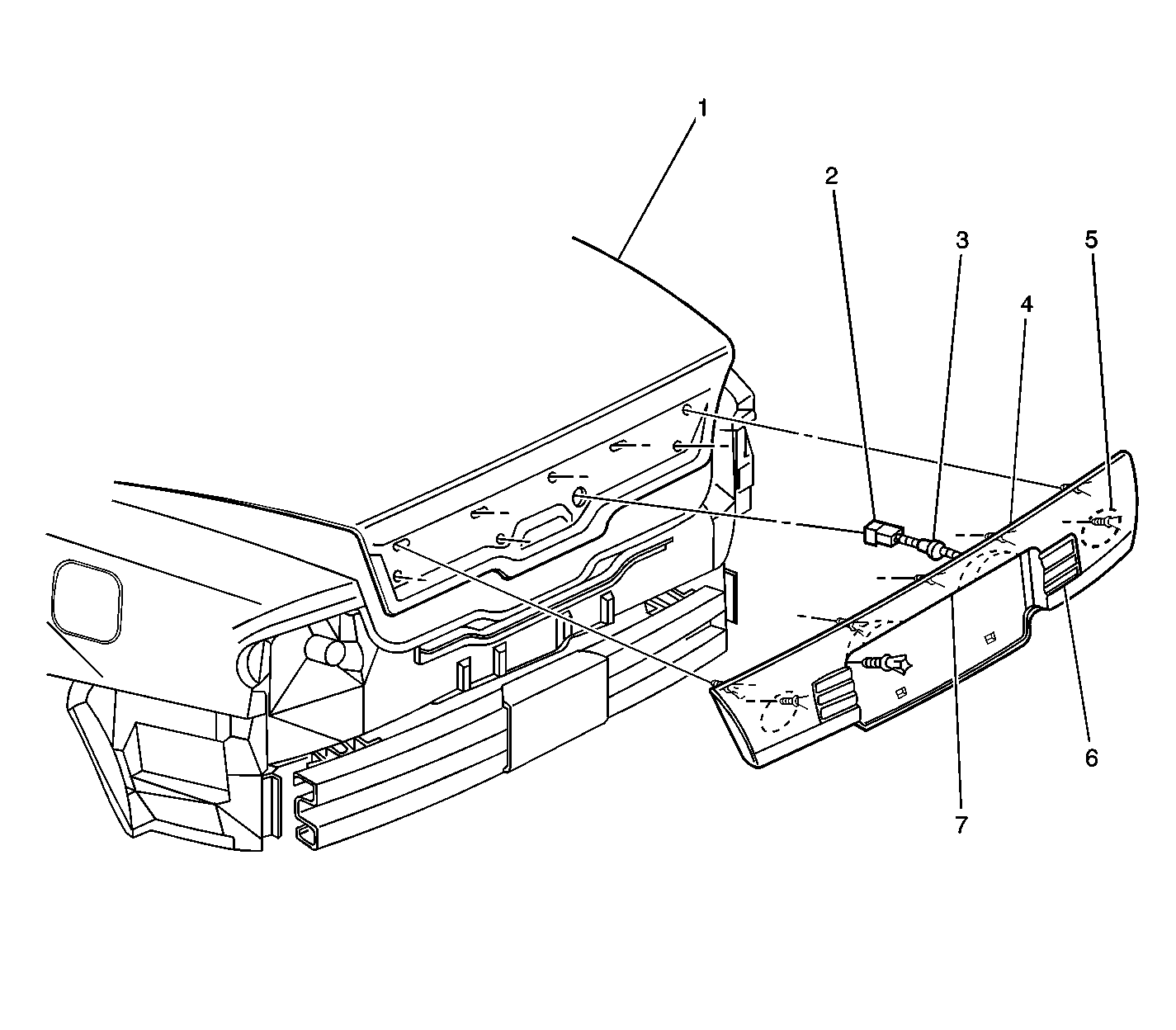

Rear Compartment Lid
Object Number: 492242 Size: LF
(1)Rear Compartment Lid
(2)C315
(3)P932
(4)Rear Compartment Lid Applique
(5)Backup Lamp
(6)Rear Fog Lamp
(7)License Lamp
