Figure 1:

Behind Left Side of Instrument Panel (GLX)
Object Number: 490902 Size: LF
(1)Instrument Panel Wiring Harness
(2)Fog Lamp and Deck Lid Switch Conector
(3)Body Control Module Connector, C1
(4)Body Control Module Connector, C2
(5)Body Control Module Connector, C3
(6)Backup Relay, Rear Fog Lamp Relay and Hazard Lamp and Turn SIgnal Flasher

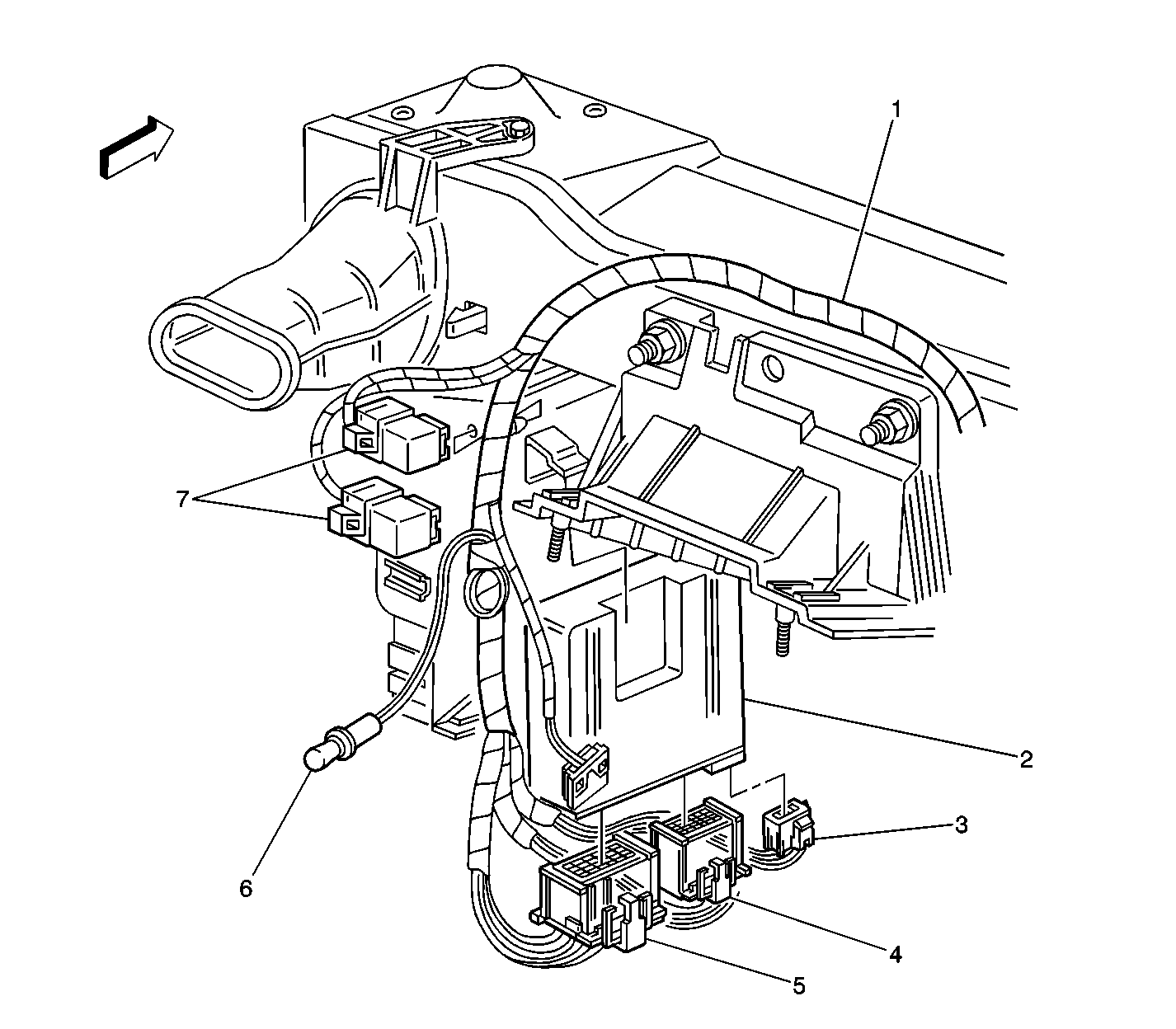

Figure 2:

Behind Left Side of Instrument Panel (GL)
Object Number: 491485 Size: LF
(1)Instrument Panel
(2)Body Control Module Connector, C3
(3)Body Control Module Conector, C2
(4)Body Control Module Connector, C1
(6)Instrument Panel Compartment Courtesy Lamp
(7)Rear Fog Lamp Relay, Hazard Lamp/Turn Signal Lamp Flasher Relay
