Lighting Systems Component Views. Buick LeSabre 1999

For 1990-2009 cars only

Makes 🢒 Buick 🢒 1999 🢒 LeSabre 🢒 HVAC 🢒 HVAC Systems - Automatic 🢒 Lighting Systems Component Views

Figure 1:

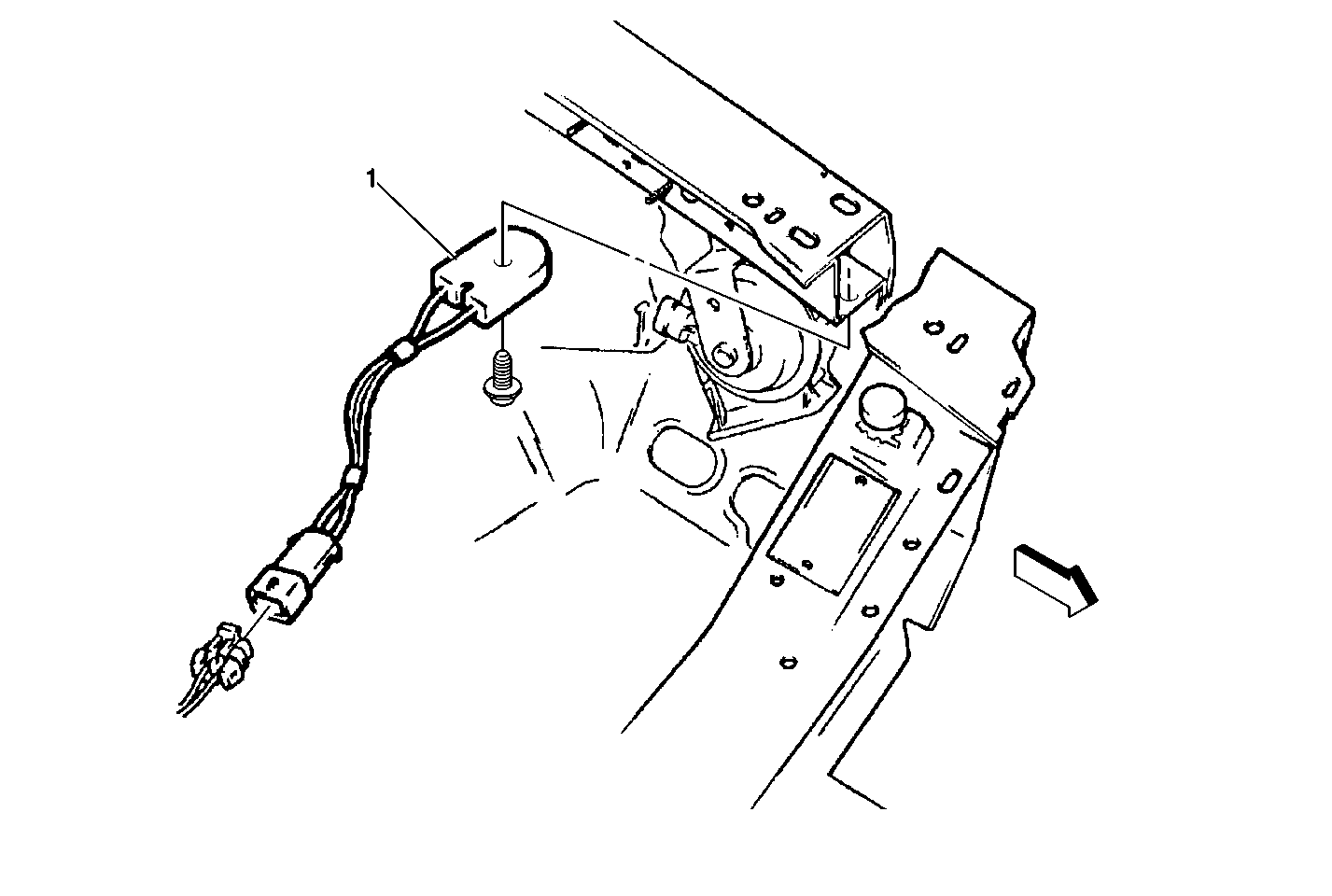

Left Hand Front of the Engine Compartment


(1)	Daytime Running Lamps (DRL) Resistor

Figure 2:

Passenger Compartment, Under the Steering Column


(1)	Inside Air Temperature Sensor
(2)	Traction Control Disable Switch (Buick)
(3)	Rear Compartment Lid Release Switch (Pontiac)
(4)	LH Knee Bolster
(5)	Interior Lamp Control Module

Figure 3:

Under the Left Hand of the Instrument Panel


(1)	Steering Column Support
(2)	Hazard Flasher

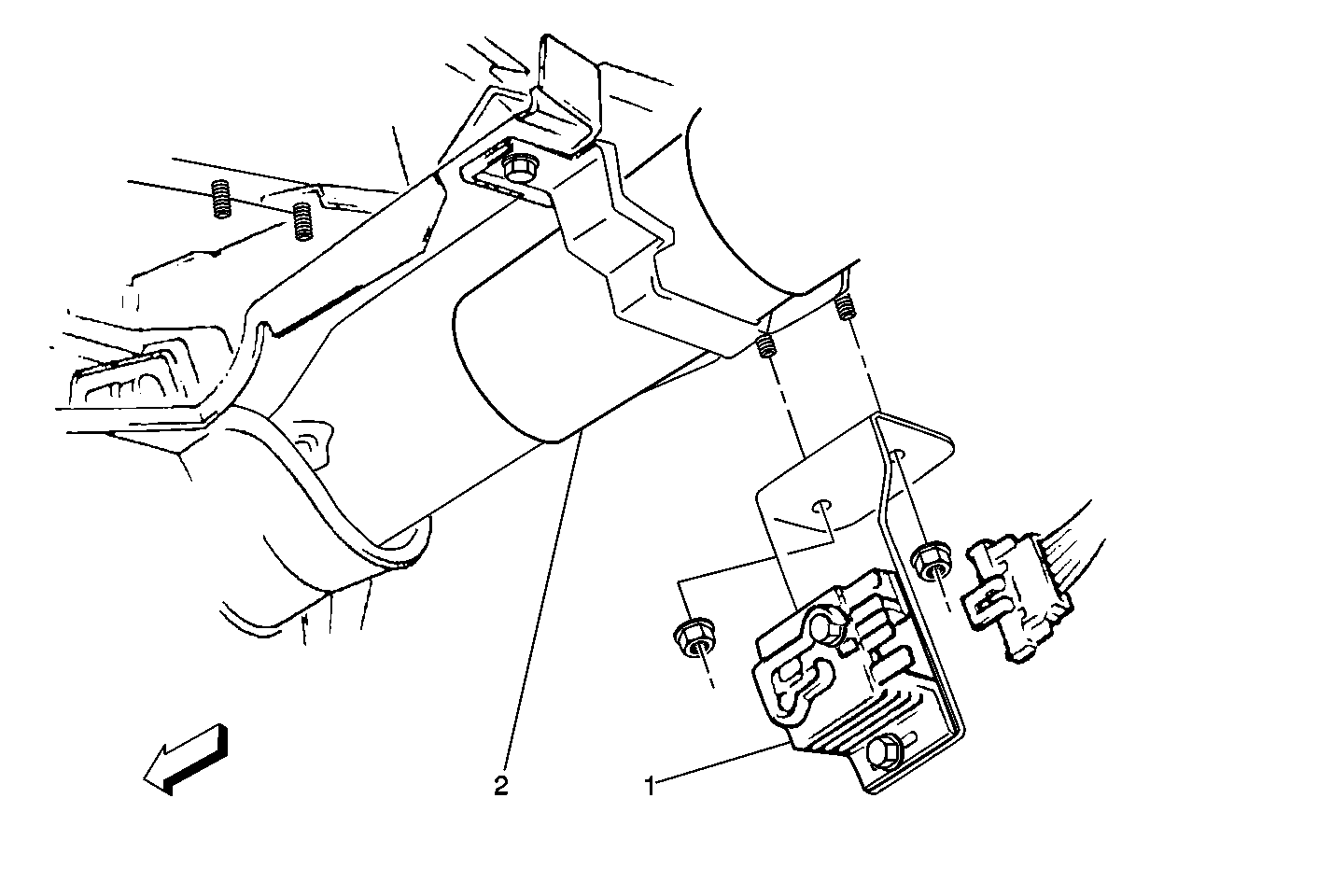

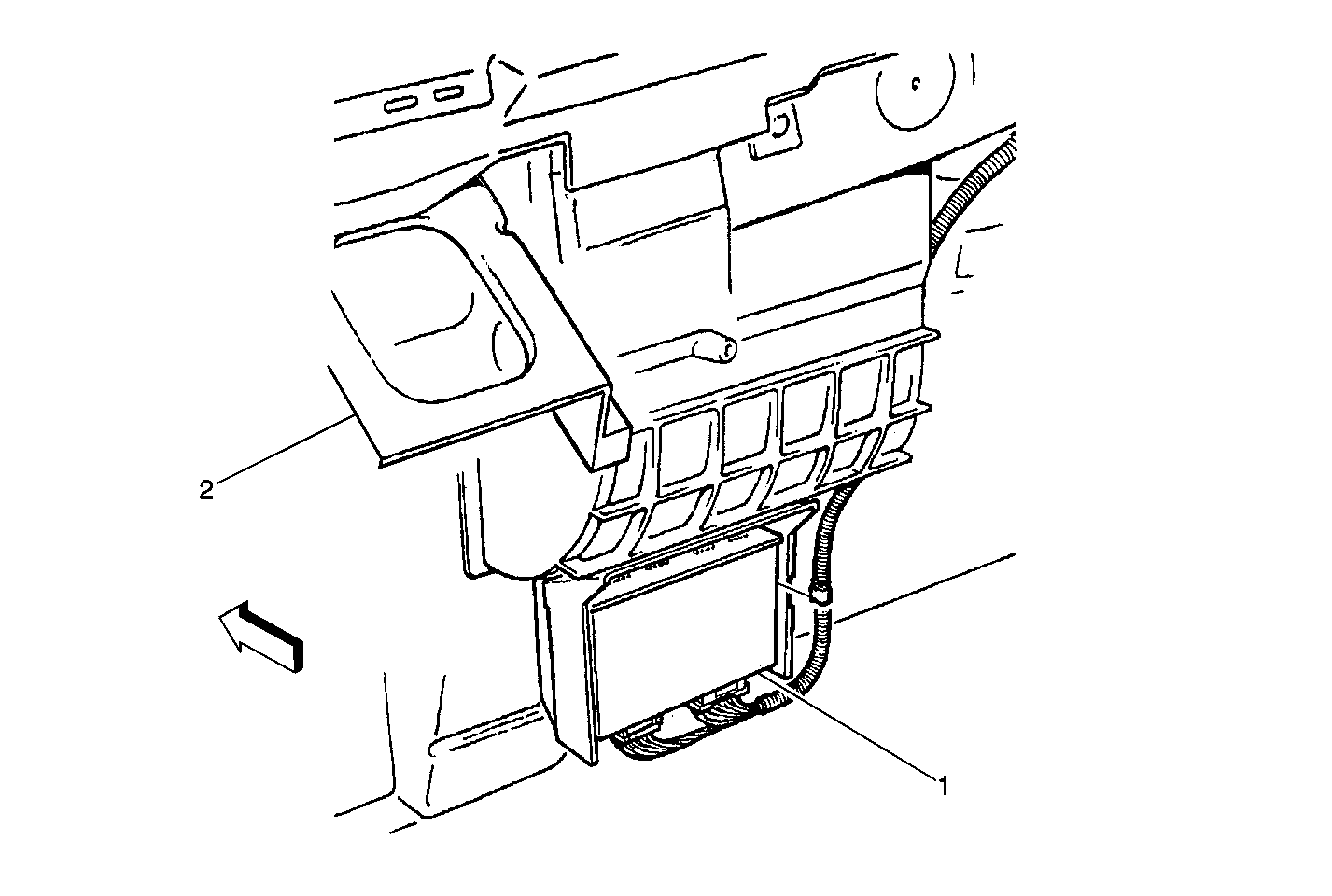

Figure 4:

Under the Left Hand of the Instrument Panel


(1)	Remote Dimmer Module
(2)	Steering Column

Figure 5:

Passenger Compartment, Steering Column


(1)	C202
(2)	Ignition Switch
(3)	Shift Interlock Actuator (Hidden)
(4)	Horn Switch
(5)	Inflatable Restraint Steering Wheel Module
(6)	Steering Wheel Controls LH and RH
(7)	Inflatable Restraint Steering Wheel Module Coil
(8)	Headlamp Dimmer Switch

Figure 6:

Top of the Steering Column


(1)	Turn Hazard Switch (Hidden)
(2)	Multifuntion Lever
(3)	Windshield Wiper Switch
(4)	Ignition Switch (Hidden)
(5)	Ignition Lock Cylinder

Figure 7:

Passenger Compartment, Below the Center of the Instrument Panel


(1)	Lamp Monitor Control Module
(2)	S259
(3)	S258
(4)	S236
(5)	S232
(6)	S235
(7)	To C200
(8)	Stoplamp/BTSI Switch
(9)	ABS/TCC Switch
(10)	S231
(11)	S228
(12)	S230
(13)	S296
(2)

Figure 8:

Under the Center of the Instrument Panel


(1)	Lamp Control Module (LCM)
(2)	Steering Column Support

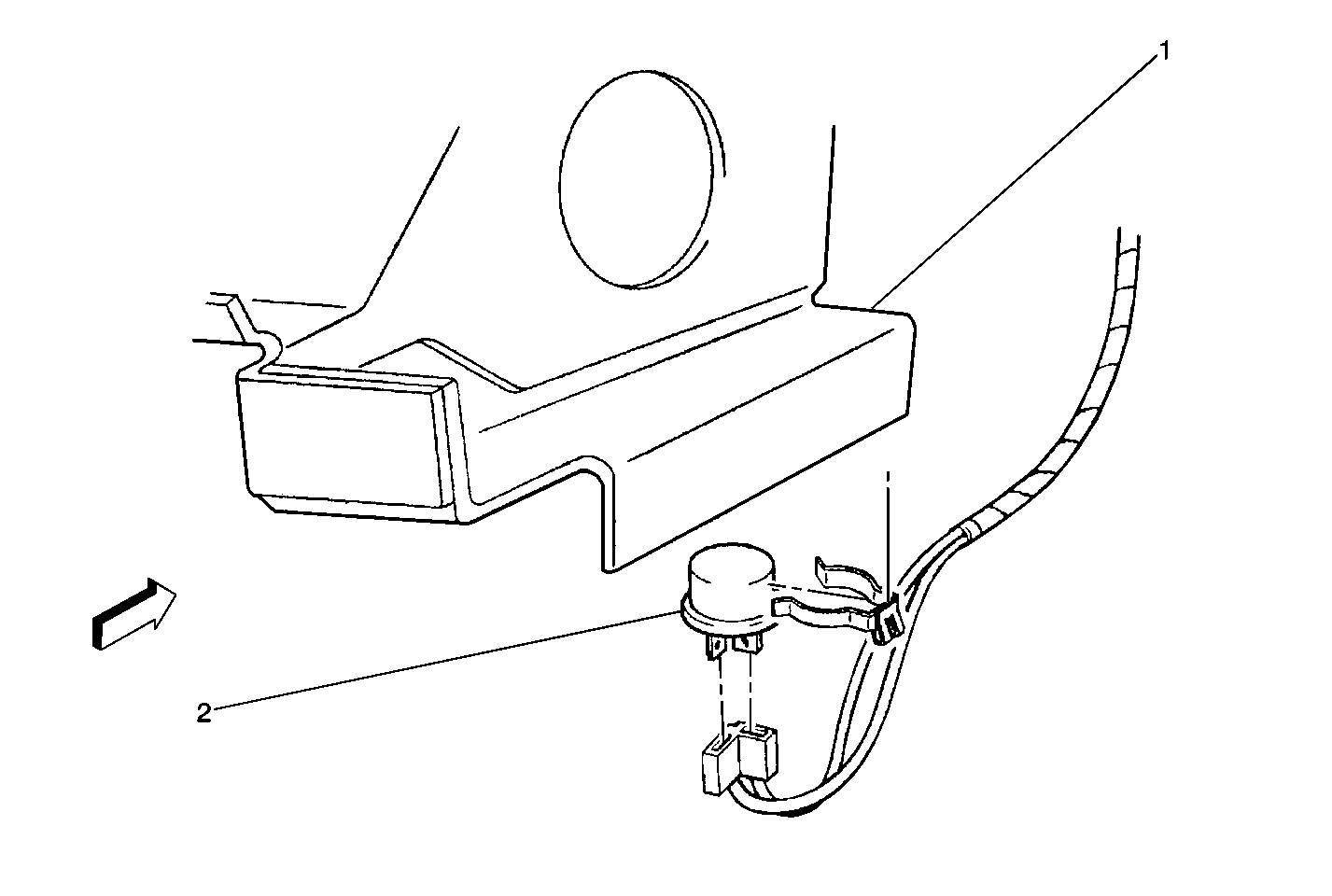

Figure 9:

Passenger Compartment, Below the Right Corner of the IP


(1)	Brake Lamp Driver Module
(2)	Perimeter Lighting Relay
(3)	Body Control Module (MALL)
(4)	S274
(5)	S247
(6)	S267

Figure 10:

Passenger Compartment, Behind the Instrument Panel (Oldsmobile)


(1)	LH Sunload Temperature Sensor
(2)	Twilight Sentinel
(3)	Headlamp Switch Connector
(4)	Traction Control Disable Switch
(5)	Interior Lamp Control Module
(6)	Ambient Air Temperature Sensor
(7)	C200
(8)	C304
(9)	Valet Switch
(10)	S209
(11)	S249
(12)	S216
(13)	Radio
(14)	C207
(15 )	RH Sun Load Temperature Sensor
(16)	IP Compartment Switch
(17)	S214
(18)	S213
(19)	S291
(20)	S264
(21)	S260

Figure 11:

Passenger Compartment, Behind the Instrument Panel (Buick)


(1)	S277
(2)	S214
(3)	S212
(4)	S249
(5)	S299
(6)	S242
(7)	S234
(8)	C200
(9)	S291
(10)	C206
(11)	IP Compartment Lamp
(12)	IP Compartment Lamp Switch
(13)	Radio

Figure 12:

Rear Compartment (Buick Shown, Pontiac and Oldsmobile Similar)


(1)	S419
(2)	G402
(3)	RH Rear Side Marker Lamp
(4)	LH Rear Side Marker Lamp

Figure 13:

Rear Compartment (Pontiac)


(1)	S400, S424, S425
(2)	G402
(3)	P404
(4)	License Lamps
(5)	S422, S423

Figure 14:

Rear Compartment Lid (Pontiac)


(1)	P405
(2)	Rear Compartment Lid Latch Switch
(3)	Rear Compartment Lid Release Solenoid

Figure 15:

Rear Compartment Lid (Oldsmobile)


(1)	Rear Compartment Lid Latch Switch
(2)	P405
(3)	Rear Compartment Lid Release Solenoid
(4)	C430

Figure 16:

Rear Compartment Lid (Buick)


(1)	LH License Lamp
(2)	RH License Lamp
(3)	Rear Compartment Lid Release Solenoid
(4)	S400
(5)	S414
(6)	P405
(7)	Rear Compartment Lid Latch Switch
(8)	C430

Figure 17:

Front Left Side of the Vehicle (Pontiac Shown, Others Similar)


(1)	LH Fog Lamp
(2)	LH Outside Rear View Mirror

Figure 18:

Passenger Compartment, Headliner Components


(1)	RH Rear Courtesy/Reading Lamp
(2)	LH Rear Courtesy/Reading Lamp
(3)	Accessory Power Receptacle (Pontiac/Oldsmobile)
(4)	RH Vanity Mirror
(5)	Overhead Console - Front Dome/Reading Lamps and Fog Lamp Switch (Pontiac)
(6)	RH Vanity Mirror

Figure 19:

Passenger Compartment, On the Rear Door


(1)	LH Rear Power Window Switch (RH Similar)
(2)	LH Rear Door Courtesy Lamp (RH Similar)
(3)	LH Rear Door Warning Lamp (RH Similar)

Figure 20:

Passenger Compartment, Pontiac Instrument Panel Shown, Others Similar


(1)	Instrument Cluster
(2)	Cigar Lighter
(3)	Heater and A/C Control
(4)	Inflatable Restraint IP Module
(5)	Radio
(6)	Rear Compartment Lid Latch Switch
(7)	Fog Lamp Switch
(8)	Lamp Dimmer Switch

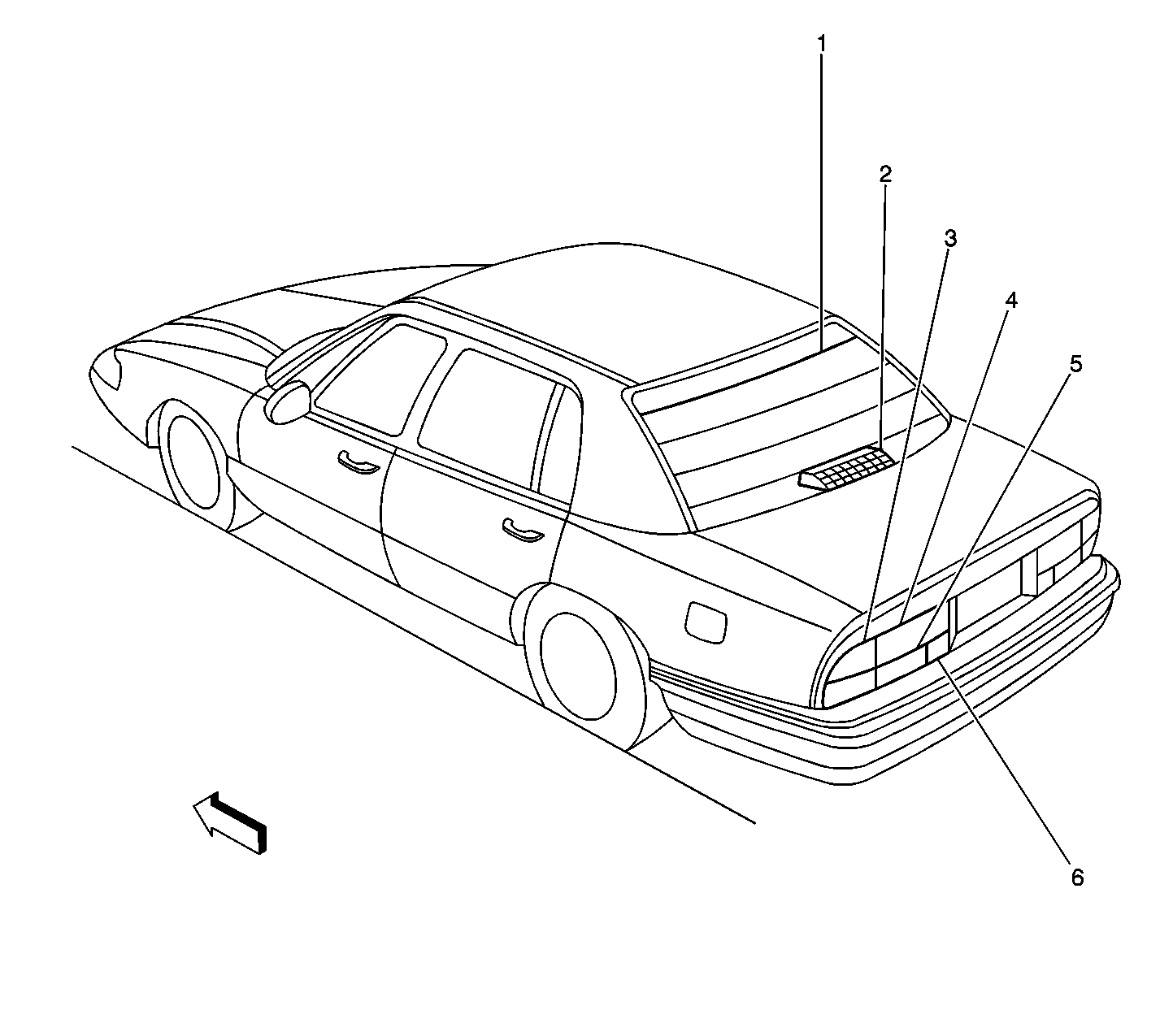

Figure 21:

Rear of the Vehicle


(1)	Rear Window Defogger
(2)	High Mounted Stop Lamp
(3)	LH Tail Lamp (RH Similar)
(4)	LH Tail/Stop Lamp (RH Similar)
(5)	LH Tail/Stop/Turn Lamp (RH Similar)
(6)	LH Backup Lamp (RH Similar)
