Interior Lights Dimming Schematics. Buick LeSabre 1999

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Buick 🢒 1999 🢒 LeSabre 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Interior Lights Dimming Schematics

Interior Lights Dimming Schematics Buick

Figure 1:

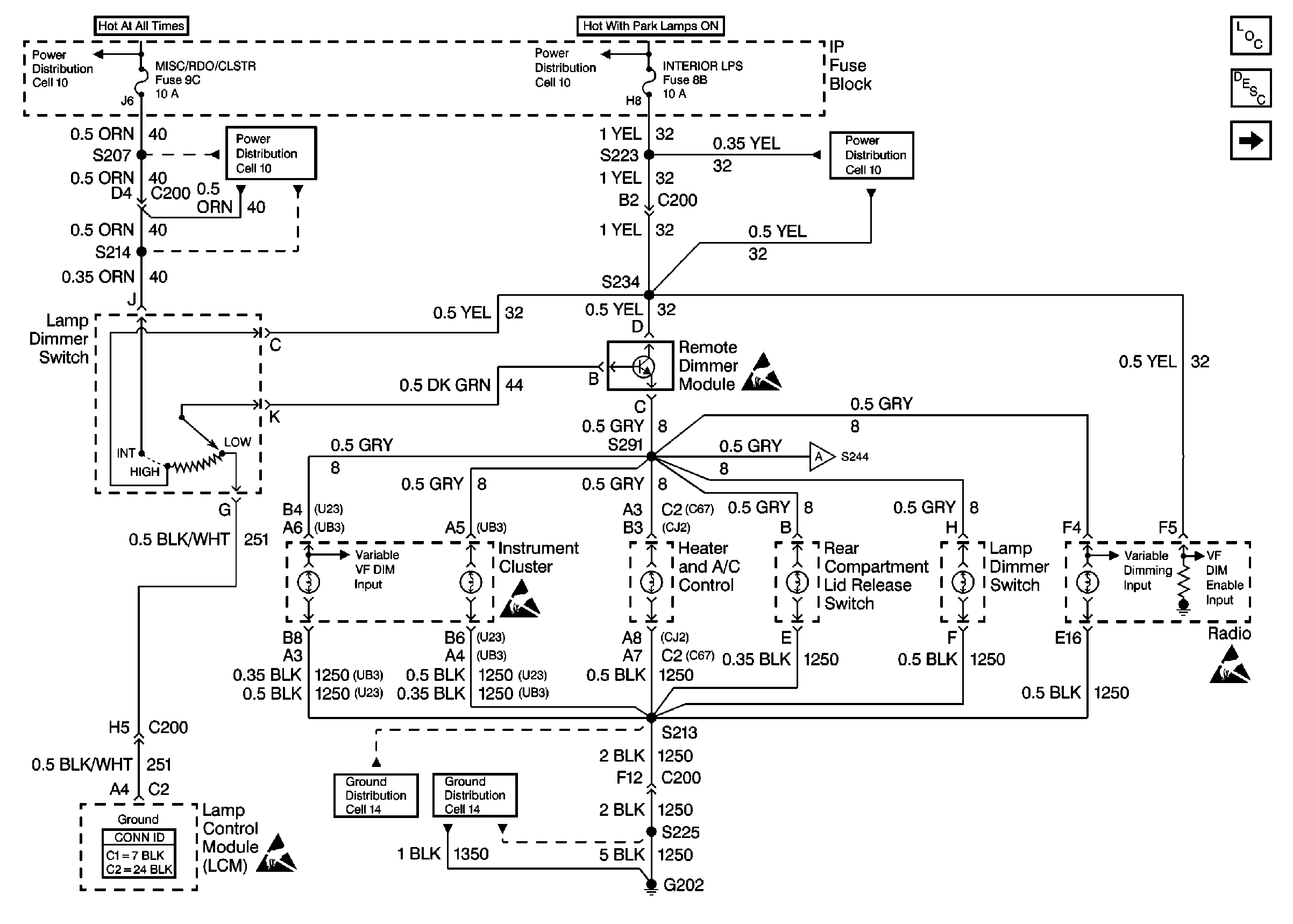

Cell 117: Dimming Control and Incandescent Dimming

Object Number: 343792 Size: FS

Lighting Systems Components
Interior Lights Dimming Circuit Description Buick
Cell 117: VF Control, Incandescent Dimming (continued)
Ground Distribution Schematics
Lighting Systems Connector End Views
Power Distribution Schematics
Power Distribution Schematics
Power Distribution Schematics
Power Distribution Schematics
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
Ground Distribution Schematics
Cell 117: VF Control, Incandescent Dimming (continued)

Figure 2:

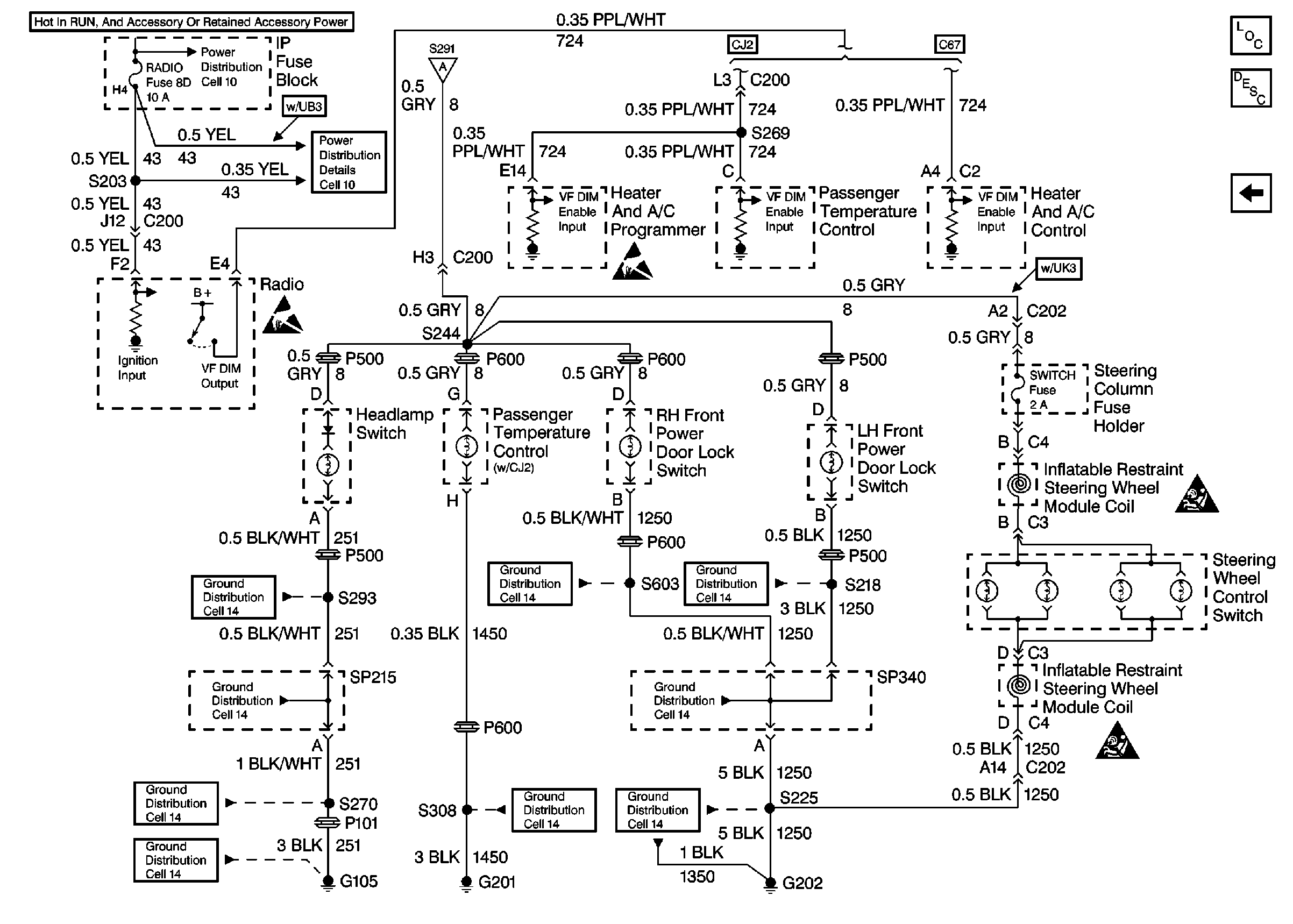

Cell 117: VF Control, Incandescent Dimming (continued)

Object Number: 343795 Size: FS

Lighting Systems Components
Interior Lights Dimming Circuit Description Buick
Cell 117: Dimming Control and Incandescent Dimming
Ground Distribution Schematics
Ground Distribution Schematics
Ground Distribution Schematics
Ground Distribution Schematics
Ground Distribution Schematics
Ground Distribution Schematics
Ground Distribution Schematics
Ground Distribution Schematics
Ground Distribution Schematics
Power Distribution Schematics
Power Distribution Schematics
Handling ESD Sensitive Parts Notice
Handling ESD Sensitive Parts Notice
SIR Handling Caution
SIR Handling Caution
Cell 117: Dimming Control and Incandescent Dimming

Interior Lights Dimming Schematics Oldsmobile

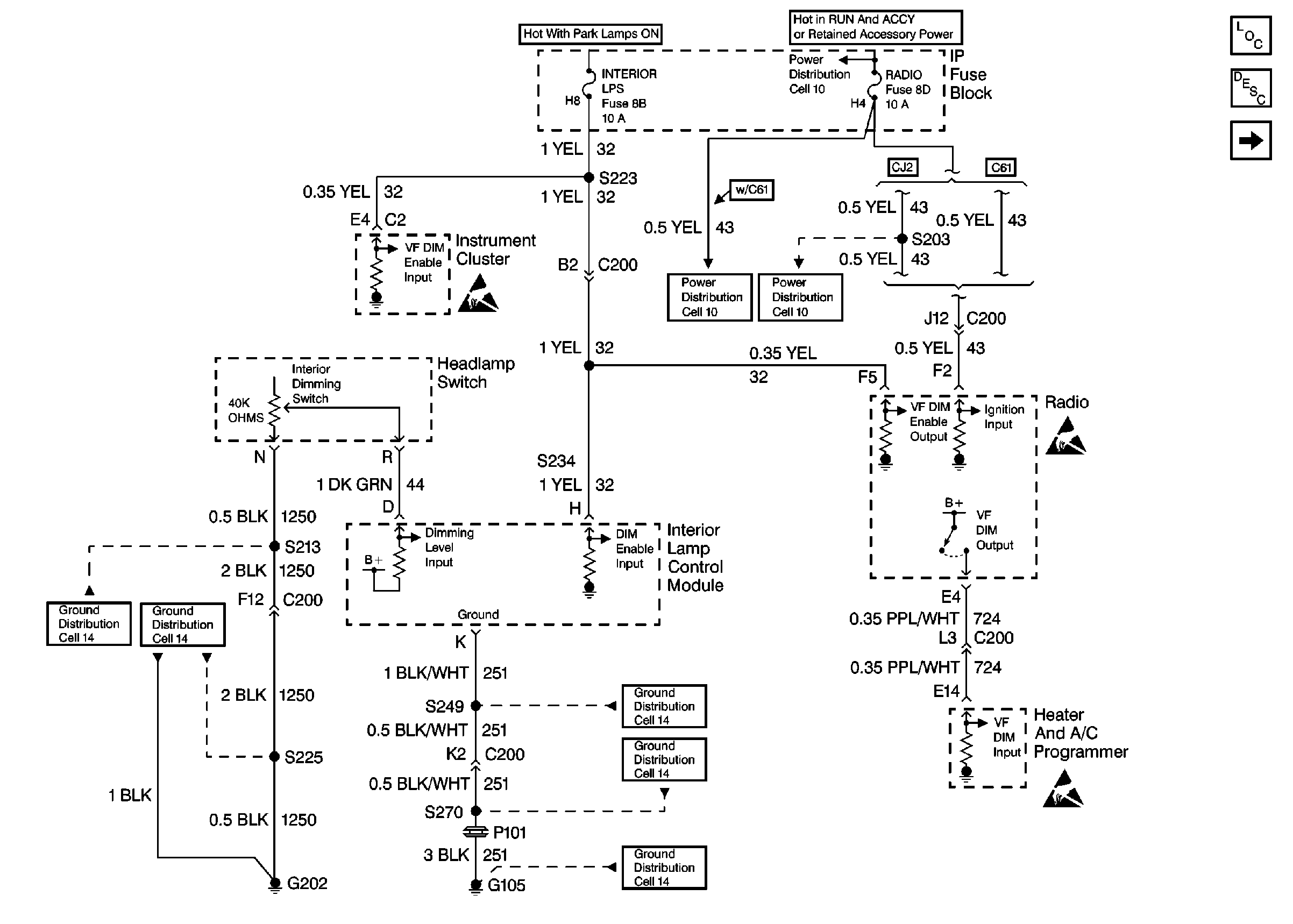

Figure 1:	Cell 117: Dimming Inputs Lighting Systems Components Interior Lights Dimming Circuit Description Oldsmobile Cell 117: IP Incandescent Dimming Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Power Distribution Schematics Power Distribution Schematics Power Distribution Schematics Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 2:	Cell 117: IP Incandescent Dimming Lighting Systems Components Interior Lights Dimming Circuit Description Oldsmobile Cell 117: Instrument Cluster and Front Door Incandescent Dimming Cell 117: Dimming Inputs Cell 117: Instrument Cluster and Front Door Incandescent Dimming Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

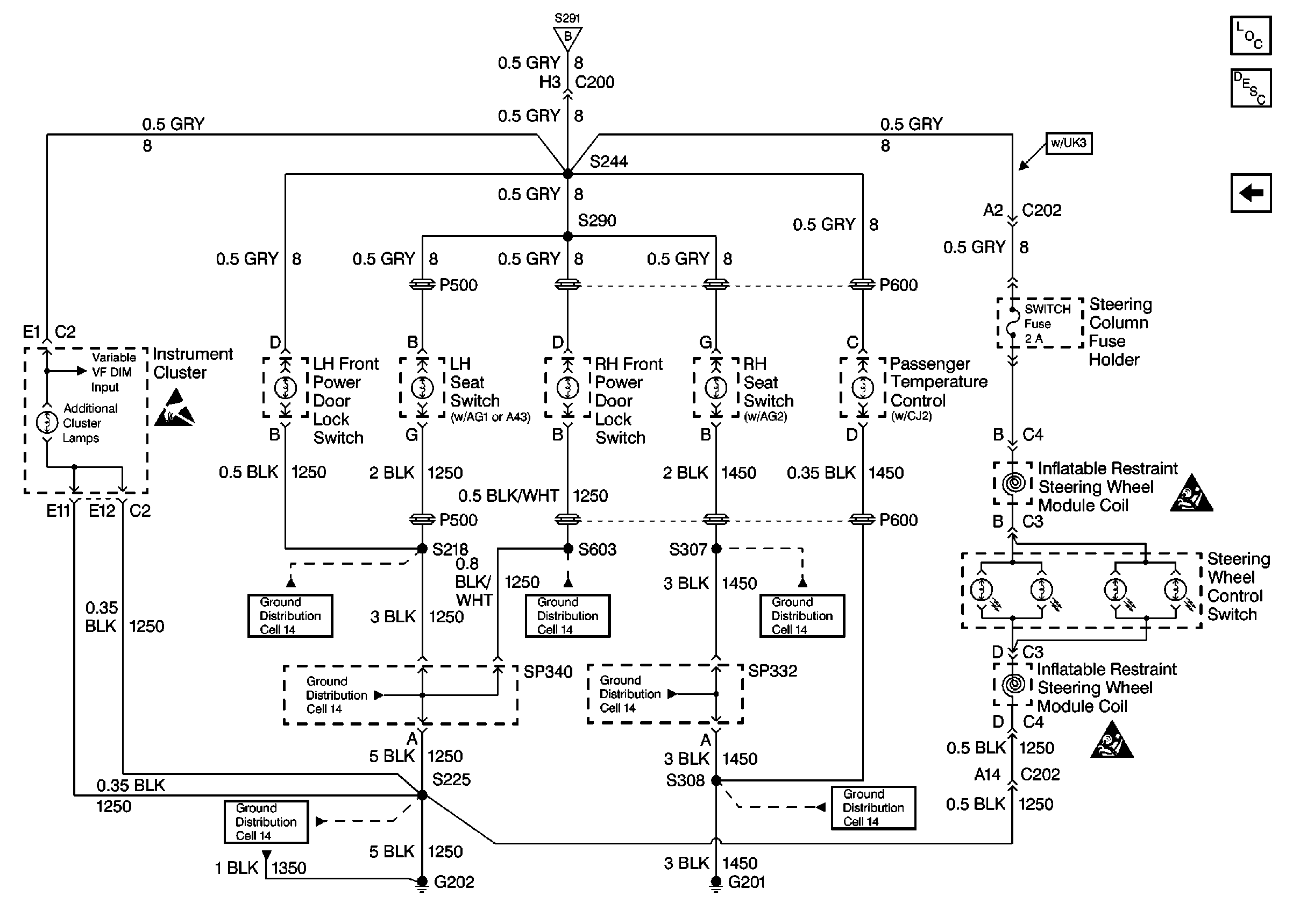

Figure 3:	Cell 117: Instrument Cluster and Front Door Incandescent Dimming Lighting Systems Components Interior Lights Dimming Circuit Description Oldsmobile Cell 117: IP Incandescent Dimming Cell 117: IP Incandescent Dimming Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Handling ESD Sensitive Parts Notice SIR Handling Caution SIR Handling Caution

Interior Lights Dimming Schematics Pontiac

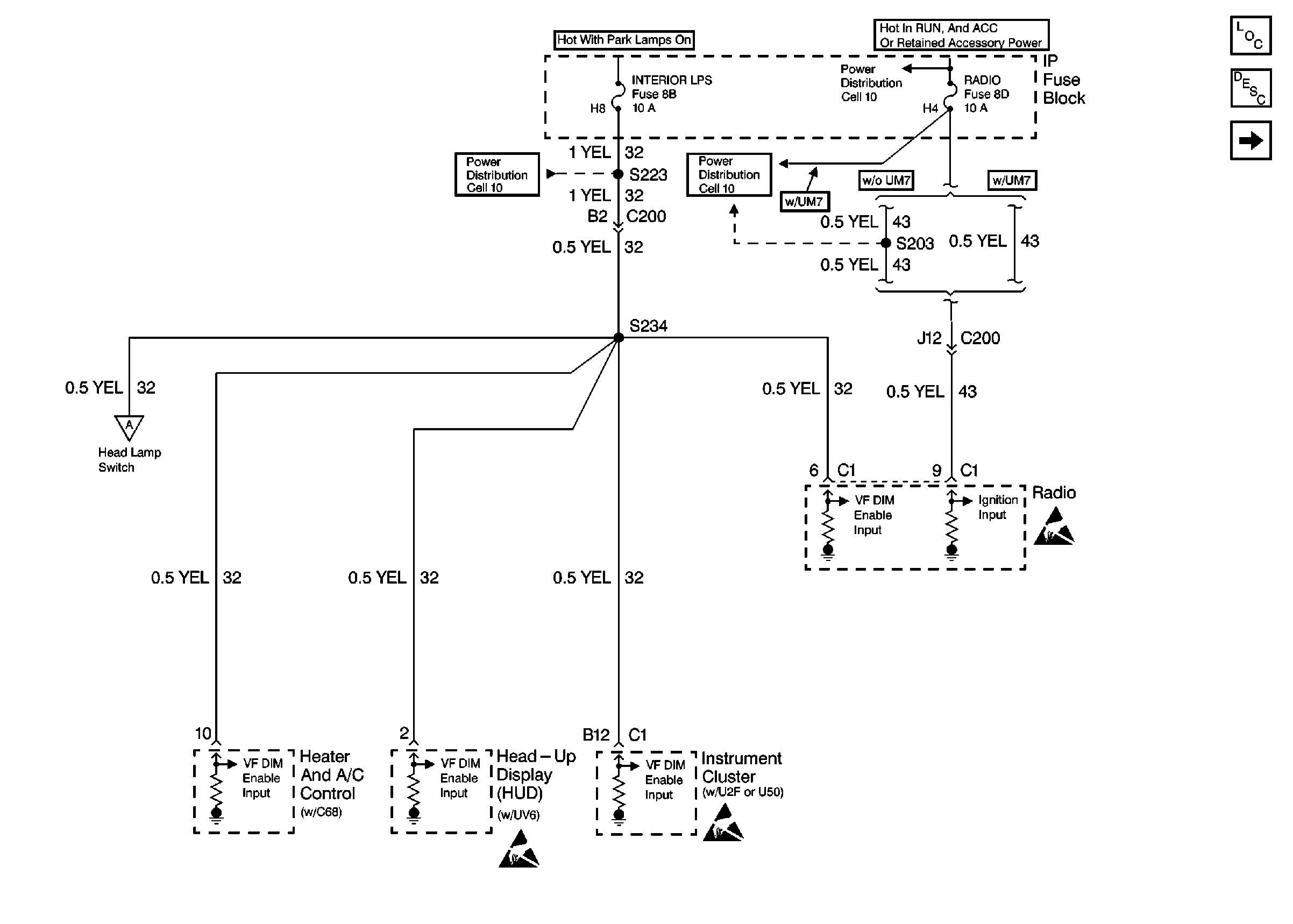

Figure 1:	Cell 117: VF Dimming Inputs Lighting Systems Components Interior Lights Dimming Circuit Description Pontiac Cell 117: Console Seat Switch and Steering Wheel Control Switch Incandescent Dimming Cell 117: Console Seat Switch and Steering Wheel Control Switch Incandescent Dimming Power Distribution Schematics Power Distribution Schematics Power Distribution Schematics Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

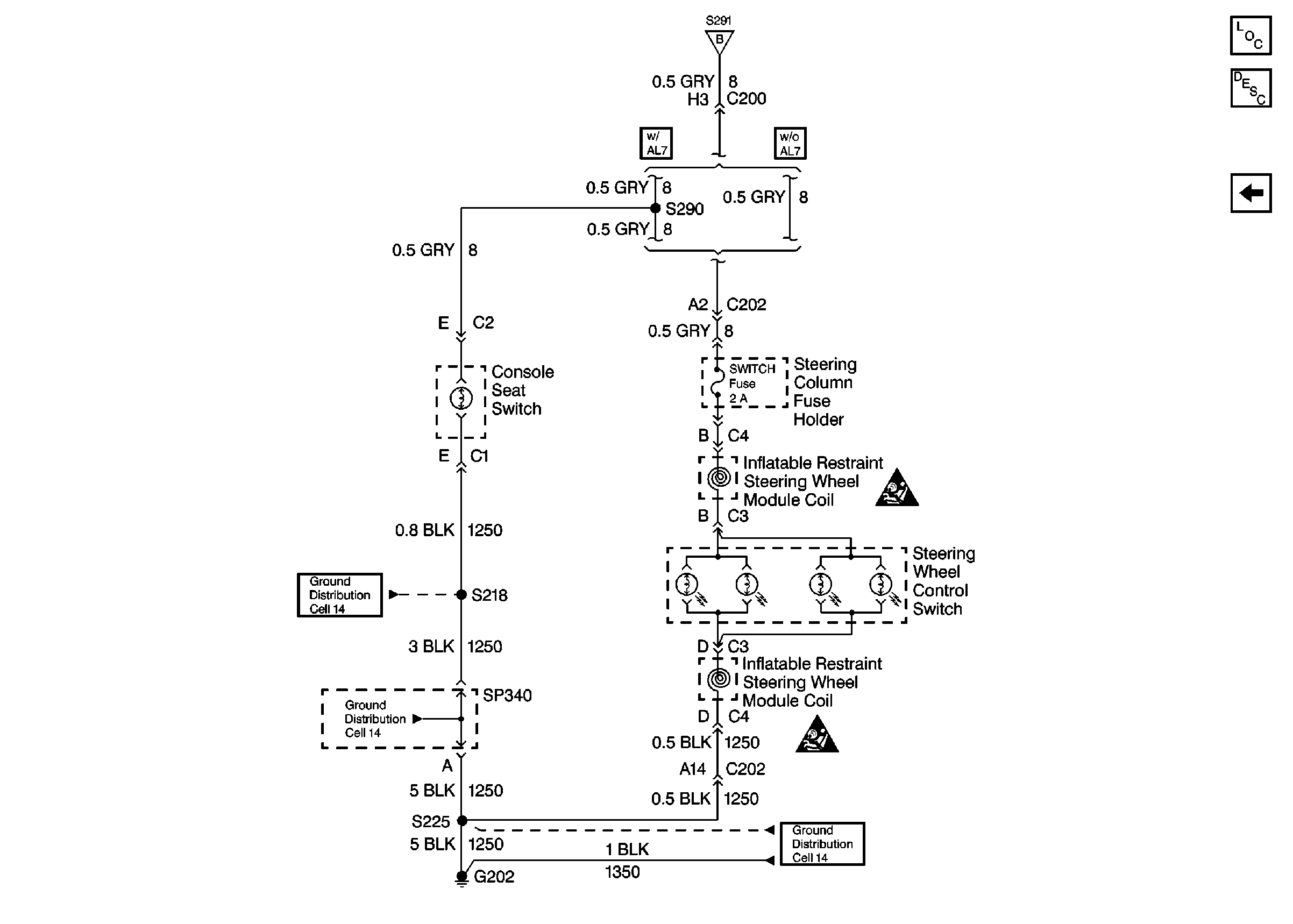

Figure 2:	Cell 117: Console Seat Switch and Steering Wheel Control Switch Incandescent Dimming Lighting Systems Components Interior Lights Dimming Circuit Description Pontiac Cell 117: Incandescent Dimming Control Cell 117: VF Dimming Inputs Ground Distribution Schematics Cell 117: Incandescent Dimming Control Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 117: VF Dimming Inputs Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics

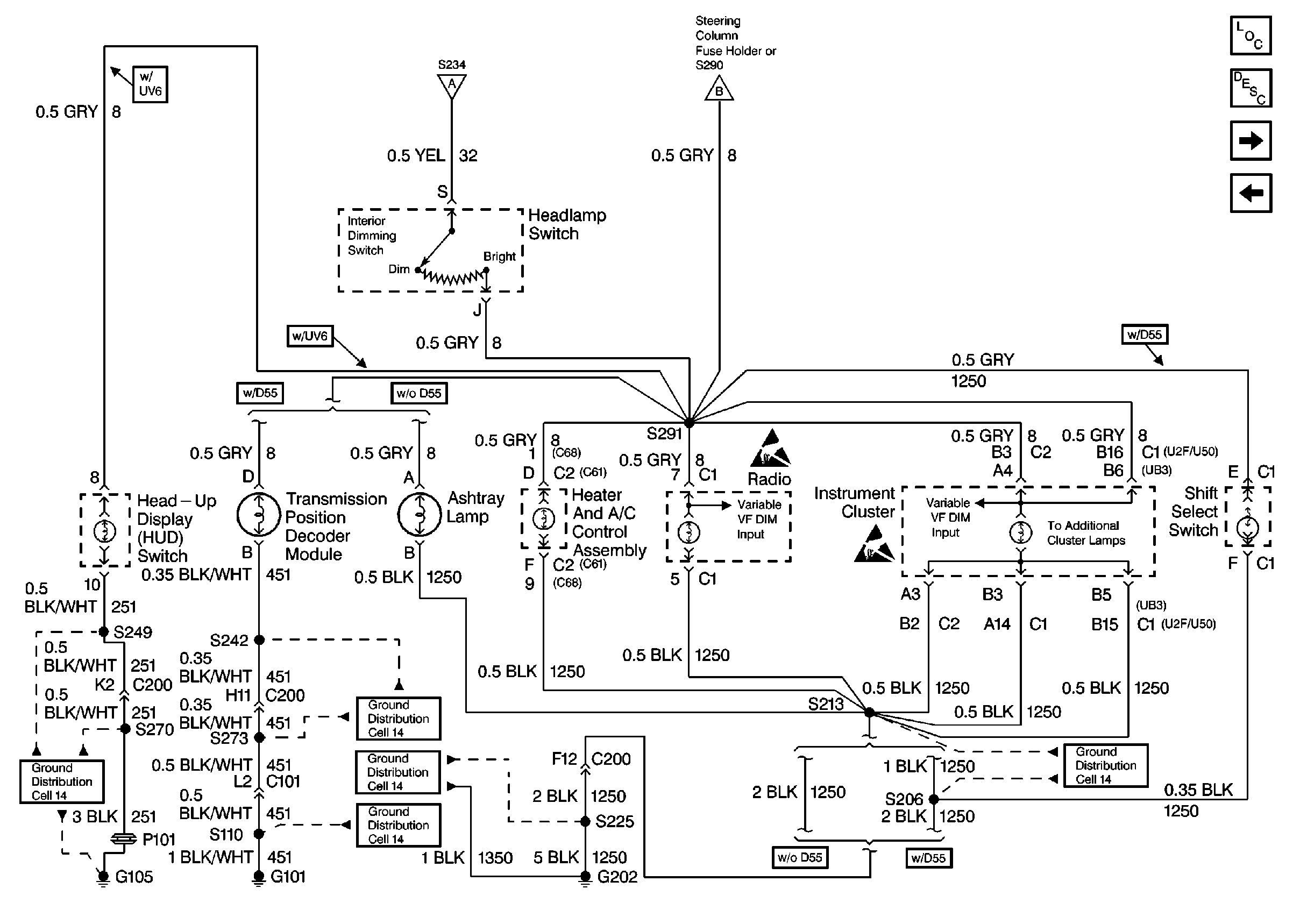

Figure 3:	Cell 117: Incandescent Dimming Control Lighting Systems Components Interior Lights Dimming Circuit Description Pontiac Cell 117: Console Seat Switch and Steering Wheel Control Switch Incandescent Dimming SIR Handling Caution SIR Handling Caution Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Cell 117: Console Seat Switch and Steering Wheel Control Switch Incandescent Dimming
