Theft Deterrent System Schematics. Buick LeSabre 1999

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Buick 🢒 1999 🢒 LeSabre 🢒 Body and Accessories 🢒 Theft Deterrent 🢒 Theft Deterrent System Schematics

Figure 1:	Cell 133: PASS-Key II System Theft Deterrent System Components Content Theft Deterrent (CTD) Description Cell 133: Ignition Switch Handling ESD Sensitive Parts Notice Cell 10: A/C, PCM/VATS, HORNS/DR LKS/TRNK RLY Fuses, and PWR WDO/SR Circuit Breaker Cell 10: VATS, T/SIG/BU LP/BTSI, AIR BAG, IP AUX OUTLET, and AIR BAG/VATS Fuses Cell 10: A/C, PCM/VATS, HORNS/DR LKS/TRNK RLY Fuses, and PWR WDO/SR Circuit Breaker Cell 14: G105 (2 of 4) Cell 14: G102 and G105 (1 of 4)
Figure 2:	Cell 133: Ignition Switch Theft Deterrent System Components Content Theft Deterrent (CTD) Description Cell 133: Content Theft Deterrent System (CTD) - UA6 Cell 133: PASS-Key II System Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 10: VATS, T/SIG/BU LP/BTSI, AIR BAG, IP AUX OUTLET, and AIR BAG/VATS Fuses Cell 10: IGN SW Fuse (1 of 2) Cell 10: IGN SW Fuse (1 of 2) Cell 10: VATS, T/SIG/BU LP/BTSI, AIR BAG, IP AUX OUTLET, and AIR BAG/VATS Fuses

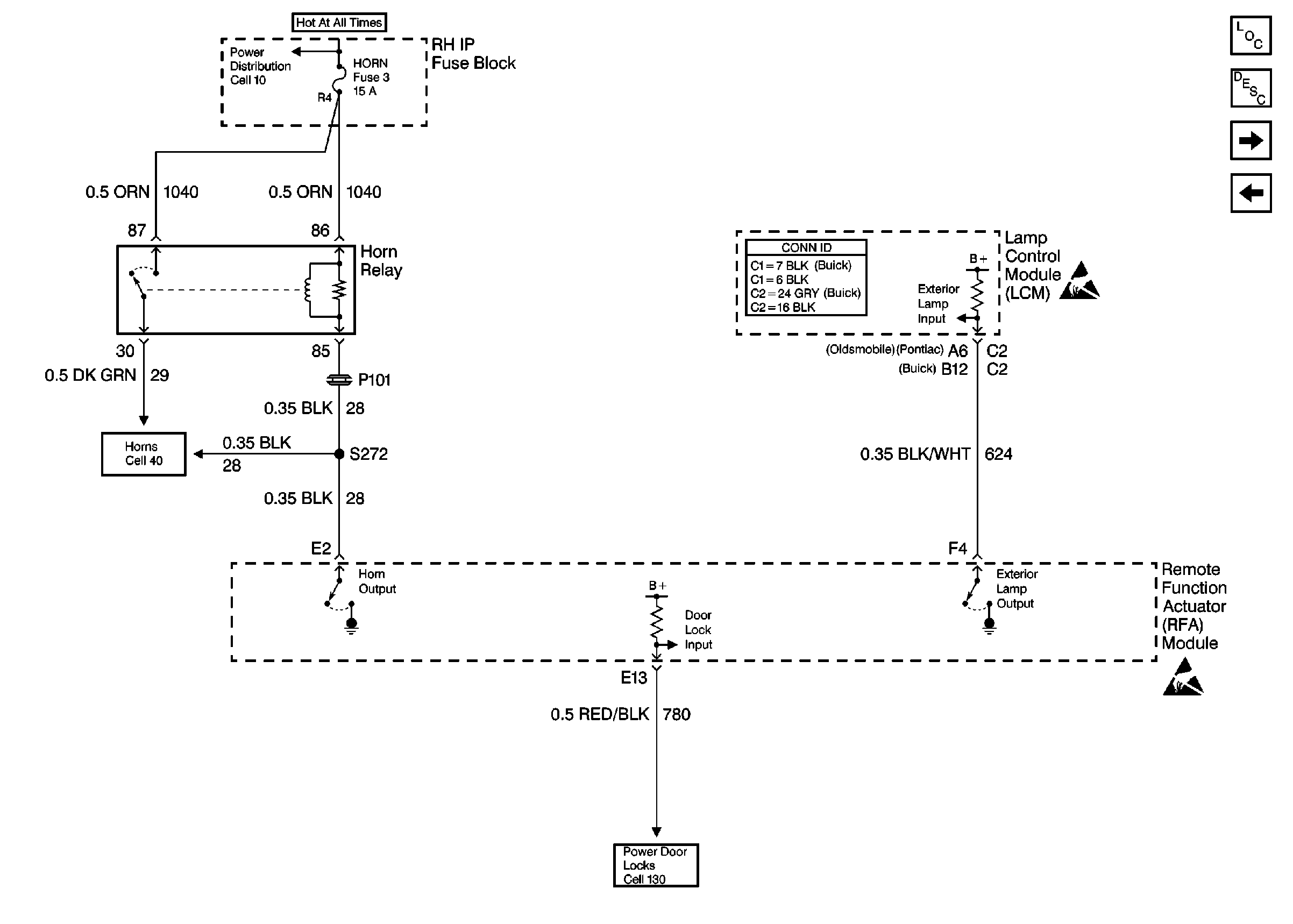

Figure 3:	Cell 133: Content Theft Deterrent System (CTD) -- UA6 Theft Deterrent System Components Content Theft Deterrent (CTD) Description Cell 133: RH Front Door Tamper Switch Cell 133: Ignition Switch Cell 40: Horns Cell 10: A/C FEEDBACK, DR LKS, HORN, and RAC/TRUNK REL Fuses Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 133: RH Front Door Tamper Switch Cell 130: Door Locks With Keyless Entry - Buick, Oldsmobile

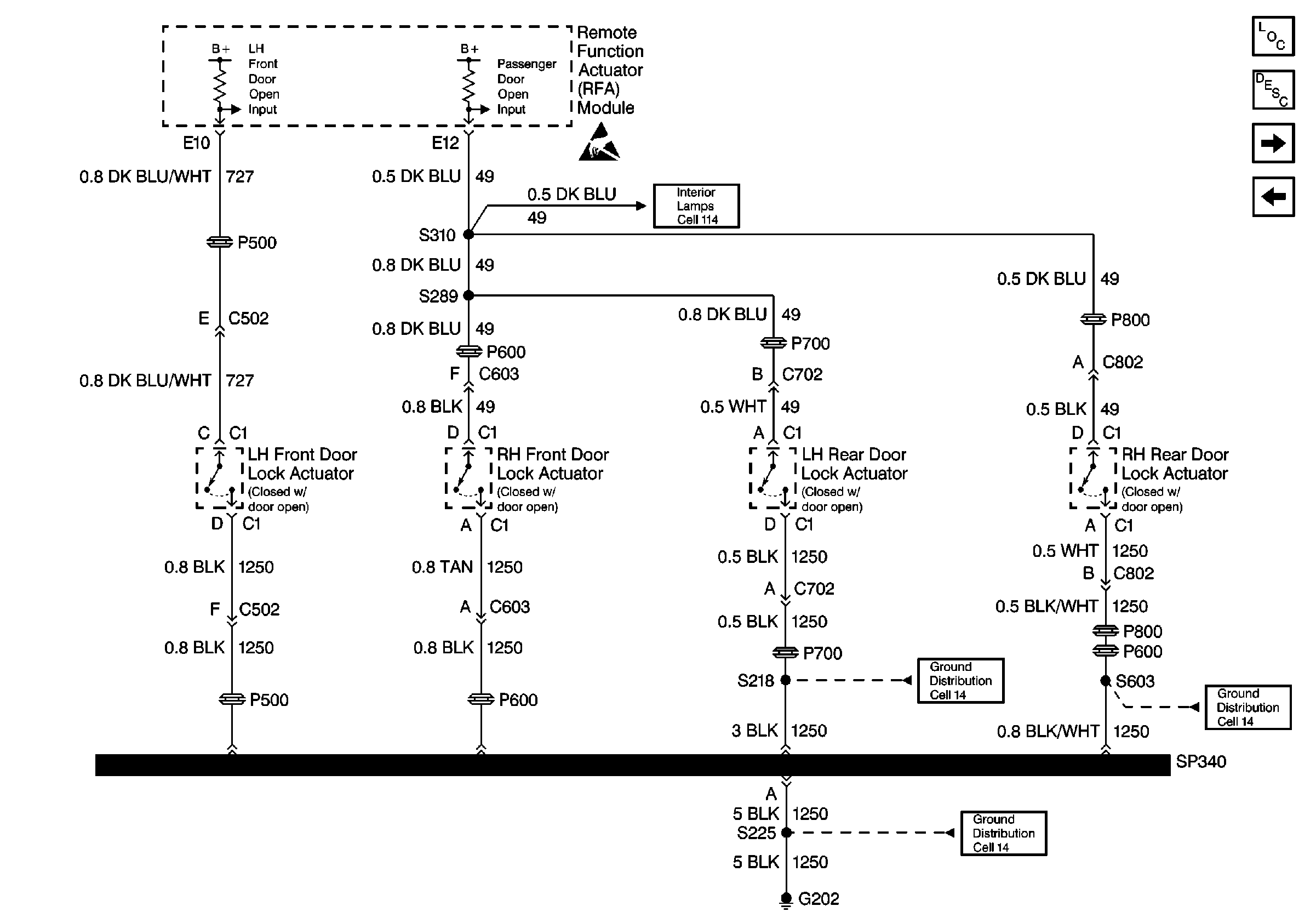

Figure 4:	Cell 133: RH Front Door Tamper Switch Theft Deterrent System Components Vehicle Theft Deterrent (VTD) Description Cell 133: Content Theft Deterrent System (CTD) - UA6 Cell 133: Content Theft Deterrent System (CTD) - UA6 Cell 14: G202 Cell 14: G202 Continued Cell 14: G202 Continued

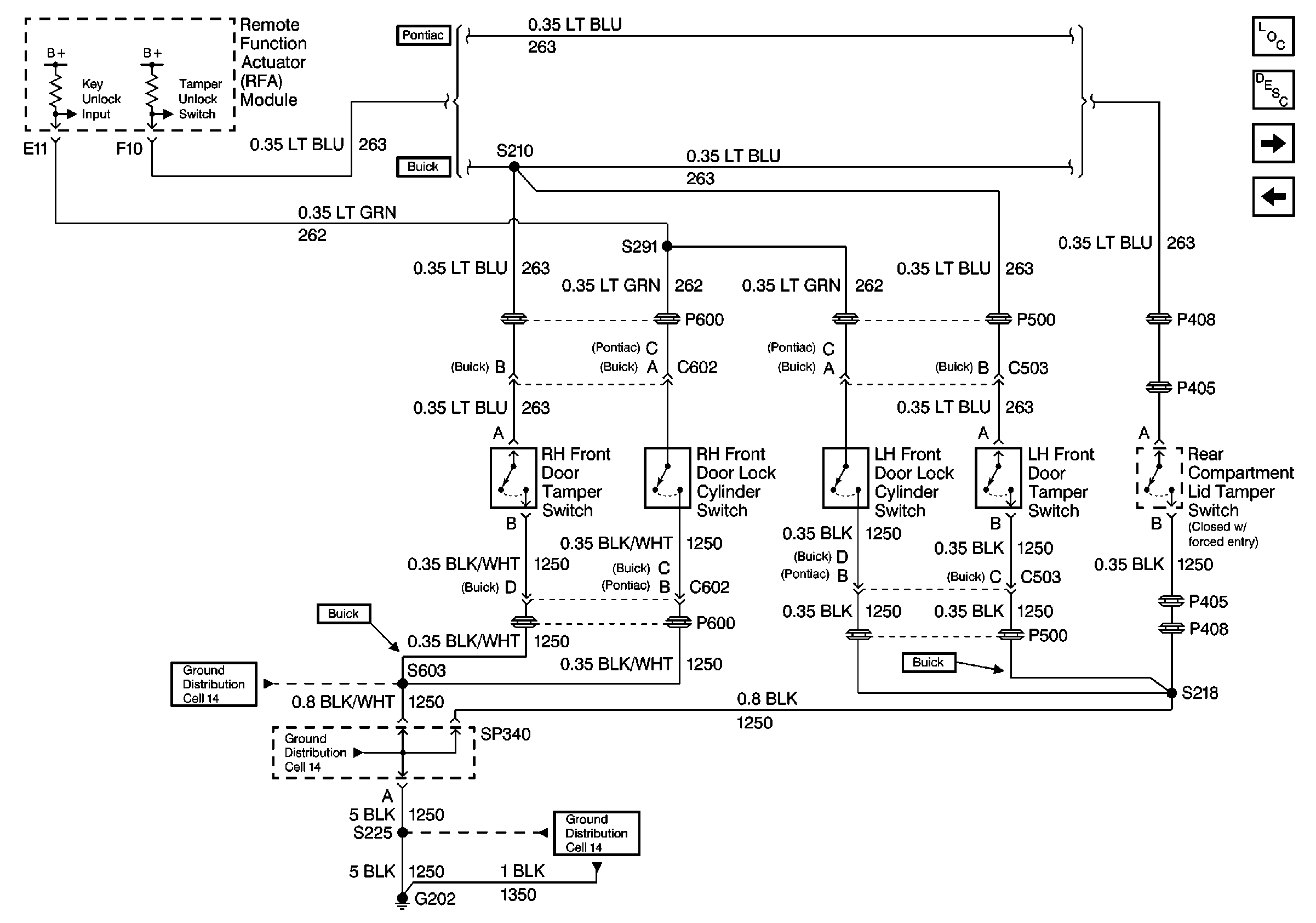

Figure 5:	Cell 133: Content Theft Deterrent System (CTD) -- UA6 Theft Deterrent System Components Vehicle Theft Deterrent (VTD) Description Cell 133: Oldsmobile Cell 133: RH Front Door Tamper Switch Cell 114: Interior Lamp Switch and Door Open Inputs Handling ESD Sensitive Parts Notice Cell 14: G202 Continued Cell 14: G202 Cell 14: G202 Continued

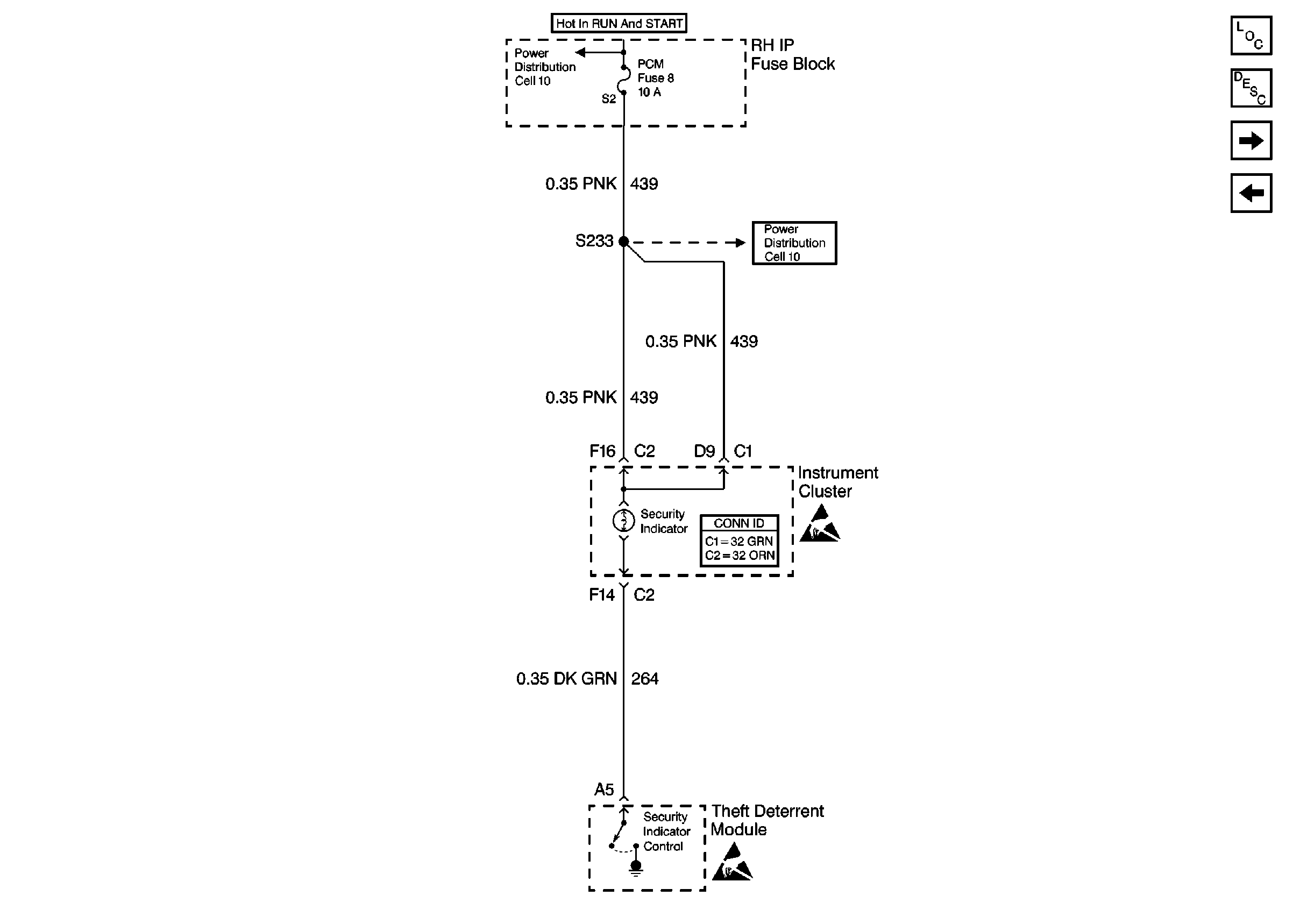

Figure 6:	Cell 133: Oldsmobile Theft Deterrent System Components Vehicle Theft Deterrent (VTD) Description Cell 133: Buick Cell 133: Content Theft Deterrent System (CTD) - UA6 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 10: PCM Fuse Cell 10: PCM Fuse

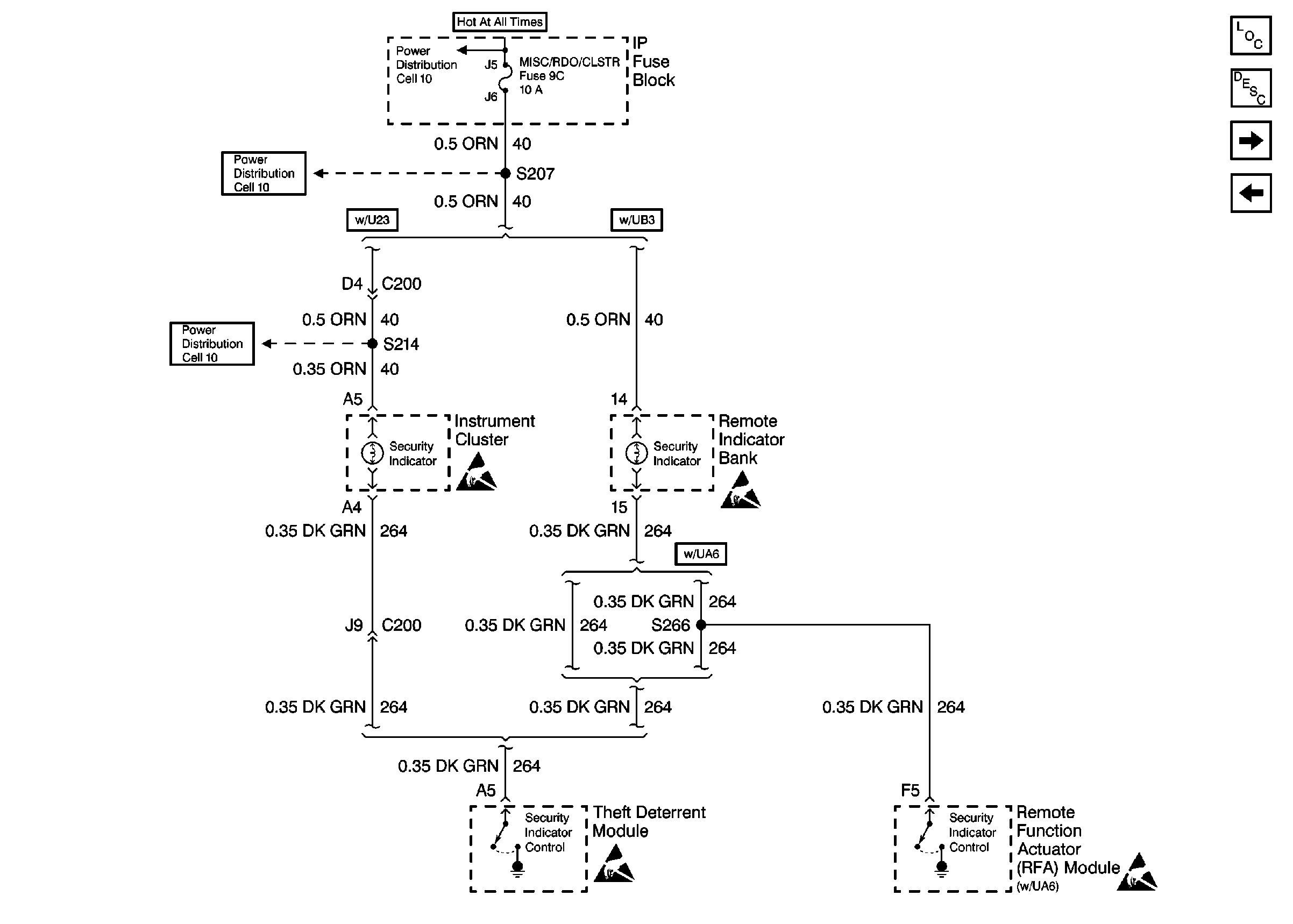

Figure 7:	Cell 133: Buick Theft Deterrent System Components Vehicle Theft Deterrent (VTD) Description Cell 133: Pontiac Cell 133: Oldsmobile Cell 10: MISC/RDO/CLSTR Fuse Cell 10: MISC/RDO/CLSTR Fuse Cell 10: MISC/RDO/CLSTR Fuse Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

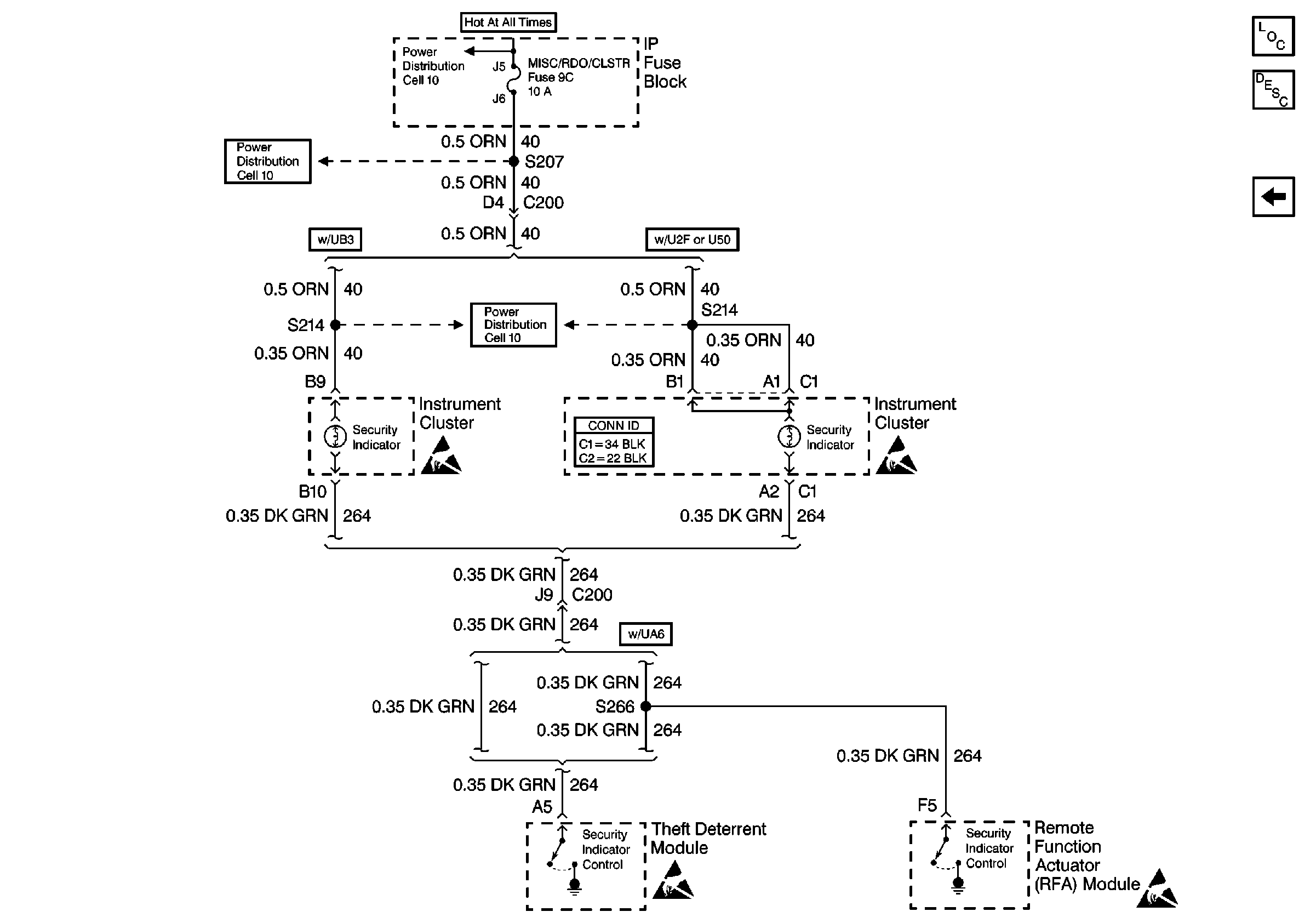

Figure 8:	Cell 133: Pontiac Theft Deterrent System Components Vehicle Theft Deterrent (VTD) Description Cell 133: Buick Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 10: MISC/RDO/CLSTR Fuse Cell 10: MISC/RDO/CLSTR Fuse Cell 10: MISC/RDO/CLSTR Fuse
