Instrument Cluster: Analog Schematics. Buick LeSabre 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2000 🢒 LeSabre 🢒 Body and Accessories 🢒 Instrument Panel, Gauges, and Console 🢒 Instrument Cluster: Analog Schematics

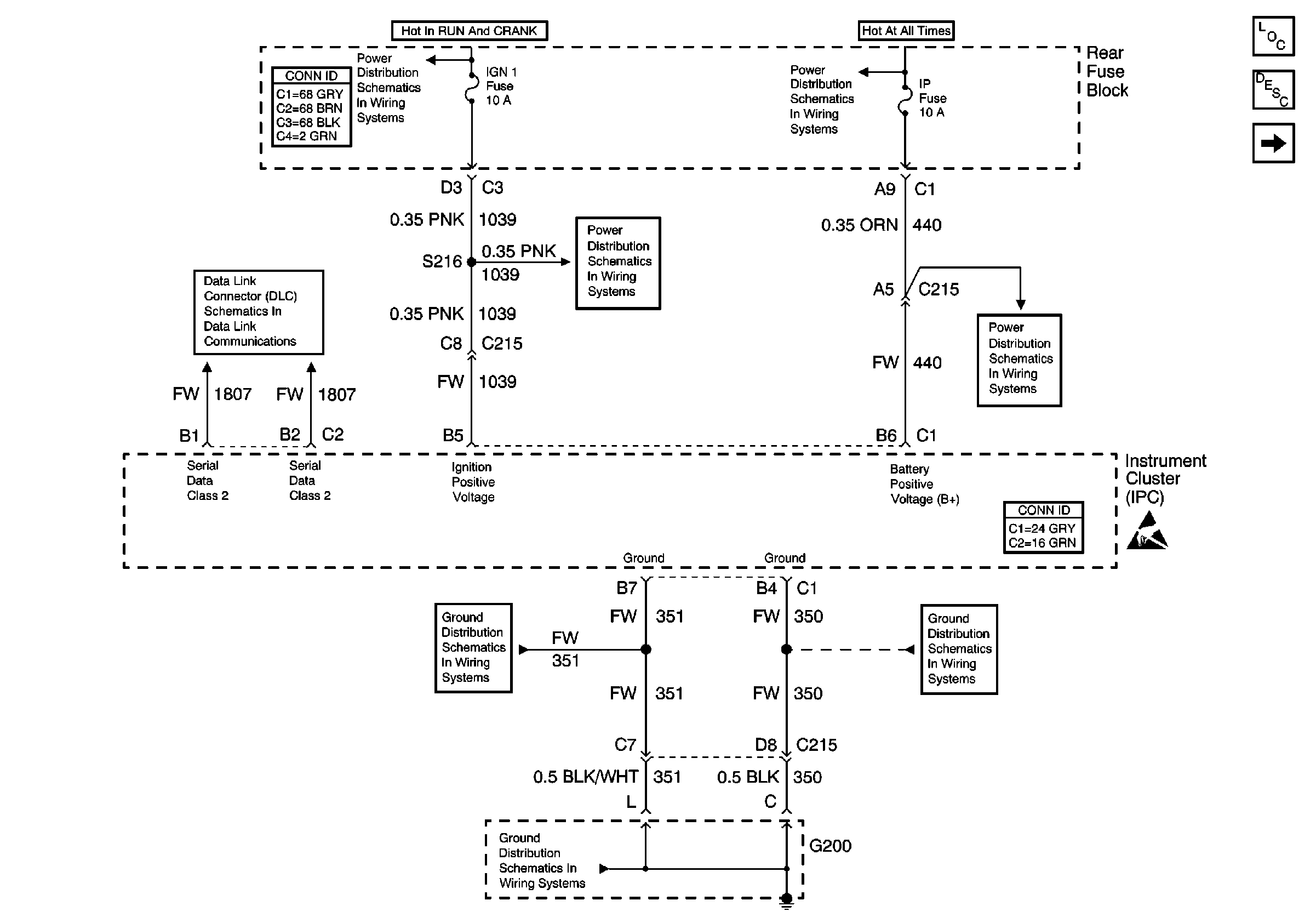

Figure 1:	Power, Ground, Class 2 Instrument Cluster and HUD Components Instrument Cluster Circuit Description PCM, IPC, Inputs ABS and PCM BATT Fuses (Underhood Fuse Block) Handling ESD Sensitive Parts Notice ABS and PCM BATT Fuses (Underhood Fuse Block) G200 (1 of 3) Serial Data Class 2 G200 (1 of 2) G200 (1 of 2) IGN-1, VENT SOL and SIR Fuse (Rear Fuse Block) IGN-1, VENT SOL and SIR Fuse (Rear Fuse Block)

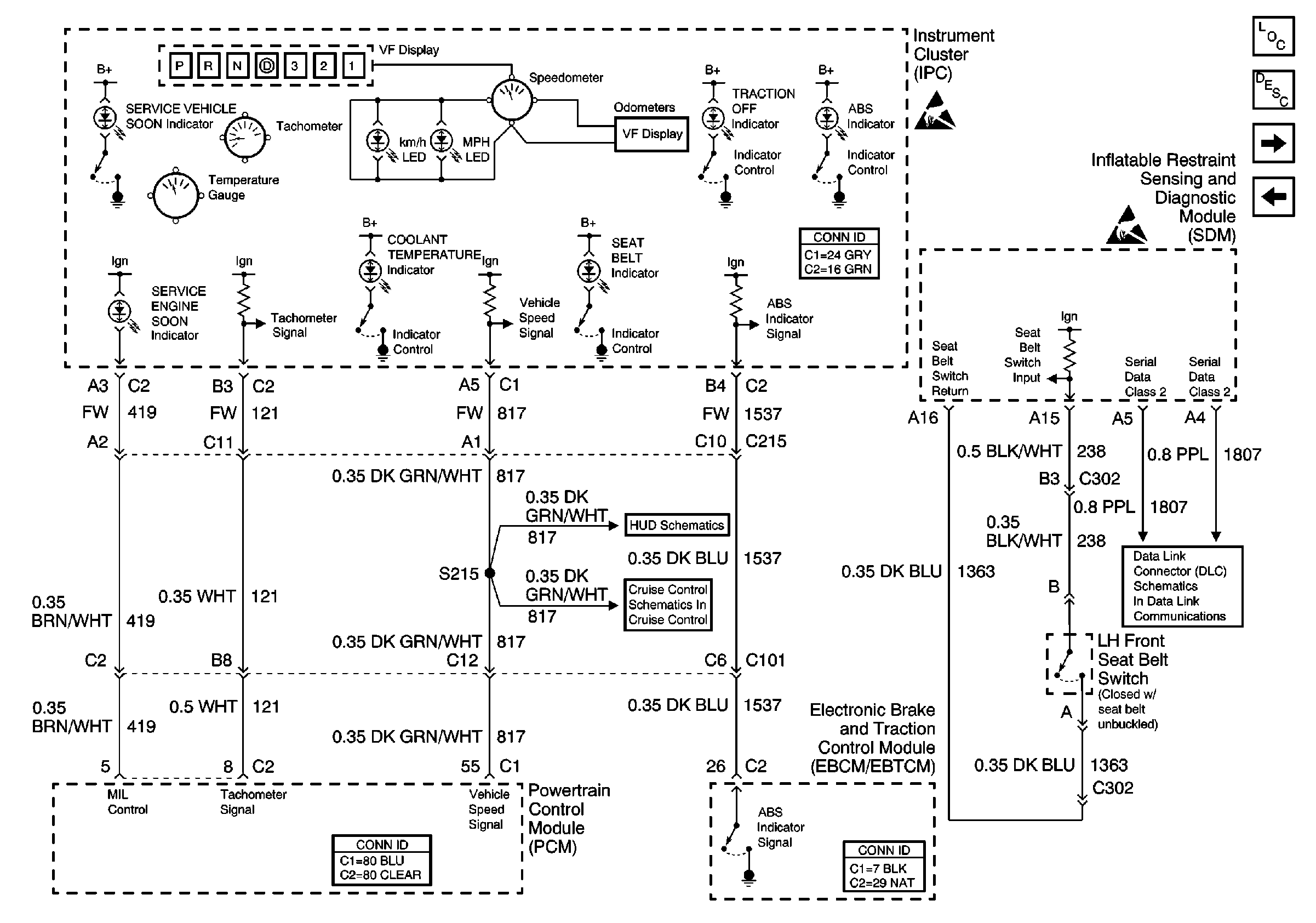

Figure 2:	PCM,IPC, Inputs Instrument Cluster and HUD Components Instrument Cluster Gauge Operation Turn Signal and High Beam Inputs Power, Ground, Class 2 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Serial Data Class 2 220 Cell 83: Head Up Display CCM, PCM Controls and Vehicle Speed Input

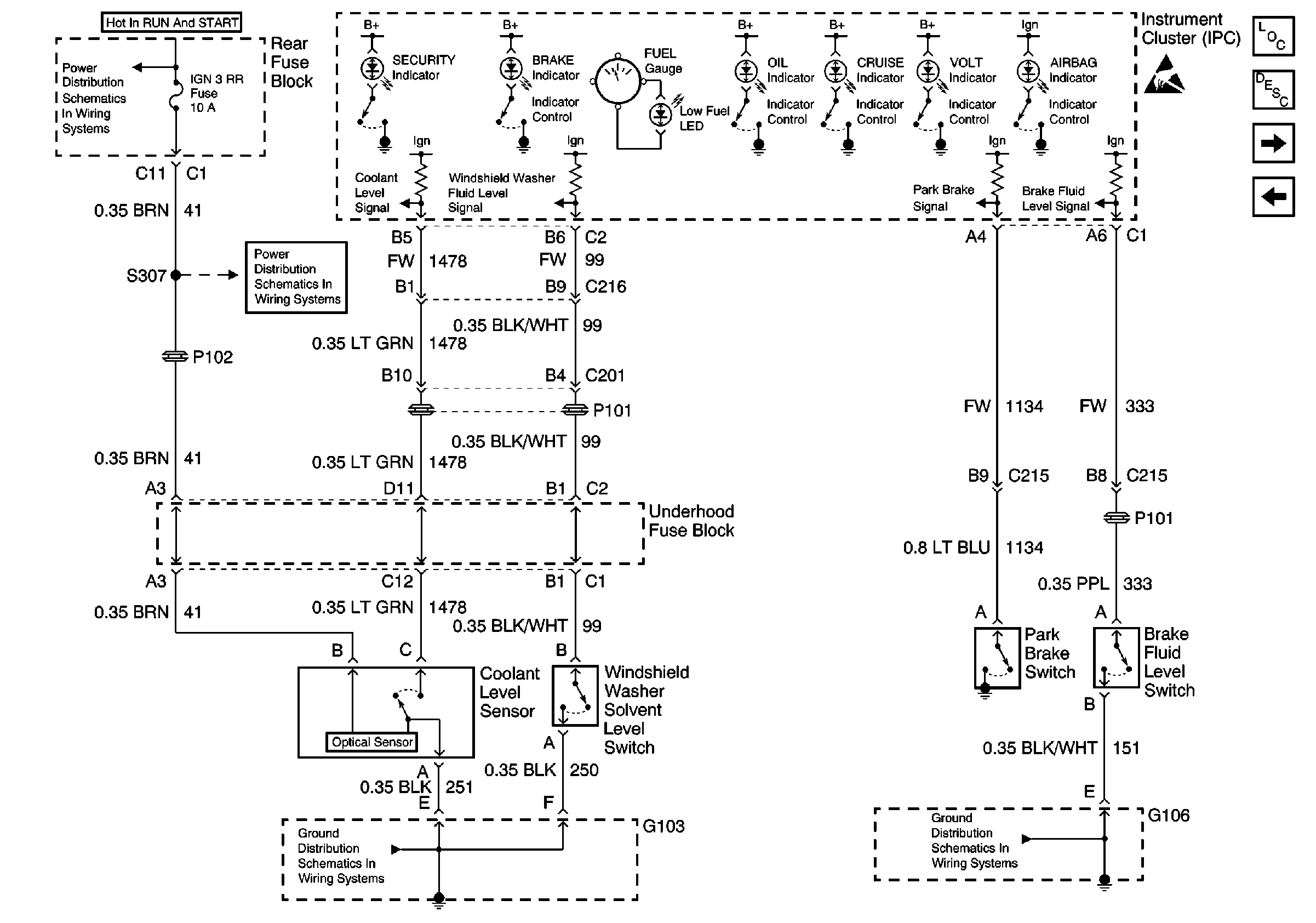

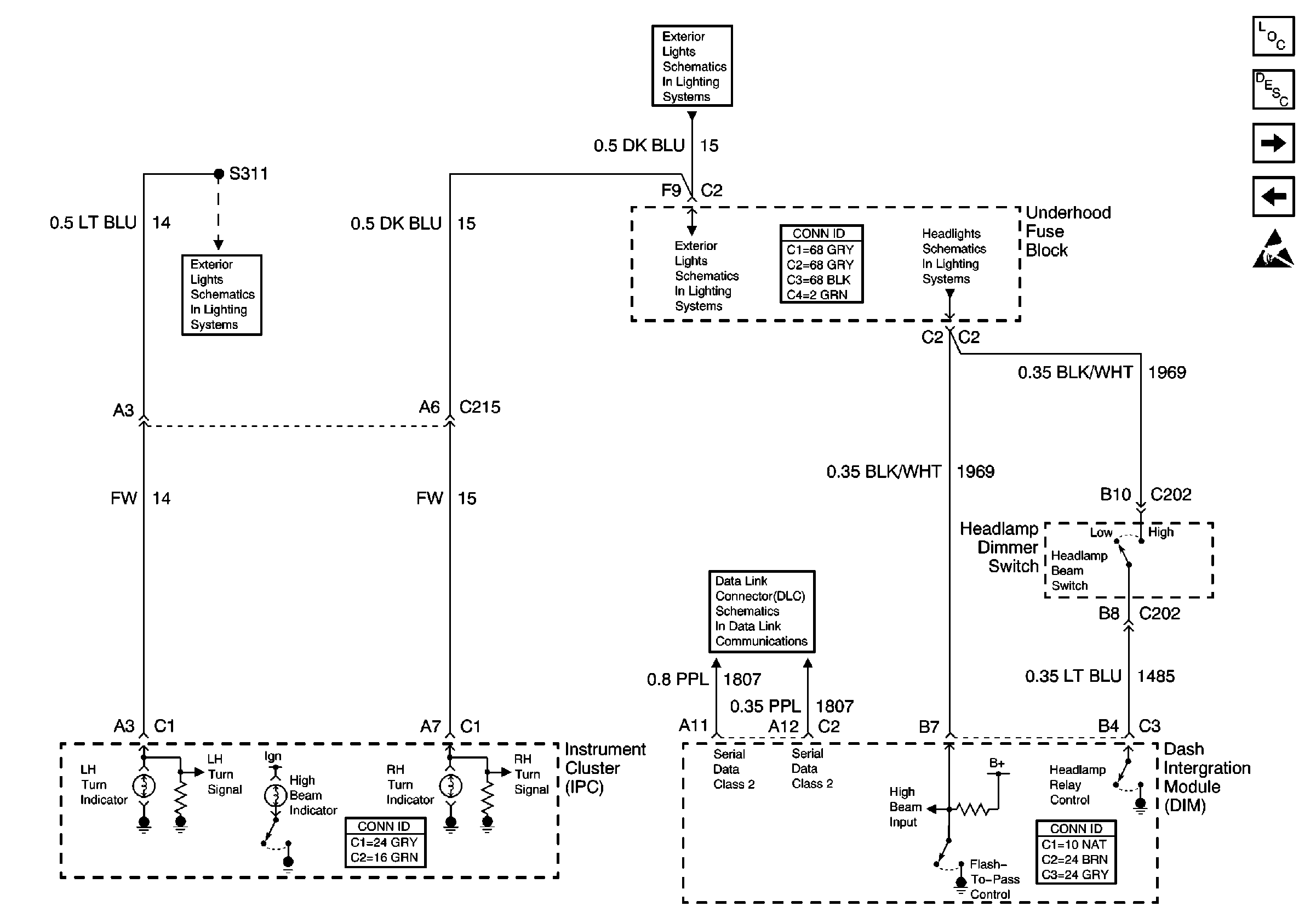

Figure 3:	Turn Signal and High Beam Inputs Instrument Cluster and HUD Components Instrument Cluster Indicator Operation Coolant, Brake, Washer Inputs PCM, IPC, Inputs Handling ESD Sensitive Parts Notice DRL, High Beam Headlamps, Dimmer Switch RH Exterior Lamps RH Exterior Lamps LH Exterior Lamps Serial Data Class 2
Figure 4:	Coolant, Brake, Washer Inputs Instrument Cluster and HUD Components Instrument Cluster Indicator Operation DIC Switch ( w/U2E ) Turn Signal and High Beam Inputs Handling ESD Sensitive Parts Notice G101, G106, and G107 G103 220 Cell 83: Head Up Display CCM, PCM Controls and Vehicle Speed Input
Figure 5:	DIC Switch ( w/U2E ) Instrument Cluster and HUD Components Driver Information Center (DIC) or Message Center Description DIC Switch ( w/UB7 ) Coolant, Brake, Washer Inputs Handling ESD Sensitive Parts Notice G201 G103 220 Cell 83: Head Up Display
Figure 6:	DIC Switch ( w/UB7 ) Instrument Cluster and HUD Components Driver Information Center (DIC) or Message Center Description Fuel Sender Rear Compartment Lid Switch DIC Switch ( w/U2E ) Handling ESD Sensitive Parts Notice G201 G201 Instrument Panel and Console Dimming
Figure 7:	Fuel Sender Rear Compartment Lid Switch Instrument Cluster and HUD Components Instrument Cluster Operation Door Jamb Switches DIC Switch ( w/UB7 ) Handling ESD Sensitive Parts Notice Sensors G401 (2 of 2) Serial Data Class 2 Handling ESD Sensitive Parts Notice

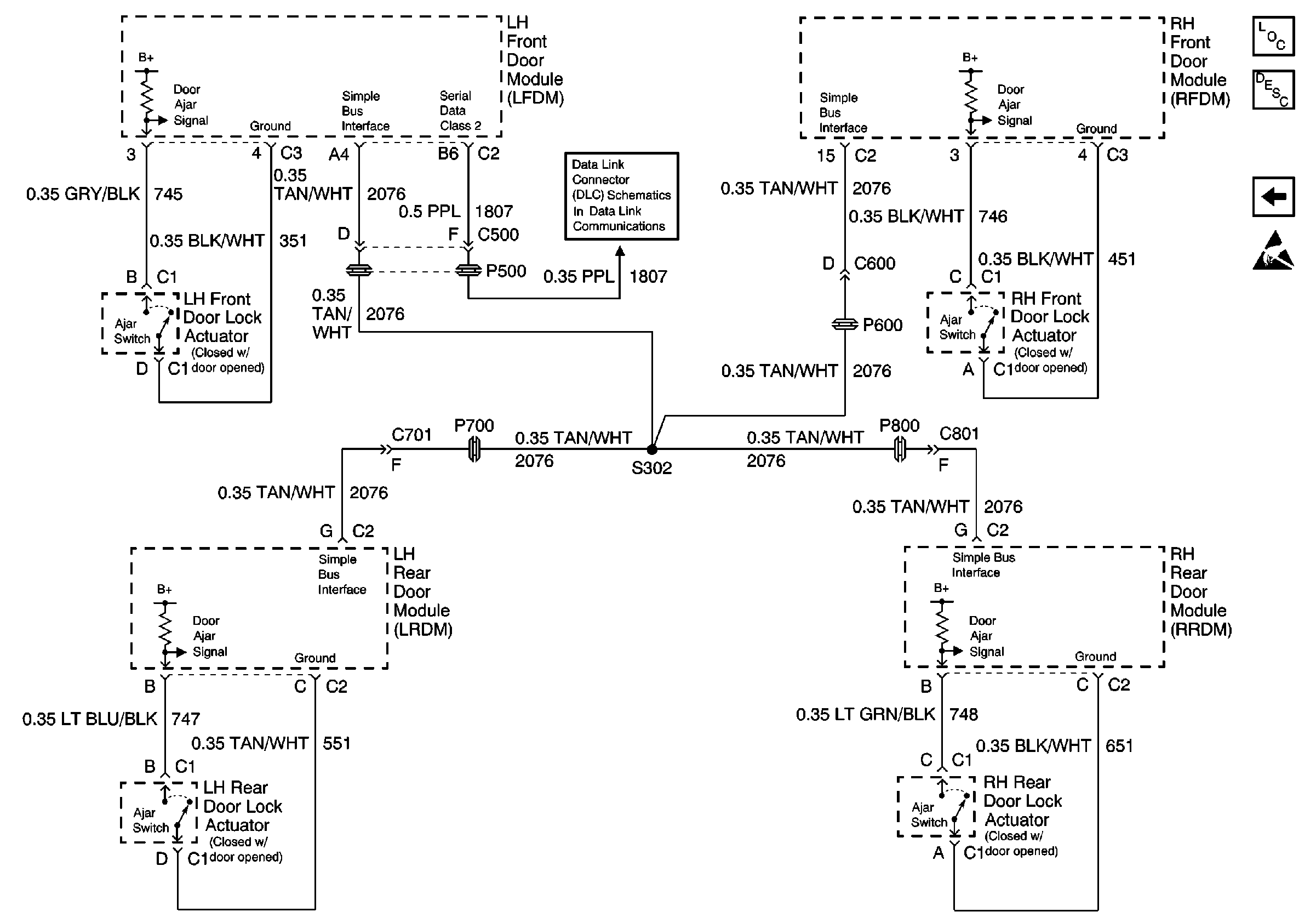

Figure 8:	Door Jamb Switches Instrument Cluster and HUD Components Driver Information Center (DIC) or Message Center Warning Messages Description Fuel Sender Rear Compartment Lid Switch Handling ESD Sensitive Parts Notice Serial Data Class 2
