Power Seats Schematics. Buick LeSabre 2001

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2001 🢒 LeSabre 🢒 Body and Accessories 🢒 Seats 🢒 Power Seats Schematics

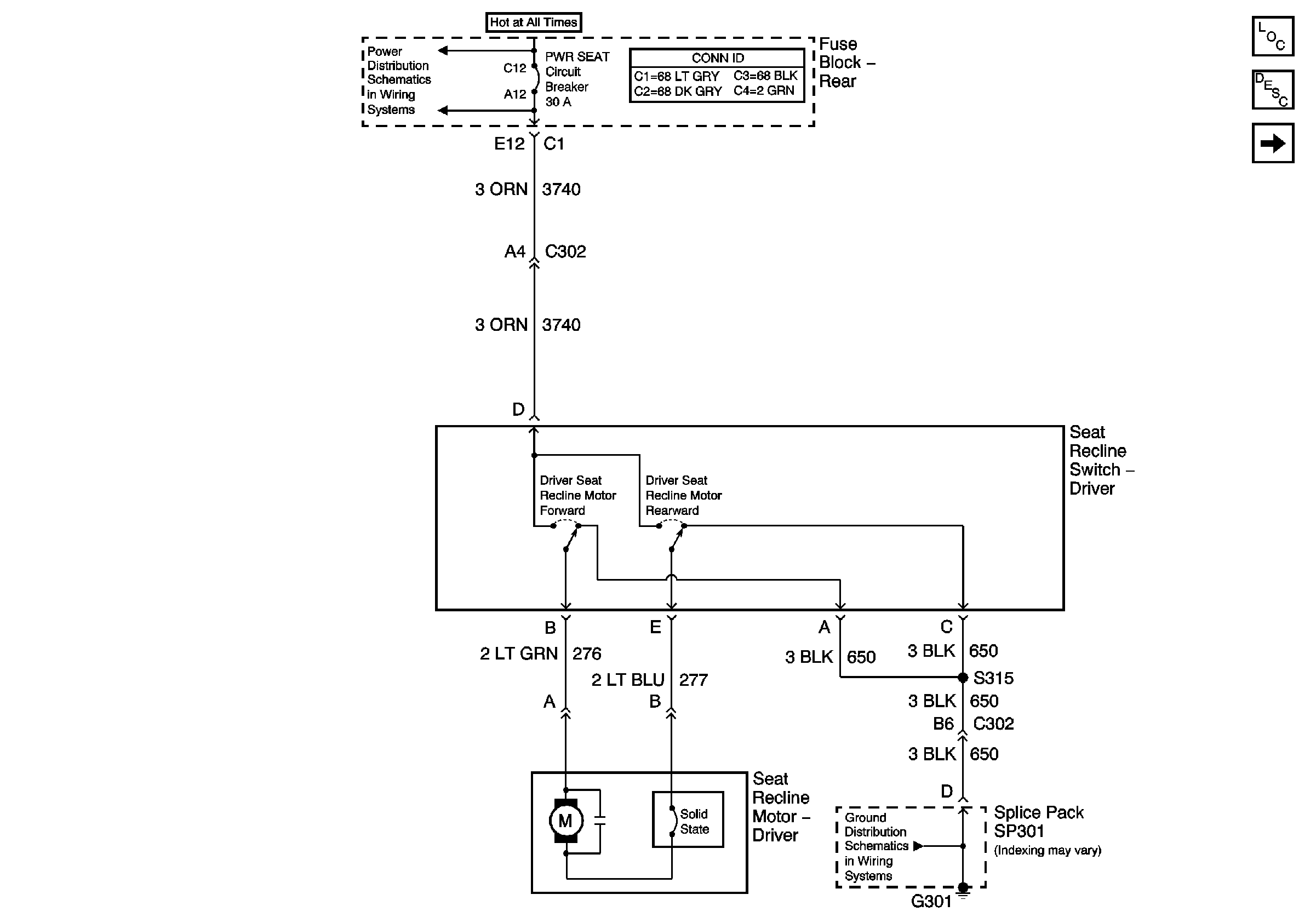

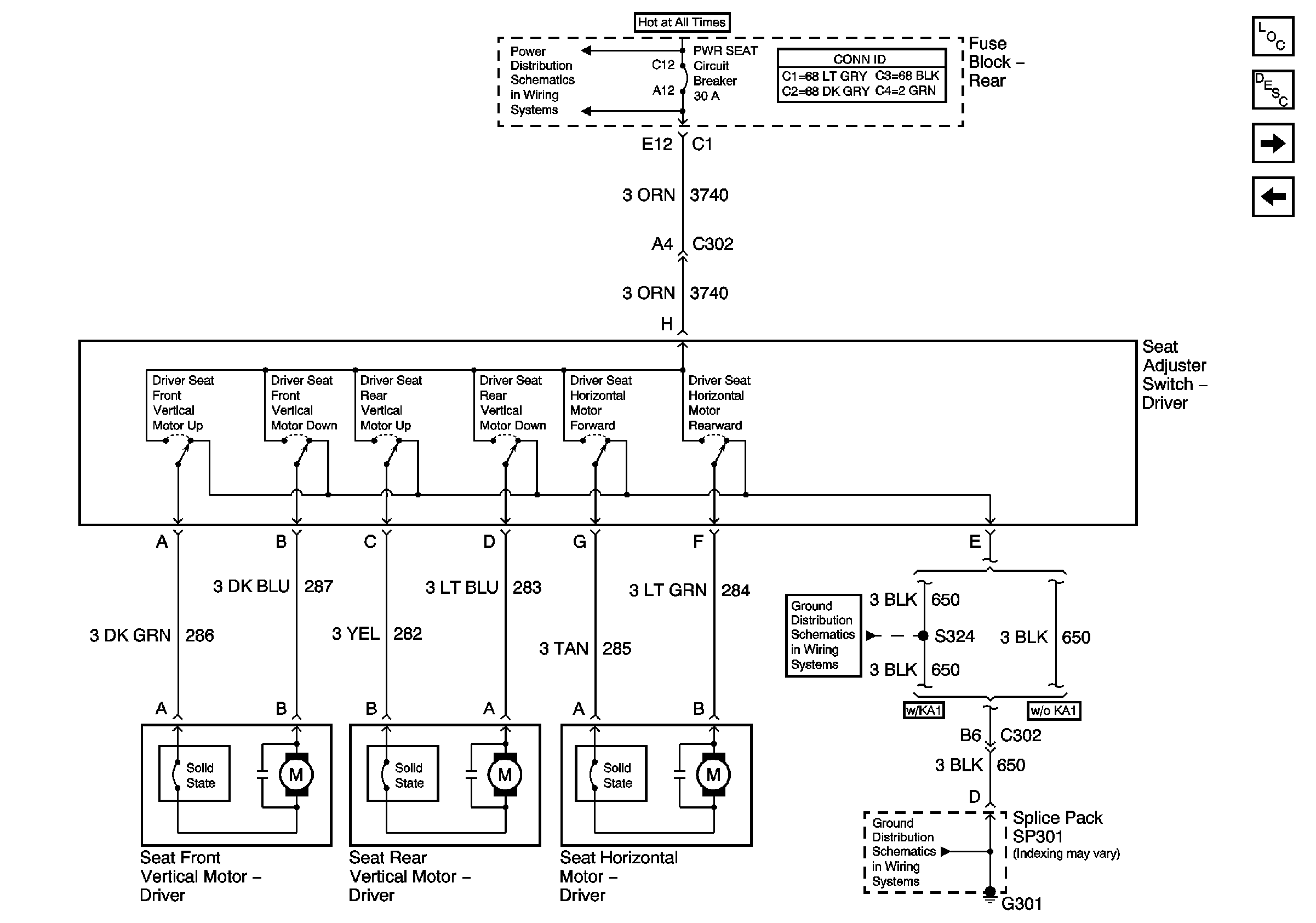

Figure 1:	LH Power Recline Switch and Motor Master Electrical Component List Power Seats System Description and Operation RH Power Recline Switch and Motor G301 (1 of 2) PWR WDO and PWR SEAT Circuit Breakers (Rear Fuse Block)

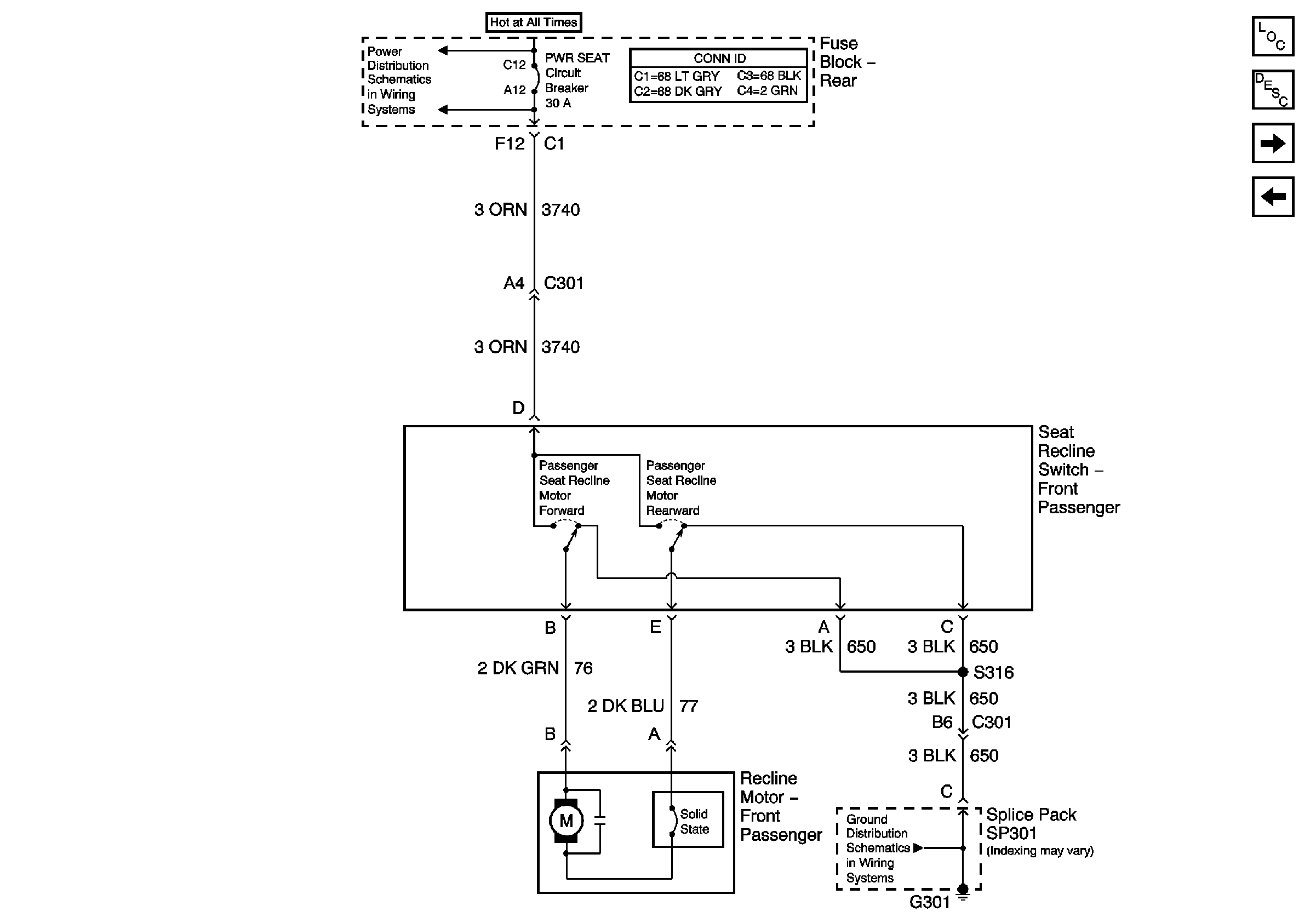

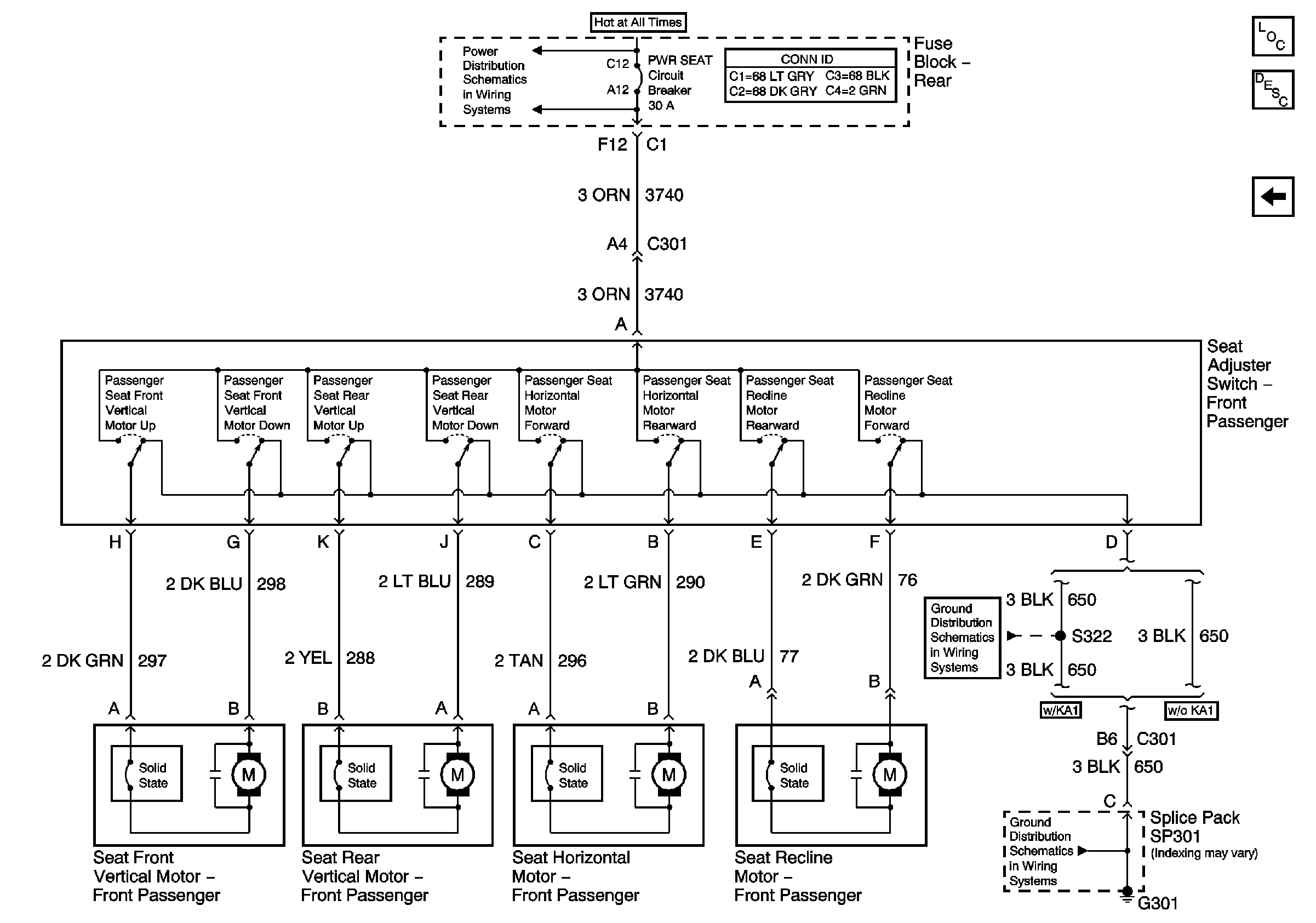

Figure 2:	RH Power Recline Switch and Motor Master Electrical Component List Power Seats System Description and Operation LH Seat Switch and Motors (w/AG1) LH Power Recline Switch and Motor G301 (2 of 2) PWR WDO and PWR SEAT Circuit Breakers (Rear Fuse Block)

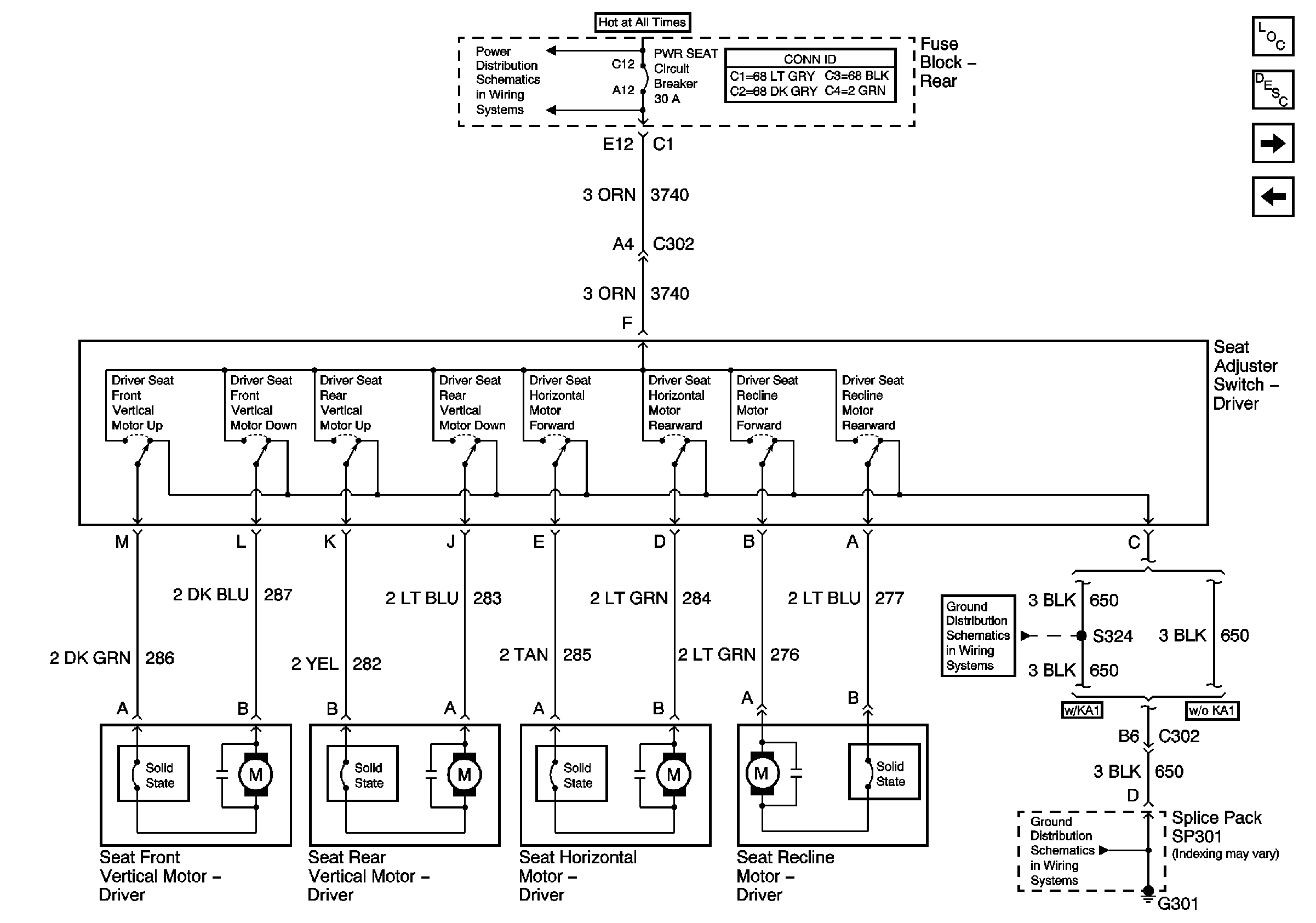

Figure 3:	LH Seat Switch and Motors (w/AG1) Master Electrical Component List Recline Motor and Sensor RH Seat Switch and Motors (w/AG2) RH Power Recline Switch and Motor G301 (1 of 2) G301 (1 of 2) PWR WDO and PWR SEAT Circuit Breakers (Rear Fuse Block)

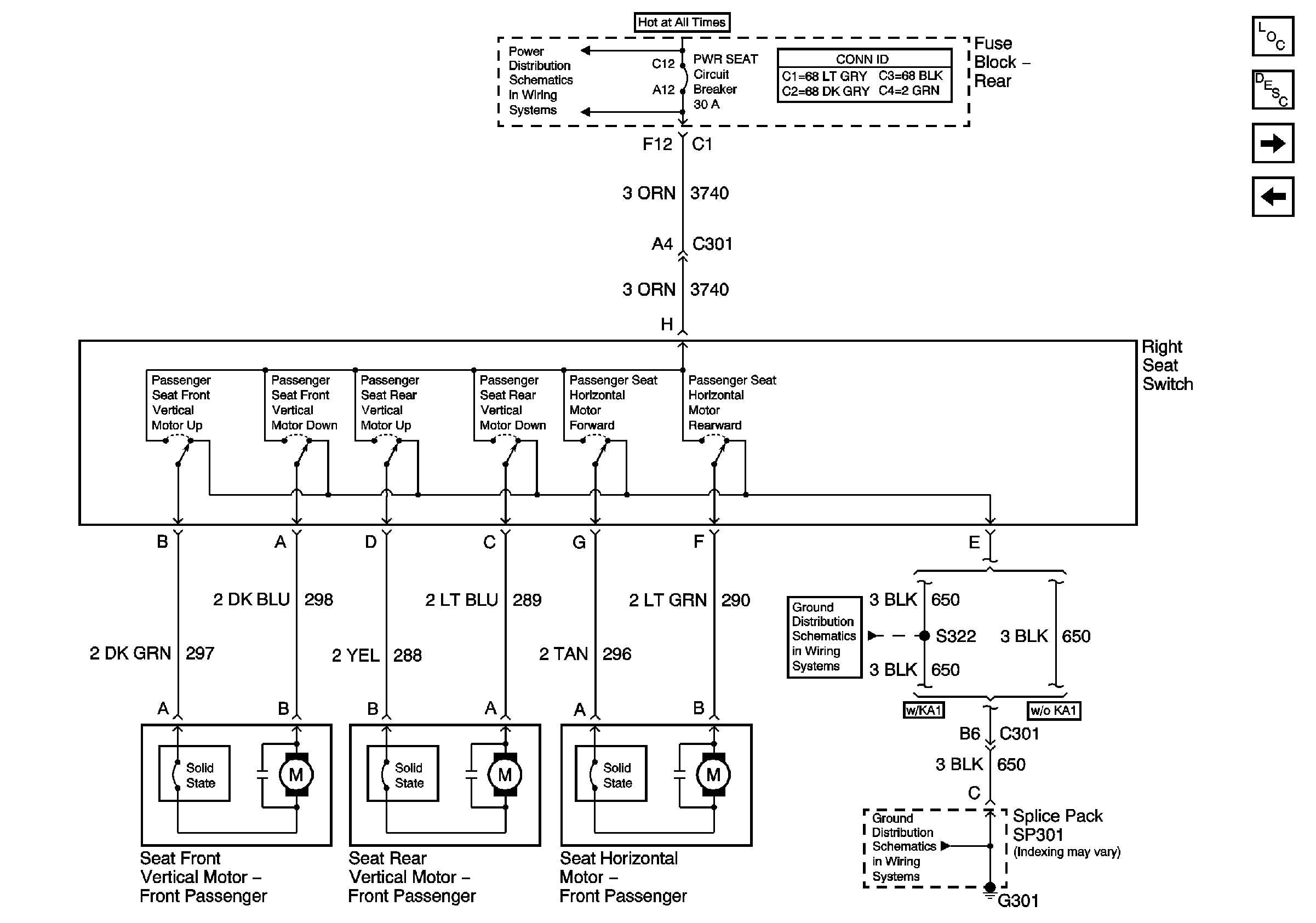

Figure 4:	RH Seat Switch and Motors (w/AG2) Master Electrical Component List Recline Motor and Sensor LH Seat Switch and Motors (w/AG1 and w/A80) LH Seat Switch and Motors (w/AG1) G301 (2 of 2) G301 (2 of 2) PWR WDO and PWR SEAT Circuit Breakers (Rear Fuse Block)
Figure 5:	LH Seat Switch and Motors (w/AG1 and w/A80) Master Electrical Component List Power Seats System Description and Operation RH Seat Switch and Motors (w/AG2 and w/A81) RH Seat Switch and Motors (w/AG2) G301 (1 of 2) G301 (1 of 2) PWR WDO and PWR SEAT Circuit Breakers (Rear Fuse Block)
Figure 6:	RH Seat Switch and Motors (w/AG2 and w/A81) Master Electrical Component List Power Seats System Description and Operation LH Seat Switch and Motors (w/AG1 and w/A80) G301 (2 of 2) G301 (2 of 2) PWR WDO and PWR SEAT Circuit Breakers (Rear Fuse Block)
