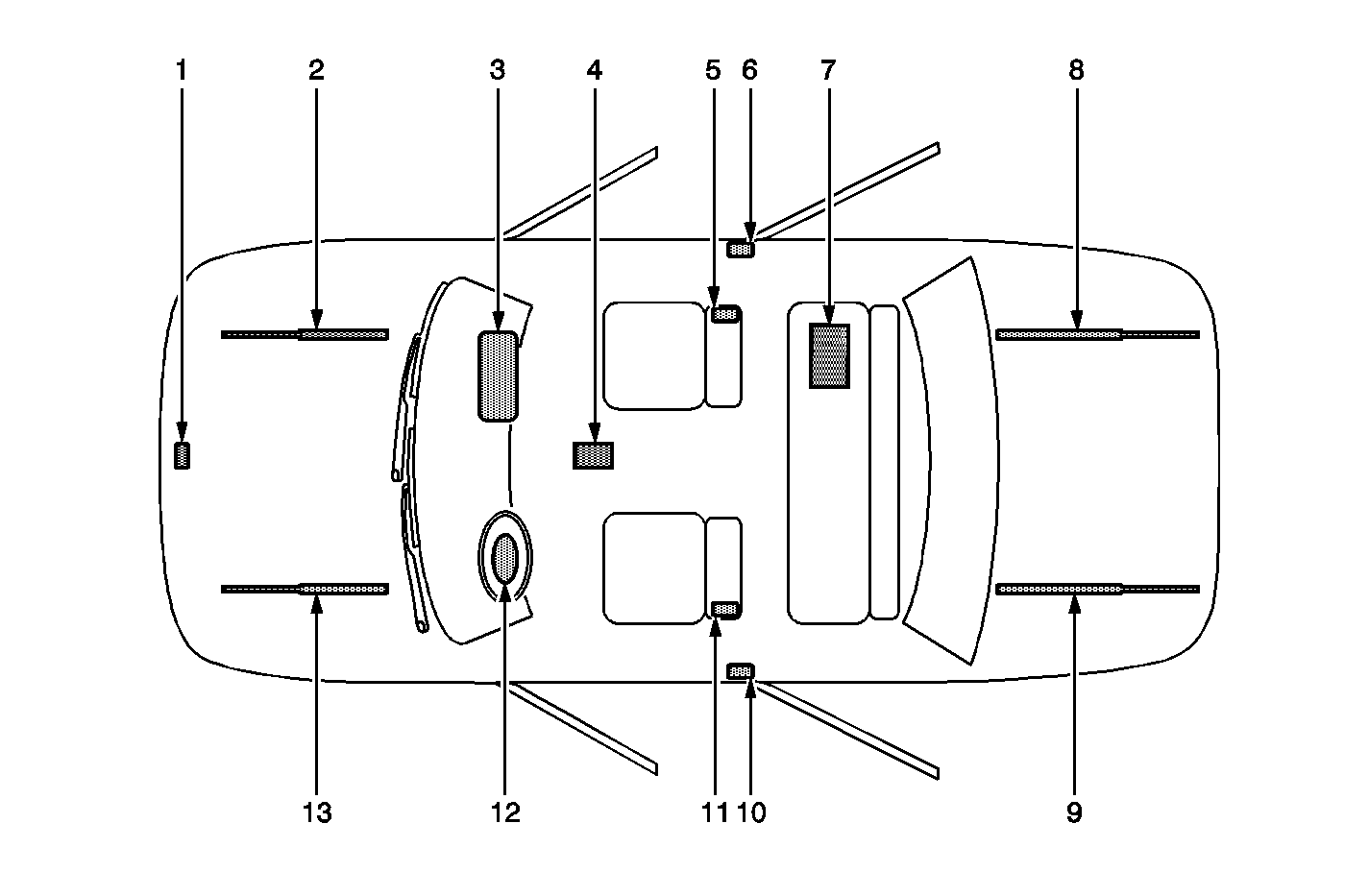

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling for a given service procedure, refer to SIR Disabling and Enabling .

Buick LeSabre


(1)	Frontal Sensor - Located on the front of the vehicle in the engine compartment
(2)	Front Hood Assist Rod - A gas shock located under the front hood on the passenger side
(3)	I/P Air Bag - Located at the top right under the instrument panel
(4)	Sensing and Diagnostic Module (SDM) - Located underneath the vehicle carpet under the center console
(5)	RF Side Impact Air Bag - Located on the seat back of passenger seat
(6)	Side Impact Sensor (SIS) - Located under the center pillar trim near the bottom
(7)	Vehicle Battery - Located under rear seat on the right side
(8)	Rear Compartment Lid Assist Rod - A gas shock is located under the rear trunk lid on the passenger side
(9)	Rear Compartment Lid Assist Rod - A gas shock is located under the rear trunk lid on the driver side
(10)	Side Impact Sensor (SIS) - Located under the center pillar trim near the bottom
(11)	LF Side Impact Air Bag - Located on the seat back of driver seat
(12)	Steering Wheel Air Bag-Located on the steering wheel
(13)	Front Hood Assist Rod-A gas shock located under the front hood on the driver side
