Exterior Lights Schematics. Buick LeSabre 2005

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2005 🢒 LeSabre 🢒 Body 🢒 Lighting Systems 🢒 Exterior Lights Schematics

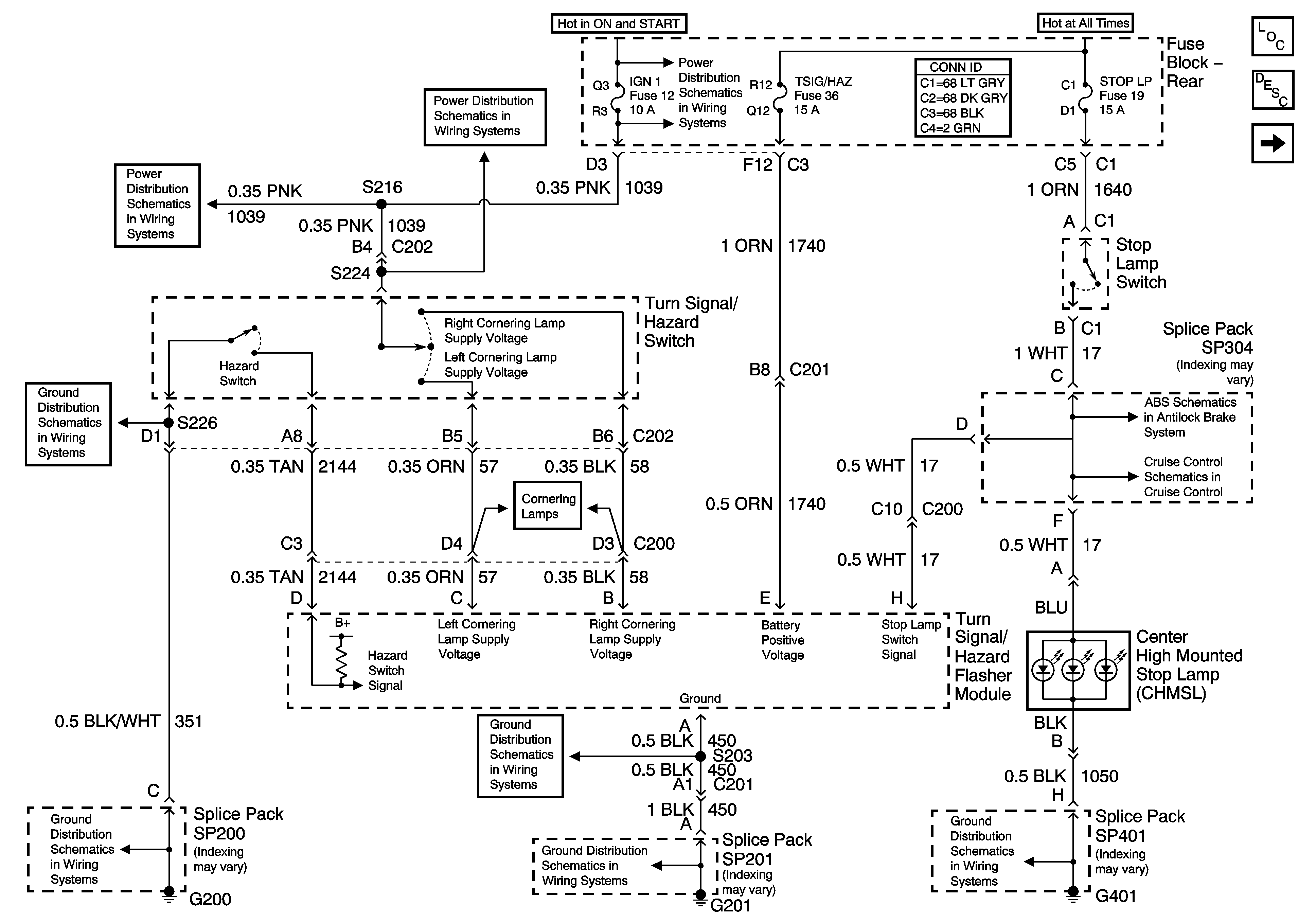

Figure 1:	Turn Signal Switch and Hazard Flasher Module Inputs Master Electrical Component List Exterior Lighting Systems Description and Operation Park Lamp Relay Fuse Block Rear - IGN-1, VENT SOL and SIR Fuses Fuse Block Rear - IGN-1, VENT SOL and SIR Fuses Fuse Block Rear - IGN-1, VENT SOL and SIR Fuses G200 - 1 of 2 PWR, GND, Stop Lamp Switch, Solenoid Valves, and Pump Motor CCM, PCM Controls and Vehicle Speed Input G201 G200 - 1 of 2 G201 G401 - 1 of 2
Figure 2:	Park Lamp Relay Master Electrical Component List Exterior Lighting Systems Description and Operation License, Underhood and Cornering Lamps Turn Signal Switch and Hazard Flasher Module Inputs Low Beam Headlamps License, Underhood and Cornering Lamps Drivers Side Exterior Lamps Passengers Side Exterior Lamps
Figure 3:	License, Underhood, and Cornering Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Drivers Side Exterior Lamps Park Lamp Relay Park Lamp Relay G401 - 2 of 2 G103 G401 - 1 of 2 G401 - 1 of 2 G106, G102, G107, and G101 G401 - 2 of 2 G103
Figure 4:	Driver Side Exterior Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Passengers Side Exterior Lamps License, Underhood and Cornering Lamps Head Up Display Park Lamp Relay G401 - 1 of 2 G200 - 2 of 2 G103 G401 - 1 of 2 G402
Figure 5:	Passenger Side Exterior Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Backup Lamps Drivers Side Exterior Lamps Head Up Display Park Lamp Relay G401 - 1 of 2 G201 G103 G401 - 1 of 2

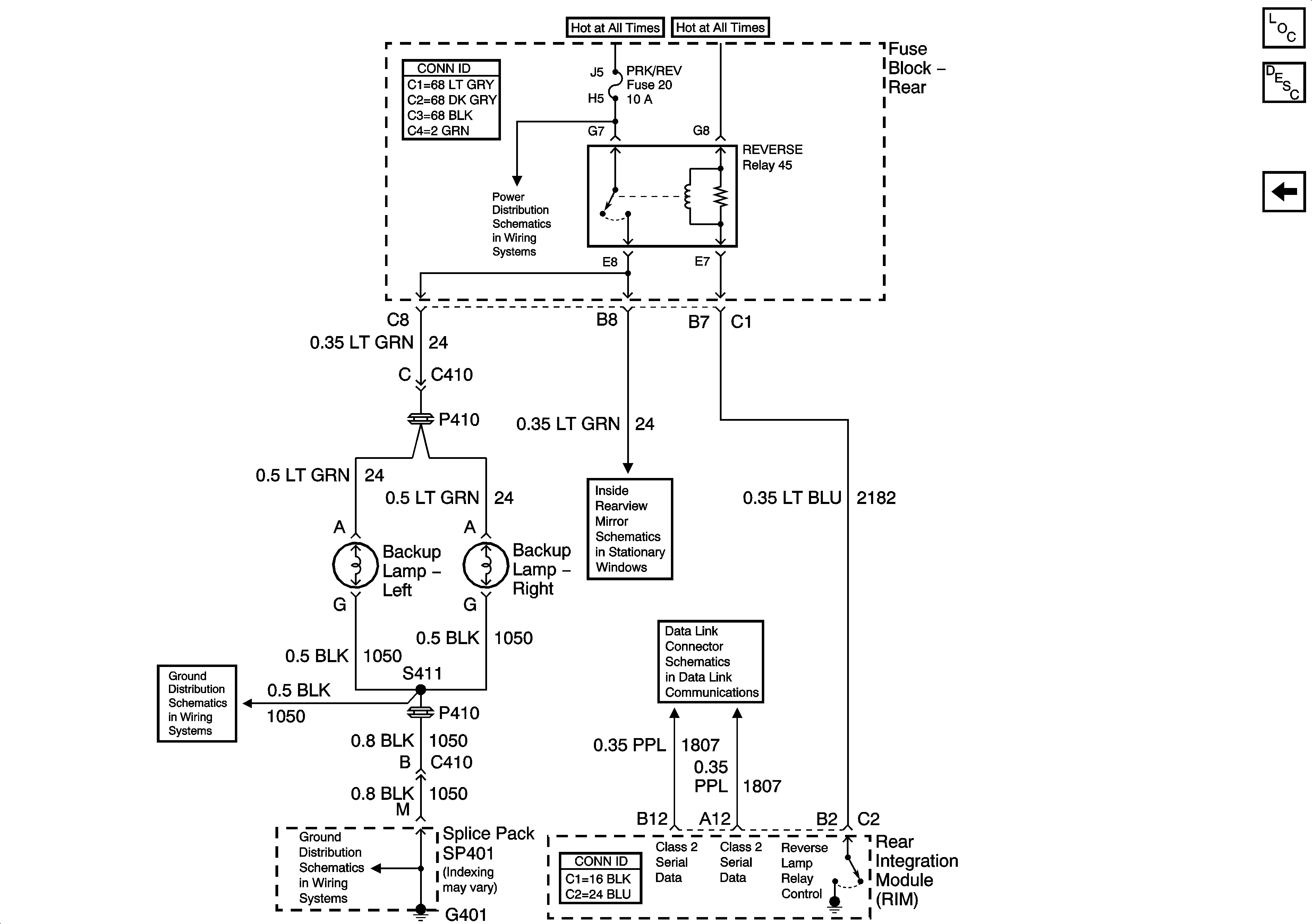

Figure 6:	Backup Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Passengers Side Exterior Lamps Battery Feed to Rear Fuse Block Inside Rear View Mirror (DD7/DD8) Serial Data Class 2 G401 - 1 of 2 G401 - 1 of 2
