Ground Distribution Schematics. Buick LeSabre 2005

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2005 🢒 LeSabre 🢒 Body 🢒 Wiring Systems 🢒 Ground Distribution Schematics

Figure 1:	G305, G310, G404, and G303 Master Electrical Component List G100 and G102 SIR Caution for Zoning Battery Feed to Underhood Fuse Block
Figure 2:	G103 Master Electrical Component List G104 and G105 G100 and G102

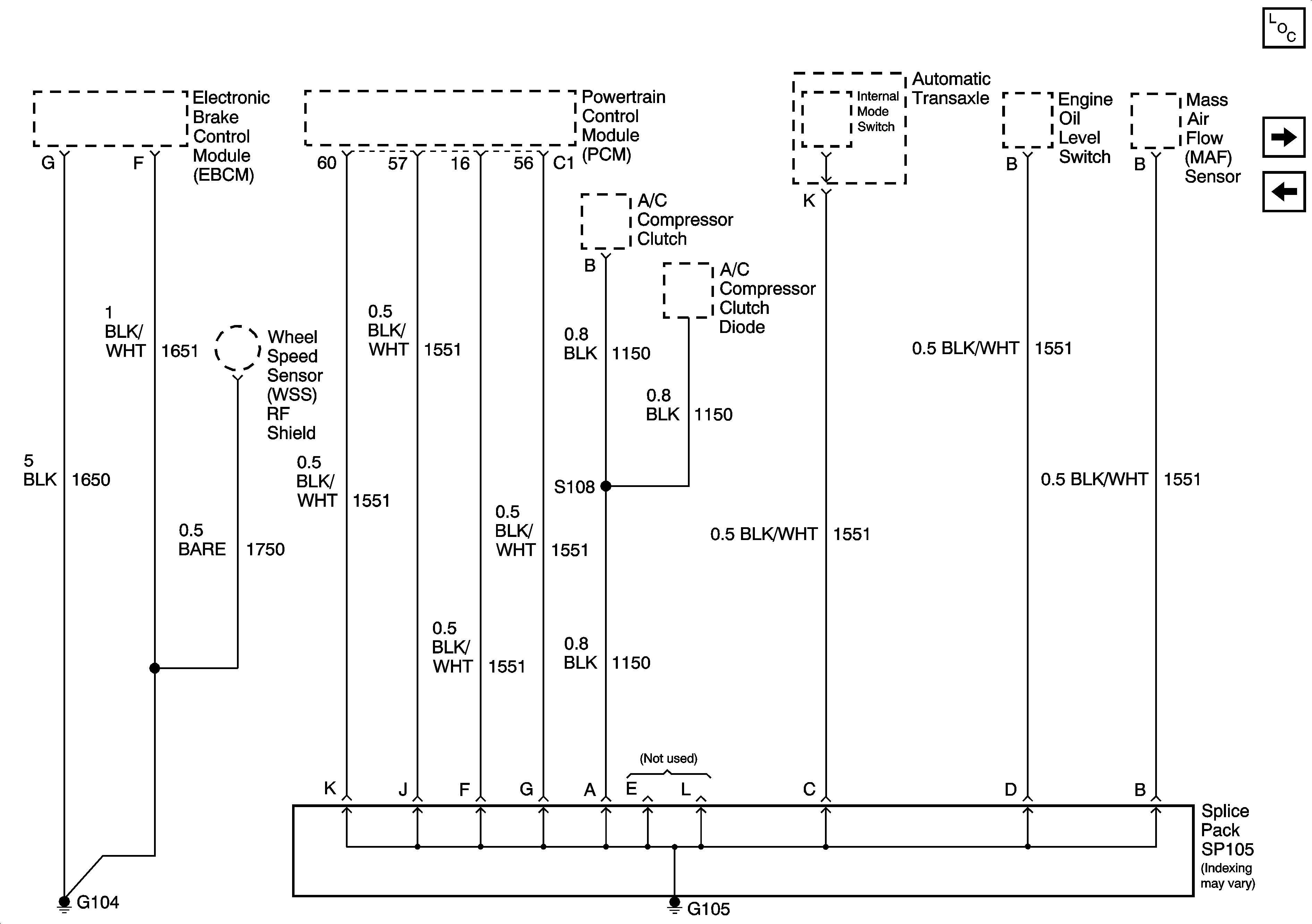

Figure 3:	G104 and G105 Master Electrical Component List G106, G102, G107, and G101 G103
Figure 4:	G106, G102, G107, and G101 Master Electrical Component List G200 - 1 of 2 G104 and G105
Figure 5:	G200 - 1 of 2 Master Electrical Component List G200 - 2 of 2 G106, G102, G107, and G101
Figure 6:	G200 - 2 of 2 Master Electrical Component List G201 G200 - 1 of 2
Figure 7:	G201 Master Electrical Component List G301 - 1 of 2 G200 - 2 of 2
Figure 8:	G301 - 1 of 2 Master Electrical Component List G301 - 2 of 2 G201
Figure 9:	G301 - 2 of 2 Master Electrical Component List G300 and G302 G301 - 1 of 2
Figure 10:	G300 and G302 Master Electrical Component List G401 - 1 of 2 G301 - 2 of 2
Figure 11:	G401 - 1 of 2 Master Electrical Component List G401 - 2 of 2 G300 and G302
Figure 12:	G401 - 2 of 2 Master Electrical Component List G402 G401 - 1 of 2

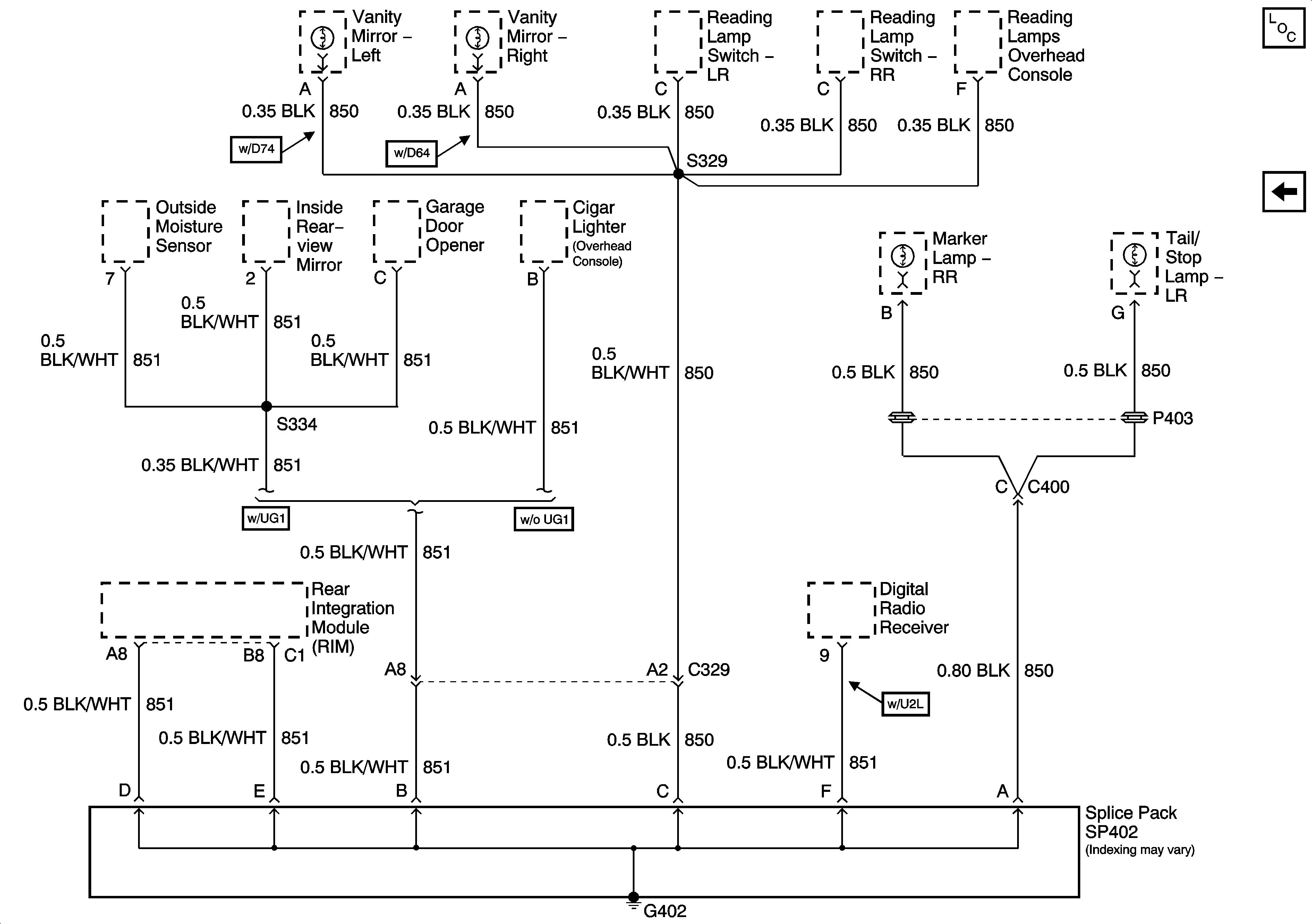

Figure 13:	G402 Master Electrical Component List G401 - 2 of 2
