Radio Front Speaker Replacement. Buick Lucerne 2006

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2006 🢒 Lucerne 🢒 Accessories 🢒 Entertainment 🢒 Radio Front Speaker Replacement

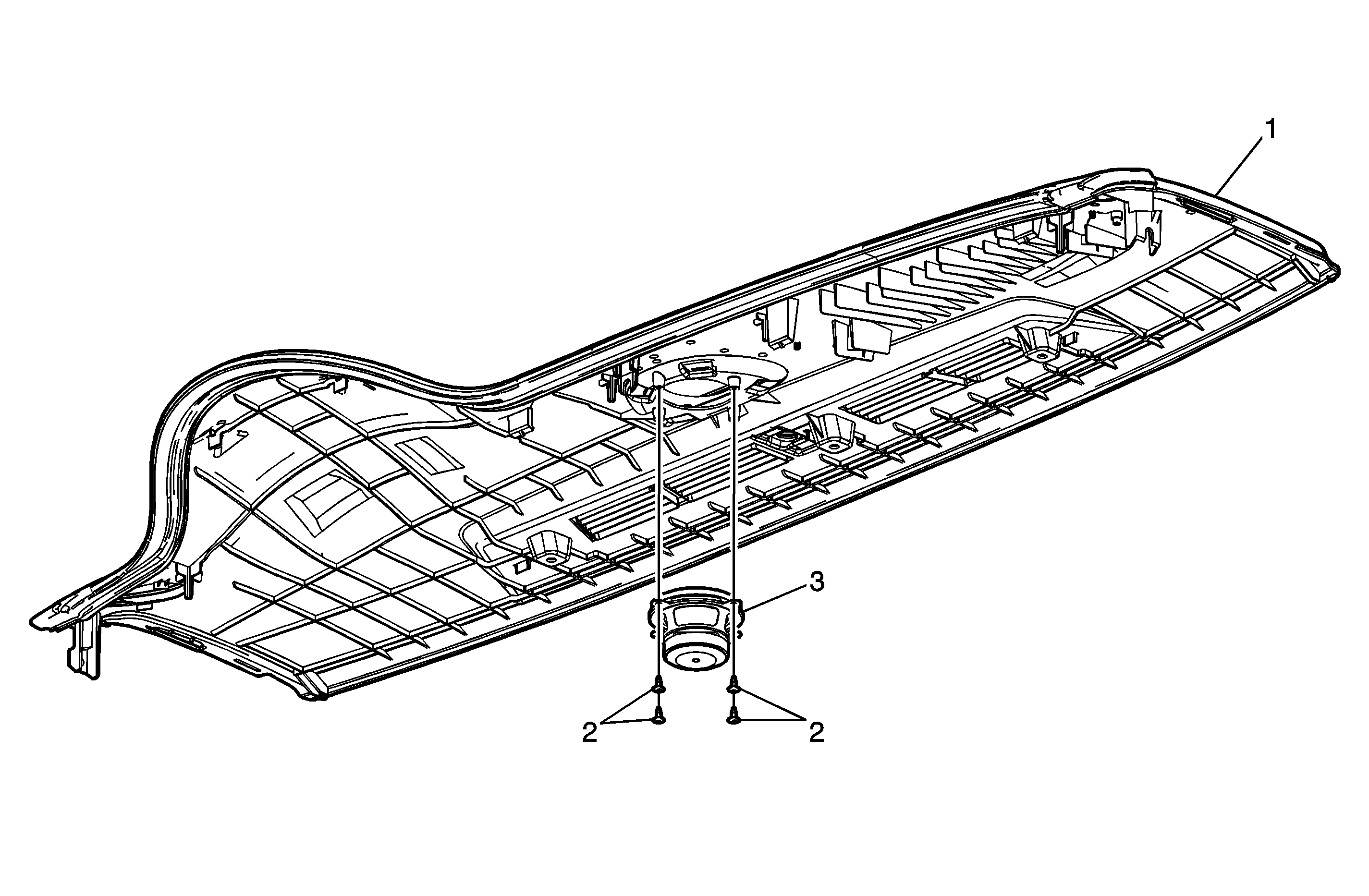

Callout	Component Name
1	Instrument Panel Upper Trim Pad Refer to Instrument Panel Upper Trim Pad Replacement .
2	Radio Speaker Screw (Qty: 4) Notice: Refer to Fastener Notice in the Preface section. Tighten 2 N·m (18 lb in)
3	Radio Front Speaker Assembly Tip Disconnect the electrical connector.

Callout

Component Name

Instrument Panel Upper Trim Pad

Radio Speaker Screw (Qty: 4)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
2 N·m (18 lb in)

Radio Front Speaker Assembly

Tip
Disconnect the electrical connector.
