Preliminary Procedures

1. Remove the rear side door window front weatherstrip channel. Refer to Rear Side Door Window Front Channel Replacement .
2. Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
3. Remove the rear side door stationary window and front channel. Refer to Rear Side Door Stationary Window and Front Channel Replacement .

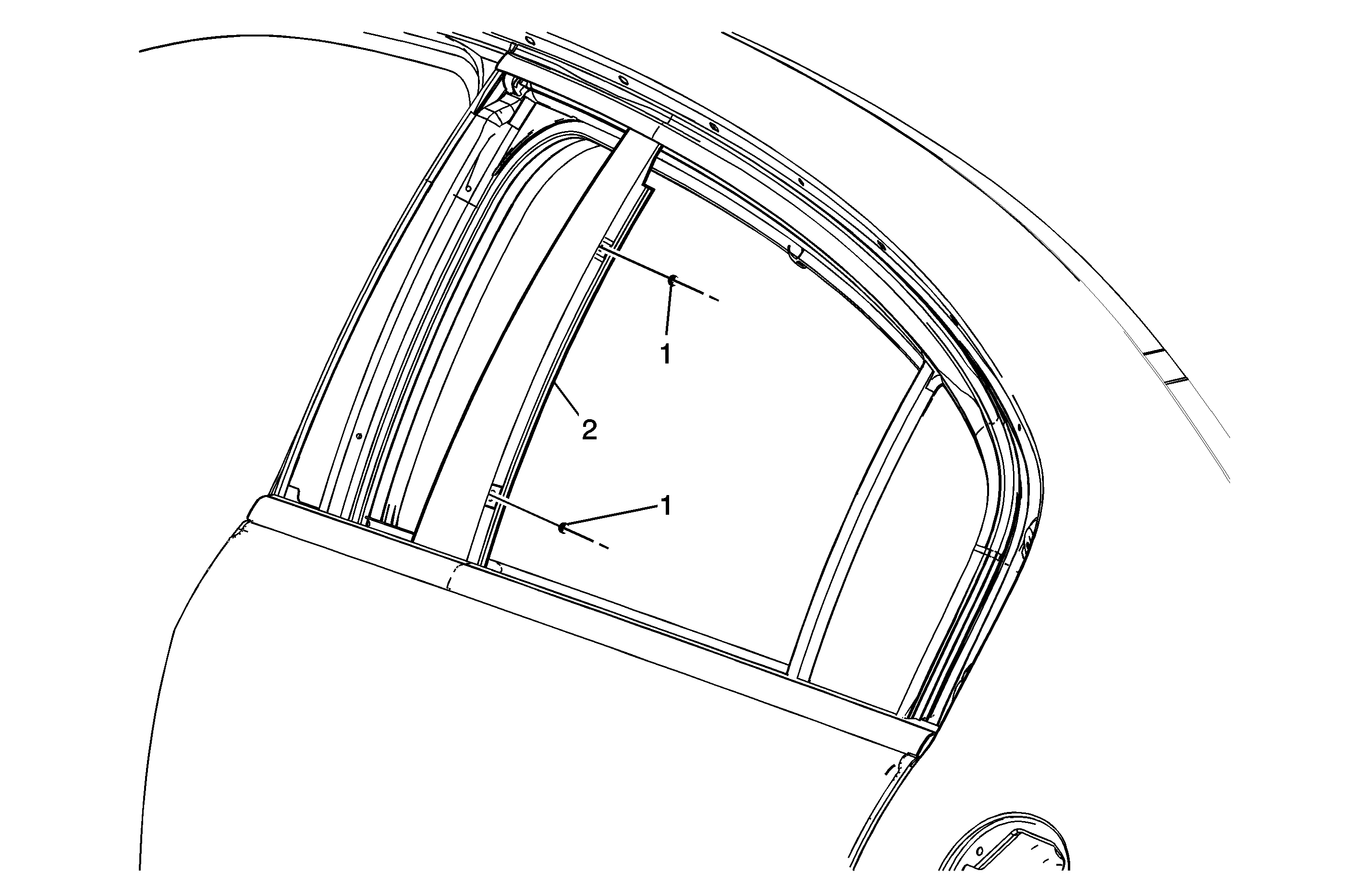

1

Rear Side Door Frame Applique Rivets (Qty: 2)

Procedure

1. Remove the water deflector.
2. Pull down the rear side door window channel weatherstrip to expose the 2 rivets.
3. Drill out 2 rivets retaining the rear side door window channel to the door upper frame.

2

Rear Side Door Frame Applique

Procedure

Pull the rear side door stationary window and front channel rear to release the frame applique.
