Ground Distribution Schematics. Buick Park Avenue 1999

For 1990-2009 cars only

Makes 🢒 Buick 🢒 1999 🢒 Park Avenue 🢒 Engine 🢒 Engine Controls - 3.8L 🢒 Ground Distribution Schematics

Figure 1:	Cell 14: G101, G102 and G103 Power and Grounding Components Cell 14: G105 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 10: BATT 1, THFT, BLO MOT, COOL FAN1, IGN, BATT 2, HDLP, AUX, RAP, ABS Solenoid, ABS Motor and RUN Fuses
Figure 2:	Cell 14: G105 Power and Grounding Components Cell 14: G106 and G104 Cell 14: G101, G102 and G103 Cell 14: G106 and G104
Figure 3:	Cell 14: G106 and G104 Power and Grounding Components Cell 14: G201 (1 of 2) Cell 14: G105 Cell 14: G105
Figure 4:	Cell 14: G201 (1 of 2) Power and Grounding Components Cell 14: G201 (2 of 2) Cell 14: G106 and G104 Cell 14: G201 (2 of 2) Cell 14: G201 (2 of 2) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 5:	Cell 14: G201 (2 of 2) Power and Grounding Components Cell 14: G202 (CKT 351 1 of 2) Cell 14: G201 (1 of 2) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 14: G201 (1 of 2) Cell 14: G201 (1 of 2)

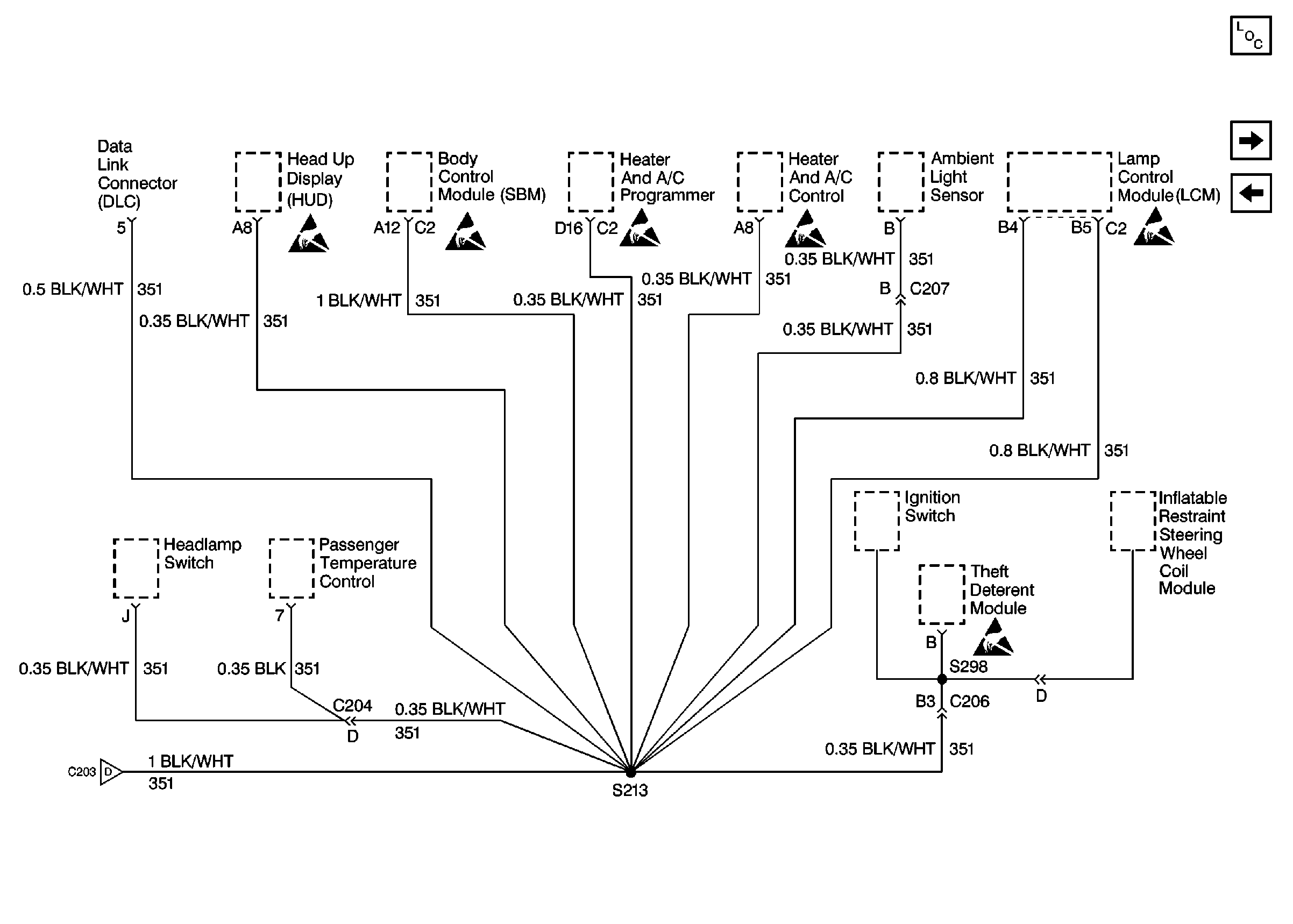

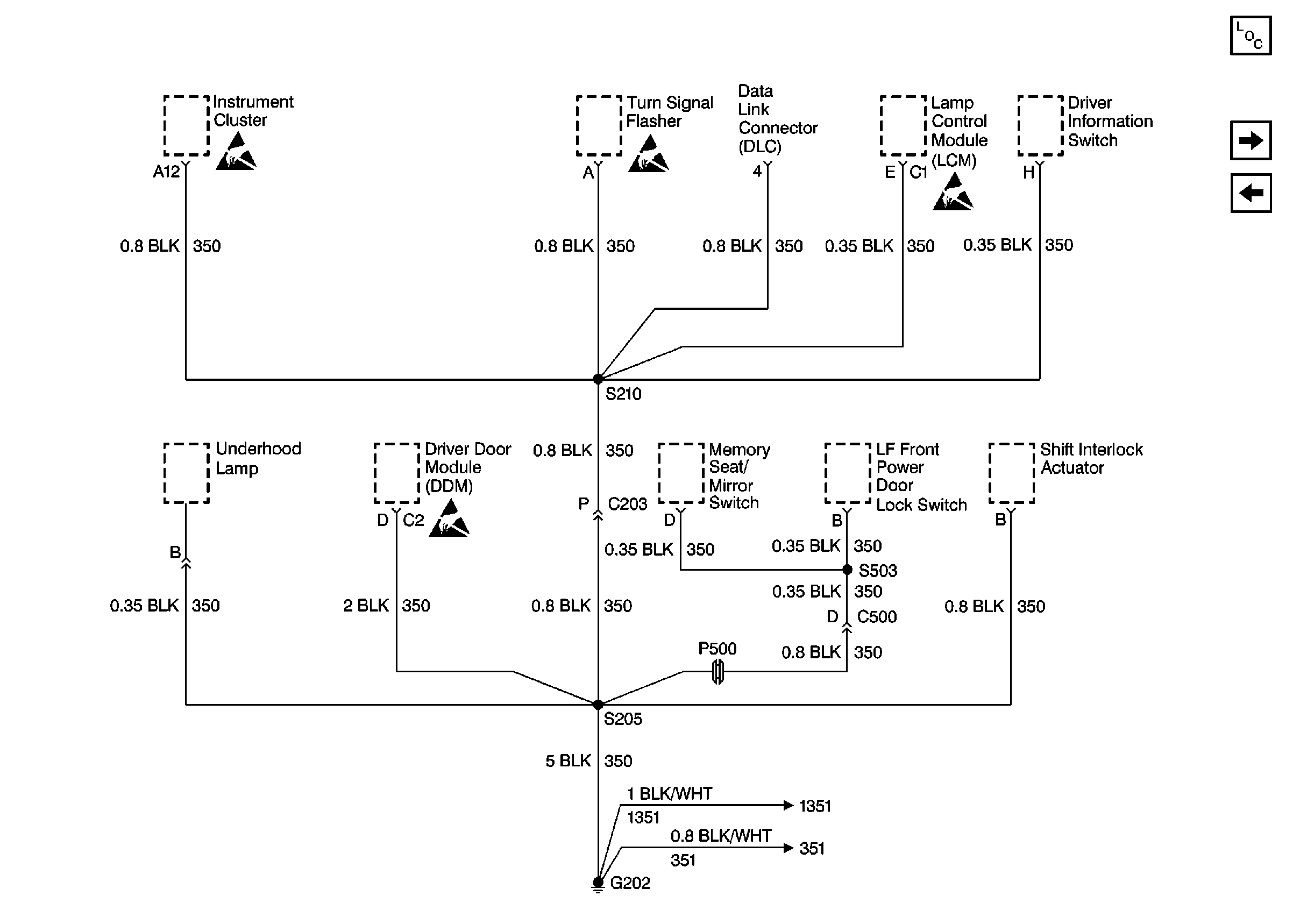

Figure 6:	Cell 14: G202 (CKT 351 1 of 2) Handling ESD Sensitive Parts Notice Cell 14: G202 (CKT 351 2 of 2) Cell 14: G201 (2 of 2) Power and Grounding Components Cell 14: G202 (CKT 1351) Cell 14: G202 (CKT 350) Cell 14: G202 (CKT 351 2 of 2)
Figure 7:	Cell 14: G202 (CKT 351 2 of 2) Cell 14: G202 (CKT 351 1 of 2) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Power and Grounding Components Cell 14: G202 (CKT 350) Cell 14: G202 (CKT 351 1 of 2)
Figure 8:	Cell 14: G202 (CKT 350) Power and Grounding Components Cell 14: G202 (CKT 1351) Cell 14: G202 (CKT 351 2 of 2) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 14: G202 (CKT 351 1 of 2)
Figure 9:	Cell 14: G202 (CKT 1351) Power and Grounding Components Cell 14: G306 and G402 Cell 14: G202 (CKT 350) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 14: G202 (CKT 351 1 of 2)
Figure 10:	Cell 14: G306 and G402 Power and Grounding Components Cell 14: G400 (1 of 2) Cell 14: G202 (CKT 1351) SIR Caution
Figure 11:	Cell 14: G400 (1 of 2) Power and Grounding Components Cell 14: G400 (2 of 2) Cell 14: G306 and G402 Cell 14: G400 (2 of 2) Handling ESD Sensitive Parts Notice
Figure 12:	Cell 14: G400 (2 of 2) Power and Grounding Components Cell 14: G400 (1 of 2) Handling ESD Sensitive Parts Notice Cell 14: G400 (1 of 2)
