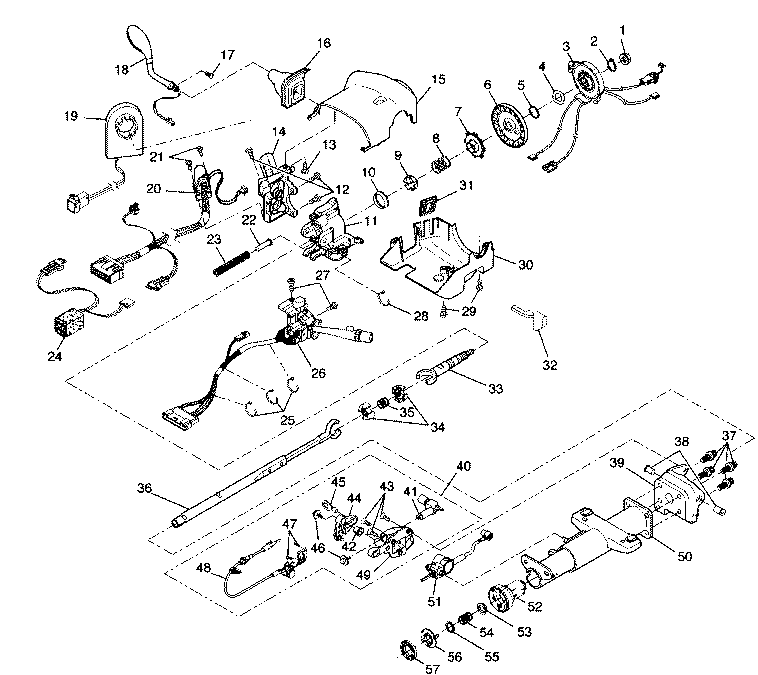

| (1) | Nut, Flanged Prevail Torque |
| (2) | Ring,
Retaining |
| (3) | Coil Assembly, SIR |
| (4) | Washer, Wave |
| (5) | Retainer, Bearing |
| (6) | Shield Asm,
Shaft Lock |
| (7) | Cam Asm, Turn Signal Cancel Cam |
| (8) | Spring, Upper Bearing |
| (9) | Seat, Upper
Bearing Inner Race |
| (10) | Race, Inner |
| (11) | Tilt Head Assembly, Steering Column |
| (12) | Screw,
Pan Head Tapping |
| (13) | Screw, TORX® Head |
| (14) | Module Assembly, Lock |
| (15) | Shroud, Upper |
| (16) | Seal, Shift Lever |
| (17) | Screw, Shift Lever |
| (18) | Lever Assembly, A/Transmission Control |
| (19) | Controller, Coded Key |
| (20) | Switch Assembly, Ignition and Key Alarm |
| (21) | Screw, Tapping |
| (22) | Guide, Spring |
| (23) | Spring, Tilt |
| (24) | Jumper Assembly, Fused |
| (25) | Strap, Wire
Harness |
| (26) | Switch Assembly, Turn Signal |
| (27) | Screw, Pan Head Tapping |
| (28) | Strap,
Wire Harness |
| (29) | Screw, Pan Head Tapping |
| (30) | Shroud, Lower |
| (31) | Protector,
Shroud |
| (32) | Lever Assembly, Tilt |
| (33) | Shaft Assembly, Race and Upper |
| (34) | Sphere, Centering |
| (35) | Spring, Joint Preload |
| (36) | Shaft Assembly, Lower Steering |
| (37) | Screw, TORX® Head |
| (38) | Pins, Pivot |
| (39) | Support Assembly, Steering Column |
| (40) | Shift Assembly, Linear |
| (41) | Clevis, Shift
Lever |
| (42) | Bushing, Cam |
| (43) | Screw, Oval Head 6-Lobed Socket Tap |
| (44) | Cam Assembly, Cable Shift |
| (45) | Actuator Assembly, Ball and |
| (46) | Bolt, Hex
Flange Head |
| (47) | Screw, Oval Head 6-Lobed Socket Tap |
| (48) | Cable Assembly,
Park Lock |
| (49) | Bracket, Gear Shift Lever Assembly Support |
| (50) | Jacket Assembly, Steering Column |
| (51) | Actuator, Electrical (BTSI) |
| (52) | Bearing Assembly, Adapter and |
| (53) | Seat, Lower
Bearing |
| (54) | Spring, Lower Bearing |
| (55) | Retainer, Lower Spring |
| (56) | Retainer, Sensor |
| (57) | Seal, Steering Shaft |
