Door Lock/Indicator Schematics. Buick Park Avenue 1999

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Buick 🢒 1999 🢒 Park Avenue 🢒 Body and Accessories 🢒 Doors 🢒 Door Lock/Indicator Schematics

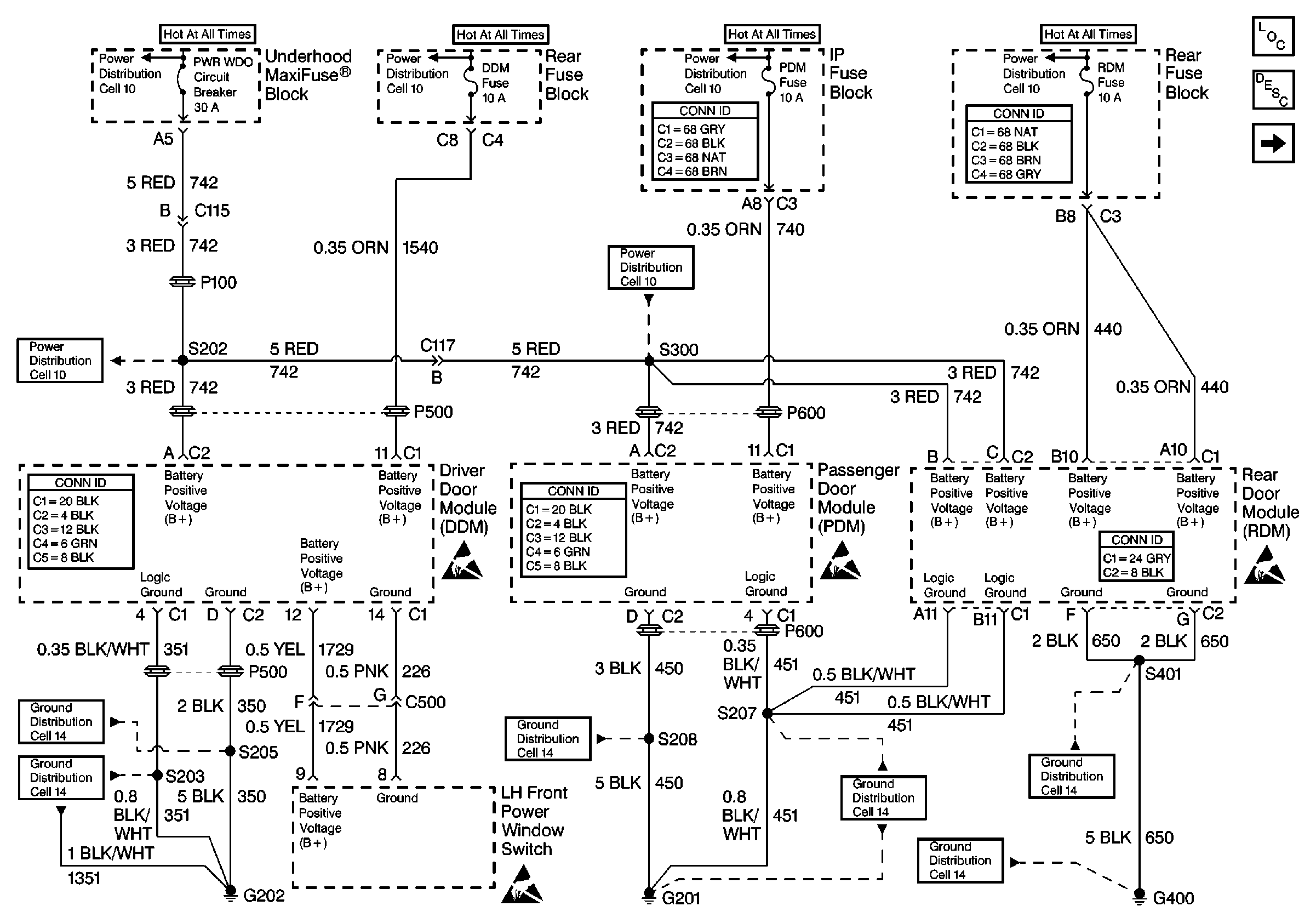

Figure 1:	Cell 130: DDM, PDM and RDM Power Door Systems Components Power Door Locks Circuit Description Cell 130: Left Front Power Door Components Cell 10: Sunroof Fuse Cell 10: BATT 1, RDM, C/LTR, DDM, HTDST L, TRK REL, PDM, SBM, and CSTR/SBM Fuses Cell 10: BATT 1, RDM, C/LTR, DDM, HTDST L, TRK REL, PDM, SBM, and CSTR/SBM Fuses Cell 10: BATT 1, RDM, C/LTR, DDM, HTDST L, TRK REL, PDM, SBM, and CSTR/SBM Fuses Cell 10: Sunroof Fuse Cell 10: Sunroof Fuse Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 14: G202 (CKT 350) Cell 14: G201 (1 of 2) Cell 14: G202 (CKT 351 1 of 2) Cell 14: G201 (1 of 2) Cell 14: G400 (2 of 2) Cell 14: G400 (1 of 2)
Figure 2:	Cell 130: Left Front Power Door Components Power Door Systems Components Power Door Locks Circuit Description Cell 130: Rear Power Door Lock Components Cell 130: DDM, PDM and RDM Handling ESD Sensitive Parts Notice Cell 14: G202 (CKT 350) Cell 117: Steering Wheel Control Switch, Heater and A/C Control, Driver Information Switch, Front Door Switch Backlighting
Figure 3:	Cell 130: Rear Power Door Lock Components Power Door Systems Components Power Door Locks Circuit Description Cell 130: Right Front Power Door Lock Components Cell 130: Left Front Power Door Components Handling ESD Sensitive Parts Notice
Figure 4:	Cell 130: Right Front Power Door Lock Components Power Door Systems Components Power Door Locks Circuit Description Cell 130: Remote Function Actuator Module Cell 130: Rear Power Door Lock Components Handling ESD Sensitive Parts Notice Cell 117: Steering Wheel Control Switch, Heater and A/C Control, Driver Information Switch, Front Door Switch Backlighting
Figure 5:	Cell 130: Remote Function Actuator Module Power Door Systems Components Power Door Locks Circuit Description Cell 130: Right Front Power Door Lock Components Cell 10: WSW, WSW/RFA, HUD, ELC, CR CONT, A/C and HVAC Fuses Cell 10: WSW, WSW/RFA, HUD, ELC, CR CONT, A/C and HVAC Fuses Cell 10: BATT 2 and MEM/RFA Fuses Cell 10: BATT 2 and MEM/RFA Fuses Cell 10: IGNFD, T/SIG, OXY SEN, and SBM LCM Fuses Cell 10: IGNFD, T/SIG, OXY SEN, and SBM LCM Fuses Cell 50: Class 2 Serial Data Line Cell 14: G400 (1 of 2) Handling ESD Sensitive Parts Notice
