Makes 🢒 Buick 🢒 2000 🢒 Park Avenue 🢒 Transmission/Transaxle 🢒 Automatic Transaxle - 4T65-E 🢒 Body Rear End Component Views

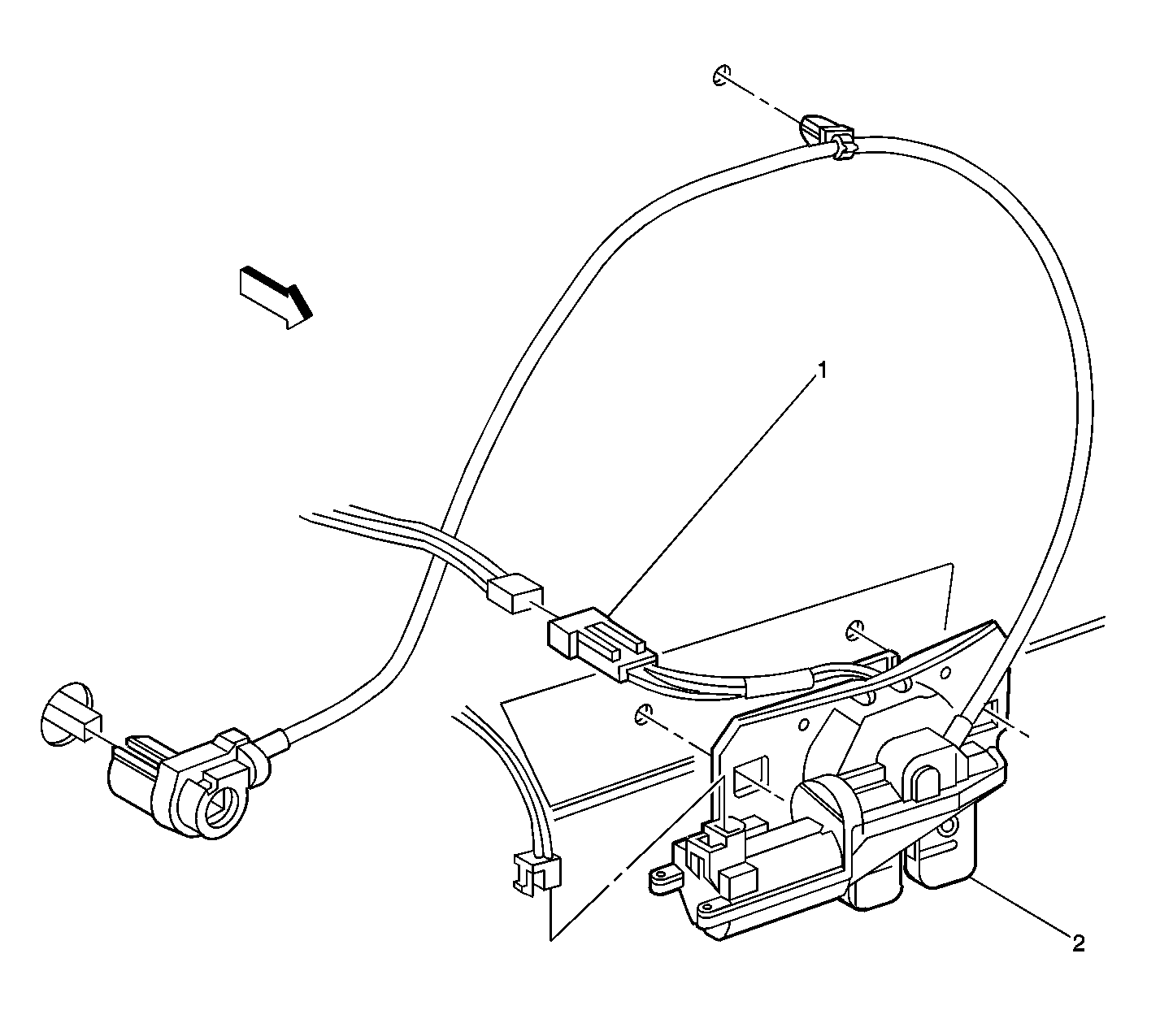

Figure 1:

Rear Compartment Lid
Object Number: 317720 Size: LF
(1)Rear Compartment Lid Release Actuator
(2)Rear Compartment Lid Latch Switch

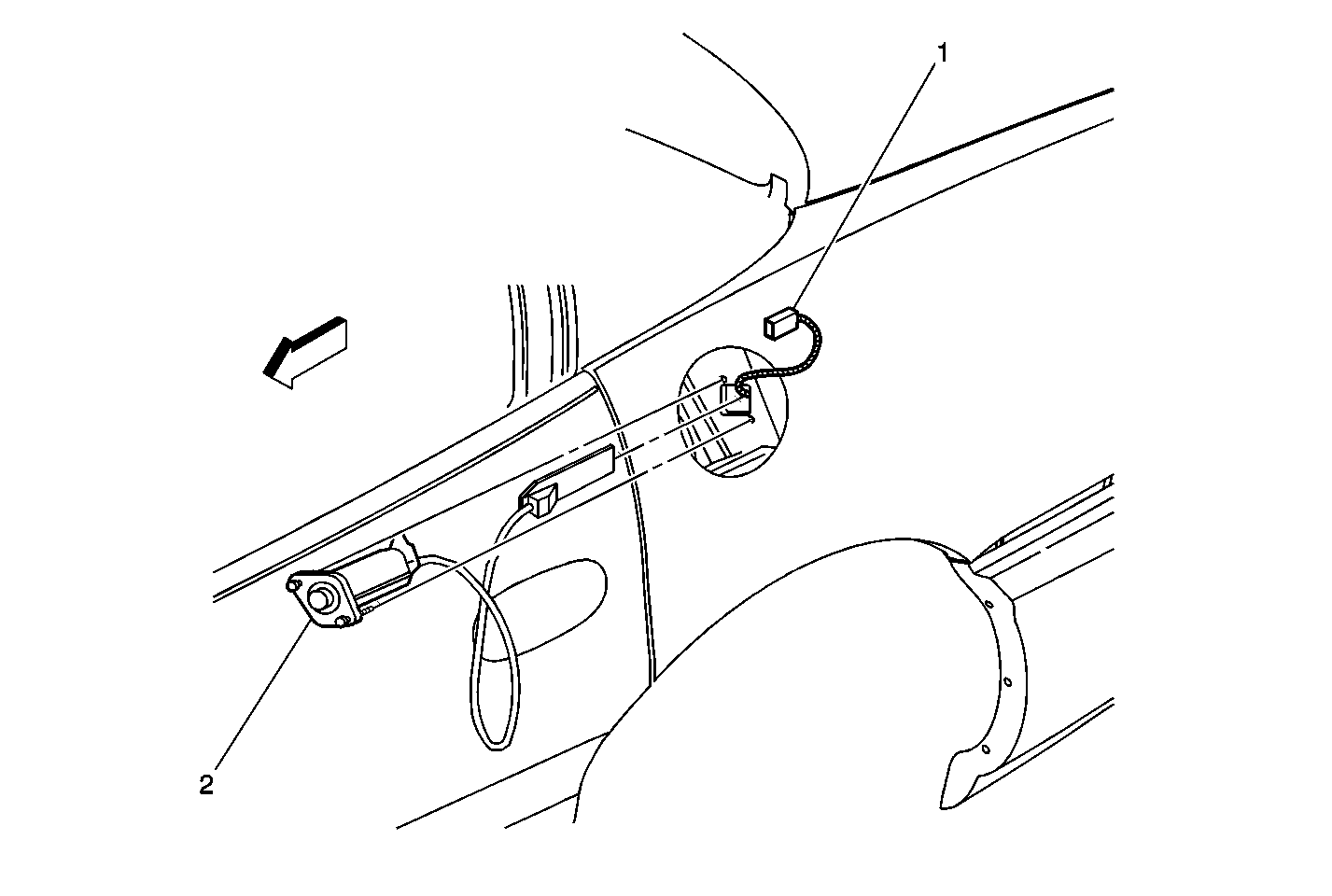

Figure 2:

Left Rear of the Fender
Object Number: 317708 Size: MF
(1)Fuel Door Release Actuator Connector
(2)Fuel Door Release Actuator
Figure 3:

Passenger Compartment, the Front of the IP
Object Number: 403049 Size: LF
(1)Headlamp Dimmer Switch
(2)Driver Information Switch
(3)Multi-function Lever
(4)Instrument Cluster
(5)Turn Signal/Hazard Switch
(6)Steering Wheel Control Switch
(7)Traction Control Switch
(8)Radio
(9)Passenger Temperature Control
(10)Right Heated Seat Switch
(11)Heater and A/C Control
(12)IP Cigar Lighter and Ashtray Lamp
(13)Left Heated Seat Switch
(14)Ignition Switch
(15)Horn Switch
(16)Steering Wheel Control Switch
(17)Rear Compartment Lid Release Switch
(18)Fuel Door Release Switch
