Antilock Brake System Schematics. Buick Park Avenue 2001

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2001 🢒 Park Avenue 🢒 Brakes 🢒 Antilock Brake System 🢒 Antilock Brake System Schematics

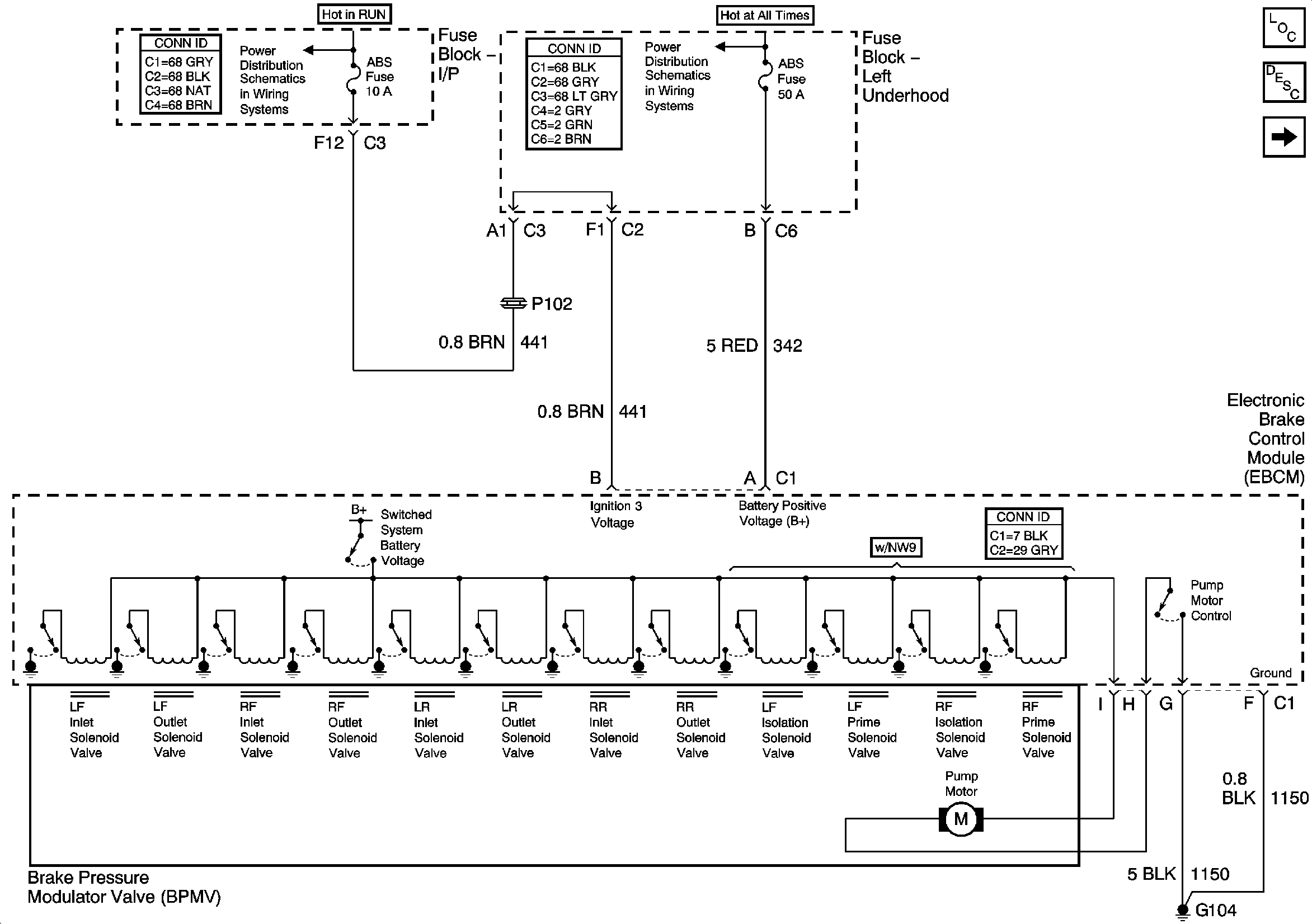

Figure 1:	Power, Ground, Solenoid Valves and Pump Motor Master Electrical Component List ABS Description and Operation Wheel Speed Sensors Underhood Fuse Block- IGN Fuse/ IP Fuse Block- RUN Fuse, IGN 3 and ACCY Relay Underhood Fuse Block and Underhood Maxi-Fuse Block

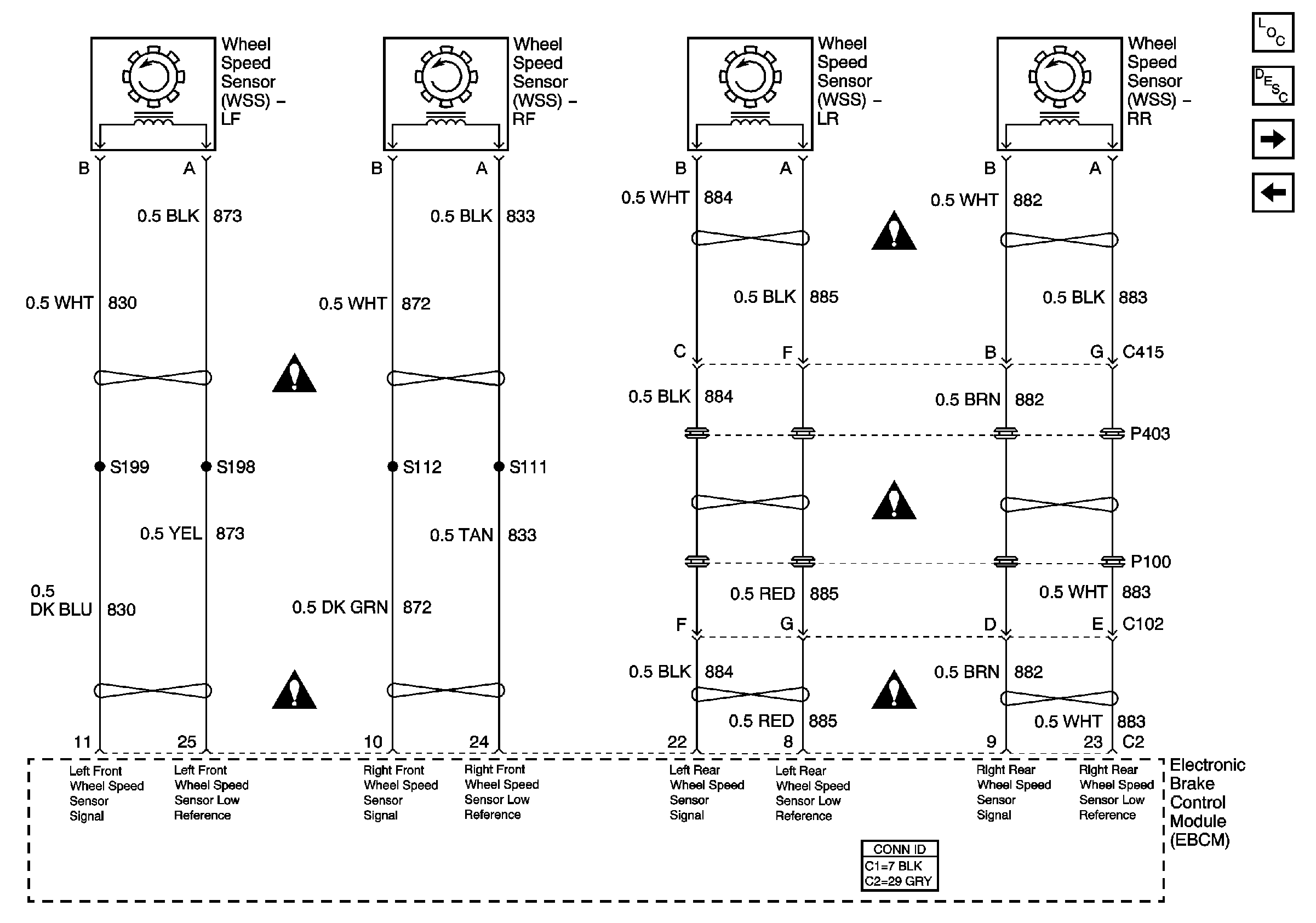

Figure 2:	Wheel Speed Sensors Master Electrical Component List ABS Description and Operation Vehicle Stability Enhancement System (w/JL4) Power, Ground, Solenoid Valves and Pump Motor

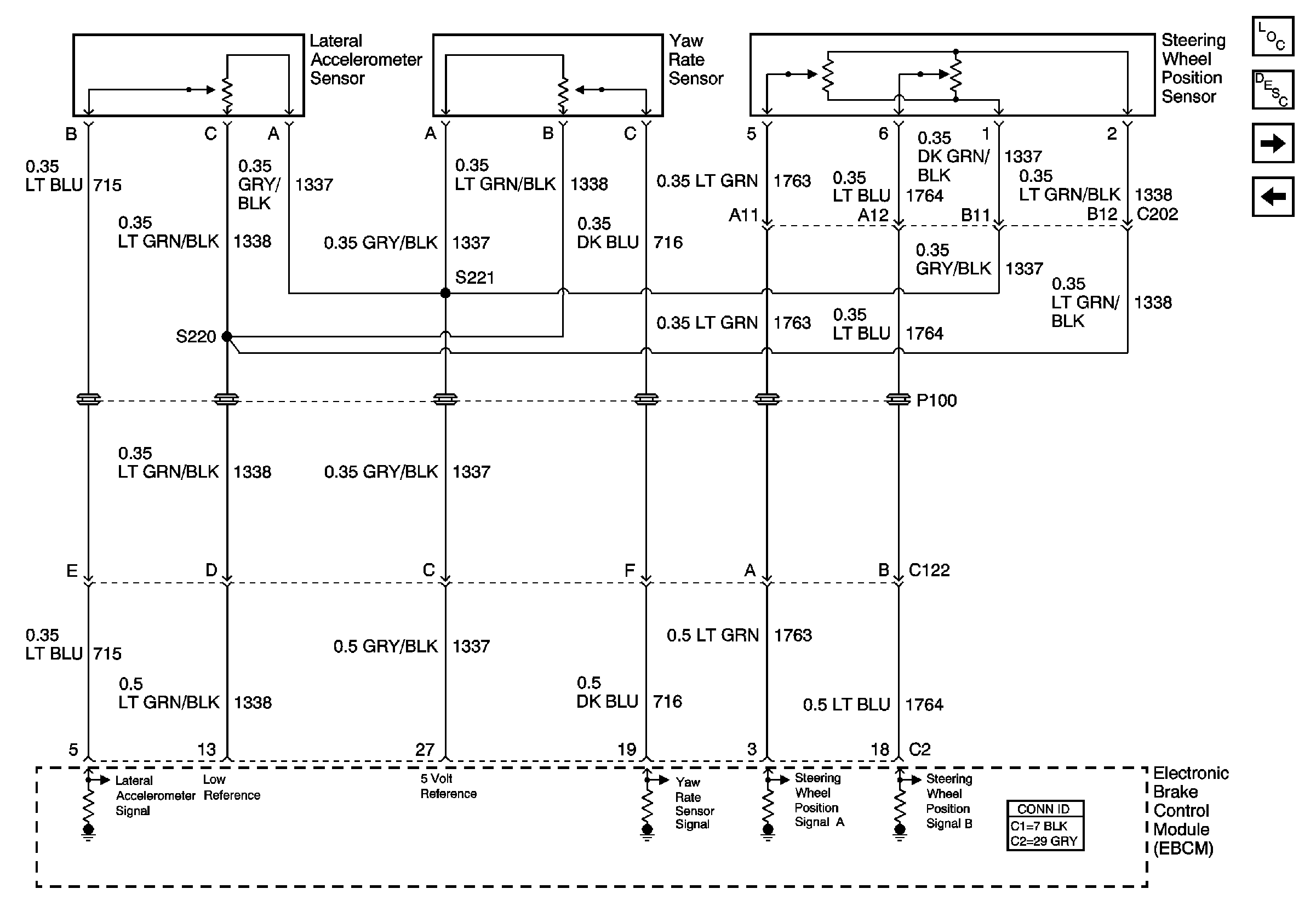

Figure 3:	Vehicle Stability Enhancement System (w/JL4) Master Electrical Component List ABS Description and Operation Traction Control (w/NW9) and Variable Effort Steering (w/NV8) Wheel Speed Sensors
Figure 4:	Traction Control (w/NW9) and Variable Effort Steering (w/NV8) Master Electrical Component List ABS Description and Operation Indicators and Stoplamp Switch Vehicle Stability Enhancement System (w/JL4) G202 (1 of 4) Class 2 Serial Data Line
Figure 5:	Indicators and Stoplamp Switch Master Electrical Component List ABS Description and Operation Traction Control (w/NW9) and Variable Effort Steering (w/NV8) Class 2 Serial Data Line Underhood Fuse Block and Underhood Maxi-Fuse Block Stop Lamps Stop Lamps Underhood Fuse Block- BLO MOT, COOL FAN 2, HORN, and STOP Fuses
