Lighting Systems Component Views. Buick Park Avenue 2001

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2001 🢒 Park Avenue 🢒 Transmission/Transaxle 🢒 Shift Lock Control 🢒 Lighting Systems Component Views

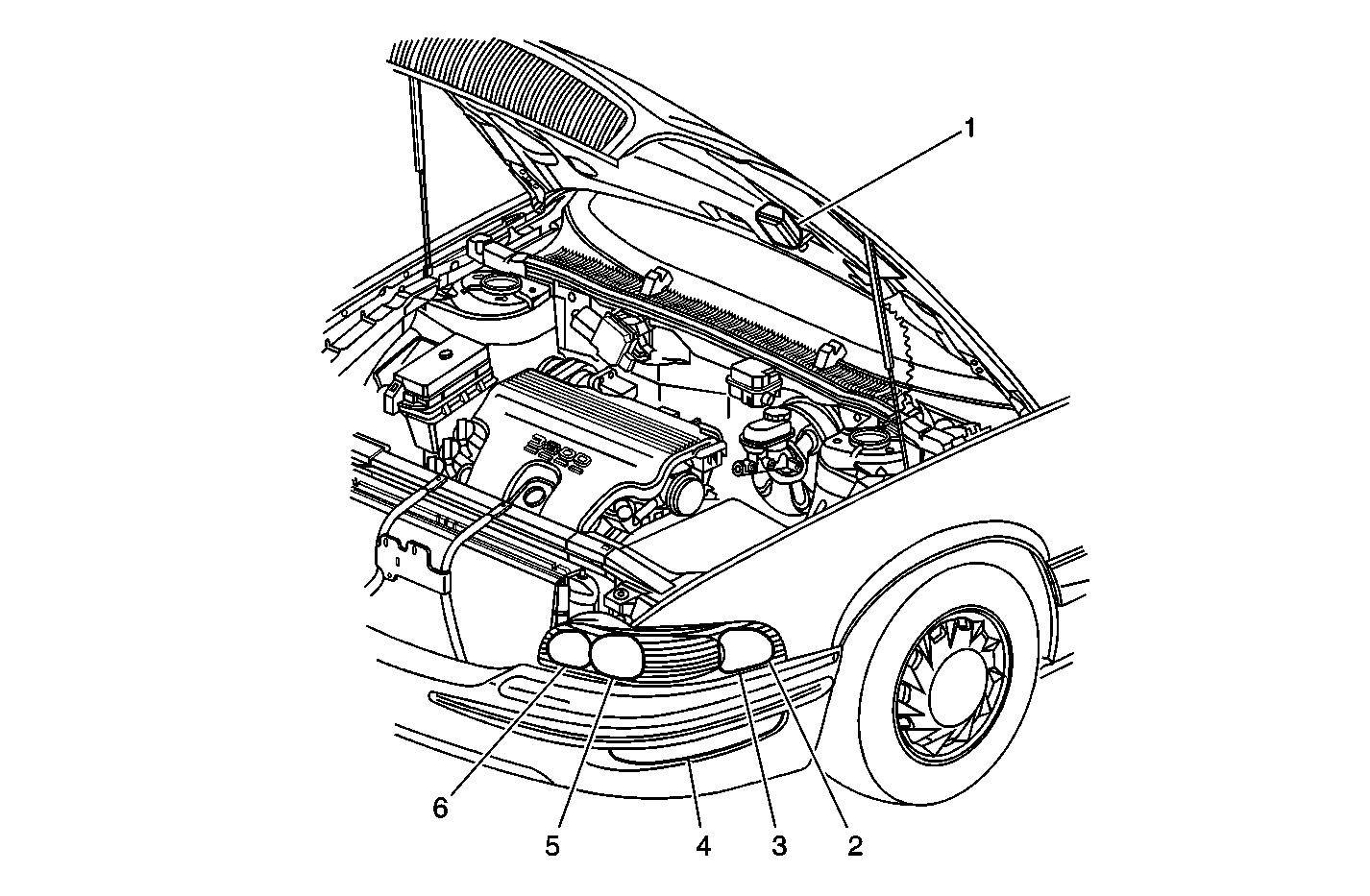

Figure 1:


(1)	Underhood Lamp
(2)	Cornering Lamp-Left ,Right Similar
(3)	Marker Lamp-LF ,RF Similar
(4)	Park/Turn Signal Lamp-LF, RF Similar
(5)	Headlamp-Low Beam-Left , Right Similar
(6)	Headlamp-High Beam-Left ,Right Similar

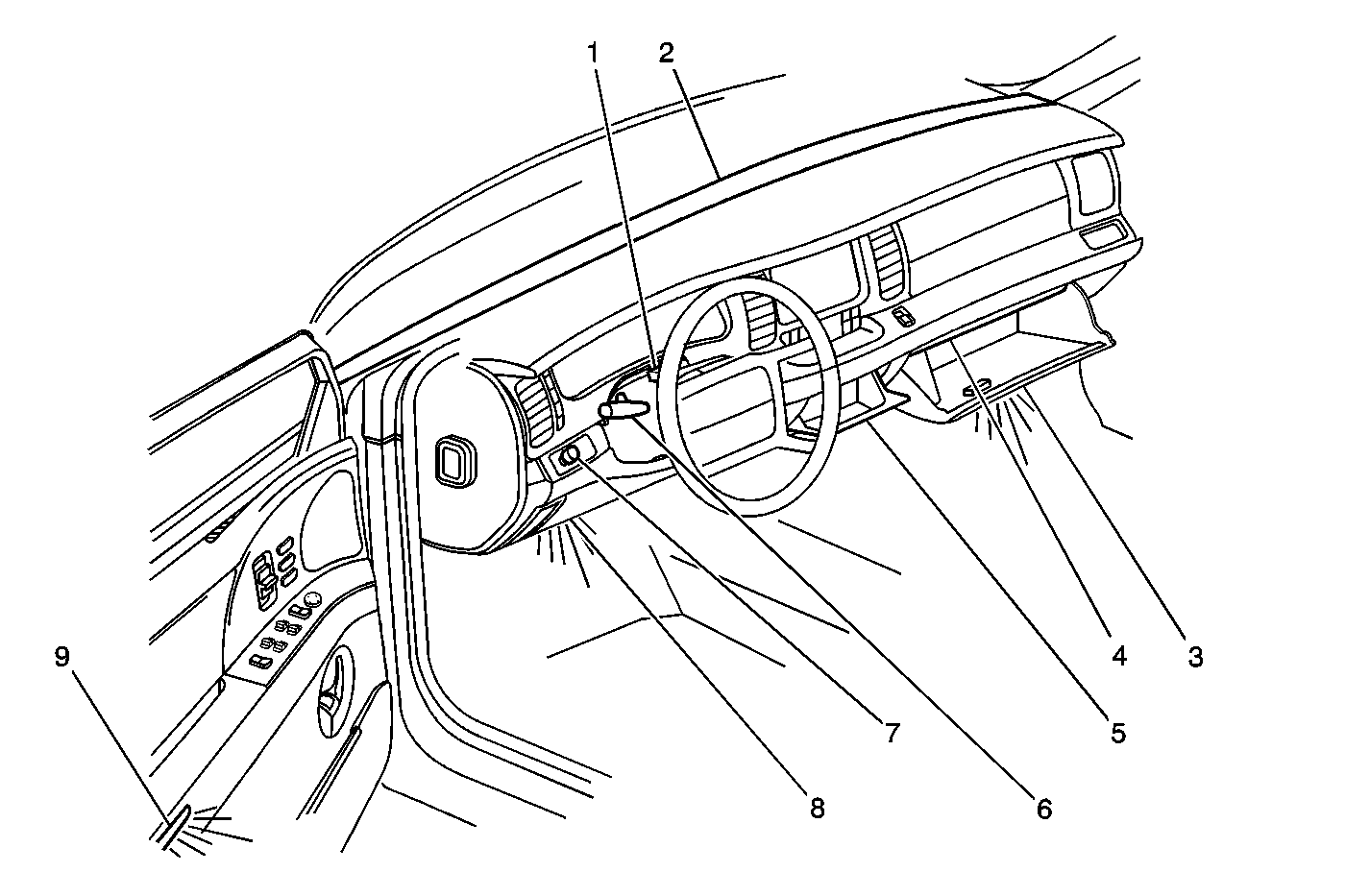

Figure 2:


(1)	Turn Signal/Multifunction Switch
(2)	Ambient Light Sensor
(3)	Footwell Courtesy Lamp - Right
(4)	I/P Compartment Lamp
(5)	Ashtray Lamp
(6)	Turn Signal/Multifunction Lever
(7)	Headlamp Switch
(8)	Footwell Courtesy Lamp - Left
(9)	Door Courtesy Lamp - LF, RF Similar

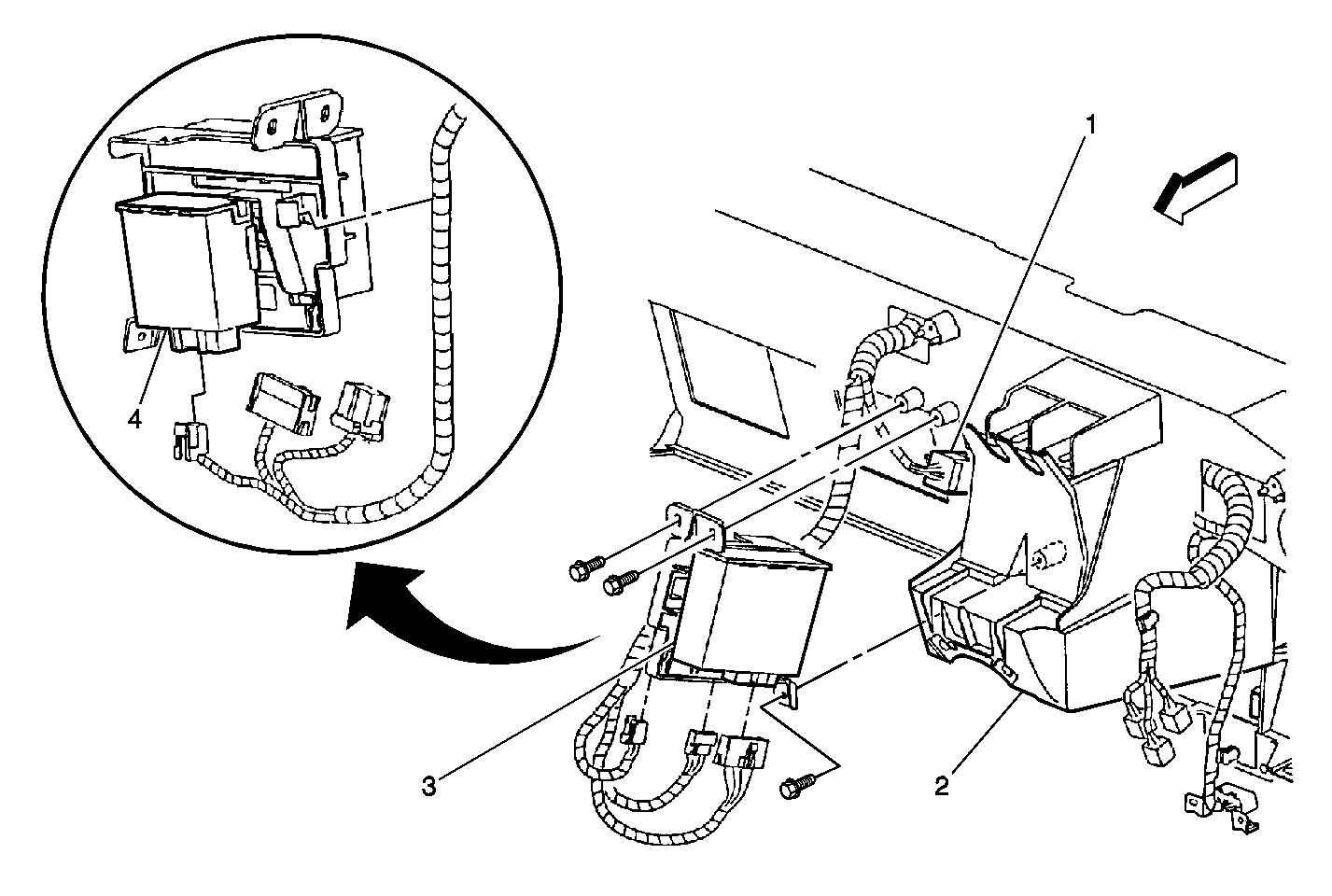

Figure 3:


(1)	Turn Signal/Hazard Flasher Module
(2)	Steering Column Carrier
(3)	Lamp Control Module (LCM)
(4)	I/P Dimming Module

Figure 4:


(1)	Brake Pedal Support Bracket
(2)	Stop Lamp/ AT Shift Lock Control Switch
(3)	Stop Lamp Switch

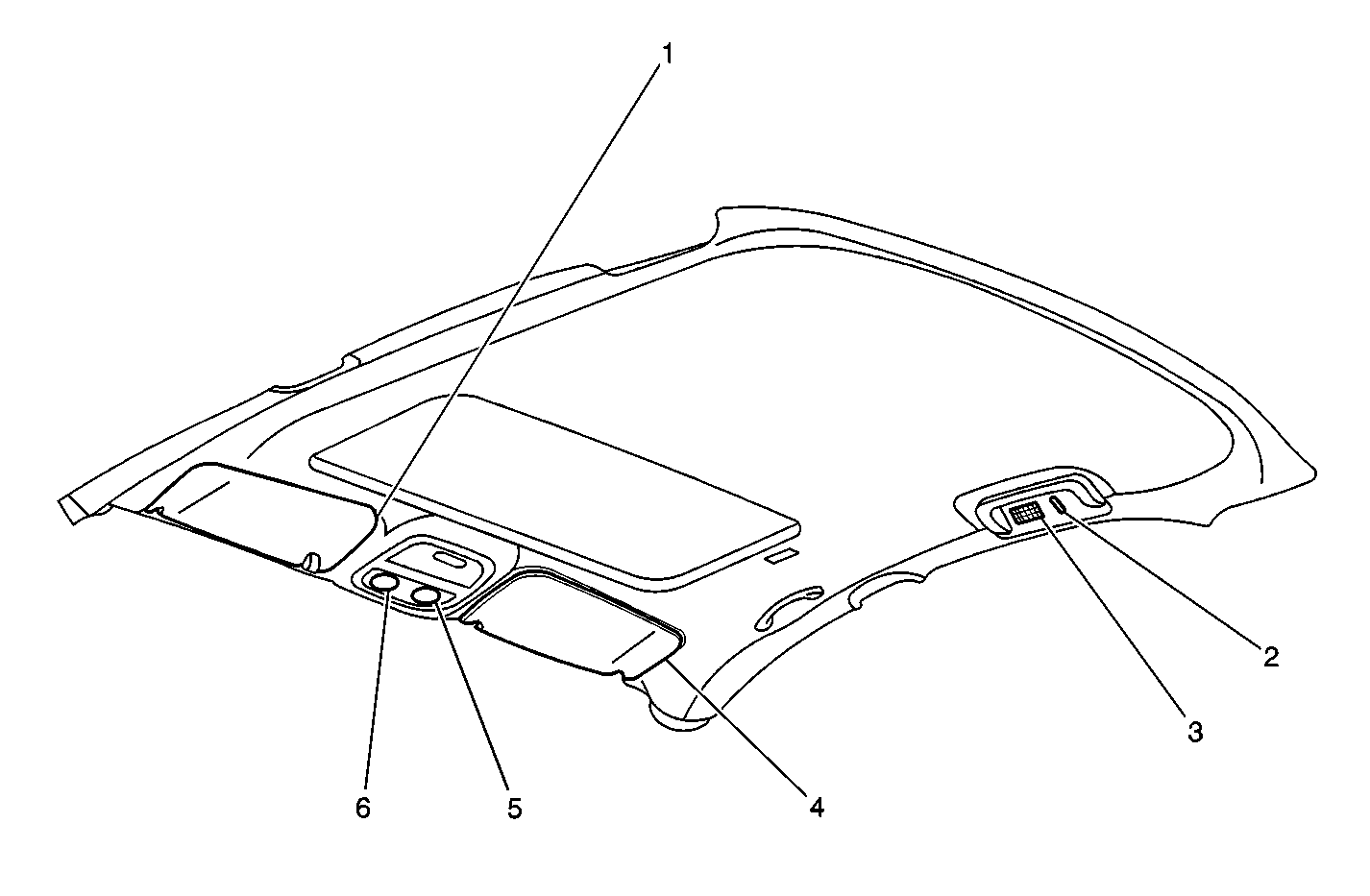

Figure 5:


(1)	Vanity Mirror-Left , Part of LH Sunshade
(2)	Reading Lamp Switch-RR, LR Similar
(3)	Courtesy/Reading Lamp-RR, LR Similar
(4)	Vanity Mirror-Right, Part of RH Sunshade
(5)	Courtesy/Reading Lamp-RF
(6)	Courtesy/Reading Lamp-LF

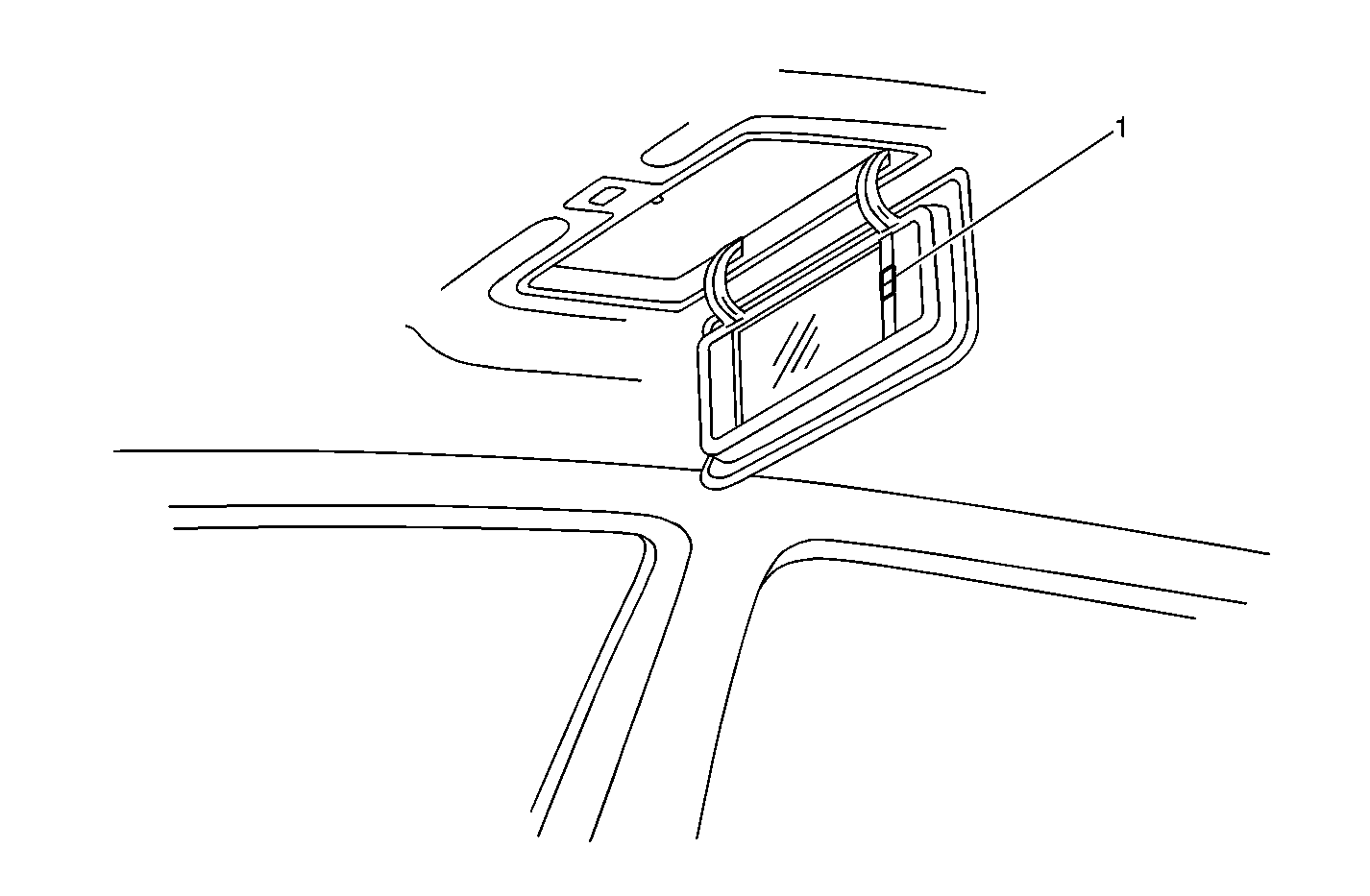

Figure 6:


(1)	Vanity Mirror-RR, LR Similar

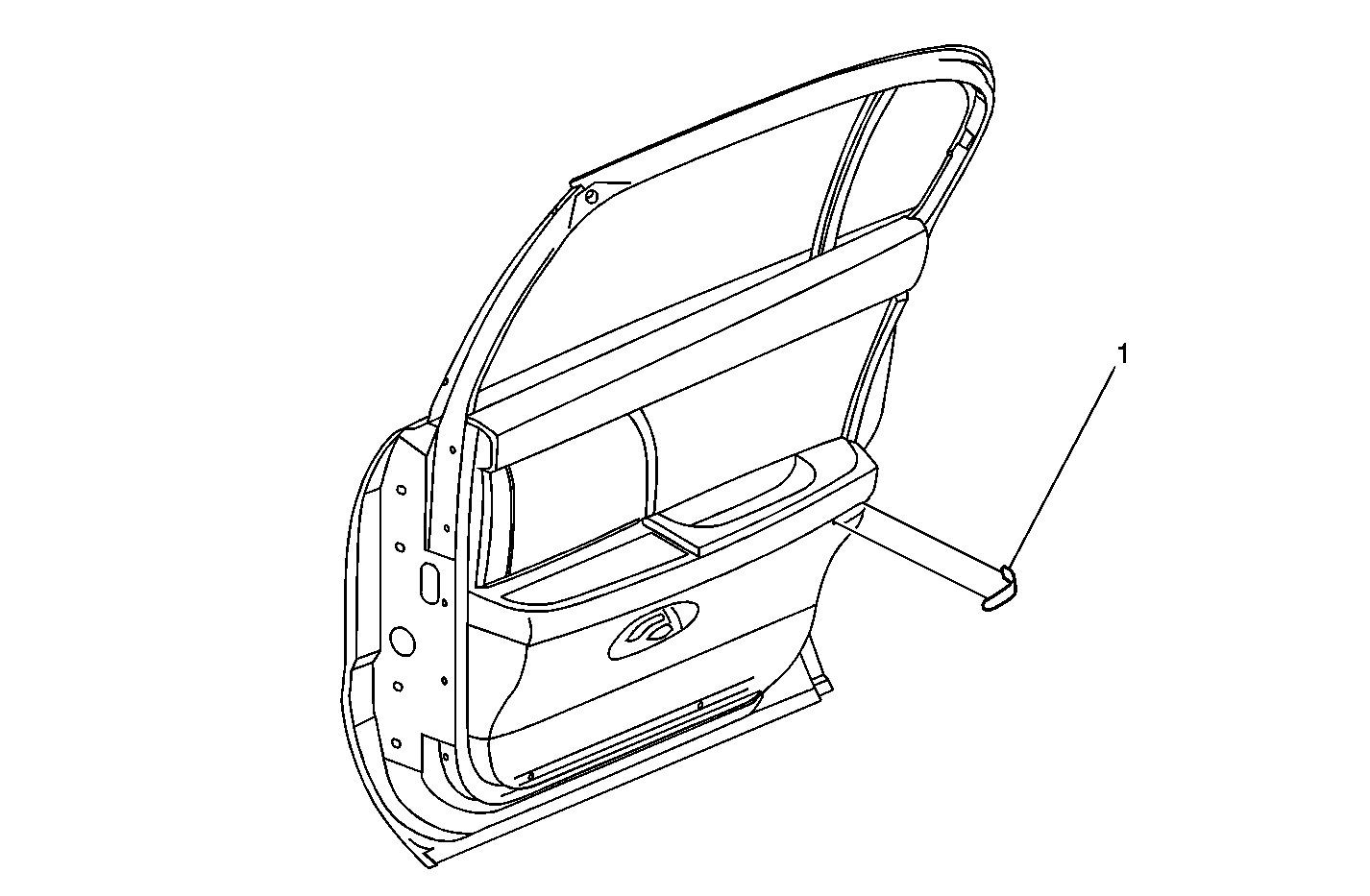

Figure 7:


(1)	Door Courtesy Lamp-RR, LR Similar

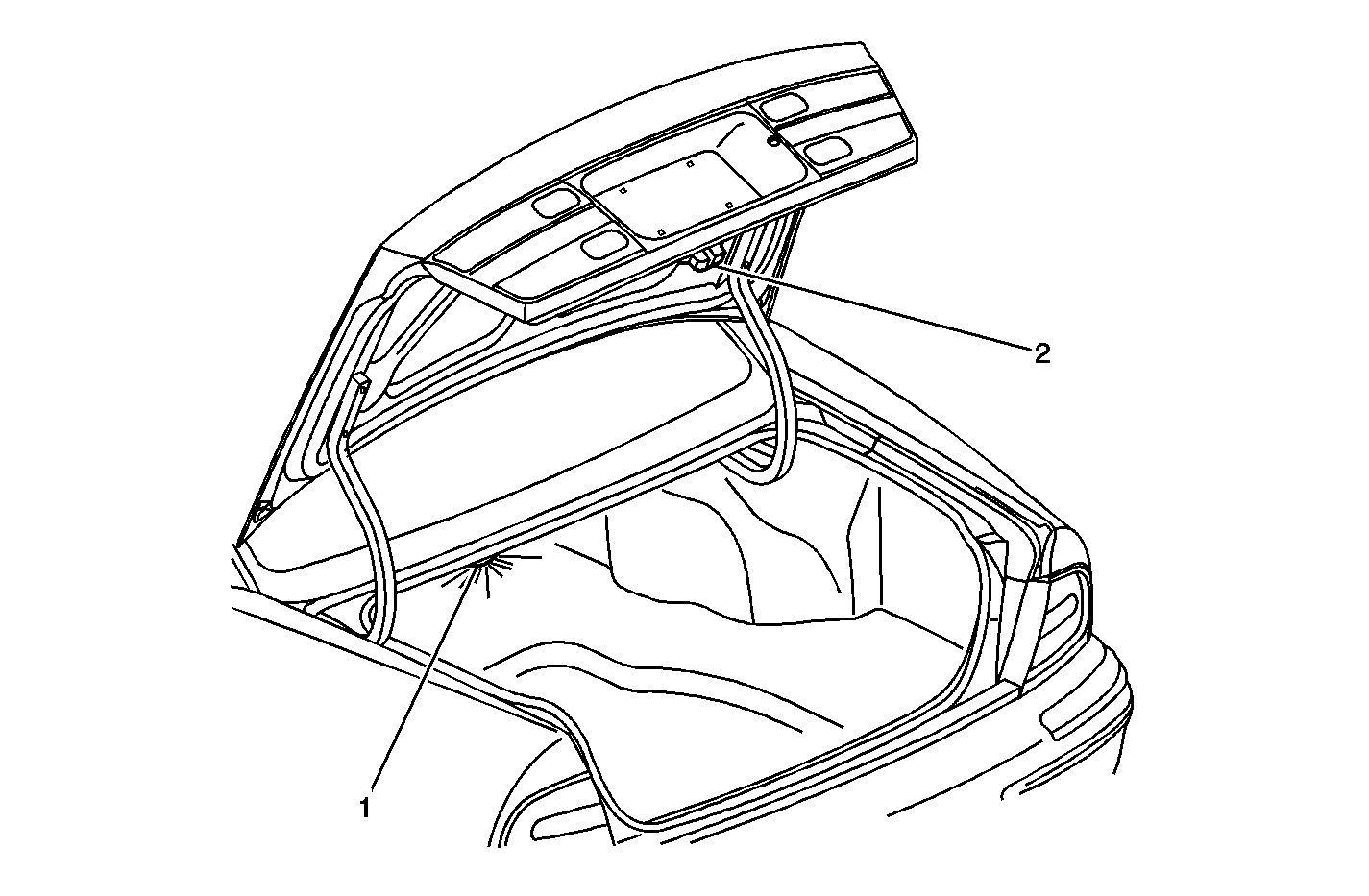

Figure 8:


(1)	Rear Compartment Lamp
(2)	Rear Compartment Lid Ajar Switch

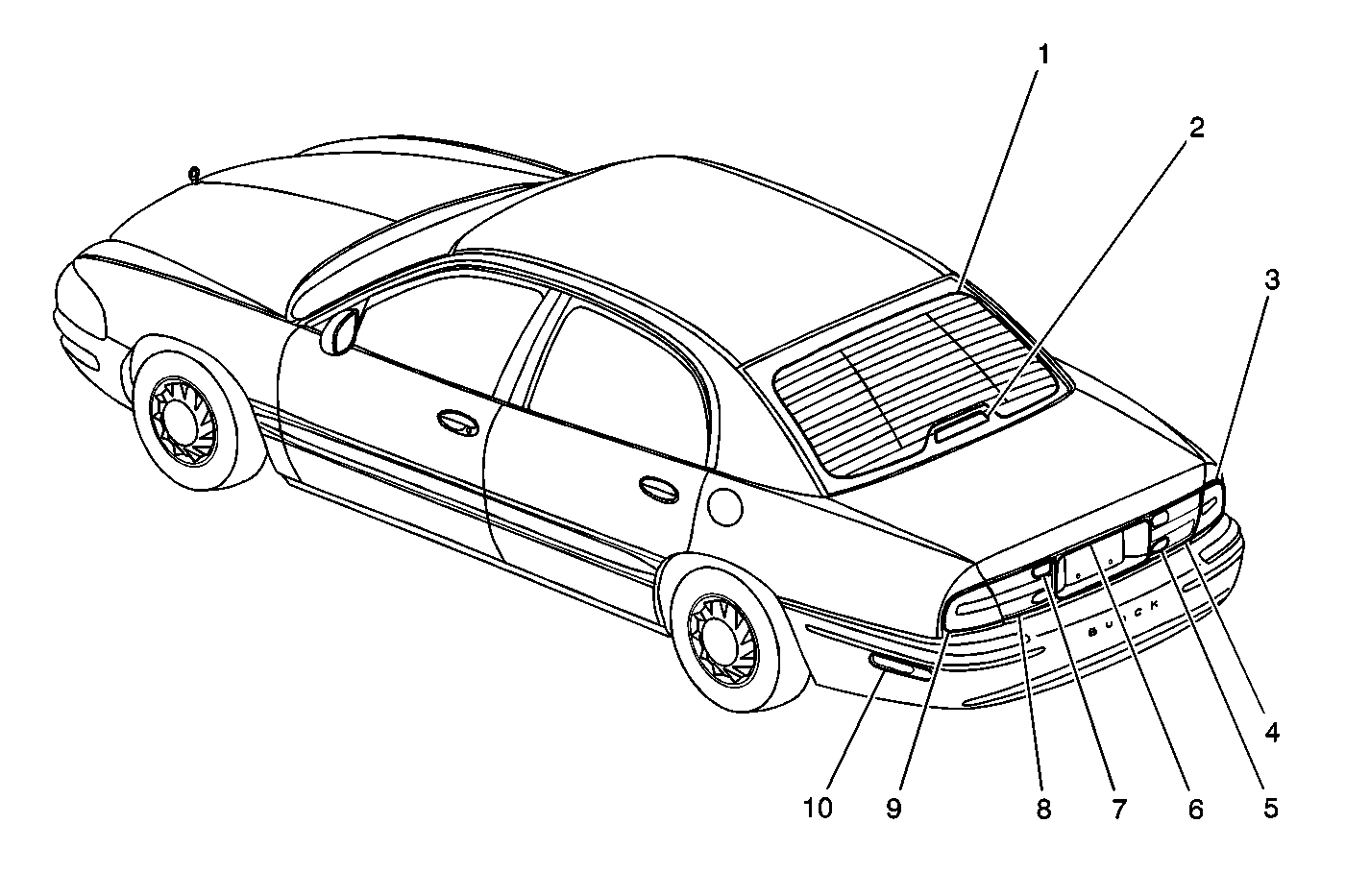

Figure 9:


(1)	Rear Window Defogger Grid
(2)	Center High Mounted Stop Lamp (CHMSL)
(3)	Tail/Stop Lamp-Right , Left Similar
(4)	Tail/Turn Signal Lamp-Right, Left Similar
(5)	Backup Lamp-Right
(6)	License Lamp
(7)	Backup Lamp-Left
(8)	Tail/Stop Lamp-Left , Right Similar
(9)	Tail/Turn Signal Lamp-Left, Right Similar
(10)	Marker Lamp-LR, RR Similar
