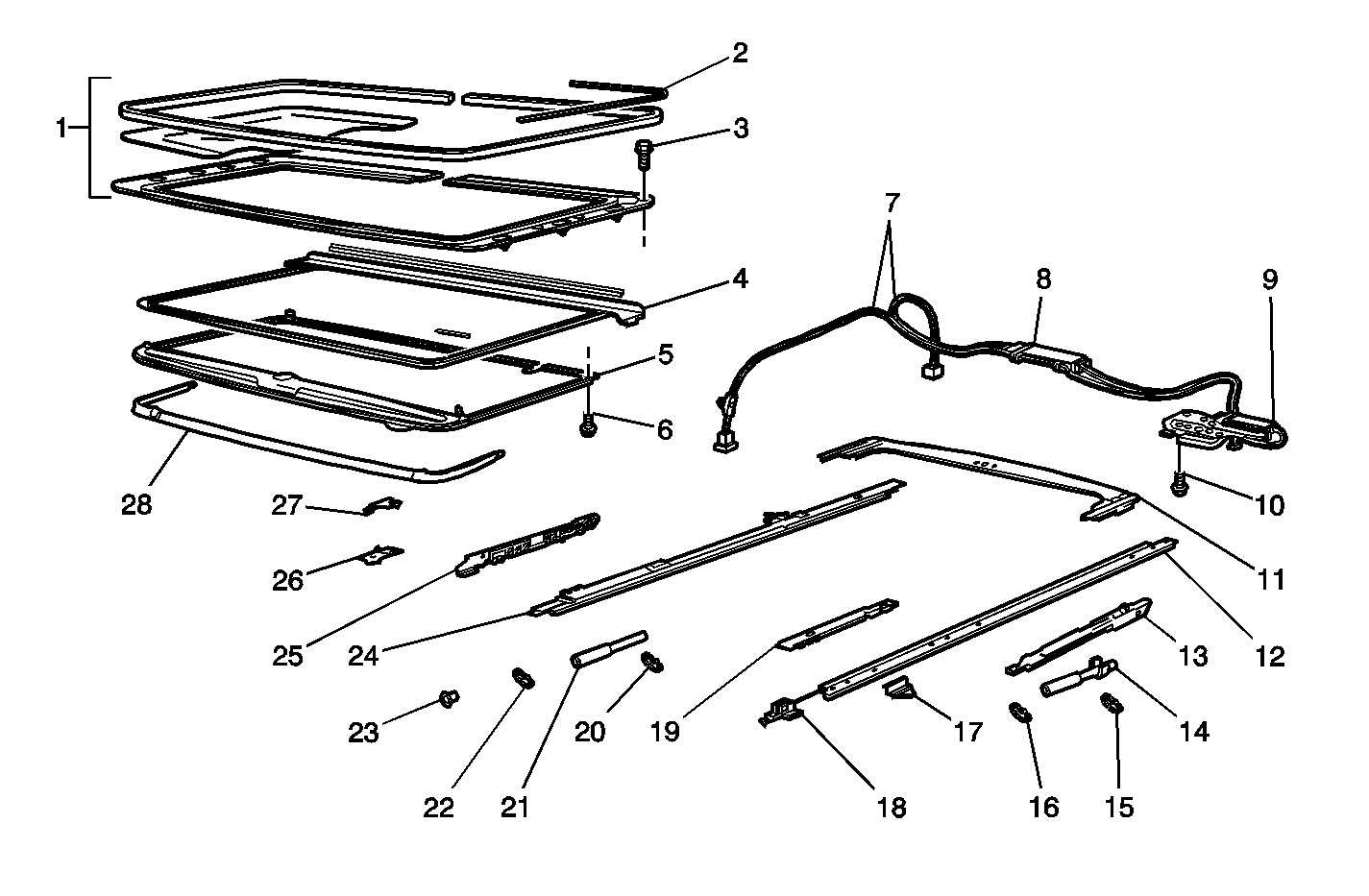

| (1) | Sunroof
Window Assembly |
| (2) | Sunroof
Window Weatherstrip |
| (3) | Sunroof
Window Screw |
| (4) | Sunroof
Frame |
| (5) | Sunroof
Sunshade |
| (6) | Sunroof
Module Assembly Bolt |
| (7) | Sunroof Wiring Harness |
| (8) | Sunroof Control Module |
| (9) | Sunroof Motor/Actuator |
| (10) | Sunroof Motor/Actuator Bolt |
| (11) | Sunroof Sliding Panel Rear Rail |
| (12) | Sunroof Housing Left Rail |
| (13) | Sunroof Panel Window Cam |
| (14) | Sunroof Housing Rear Drain Hose |
| (15) | Sunroof Rear Drain Hose Worm Clamp |
| (16) | Sunroof Rear Drain Hose Worm Clamp |
| (17) | Sunroof Air Deflector Pivot Bracket |
| (18) | Sunroof Left Rail Front Guide |
| (19) | Sunroof Housing Track Cover |
| (20) | Sunroof Front Drain Hose Worm Clamp |
| (21) | Sunroof Housing Front Drain Hose |
| (22) | Sunroof Front Drain Hose Worm Clamp |
| (23) | Sunroof Front Drain Hose Grommet |
| (24) | Sunroof
Housing Right Rail |
| (25) | Sunroof
Panel Window Cam |
| (26) | Sunroof
Housing Support |
| (27) | Sunroof
Air Deflector Arm Kit |
| (28) | Sunroof
Air Deflector |
