Driver Seat Schematics. Buick Park Avenue 2005

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2005 🢒 Park Avenue 🢒 Body 🢒 Seats 🢒 Driver Seat Schematics

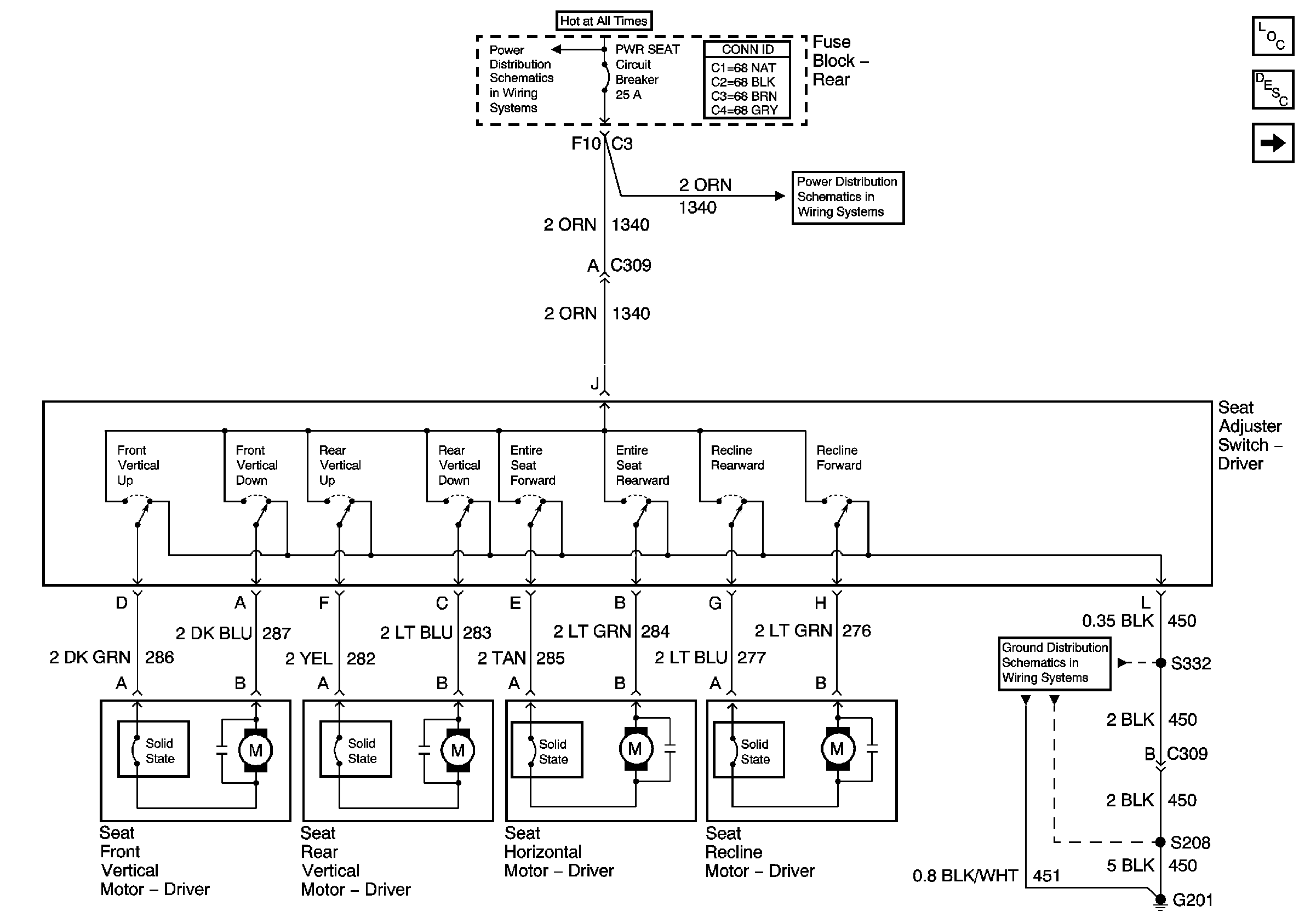

Figure 1:	Power Seat (w/o A45) Master Electrical Component List Power Seats System Description and Operation Power Lumbar Seat PWR SEAT Circuit Breaker, MEM/RFA and BAT 2 Fuses PWR SEAT Circuit Breaker, MEM/RFA and BAT 2 Fuses G201 - 1 of 2

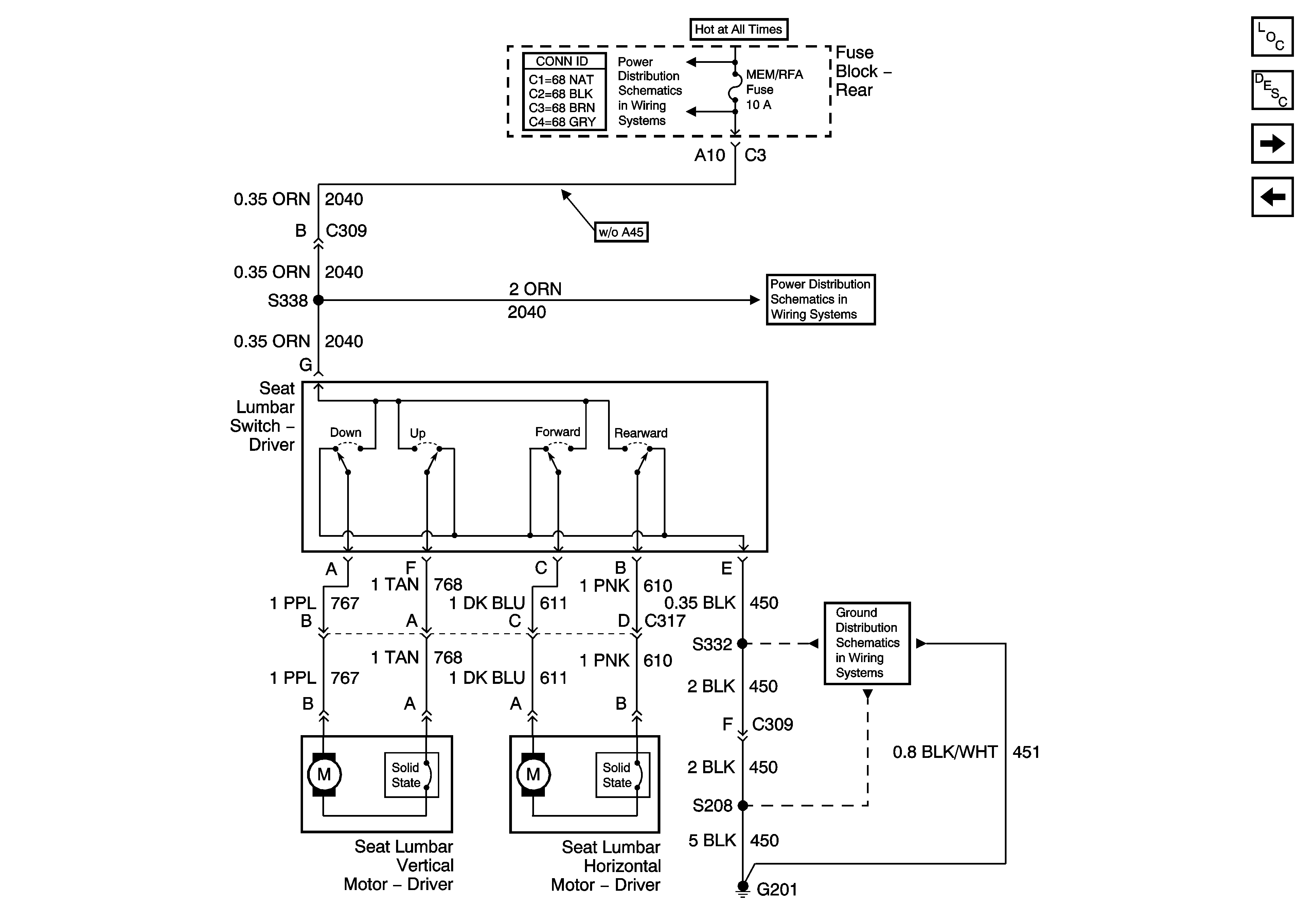

Figure 2:	Power Lumbar Seat Master Electrical Component List Memory Lumbar Seat (w/ A45) Power Seat (w/o A45)

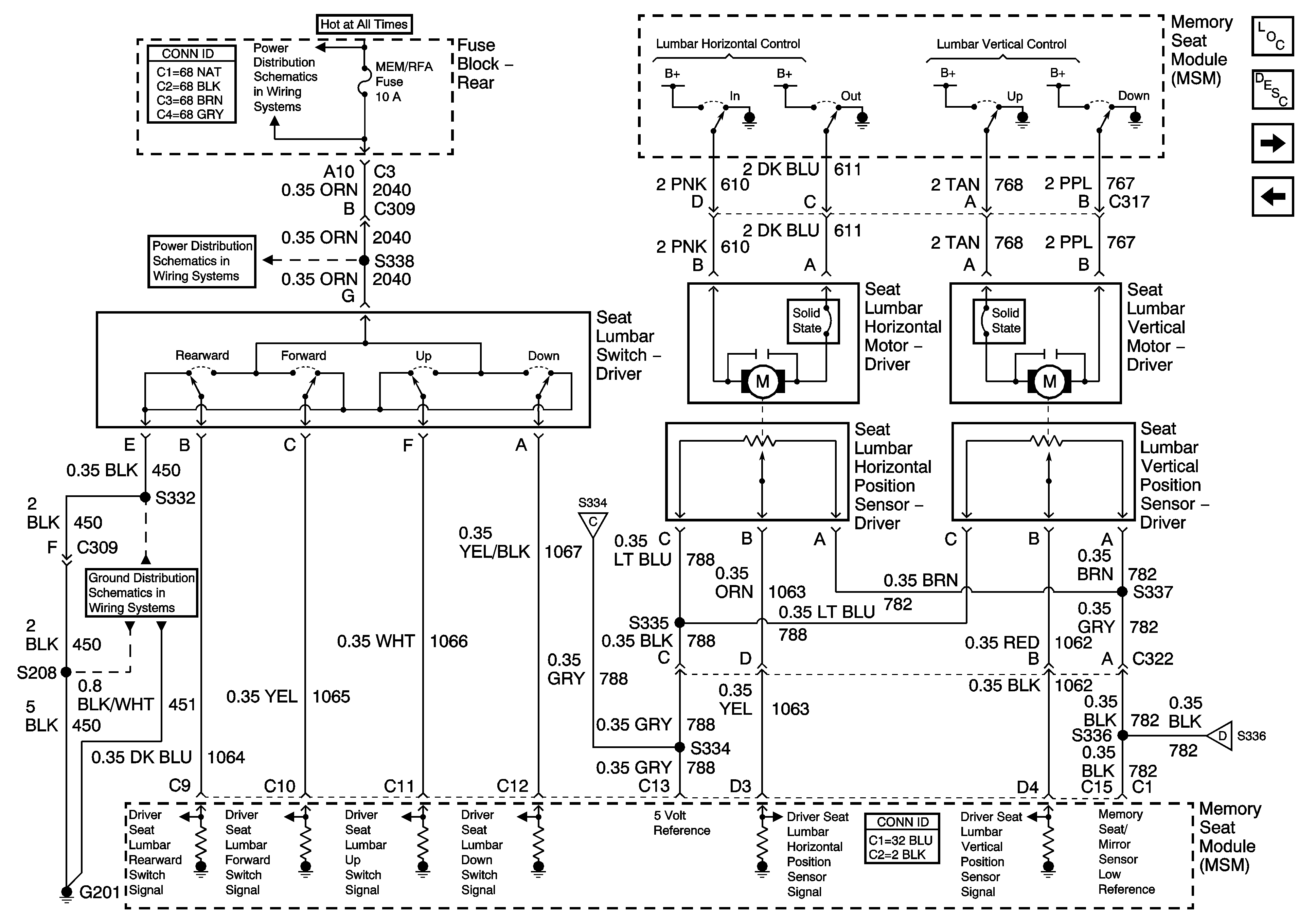

Figure 3:	Memory Lumbar Seat (w/A45) Master Electrical Component List Lumbar Support Description and Operation w/o A45 Heated Seat Power Lumbar Seat PWR SEAT Circuit Breaker, MEM/RFA and BAT 2 Fuses PWR SEAT Circuit Breaker, MEM/RFA and BAT 2 Fuses Vertical and Horizontal Motors (w/ A45) Vertical and Horizontal Motors (w/ A45) G201 - 1 of 2

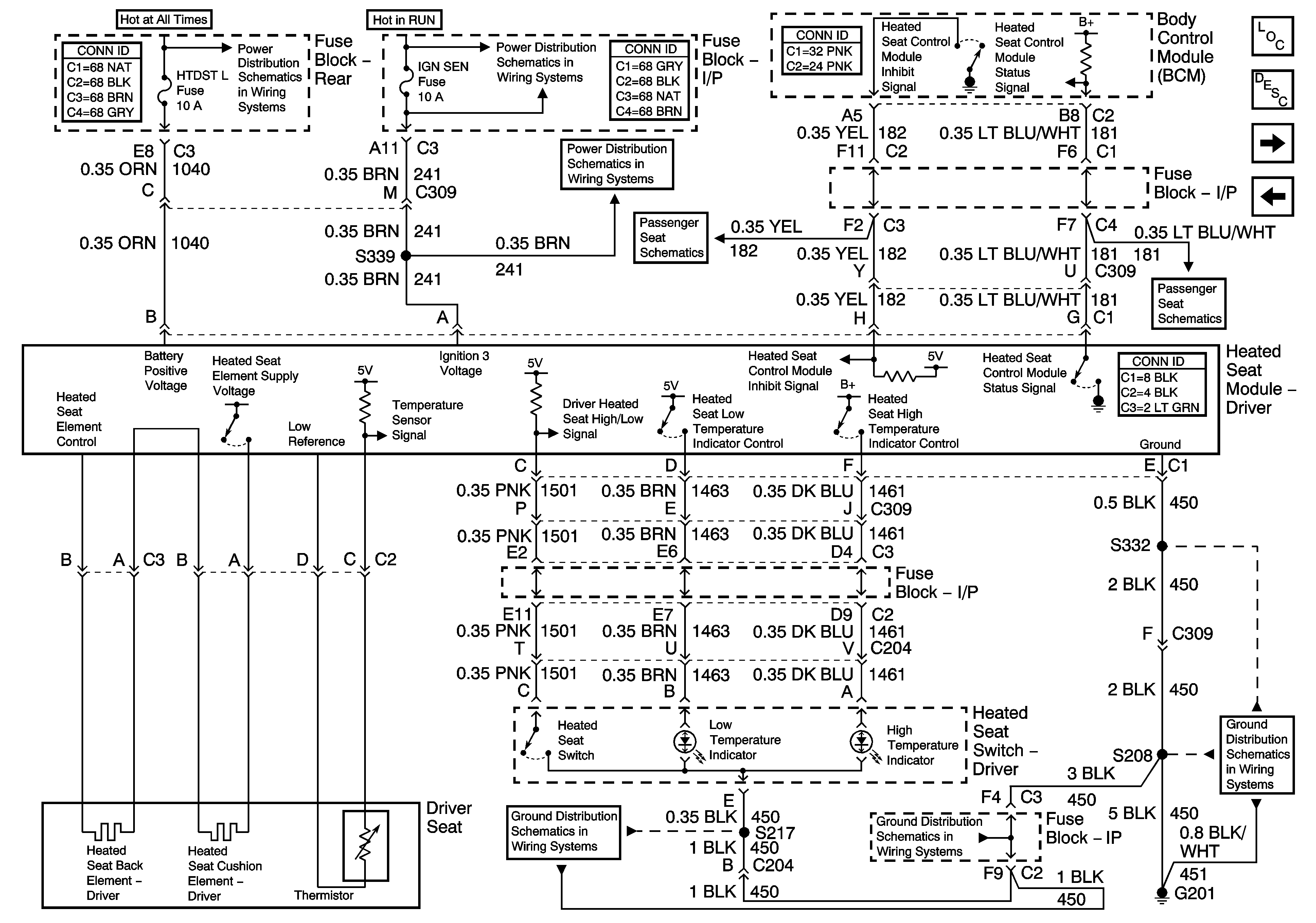

Figure 4:	Heated Seat Master Electrical Component List Heated Seats Description and Operation Memory/Personalization Function Switch (w/A45) Memory Lumbar Seat (w/ A45) BAT 1, RRINMDL, C/LTR, DRVMDL, HTDST L, TRK REL, PDM, SBM and CSTR/SBM Fuses IGN SEN Fuse IGN SEN Fuse Front Passenger Heated Seat Front Passenger Heated Seat G201 - 2 of 2 G201 - 1 of 2 G201 - 2 of 2

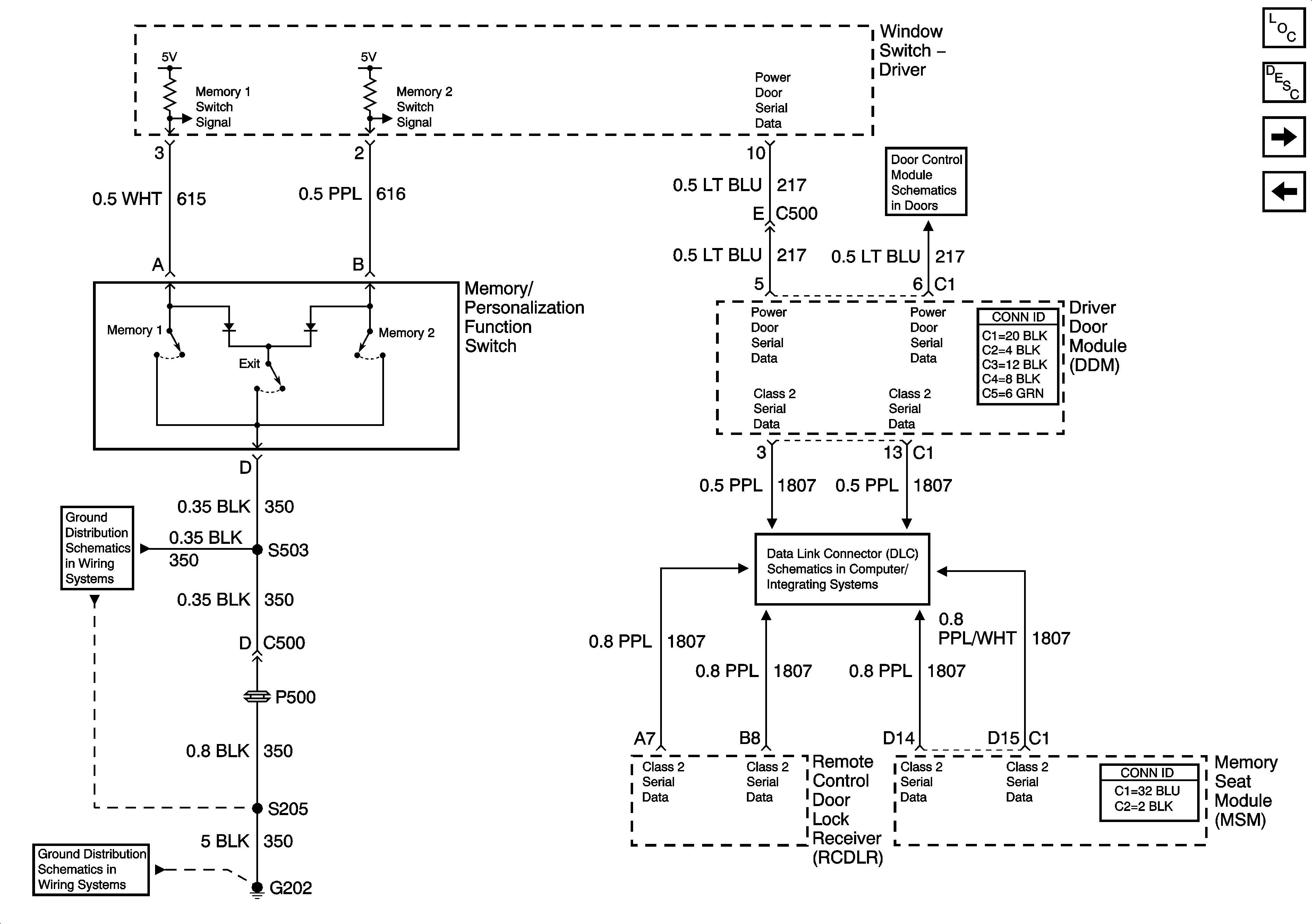

Figure 5:	Memory/Personalization Function Switch (w/ A45) Master Electrical Component List Memory Seats Description and Operation Driver Seat Adjuster Switch (w/ A45) Heated Seat Driver Door Module Inputs and Outputs Class 2 Serial Data Lines G202 - 4 of 4 G202 - 1 of 4

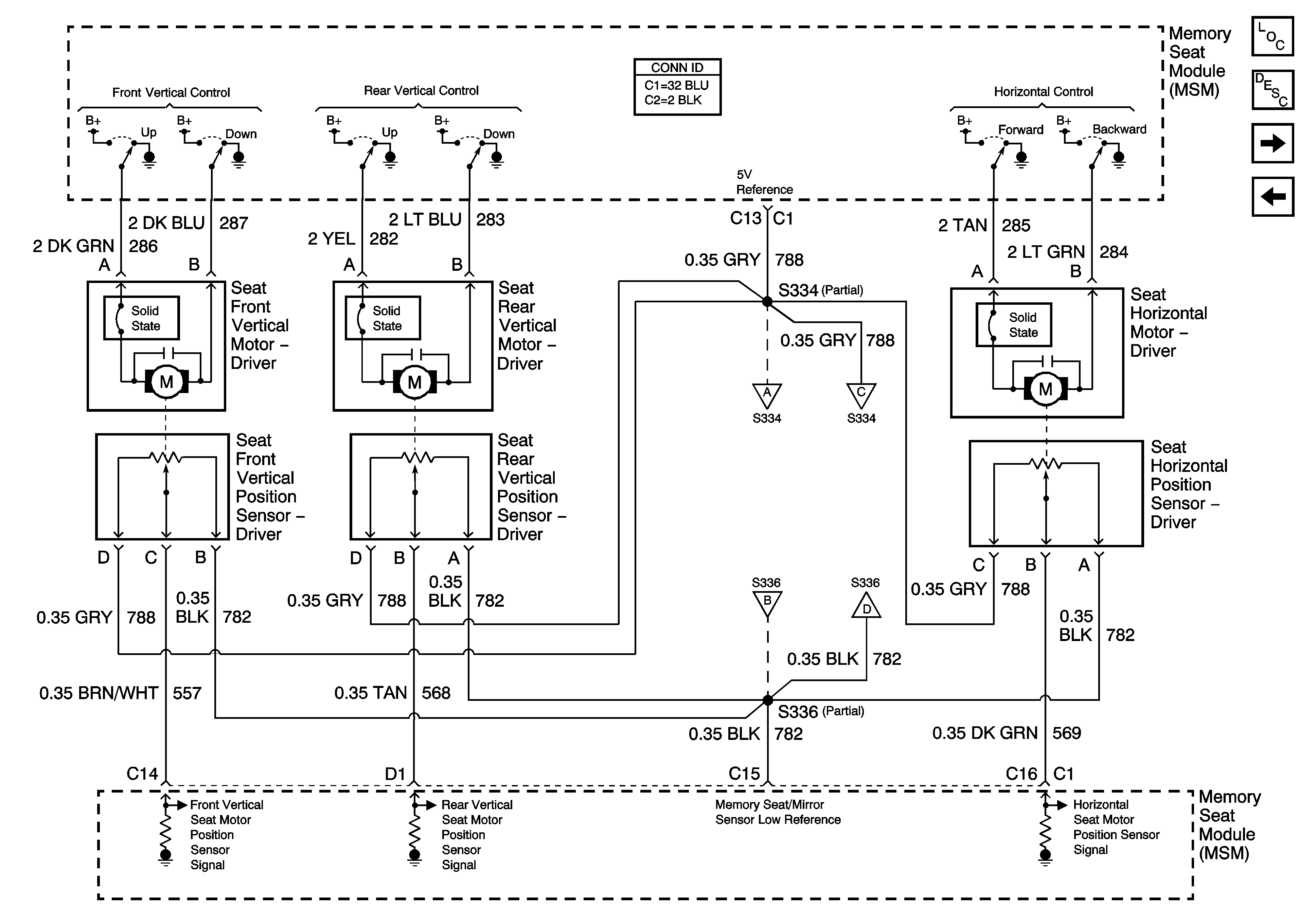

Figure 6:	Driver Seat Adjuster Switch (w/A45) Master Electrical Component List Memory Seats Description and Operation Vertical and Horizontal Motors (w/ A45) Memory/Personalization Function Switch (w/A45) PWR SEAT Circuit Breaker, MEM/RFA and BAT 2 Fuses PWR SEAT Circuit Breaker, MEM/RFA and BAT 2 Fuses PWR SEAT Circuit Breaker, MEM/RFA and BAT 2 Fuses G201 - 1 of 2 G201 - 1 of 2
Figure 7:	Vertical and Horizontal Motors (w/A45) Master Electrical Component List Memory Seats Description and Operation Recline Motor (w/ A45) Driver Seat Adjuster Switch (w/ A45) Recline Motor (w/ A45) Recline Motor (w/ A45) Memory Lumbar Seat (w/ A45)
Figure 8:	Recline Motor (w/A45) Master Electrical Component List Memory Seats Description and Operation Vertical and Horizontal Motors (w/ A45) IGN SEN Fuse IGN SEN Fuse Vertical and Horizontal Motors (w/ A45) Vertical and Horizontal Motors (w/ A45)
