Ground Distribution Schematics. Buick Regal 2000

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2000 🢒 Regal 🢒 Engine 🢒 Engine Controls - 3.8L 🢒 Ground Distribution Schematics

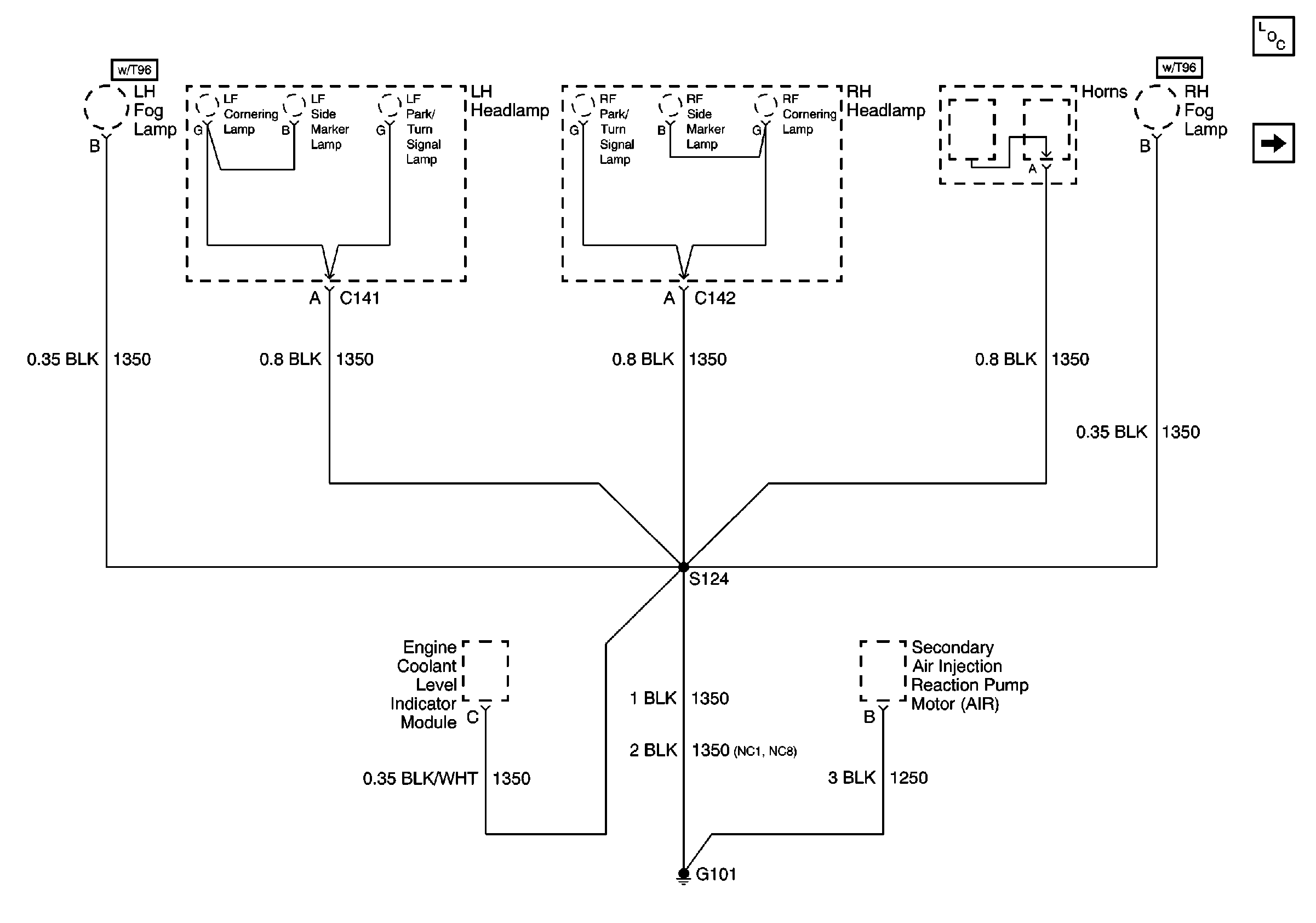

Figure 1:	G101 Power and Grounding Components G100, G113 and G113

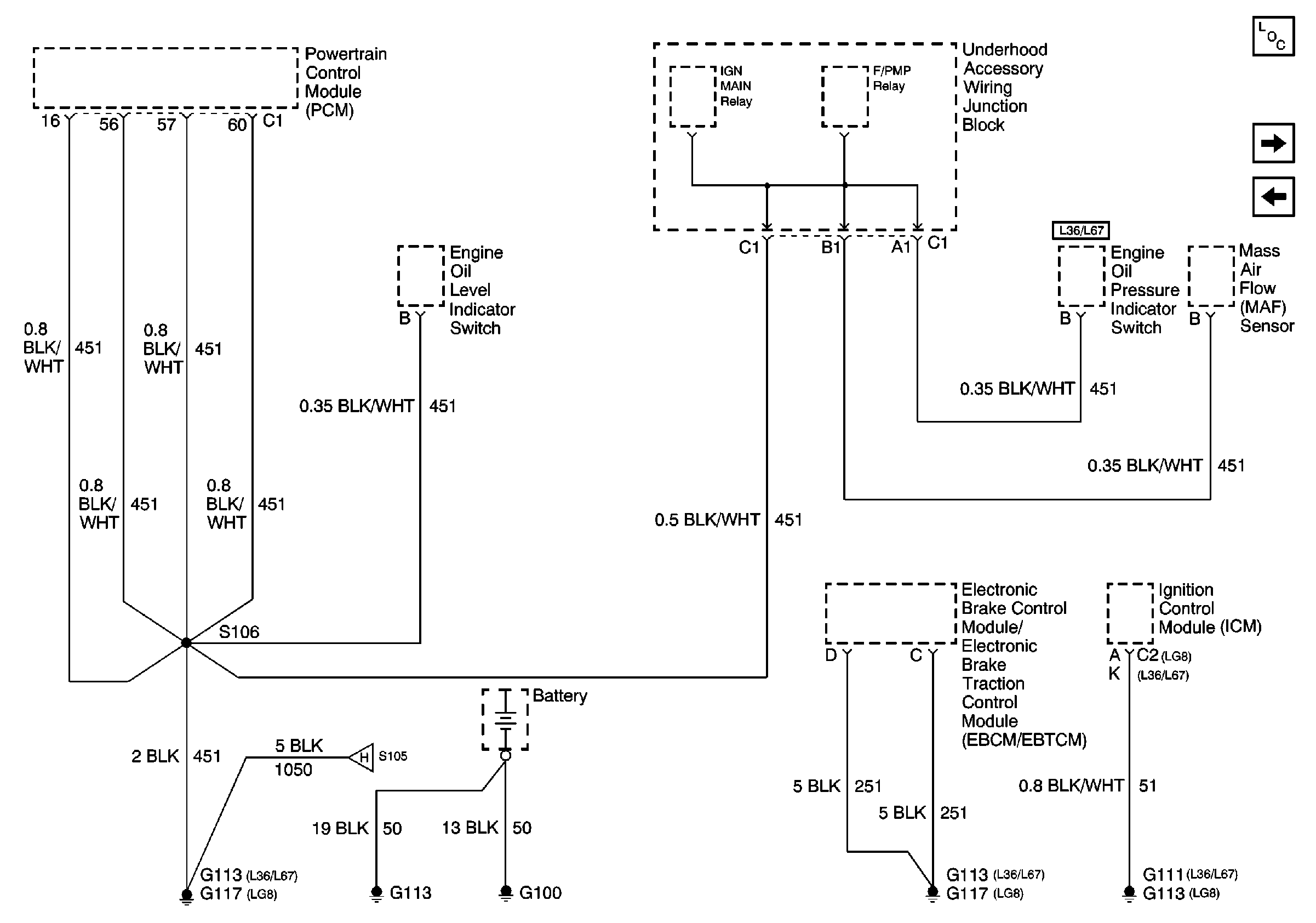

Figure 2:	G100, G113 and G113 Power and Grounding Components G113 and G117 G101 G113 and G117
Figure 3:	G113 and G117 Power and Grounding Components G200 G100, G113 and G113 G100, G113 and G113

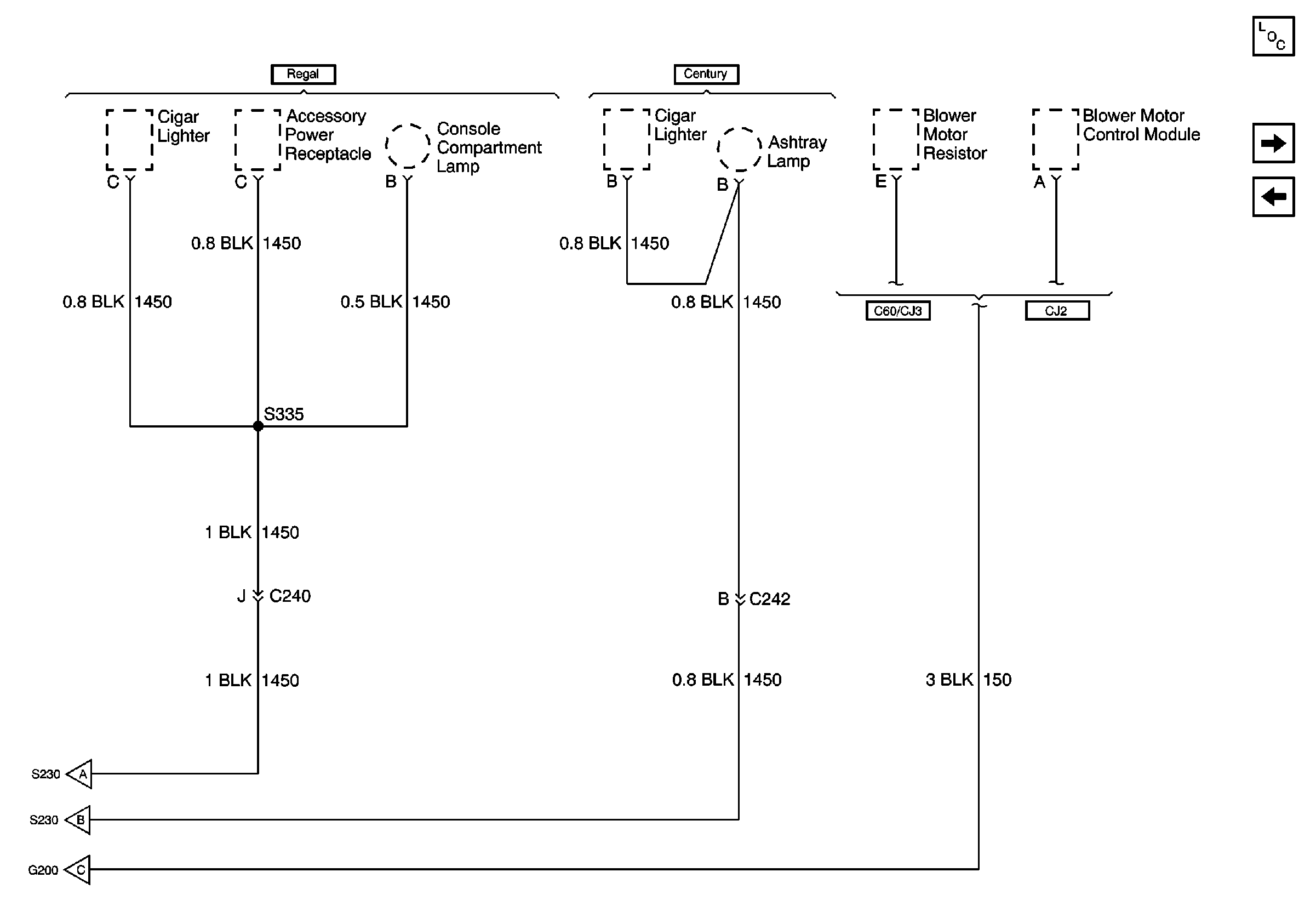

Figure 4:	G200 Power and Grounding Components G200 cont. G113 and G117 G200 cont. G200 cont. G200 cont.
Figure 5:	G200 cont. Power and Grounding Components G201 G200 G200 G200 G200

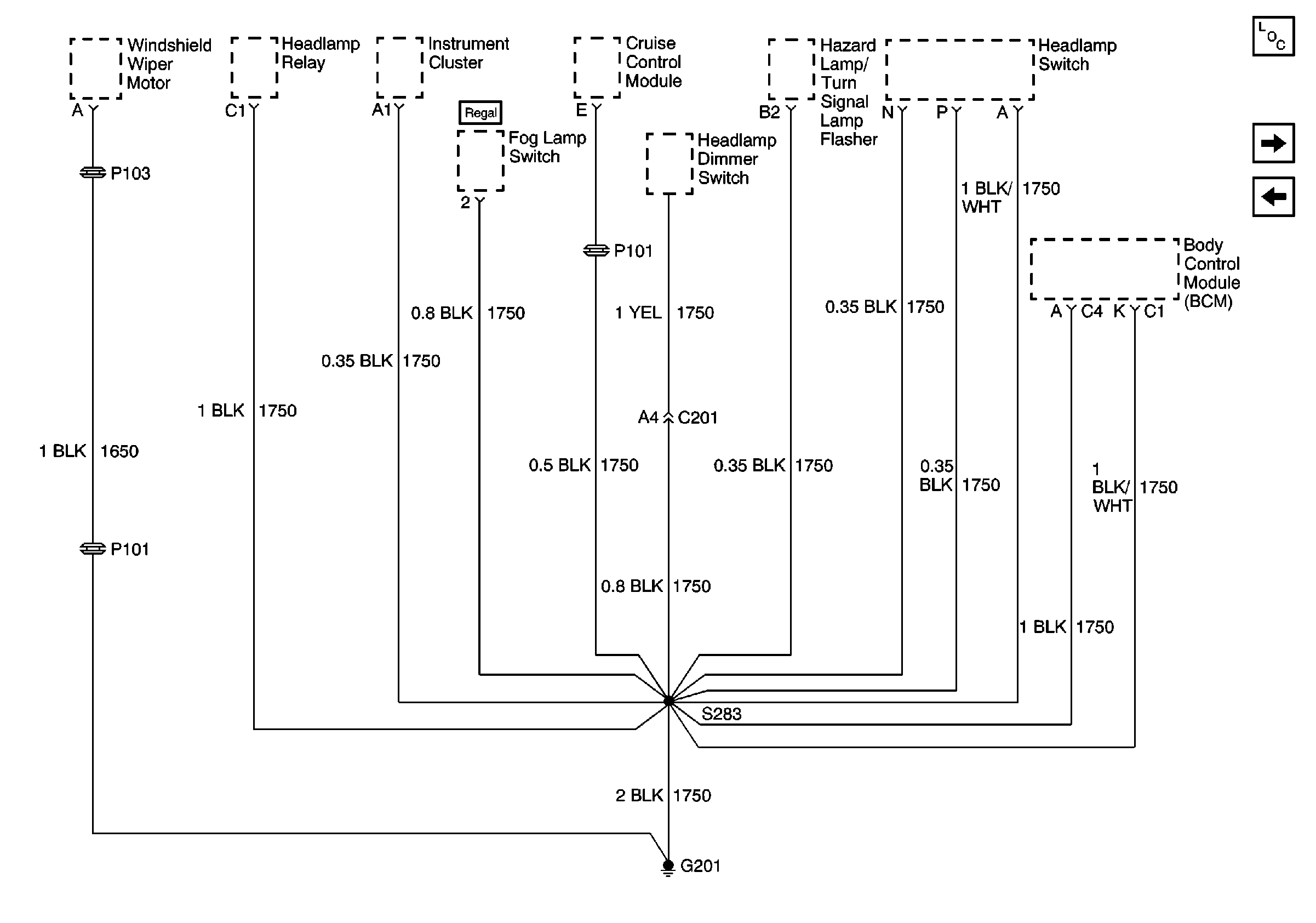

Figure 6:	G201 Power and Grounding Components G203 G200 cont.
Figure 7:	G203 Power and Grounding Components G203 cont. G201 G203 cont.
Figure 8:	G203 cont. Power and Grounding Components G301 G203 G203

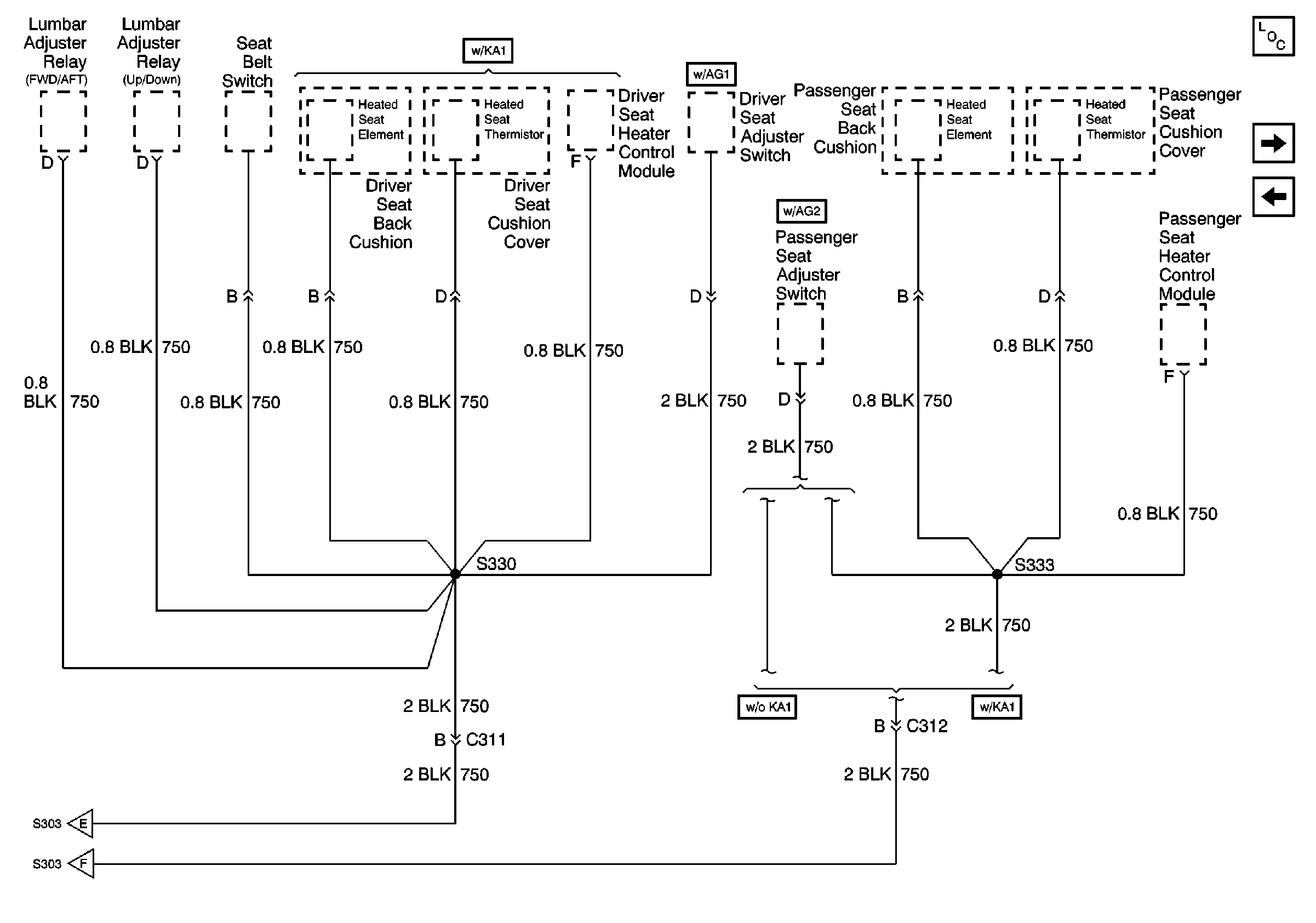

Figure 9:	G301 Power and Grounding Components G301 cont. G203 cont. G301 cont. G301 cont.
Figure 10:	G301 cont. Power and Grounding Components G401 G301 G301 G301

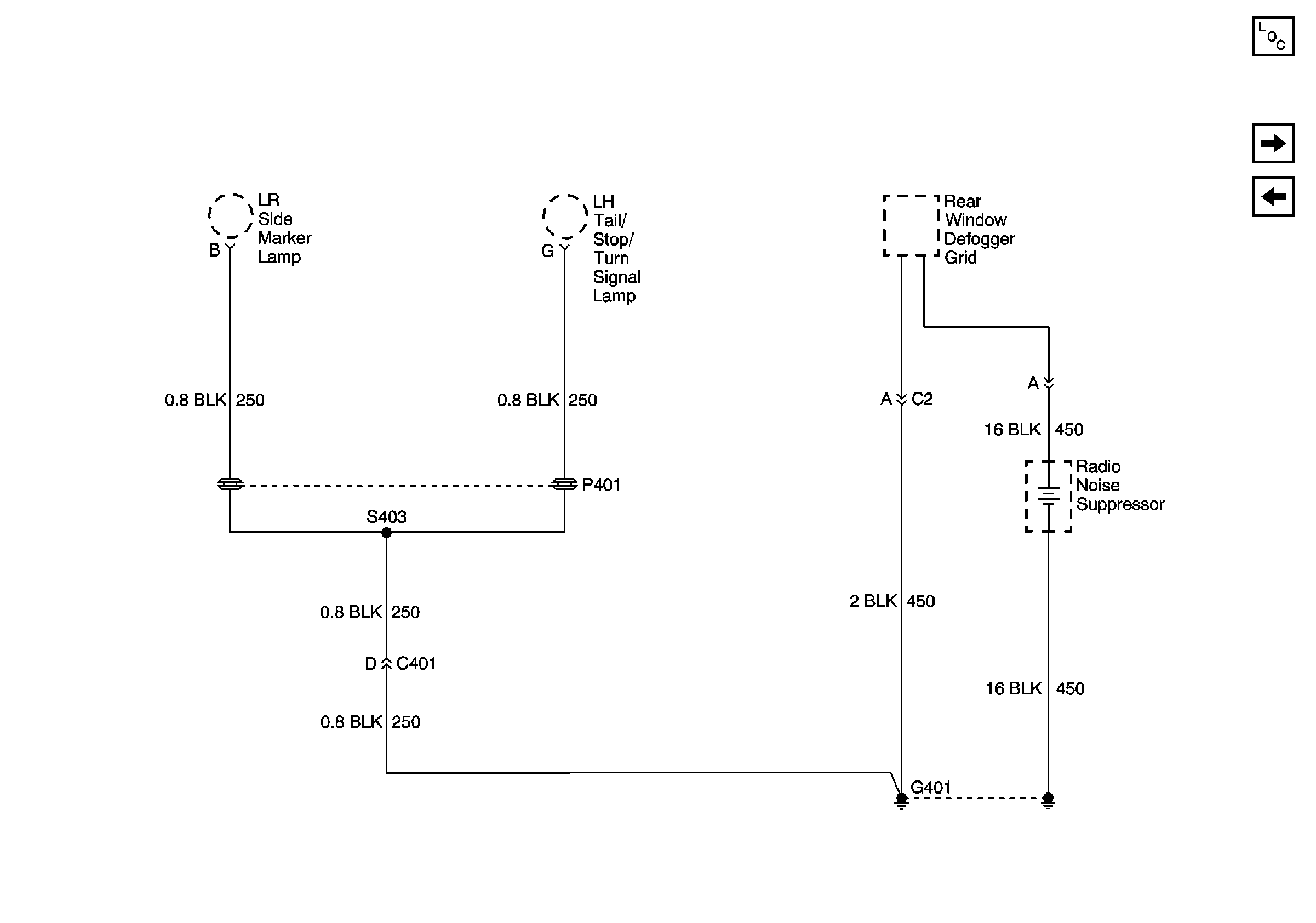

Figure 11:	G401 Power and Grounding Components G402 G301 cont.

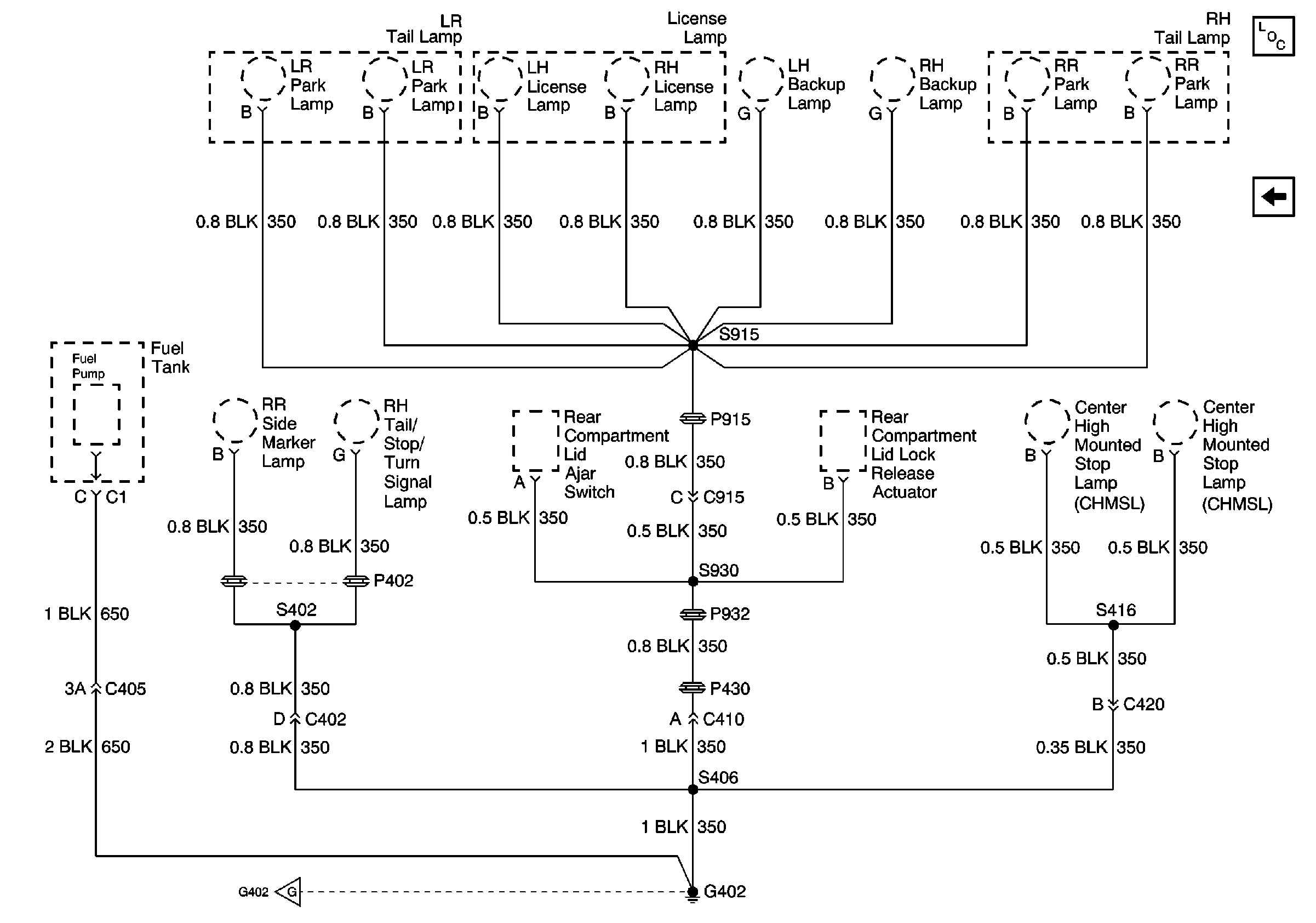

Figure 12:	G402 Power and Grounding Components G402 cont. G401 G402 cont.

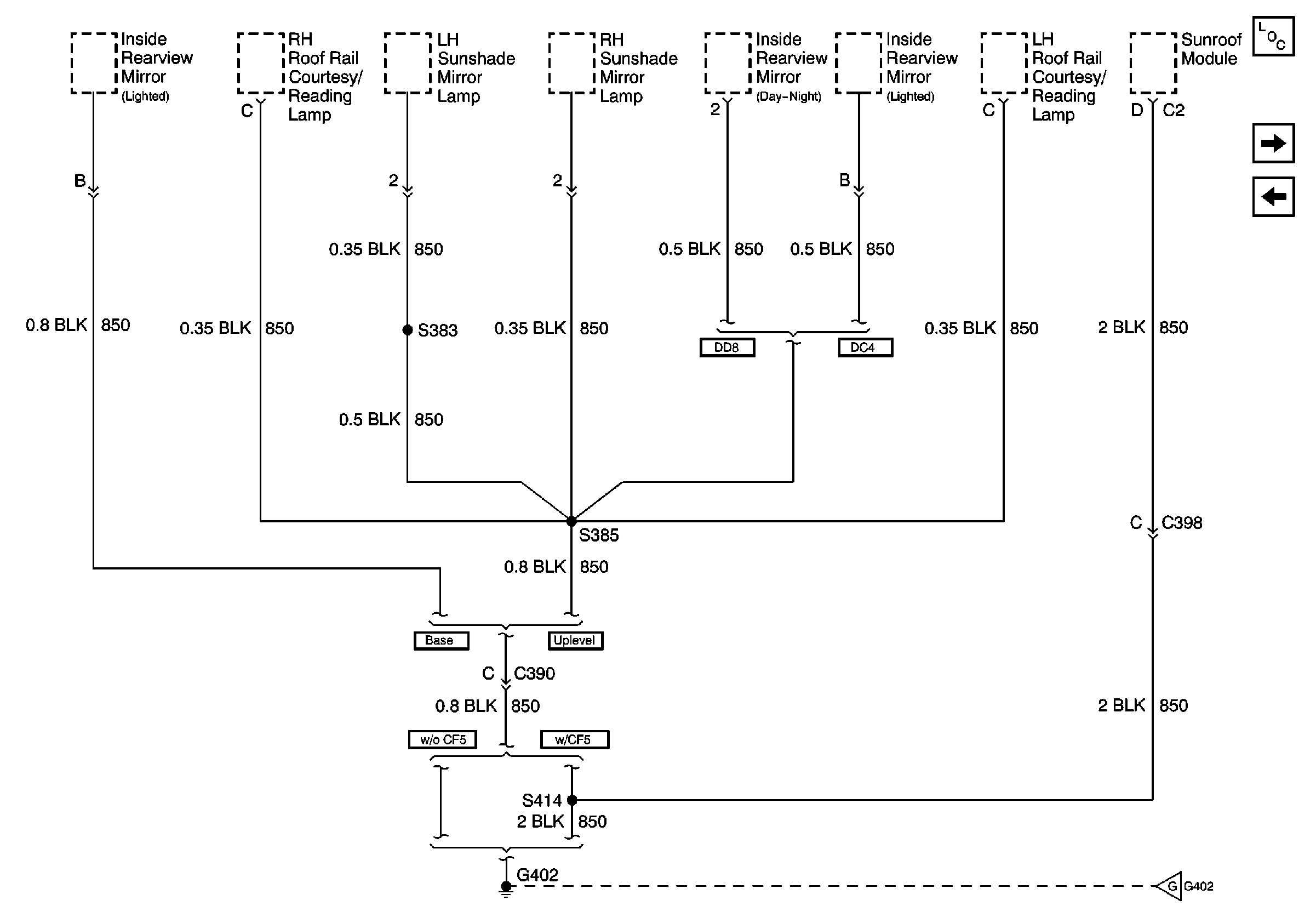

Figure 13:	G402 cont. Power and Grounding Components G402 G402
