Makes 🢒 Buick 🢒 2000 🢒 Regal 🢒 HVAC 🢒 HVAC Systems - Manual 🢒 HVAC Component Views
Figure 1:

Lower Side of Engine (RPO LW9, LB8)
Object Number: 592168 Size: LF
(1)A/C Compressor Clutch Coil
Figure 2:

Lower Left Side of Engine


Object Number: 592170 Size: LF
(1)A/C Compressor Clutch Coil
Figure 3:

A/C Accumulator and A/C Pressure Sensor -- Right Side of Engine Compartment
Object Number: 305320 Size: LF
(1)A/C Evaporator Tube
(2)Engine Wiring Harness
(3)A/C Accumulator
(4)A/C Refrigerant Pressure Sensor
(5)A/C Accumulator Hose
Figure 4:

Behind Right of Instrument Panel


Object Number: 581254 Size: LF
(1)Blower Motor
(2)Blower Motor Resistor
(3)Electric Actuator, RH

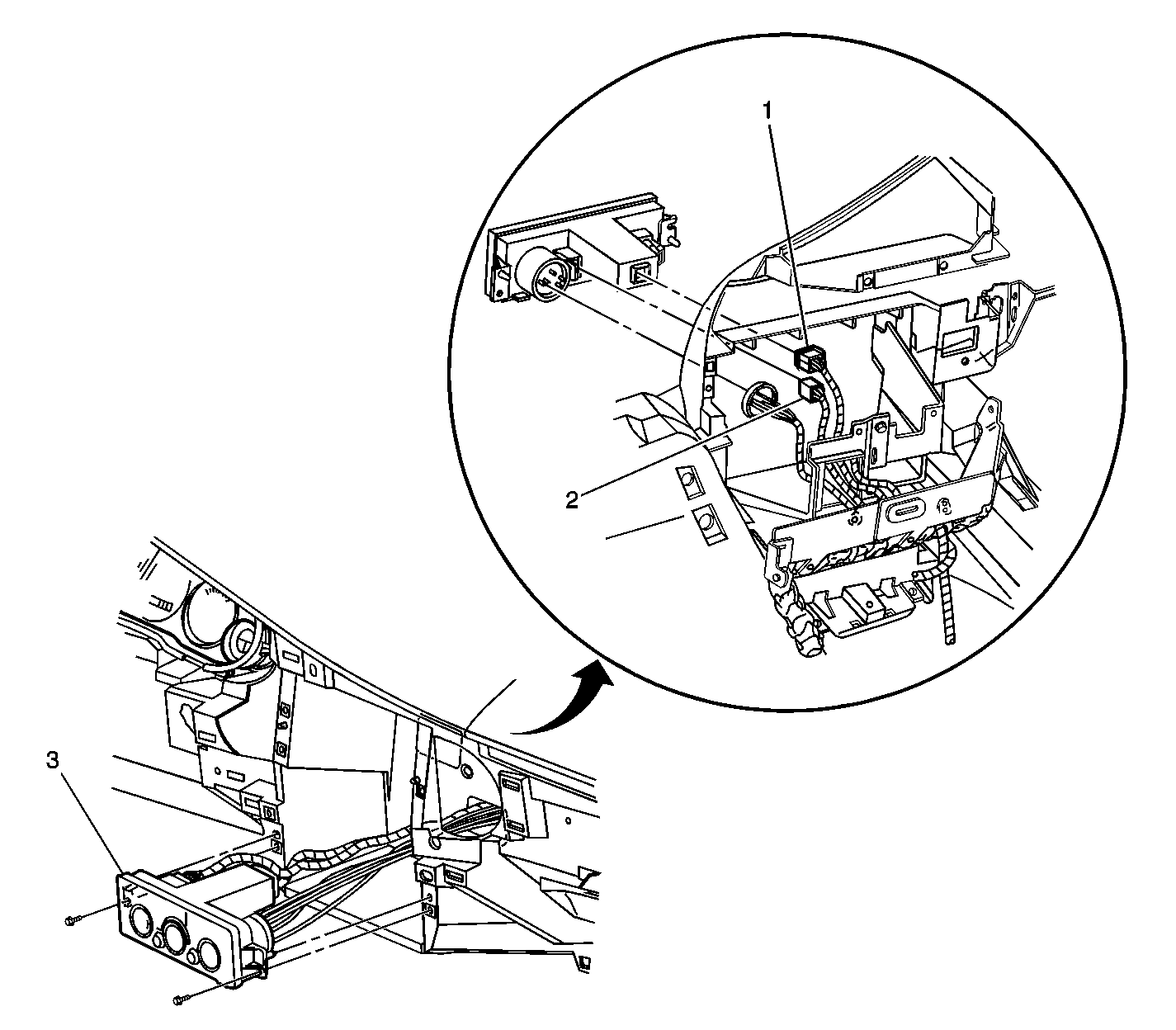

Figure 5:

Lower Center of Instrument Panel (RPO CJ3)
Object Number: 592176 Size: LF
(1)Heater-A/C Control Module Connector, C1
(2)Heater-A/C Control Module Connector, C2
(3)Heater-A/C Control Module
