Engine Controls Schematics. Buick Regal 2001

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2001 🢒 Regal 🢒 Engine 🢒 Engine Controls - 3.8L 🢒 Engine Controls Schematics

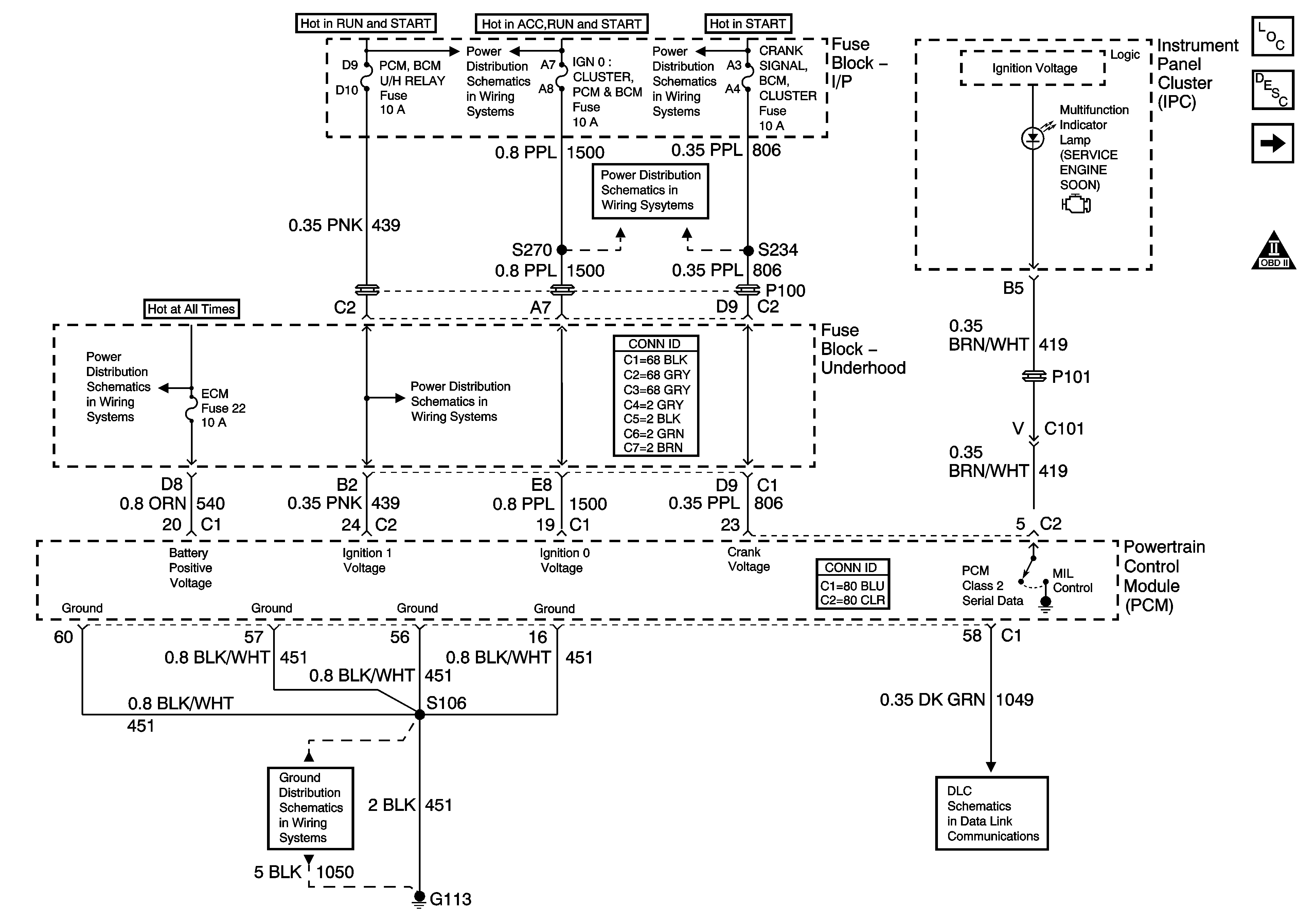

Figure 1:	Power, Ground, DLC and MIL Master Electrical Component List Powertrain Control Module Description TP, MAP, ECT, IAT, VSS and Supercharger Boost Control Solenoid Engine Controls Schematic Icons Power Bussing for Fuse Block Underhood Page 1 of 2 IGN 1 Cluster, BCM, PCM, BTSI IGN 1 PCM, BCM, Cluster, Turn, SDM G100,G111 and G113 DLC

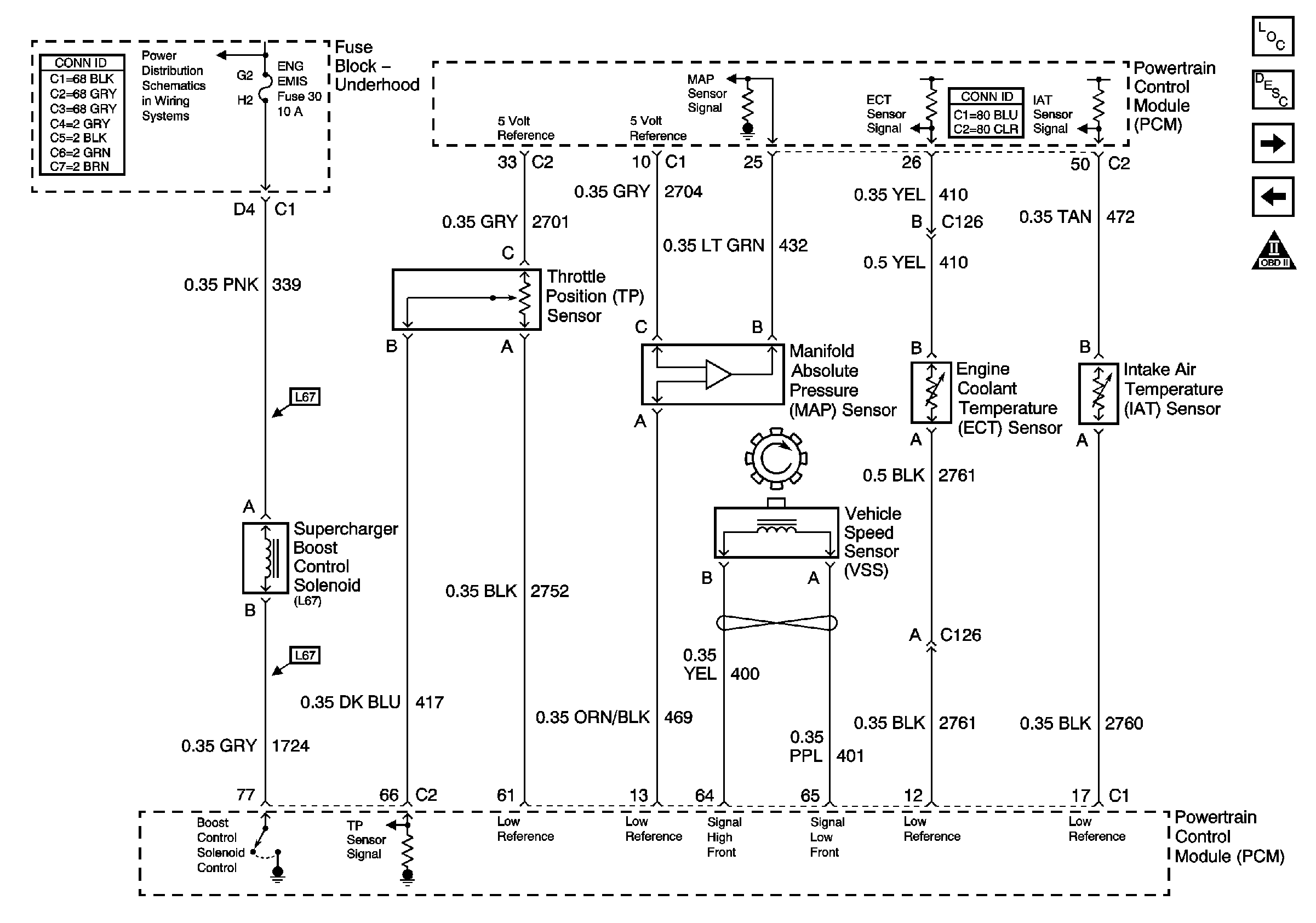

Figure 2:	TP, MAP, ECT, IAT, VSS and Supercharger Boost Control Solenoid Master Electrical Component List Powertrain Control Module Description CMP, CKP and KS Sensors Power, Ground, DLC and MIL Engine Controls Schematic Icons Power Bussing for Fuse Block-Underhood page 2 of 2

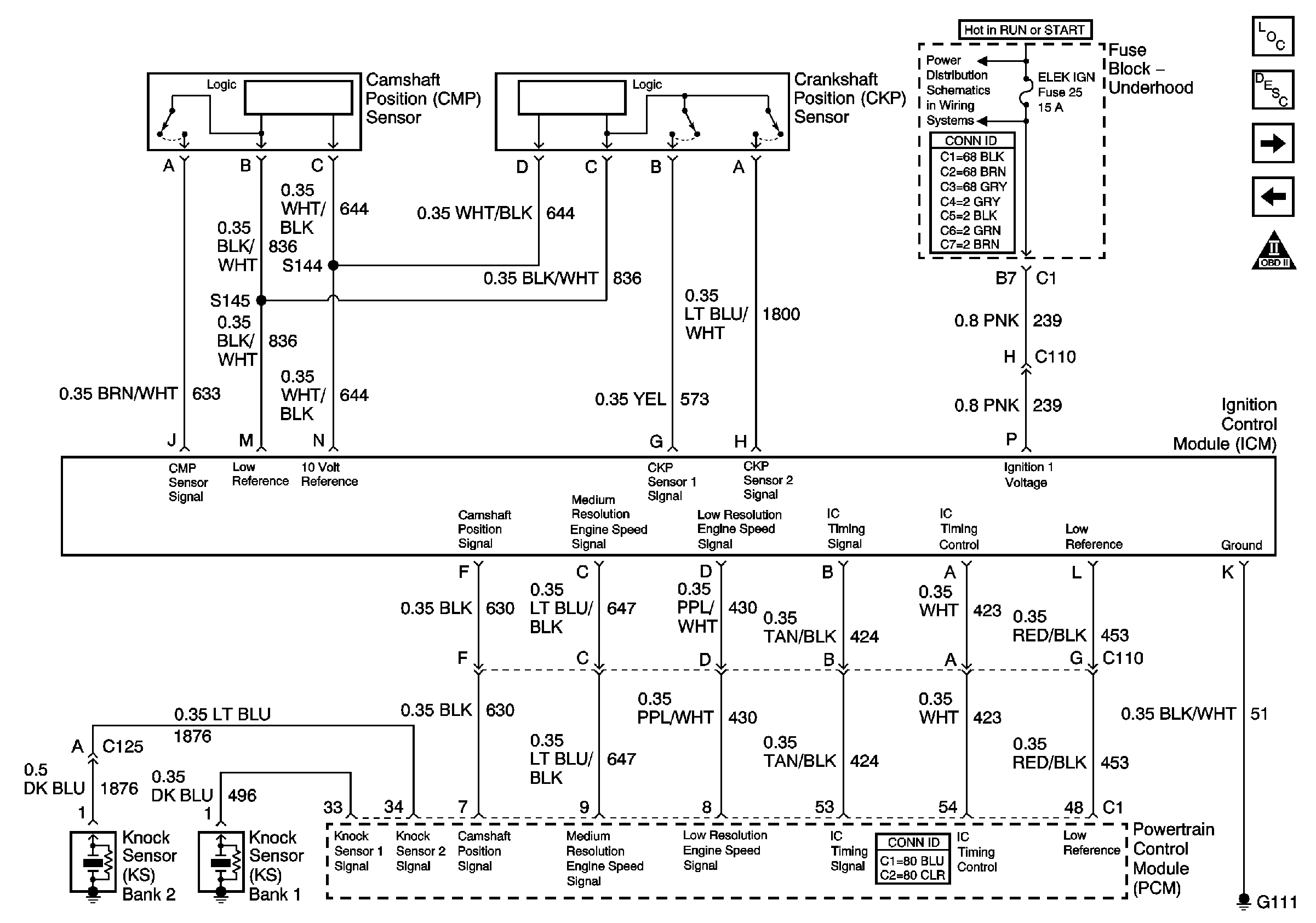

Figure 3:	CMP, CKP and KS Sensors Master Electrical Component List Electronic Ignition (EI) System Description Fuel Injectors TP, MAP, ECT, IAT, VSS and Supercharger Boost Control Solenoid Engine Controls Schematic Icons Power Bussing for Fuse Block-Underhood page 2 of 2

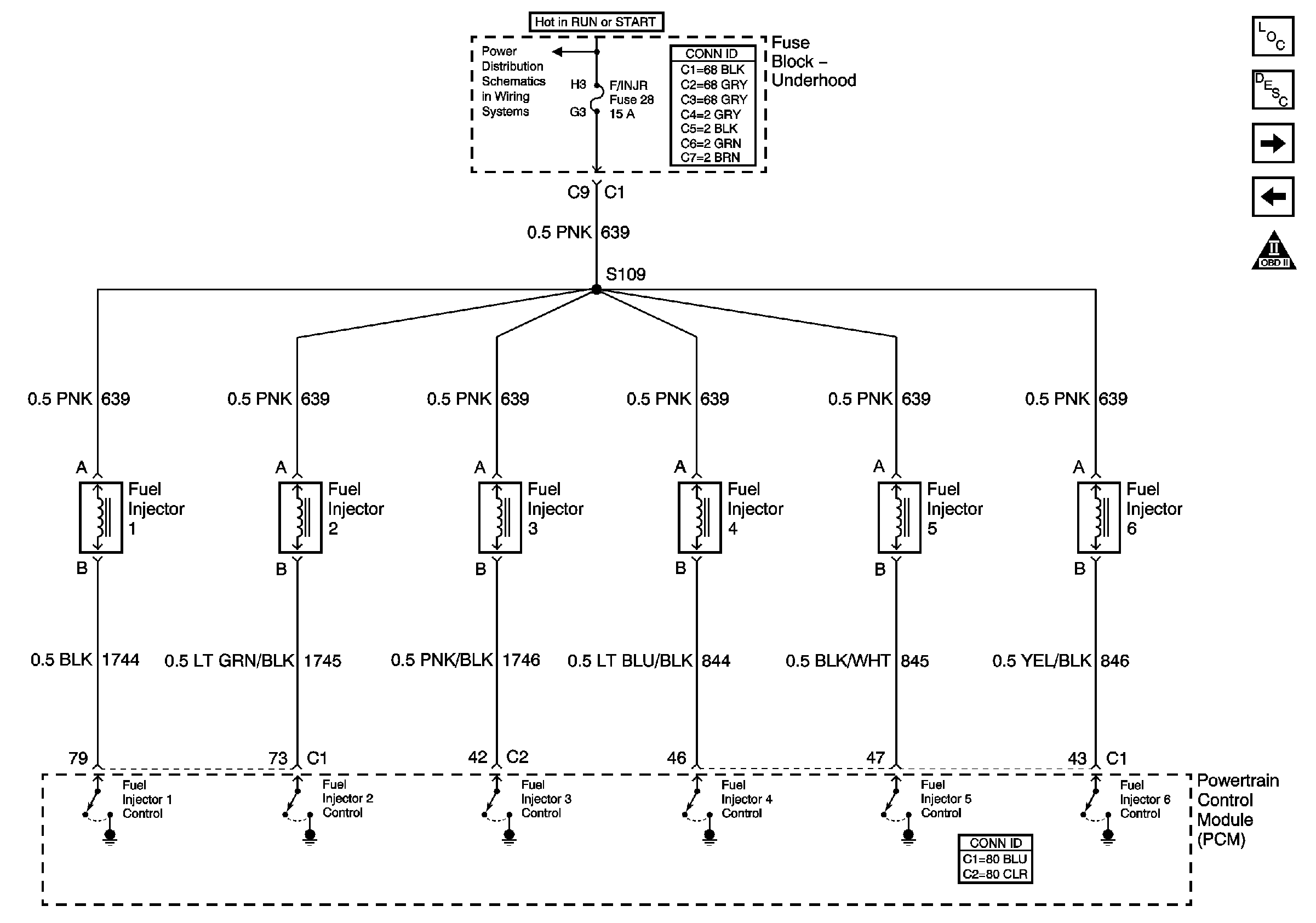

Figure 4:	Fuel Injectors Master Electrical Component List Fuel System Description IAC Control CMP, CKP and KS Sensors Engine Controls Schematic Icons Power Bussing for Fuse Block-Underhood page 2 of 2

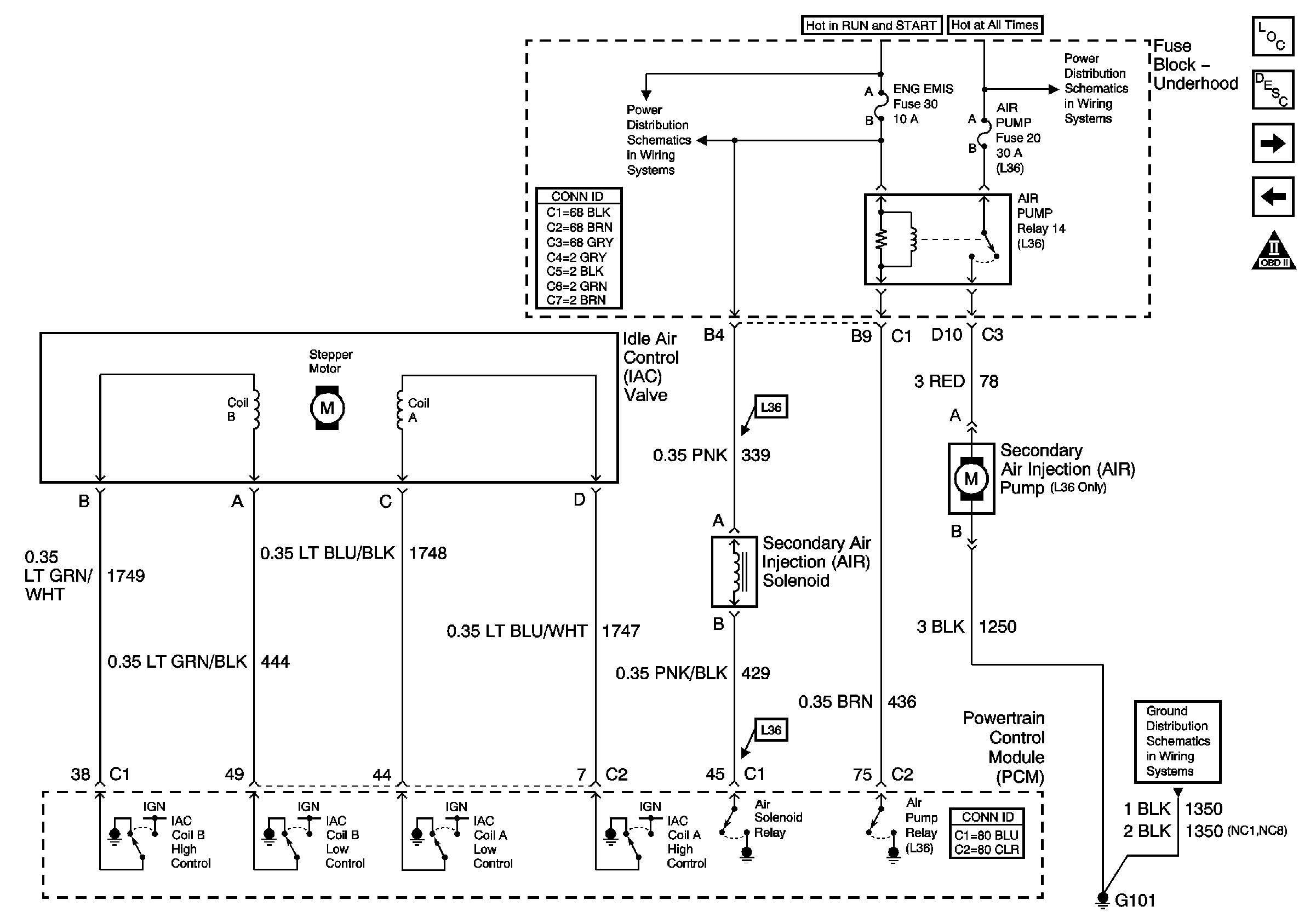

Figure 5:	IAC Control Master Electrical Component List Powertrain Control Module Description HO2S Sensors Fuel Injectors Engine Controls Schematic Icons Power Bussing for Fuse Block-Underhood page 2 of 2 Power Bussing for Fuse Block-Underhood page 2 of 2 G101

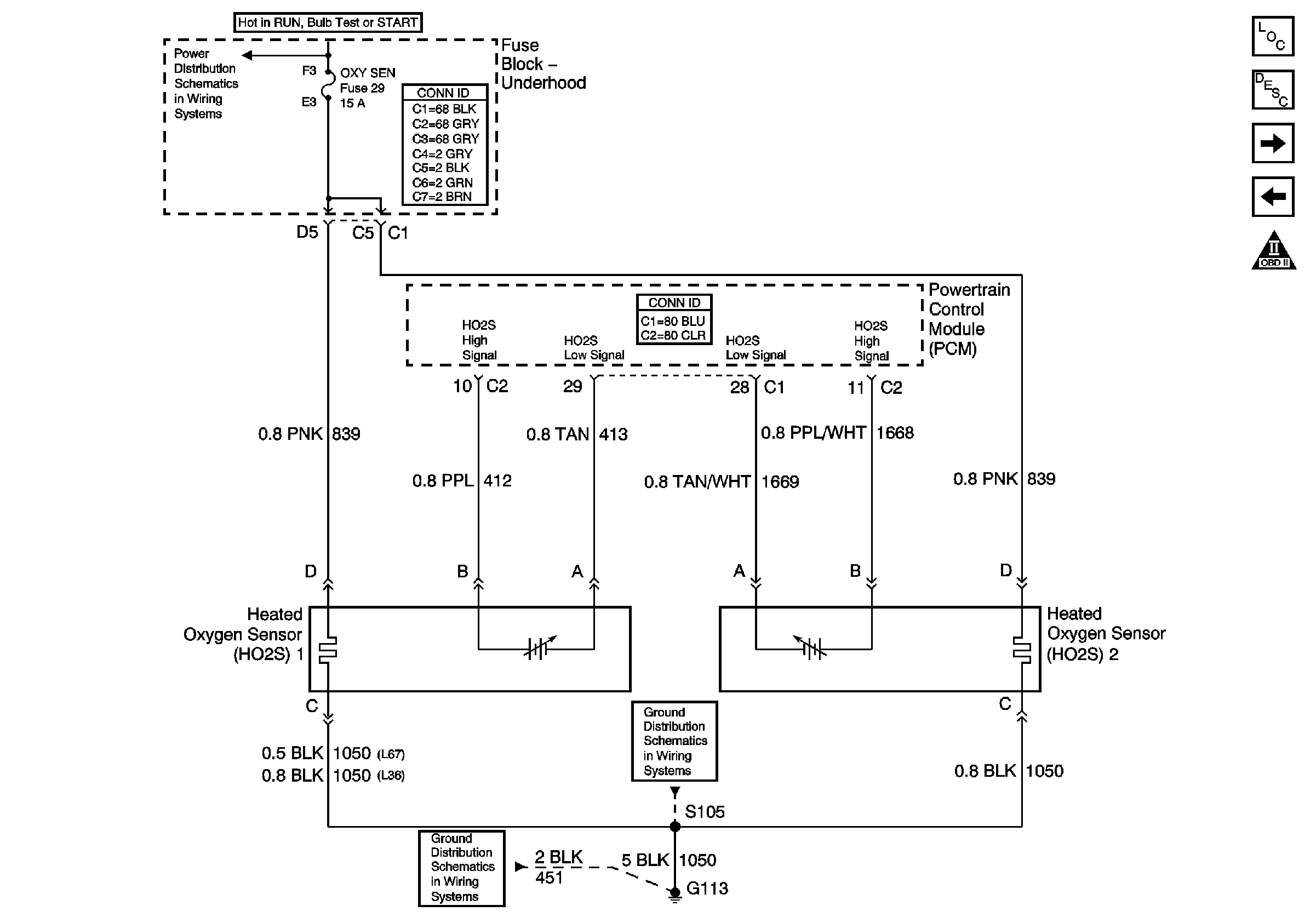

Figure 6:	HO2S Sensors Master Electrical Component List Powertrain Control Module Description EVAP, MAF and EGR IAC Control Engine Controls Schematic Icons Power Bussing for Fuse Block-Underhood page 2 of 2 ATX,ICM,O2 G100,G111 and G113 G113

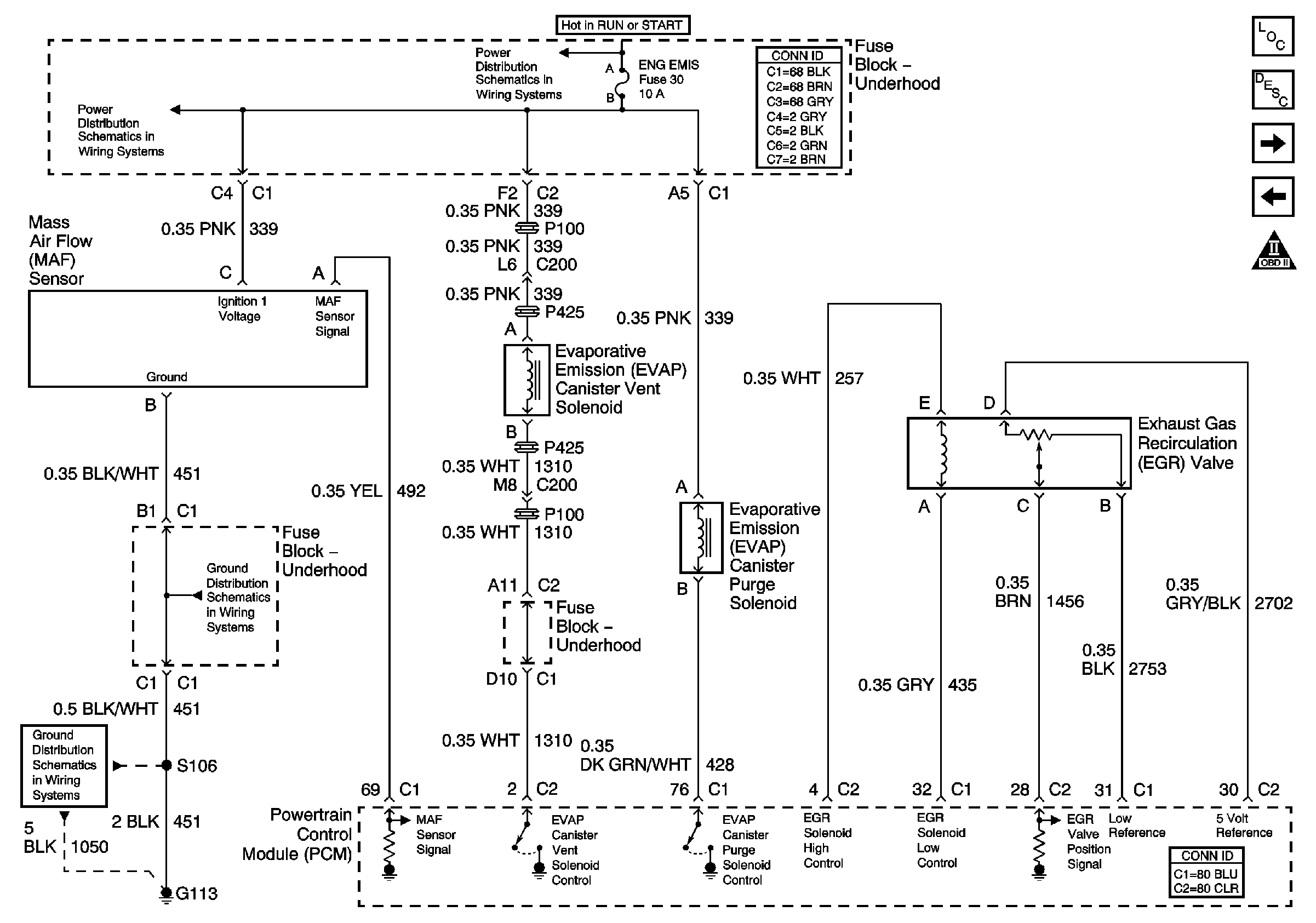

Figure 7:	EVAP, MAF and EGR Master Electrical Component List Powertrain Control Module Description Fuel Pump Control, FTP HO2S Sensors Engine Controls Schematic Icons Stop, EVAP, MAF Power Bussing for Fuse Block-Underhood page 2 of 2 G100,G111 and G113 G100,G111 and G113

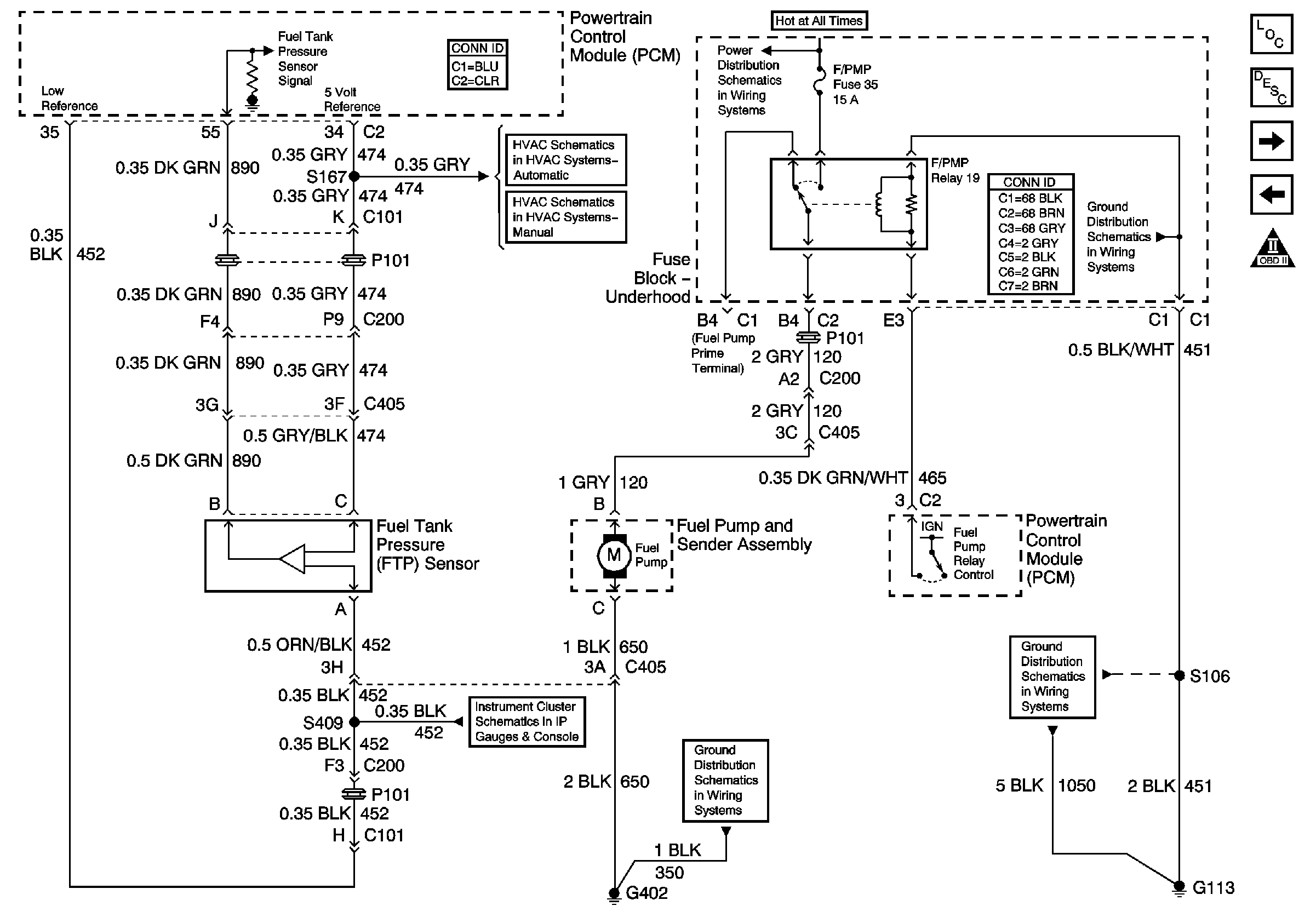

Figure 8:	Fuel Pump Control, FTP Master Electrical Component List Fuel System Description PCM References (1 of 2) EVAP, MAF and EGR Engine Controls Schematic Icons Compressor Controls Compressor Controls Power Bussing for Fuse Block Underhood Page 1 of 2 G100,G111 and G113 Gauges G402, Page 2 of 2 G100,G111 and G113

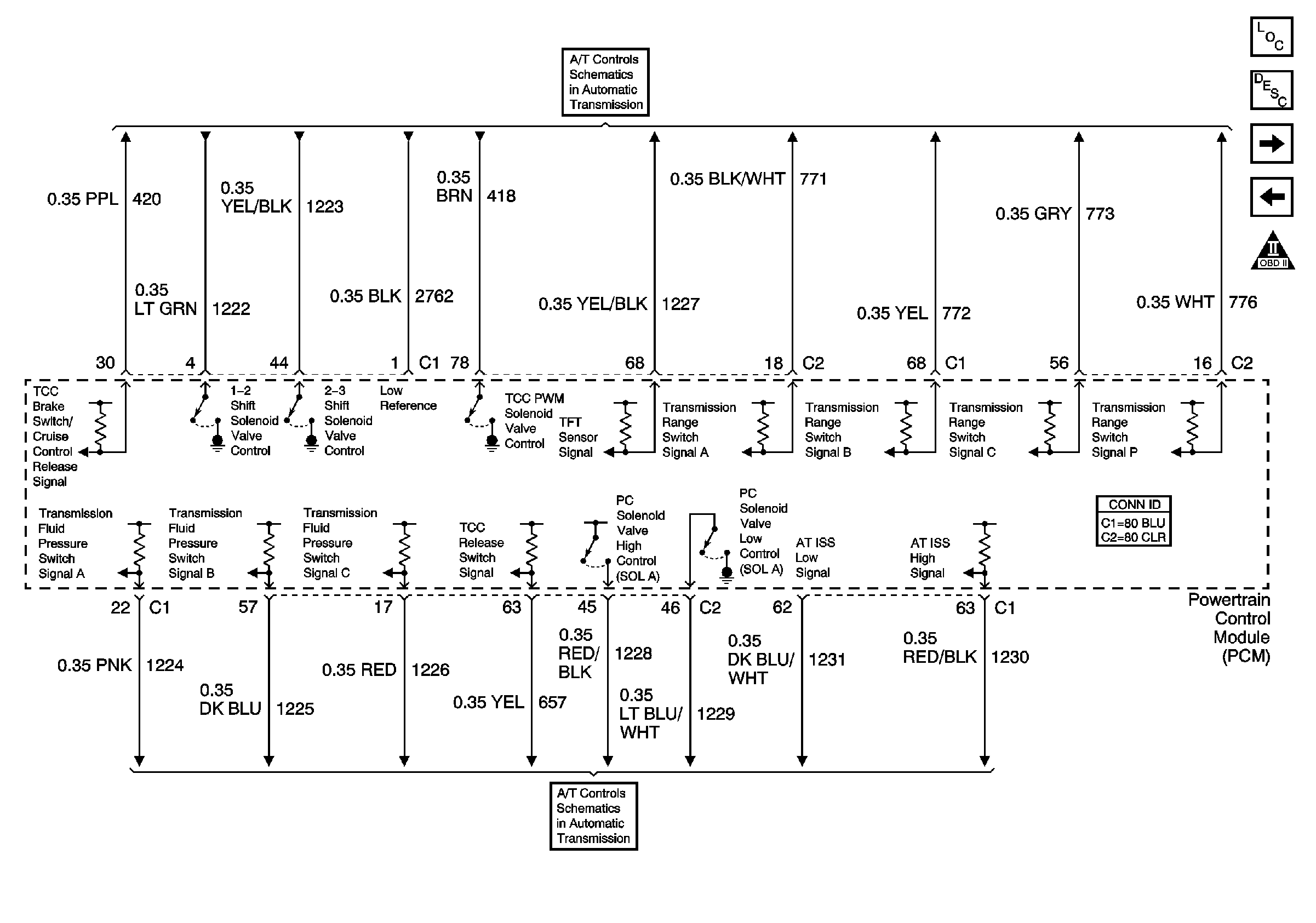

Figure 9:	PCM References (1 of 2) Master Electrical Component List Powertrain Control Module Description PCM References (2 of 2) Fuel Pump Control, FTP Engine Controls Schematic Icons Solenoid Controls and TFT Sensor Fluid Pressure Manual Valve Position Switch and ISS Sensor

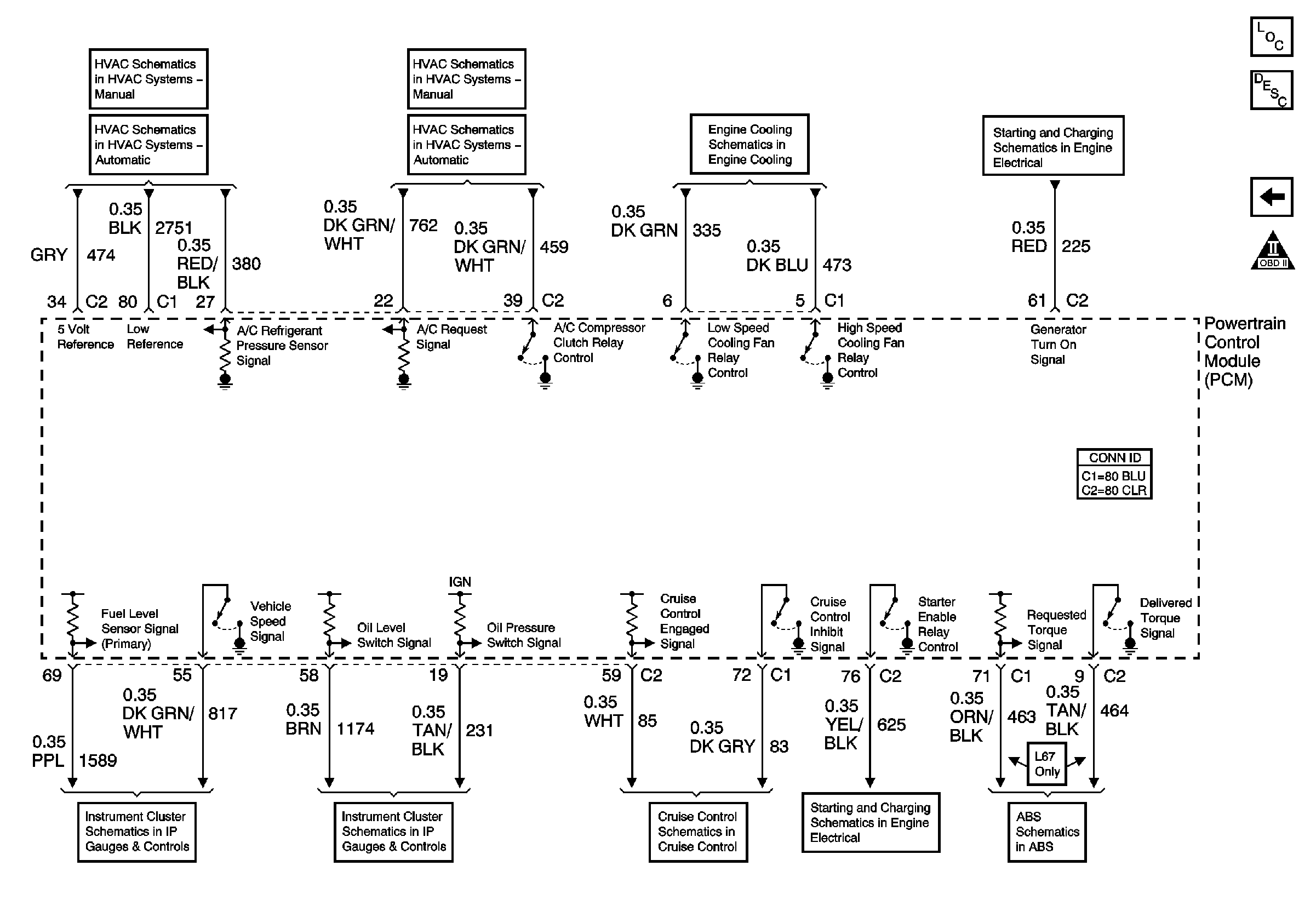

Figure 10:	PCM References (2 of 2) Master Electrical Component List Powertrain Control Module Description PCM References (1 of 2) Engine Controls Schematic Icons Compressor Controls Compressor Controls Compressor Controls Compressor Controls Cooling Fans Charging Gauges Low Oil Pressure and Low Oil Indicators Cruse Control Starting Stoplamp and Torque Signals
