Radio/Audio System Schematics. Buick Regal 2002

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2002 🢒 Regal 🢒 HVAC 🢒 HVAC Systems - Automatic 🢒 Radio/Audio System Schematics

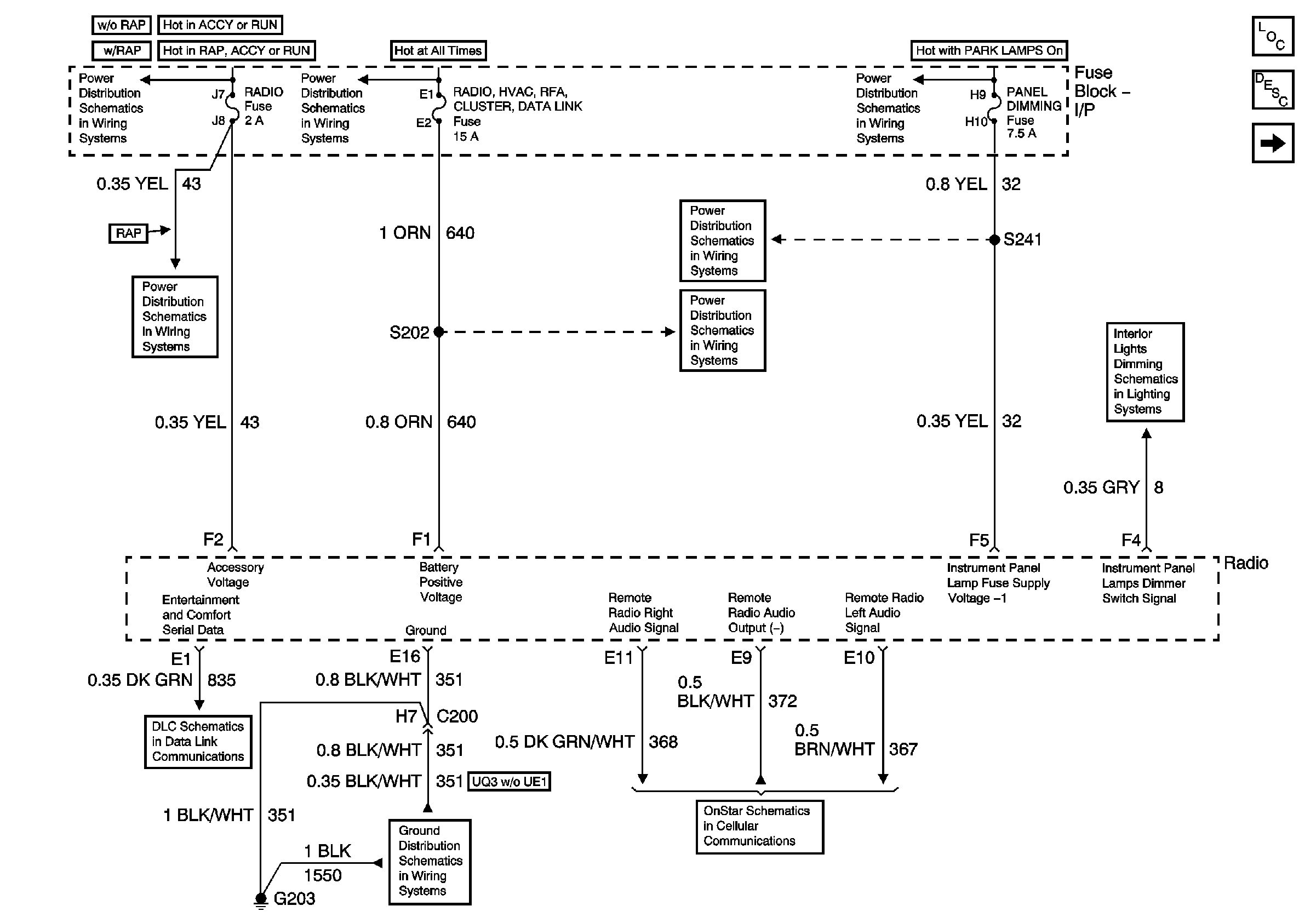

Figure 1:	Power, Ground, and DLC Master Electrical Component List Radio/Audio System Description and Operation UQ3 Speakers Power Distribution Schematics (IGN 2) Batt 1 Fuse Lighting BCM, Power Drop, Steering Wheel Switches Lighting Batt 1 Fuse I/P Dimmer Switch, HVAC, and IPC Data Link Connector (DLC) G203 (Page 2 of 2) Inputs and Outputs
Figure 2:	Speakers (UQ3) Master Electrical Component List Radio/Audio System Description and Operation Low Level Audio Signals Power, Ground, and DLC

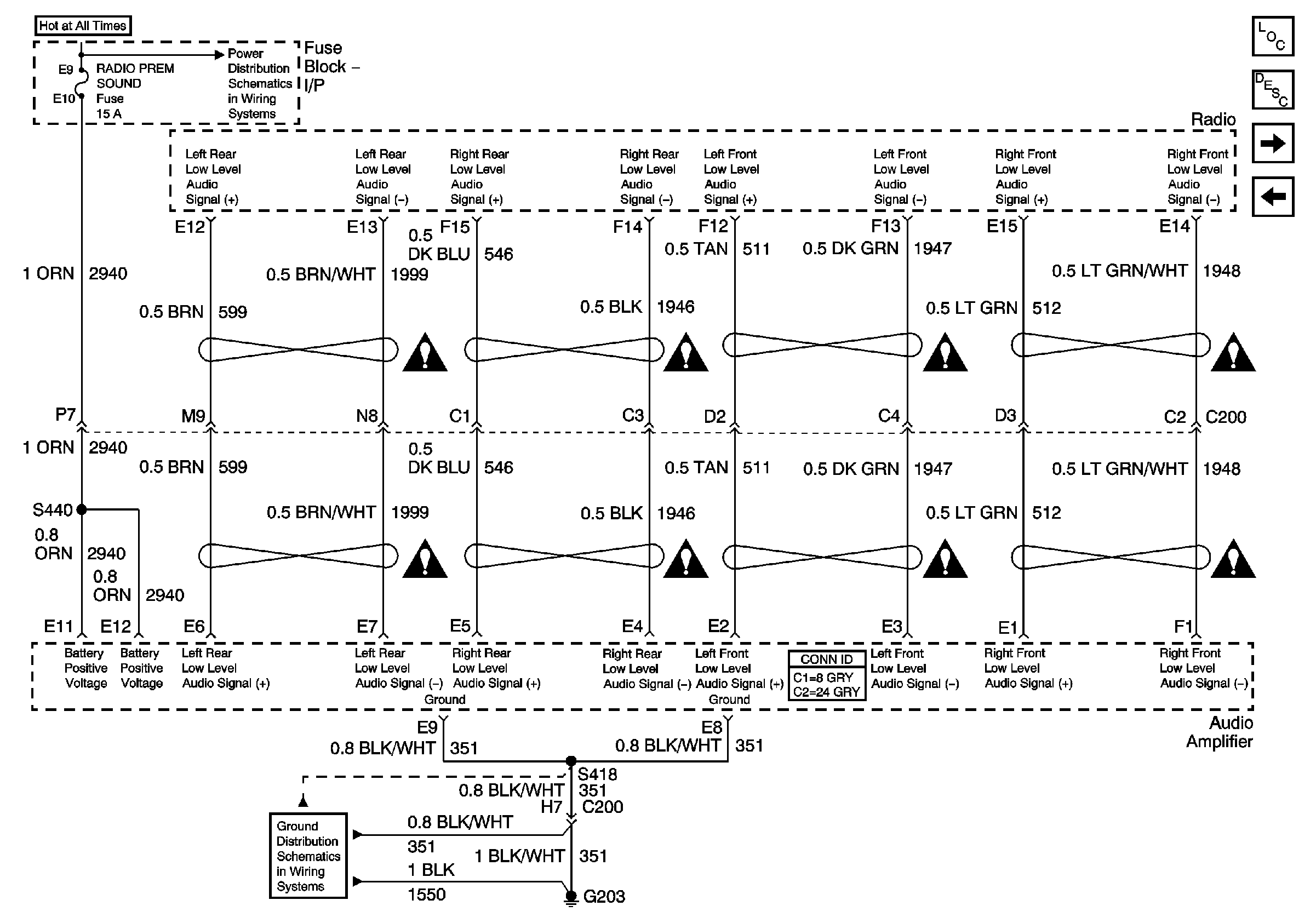

Figure 3:	Premium Sound Audio Signals (U85) Master Electrical Component List Radio/Audio System Description and Operation Rear Speakers UQ3 Speakers Batt 1 Fuse Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons G203 (Page 2 of 2)

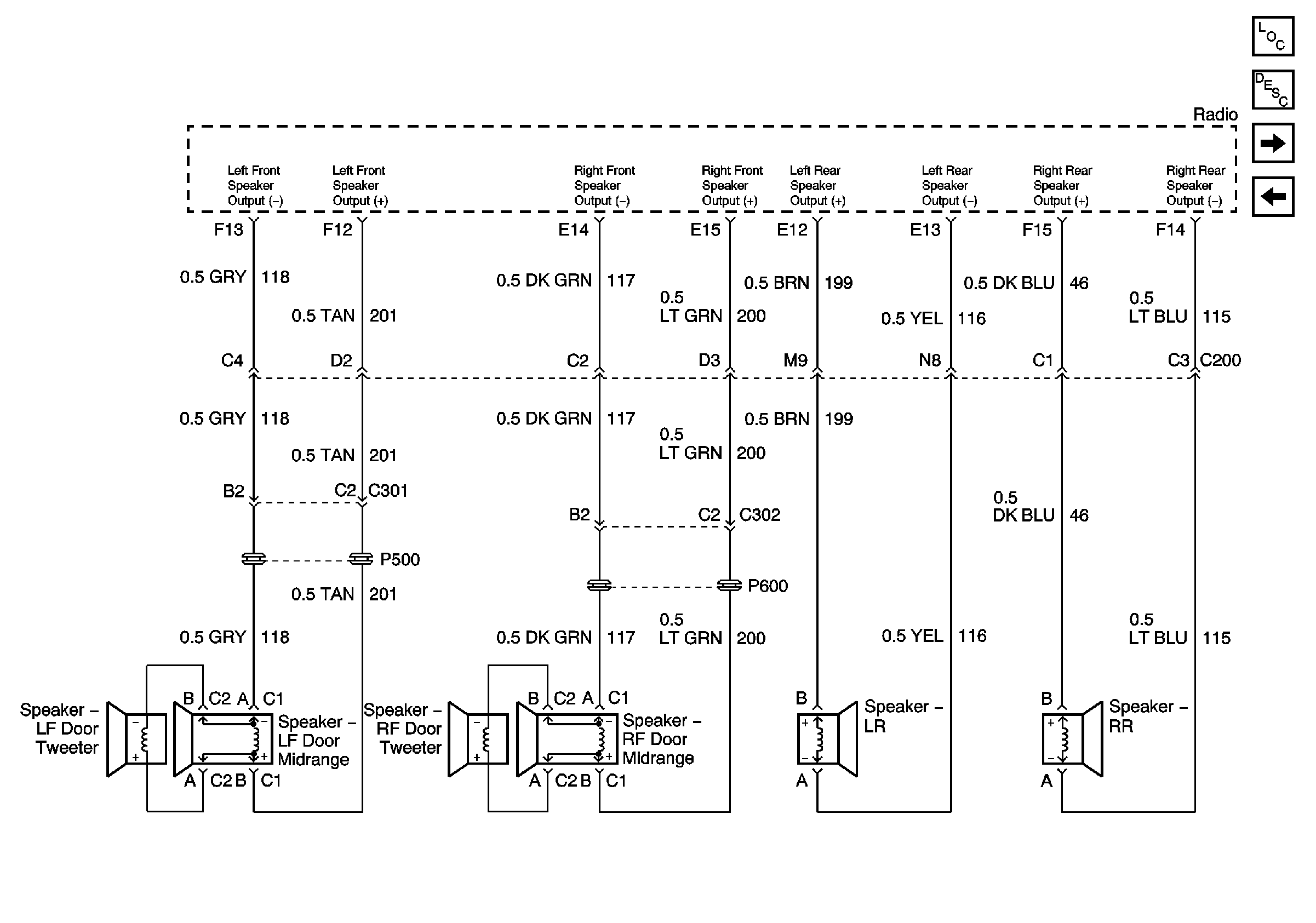

Figure 4:	Rear Speakers (U85) Master Electrical Component List Radio/Audio System Description and Operation Front Speakers Low Level Audio Signals

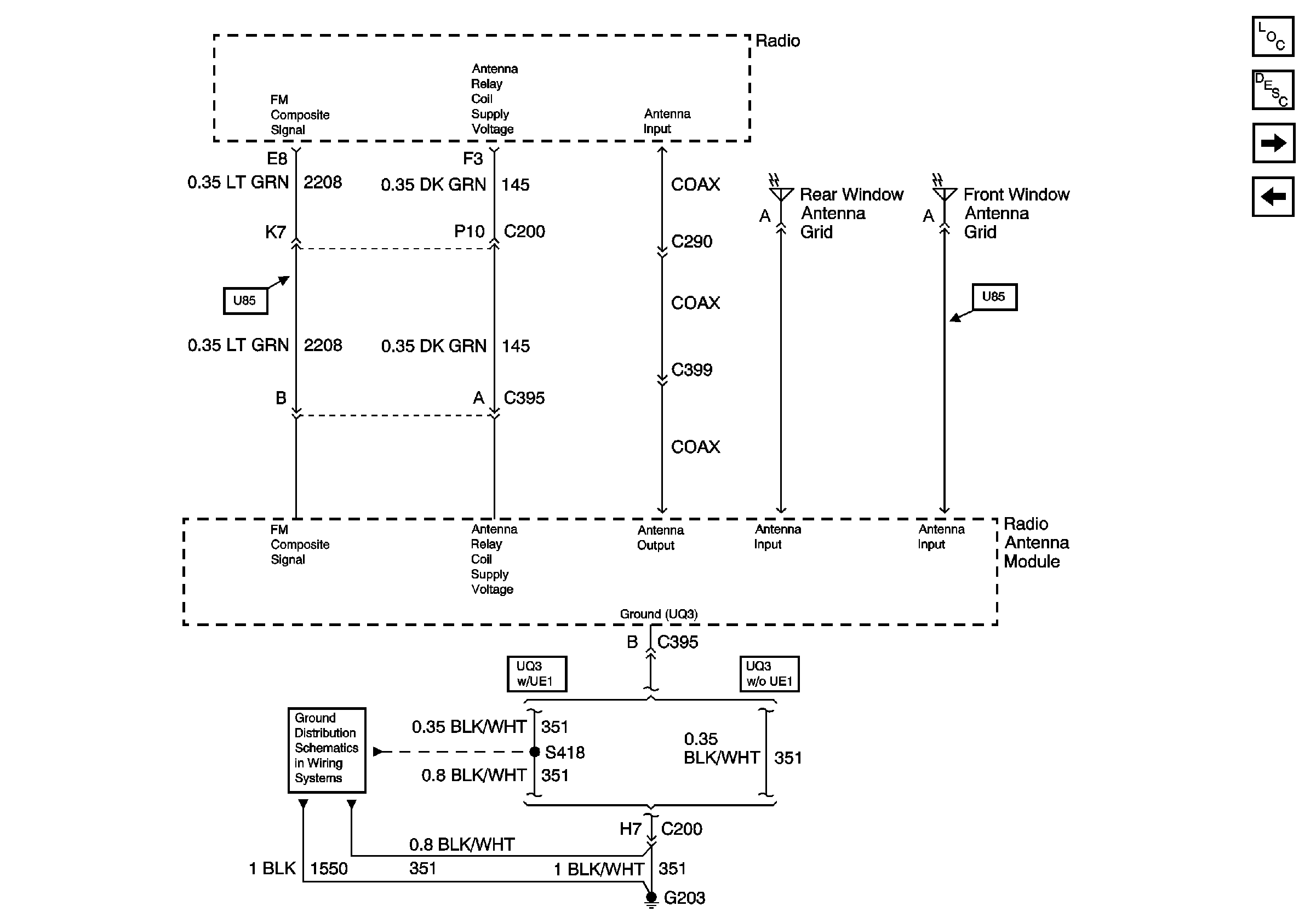

Figure 5:	Front Speakers (U85) Master Electrical Component List Radio/Audio System Description and Operation Antenna Module Rear Speakers

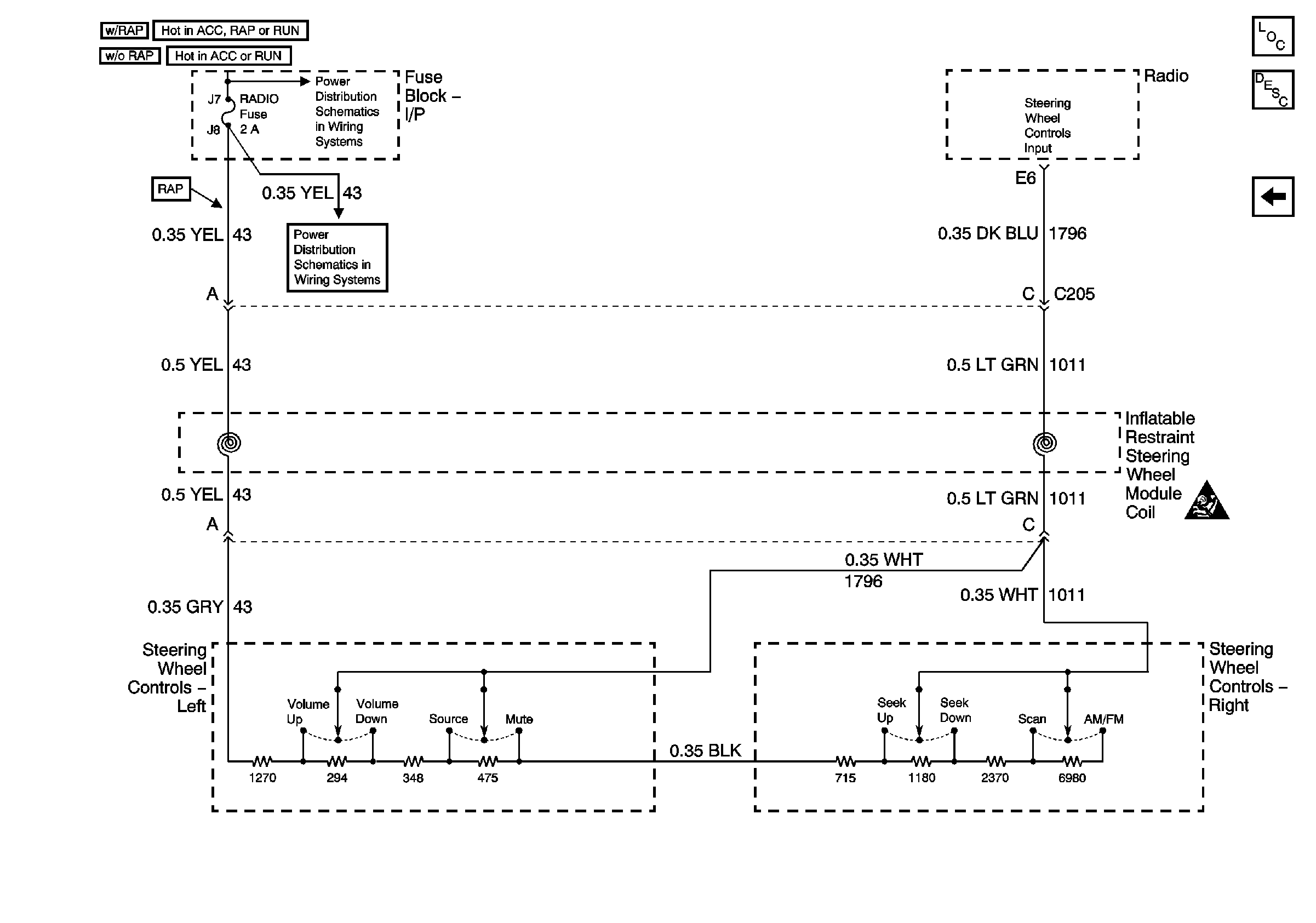

Figure 6:	Antenna Module Master Electrical Component List Radio/Audio System Description and Operation Steering Wheel Controls Front Speakers G203 (Page 2 of 2)
