Preliminary Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.
3. Disconnect the stabilizer links from the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement.

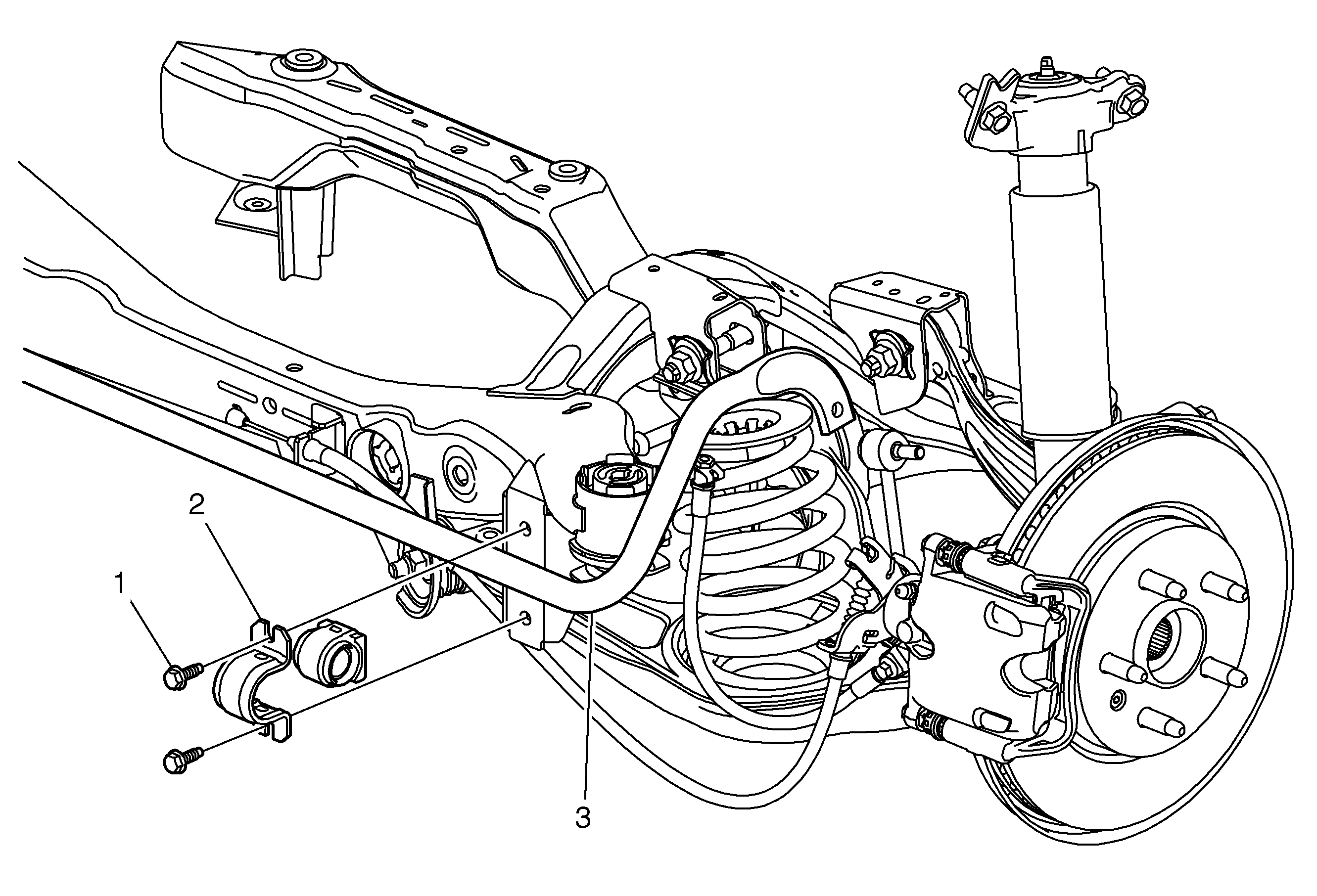

1

Stabilizer Shaft Insulator Fastener (Qty: 4)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
22 N·m (16 lb ft) + 30 degrees

2

Stabilizer Shaft Bracket

3

Stabilizer Shaft

Procedure

Replace insulator if necessary.
