Front Side Door Outside Handle Bracket Replacement Passive Entry Passive Start

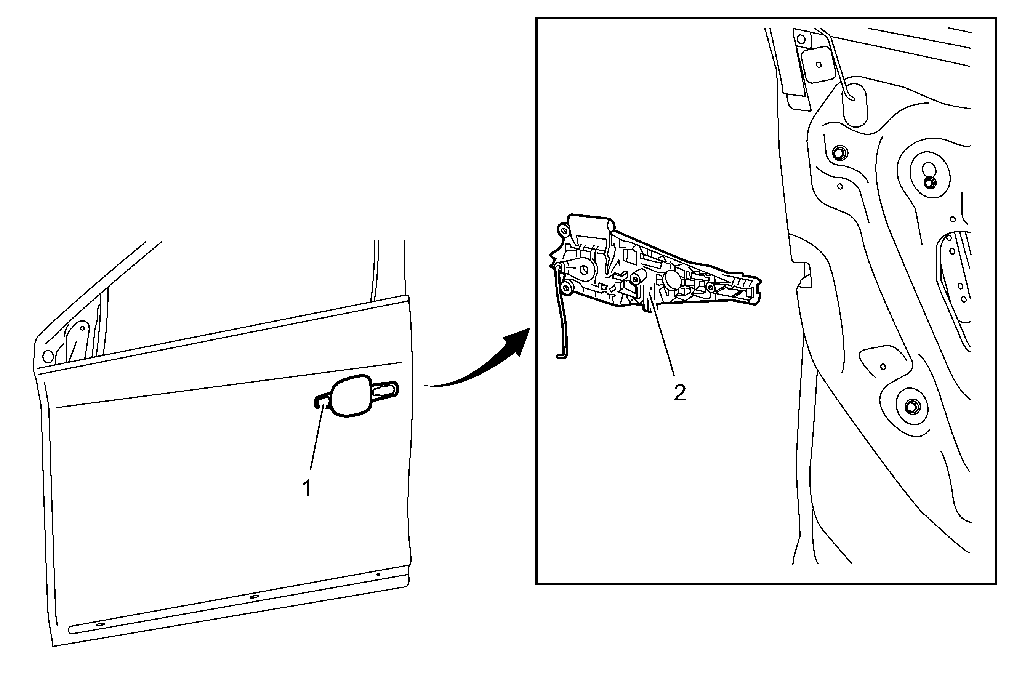

Object Number: 2156466 Size: MF

Callout

Component Name

Preliminary Procedure

  1. Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement.
  2. Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement.

1

Front Side Door Outside Handle Bracket Fastener

2

Front Side Door Outside Handle Bracket

Procedure

  1. Release front side door outside handle rod mechanism at shift linkage lever - clip.
  2. Release the front side door lock cylinder rod from the door lock.
  3. Disconnect passive entry passive start sensor electrical connector.
  4. Transfer components as necessary.
