Exterior Lights Schematics. Buick Rendezvous - AWD 2003

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2003 🢒 Rendezvous - AWD 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Exterior Lights Schematics

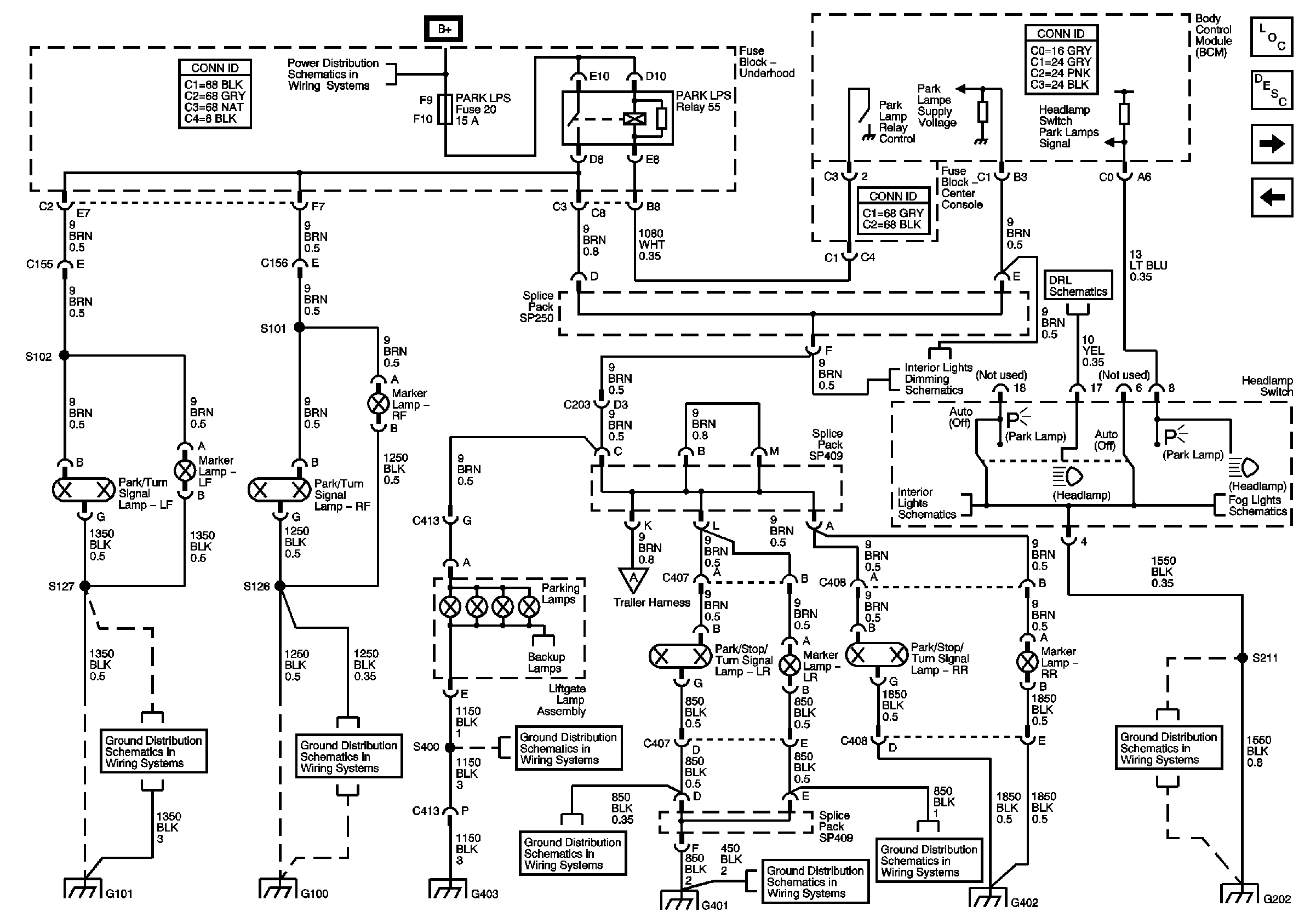

Figure 1:	Park Lamps -- Master Electrical Component List Park Lamps - Buick Fuse Block - Underhood Buss Panel Lamps - Pontiac, Page 2 of 2 Panel Lamps - Pontiac, Page 2 of 2 Ground G101 - Pontiac Ground G100 - Pontiac Ground G401, G402, and G403 - Pontiac Ground G401, G402, and G403 - Pontiac Ground G101 - Pontiac Ground G202 - Pontiac Ground G101 - Pontiac Ground G100 - Pontiac Ground G401, G402, and G403 - Pontiac Ground G101 - Pontiac Ground G101 - Pontiac

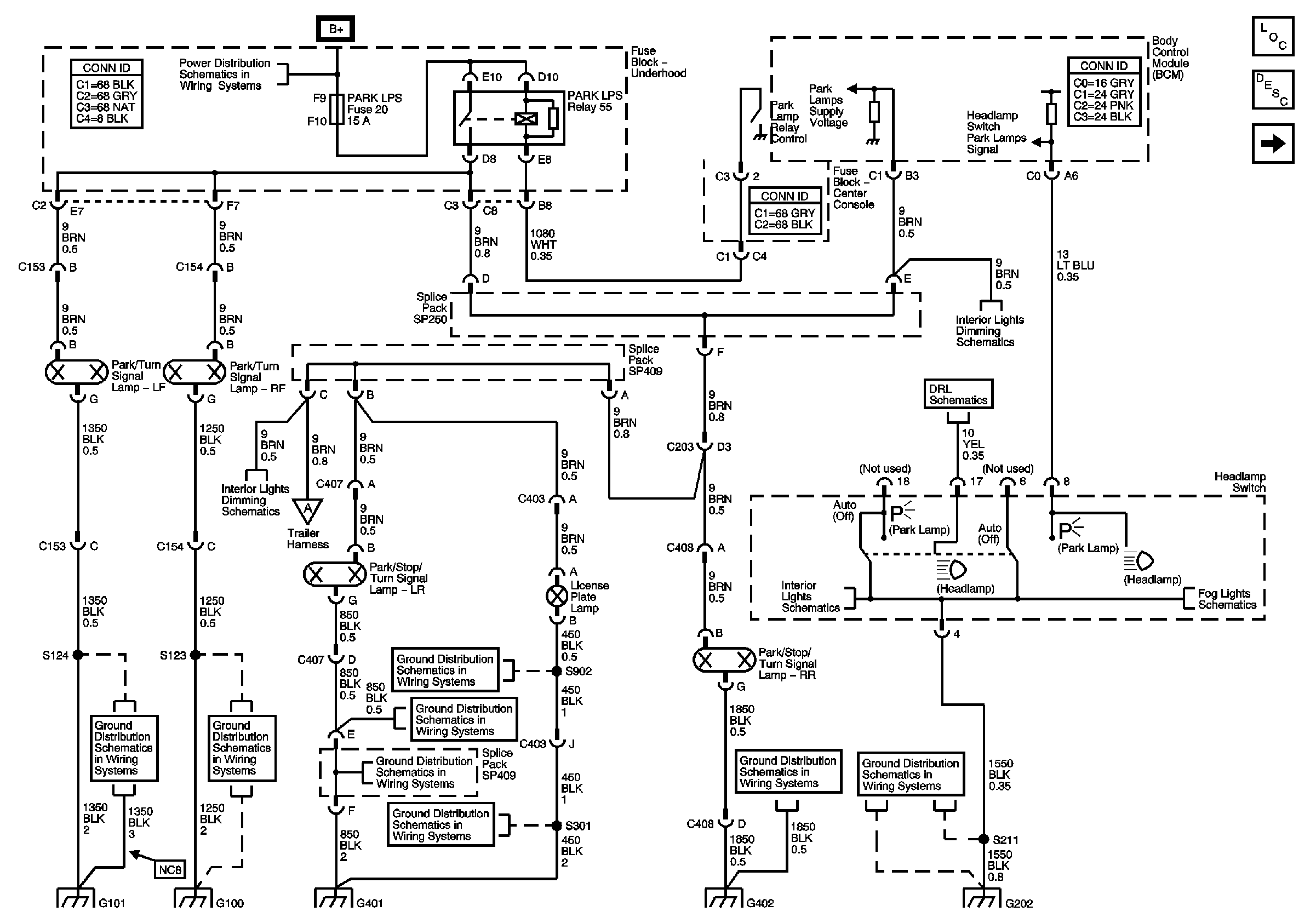

Figure 2:	Park Lamps -- Buick Master Electrical Component List Hazard, Stop and Turn Signal Lamp Control 03 B Van Exterior Lights Schematics (Park Lamps-Pontiac) Fuse Block - Underhood Buss Panel Lamps - Buick, Page 2 of 2 Ground G101 - Buick Ground G100 - Buick Ground G401, 402 and 403-Buick Ground G401, 402 and 403-Buick Ground G202 - Buick Ground G101 - Buick Ground G100 - Buick Ground G401, 402 and 403-Buick Ground G401, 402 and 403-Buick Ground G401, 402 and 403-Buick Ground G202 - Buick

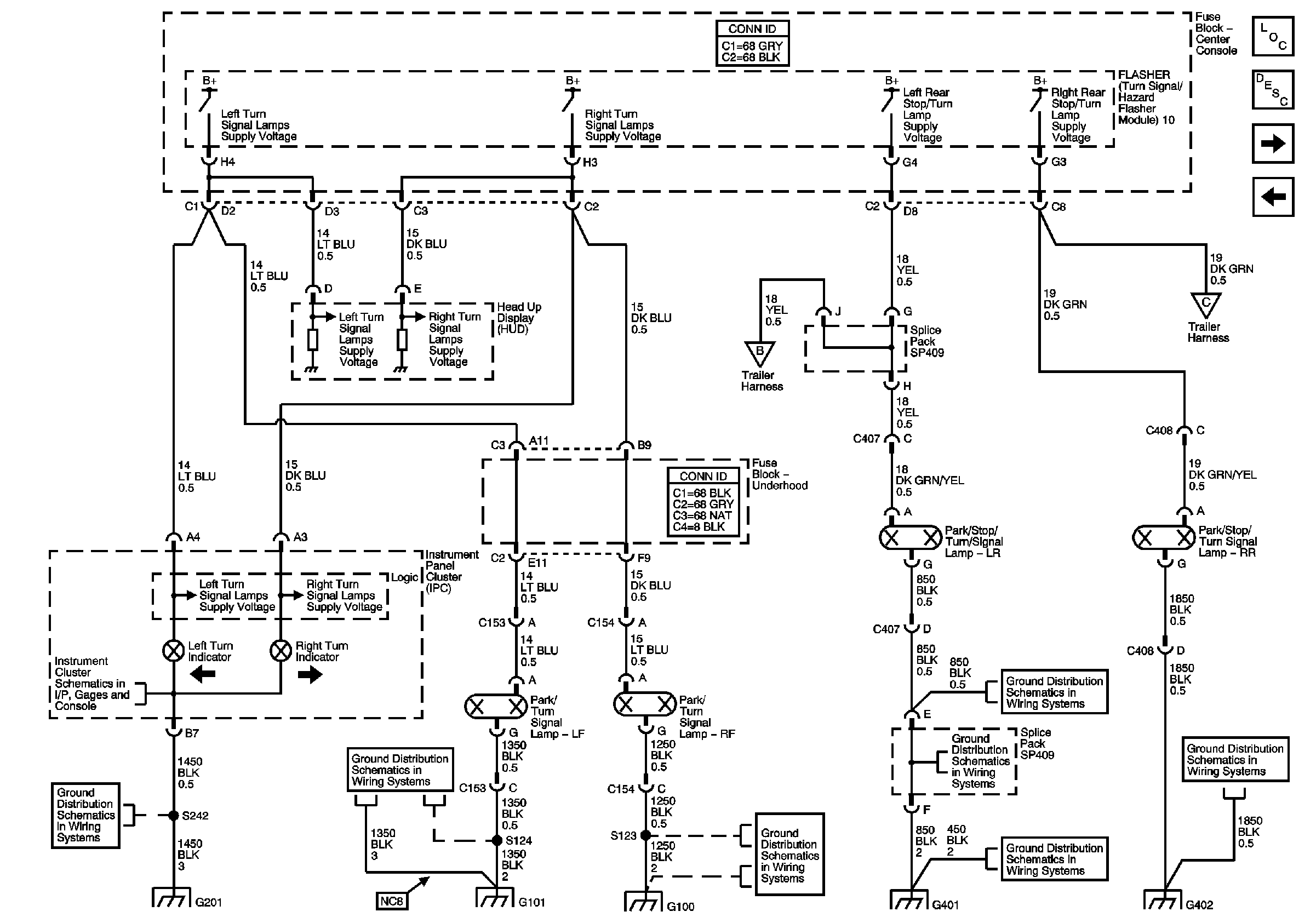

Figure 3:	Turn Signal/Hazard Control Master Electrical Component List Turn/Stop Lamps and Indicators - Pontiac Park Lamps - Buick Fuse Block Underhood Fuse: 27, 31, 33 Fuse Block Center Console Fuse Block-Underhood Fuse: 48, Fuse Block Center Console Fuses Ground G200 - Buick Fuse Block Underhood Fuse: 27, 31, 33 Fuse Block Center Console Ground G202 - Buick Ground G202 - Buick Ground G200 - Buick Ground G200 - Buick

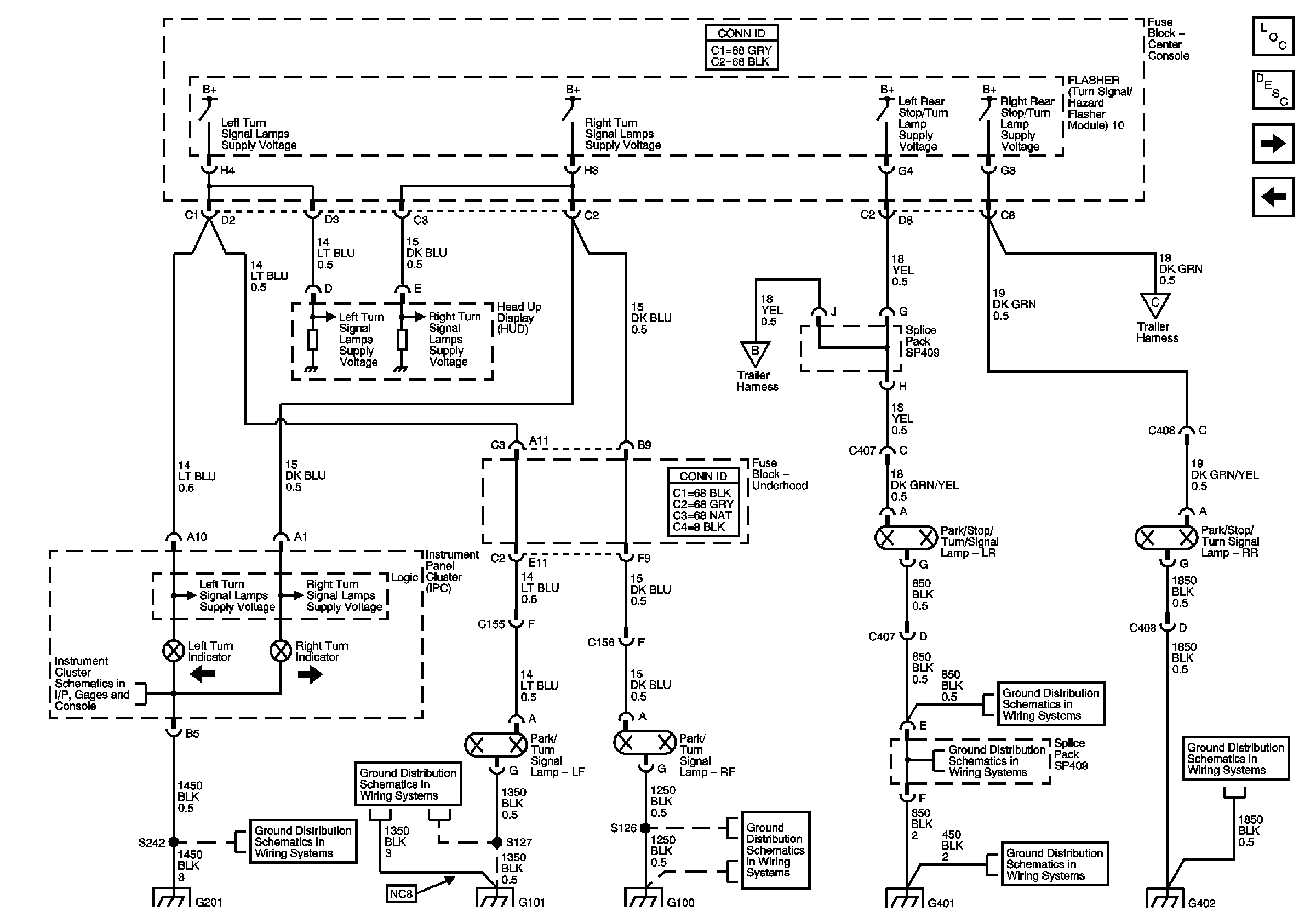

Figure 4:	Turn Lamps and Indicators Master Electrical Component List Turn/Stop Lamps and Indicators - Buick Hazard, Stop and Turn Signal Lamp Control Ground G101 - Buick Ground G100 - Buick Ground G401, 402 and 403-Buick Ground G401, 402 and 403-Buick Ground G201 - Buick Ground G101 - Buick Ground G100 - Buick Ground G401, 402 and 403-Buick Ground G401, 402 and 403-Buick

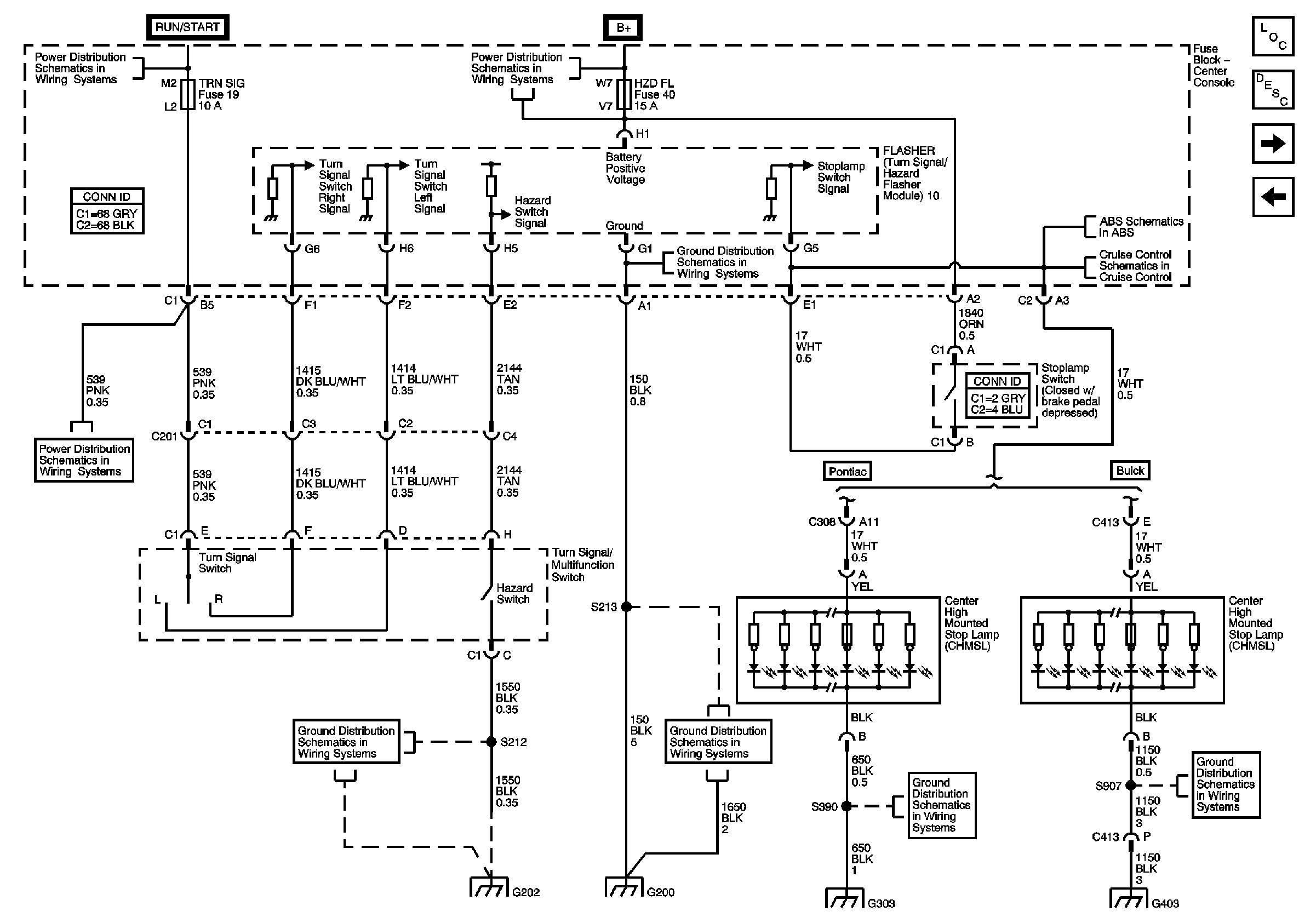

Figure 5:	Stop Lamps Master Electrical Component List Trailer Harness Turn/Stop Lamps and Indicators - Pontiac Fuse Block-Underhood Fuse: 48, Fuse Block Center Console Fuses 03 B Van ABS Schematics (DLC, Indicators and Traction Control Switch) Ground G303 - Pontiac Ground G401, 402 and 403-Buick Ground G401, 402 and 403-Buick Ground G401, 402 and 403-Buick Ground G401, 402 and 403-Buick Ground G401, 402 and 403-Buick

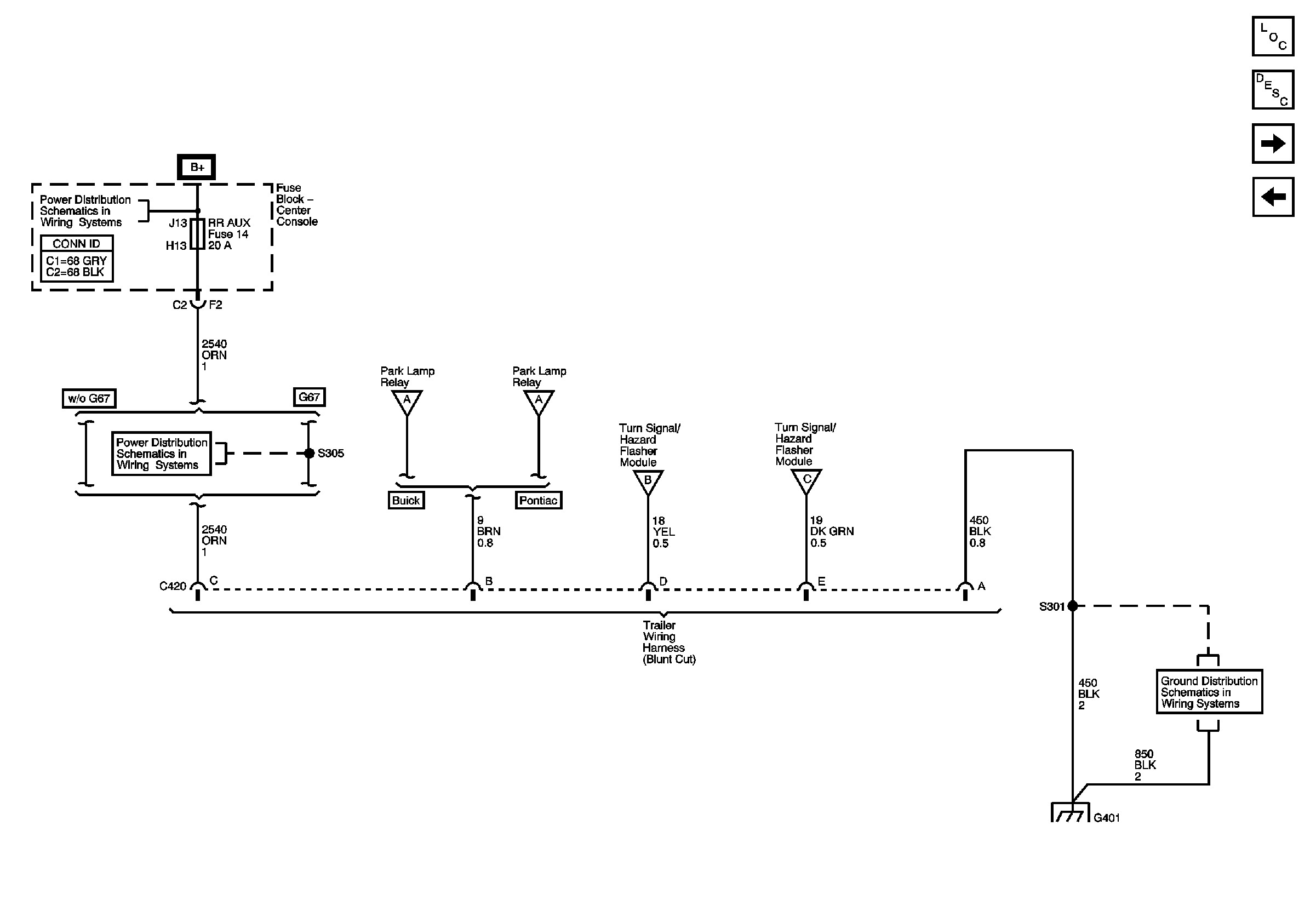

Figure 6:	Trailer Harness Master Electrical Component List Backup Lamps Turn/Stop Lamps and Indicators - Buick Fuse Block Underhood Fuse: 45 Fuse Block Center Console Fuse Block Underhood Fuse: 45 Fuse Block Center Console Ground G401, 402 and 403-Buick Ground G401, 402 and 403-Buick

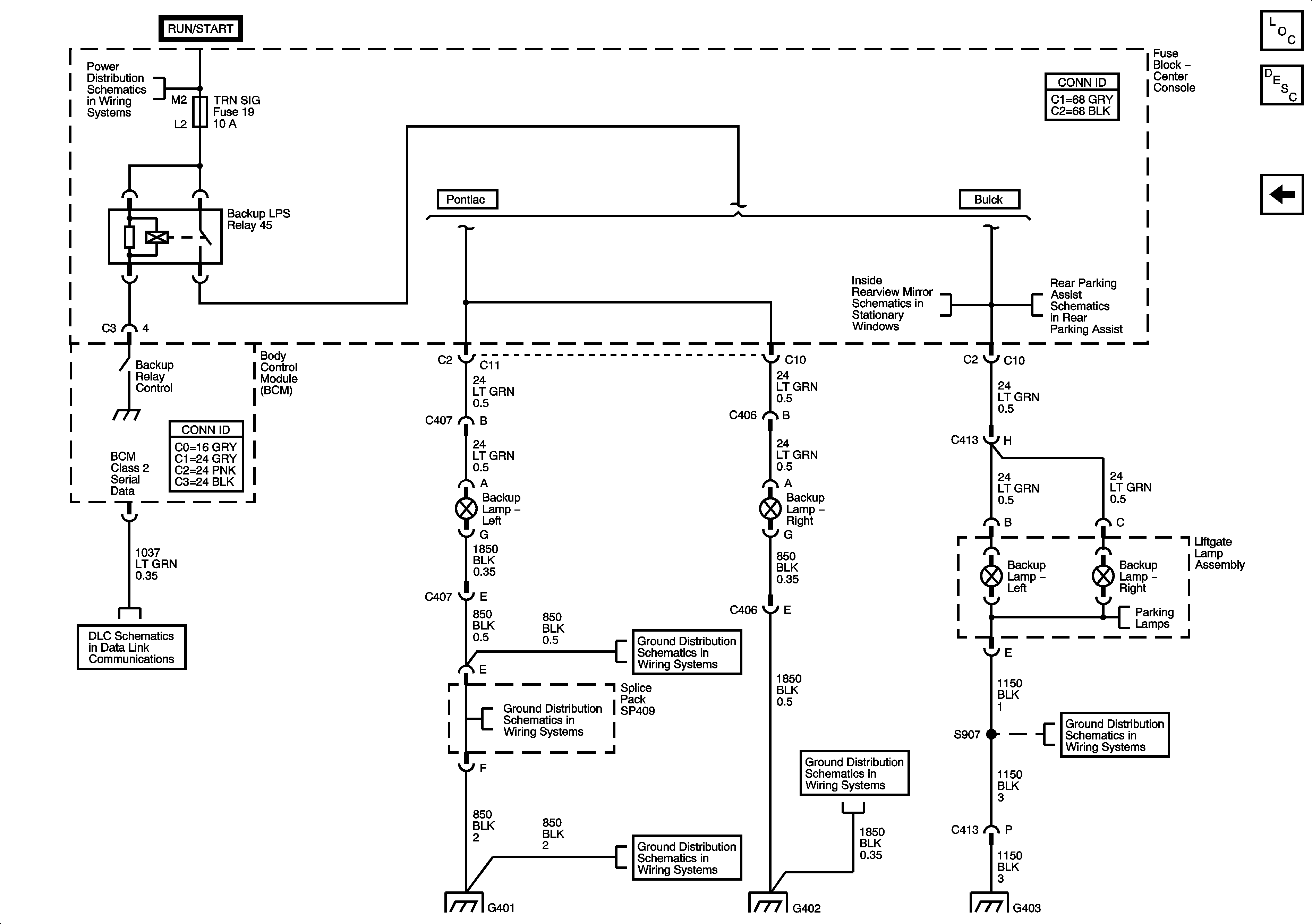

Figure 7:	Backup Lamps Master Electrical Component List Trailer Harness Fuse Block Underhood Fuse: 27, 31, 33 Fuse Block Center Console Fuse Block Underhood Fuse: 27, 31, 33 Fuse Block Center Console Ground G401, G402, and G403 - Pontiac Ground G401, G402, and G403 - Pontiac Ground G401, G402, and G403 - Pontiac Ground G401, 402 and 403-Buick
