For 1990-2009 cars only
Removal Procedure

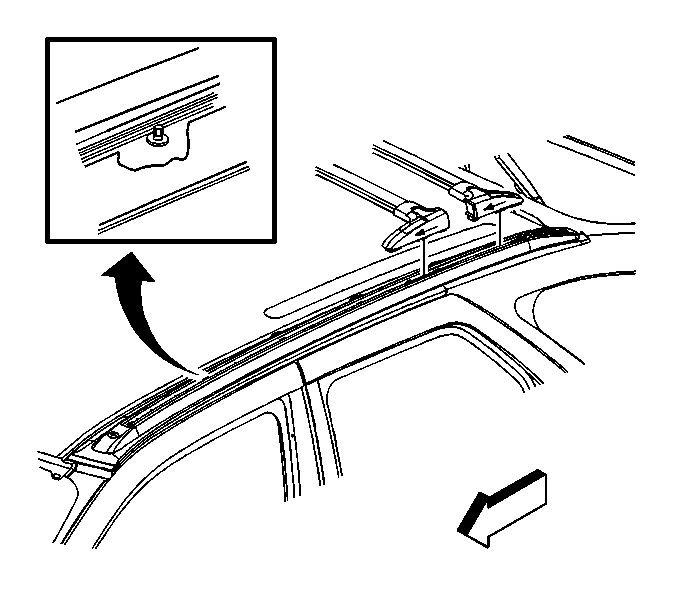

- Remove the luggage carrier side rail trim covers from the rear of the rails using a small flat bladed tool.
- Lift up the levers on the luggage carrier cross rails to unlock them from the side rails.
- Remove the luggage carrier cross rails from the side rails by sliding them rearward.
Installation Procedure
- Lift up on the luggage carrier cross rail levers in order to engage the cross rails into the side rails.
- Slide the luggage carrier cross rails to the desired position.
- Release the levers on the luggage carrier cross rails to lock them into position.
- Install the luggage carrier side rail trim covers to the slots in the side rails, pressing until fully seated.
