Engine Controls Schematics. Buick Riviera 1999

For 1990-2009 cars only

Makes 🢒 Buick 🢒 1999 🢒 Riviera 🢒 Engine 🢒 Engine Controls - 3.8L 🢒 Engine Controls Schematics

Figure 1:	Cell 20: PCM Power and Grounds Engine Controls Components Powertrain Control Module Description Cell 20: MIL Control, DLC OBD II Symbol Description Notice Cell 10: PCM Fuse and MAF Fuse (Buick) Cell 10: PCM Fuse and MAF Fuse (Buick) Cell 10: PCM Fuse and MAF Fuse (Buick) Cell 10: PCM Fuse and MAF Fuse (Buick) Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice Cell 14: G100 and G101 (Buick) Cell 10: Battery
Figure 2:	Cell 20: MIL Control, DLC Engine Controls Components Powertrain Control Module Description Cell 20: Ignition Control Module Cell 20: PCM Power and Grounds OBD II Symbol Description Notice Cell 10: Battery Cell 10: HTD ST/IP Fuse and EXT LP Fuse Cell 10: CHIME(IGN 1) Fuse (Buick) Handling ESD Sensitive Parts Notice Cell 10: IP 1 Fuse (Buick) Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice Data Link Connector Schematics Ground Distribution Schematics Cell 14: G100 and G101 (Buick)
Figure 3:	Cell 20: Ignition Control Module Engine Controls Components Powertrain Control Module Description Cell 20: Fuel Control Cell 20: MIL Control, DLC OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice
Figure 4:	Cell 20: Fuel Control Engine Controls Components Powertrain Control Module Description Cell 20: Fuel Injectors Cell 20: Ignition Control Module OBD II Symbol Description Notice Cell 10: IGN 3 Fuse, Ignition Switch (Buick) Cell 10: Battery Cell 10: F/PMP Fuse, HZRD/STOP Fuse, and INTR LP Fuse Cell 10: OXYGEN SENSORS Fuse (Buick) Handling ESD Sensitive Parts Notice Cell 14: G100 and G101 (Buick) Cell 14: G306 and G302 (2 of 2) Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice
Figure 5:	Cell 20: Fuel Injectors Engine Controls Components Powertrain Control Module Description Cell 20: Sensors Cell 20: Fuel Control OBD II Symbol Description Notice Cell 10: Battery Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice
Figure 6:	Cell 20: Sensors Engine Controls Components Powertrain Control Module Description Cell 20: Heated Oxygen Sensors Cell 20: Fuel Injectors OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Cell 20: Heated Oxygen Sensors Cell 20: Heated Oxygen Sensors Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice Cell 20: Heated Oxygen Sensors

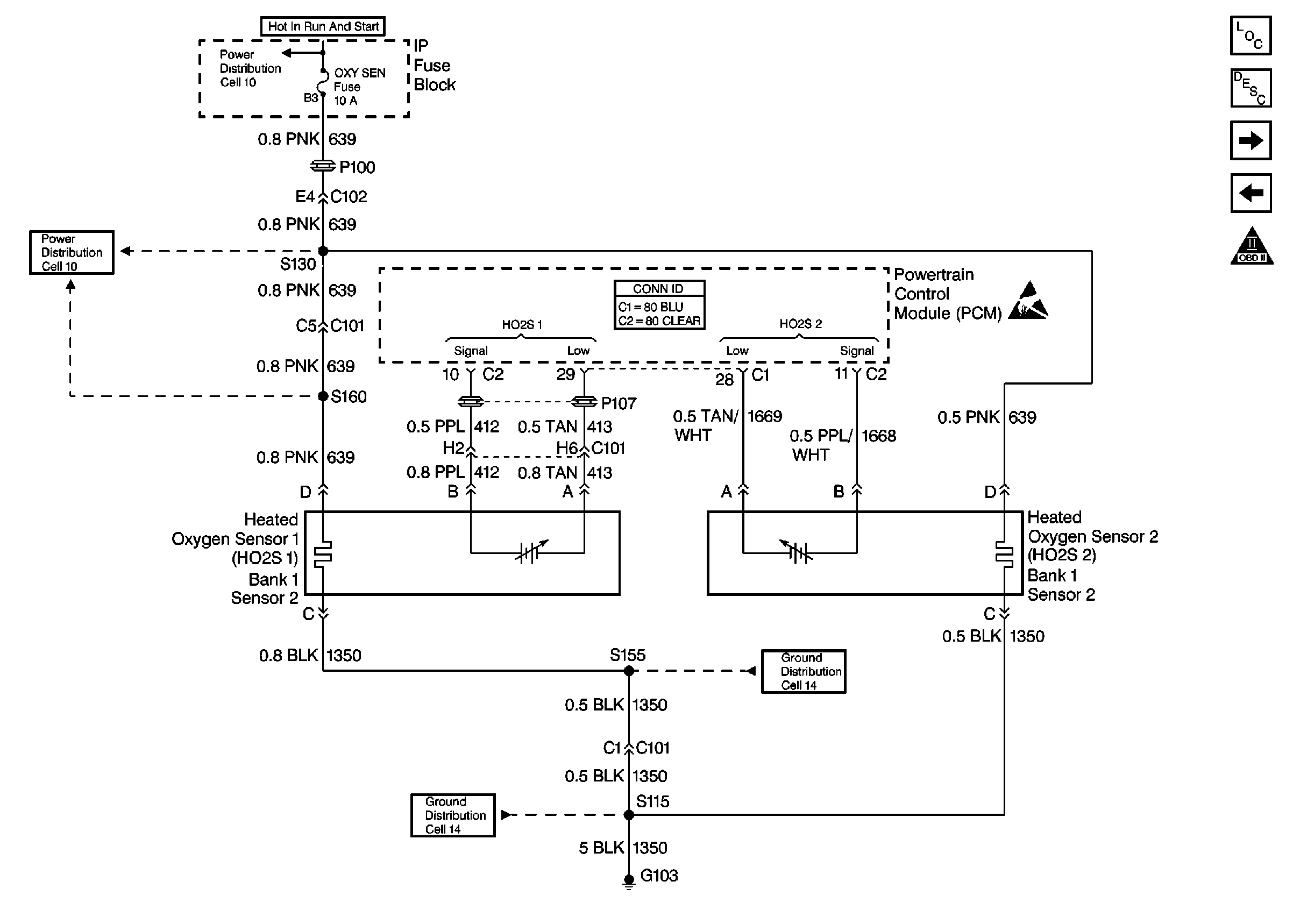

Figure 7:	Cell 20: Heated Oxygen Sensors Engine Controls Components Powertrain Control Module Description Cell 20: MAF, IAC, Knock Sensors Cell 20: Sensors OBD II Symbol Description Notice Cell 10: OXYGEN SENSORS Fuse (Buick) Cell 10: OXYGEN SENSORS Fuse (Buick) Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice Cell 14: G103 (2 of 2) Cell 14: G103 (2 of 2)

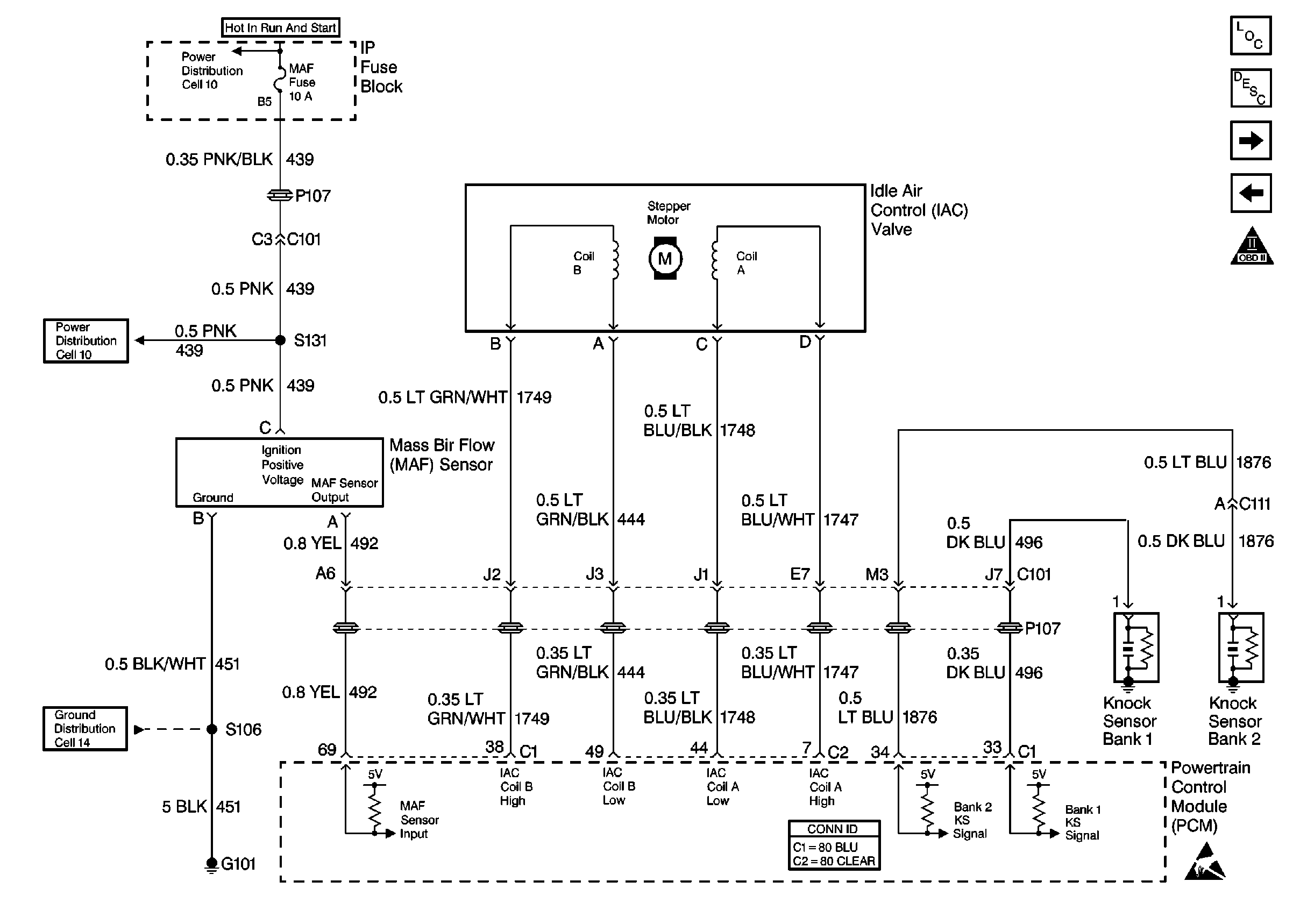

Figure 8:	Cell 20: MAF, IAC, Knock Sensors Engine Controls Components Powertrain Control Module Description Cell 20: Cruise Control Module Cell 20: Heated Oxygen Sensors OBD II Symbol Description Notice Cell 10: PCM Fuse and MAF Fuse (Buick) Cell 10: PCM Fuse and MAF Fuse (Buick) Ground Distribution Schematics Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice

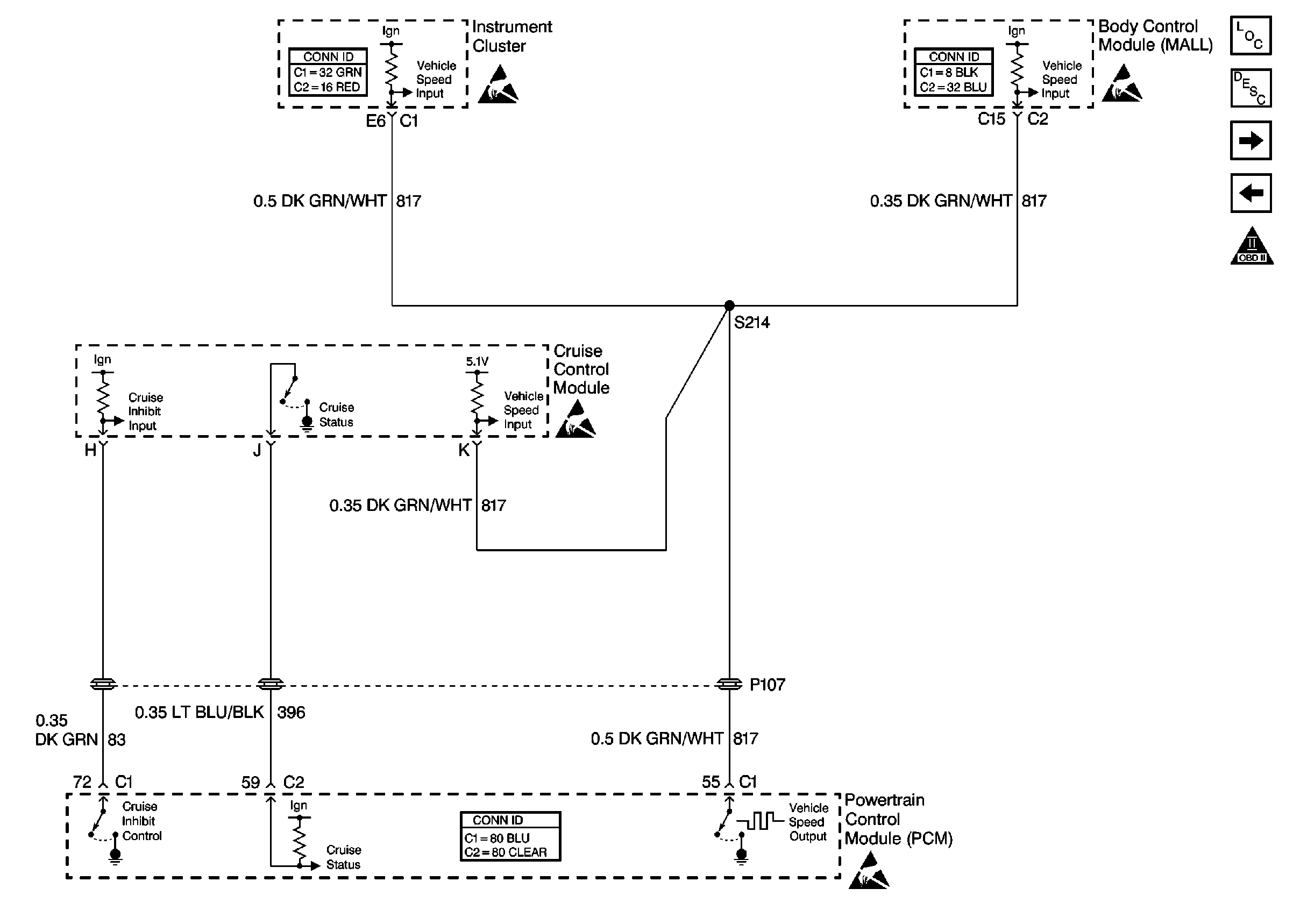

Figure 9:	Cell 20: Cruise Control Module Engine Controls Components Powertrain Control Module Description Cell 20: EVAP Control, EGR Valve Cell 20: MAF, IAC, Knock Sensors OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Powertrain Control Module Connector End Views

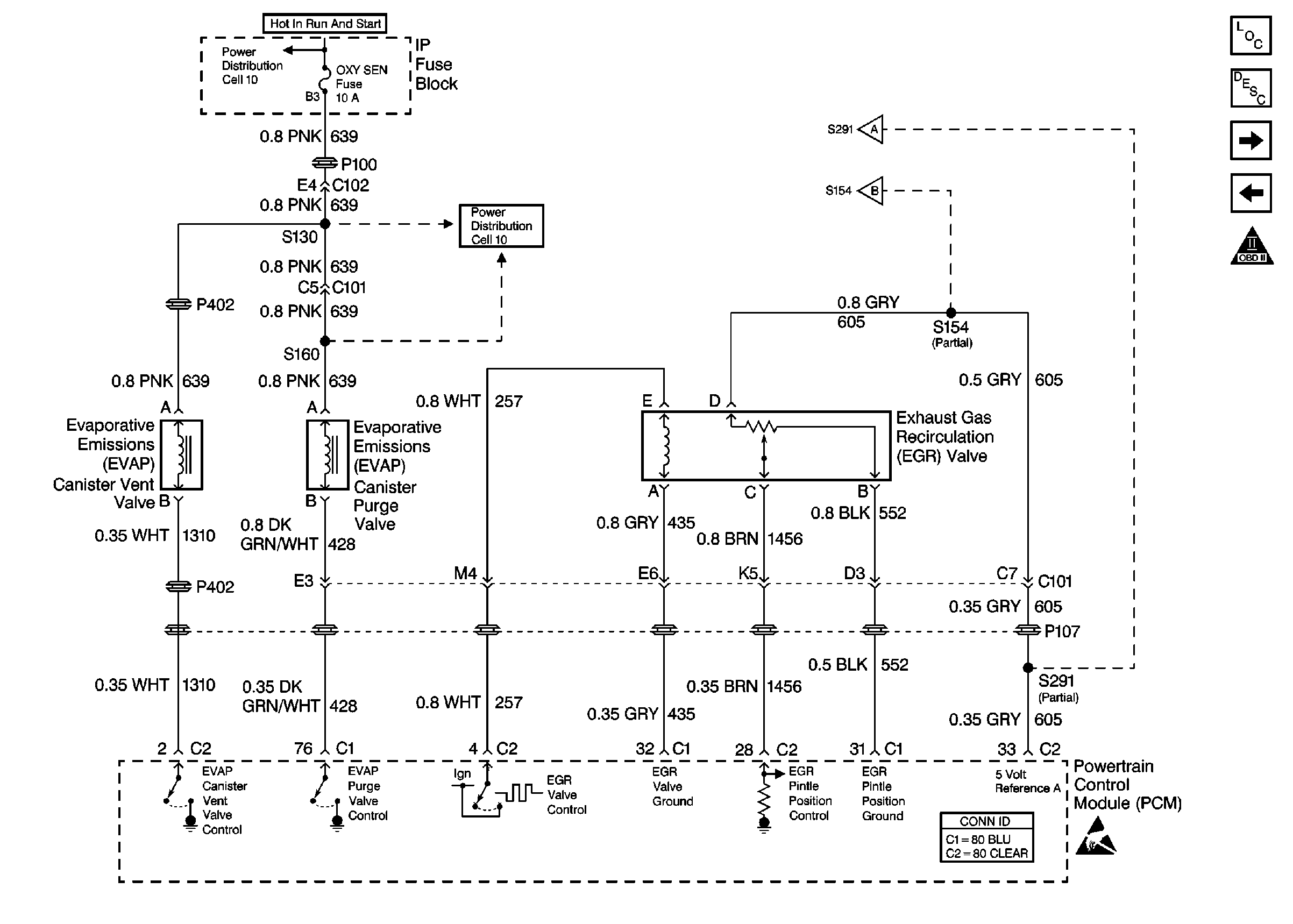

Figure 10:	Cell 20: EVAP Control, EGR Valve Engine Controls Components Powertrain Control Module Description Cell 20: Generator, Oil Level Switch, EBTCM Cell 20: Cruise Control Module OBD II Symbol Description Notice Cell 10: Battery Cell 20: Cruise Control Module Cell 10: OXYGEN SENSORS Fuse (Buick) Cell 20: Cruise Control Module Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice

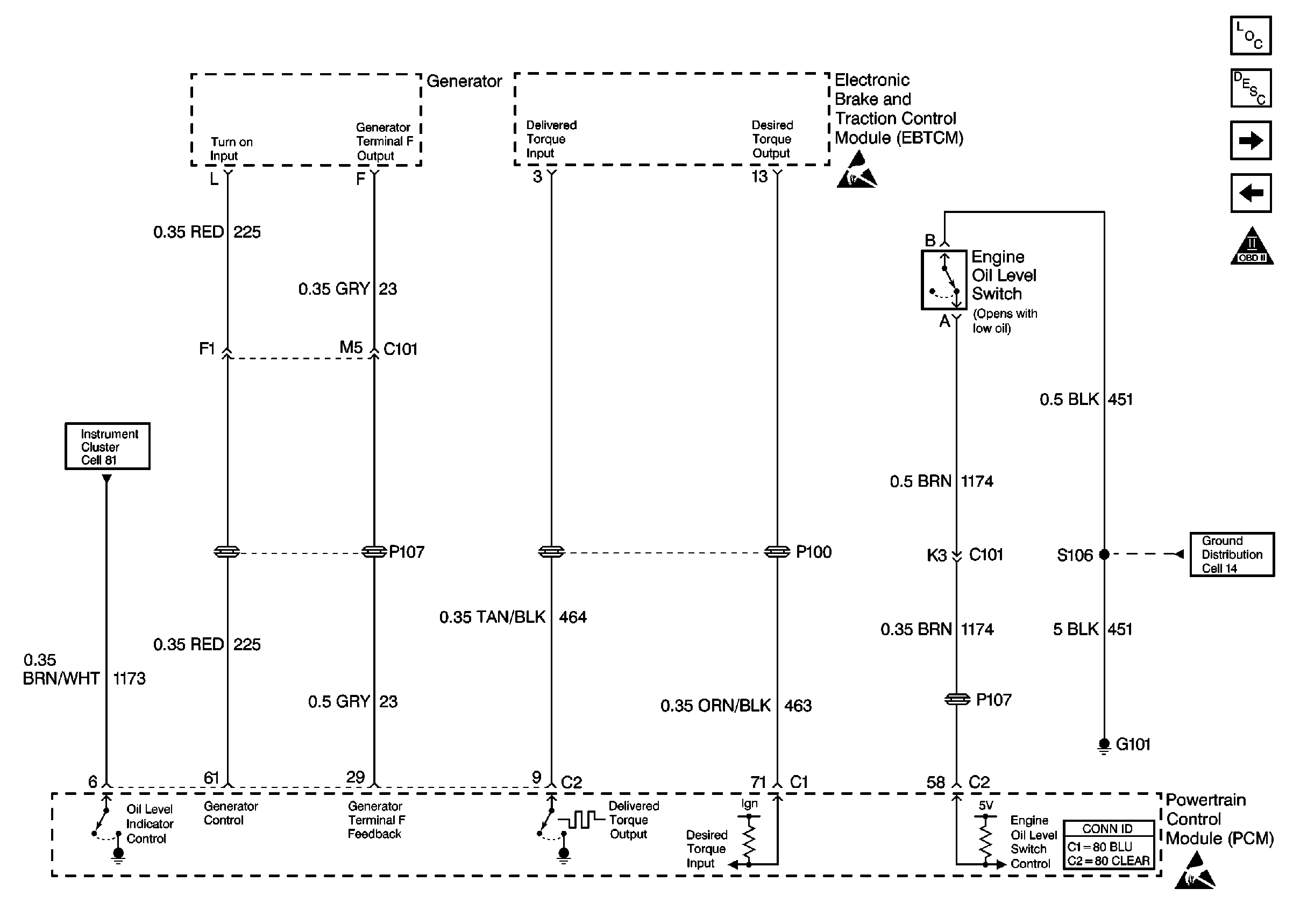

Figure 11:	Cell 20: Generator, Oil Level Switch, EBTCM Engine Controls Components Powertrain Control Module Description Cell 20: TCC Switch, Transaxle Solenoids Cell 20: EVAP Control, EGR Valve OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Cell 81: Coolant Level Switch Cell 14: G100 and G101 (Buick) Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice

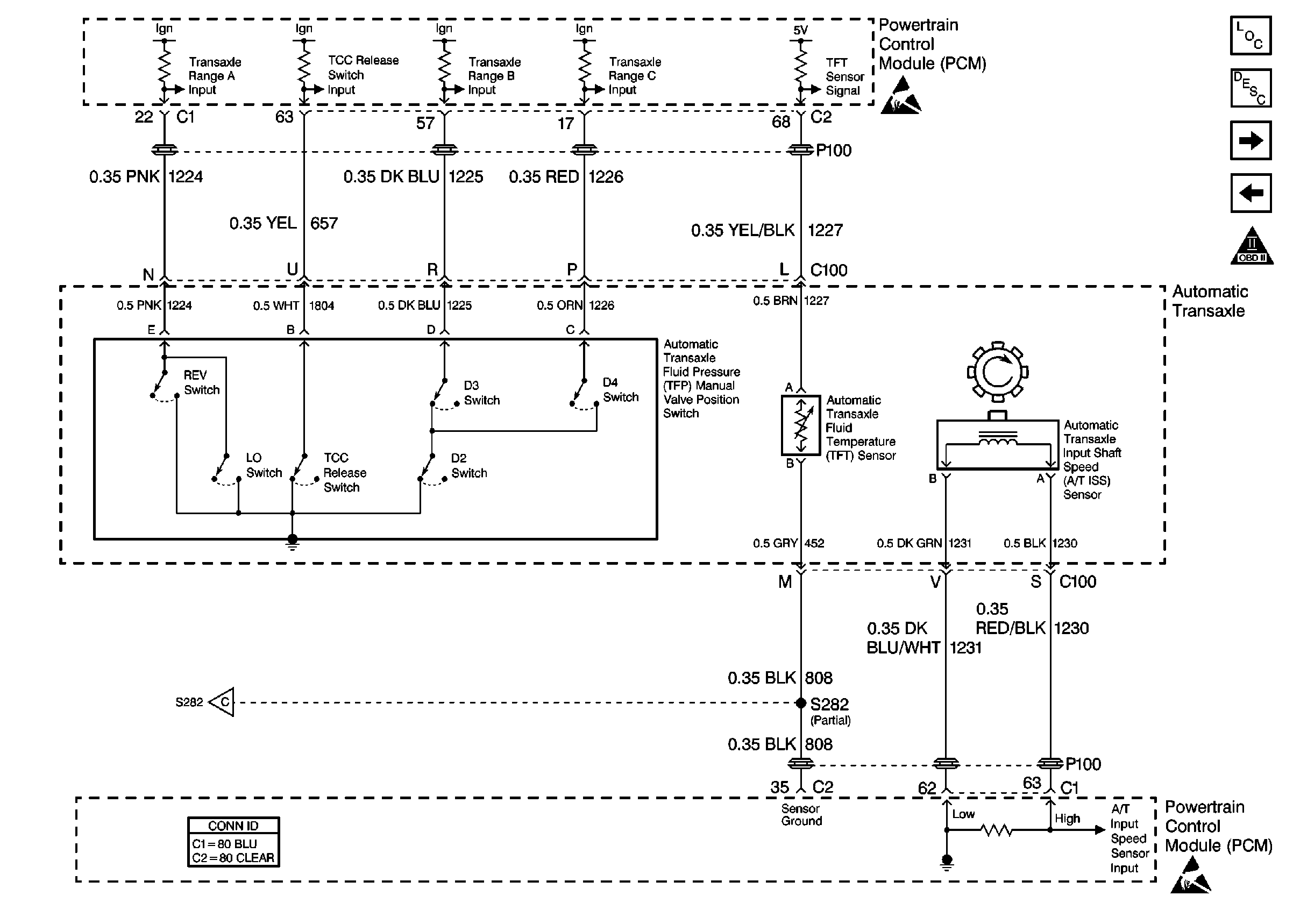

Figure 12:	Cell 20: TCC Switch, Transaxle Solenoids Engine Controls Components Powertrain Control Module Description Cell 20: Transaxle - Sensors and TR Switch Cell 20: Generator, Oil Level Switch, EBTCM OBD II Symbol Description Notice Cell 10: HVAC RELAY Fuse and CLNG FAN Fuse (Buick) Cell 10: Battery Cell 10: HVAC RELAY Fuse and CLNG FAN Fuse (Buick) Cell 10: OXYGEN SENSORS Fuse (Buick) Cell 34: Multifunction Lever Handling ESD Sensitive Parts Notice Powertrain Control Module Connector End Views
Figure 13:	Cell 20: Transaxle -- Sensors and TR Switch Engine Controls Components Powertrain Control Module Description Cell 20: Park/Neutral Position (PNP) Switch Cell 20: TCC Switch, Transaxle Solenoids OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Cell 20: TCC Switch, Transaxle Solenoids Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice

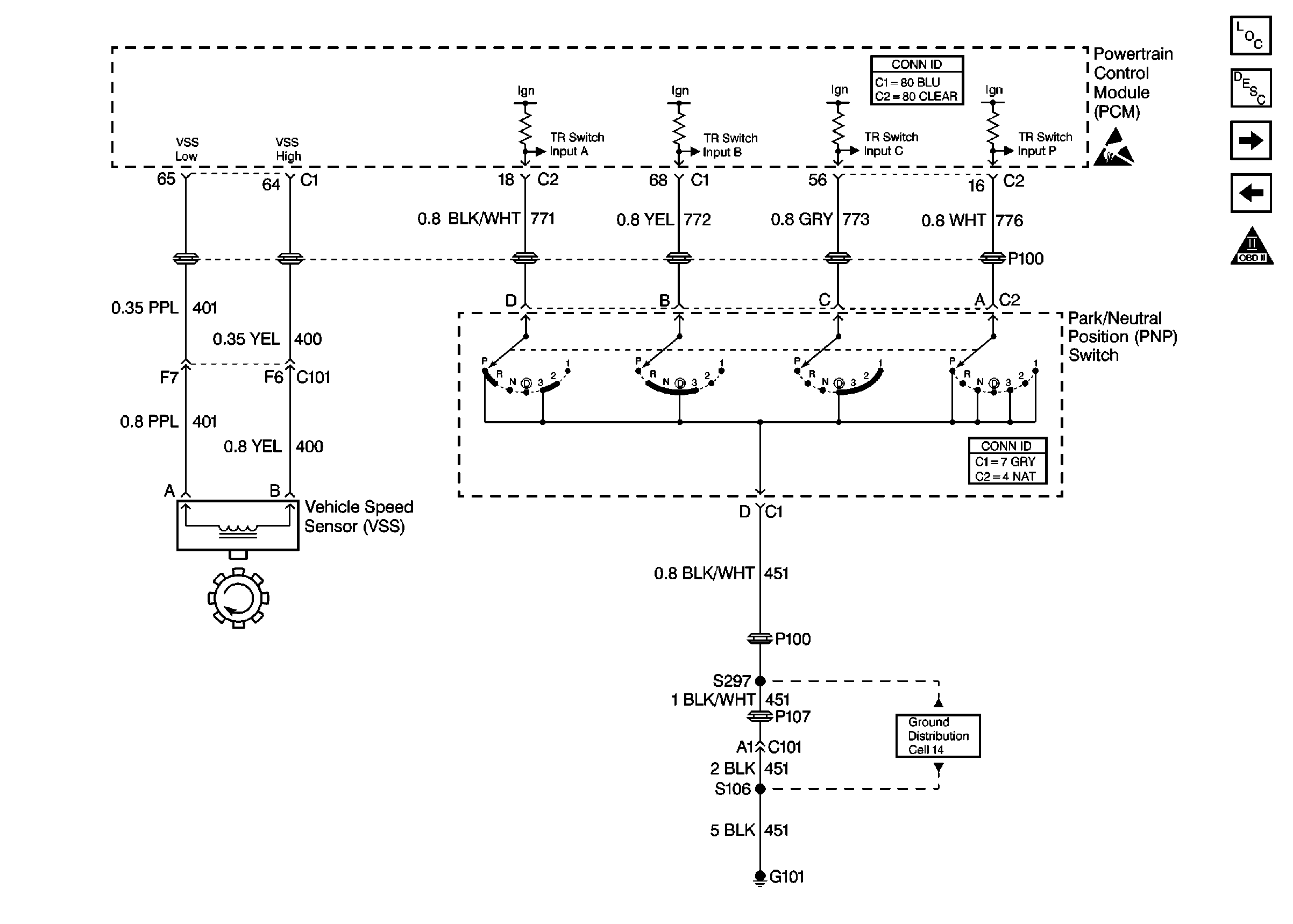

Figure 14:	Cell 20: Park/Neutral Position (PNP) Switch Engine Controls Components Powertrain Control Module Description Cell 20: A/C Compressor Control Cell 20: Transaxle - Sensors and TR Switch OBD II Symbol Description Notice Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice Cell 14: G100 and G101 (Buick)
Figure 15:	Cell 20: A/C Compressor Control Engine Controls Components Powertrain Control Module Description Cell 20: Cooling Fans Cell 20: Park/Neutral Position (PNP) Switch OBD II Symbol Description Notice Cell 10: HVAC CONT Fuse (1 of 2) (Buick) Cell 10: Battery Cell 10: HVAC CONT Fuse (2 of 2) (Buick) Handling ESD Sensitive Parts Notice Cell 14: G201 (2 of 2) Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice Cell 14: G103 (2 of 2)

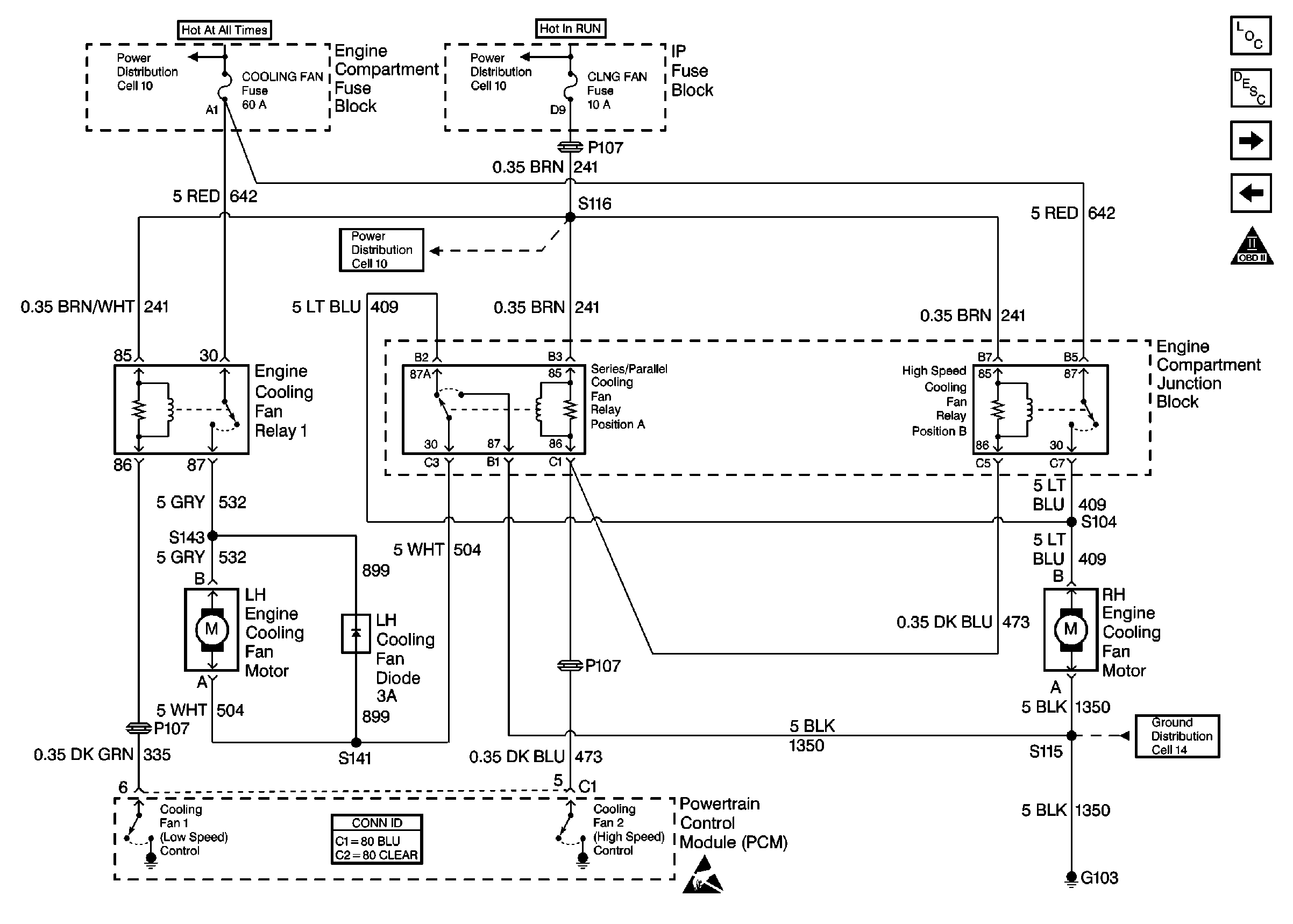

Figure 16:	Cell 20: Cooling Fans Engine Controls Components Powertrain Control Module Description Cell 20: A/C Compressor Control OBD II Symbol Description Notice Cell 10: Battery Cell 10: HVAC RELAY Fuse and CLNG FAN Fuse (Buick) Cell 10: HVAC RELAY Fuse and CLNG FAN Fuse (Buick) Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice Cell 14: G103 (2 of 2)
