Makes 🢒 Cadillac 🢒 2003 🢒 CTS 🢒 Body and Accessories 🢒 Body Rear End 🢒 Rear Compartment Lid Weatherstrip Replacement

Removal Procedure

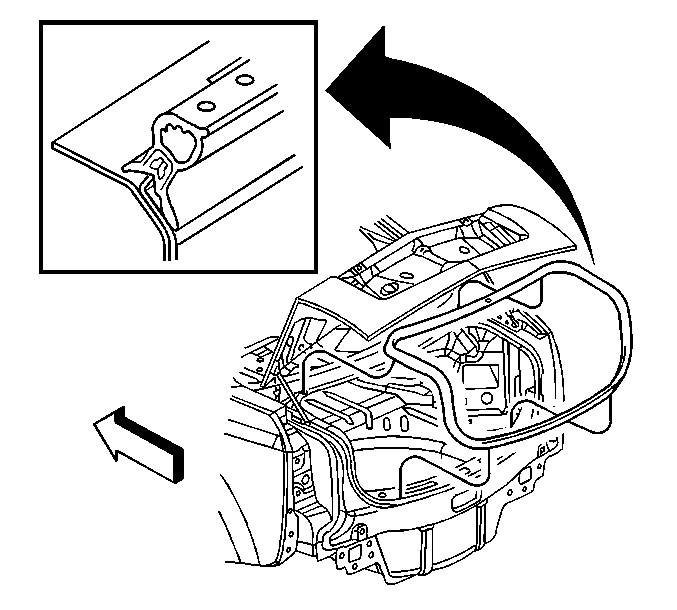

    Object Number: 729812 Size: SH
  1. Open the rear compartment.
  2. Pull the weatherstrip from the rear compartment lid pinch-weld flange.
  3. Remove the weatherstrip from the vehicle.

Installation Procedure

    Object Number: 729812 Size: SH
  1. Position the weatherstrip over the top of the rear compartment pinch-weld flange.
  2. Press the weatherstrip down onto the rear compartment pinch-weld-flange.
  3. Ensure that the weatherstrip is secured properly to the entire pinch-weld flange.
  4. Close the rear compartment.
