Makes 🢒 Cadillac 🢒 2006 🢒 CTS 🢒 Engine 🢒 Engine Mechanical - 3.6L 🢒 Exhaust Manifold Removal - Left Side

    Object Number: 860800 Size: SH
  1. Remove the ECT sensor.

    2. Object Number: 902880 Size: SH
  2. Remove the exhaust manifold bolts from the left cylinder head.
  3. Remove the left exhaust manifold.
  4. Remove and discard the exhaust manifold gasket from the left cylinder head.

    5. Object Number: 860802 Size: SH
  5. Remove the left knock sensor bolt.
  6. Remove the left knock sensor.

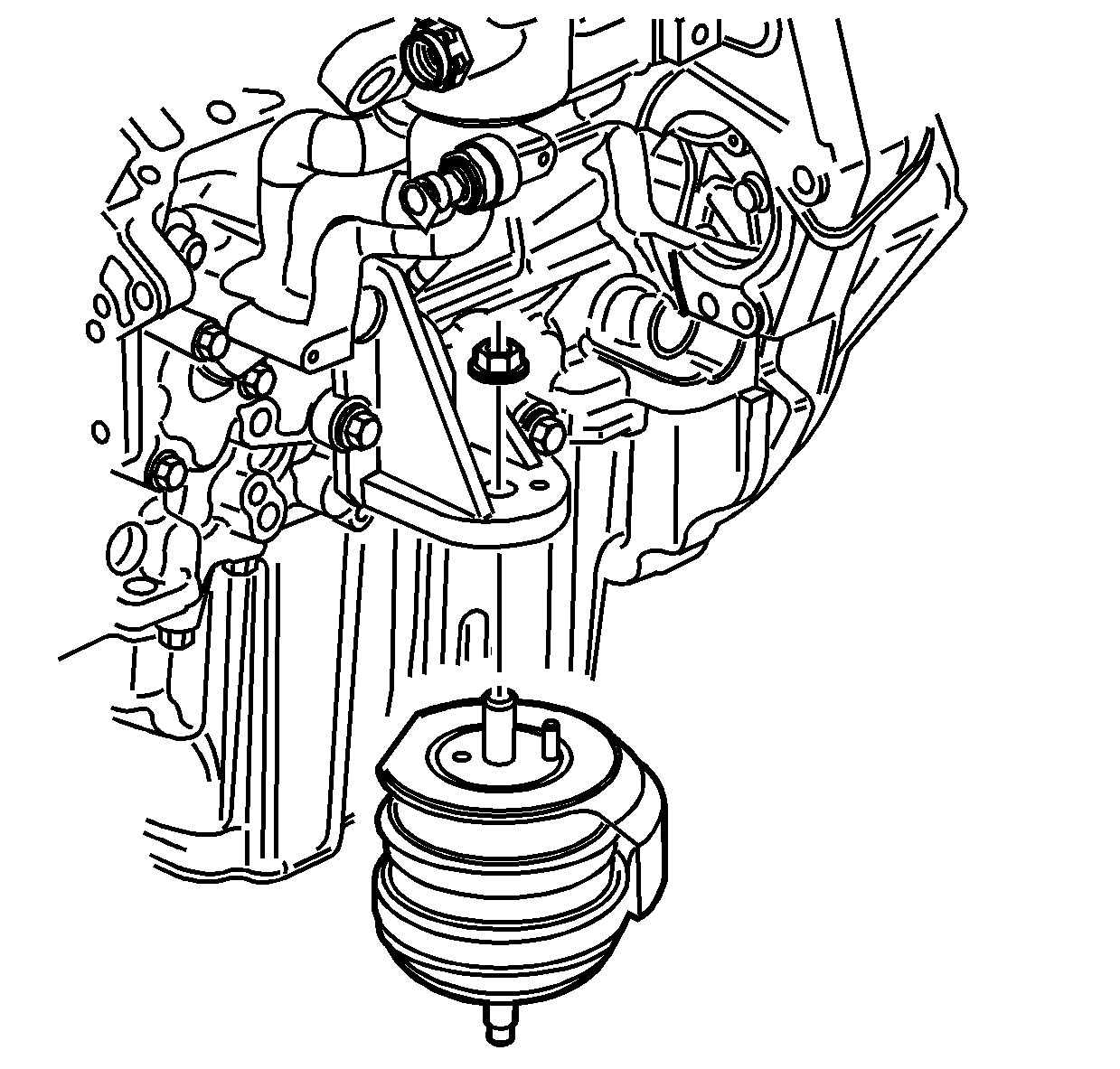

    7. Object Number: 945941 Size: SH
  7. Remove the left engine mount nut.
  8. Remove the left engine mount.

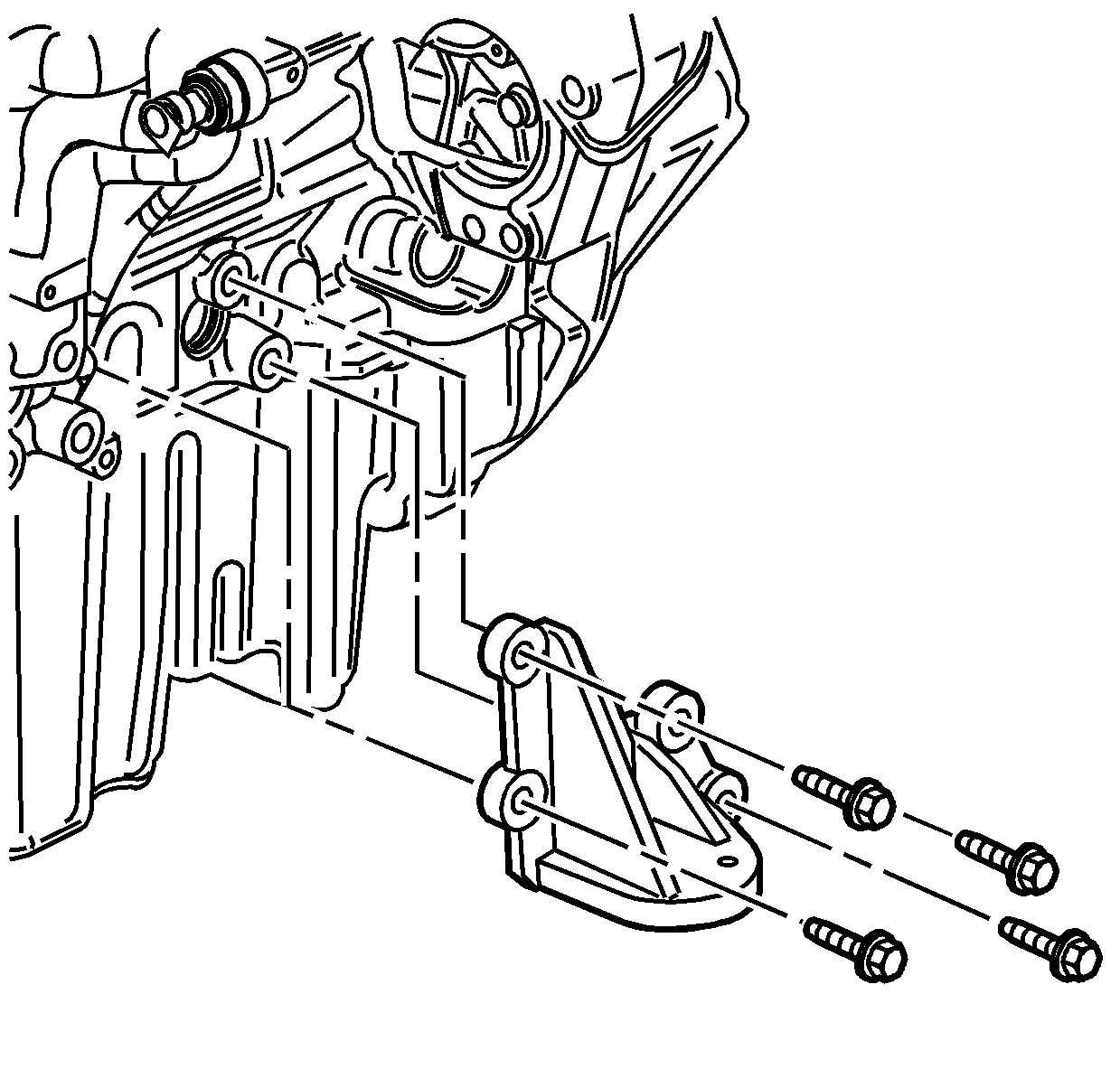

    9. Object Number: 945952 Size: SH
  9. Remove the left engine mount bracket bolt.
  10. Remove the left engine mount bracket.
