Lighting Systems Connector End Views. Cadillac CTS 2006

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2006 🢒 CTS 🢒 Body 🢒 Lighting Systems 🢒 Lighting Systems Connector End Views

Connector 1:	Backup Lamp - Left
Connector 2:	Backup Lamp - Right
Connector 3:	Backup Lamp Switch (M12/MN6)
Connector 4:	Backup Lamp Switch (M35)
Connector 5:	Brake Pedal Position (BPP) Sensor
Connector 6:	Center High Mounted Stop Lamp (CHMSL)
Connector 7:	Courtesy Lamp - Left Front Door
Connector 8:	Courtesy Lamp - Right Front Door
Connector 9:	Courtesy Lamp - Left Footwell
Connector 10:	Courtesy Lamp - Right Footwell
Connector 11:	Courtesy Lamp - Rear Compartment
Connector 12:	Dome Lamp - Rear
Connector 13:	Fog Lamp - LF
Connector 14:	Fog Lamp - RF
Connector 15:	Fog Lamp - LR (Export w/T79)
Connector 16:	Fog Lamp - RR (Export w/T79)
Connector 17:	Hazard Switch
Connector 18:	Headlamp Ballast - Left (Low Beam w/HID)
Connector 19:	Headlamp Ballast - Right (Low Beam w/HID)
Connector 20:	Headlamp High Beam - Left
Connector 21:	Headlamp High Beam - Right
Connector 22:	Headlamp Leveling Actuator - Left (TR7)
Connector 23:	Headlamp Leveling Actuator - Right (TR7)
Connector 24:	Headlamp Leveling Module
Connector 25:	Headlamp Leveling Sensor - Front (Export w/TR7)
Connector 26:	Headlamp Leveling Sensor - Rear (Export w/TR7)
Connector 27:	Headlamp Low Beam - Left (w/o HID)
Connector 28:	Headlamp Low Beam - Right (w/o HID)
Connector 29:	License Lamp - Left
Connector 30:	License Lamp - Right
Connector 31:	Marker Lamp - LF
Connector 32:	Marker Lamp - LR
Connector 33:	Marker Lamp - RF
Connector 34:	Marker Lamp - RR
Connector 35:	Overhead Console
Connector 36:	Repeater Lamp - Left (Export w/T90)
Connector 37:	Repeater Lamp - Right (Export w/T90)
Connector 38:	Stop Lamp - Left (Export)
Connector 39:	Stop Lamp - Right (Export)
Connector 40:	Tail Lamp - Left (Domestic)
Connector 41:	Tail Lamp - Left (Export)
Connector 42:	Tail Lamp - Right (Domestic)
Connector 43:	Tail Lamp - Right (Export)
Connector 44:	Tail/Stop Lamp - Left (Domestic)
Connector 45:	Tail/Stop Lamp - Right (Domestic)
Connector 46:	Turn Signal/Hazard Flasher Module (Domestic)
Connector 47:	Turn Signal/Hazard Flasher Module (Export w/T62/T65)
Connector 48:	Turn Signal Lamp - LF
Connector 49:	Turn Signal Lamp - RF
Connector 50:	Turn Signal Lamp - LR
Connector 51:	Turn Signal Lamp - RR
Connector 52:	Turn Signal/Multifunction Switch C1 (LHD)
Connector 53:	Turn Signal/Multifunction Switch C1 (RHD)
Connector 54:	Turn Signal/Multifunction Switch C2 (LHD)
Connector 55:	Turn Signal/Multifunction Switch C2 (RHD)
Connector 56:	Turn Signal/Multifunction Switch C3 (LHD)
Connector 57:	Turn Signal/Multifunction Switch C3 (RHD)
Connector 58:	Turn Signal/Multifunction Switch C4 (LHD)
Connector 59:	Turn Signal/Multifunction Switch C4 (RHD)
Connector 60:	Vanity Lamp Left
Connector 61:	Vanity Lamp Right

Backup Lamp - Left

Connector Part Information

OEM: 15324350
Service: See Catalog
Description: 2-Way Lamp Socket Wedge Base W3 (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Backup Lamp - Left

Pin	Wire Color	Circuit No.	Function
A	L-GN	24	Backup Lamp Supply Voltage
G	BK	850	Ground
G	BK	850	Ground

Backup Lamp - Right

Connector Part Information

OEM: 15324350
Service: See Catalog
Description: 2-Way Lamp Socket Wedge Base W3 (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Backup Lamp - Right

Pin	Wire Color	Circuit No.	Function
A	L-GN	24	Backup Lamp Supply Voltage
A	L-GN	24	Backup Lamp Supply Voltage
G	BK	850	Ground
G	BK	850	Ground

Backup Lamp Switch (M12/MN6)

Connector Part Information

OEM: 12015792
Service: 12126452
Description: 2-Way F Weather Pack (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Backup Lamp Switch (M12/MN6)

Pin	Wire Color	Circuit No.	Function
A	L-GN	5007	Reverse Switch Signal
B	BK/WH	1551	Ground

Backup Lamp Switch (M35)

Connector Part Information

OEM: 402398
Service: See Catalog
Description: 2-Way F Metri-Pack (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Backup Lamp Switch (M35)

Pin	Wire Color	Circuit No.	Function
A	L-GN	5007	Reverse Switch Signal
B	BK/WH	1551	Ground

Brake Pedal Position (BPP) Sensor

Connector Part Information

OEM: 15332132
Service: 88953364
Description: 3-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Brake Pedal Position (BPP) Sensor

Pin	Wire Color	Circuit No.	Function
A	BN	5360	Low Reference
B	YE	5361	Brake Pedal Position (BPP) Sensor Signal
C	WH	5359	5-Volt Reference

Center High Mounted Stop Lamp (CHMSL)

Connector Part Information

OEM: 12162000
Service: 12167120
Description: 2-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Center High Mounted Stop Lamp (CHMSL)

Pin	Wire Color	Circuit No.	Function
A	WH	17	Stop Lamp Supply Voltage
B	BK	850	Ground

Courtesy Lamp - Left Front Door

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Courtesy Lamp - Left Front Door

Pin	Wire Color	Circuit No.	Function
A	D-BU/WH	149	Courtesy Lamp Supply Voltage
B	GY	157	Courtesy Lamp Control

Courtesy Lamp - Right Front Door

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Courtesy Lamp - Right Front Door

Pin	Wire Color	Circuit No.	Function
A	D-BU/WH	149	Courtesy Lamp Supply Voltage
B	GY	157	Courtesy Lamp Control

Courtesy Lamp - Left Footwell

Connector Part Information

OEM: 12064869
Service: 12117323
Description: 2-Way F Metri-Pack 150 Series (BU)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Courtesy Lamp - Left Footwell

Pin	Wire Color	Circuit No.	Function
A	D-BU/WH	149	Courtesy Lamp Supply Voltage
B	GY	157	Courtesy Lamp Control

Courtesy Lamp - Right Footwell

Connector Part Information

OEM: 12064869
Service: 12117323
Description: 2-Way F Metri-Pack 150 Series (BU)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Courtesy Lamp - Right Footwell

Pin	Wire Color	Circuit No.	Function
A	D-BU/WH	149	Courtesy Lamp Supply Voltage
B	GY	157	Courtesy Lamp Control

Courtesy Lamp - Rear Compartment

Connector Part Information

OEM: 12047781
Service: 12101864
Description: 3-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: B, C
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Courtesy Lamp - Rear Compartment

Pin	Wire Color	Circuit No.	Function
A	--	--	Not Used
B	OG/BK	737	Rear Compartment Lamp Control
C	D-BU/WH	149	Courtesy Lamp Supply Voltage

Dome Lamp - Rear

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Dome Lamp - Rear

Pin	Wire Color	Circuit No.	Function
A	D-BU/WH	149	Courtesy Lamp Supply Voltage
B	GY	157	Courtesy Lamp Control

Fog Lamp - LF

Connector Part Information

OEM: 12064998
Service: 15306189
Description: 2-Way F Weather-Pack (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fog Lamp - LF

Pin	Wire Color	Circuit No.	Function
A	WH	2234	Front Fog Lamp Supply Voltage
B	WH	250	Ground

Fog Lamp - RF

Connector Part Information

OEM: 12064998
Service: 15306189
Description: 2-Way Weather-Pack (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fog Lamp - RF

Pin	Wire Color	Circuit No.	Function
A	WH	2234	Front Fog Lamp Supply Voltage
B	WH	250	Ground

Fog Lamp - LR (Export w/T79)

Connector Part Information

OEM: 12160394
Service: See Catalog
Description: 3-Way Lamp Socket Wedge Base W3 (WH)

Terminal Part Information

Pins: A, G
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fog Lamp - LR (Export w/T79)

Pin	Wire Color	Circuit No.	Function
A	RD	122	Rear Fog Lamp Supply Voltage
B	--	--	Not Used
G	BK	850	Ground

Fog Lamp - RR (Export w/T79)

Connector Part Information

OEM: 12160394
Service: See Catalog
Description: 3-Way Lamp Socket Wedge Base W3 (WH)

Terminal Part Information

Pins: A, G
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fog Lamp - RR (Export w/T79)

Pin	Wire Color	Circuit No.	Function
A	RD	122	Rear Fog Lamp Supply Voltage
B	--	--	Not Used
G	BK	850	Ground

Hazard Switch

Connector Part Information

OEM: 174966-2
Service: 88952835
Description: 4-Way F Multilock (BK)

Terminal Part Information

Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Hazard Switch

Pin	Wire Color	Circuit No.	Function
1	L-BU	1717	Hazard Request Signal
2	BK	350	Ground
3	YE	1491	Backlight Lamps Control
4	L-BU/WH	1314	Left Turn Signal Indicator Lamp Supply Voltage

Headlamp Ballast - Left (Low Beam w/HID)

Connector Part Information

OEM: 10757671
Service: 88953349
Description: 3-Way F Apex 2.8 (BK)

Terminal Part Information

Pins: 1, 2
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp Ballast - Left (Low Beam w/HID)

Pin	Wire Color	Circuit No.	Function
1	BK	250	Ground
2	YE	712	Left Headlamp Low Beam Supply Voltage
3	--	--	Not Used

Headlamp Ballast - Right (Low Beam w/HID)

Connector Part Information

OEM: 10757671
Service: 88953349
Description: 3-Way F Apex 2.8 (BK)

Terminal Part Information

Pins: 1, 2
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp Ballast - Right (Low Beam w/HID)

Pin	Wire Color	Circuit No.	Function
1	BK	250	Ground
2	YE	312	Right Headlamp Low Beam Supply Voltage
3	--	--	Not Used

Headlamp High Beam - Left

Connector Part Information

OEM: 12059183
Service: 12101898
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp High Beam - Left

Pin	Wire Color	Circuit No.	Function
A	D-GN	711	Left Headlamp High Beam Supply Voltage
B	BK	250	Ground

Headlamp High Beam - Right

Connector Part Information

OEM: 12059183
Service: 12101898
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp High Beam - Right

Pin	Wire Color	Circuit No.	Function
A	D-GN	311	Right Headlamp High Beam Supply Voltage
B	BK	250	Ground

Headlamp Leveling Actuator - Left (TR7)

Connector Part Information

OEM: 6189-0227
Service: 88988391
Description: 6-Way F .090 Class 2 Sealed Series (WH)

Terminal Part Information

Pins: 1, 2, 3, 4, 6
Terminal/Tray: 7116-4025/11
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15313892/J-35616-18 (BK)

Headlamp Leveling Actuator - Left (TR7)

Pin	Wire Color	Circuit No.	Function
1	GY	5179	Left Headlamp Leveling Motor (4)
2	L-BU/BK	5752	Left Headlamp Leveling Motor Low Reference
3	OG/BK	5177	Left Headlamp Leveling Motor (2)
4	PU/WH	5178	Left Headlamp Leveling Motor (3)
5	--	--	Not Used
6	YE/BK	5176	Left Headlamp Leveling Motor (1)

Headlamp Leveling Actuator - Right (TR7)

Connector Part Information

OEM: 6189-0227
Service: 88988391
Description: 6-Way F .090 Class 2 Sealed Series (WH)

Terminal Part Information

Pins: 1, 2, 3, 4, 6
Terminal/Tray: 7116-4025/11
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15313892/J-35616-18 (BK)

Headlamp Leveling Actuator - Right (TR7)

Pin	Wire Color	Circuit No.	Function
1	GY/BK	5183	Right Headlamp Leveling Motor (4)
2	L-GN/BK	5753	Right Headlamp Leveling Motor Low Reference
3	PK/BK	5181	Right Headlamp Leveling Motor (2)
4	OG/WH	5182	Right Headlamp Leveling Motor (3)
5	--	--	Not Used
6	BN/WH	5180	Right Headlamp Leveling Motor (1)

Headlamp Leveling Module

Connector Part Information

OEM: 12129225
Service: NS
Description: 24-Way F Micro-Pack 100 Series Sealed (WH)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 20, 21, 22, 22, 23, 23, 24
Terminal/Tray: 12084913/5
Core/Insulation Crimp: W/W
Release Tool/Test Probe: 12122523/J-35616-6 (BN)

Headlamp Leveling Module

Pin	Wire Color	Circuit No.	Function
1	GY/BK	5183	Right Headlamp Leveling Motor (4) (TR7)
2	OG/WH	5182	Right Headlamp Leveling Motor (3) (TR7)
3	PK/BK	5181	Right Headlamp Leveling Motor (2) (TR7)
4	BN/WH	5180	Right Headlamp Leveling Motor (1) (TR7)
5	L-GN/BK	5753	Right Headlamp Leveling Motor Low Reference (TR7)
6	YE	5727	High Speed GMLAN Serial Data Wake Up (TT7/ TT8 w/ K59)
6	YE	5727	High Speed GMLAN Serial Data Wake Up (TR7 w/o K59)
7	OG/BK	1208	Left Rear Strut Position Sensor Voltage Reference (TR7 w/o F55)
8	L-GN/WH	1210	Left Rear Strut Position Sensor Signal (TR7 w/o F55)
9	L-GN/BK	1209	Left Rear Strut Position Sensor Low Reference (TR7 w/o F55)
10	TN	2501	High Speed GMLAN Serial Data (-) (1) (TR7)
11	TN/BK	2500	High Speed GMLAN Serial Data (+) (1) (TR7)
12	RD/WH	340	Battery Positive Voltage (TR7)
13	GY	5179	Left Headlamp Leveling Motor (4) (TR7)
14	PU/WH	5178	Left Headlamp Leveling Motor (3) (TR7)
15	OG/BK	5177	Left Headlamp Leveling Motor (2) (TR7)
16	YE/BK	5176	Left Headlamp Leveling Motor (1) (TR7)
17	L-BU/BK	5752	Left Headlamp Leveling Motor Low Reference (TR7)
18	--	--	Not Used
19	PU/WH	1205	Left Front Strut Position Sensor Voltage Reference (TR7 w/o F55)
20	TN/WH	1207	Left Front Strut Position Sensor Signal (TR7 w/o K59)
21	L-BU/BK	1206	Left Front Strut Position Sensor Low Reference (TR7 w/o K59)
22	TN	2501	High Speed GMLAN Serial Data (-) (1) (TR7 w/o F55)
22	TN	2501	High Speed GMLAN Serial Data (-) (1) (TT7/TT8 w/ K59)
23	TN/BK	2500	High Speed GMLAN Serial Data (+) (1) (TR7 w/o F55)
23	TN/BK	2500	High Speed GMLAN Serial Data (+) (1) (TT7/TT8 w/ K59)
24	BK	250	Ground (TR7)

Headlamp Leveling Sensor - Front (Export w/TR7)

Connector Part Information

OEM: 1-967616-1
Service: 15306420
Description: 6-Way F MQS Socket Housing (BK)

Terminal Part Information

Pins: 1, 2, 6, 4, 5
Terminal/Tray: 962885-5/15
Core/Insulation Crimp: Pins 1, 2, 6 - 6/6
Core/Insulation Crimp: Pins 4, 5 - See Terminal Repair Kit
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Headlamp Leveling Sensor - Front (Export w/TR7)

Pin	Wire Color	Circuit No.	Function
1	BK	250	Ground
2	BK	250	Ground
3	--	--	Not Used
4	GY	868	Headlamp Leveling Switch Bit 1 Signal
5	BN	341	Ignition 3 Voltage
6	BK	250	Ground

Headlamp Leveling Sensor - Rear (Export w/TR7)

Connector Part Information

OEM: 12110293
Service: 12117025
Description: 3-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Headlamp Leveling Sensor - Rear (Export w/TR7)

Pin	Wire Color	Circuit No.	Function
A	BN	341	Ignition 3 Voltage
B	GY	868	Headlamp Leveling Switch Bit 1 Signal
C	BK	850	Ground

Headlamp Low Beam - Left (w/o HID)

Connector Part Information

OEM: 12059183
Service: 12101898
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp Low Beam - Left (w/o HID)

Pin	Wire Color	Circuit No.	Function
A	YE	712	Left Headlamp Low Beam Supply Voltage
B	BK	250	Ground

Headlamp Low Beam - Right (w/o HID)

Connector Part Information

OEM: 12059183
Service: 12101898
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp Low Beam - Right (w/o HID)

Pin	Wire Color	Circuit No.	Function
A	YE	312	Right Headlamp Low Beam Supply Voltage
B	BK	250	Ground

License Lamp - Left

Connector Part Information

OEM: 12146418
Service: See Catalog
Description: 2-Way Lamp Socket (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

License Lamp - Left

Pin	Wire Color	Circuit No.	Function
A	YE	32	Instrument Panel Lamp Fuse Supply Voltage
B	BK	850	Ground
B	BK	850	Ground

License Lamp - Right

Connector Part Information

OEM: 12146418
Service: See Catalog
Description: 2-Way Lamp Socket (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

License Lamp - Right

Pin	Wire Color	Circuit No.	Function
A	YE	32	Instrument Panel Lamp Fuse Supply Voltage
A	YE	32	Instrument Panel Lamp Fuse Supply Voltage
B	BK	850	Ground
B	BK	850	Ground

Marker Lamp - LF

Connector Part Information

OEM: E-5229
Service: See Catalog
Description: 2-Way F Series Sleeve Assembly Wire Connector (GY)

Terminal Part Information

Pins: 1, 2
Terminal/Tray: 7116-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Marker Lamp - LF

Pin	Wire Color	Circuit No.	Function
1	PU	709	Left Park Lamp Supply Voltage
2	BK	250	Ground (w/TT7)
2	L-BU/WH	1314	Left Turn Signal Indicator Lamp Supply Voltage (w/o TT7)

Marker Lamp - LR

Connector Part Information

OEM: 15317651
Service: See Catalog
Description: 2-Way F (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Marker Lamp - LR

Pin	Wire Color	Circuit No.	Function
A	OG	709	Left Park Lamp Supply Voltage
B	BK	850	Ground

Marker Lamp - RF

Connector Part Information

OEM: E-5229
Service: See Catalog
Description: 2-Way F Series Sleeve Assembly Wire Connector (GY)

Terminal Part Information

Pins: 1, 2
Terminal/Tray: 7116-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Marker Lamp - RF

Pin	Wire Color	Circuit No.	Function
1	BN/WH	309	Right Park Lamp Supply Voltage
2	BK	250	Ground (w/TT7)
2	D-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage (w/o TT7)

Marker Lamp - RR

Connector Part Information

OEM: 15317651
Service: See Catalog
Description: 2-Way F (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Marker Lamp - RR

Pin	Wire Color	Circuit No.	Function
A	OG	309	Right Park Lamp Supply Voltage
B	BK	850	Ground

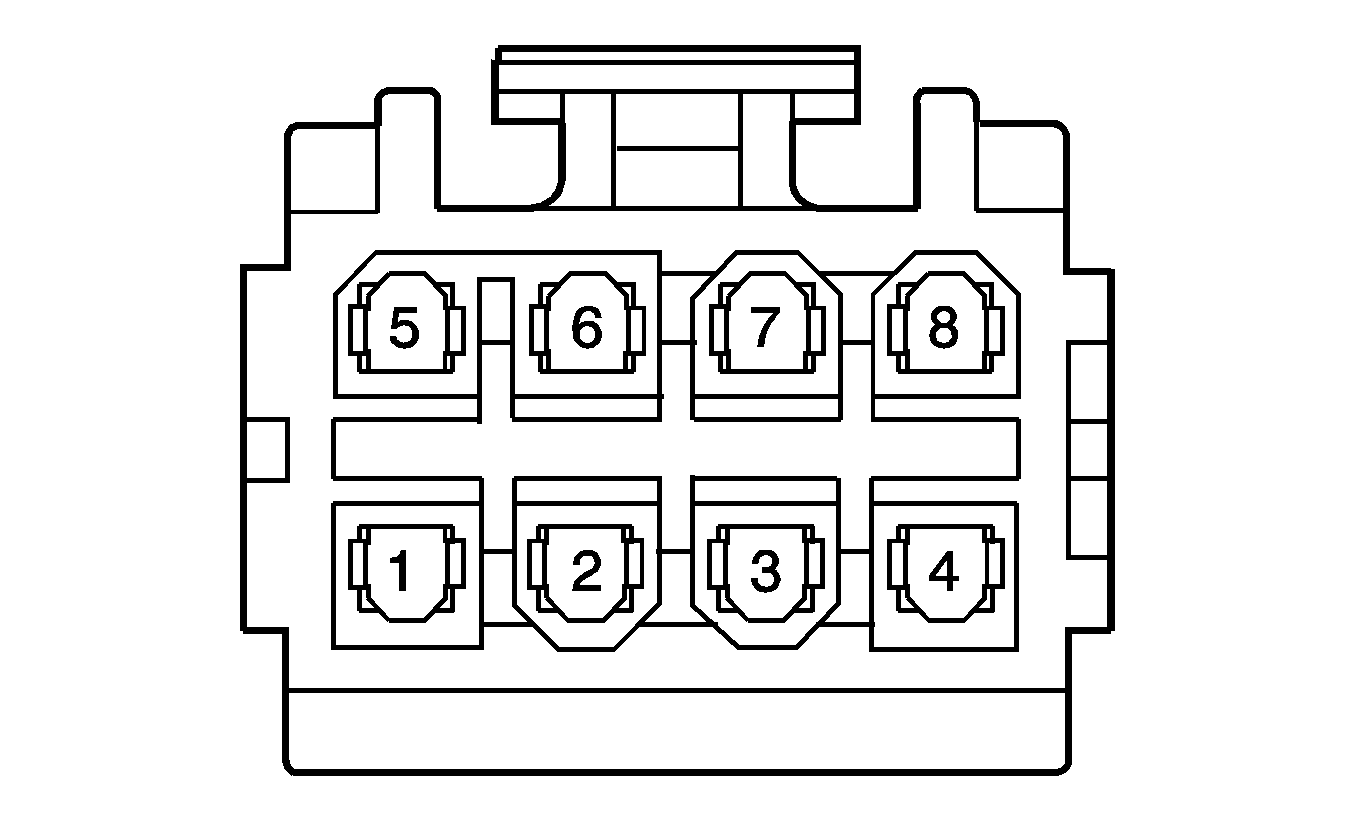

Overhead Console

Connector Part Information

OEM: 15324950
Service: 89046731
Description: 8-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Overhead Console

Pin	Wire Color	Circuit No.	Function
1	GY	157	Courtesy Lamp Control
2	BK	850	Ground
3	D-BU/WH	149	Courtesy Lamp Supply Voltage
4	YE	1491	Backlight Lamps Control
5	PK/BK	1597	Courtesy Lamps Switch On Signal
6	L-BU/BK	1688	5-Volt Reference
7	YE	5005	Instrument Panel Lamps Dimmer Switch Low Reference
8	D-GN	44	Instrument Panel Lamps Dimmer Switch Signal

Repeater Lamp - Left (Export w/T90)

Connector Part Information

OEM: 12015792
Service: 12126452
Description: 2-Way Lamp Socket Wedge Base W2 (GY)

Terminal Part Information

Terminal/Tray: 12089188/3
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12014012-1/J-35616-8 (OG)

Repeater Lamp - Left (Export w/T90)

Pin	Wire Color	Circuit No.	Function
A	L-BU/WH	1314	Left Turn Signal Indicator Lamp Supply Voltage
B	BK	250	Ground

Repeater Lamp - Right (Export w/T90)

Connector Part Information

OEM: 12015792
Service: 12126452
Description: 2-Way Lamp Socket Wedge Base W2 (GY)

Terminal Part Information

Terminal/Tray: 12089188/3
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12014012-1/J-35616-8 (OG)

Repeater Lamp - Right (Export w/T90)

Pin	Wire Color	Circuit No.	Function
A	D-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage
B	BK	250	Ground

Stop Lamp - Left (Export)

Connector Part Information

OEM: 15354865
Service: See Catalog
Description: 3-Way Lamp Socket Wedge Base W3 (WH)

Terminal Part Information

Pins: A, B, G
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Stop Lamp - Left (Export)

Pin	Wire Color	Circuit No.	Function
A	WH	17	Stop Lamp Supply Voltage
B	D-BU	709	Left Park Lamp Supply Voltage
G	BK	850	Ground

Stop Lamp - Right (Export)

Connector Part Information

OEM: 15354865
Service: See Catalog
Description: 3-Way Lamp Socket Wedge Base W3 (WH)

Terminal Part Information

Pins: A, B, G
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Stop Lamp - Right (Export)

Pin	Wire Color	Circuit No.	Function
A	WH	17	Stop Lamp Supply Voltage
B	D-BU	309	Right Park Lamp Supply Voltage
G	BK	1050	Ground

Tail Lamp - Left (Domestic)

Connector Part Information

OEM: 15354865
Service: See Catalog
Description: 3-Way Lamp Socket Wedge Base W3 (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Tail Lamp - Left (Domestic)

Pin	Wire Color	Circuit No.	Function
A	WH/BK	17	Stop Lamp Supply Voltage (Note: Wire Is Present, But Does Not Light Up w /Brake Lamp)
B	PU	709	Left Park Lamp Supply Voltage
G	BK	850	Ground

Tail Lamp - Left (Export)

Connector Part Information

OEM: 12186254
Service: See Catalog
Description: 3-Way Lamp Socket Wedge Base W3 (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Tail Lamp - Left (Export)

Pin	Wire Color	Circuit No.	Function
A	WH	17	Stop Lamp Supply Voltage
B	D-BU	1472	Left Park Lamp Supply Voltage
G	BK	850	Ground

Tail Lamp - Right (Domestic)

Connector Part Information

OEM: 15354865
Service: See Catalog
Description: 3-Way Lamp Socket Wedge Base W3 (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Tail Lamp - Right (Domestic)

Pin	Wire Color	Circuit No.	Function
A	WH/BK	17	Stop Lamp Supply Voltage (Note: Wire Is Present, But Does Not Light Up w /Brake Lamp)
B	PU	309	Right Park Lamp Supply Voltage
G	BK	1050	Ground

Tail Lamp - Right (Export)

Connector Part Information

OEM: 12186254
Service: See Catalog
Description: 3-Way Lamp Socket Wedge Base W3 (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Tail Lamp - Right (Export)

Pin	Wire Color	Circuit No.	Function
A	WH	17	Stop Lamp Supply Voltage
B	D-BU	1473	Right Park Lamp Supply Voltage
G	BK	850	Ground

Tail/Stop Lamp - Left (Domestic)

Connector Part Information

OEM: 12186254
Service: See Catalog
Description: 3-Way Lamp Socket Wedge Base W3 (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Tail/Stop Lamp - Left (Domestic)

Pin	Wire Color	Circuit No.	Function
A	WH	17	Stop Lamp Supply Voltage
B	D-BU	709	Left Park Lamp Supply Voltage
G	BK	850	Ground

Tail/Stop Lamp - Right (Domestic)

Connector Part Information

OEM: 12186254
Service: See Catalog
Description: 3-Way Lamp Socket Wedge Base W3 (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Tail/Stop Lamp - Right (Domestic)

Pin	Wire Color	Circuit No.	Function
A	WH	17	Stop Lamp Supply Voltage
B	D-BU	309	Right Park Lamp Supply Voltage
G	BK	850	Ground

Turn Signal/Hazard Flasher Module (Domestic)

Connector Part Information

OEM: 12064769
Service: 12101762
Description: 10-Way F Metri-Pack 150 Series (WH)

Terminal Part Information

Pins: A, B, C, D, H
Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Pins: E, F, G, J, K
Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Turn Signal/Hazard Flasher Module (Domestic)

Pin	Wire Color	Circuit No.	Function
A	BK	350	Ground
B	D-BU/WH	1415	Right Turn Signal Switch Signal
C	L-BU/WH	1414	Left Turn Signal Switch Signal
D	WH	111	Hazard Switch Signal
E	RD/WH	1740	Battery Positive Voltage
F	D-BU	5364	Left DRL/Turn Supply Voltage
G	L-BU/WH	1314	Left Turn Signal Indicator Lamp Supply Voltage
H	L-GN/BK	592	DRL Low Control
J	D-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage
K	D-GN	5365	Right DRL/Turn Supply Voltage

Turn Signal/Hazard Flasher Module (Export w/T62/T65)

Connector Part Information

OEM: 12064998
Service: 15306189
Description: 8-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Pins: A, B, C, D, F, G, H
Terminal/Tray: 12034046/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Turn Signal/Hazard Flasher Module (Export w/T62/T65)

Pin	Wire Color	Circuit No.	Function
A	BK	350	Ground
B	D-BU/WH	1415	Right Turn Signal Switch Signal
C	L-BU/WH	1414	Left Turn Signal Switch Signal
D	L-BU/WH	1314	Left Turn Signal Indicator Lamp Supply Voltage
E	--	--	Not Used
F	D-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage
G	WH	111	Hazard Switch Signal
H	RD/WH	1740	Battery Positive Voltage

Turn Signal Lamp - LF

Connector Part Information

OEM: 15354859
Service: See Catalog
Description: 2-Way F Lamp Socket BB W-3 (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal Lamp - LF

Pin	Wire Color	Circuit No.	Function
A	WH	5364	Left DRL/Turn Supply Voltage (Domestic)
A	WH	1314	Left Turn Signal Indicator Lamp Supply Voltage (Export w/T62/T65)
G	WH	250	Ground

Turn Signal Lamp - RF

Connector Part Information

OEM: 15354859
Service: See Catalog
Description: 2-Way F Lamp Socket BB W-3 (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal Lamp - RF

Pin	Wire Color	Circuit No.	Function
A	WH	5365	Right DRL/Turn Supply Voltage (Domestic)
A	WH	1315	Right Turn Signal Indicator Lamp Supply Voltage (Export w/T62/T65)
G	WH	250	Ground

Turn Signal Lamp - LR

Connector Part Information

OEM: 15354859
Service: See Catalog
Description: 2-Way F Lamp Socket BB W-3 (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal Lamp - LR

Pin	Wire Color	Circuit No.	Function
A	L-BU/WH	1314	Left Turn Signal Indicator Lamp Supply Voltage
G	BK	850	Ground

Turn Signal Lamp - RR

Connector Part Information

OEM: 15354859
Service: See Catalog
Description: 2-Way F Lamp Socket BB W-3 (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal Lamp - RR

Pin	Wire Color	Circuit No.	Function
A	L-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage
G	BK	850	Ground

Turn Signal/Multifunction Switch C1 (LHD)

Connector Part Information

OEM: 15339058
Service: See Catalog
Description: 7-Way F Metri-Pack 150 Series (GY)

Terminal Part Information

Pins: J, K, L, M, N
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch C1 (LHD)

Pin	Wire Color	Circuit No.	Function
G-H	--	--	Not Used
J	OG	192	Front Fog Lamp Switch Signal
K	BK	350	Ground
L	WH	103	Headlamp Switch Headlamps On Signal
M	BN/WH	301	Park Lamp Switch On Signal
N	PU	1783	Twilight Sentinel Delay Signal

Turn Signal/Multifunction Switch C1 (RHD)

Connector Part Information

OEM: 15339058
Service: See Catalog
Description: 7-Way F Metri-Pack 150 Series (GY)

Terminal Part Information

Pins: G, H, J, K
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch C1 (RHD)

Pin	Wire Color	Circuit No.	Function
G	PU	1783	Twilight Sentinel Delay Signal
H	BN/WH	301	Park Lamp Switch On Signal
J	WH	103	Headlamp Switch Headlamps On Signal
K	BK	350	Ground
L-N	--	--	Not Used

Turn Signal/Multifunction Switch C2 (LHD)

Connector Part Information

OEM: 12059800
Service: 15306169
Description: 5-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: A, B, D, E
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch C2 (LHD)

Pin	Wire Color	Circuit No.	Function
A	BN	1356	Flash To Pass Switch Signal
B	BK	350	Ground
C	--	--	Not Used
D	L-BU	1970	Headlamp Low Beam Relay Control
E	BK/WH	1969	Headlamp High Beam Relay Control

Turn Signal/Multifunction Switch C2 (RHD)

Connector Part Information

OEM: 12059800
Service: 15306169
Description: 5-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: A, B, D, E
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch C2 (RHD)

Pin	Wire Color	Circuit No.	Function
A	BK/WH	1969	Headlamp High Beam Relay Control
B	L-BU	1970	Headlamp Low Beam Relay Control
C	--	--	Not Used
D	BK	350	Ground
E	BN	1356	Flash To Pass Switch Signal

Turn Signal/Multifunction Switch C3 (LHD)

Connector Part Information

OEM: 12064862
Service: 12126438
Description: 8-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: A, C, D, F, G, H
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch C3 (LHD)

Pin	Wire Color	Circuit No.	Function
A	L-GN	1419	Right Turn Signal Switch Signal (Export w/T79) (Wire Maybe Give Away)
B	--	--	Not Used
C	BK	350	Ground
D	YE/BK	1418	Left Turn Signal Switch Signal (Export w/T79) (Wire Maybe Give Away)
E	--	--	Not Used
F	L-BU/WH	1414	Left Turn Signal Switch Signal
G	PK	339	Ignition 1 Voltage
H	D-BU/WH	1415	Right Turn Signal Switch Signal

Turn Signal/Multifunction Switch C3 (RHD)

Connector Part Information

OEM: 12064862
Service: 12126438
Description: 8-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: A, B, C, D, G, H
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch C3 (RHD)

Pin	Wire Color	Circuit No.	Function
A	L-BU/WH	1414	Left Turn Signal Switch Signal
B	PK	339	Ignition 1 Voltage
C	L-GN	1419	Right Turn Signal Switch Signal (Export w/T79)
D	D-BU/WH	1415	Right Turn Signal Switch Signal
E-F	--	--	Not Used
G	BK	350	Ground
H	YE/BK	1418	Left Turn Signal Switch Signal (Export w/T79)

Turn Signal/Multifunction Switch C4 (LHD)

Connector Part Information

OEM: HCMWSB-05-K
Service: See Catalog
Description: 5-Way M (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch C4 (LHD)

Pin	Wire Color	Circuit No.	Function
1	PK	339	Ignition 1 Voltage
2	L-BU	187	Rear Fog Lamp Switch Signal (Export w/T79)
3	BK	350	Ground
4	OG	192	Front Fog Lamp Switch Signal
5	GY/BK	1884	Cruise Control Switch Signal

Turn Signal/Multifunction Switch C4 (RHD)

Connector Part Information

OEM: HCMW5B-05-K
Service: See Catalog
Description: 5-Way M (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal/Multifunction Switch C4 (RHD)

Pin	Wire Color	Circuit No.	Function
1	PK	339	Ignition 1 Voltage
2	OG	192	Front Fog Lamp Switch Signal
3	BK	350	Ground
4	L-BU	187	Rear Fog Lamp Switch Signal (Export w/T79)
5	GY/BK	1884	Cruise Control Switch Signal (LP1/LY7)

Vanity Lamp Left

Connector Part Information

OEM: 12047781
Service: 12101864
Description: 3-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Vanity Lamp Left

Pin	Wire Color	Circuit No.	Function
A	BK	850	Ground
B	D-BU/WH	149	Courtesy Lamp Supply Voltage
C	RD/WH	3640	Battery Positive Voltage (UG1)

Vanity Lamp Right

Connector Part Information

OEM: 12047781
Service: 12101864
Description: 3-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: A, B,C
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Vanity Lamp Right

Pin	Wire Color	Circuit No.	Function
A	BK	850	Ground
B	D-BU/WH	149	Courtesy Lamp Supply Voltage
C	--	--	Not Used
