Inline Harness Connector End Views. Cadillac CTS 2006

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2006 🢒 CTS 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 5L40-E/5L50-E 🢒 Inline Harness Connector End Views

Connector 1:	C101 Engine Harness to Body Harness
Connector 2:	C102 Engine Harness to Body Harness
Connector 3:	C103 I/P Harness to Battery Harness
Connector 4:	C104 Engine Harness to I/P Harness (LP1/LY7)
Connector 5:	C105 Engine Harness to I/P Harness (LS2)
Connector 6:	C107 Engine Harness to I/P Harness
Connector 7:	C108 Forward Lamp Harness to Left Front Turn Signal/Fog Lamp Harness
Connector 8:	C109 Forward Lamp Harness to Right Front Turn Signal/Fog Lamp Harness
Connector 9:	C110 Forward Lamp Harness to Left Repeater Lamp Jumper Harness (Export)
Connector 10:	C111 Forward Lamp Harness to Right Repeater Lamp Jumper Harness (Export)
Connector 11:	C112 Engine to CAM Sensor (LS2)
Connector 12:	C114 - Forward Lamp Harness to Left Headlamp Harness (TR7)
Connector 13:	C114 - Forward Lamp Harness to Left Headlamp Harness (TT6)
Connector 14:	C114 - Forward Lamp Harness to Left Headlamp Harness (w/o TT6/TT7)
Connector 15:	C115 - Forward Lamp Harness to Right Headlamp Harness (TR7)
Connector 16:	C115 - Forward Lamp Harness to Right Headlamp Harness (TT6)
Connector 17:	C115 - Forward Lamp Harness to Right Headlamp Harness (w/o TT6/TR7)
Connector 18:	C113 Forward Lamp Harness to Engine Harness (LS2)
Connector 19:	C120 Engine Harness to POA Harness (LP1/LY7)
Connector 20:	C121 Engine Harness to Injector Harness (LP1/LY7)
Connector 21:	C131 Engine Harness to Odd Ignition Coils Harness (LS2)
Connector 22:	C132 Engine Harness to Even Ignition Coils Harness (LS2)
Connector 23:	C200 Body Harness to I/P Harness - Left
Connector 24:	C201 Body Harness to I/P Harness - Right
Connector 25:	C202 I/P Harness to Steering Column Harness
Connector 26:	C203 Steering Column Harness to Body Harness
Connector 27:	C204 Sunload Sensor Jumper Harness to I/P Harness
Connector 28:	C208 Steering Column Harness to Steering Wheel Controls Harness
Connector 29:	C300 Body Harness to Driver Seat Harness
Connector 30:	C301 Driver Seat Harness to Body Harness
Connector 31:	C302 Body Harness to I/P Harness - Right Center (Export- U2Y/U2X)
Connector 32:	C303 Body Harness to I/P Harness - Left Center
Connector 33:	C304 Console Harness to I/P Harness (RHD M82)
Connector 34:	C305 Headliner Harness to Body Harness
Connector 35:	C306 Passenger Seat Harness to Body Harness
Connector 36:	C307 Body Harness to Passenger Seat Harness
Connector 37:	C308 Headliner Harness to Body Harness
Connector 38:	C309 Headliner Harness to Sunroof Harness (CF5)
Connector 39:	C310 Sunroof Harness to Body Harness (CF5)
Connector 40:	C311 Headliner Harness to Body Harness
Connector 41:	C312 Console Harness to Body Harness
Connector 42:	C313 Console Harness to I/P Harness
Connector 43:	C321 I/P Harness to HVAC Harness (LHD)
Connector 44:	C321 I/P Harness to HVAC Harness (RHD)
Connector 45:	C322 Body Harness to Rear Shelf Harness
Connector 46:	C323 I/P Harness to HVAC Harness
Connector 47:	C410 Body Harness to Left Tail Lamp Harness
Connector 48:	C411 Body Harness to Right Tail Lamp Harness
Connector 49:	C420 Fuel Tank Harness to Body Harness (LP1/LY7)
Connector 50:	C421 Body Harness to License Lamp Assembly Harness (Domestic)
Connector 51:	C421 Body Harness to License Lamp Assembly Harness (Export)
Connector 52:	C422 Body Harness to Fuel Tank Harness (LS2)
Connector 53:	C500 Body Harness to Left Front Door Harness
Connector 54:	C501 Left Front Door Harness to Left Front Door Trim Harness
Connector 55:	C600 Body Harness to Right Front Door Harness
Connector 56:	C601 Right Front Door Harness to Right Front Door Trim Harness
Connector 57:	C700 Body Harness to Left Rear Door Harness
Connector 58:	C701 Left Rear Door Harness to Left Rear Door Trim Harness
Connector 59:	C800 Body Harness to Right Rear Door Harness
Connector 60:	C801 Right Rear Door Harness to Right Rear Door Trim Harness

C101 Engine Harness to Body Harness

Connector Part Information

OEM: 7283-5545-10
Service: 88952445
Description: 12-Way F 1.5 Series Weather-Pack (GY)

Connector Part Information

OEM: 7282-5545-10
Service: 88952435
Description: 12-Way M 1.5 Series Weather-Pack (GY)

Terminal Part Information

Pins: 1, 2, 3, 4, 6, 7, 8, 9, 11, 12
Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 5, 10
Terminal/Tray: 7116-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Terminal Part Information

Pins: 1, 2, 3, 4, 6
Terminal/Tray: 7114-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-3 (GY)

Pins: 5, 7, 8, 9, 10, 11, 12
Terminal/Tray: 7114-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-3 (GY)

C101 Engine Harness to Body Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	TN	884	Left Rear Wheel Speed Sensor Signal	1	TN	884	Left Rear Wheel Speed Sensor Signal
2	OG	885	Left Rear Wheel Speed Sensor Low Reference	2	OG	885	Left Rear Wheel Speed Sensor Low Reference
3	BN	882	Right Rear Wheel Speed Sensor Signal	3	BN	882	Right Rear Wheel Speed Sensor Signal
4	WH	883	Right Rear Wheel Speed Sensor Low Reference	4	WH	883	Right Rear Wheel Speed Sensor Low Reference
5	PK	39	Ignition 1 Voltage	5	PK	39	Ignition 1 Voltage
6	D-GN/WH	465	Fuel Pump Relay Control	6	D-GN/WH	465	Fuel Pump Relay Control
7	TN	452	Low Reference	7	TN	452	Low Reference
8	D-GN	890	Fuel Tank Pressure Sensor Signal	8	D-GN	890	Fuel Tank Pressure Sensor Signal
9	GY	596	5-Volt Reference	9	GY	596	5-Volt Reference
10	WH	1310	EVAP Canister Vent Solenoid Control	10	WH	1310	EVAP Canister Vent Solenoid Control
11	D-BU	1936	Fuel Level Sensor Signal - Primary	11	D-BU	1936	Fuel Level Sensor Signal - Primary
12	L-BU	1937	Fuel Level Sensor Signal - Secondary	12	L-BU	1937	Fuel Level Sensor Signal - Secondary

C102 Engine Harness to Body Harness

Connector Part Information

OEM: 7283-5946-30
Service: 88988239
Description: 10-Way F 1.5 Series Weather-Pack (BK)

Connector Part Information

OEM: 7282-5946-30
Service: 88952440
Description: 10-Way M 1.5 Series Weather-Pack (BK)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 8
Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 7, 9
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 7, 8, 9
Terminal/Tray: 7114-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-3 (GY)

C102 Engine Harness to Body Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	OG	5371	BAS Relay Coil Supply Voltage	1	OG	5371	BAS Relay Coil Supply Voltage
2	L-GN/BK	1338	Low Reference (JL4/J56)	2	L-GN/BK	1338	Low Reference (JL4/J56)
3	GY/BK	1337	5-Volt Reference (JL4/J56)	3	GY/BK	1337	5-Volt Reference (JL4/J56)
4	L-BU	715	Lateral Accelerometer Signal (JL4/J56)	4	L-BU	715	Lateral Accelerometer Signal (JL4/J56)
5	D-BU	716	Yaw Rate Sensor Signal (JL4/J56)	5	D-BU	716	Yaw Rate Sensor Signal (JL4/J56)
6	L-GN	5007	Backup Lamp Switch Signal (M35/M12/MN6)	6	L-GN	5007	Backup Lamp Switch Signal
7	PU	5128	Auxiliary Cooling Fan Relay Control (Export w/V92)	7	PU	5128	Auxiliary Cooling Fan Relay Control (Export w/V92)
8	BN	818	Vehicle Speed Signal	8	BN	818	Vehicle Speed Signal
9	PU	5526	Tap Up/Tap Down Switch Signal (M82)	9	PU	5526	Tap Up/Tap Down Switch Signal (M82)
10	--	--	Not Used	10	--	--	Not Used

C103 I/P Harness to Battery Harness

Connector Part Information

OEM: 7283-5548-30
Service: 88952831
Description: 2-Way F 1.5 Series Weather-Pack (BK)

Connector Part Information

OEM: 7282-5548-30
Service: 88952821
Description: 2-Way M 1.5 Series Weather-Pack (BK)

Terminal Part Information

Terminal/Tray: 7116-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Terminal Part Information

Pins: 1
Terminal/Tray: 7114-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-3 (GY)

C103 I/P Harness to Battery Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	BK/WH	51	Ground	1	BK/WH	51	Ground (LP1/LY7)
1	BK/WH	51	Ground	1	BK	51	Ground (LS2)
2	BN	100	Blunt Cut	2	--	--	Not Used

C104 Engine Harness to I/P Harness (LP1/LY7)

Connector Part Information

OEM: 15366099
Service: 15366099
Description: 24-Way F GT 150/280 Series Sealed (BK)

Connector Part Information

OEM: 15486591
Service: See Catalog
Description: 24-Way M GT 150/280 Series Sealed (BK)

Terminal Part Information

Pins: C1, A1, A2, A3, A8, B1, B2, B3, B6, B8, C2, C3, C6, C7, C8, A6, A7
Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins: C1, A1, A2, A3, A8, B1, B2, B3, B6, B8, C2, C3, C6, C7, C8 : E/A
Core/Insulation Crimp: Pins: A6, A7 : See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: A4, A5, B4, B5, C5
Terminal/Tray: 15304719/19
Core/Insulation Crimp: E/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: B7, C8
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: C1, A1, A2, A3, A4, A5, A6, A7, A8, B1, B2, B3, B4, B5, B6, B7, B8, C2, C3, C5, C6, C7, C8
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C104 Engine Harness to I/P Harness (LP1/LY7)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A1	L-GN	1763	Steering Wheel Position Signal A (JL4)	A1	L-GN	1763	Steering Wheel Position Signal A (JL4)
A2	L-BU	1764	Steering Wheel Position Signal B (JL4)	A2	L-BU	1764	Steering Wheel Position Signal B (JL4)
A3	WH	5359	5-Volt Reference	A3	WH	5359	5-Volt Reference
A4	BN	5360	Low Reference	A4	BN	5360	Low Reference
A5	YE	5361	Brake Pedal Position (BPP) Sensor Signal	A5	YE	5361	Brake Pedal Position (BPP) Sensor Signal
A6	WH	2500	High Speed GMLAN Serial Data Bus + (LY7)	A6	WH	2500	High Speed GMLAN Serial Data Bus + (LY7)
A7	L-GN	2501	High Speed GMLAN Serial Data Bus - (LY7)	A7	L-GN	2501	High Speed GMLAN Serial Data Bus - (LY7)
A8	PU	1807	Class 2 Serial Data	A8	PU	1807	Class 2 Serial Data
B1	PU	1272	Low Reference	B1	PU	1272	Low Reference
B2	L-BU	1162	APP Sensor 2 Signal	B2	L-BU	1162	APP Sensor 2 Signal
B3	TN	1274	5-Volt Reference	B3	TN	1274	5-Volt Reference
B4	BN	1271	Low Reference	B4	BN	1271	Low Reference
B5	D-BU	1161	APP Sensor 1 Signal	B5	D-BU	1161	APP Sensor 1 Signal
B6	WH/BK	1164	5-Volt Reference	B6	WH/BK	1164	5-Volt Reference
B7	PK	839	Ignition 1 Voltage	B7	PK	839	Ignition 1 Voltage
B8	BN/WH	379	CPP Switch Signal (M35)	B8	BN/WH	379	CPP Switch Signal
C1	PU	1807	Class 2 Serial Data	C1	PU	1807	Class 2 Serial Data
C2	WH	121	Engine Speed Signal	C2	WH	121	Engine Speed Signal
C3	D-BU	1537	ABS Indicator Signal	C3	D-BU	1537	ABS Indicator Signal
C4	--	--	Not Used	C4	--	--	Not Used
C5	GY	1884	Cruise Control Switch Signal (LP1/LY7)	C5	GY	1884	Cruise Control Switch Signal (LP1/LY7)
C6	YE	5	Crank Voltage	C6	YE	5	Crank Voltage
C7	BN/WH	419	MIL Control	C7	BN/WH	419	MIL Control
C8	PU/WH	1035	Starter Relay Coil Supply Voltage (M35)	C8	PU/WH	1035	Starter Relay Coil Supply Voltage
C8	PK	839	Ignition 1 Voltage (M82)	C8	PU/WH	1035	Starter Relay Coil Supply Voltage

C105 Engine Harness to I/P Harness (LS2)

Connector Part Information

OEM: 15326863
Service: 15306410
Description: 16-Way F GT 150 Series Sealed 4.0 (BK)

Connector Part Information

OEM: 15326868
Service: 15306364
Description: 16-Way M GT 150 Series Sealed 4.0 (BK)

Terminal Part Information

Pins: A, B, C, D, F, G, J, M, P, R
Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Terminal Part Information

Pins: A, B, C, D, F, G, J, M, P, R
Terminal/Tray: 15326269/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

C105 Engine Harness to I/P Harness (LS2)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	BK/WH	351	Ground	A	BK/WH	351	Ground
B	PU/WH	1035	Starter Relay Coil Supply Voltage	B	PU/WH	1035	Starter Relay Coil Supply Voltage
C	D-GN/WH	357	Oil Temperature Sensor Signal	C	D-GN/WH	357	Oil Temperature Sensor Signal
D	GY	1884	Cruise Control Switch Signal	D	GY	1884	Cruise Control Switch Signal
E	--	--	Not Used	E	--	--	Not Used
F	TN	2501	High Speed GMLAN Serial Data Bus -	F	TN	2501	High Speed GMLAN Serial Data Bus -
G	TN/BK	2500	High Speed GMLAN Serial Data Bus +	G	TN/BK	2500	High Speed GMLAN Serial Data Bus +
H	--	--	Not Used	H	--	--	Not Used
J	BN/WH	379	CPP Switch Signal	J	BN/WH	379	CPP Switch Signal
K-L	--	--	Not Used	K-L	--	--	Not Used
M	BN/WH	419	MIL Control	M	BN/WH	419	MIL Control
N	--	--	Not Used	N	--	--	Not Used
P	WH	121	Engine Speed Signal	P	WH	121	Engine Speed Signal
R	D-BU	1537	ABS Indicator Signal	R	D-BU	1537	ABS Indicator Signal
S	--	--	Not Used	S	--	--	Not Used

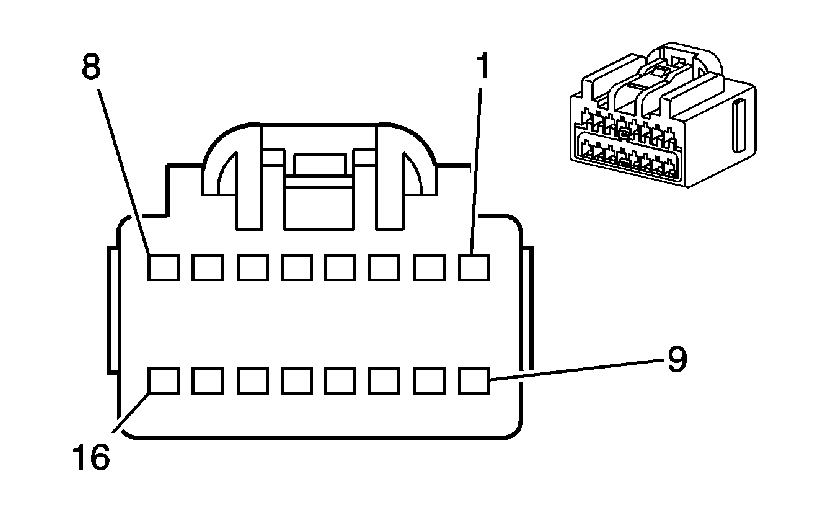

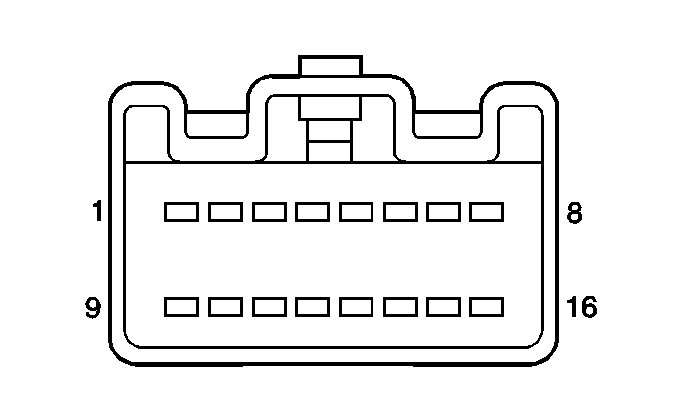

C107 Engine Harness to I/P Harness

Connector Part Information

OEM: 15326084
Service: 15306121
Description: 16-Way F GT 150/280 Series Sealed 4.0 (BK)

Connector Part Information

OEM: 15326085
Service: 15306122
Description: 16-Way M GT 150/280 Series Sealed 4.0 (BK)

Terminal Part Information

Pins: B, C, D, E, F, G, K, L, M, N, P
Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: A, H, J
Terminal/Tray: 15304719/19
Core/Insulation Crimp: E/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Terminal Part Information

Pins: B, C, D, E, F, G, K, L, M, N, P
Terminal/Tray: 15326269/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: A, H, J
Terminal/Tray: 15304731/19
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-5 (PU)

C107 Engine Harness to I/P Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	YE	5	Crank Voltage	A	YE	5	Crank Voltage
B	PU	1272	Low Reference	B	PU	1272	Low Reference
C	L-BU	1162	Accelerator Pedal Position Sensor 2 Signal	C	L-BU	1162	Accelerator Pedal Position Sensor 2 Signal
D	TN	1274	5-Volt Reference	D	TN	1274	5-Volt Reference
E	BN	1271	Low Reference	E	BN	1271	Low Reference
F	D-BU	1161	Accelerator Pedal Position Sensor 1 Signal	F	D-BU	1161	Accelerator Pedal Position Sensor 1 Signal
G	WH/BK	1164	5-Volt Reference	G	WH/BK	1164	5-Volt Reference
H	L-GN	1763	Steering Wheel Position Signal A	H	L-GN	1763	Steering Wheel Position Signal A
J	L-BU	1764	Steering Wheel Position Signal B	J	L-BU	1764	Steering Wheel Position Signal B
K	WH	5359	5-Volt Reference	K	WH	5359	5-Volt Reference
L	BN	5360	Low Reference	L	BN	5360	Low Reference
M	YE	5361	Brake Pedal Position (BPP) Sensor Signal	M	YE	5361	Brake Pedal Position (BPP) Sensor Signal
N	PU	1807	Class 2 Serial Data	N	PU	1807	Class 2 Serial Data
P	PU	1807	Class 2 Serial Data	P	PU	1807	Class 2 Serial Data
R-S	--	--	Not Used	R-S	--	--	Not Used

C108 Forward Lamp Harness to Left Front Turn Signal/Fog Lamp Harness

Connector Part Information

OEM: 12162144
Service: 12102741
Description: 4-Way F Metri-Pack 150 Series (BK)

Connector Part Information

OEM: 12162102
Service: 15305839
Description: 4-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: B, C, D, A, B
Terminal/Tray: 12048074/2
Core/Insulation Crimp: Pins: B, C, D : E/1
Core/Insulation Crimp: Pins: A, B : See Terminal Repair Kit
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C108 Forward Lamp Harness to Left Front Turn Signal/Fog Lamp Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	PU	2234	Front Fog Lamp Supply Voltage	A	WH	2234	Front Fog Lamp Supply Voltage
B	D-BU	5364	Left DRL/Turn Supply Voltage (Domestic)	B	WH	5364	Left DRL/Turn Supply Voltage (Domestic)
B	L-BU/WH	1314	Left Turn Signal Indicator Lamp Supply Voltage (Export w/T62/T65)	B	WH	1314	Left Turn Signal Indicator Lamp Supply Voltage (Export w/T62/T65)
C	BK	250	Ground	C	WH	250	Ground
D	BK	250	Ground	D	WH	250	Ground

C109 Forward Lamp Harness to Right Front Turn Signal/Fog Lamp Harness

Connector Part Information

OEM: 12162144
Service: 12102741
Description: 4-Way F Metri-Pack 150 Series (BK)

Connector Part Information

OEM: 12162102
Service: 15305839
Description: 4-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: C, D, A, B
Terminal/Tray: 12048074/2
Core/Insulation Crimp: Pins: C, D : E/1
Core/Insulation Crimp: Pins: A, B : See Terminal Repair Kit
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C109 Forward Lamp Harness to Right Front Turn Signal/Fog Lamp Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	PU	2234	Front Fog Lamp Supply Voltage	A	WH	2234	Front Fog Lamp Supply Voltage
B	D-GN	5365	Right DRL/Turn Supply Voltage (Domestic)	B	WH	5365	Right DRL/Turn Supply Voltage (Domestic)
B	D-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage (Export w/T62/T65)	B	WH	1315	Right Turn Signal Indicator Lamp Supply Voltage (Export w/T62/T65)
C	BK	250	Ground	C	WH	250	Ground
D	BK	250	Ground	D	WH	250	Ground

C110 Forward Lamp Harness to Left Repeater Lamp Jumper Harness (Export)

Connector Part Information

OEM: 12015792
Service: 12126452
Description: 2-Way F Weather-Pack (BK)

Connector Part Information

OEM: 12010973
Service: 12085524
Description: 2-Way M Weather-Pack (BK)

Terminal Part Information

Terminal/Tray: 12089188/3
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12014012-1/J-35616-8 (OG)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C110 Forward Lamp Harness to Left Repeater Lamp Jumper Harness (Export)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	L-BU/WH	1314	Left Turn Signal Indicator Lamp Supply Voltage	A	L-BU/WH	1314	Left Turn Signal Indicator Lamp Supply Voltage
B	BK	250	Ground	B	BK	250	Ground

C111 Forward Lamp Harness to Right Repeater Lamp Jumper Harness (Export)

Connector Part Information

OEM: 12015792
Service: 12126452
Description: 2-Way F Weather-Pack (BK)

Connector Part Information

OEM: 12010973
Service: 12085524
Description: 2-Way M Weather-Pack (BK)

Terminal Part Information

Terminal/Tray: 12089188/3
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12014012-1/J-35616-8 (OG)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C111 Forward Lamp Harness to Right Repeater Lamp Jumper Harness (Export)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	D-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage	A	D-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage
B	BK	250	Ground	B	BK	250	Ground

C112 Engine to CAM Sensor (LS2)

Connector Part Information

OEM: 12110293
Service: 12117025
Description: 3-Way F Metri-Pack 150 Series (BK)

Connector Part Information

OEM: 12129615
Service: 15305889
Description: 3-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C112 Engine to CAM Sensor (LS2)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	OG	631	12-Volt Reference	A	OG	631	12-Volt Reference
B	PK/BK	632	Low Reference	B	PK/BK	632	Low Reference
C	BN/WH	633	CMP Sensor	C	BN/WH	633	CMP Sensor

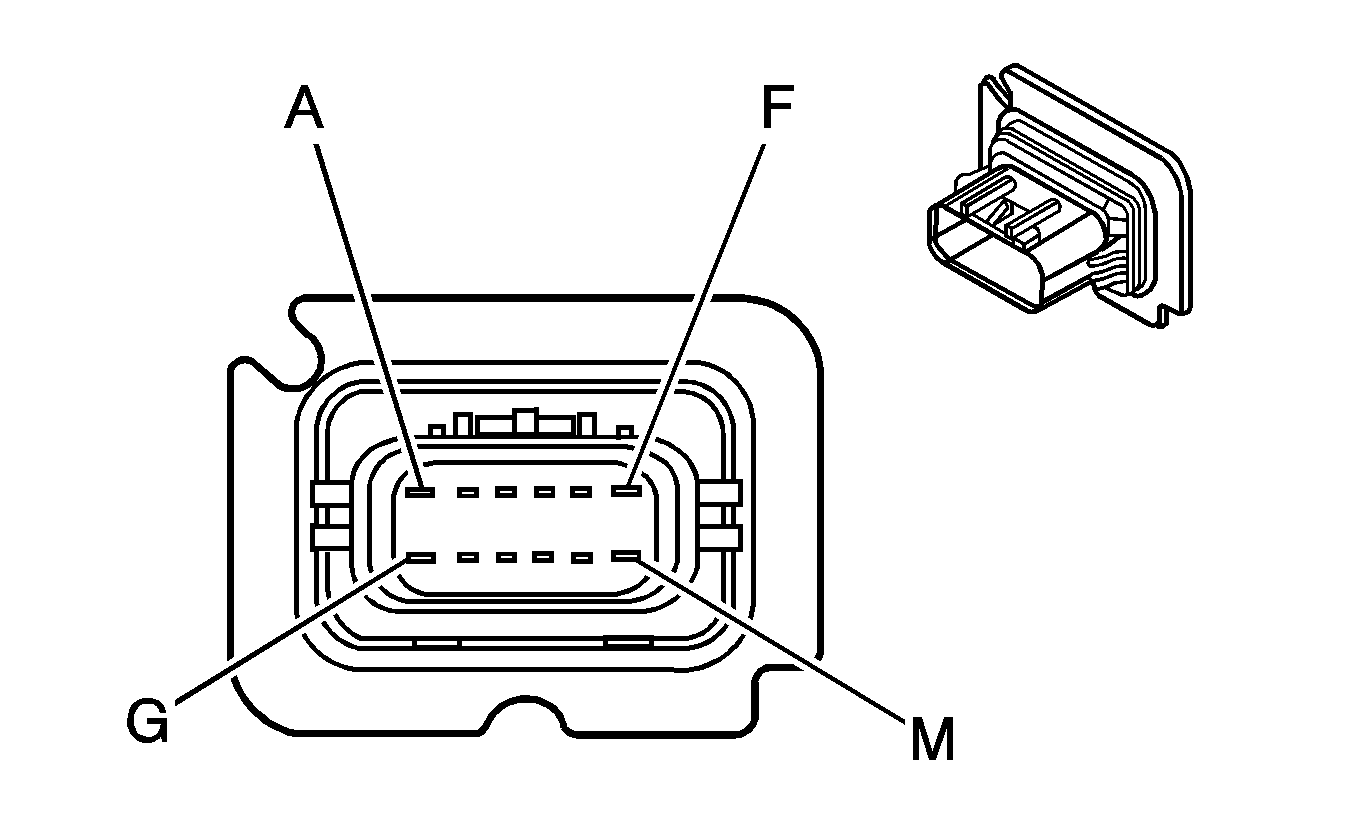

C114 - Forward Lamp Harness to Left Headlamp Harness (TR7)

Connector Part Information

OEM: 15373533
Service: 88988438
Description: 12-Way F GT 150/ 280 Mixed Series

Connector Part Information

OEM: 15373527
Service: See Catalog
Description: 12-Way M GT 150/280 Series

Terminal Part Information

Pins: B, C, D, E, H, K
Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: F, G, M
Terminal/Tray: 15304719/19
Core/Insulation Crimp: E/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: A
Terminal/Tray: 15304720/19
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Terminal Part Information

Pins: A, B, C, D, E, F, G, H, K, M
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C114 - Forward Lamp Harness to Left Headlamp Harness (TR7)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	TN/WH	712	Left Headlamp Low Beam Supply Voltage	A	TN/WH	712	Left Headlamp Low Beam Supply Voltage
B	BN/WH	1472	Left Park Lamp Supply Voltage	B	BN/WH	1472	Left Park Lamp Supply Voltage
C	WH/BK	5043	Keyword 2000 Serial Data	C	WH/BK	5043	Keyword 2000 Serial Data
D	GY	868	Headlamp Leveling Switch Bit 1 Signal	D	GY	868	Headlamp Leveling Switch Bit 1 Signal
E	GY	868	Headlamp Leveling Switch Bit 1 Signal	E	GY	868	Headlamp Leveling Switch Bit 1 Signal
F	BK	250	Ground	F	BK	250	Ground
G	L-GN/BK	711	Left Headlamp High Beam Supply Voltage	G	L-GN/BK	711	Left Headlamp High Beam Supply Voltage
H	PK	1439	Ignition 1 Voltage	H	PK	1439	Ignition 1 Voltage
J	--	--	Not Used	J	--	--	Not Used
K	BN/WH	709	Left Park Lamp Supply Voltage	K	BN/WH	709	Left Park Lamp Supply Voltage
L	--	--	Not Used	L	--	--	Not Used
M	BK	250	Ground	M	BK	250	Ground

C114 - Forward Lamp Harness to Left Headlamp Harness (TT6)

Connector Part Information

OEM: 15373535
Service: 15373535
Description: 12-Way F GT 150/ 280 Mixed Series (GY)

Connector Part Information

OEM: 15373529
Service: See Catalog
Description: 12-Way M GT 150/280 Series (WH)

Terminal Part Information

Pins: B-E
Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: A
Terminal/Tray: 15304720/19
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Terminal Part Information

Pins: A-E
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C114 - Forward Lamp Harness to Left Headlamp Harness (TT6)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	YE	712	Left Headlamp Low Beam Supply Voltage	A	YE	712	Left Headlamp Low Beam Supply Voltage
B	D-GN/WH	711	Left Headlamp High Beam Supply Voltage	B	D-GN/WH	711	Left Headlamp High Beam Supply Voltage
C	PU	709	Left Park Lamp Supply Voltage	C	PU	709	Left Park Lamp Supply Voltage
D	BK	250	Ground	D	BK	250	Ground
E	BK	250	Ground	E	BK	250	Ground
F-M	--	--	Not Used	F-M	--	--	Not Used

C114 - Forward Lamp Harness to Left Headlamp Harness (w/o TT6/TT7)

Connector Part Information

OEM: 15326939
Service: 88988440
Description: 12-Way F GT 150/280 Series

Connector Part Information

OEM: 15373526
Service: See Catalog
Description: 12-Way M GT 150/280 Series

Terminal Part Information

Pins: B-D
Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins: D : 2/A
Core/Insulation Crimp: Pins: B, C : E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: A
Terminal/Tray: 15304720/19
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Terminal Part Information

Pins: A-D
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C114 - Forward Lamp Harness to Left Headlamp Harness (w/o TT6/TT7)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	YE	712	Left Headlamp Low Beam Supply Voltage	A	TN/WH	712	Left Headlamp Low Beam Supply Voltage
B	D-GN/WH	711	Left Headlamp High Beam Supply Voltage	B	L-GN/BK	711	Left Headlamp High Beam Supply Voltage
C	PU	709	Left Park Lamp Supply Voltage	C	BN/WH	709	Left Park Lamp Supply Voltage
D	BK	250	Ground	D	BK	250	Ground
E-M	--	--	Not Used	E-M	--	--	Not Used

C115 - Forward Lamp Harness to Right Headlamp Harness (TR7)

Connector Part Information

OEM: 15373533
Service: 88988438
Description: 12-Way F GT 150/ 280 Mixed Series

Connector Part Information

OEM: 15373527
Service: See Catalog
Description: 12-Way M GT 150/280 Series

Terminal Part Information

Pins: B, C, D, E, H, K
Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: F, G, M
Terminal/Tray: 15304719/19
Core/Insulation Crimp: E/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: A
Terminal/Tray: 15304720/19
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Terminal Part Information

Pins: A, B, C, D, E, F, G, H, K, M
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C115 - Forward Lamp Harness to Right Headlamp Harness (TR7)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	TN/WH	312	Right Headlamp Low Beam Supply Voltage	A	TN/WH	312	Right Headlamp Low Beam Supply Voltage
B	BN/WH	1473	Right Park Lamp Supply Voltage	B	BN/WH	1473	Right Park Lamp Supply Voltage
C	WH/BK	5043	Keyword 2000 Serial Data	C	WH/BK	5043	Keyword 2000 Serial Data
D	GY	868	Headlamp Leveling Switch Bit 1 Signal	D	GY	868	Headlamp Leveling Switch Bit 1 Signal
E	GY	868	Headlamp Leveling Switch Bit 1 Signal	E	GY	868	Headlamp Leveling Switch Bit 1 Signal
F	BK	250	Ground	F	BK	250	Ground
G	L-GN/BK	311	Right Headlamp High Beam Supply Voltage	G	L-GN/BK	311	Right Headlamp High Beam Supply Voltage
H	PK	1439	Ignition 1 Voltage	H	PK	1439	Ignition 1 Voltage
J	--	--	Not Used	J	--	--	Not Used
K	BN/WH	309	Right Park Lamp Supply Voltage	K	BN/WH	309	Right Park Lamp Supply Voltage
L	--	--	Not Used	L	--	--	Not Used
M	BK	250	Ground	M	BK	250	Ground

C115 - Forward Lamp Harness to Right Headlamp Harness (TT6)

Connector Part Information

OEM: 15373535
Service: 15373535
Description: 12-Way F GT 150/ 280 Mixed Series (GY)

Connector Part Information

OEM: 15373529
Service: See Catalog
Description: 12-Way M GT 150/280 Series

Terminal Part Information

Pins: B-E
Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: A
Terminal/Tray: 15304720/19
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Terminal Part Information

Pins: A-E
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C115 - Forward Lamp Harness to Right Headlamp Harness (TT6)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	TN/WH	312	Right Headlamp Low Beam Supply Voltage	A	TN/WH	312	Right Headlamp Low Beam Supply Voltage
B	L-GN/BK	311	Right Headlamp High Beam Supply Voltage	B	L-GN/BK	311	Right Headlamp High Beam Supply Voltage
C	BN/WH	309	Right Park Lamp Supply Voltage	C	BN/WH	309	Right Park Lamp Supply Voltage
D	BK	250	Ground	D	BK	250	Ground
E	BK	250	Ground	E	BK	250	Ground
F-M	--	--	Not Used	F-M	--	--	Not Used

C115 - Forward Lamp Harness to Right Headlamp Harness (w/o TT6/TR7)

Connector Part Information

OEM: 15326939
Service: 88988440
Description: 12-Way F GT 150/ 280 Series

Connector Part Information

OEM: 15373526
Service: See Catalog
Description: 12-Way M GT 150/280 Series

Terminal Part Information

Pins: B-D
Terminal/Tray: 12191819/8
Core/Insulation Crimp: Pins: D : 2/A
Core/Insulation Crimp: Pins: B, C : E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: A
Terminal/Tray: 15304720/19
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Terminal Part Information

Pins: A-D
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C115 - Forward Lamp Harness to Right Headlamp Harness (w/o TT6/TR7)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	TN/WH	312	Right Headlamp Low Beam Supply Voltage	A	TN/WH	312	Right Headlamp Low Beam Supply Voltage
B	L-GN/BK	311	Right Headlamp High Beam Supply Voltage	B	L-GN/BK	311	Right Headlamp High Beam Supply Voltage
C	BN/WH	309	Right Park Lamp Supply Voltage	C	BN/WH	309	Right Park Lamp Supply Voltage
D	BK	250	Ground	D	BK	250	Ground
E-M	--	--	Not Used	E-M	--	--	Not Used

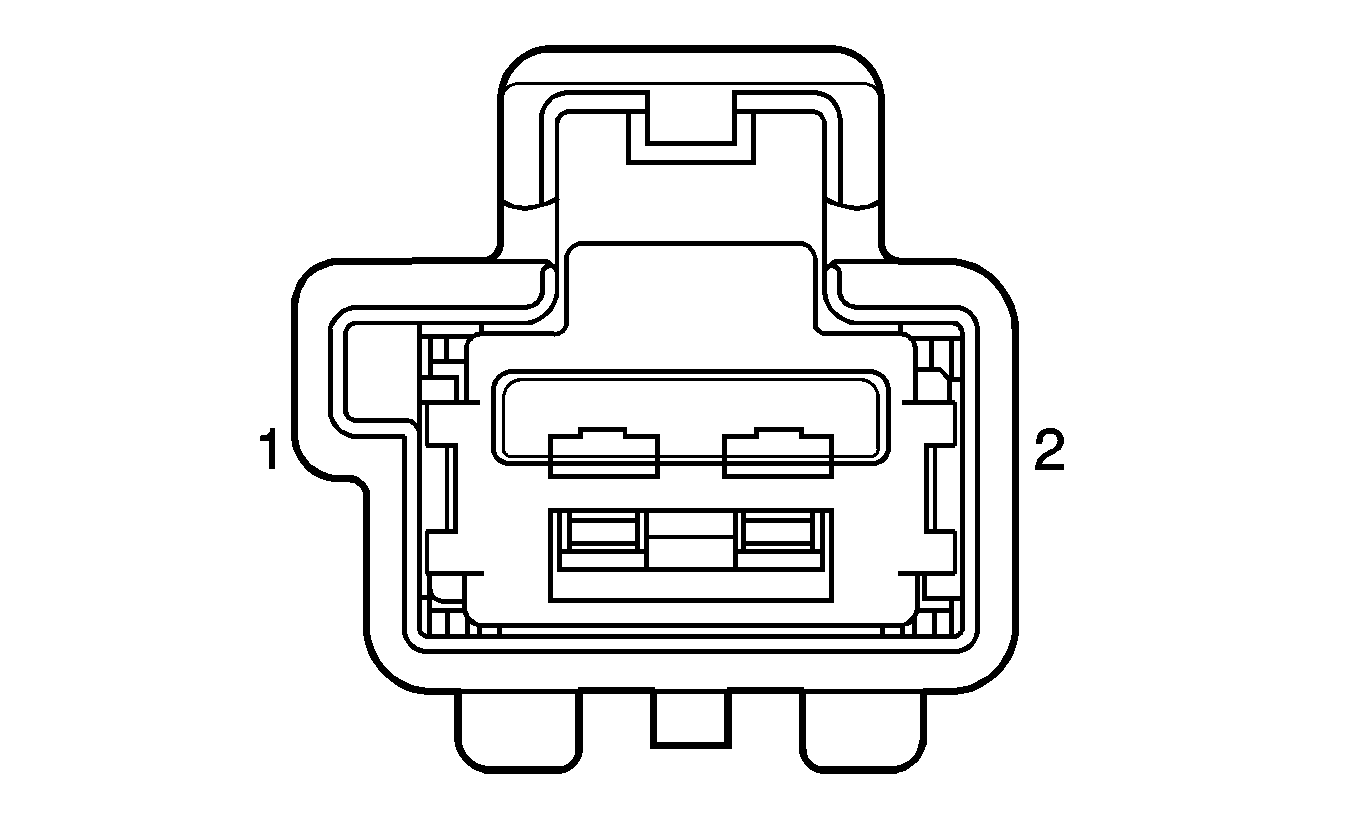

C113 Forward Lamp Harness to Engine Harness (LS2)

Connector Part Information

OEM: 7283-5596-10
Service: 88952832
Description: 2-Way F Yazaki (BK)

Connector Part Information

OEM: 7282-5596-10
Service: 88952822
Description: 2-Way M Yazaki (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Terminal/Tray: 7114-4142-02/10
Core/Insulation Crimp: D/3
Release Tool/Test Probe: 12094430/J-35616-43 (RD)

C113 Forward Lamp Harness to Engine Harness (LS2)

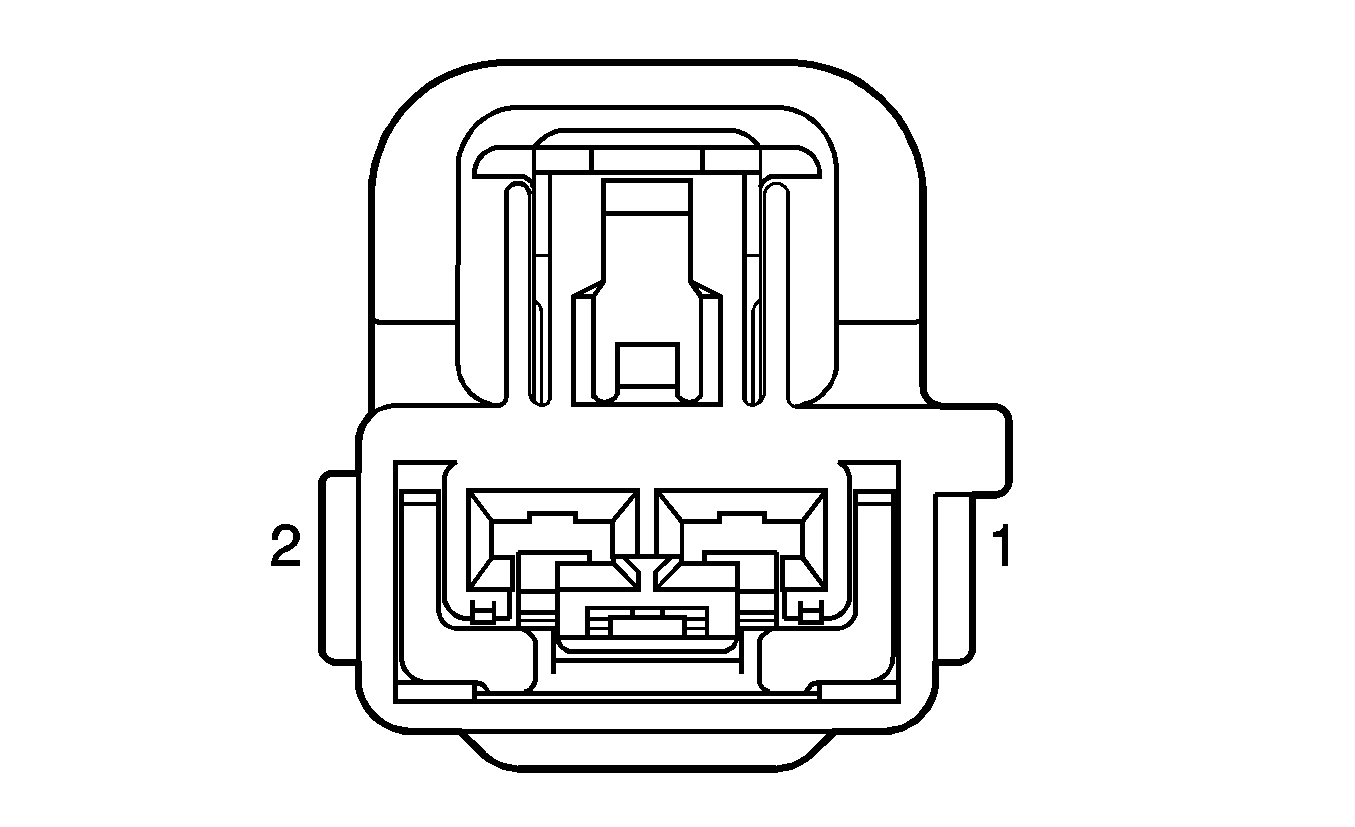

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	BK	1150	Ground	1	BK	1150	Ground
2	BK	1150	Ground	2	BK	1150	Ground

C120 Engine Harness to POA Harness (LP1/LY7)

Connector Part Information

OEM: 12059472
Service: 12101830
Description: 7-Way F Metri-Pack 150/480 Series (BK)

Connector Part Information

OEM: 12052200
Service: 12117321
Description: 7-Way M Metri-Pack 150/480 Series (BK)

Terminal Part Information

Pins: C, A, D, F
Terminal/Tray: 12048074/2
Core/Insulation Crimp: Pins: C : E/1
Core/Insulation Crimp: Pins: A, D, F : 2/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Pins: G
Terminal/Tray: 12048451/2
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Pins: E
Terminal/Tray: 12052139/18
Core/Insulation Crimp: F/3
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Terminal Part Information

Pins: A, C, D, E, F, G
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C120 Engine Harness to POA Harness (LP1/LY7)

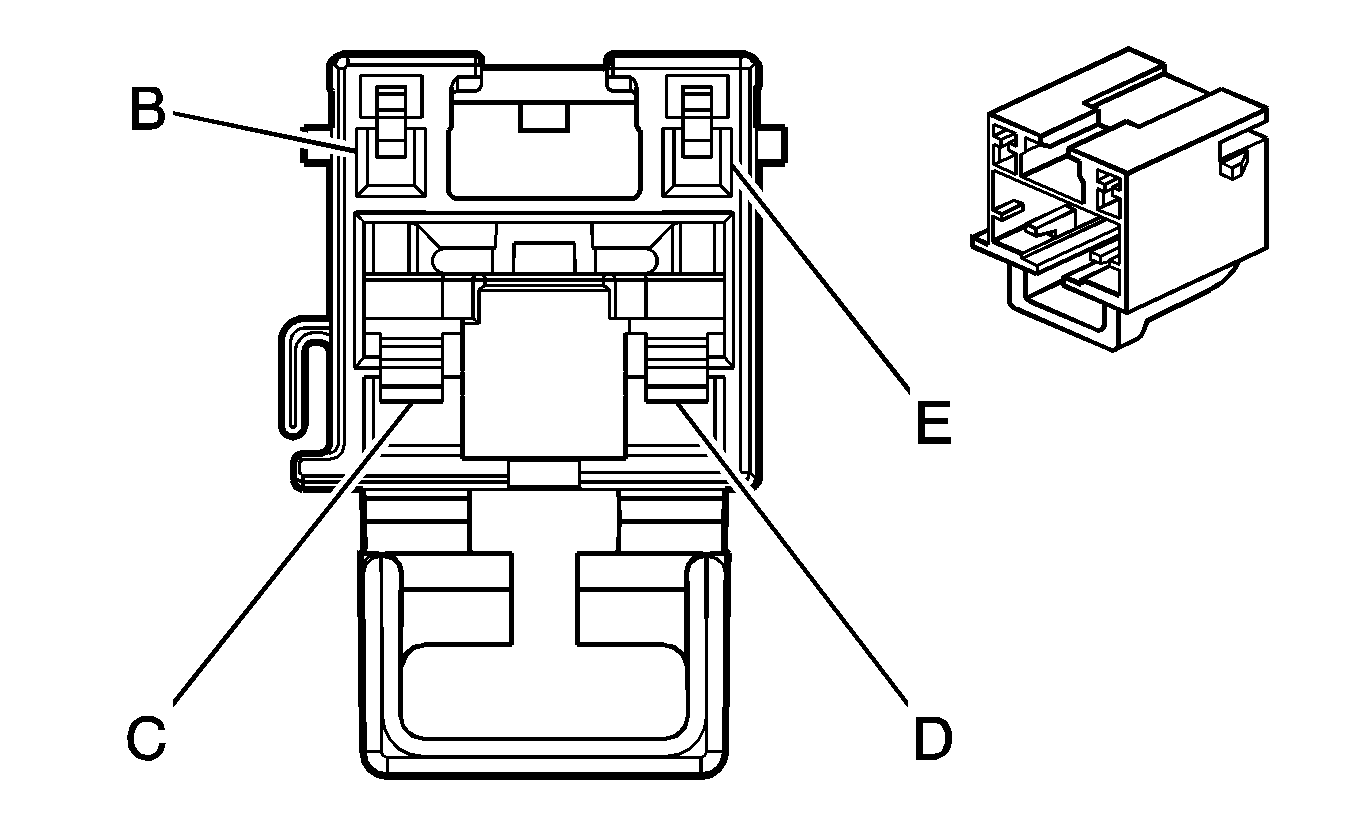

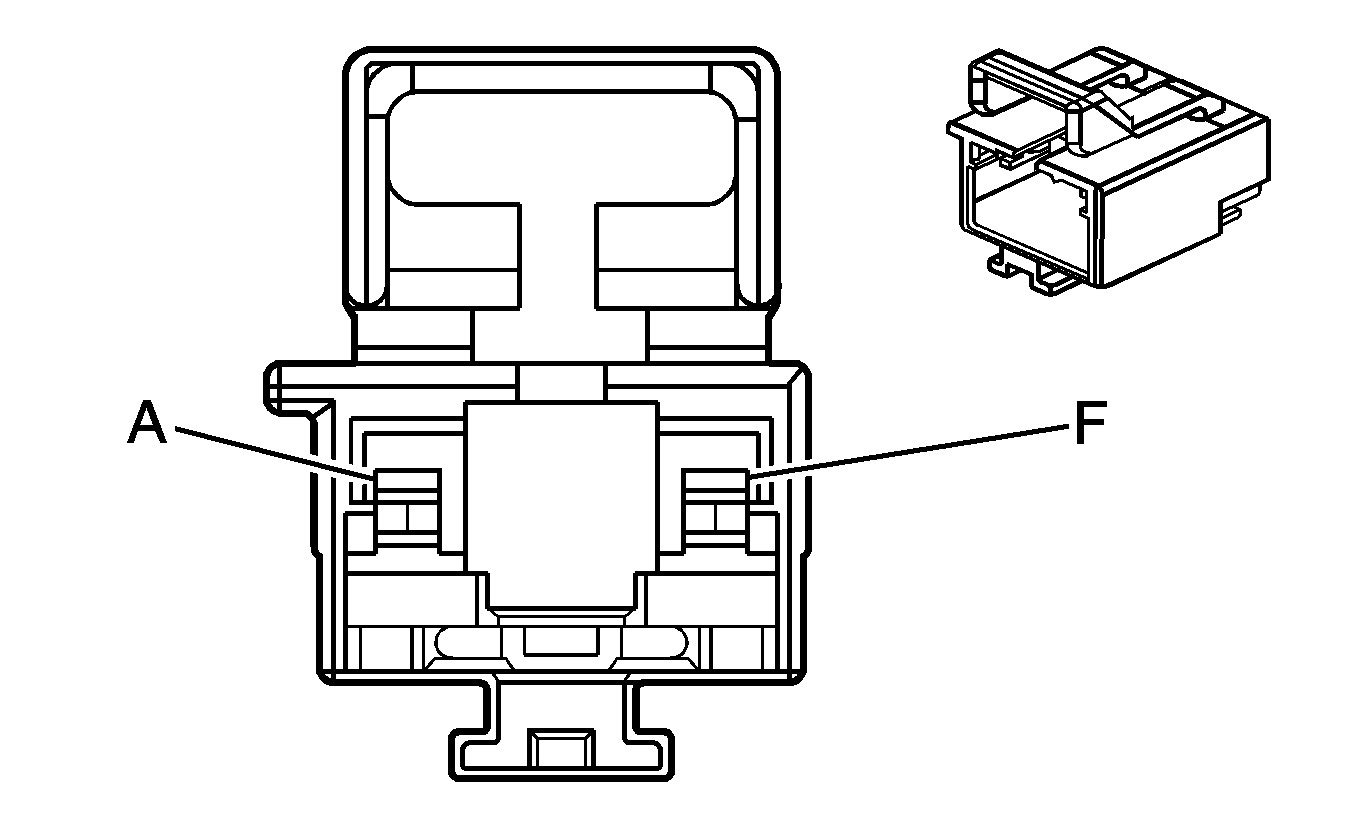

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	PK/BK	5291	Ignition 1 Voltage	A	PK/BK	5291	Ignition 1 Voltage
B	--	--	Not Used	B	--	--	Not Used
C	D-GN	59	A/C Compressor Clutch Supply Voltage	C	D-GN	59	A/C Compressor Clutch Supply Voltage
D	PK/BK	5292	Ignition 1 Voltage	D	PK/BK	5292	Ignition 1 Voltage
E	PU	6	Starter Solenoid Crank Voltage	E	PU	6	Starter Solenoid Crank Voltage
F	PK/BK	5293	Ignition 1 Voltage	F	PK/BK	5293	Ignition 1 Voltage
G	BK/WH	1451	Ground (M82)	G	BK/WH	1451	Ground (M82)

C121 Engine Harness to Injector Harness (LP1/LY7)

Connector Part Information

OEM: 1-967189-1
Service: See Catalog
Description: 10-Way F Amp (BK)

Connector Part Information

OEM: 1-9623521-1
Service: 88988772
Description: 10-Way M Amp (BK)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 7, 8
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 7, 8
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C121 Engine Harness to Injector Harness (LP1/LY7)

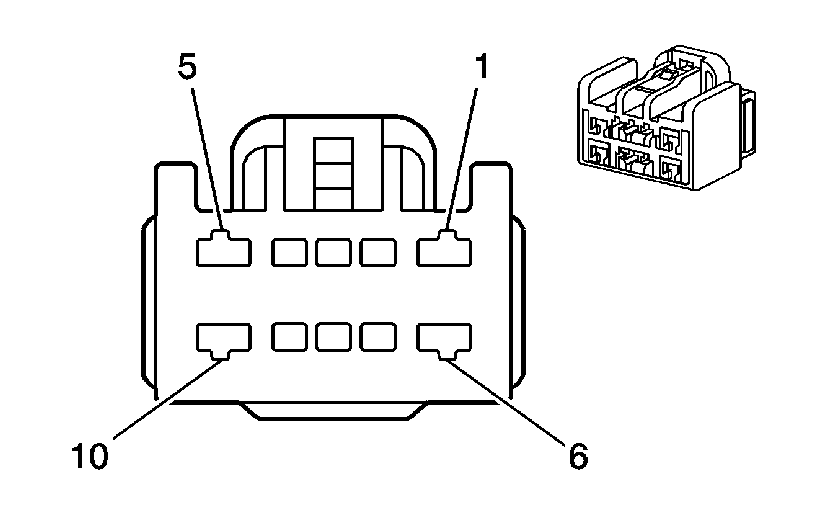

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	WH	5291	Ignition 1 Voltage	1	WH	5291	Ignition 1 Voltage
2	WH	5292	Ignition 1 Voltage	2	WH	5292	Ignition 1 Voltage
3	TN	1744	Fuel Injector 1 Control	3	TN	1744	Fuel Injector 1 Control
4	PK/BK	1746	Fuel Injector 3 Control	4	PK/BK	1746	Fuel Injector 3 Control
5	TN/WH	845	Fuel Injector 5 Control	5	TN/WH	845	Fuel Injector 5 Control
6	L-GN/BK	1745	Fuel Injector 2 Control	6	L-GN/BK	1745	Fuel Injector 2 Control
7	D-BU/BK	844	Fuel Injector 4 Control	7	L-BU/BK	844	Fuel Injector 4 Control
8	YE/BK	846	Fuel Injector 6 Control	8	YE/BK	846	Fuel Injector 6 Control
9-10	--	--	Not Used	9-10	--	--	Not Used

C131 Engine Harness to Odd Ignition Coils Harness (LS2)

Connector Part Information

OEM: 12047938
Service: 12102754
Description: 7-Way F Metri-Pack 150 Series Sealed (GY)

Connector Part Information

OEM: 12047933
Service: 12102490
Description: 7-Way M Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Pins: A, B, C, E, F, G, H
Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Terminal Part Information

Pins: A, B, C, E, F, G, H
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C131 Engine Harness to Odd Ignition Coils Harness (LS2)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	BK/WH	1451	Ground	A	BK	1451	Ground
B	OG	2127	IC 7 Control	B	RD	2127	IC 7 Control
C	D-GN	2125	IC 5 Control	C	D-GN	2125	IC 5 Control
D	--	--	Not Available	D	--	--	Not Available
E	BN	2129	Low Reference	E	BN	2129	Low Reference
F	L-BU	2123	IC 3 Control	F	L-BU	2123	IC 3 Control
G	PU	2121	IC 1 Control	G	PU	2121	IC 1 Control
H	PK/BK	5291	Ignition 1 Voltage	H	PK	5291	Ignition 1 Voltage

C132 Engine Harness to Even Ignition Coils Harness (LS2)

Connector Part Information

OEM: 12047938
Service: 12102754
Description: 7-Way F Metri-Pack 150 Series Sealed (GY)

Connector Part Information

OEM: 12047933
Service: 12102490
Description: 7-Way M Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Pins: A, B, C, E, F, G, H
Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Terminal Part Information

Pins: A, B, C, E, F, G, H
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C132 Engine Harness to Even Ignition Coils Harness (LS2)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	BK/WH	1551	Ground	A	BK	1551	Ground
B	RD/WH	2122	IC 2 Control	B	RD	2122	IC 2 Control
C	D-GN/WH	2124	IC 4 Control	C	D-GN	2124	IC 4 Control
D	--	--	Not Available	D	--	--	Not Available
E	BN/WH	2130	Low Reference	E	BN	2130	Low Reference
F	L-BU/WH	2126	IC 6 Control	F	L-BU	2126	IC 6 Control
G	PU/WH	2128	IC 8 Control	G	PU	2128	IC 8 Control
H	PK/BK	5292	Ignition 1 Voltage	H	PK	5292	Ignition 1 Voltage

C200 Body Harness to I/P Harness - Left

Connector Part Information

OEM: 7283-6376-30
Service: 88952809
Description: 26-Way F Hybrid (BK)

Connector Part Information

OEM: 7282-6376-30
Service: 88952802
Description: 26-Way M Hybrid (BK)

Terminal Part Information

Pins: 1
Terminal/Tray: 7116-4120-02/9
Core/Insulation Crimp: E/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Pins: 2, 3, 4, 5, 6, 7, 11, 12, 13, 14, 15, 16, 18, 19, 22, 24
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 9, 10
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 17
Terminal/Tray: 7116-4111-02/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Pins: 25
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pins: 8
Terminal/Tray: 7116-4121-02/10
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Terminal Part Information

Pins: 17
Terminal/Tray: 7114-4111-02/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

Pins: 1, 8
Terminal/Tray: 7114-4120-02/9
Core/Insulation Crimp: E/B
Release Tool/Test Probe: 12094430/J-35616-43 (RD)

Pins: 2, 3, 5, 6, 7, 9, 10, 11, 12, 13, 14, 15, 16, 18, 19, 22, 24
Terminal/Tray: 7114-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 4, 25
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C200 Body Harness to I/P Harness - Left

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	BK	350	Ground	1	BK	350	Ground
2	PU	1807	Class 2 Serial Data	2	PU	1807	Class 2 Serial Data
3	BK/WH	351	Ground	3	BK/WH	351	Ground
4	D-GN	5525	Tap Up/Tap Down Enable Signal	4	D-GN	5525	Tap Up/Tap Down Enable Signal (M82)
5	PK/BK	1597	Courtesy Lamps Switch On Signal	5	PK/BK	1597	Courtesy Lamps Switch On Signal
6	YE	1834	Forward Discriminating Sensor Signal	6	YE	1834	Forward Discriminating Sensor Signal
7	TN/OG	5045	Discriminating Sensor - Low Reference	7	TN/OG	5045	Discriminating Sensor - Low Reference
8	D-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage	8	D-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage
8	D-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage	8	D-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage
9	D-BU/WH	149	Courtesy Lamp Supply Voltage	9	D-BU/WH	149	Courtesy Lamp Supply Voltage
9	D-BU/WH	149	Courtesy Lamp Supply Voltage	9	D-BU/WH	149	Courtesy Lamp Supply Voltage
10	GY	157	Courtesy Lamp Control	10	GY	157	Courtesy Lamp Control
10	GY	157	Courtesy Lamp Control	10	GY	157	Courtesy Lamp Control
11	YE	32	Instrument Panel Lamp Fuse Supply Voltage 1 (w/o T79)	11	YE	32	Instrument Panel Lamp Fuse Supply Voltage 1 (w/o T79)
12	PU	709	Left Park Lamp Supply Voltage (w/o T79)	12	PU	709	Left Park Lamp Supply Voltage (w/o T79)
13	D-GN	44	Instrument Panel Lamps Dimmer Switch Signal	13	D-GN	44	Instrument Panel Lamps Dimmer Switch Signal
14	YE	5005	Instrument Panel Lamps Dimmer Switch Low Reference	14	YE	5005	Instrument Panel Lamps Dimmer Switch Low Reference
15	OG	300	Ignition 3 Voltage	15	OG	300	Ignition 3 Voltage
16	PK	3	Ignition 1 Voltage	16	PK	3	Ignition 1 Voltage
17	L-BU/WH	1314	Left Turn Signal Indicator Lamp Supply Voltage	17	L-BU/WH	1314	Left Turn Signal Indicator Lamp Supply Voltage
18	L-BU/BK	1688	5-Volt Reference	18	L-BU/BK	1688	5-Volt Reference
19	PU/WH	5025	Ignition Lock Cylinder Control Actuator Supply Voltage	19	PU/WH	5025	Ignition Lock Cylinder Control Actuator Supply Voltage
20-21	--	--	Not Used	20-21	--	--	Not Used
22	BN	41	Ignition 3 Voltage	22	BN	41	Ignition 3 Voltage
23	--	--	Not Used	23	--	--	Not Used
24	BN	141	Ignition 3 Voltage	24	BN	141	Ignition 3 Voltage
25	PK/BK	5292	Ignition 1 Voltage (V92)	25	PK/BK	5292	Ignition 1 Voltage (V92)
26	--	--	Not Used	26	--	--	Not Used

C201 Body Harness to I/P Harness - Right

Connector Part Information

OEM: 7283-6376-30
Service: 88952809
Description: 26-Way F Hybrid (BK)

Connector Part Information

OEM: 7282-6376-30
Service: 88952802
Description: 26-Way M Hybrid (BK)

Terminal Part Information

Pins: 26
Terminal/Tray: 7116-4110-02/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Pins: 5, 6, 7, 10, 11, 14, 23
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 3, 4, 18
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 17
Terminal/Tray: 7116-4111-02/9
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Pins: 1
Terminal/Tray: 7116-4122-02/10
Core/Insulation Crimp: D/G
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Pins: 8
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: 17
Terminal/Tray: 7114-4110-02/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

Pins: 7
Terminal/Tray: 7114-4101-08/9
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 3, 4, 5, 6, 10, 11, 14, 18, 23
Terminal/Tray: 7114-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 1
Terminal/Tray: 7114-4122-02/9
Core/Insulation Crimp: D/G
Release Tool/Test Probe: 12094430/J-35616-43 (RD)

Pins: 8, 26
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C201 Body Harness to I/P Harness - Right

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	BK	450	Ground	1	BK	450	Ground
2	--	--	Not Used	2	--	--	Not Used
3	GY/BK	1337	5-Volt Reference (JL4/J56)	3	GY/BK	1337	5-Volt Reference (JL4/J56)
3	GY/BK	1337	5-Volt Reference (JL4/J56)	3	GY/BK	1337	5-Volt Reference (JL4/J56)
4	L-GN/BK	1338	Low Reference (JL4/J56)	4	L-GN/BK	1338	Low Reference (JL4/J56)
4	L-GN/BK	1338	Low Reference (JL4/J56)	4	L-GN/BK	1338	Low Reference (JL4/J56)
5	PU	1807	Class 2 Serial Data	5	PU	1807	Class 2 Serial Data
6	RD/WH	540	Battery Positive Voltage	6	RD/WH	540	Battery Positive Voltage
7	BN	818	Vehicle Speed Signal	7	BN	818	Vehicle Speed Signal
7	BN	818	Vehicle Speed Signal	7	BN	818	Vehicle Speed Signal
8	YE	5358	Auxiliary Cooling Fan Motor Supply Voltage (V92)	8	YE	5358	Auxiliary Cooling Fan Motor Supply Voltage (V92)
9	--	--	Not Used	9	--	--	Not Used
10	YE	1491	Backlight Lamps Control	10	YE	1491	Backlight Lamps Control
10	YE	1491	Backlight Lamps Control	10	YE	1491	Backlight Lamps Control (M82)
11	BN/WH	309	Right Park Lamp Supply Voltage (w/o T79)	11	BN/WH	309	Right Park Lamp Supply Voltage (w/o T79)
12-13	--	--	Not Used	12-13	--	--	Not Used
14	BK/WH	451	Ground	14	BK/WH	451	Ground
15-16	--	--	Not Used	15-16	--	--	Not Used
17	D-BU/WH	149	Courtesy Lamp Supply Voltage	17	D-BU/WH	149	Courtesy Lamp Supply Voltage
17	D-BU/WH	149	Courtesy Lamp Supply Voltage	17	D-BU/WH	149	Courtesy Lamp Supply Voltage
18	GY	157	Courtesy Lamp Control	18	GY	157	Courtesy Lamp Control
18	GY	157	Courtesy Lamp Control	18	GY	157	Courtesy Lamp Control
19-22	--	--	Not Used	19-22	--	--	Not Used
23	BN/WH	1571	Traction Control Switch Signal	23	BN/WH	1571	Traction Control Switch Signal
24-25	--	--	Not Used	24-25	--	--	Not Used
26	TN	5026	Ignition Lock Cylinder Control Switch Signal	26	TN	5026	Ignition Lock Cylinder Control Switch Signal (M82)

C202 I/P Harness to Steering Column Harness

Connector Part Information

OEM: 15359287
Service: 89046969
Description: 40-Way F GT 150/280 Series (BK)

Connector Part Information

OEM: 15336417
Service: 15336417
Description: 40-Way M GT 150/280 Series (BK)

Terminal Part Information

Pins: C1, A1, A7, A8, B1, B2, B3, B4, B5, B7, B8, B9, B10, B11, B12, C2, C3, C4, C5, C6, C7, C8, C10, C11, C12, D1, D2, C9, D7, D8
Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: A2, A3, A4, A5, A6, D3, D6, D4, D5
Terminal/Tray: 15304711/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: A8
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: C1, A1, A2, A3, A4, A5, A6, A7, A8, B1, B2, B3, B4, B5, B7, B8, B9, B10, B11, B12, C2, C3, C4, C5, C6, C7, C8, C10, C11, C12, D1, D2, D3, D6, C9, D7, D8, D4, D5
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C202 I/P Harness to Steering Column Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A1	BN	1356	Flash To Pass Switch Signal	A1	BN	1356	Flash To Pass Switch Signal
A2	BK/WH	351	Ground (LS2)	A2	BK/WH	351	Ground (LS2)
A3	TN/WH	1969	Headlamp High Beam Relay Control	A3	BK/WH	1969	Headlamp High Beam Relay Control
A3	TN/WH	1969	Headlamp High Beam Relay Control	A3	BK/WH	1969	Headlamp High Beam Relay Control
A4	PK/WH	1970	Headlamp Low Beam Relay Control	A4	L-BU	1970	Headlamp Low Beam Relay Control
A4	PK/WH	1970	Headlamp Low Beam Relay Control	A4	L-BU	1970	Headlamp Low Beam Relay Control
A5	TN	28	Horn Relay Control	A5	L-GN	28	Horn Relay Control
A5	TN	28	Horn Relay Control	A5	L-GN	28	Horn Relay Control
A6	BK/WH	351	Ground	A6	BK/WH	351	Ground
A7	PU	1807	Class 2 Serial Data	A7	PU	1807	Class 2 Serial Data
A8	PK	1545	Information Down Switch Signal (LP1/LY7)	A8	PK	1545	Information Down Switch Signal
A8	OG/BK	5201	Steering Wheel Control Signal (LS2)	A8	PK	1545	Information Down Switch Signal
B1	L-BU	187	Rear Fog Lamp Switch Signal (w/T79)	B1	L-BU	187	Rear Fog Lamp Switch Signal
B2	OG	192	Front Fog Lamp Switch Signal	B2	OG	192	Front Fog Lamp Switch Signal
B3	WH	103	Headlamp Switch Headlamps On Signal	B3	WH	103	Headlamp Switch Headlamps On Signal
B4	BN/WH	301	Park Lamp Switch On Signal	B4	BN/WH	301	Park Lamp Switch On Signal
B5	PU	1783	Twilight Sentinel Delay Signal	B5	PU	1783	Twilight Sentinel Delay Signal
B6	--	--	Not Used	B6	--	--	Not Used
B7	L-GN	80	Key In Ignition Switch Signal	B7	L-GN	80	Key In Ignition Switch Signal
B8	D-BU	477	Windshield Wiper Switch Signal 1	B8	D-BU	477	Windshield Wiper Switch Signal 1
B9	PU	92	Windshield Wiper Motor High Speed	B9	PU	92	Windshield Wiper Motor High Speed
B10	WH	1538	Windshield Wiper Switch On Signal	B10	WH	1538	Windshield Wiper Switch On Signal
B11	YE	43	Accessory Voltage	B11	YE	43	Accessory Voltage
B12	GY	478	Windshield Wiper Switch Signal 2	B12	GY	478	Windshield Wiper Switch Signal 2
C1	PU	1375	Remote Radio Control Supply Voltage	C1	PU	1375	Remote Radio Control Supply Voltage
C2	RD/WH	1440	Battery Positive Voltage	C2	OG	1440	Battery Positive Voltage
C3	YE	343	Accessory Voltage	C3	YE	343	Accessory Voltage
C4	YE	1491	Backlight Lamps Control	C4	YE	1491	Backlight Lamps Control
C5	BK	350	Ground	C5	BK	350	Ground
C6	PU/WH	5025	Ignition Lock Cylinder Control Actuator Supply Voltage (M82)	C6	PU/WH	5025	Ignition Lock Cylinder Control Actuator Supply Voltage (M82)
C7	L-BU/WH	1414	Left Turn Signal Switch Signal (w/o T62/T65)	C7	L-BU/WH	1414	Left Turn Signal Switch Signal (w/o T62/T65)
C8	D-BU/WH	1415	Right Turn Signal Switch Signal (w/o T62/T65)	C8	D-BU/WH	1415	Right Turn Signal Switch Signal (w/o T62/T65)
C9	PK	3	Ignition 1 Voltage	C9	PK	3	Ignition 1 Voltage
C10	YE	5	Crank Voltage	C10	YE	5	Crank Voltage
C11	OG	300	Ignition 3 Voltage	C11	OG	300	Ignition 3 Voltage
C12	D-BU	1796	Steering Wheel Controls Signal	C12	D-BU	1796	Steering Wheel Controls Signal
D1	OG	1544	Information Up Switch Signal (w/o LS2)	D1	OG	1544	Information Up Switch Signal
D2	GY	1884	Cruise Control Switch Signal	D2	GY/BK	1884	Cruise Control Switch Signal
D3	RD/WH	540	Battery Positive Voltage	D3	RD/WH	540	Battery Positive Voltage
D4	RD/WH	1940	Battery Positive Voltage	D4	RD/WH	1940	Battery Positive Voltage
D5	PK	339	Ignition 1 Voltage	D5	PK	339	Ignition 1 Voltage
D6	BN	4	Accessory Voltage	D6	BN	4	Accessory Voltage
D6	BN	4	Accessory Voltage	D6	BN	4	Accessory Voltage
D7	YE/BK	1418	Left Rear Turn Signal Switch Signal (T79)	D7	YE/BK	1418	Left Rear Turn Signal Switch Signal
D8	D-GN/WH	1419	Right Rear Turn Signal Switch Signal (T79)	D8	L-GN	1419	Right Rear Turn Signal Switch Signal

C203 Steering Column Harness to Body Harness

Connector Part Information

OEM: 15336478
Service: 88953348
Description: 4-Way F Metri-Pack 280 Series (YE)

Connector Part Information

OEM: 15336476
Service: 15306363
Description: 4-Way M Metri-Pack 280 Series (YE)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Terminal/Tray: 12034047/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

C203 Steering Column Harness to Body Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A1	TN	3021	Steering Wheel Module - Stage 1 - High Control	A1	TN	3021	Steering Wheel Module - Stage 1 - High Control
A2	BN	3020	Steering Wheel Module - Stage 1 - Low Control	A2	BN	3020	Steering Wheel Module - Stage 1 - Low Control
B1	WH	3023	Steering Wheel Module - Stage 2 - High Control	B1	WH	3023	Steering Wheel Module - Stage 2 - High Control
B2	PK	3022	Steering Wheel Module - Stage 2 - Low Control	B2	PK	3022	Steering Wheel Module - Stage 2 - Low Control

C204 Sunload Sensor Jumper Harness to I/P Harness

Connector Part Information

OEM: 12064760
Service: 12085208
Description: 4-Way F Metri-Pack 150 Series (BK)

Connector Part Information

OEM: 12064761
Service: See Catalog
Description: 4-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C204 Sunload Sensor Jumper Harness to I/P Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	L-BU/BK	590	Left Sunload Sensor Signal	A	L-BU/BK	590	Left Sunload Sensor Signal
B	GY	1548	Right Sunload Sensor Signal	B	GY	1548	Right Sunload Sensor Signal
C	YE	61	Low Reference	C	YE	61	Low Reference
D	WH	278	Ambient Light Sensor Signal	D	WH	278	Ambient Light Sensor Signal

C208 Steering Column Harness to Steering Wheel Controls Harness

Connector Part Information

OEM: 12064769
Service: 12101762
Description: 10-Way F Metri-Pack 150 Series (WH)

Connector Part Information

OEM: 12064770
Service: 12101823
Description: 10-Way M Metri-Pack 150 Series (WH)

Terminal Part Information

Pins: A, B, C, D, E, F, G, H, J
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: A, B, C, D, E, F, G, H, J
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C208 Steering Column Harness to Steering Wheel Controls Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	OG	1544	Information Up Switch Signal	A	OG	1544	Information Up Switch Signal
B	PK	339	Ignition 1 Voltage	B	PK	339	Ignition 1 Voltage (LS2)
C	PK	1545	Information Down Switch Signal	C	OG/BK	1545	Information Down Switch Signal
D	BK	351	Ground (LS2)	D	BK/WH	351	Ground (LS2)
E	PU	1375	Remote Radio Control Supply Voltage	E	PU	1375	Remote Radio Control Supply Voltage
F	YE	1491	Backlight Lamps Control	F	YE	1491	Backlight Lamps Control
F	YE	1491	Backlight Lamps Control	F	YE	1491	Backlight Lamps Control
G	D-BU	1796	Steering Wheel Controls Signal (LP1/LY7)	G	D-BU	1796	Steering Wheel Controls Signal (LP1/LY7)
		1796	Steering Wheel Controls Signal (LP1/LY7)			1796	Steering Wheel Controls Signal (LP1/LY7)
		5201	Steering Wheel Controls Signal (LS2)			5201	Steering Wheel Controls Signal (LS2)
H	BK	350	Ground	H	BK	350	Ground
H	BK	350	Ground	H	BK	350	Ground
J	L-GN	28	Horn Relay Control	J	TN	28	Horn Relay Control
K	--	--	Not Used	K	--	--	Not Used

C300 Body Harness to Driver Seat Harness

Connector Part Information

OEM: 7283-6447-40
Service: 88956524
Description: 14-Way F Hybrid (GY)

Connector Part Information

OEM: 7282-6447-40
Service: 88956523
Description: 14-Way M Hybrid (GY)

Terminal Part Information

Pins: 8
Terminal/Tray: 7116-4110-02/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Pins: 3, 4, 9, 11, 13
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 2, 12
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: Pins: 2 : E/A
Core/Insulation Crimp: Pins: 12 : See Terminal Repair Kit
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 1, 14
Terminal/Tray: 7116-4112-02/9
Core/Insulation Crimp: C/D
Release Tool/Test Probe: 12094430/J-35616-35 (VT)

Terminal Part Information

Pins: 1, 2, 3, 4, 8, 9, 11, 12, 13, 14
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C300 Body Harness to Driver Seat Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	RD/WH	3740	Battery Positive Voltage	1	OG	3740	Battery Positive Voltage
2	RD/WH	2440	Battery Positive Voltage (KA1)	2	OG	2440	Battery Positive Voltage (KA1)
3	PK	1501	Driver Heated Seat High/Low Signal (KA1)	3	PK	1501	Driver Heated Seat High/Low Signal (KA1)
4	L-BU/WH	181	Heated Seat Control Module Status Signal (KA1)	4	L-BU/WH	181	Heated Seat Control Module Status Signal (KA1)
5-7	--	--	Not Used	5-7	--	--	Not Used
8	RD/WH	2840	Battery Positive Voltage (A45)	8	OG	2840	Battery Positive Voltage (A45)
9	BN	41	Ignition 3 Voltage (KA1)	9	BN	41	Ignition 3 Voltage (KA1)
10	--	--	Not Used	10	--	--	Not Used
11	PU	1807	Class 2 Serial Data (A45)	11	PU	1807	Class 2 Serial Data (A45)
12	PK	5017	Seat Belt Switch - Driver - Low Reference	12	BK	5017	Seat Belt Switch - Driver - Low Reference
12	PK	5017	Seat Belt Switch - Driver - Low Reference	12	BK	5017	Seat Belt Switch - Driver - Low Reference
13	TN/WH	238	Seat Belt Switch - Driver - Signal	13	BK/WH	238	Seat Belt Switch - Driver - Signal
14	BK	550	Ground (KA1)	14	BK	550	Ground (KA1)

C301 Driver Seat Harness to Body Harness

Connector Part Information

OEM: 15304653
Service: See Catalog
Description: 4-Way F GT Series (YE)

Terminal Part Information

Pins: A, C, D, F
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

OEM: 15304656
Service: See Catalog
Description: 2-Way F GT 250 Series (YE)

Connector Part Information

OEM: 15304649
Service: 15306061
Description: 6-Way M 150 Series (YE)

Terminal Part Information

Pins:
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: A, C, D, F
Terminal/Tray: 15304722/8
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-5 (PU)

C301 Driver Seat Harness to Body Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	BK	2118	Seat Belt Pretensioner - Driver - High Control	A	TN/WH	2118	Seat Belt Pretensioner - Driver - High Control
B	--	--	Not Used	B	--	--	Not Used
C	WH	2105	Side Impact Module - Driver - High Control	C	D-GN	2105	Side Impact Module - Driver - High Control
D	D-GN	2106	Side Impact Module - Driver - Low Control	D	BN	2106	Side Impact Module - Driver - Low Control
E	--	--	Not Used	E	--	--	Not Used
F	WH	2119	Seat Belt Pretensioner - Driver - Low Control	F	OG/BK	2119	Seat Belt Pretensioner - Driver - Low Control

C302 Body Harness to I/P Harness - Right Center (Export- U2Y/U2X)

Connector Part Information

OEM: 7283-6376-30
Service: 88952809
Description: 26-Way F Hybrid (BK)

Connector Part Information

OEM: 7282-6376-30
Service: 88952802
Description: 26-Way M Hybrid (BK)

Terminal Part Information

Pins: 2, 3, 4, 5, 6, 7, 9, 13, 14, 15, 18, 20, 22
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Terminal Part Information

Pins: 2, 3, 4, 5, 6, 7, 9, 13, 14, 15, 18, 20, 22
Terminal/Tray: 7114-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

C302 Body Harness to I/P Harness - Right Center (Export- U2Y/U2X)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	--	--	Not Used	1	--	--	Not Used
2	GY	5144	Video Blue Low Reference	2	GY	5144	Video Blue Low Reference
3	OG	2047	Video Red Signal	3	OG	2047	Video Red Signal
4	TN	5146	Video Red Low Reference	4	TN	5146	Video Red Low Reference
5	D-BU	2048	Video Green Signal	5	D-BU	2048	Video Green Signal
6	BN	5145	Video Green Low Reference	6	BN	5145	Video Green Low Reference
7	L-GN	2045	Video Synchronization Signal	7	L-GN	2045	Video Synchronization Signal
8	--	--	Not Used	8	--	--	Not Used
9	PK	5165	Antenna 14-Volt Switched Supply Voltage	9	PK	5165	Antenna 14-Volt Switched Supply Voltage
10-12	--	--	Not Used	10-12	--	--	Not Used
13	OG	2354	Navigation Display Serial Data High	13	OG	2354	Navigation Display Serial Data High
14	BN	2355	Navigation Display Serial Data Low	14	BN	2355	Navigation Display Serial Data Low
15	BARE	514	Ground	15	BARE	514	Ground
16-17	--	--	Not Used	16-17	--	--	Not Used
18	TN/BK	5147	Video Synchronization Low Reference	18	TN/BK	5147	Video Synchronization Low Reference
19	--	--	Not Used	19	--	--	Not Used
20	BARE	814	Ground	20	BARE	814	Ground
21	--	--	Not Used	21	--	--	Not Used
22	D-GN	2049	Video Blue Signal	22	D-GN	2049	Video Blue Signal
23-26	--	--	Not Used	23-26	--	--	Not Used

C303 Body Harness to I/P Harness - Left Center

Connector Part Information

OEM: 7283-6376-30
Service: 88952809
Description: 26-Way F Hybrid (BK)

Connector Part Information

OEM: 7282-6376-30
Service: 88952802
Description: 26-Way M Hybrid (BK)

Terminal Part Information

Pins: 17
Terminal/Tray: 7116-4110-02/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Pins: 1
Terminal/Tray: 7116-4120-02/9
Core/Insulation Crimp: E/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Pins: 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 13, 14, 15, 16, 18, 19, 24, 25
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 26
Terminal/Tray: 7116-4111-02/9
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Pins: 9, 10, 20, 21, 22, 23
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: 26
Terminal/Tray: 7114-4111-02/9
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

Pins: 1
Terminal/Tray: 7114-4120-02/9
Core/Insulation Crimp: E/B
Release Tool/Test Probe: 12094430/J-35616-43 (RD)

Pins: 17
Terminal/Tray: 7114-4110-02/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

Pins: 2, 4, 5, 6, 7, 9, 10, 11, 12, 13, 14, 15, 16, 18, 19, 24, 25
Terminal/Tray: 7114-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 3, 9, 10, 20, 21, 22, 23
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C303 Body Harness to I/P Harness - Left Center

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	RD/WH	2240	Battery Positive Voltage	1	RD/WH	2240	Battery Positive Voltage
2	L-BU	1960	Front Center Speaker Output (-) (U57)	2	L-BU	1960	Front Center Speaker Output (-) (U57)
3	YE	1860	Front Center Speaker Output (+) (U57)	3	YE	1880	Front Center Speaker Output (+) (U57)
4	TN	511	Left Front Low Level Audio Signal (+)	4	TN	511	Left Front Low Level Audio Signal (+)
5	L-GN	512	Right Front Low Level Audio Signal (+)	5	L-GN	512	Right Front Low Level Audio Signal (+)
6	OG	1486	FM Composite Signal	6	OG	1486	FM Composite Signal
7	BARE	5324	Drain Wire (Blunt Cut) (U2K/U2L)	7	BARE	5324	Drain Wire (U2K/U2L)
8	--	--	Not Used	8	--	--	Not Used
9	PK	5149	Cellular Microphone Signal (UE1)	9	PK	5149	Cellular Microphone Signal (UE1)
9	GY	655	Cellular Microphone Signal (U2Y/U2X)	9	GY	655	Cellular Microphone Signal (U2Y/U2X)
10	PK/BK	5152	Cellular Microphone Low Reference (UE1)	10	PK/BK	5152	Cellular Microphone Low Reference (UE1)
10	BARE	1782	Drain Wire (U2Y/U2X)	10	BARE	1782	Drain Wire (U2Y/U2X)
11	D-GN	1947	Left Front Low Level Audio Signal (-)	11	D-GN	1947	Left Front Low Level Audio Signal (-)
12	L-GN	1948	Right Front Low Level Audio Signal (-)	12	L-GN	1948	Right Front Low Level Audio Signal (-)
13	BARE	2011	Drain Wire (Blunt Cut)	13	BARE	2011	Drain Wire
14	BARE	2012	Drain Wire (Blunt Cut)	14	BARE	2012	Drain Wire
15	BN/WH	367	Left Audio Signal (+) (U2K/U2L)	15	BN/WH	367	Left Audio Signal (+) (U2K/U2L)
16	BARE	1792	Drain Wire (UE1)	16	BARE	1792	Drain Wire (Blunt Cut) (UE1)
17	TN/WH	372	Audio Common (U2K/U2L)	17	TN/WH	372	Audio Common (U2K/U2L)
18	D-GN/WH	368	Right Audio Signal (+) (U2K/U2L)	18	D-GN/WH	367	Right Audio Signal (+) (U2K/U2L)
19	WH	5343	Voice Prompt Output (-) (UAV/U2X/U2Y)	19	WH	5343	Voice Prompt Output (-) (U2A/U2X/U2Y)
20-23	--	--	Not Used	20	--	--	Not Used
24	YE	5342	Voice Prompt Output (+) (Export)	24	YE	5342	Voice Prompt Output (+) (Export)
25	BARE	5344	Drain Wire (Blunt Cut) (Export)	25	BARE	5344	Drain Wire (Export)
26	BK/WH	851	Ground	26	BK/WH	851	Ground

C304 Console Harness to I/P Harness (RHD M82)

Connector Part Information

OEM: 7283-6459-40
Service: See Catalog
Description: 10-Way F (GY)

Connector Part Information

OEM: 7282-6459-40
Service: 89047070
Description: 10-Way M (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C304 Console Harness to I/P Harness (RHD M82)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	RD/WH	2240	Battery Positive Voltage	1	RD/WH	2240	Battery Positive Voltage
2	YE	772	Transmission Range Switch Signal B	2	YE	772	Transmission Range Switch Signal B
3	GY	773	Transmission Range Switch Signal C	3	GY	773	Transmission Range Switch Signal C
4	PU/WH	1382	LED Dimming Signal	4	PU/WH	1382	LED Dimming Signal
5	BK	450	Ground	5	BK	450	Ground
6	YE	243	Accessory Voltage	6	YE	243	Accessory Voltage
7	WH	776	Transmission Range Switch Signal P	7	BARE	776	Transmission Range Switch Signal P
8	BK/WH	771	Transmission Range Switch Signal A	8	TN/WH	771	Transmission Range Switch Signal A
9	--	--	Not Used	9	--	--	Not Used
9	--	--	Not Used	9	--	--	Not Used
10	YE	1491	Backlight Lamps Control	10	YE	1491	Backlight Lamps Control
10	YE	1491	Backlight Lamps Control	10	YE	1491	Backlight Lamps Control

C305 Headliner Harness to Body Harness

Connector Part Information

OEM: 7283-6453-60
Service: 89047090
Description: 16-Way F 1.5 Series (GN)

Connector Part Information

OEM: 7282-6453-60
Service: 89047071
Description: 16-Way M 1.5 Series (GN)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 7, 10, 11, 12, 13, 14, 15, 16
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 7, 10, 11, 12, 13, 16
Terminal/Tray: 7114-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 14, 15
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C305 Headliner Harness to Body Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	RD/WH	3640	Battery Positive Voltage	1	RD/WH	3640	Battery Positive Voltage
2	D-GN	44	Instrument Panel Lamps Dimmer Switch Signal	2	D-GN	44	Instrument Panel Lamps Dimmer Switch Signal
3	BARE	1489	Drain Wire (U57)	3	BARE	1489	Drain Wire (U57)
4	D-GN	1488	Noise Reduction Microphone Supply Voltage (U57)	4	D-GN	1488	Noise Reduction Microphone Supply Voltage (U57)
5	PK/BK	1597	Courtesy Lamps Switch On Signal	5	PK/BK	1597	Courtesy Lamps Switch On Signal
6	BARE	1782	Drain Wire (UE1)	6	BARE	1782	Drain Wire (UE1)
7	GY	655	Cellular Microphone Signal (UE1)	7	GY	655	Cellular Microphone Signal (UE1)
8-9	--	--	Not Used	8-9	--	--	Not Used
10	PU	1807	Class 2 Serial Data	10	PU	1807	Class 2 Serial Data
11	L-BU/BK	1688	5-Volt Reference	11	L-BU/BK	1688	5-Volt Reference
12	YE	5005	Instrument Panel Lamps Dimmer Switch Low Reference	12	YE	5005	Instrument Panel Lamps Dimmer Switch Low Reference
13	YE	1491	Backlight Lamps Control	13	YE	1491	Backlight Lamps Control
14	PU	5059	Intrusion Sensor Alarm On Signal (Export w/UA6/UA2)	14	PU	5059	Intrusion Sensor Alarm On Signal (Export w/UA6/UA2)
15	YE	5058	Intrusion Sensor Armed Signal (Export w/UA6/UA2)	15	YE	5058	Intrusion Sensor Armed Signal (Export w/UA6/UA2)
16	PU	679	Radio Master Request Display Signal (UE1)	16	PU	679	Radio Master Request Display Signal (UE1)

C306 Passenger Seat Harness to Body Harness

Connector Part Information

OEM: 15304656
Service: See Catalog
Description: 2-Way F GT 250 Series (YE)

Connector Part Information

OEM: 15304649
Service: 15306061
Description: 6-Way M Series GT 150 280 Series (YE)

Terminal Part Information

Pins:
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

OEM: 15304653
Service: See Catalog
Description: 4-Way F GT 250 Series (YE)

Terminal Part Information

Pins: A, C, D, F
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: A, C, D, F
Terminal/Tray: 15304722/8
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-5 (PU)

C306 Passenger Seat Harness to Body Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	BK	2116	Seat Belt Pretensioner - Front Passenger - High Control	A	L-GN	2116	Seat Belt Pretensioner - Front Passenger - High Control
B	--	--	Not Used	B	--	--	Not Used
C	WH	2103	Side Impact Module - Front Passenger - High Control	C	GY	2103	Side Impact Module - Front Passenger - High Control
D	D-GN	2104	Side Impact Module - Front Passenger - Low Control	D	D-BU	2104	Side Impact Module - Front Passenger - Low Control
E	--	--	Not Used	E	--	--	Not Used
F	WH	2117	Seat Belt Pretensioner - Front Passenger - Low Control	F	OG	2117	Seat Belt Pretensioner - Front Passenger - Low Control

C307 Body Harness to Passenger Seat Harness

Connector Part Information

OEM: 7283-6447-40
Service: 88956524
Description: 14-Way F Hybrid (GY)

Connector Part Information

OEM: 7282-6447-40
Service: 88956523
Description: 14-Way M Hybrid (GY)

Terminal Part Information

Pins: 7
Terminal/Tray: 7116-4110-02/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Pins: 3, 4, 5, 6, 9, 10, 11, 12, 13
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 2
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 1, 14
Terminal/Tray: 7116-4112-02/9
Core/Insulation Crimp: C/D
Release Tool/Test Probe: 12094430/J-35616-35 (VT)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C307 Body Harness to Passenger Seat Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	RD/WH	3740	Battery Positive Voltage (AH8)	1	OG	3740	Battery Positive Voltage (AH8)
2	RD/WH	2540	Battery Positive Voltage (KA1)	2	OG	2540	Battery Positive Voltage (KA1)
3	PK/BK	1503	Passenger Heated Seat High/Low Signal (KA1)	3	PK	1503	Passenger Heated Seat High/Low Signal (KA1)
4	D-BU	2181	Passenger Heated Seat Control Module Status Signal (KA1)	4	L-BU/WH	2181	Passenger Heated Seat Control Module Status Signal (KA1)
5	D-BU	2307	Passenger Air Bag On Indicator Control	5	D-BU	2307	Passenger Air Bag On Indicator Control
6	D-GN	2308	Passenger Air Bag Off Indicator Control	6	D-GN	2308	Passenger Air Bag Off Indicator Control
7	PK	1139	Ignition 1 Voltage	7	PK	1139	Ignition 1 Voltage
8	--	--	Not Used	8	--	--	Not Used
9	BN	41	Ignition 3 Voltage (KA1)	9	BN	41	Ignition 3 Voltage (KA1)
10	BK/WH	1751	Ground	10	BK/WH	1751	Ground
11	PK	2306	Occupant Sensor Signal	11	PK	2306	Occupant Sensor Signal
12	PK	5017	Seat Belt Switch - Left - Low Reference	12	PK	5017	Seat Belt Switch - Left - Low Reference
13	OG	1362	Seat Belt Switch - Right - Signal	13	OG	1362	Seat Belt Switch - Right - Signal
14	BK	550	Ground (AH8/KA1)	14	BK	550	Ground (AH8/KA1)

C308 Headliner Harness to Body Harness

Connector Part Information

OEM: 7283-6456-90
Service: 88988265
Description: 16-Way F YESC 1.5 (BU)

Connector Part Information

OEM: 7282-6456-90
Service: 89047071
Description: 16-Way M YESC 1.5 (BU)

Terminal Part Information

Pins: 1, 2, 3, 4, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: 15
Terminal/Tray: 7114-4101-08/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 1, 2, 3, 4, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16
Terminal/Tray: 7114-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

C308 Headliner Harness to Body Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	D-BU/WH	149	Courtesy Lamp Supply Voltage	1	D-BU/WH	149	Courtesy Lamp Supply Voltage
2	GY/BK	1798	Ground (UE1)	2	GY/BK	1798	Ground (UE1)
3	PU	1156	Keypad Red LED Signal (UE1)	3	PU	1156	Keypad Red LED Signal (UE1)
4	BN	1941	Ignition 3 Voltage (UE1)	4	BN	1941	Ignition 3 Voltage (UE1)
5	--	--	Not Used	5	--	--	Not Used
6	GY	157	Courtesy Lamp Control	6	GY	157	Courtesy Lamp Control
7	BK	850	Ground	7	BK	850	Ground
8	L-GN	24	Backup Lamp Supply Voltage (DD8)	8	L-GN	24	Backup Lamp Supply Voltage (DD8)
9	PK	1339	Ignition 1 Voltage (DD8)	9	PK	1339	Ignition 1 Voltage (DD8)
10	D-BU	2307	Passenger Air Bag ON Indicator Control	10	D-BU	2307	Passenger Air Bag ON Indicator Control
11	D-GN	2308	Passenger Air Bag OFF Indicator Control	11	D-GN	2308	Passenger Air Bag OFF Indicator Control
12	BK/WH	851	Ground (DD8)	12	BK/WH	851	Ground (DD8)
13	TN	1856	Left Front Tweeter Speaker Output (+)	13	TN	1856	Left Front Tweeter Speaker Output (+)
14	YE	1956	Left Front Tweeter Speaker Output (-)	14	YE	1956	Left Front Tweeter Speaker Output (-)
15	L-GN	1852	Right Front Tweeter Speaker Output (+)	15	L-GN	1852	Right Front Tweeter Speaker Output (+)
16	PU	1952	Right Front Tweeter Speaker Output (-)	16	PU	1952	Right Front Tweeter Speaker Output (-)

C309 Headliner Harness to Sunroof Harness (CF5)

Connector Part Information

OEM: 7283-6455-40
Service: See Catalog
Description: 10-Way F Header Series (GY)

Connector Part Information

OEM: 7282-6455-40
Service: 88988926
Description: 10-Way M Header Series (GY)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 7
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 7
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C309 Headliner Harness to Sunroof Harness (CF5)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	D-BU	128	Sunroof Switch Low Reference	1	D-BU	128	Sunroof Switch Low Reference
2	L-BU	5027	Sunroof Switch - Data 1	2	L-BU	5027	Sunroof Switch - Data 1
3	BN	5028	Sunroof Switch - Data 2	3	BN	5028	Sunroof Switch - Data 2
4	OG	5029	Sunroof Switch - Data 3	4	OG	5029	Sunroof Switch - Data 3
5	PK	5031	Sunroof Switch - Data 5	5	PK	5031	Sunroof Switch - Data 5
6	PU	5032	Sunroof Switch - Data 6	6	PU	5032	Sunroof Switch - Data 6
7	TN	5030	Sunroof Switch - Data 4	7	TN	5030	Sunroof Switch - Data 4
8-10	--	--	Not Used	8-10	--	--	Not Used

C310 Sunroof Harness to Body Harness (CF5)

Connector Part Information

OEM: 12129489
Service: 12126486
Description: 3-Way F Metri-Pack 280 Series (BK)

Connector Part Information

OEM: 12129490
Service: 12129490
Description: 3-Way M Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: B
Terminal/Tray: 12034047/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

Pins: A, C
Terminal/Tray: 12084586/4
Core/Insulation Crimp: F/G
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

C310 Sunroof Harness to Body Harness (CF5)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	BK	1050	Ground	A	BK	1050	Ground
B	TN	755	RAP Relay Coil Control	B	TN	755	RAP Relay Coil Control
C	RD/WH	1640	Battery Positive Voltage	C	RD/WH	1640	Battery Positive Voltage

C311 Headliner Harness to Body Harness

Connector Part Information

OEM: 12059251
Service: 12101848
Description: 2-Way F Metri-Pack 150 Series (RD)

Connector Part Information

OEM: 12059252
Service: 12102749
Description: 2-Way M Metri-Pack 150 Series (RD)

Terminal Part Information

Pins: B
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: B
Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

C311 Headliner Harness to Body Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	--	--	Not Used	A	--	--	Not Used
B	OG	1486	FM Composite Signal	B	OG	1486	FM Composite Signal

C312 Console Harness to Body Harness

Connector Part Information

OEM: 7283-6459-40
Service: See Catalog
Description: 10-Way F YESC (GY)

Connector Part Information

OEM: 7282-6459-40
Service: 89047070
Description: 10-Way M YESC (GY)

Terminal Part Information

Pins: 1, 2, 3, 4, 6, 7, 8, 9, 10
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: 6
Terminal/Tray: 7114-4110-02/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

Pins: 2, 3, 4, 7, 8, 9, 10
Terminal/Tray: 7114-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 1
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C312 Console Harness to Body Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	BK	450	Ground	1	BK	450	Ground
2	BK/WH	451	Ground (M82)	2	BK/WH	451	Ground (M82)
3	L-GN	5053	Winter Mode Switch Signal (M82)	3	L-GN	5053	Winter Mode Switch Signal
4	PU	2056	Auxiliary Video High Signal (U2Y/U2X)	4	PU	2056	Auxiliary Video High Signal (U2Y/U2X)
5	--	--	Not Used	5	--	--	Not Used
6	GY	5054	Sport Mode Switch Signal (M82)	6	GY	5054	Sport Mode Switch Signal (M82)
7	BARE	2057	Drain Wire (U2Y/U2X)	7	BARE	814	Drain Wire (U2Y/U2X)
8	WH	2058	Auxiliary Audio Right Signal (U2Y/U2X)	8	WH	2058	Auxiliary Audio Right Signal (U2Y/U2X)
9	YE	2059	Auxiliary Audio Left Signal (U2Y/U2X)	9	YE	2059	Auxiliary Audio Left Signal (U2Y/U2X)
10	BARE	814	Drain Wire (U2Y/U2X)	10	BARE	814	Drain Wire (U2Y/U2X)

C313 Console Harness to I/P Harness

Connector Part Information

OEM: 7283-6445-40
Service: See Catalog
Description: 2-Way F (L-GY)

Connector Part Information

OEM: 7282-6445-40
Service: 89047070
Description: 2-Way M (L-GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Terminal/Tray:See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C313 Console Harness to I/P Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	RD/WH	2240	Battery Positive Voltage	1	RD/WH	2240	Battery Positive Voltage
2	BK	450	Ground	2	BK	450	Ground

C321 I/P Harness to HVAC Harness (LHD)

Connector Part Information

OEM: 7283-5534-60
Service: 88952777
Description: 16-Way F 1.5 Series Weather-Pack (GN)

Connector Part Information

OEM: 7282-5534-60
Service: 88952799
Description: 16-Way M 1.5 Series Weather-Pack (GN)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 10, 11, 12, 13, 14, 15
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 10, 11, 12, 13, 14, 15
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C321 I/P Harness to HVAC Harness (LHD)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	D-BU	1646	Passenger Air Temperature Door Position	1	D-BU	1646	Passenger Air Temperature Door Position
2	WH/BK	1236	Passenger Air Temperature Door Control B	2	WH/BK	1236	Passenger Air Temperature Door Control B
3	GY/BK	2778	Passenger Air Temperature Door Control A	3	GY/BK	2778	Passenger Air Temperature Door Control A
4	YE	1318	Mode Door Control B	4	PK	1318	Mode Door Control B
5	YE/BK	1814	Lower Mode Door Position Signal	5	GY	1814	Lower Mode Door Position Signal
6	TN	2273	Mode Door Control A	6	L-BU	2273	Mode Door Control A
7-9	--	--	Not Used	7-9	--	--	Not Used
10	GY	705	5-Volt Reference	10	GY	705	5-Volt Reference
11	L-BU	733	Driver Air Temperature Door Position Signal	11	L-BU	733	Driver Air Temperature Door Position Signal
12	YE	1791	Driver Air Temperature Door Control A	12	YE	1791	Driver Air Temperature Door Control A
13	D-BU	1199	Driver Air Temperature Door Control B	13	D-BU	1199	Driver Air Temperature Door Control B
14	YE	61	Low Reference	14	YE	61	Low Reference
15	GY	731	Evaporator Temperature Sensor Signal	15	GY	731	Evaporator Temperature Sensor Signal
16	--	--	Not Used	16	--	--	Not Used

C321 I/P Harness to HVAC Harness (RHD)

Connector Part Information

OEM: 7182-5534-60
Service: See Catalog
Description: 16-Way 1.5 Series Weather-Pack (GN)

Connector Part Information

OEM: 7182-5534-60
Service: See Catalog
Description: 16-Way 1.5 Series Weather-Pack (GN)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 10, 11, 12, 13, 14, 15
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 10, 11, 12, 13, 14, 15
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C321 I/P Harness to HVAC Harness (RHD)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	L-BU	733	Driver Air Temperature Door Position Signal	1	L-BU	733	Driver Air Temperature Door Position Signal
2	D-BU	1199	Driver Air Temperature Door Control B	2	D-BU	1199	Driver Air Temperature Door Control B
3	YE	1791	Driver Air Temperature Door Control A	3	YE	1791	Driver Air Temperature Door Control A
4	YE	1318	Mode Door Control B	4	PK	1318	Mode Door Control B
5	YE/BK	1814	Mode Door Position Signal	5	GY	1814	Mode Door Position Signal
6	TN	2273	Mode Door Control A	6	L-BU	2273	Mode Door Control A
7-9	--	--	Not Used	7-9	--	--	Not Used
10	GY	705	5-Volt Reference	10	GY	705	5-Volt Reference
11	D-BU	1646	Passenger Air Temperature Door Position Signal	11	D-BU	1646	Passenger Air Temperature Door Position Signal
12	GY/BK	2778	Passenger Air Temperature Door Control A	12	GY/BK	2778	Passenger Air Temperature Door Control A
13	WH/BK	1236	Passenger Air Temperature Door Control B	13	WH/BK	1236	Passenger Air Temperature Door Control B
14	YE	61	Low Reference	14	YE	61	Low Reference
15	GY	731	Evaporator Temperature Sensor Signal	15	GY	731	Evaporator Temperature Sensor Signal
16	--	--	Not Used	16	--	--	Not Used

C322 Body Harness to Rear Shelf Harness

Connector Part Information

OEM: 7283-6447-40
Service: 88956524
Description: 14-Way F Hybrid (GY)

Connector Part Information

OEM: 7282-6447-40
Service: 88956523
Description: 14-Way M Hybrid (GY)

Terminal Part Information

Pins: 3, 5
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 4, 6
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 1, 7
Terminal/Tray: 7116-4111-02/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Terminal Part Information

Pins: 1, 3, 4, 5, 6, 7
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C322 Body Harness to Rear Shelf Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	L-GN/BK	1794	Left (U66) or Rear (U57) Subwoofer Speaker Output (-)	1	L-GN/BK	1794	Left (U66) or Rear (U57) Subwoofer Speaker Output (-)
2	--	--	Not Used	2	--	--	Not Used
3	OG/BK	737	Rear Compartment Lamp Control	3	OG/BK	737	Rear Compartment Lamp Control
4	L-BU/BK	315	Right Subwoofer Speaker Output (-) (U66)	4	L-BU/BK	315	Right Subwoofer Speaker Output (-) (U66)
5	D-BU/WH	149	Courtesy Lamp Supply Voltage	5	D-BU/WH	149	Courtesy Lamp Supply Voltage
6	D-GN	1795	Right Subwoofer Speaker Output (+) (U66)	6	D-GN	1795	Right Subwoofer Speaker Output (+) (U66)
7	D-BU/WH	346	Left (U66) or Rear (U57) Subwoofer Speaker Output (+)	7	D-BU/WH	346	Left (U66) or Rear (U57) Subwoofer Speaker Output (+)
8-14	--	--	Not Used	8-14	--	--	Not Used

C323 I/P Harness to HVAC Harness

Connector Part Information

OEM: 7283-1064
Service: 88952827
Description: 6-Way F Yazaki (WH)

Connector Part Information

OEM: 7282-1064
Service: See Catalog
Description: 6-Way M Yazaki (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C323 I/P Harness to HVAC Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	L-BU	188	Blower Motor Control Processor Supply Voltage	1	L-BU	188	Blower Motor Control Processor Supply Voltage
2	BK	450	Ground	2	BK	450	Ground
3	BN	41	Ignition 3 Voltage	3	TN	41	Ignition 3 Voltage
4	PU	1838	Recirculation Door Control A	4	PU	1838	Recirculation Door Control A
5	D-GN	1614	Recirculation Door Control B	5	D-GN	1614	Recirculation Door Control B
6	GY/BK	754	Blower Motor Speed Control	6	GY/BK	754	Blower Motor Speed Control

C410 Body Harness to Left Tail Lamp Harness

Connector Part Information

OEM: 12047886
Service: 12101822
Description: 8-Way F Metri-Pack 150 Series (BK)

Connector Part Information

OEM: 12045688
Service: 12101827
Description: 8-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: A, D, F, H
Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Pins: B, C, E, G
Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Terminal Part Information

Pins: A, B, C, D, F, G, H
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C410 Body Harness to Left Tail Lamp Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	PU	709	Left Park Lamp Supply Voltage (w/o T79)	A	D-BU	709	Left Park Lamp Supply Voltage (w/o T79)
A	PU	1472	Left Park Lamp Supply Voltage (w/T79)	A	PU	1472	Left Park Lamp Supply Voltage (w/T79)
B	WH	17	Stop Lamp Supply Voltage (w/o T79)	B	WH	17	Stop Lamp Supply Voltage (w/o T79)
B	--	--	Not Used (w/T79)	B	--	--	Not Used (w/T79)
C	L-BU/WH	1314	Left Turn Signal Indicator Lamp Supply Voltage	C	L-BU/WH	1314	Left Turn Signal Indicator Lamp Supply Voltage
D	BK	850	Ground	D	BK	850	Ground
E	D-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage	E	--	--	Not Used
F	PU	709	Left Park Lamp Supply Voltage (w/o T79)	F	PU	709	Left Park Lamp Supply Voltage (w/o T79)
F	--	--	Not Used (w/T79)	F	--	--	Not Used (w/T79)
G	WH	17	Stop Lamp Supply Voltage (w/T79)	G	WH/BK	17	Stop Lamp Supply Voltage
H	PU	709	Left Park Lamp Supply Voltage	H	OG	709	Left Park Lamp Supply Voltage

C411 Body Harness to Right Tail Lamp Harness

Connector Part Information

OEM: 12047886
Service: 12101822
Description: 8-Way F Metri-Pack 150 Series (BK)

Connector Part Information

OEM: 12045688
Service: 12101827
Description: 8-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: A, D, F, H
Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Pins: B, C, G
Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Terminal Part Information

Pins: A, B, C, D, F, G, H
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C411 Body Harness to Right Tail Lamp Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	BN/WH	309	Right Park Lamp Supply Voltage (w/o T79)	A	D-BU	1473	Right Park Lamp Supply Voltage (w/o T79)
A	BN/WH	1473	Right Park Lamp Supply Voltage (w/T79)	A	BN/WH	1473	Right Park Lamp Supply Voltage (w/T79)
B	WH	17	Stop Lamp Supply Voltage (w/o T79)	B	WH	17	Stop Lamp Supply Voltage (w/o T79)
B	--	--	Not Used (w/T79)	B	--	--	Not Used (w/T79)
C	D-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage	C	L-BU/WH	1315	Right Turn Signal Indicator Lamp Supply Voltage
D	BK	1050	Ground	D	BK	1050	Ground
E	--	--	Not Used	E	--	--	Not Used
F	BN/WH	309	Right Park Lamp Supply Voltage (w/o T79)	F	PU	309	Right Park Lamp Supply Voltage (w/o T79)
F	--	--	Not Used (w/T79)	F	--	--	Not Used (w/T79)
G	WH	17	Stop Lamp Supply Voltage (w/T79)	G	WH/BK	17	Stop Lamp Supply Voltage (w/T79)
H	BN/WH	309	Right Park Lamp Supply Voltage	H	OG	1473	Right Park Lamp Supply Voltage

C420 Fuel Tank Harness to Body Harness (LP1/LY7)

Connector Part Information

OEM: 15326660
Service: 88986262
Description: 10-Way F 280 GT Series Sealed 5.8 (BK)

Connector Part Information

OEM: 15326661
Service: 88986245
Description: 10-Way M 280 GT Series Sealed 5.8 (BK)

Terminal Part Information

Pins: A, B, C, D, E, F, G, J, K
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Terminal Part Information

Pins: A, B, C, D, E, F, G, J, K
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C420 Fuel Tank Harness to Body Harness (LP1/LY7)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	GY	120	Fuel Pump Supply Voltage	A	GY	120	Fuel Pump Supply Voltage
B	D-GN	890	Fuel Tank Pressure Sensor Signal	B	D-GN	890	Fuel Tank Pressure Sensor Signal
C	GY	2709	5-Volt Reference	C	GY	596	5-Volt Reference
D	WH	1310	EVAP Canister Vent Solenoid Control	D	WH	1310	EVAP Canister Vent Solenoid Control
E	TN	2759	Low Reference	E	TN	452	Low Reference
F	D-BU	1937	Fuel Level Sensor Signal - Primary	F	D-BU	1936	Fuel Level Sensor Signal - Primary
G	L-BU	1936	Fuel Level Sensor Signal - Secondary	G	L-BU	1937	Fuel Level Sensor Signal - Secondary
H	--	--	Not Used	H	--	--	Not Used
J	PK	1539	Battery Positive Voltage	J	RD/WH	1540	Battery Positive Voltage
K	BK	1050	Ground	K	BK	1050	Ground

C421 Body Harness to License Lamp Assembly Harness (Domestic)

Connector Part Information

OEM: 12047785
Service: 12102900
Description: 4-Way F Metri-Pack 150 Series (BK)

Connector Part Information

OEM: 12047786
Service: 12085536
Description: 4-Way M Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: A, B
Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Pins: C, D
Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C421 Body Harness to License Lamp Assembly Harness (Domestic)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	YE	32	Instrument Panel Lamp Fuse Supply Voltage 1	A	YE	32	Instrument Panel Lamp Fuse Supply Voltage 1
B	L-GN	24	Backup Lamp Supply Voltage	B	L-GN	24	Backup Lamp Supply Voltage
C	WH	17	Stop Lamp Supply Voltage	C	WH	17	Stop Lamp Supply Voltage
D	BK	850	Ground	D	BK	850	Ground

C421 Body Harness to License Lamp Assembly Harness (Export)

Connector Part Information

OEM: 12064762
Service: 12125665
Description: 6-Way F Metri-Pack 150 Series (GY)

Connector Part Information

OEM: 12064763
Service: 12101876
Description: 6-Way M Metri-Pack 150 Series (GY)

Terminal Part Information

Pins: A, B, E
Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Pins: C, D
Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Terminal Part Information

Pins: A, B, C, D, E
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C421 Body Harness to License Lamp Assembly Harness (Export)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	YE	32	Instrument Panel Lamp Fuse Supply Voltage 1	A	YE	32	Instrument Panel Lamp Fuse Supply Voltage 1
B	L-GN	24	Backup Lamp Supply Voltage	B	L-GN	24	Backup Lamp Supply Voltage
C	WH	17	Stop Lamp Supply Voltage	C	WH	17	Stop Lamp Supply Voltage
D	BK	850	Ground	D	BK	850	Ground
E	OG	122	Rear Fog Lamp Supply Voltage	E	OG	122	Rear Fog Lamp Supply Voltage
F	--	--	Not Used	F	--	--	Not Used

C422 Body Harness to Fuel Tank Harness (LS2)

Connector Part Information

OEM: 15326660
Service: 88986262
Description: 10-Way F GT 280 Series Sealed 5.8 (BK)

Connector Part Information

OEM: 15326661
Service: 88986245
Description: 10-Way M GT 280 Series Sealed 5.8 (BK)

Terminal Part Information

Pins: B, C, D, E, F, G, J
Terminal/Tray: 15304719/19
Core/Insulation Crimp: Pins: B, C, D, E, F, G : 2/5
Core/Insulation Crimp: Pins: J : E/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: A, K
Terminal/Tray: 15304720/19
Core/Insulation Crimp: 4/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Terminal Part Information

Pins: A, B, C, D, E, F, G, J, K
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C422 Body Harness to Fuel Tank Harness (LS2)

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	GY	120	Fuel Pump Supply Voltage	A	GY	120	Fuel Pump Supply Voltage
B	D-GN	890	Fuel Tank Pressure Sensor Signal	B	D-GN	890	Fuel Tank Pressure Sensor Signal
C	GY	596	5-Volt Reference	C	GY	2709	5-Volt Reference
D	WH	1310	EVAP Canister Vent Solenoid Control	D	WH	1310	EVAP Canister Vent Solenoid Control
E	TN	452	Low Reference	E	TN	2759	Low Reference
F	D-BU	1936	Fuel Level Sensor Signal - Primary	F	D-BU	1936	Fuel Level Sensor Signal - Primary
G	L-BU	1937	Fuel Level Sensor Signal - Secondary	G	L-BU	1937	Fuel Level Sensor Signal - Secondary
H	--	--	Not Used	H	--	--	Not Used
J	RD/WH	1540	Battery Positive Voltage	J	PK	1540	Battery Positive Voltage
K	BK	1050	Ground	K	BK	1050	Ground

C500 Body Harness to Left Front Door Harness

Connector Part Information

OEM: 7283-6447-40
Service: 88956524
Description: 14-Way F Hybrid Yazaki (GY)

Connector Part Information

OEM: 7282-6447-40
Service: 88956523
Description: 14-Way M Hybrid Yazaki (GY)

Terminal Part Information

Pins: 3, 6, 8, 11, 12
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 2, 9, 10
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 1, 7
Terminal/Tray: 7116-4112-02/9
Core/Insulation Crimp: C/D
Release Tool/Test Probe: 12094430/J-35616-35 (VT)

Terminal Part Information

Pins: 9, 10, 9, 10
Terminal/Tray: 7114-4101-08/9
Core/Insulation Crimp: Pins: 9, 10 : E/A
Core/Insulation Crimp: Pins: 9, 10 : C/A
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 2, 3, 6, 8, 11, 12
Terminal/Tray: 7114-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 1, 7
Terminal/Tray: 7114-4112-02/9
Core/Insulation Crimp: C/D
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

C500 Body Harness to Left Front Door Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	RD/WH	1040	Battery Positive Voltage	1	RD/WH	1040	Battery Positive Voltage
2	RD/WH	640	Battery Positive Voltage	2	RD/WH	640	Battery Positive Voltage
3	PU	1807	Class 2 Serial Data	3	PU	1807	Class 2 Serial Data
4-5	--	--	Not Used	4-5	--	--	Not Used
6	BK/WH	351	Ground	6	BK/WH	351	Ground
7	BK	350	Ground	7	BK	350	Ground
8	BK/WH	351	Ground	8	BK/WH	351	Ground
9	L-BU	1957	Left Front Midrange Speaker Output (-) (w/U66)	9	L-BU	1957	Left Front Midrange Speaker Output (-) (w/U66)
9	TN	1856	Left Front Tweeter Speaker Output (+) (w/U57)	9	TN	1856	Left Front Tweeter Speaker Output (+) (w/U57)
10	D-BU	1857	Left Front Midrange Speaker Output (+) (w/U66)	10	D-BU	1857	Left Front Midrange Speaker Output (+) (w/U66)
10	YE	1956	Left Front Tweeter Speaker Output (-) (w/U57)	10	YE	1956	Left Front Tweeter Speaker Output (-) (w/U57)
11	D-BU/WH	149	Courtesy Lamp Supply Voltage	11	D-BU/WH	149	Courtesy Lamp Supply Voltage
12	GY	157	Courtesy Lamp Control	12	GY	157	Courtesy Lamp Control
13-14	--	--	Not Used	13-14	--	--	Not Used

C501 Left Front Door Harness to Left Front Door Trim Harness

Connector Part Information

OEM: 7283-4848-30
Service: 88956522
Description: 12-Way F Dock and Lock (WH)

Connector Part Information

OEM: 7282-4848-30
Service: 89046692
Description: 12-Way M Dock and Lock (BK)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C501 Left Front Door Harness to Left Front Door Trim Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	YE	1491	Backlight Lamps Control	1	YE	1491	Backlight Lamps Control
2	D-BU/WH	149	Courtesy Lamp Supply Voltage	2	D-BU/WH	149	Courtesy Lamp Supply Voltage
3	GY	157	Courtesy Lamp Control	3	GY	157	Courtesy Lamp Control
4	RD/WH	640	Battery Positive Voltage	4	RD/WH	640	Battery Positive Voltage
5	PU	1807	Class 2 Serial Data	5	PU	1807	Class 2 Serial Data
6	BK/WH	351	Ground	6	BK/WH	351	Ground
7-12	--	--	Not Used	7-12	--	--	Not Used

C600 Body Harness to Right Front Door Harness

Connector Part Information

OEM: 7283-6447-40
Service: 88956524
Description: 14-Way F Yazaki Hybrid (GY)

Connector Part Information

OEM: 7282-6447-40
Service: 88956523
Description: 14-Way M Yazaki Hybrid (GY)

Terminal Part Information

Pins: 3, 4, 10, 11
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 2, 9
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 8, 8
Terminal/Tray: 7116-4111-02/9
Core/Insulation Crimp: Pins: 8 : C/A
Core/Insulation Crimp: Pins: 8 : E/A
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Pins: 1, 14
Terminal/Tray: 7116-4112-02/9
Core/Insulation Crimp: C/D
Release Tool/Test Probe: 12094430/J-35616-35 (VT)

Terminal Part Information

Pins: 8, 8
Terminal/Tray: 7114-4111-02/9
Core/Insulation Crimp: Pins: 8 : E/A
Core/Insulation Crimp: Pins: 8 : C/A
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

Pins: 9, 9
Terminal/Tray: 7114-4101-08/9
Core/Insulation Crimp: Pins: 9 : E/A
Core/Insulation Crimp: Pins: 9 : C/A
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 2, 3, 4, 10, 11
Terminal/Tray: 7114-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 1, 14
Terminal/Tray: 7114-4112-02/9
Core/Insulation Crimp: C/D
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

C600 Body Harness to Right Front Door Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	RD/WH	1040	Battery Positive Voltage	1	RD/WH	1040	Battery Positive Voltage
2	RD/WH	740	Battery Positive Voltage	2	RD/WH	740	Battery Positive Voltage
3	PU	1807	Class 2 Serial Data	3	PU	1807	Class 2 Serial Data
4	BK/WH	451	Ground	4	BK/WH	451	Ground
5-7	--	--	Not Used	5-7	--	--	Not Used
8	D-GN	1953	Right Front Midrange Speaker Output (-) (w/U66)	8	D-GN	1953	Right Front Midrange Speaker Output (-) (w/U66)
8	PU	1952	Right Front Tweeter Speaker Output (-) (w/U57)	8	PU	1952	Right Front Tweeter Speaker Output (-) (w/U57)
9	OG	1853	Right Front Midrange Speaker Output (+) (w/U66)	9	OG	1853	Right Front Midrange Speaker Output (+) (w/U66)
9	L-GN	1852	Right Front Tweeter Speaker Output (+) (w/U57)	9	L-GN	1852	Right Front Tweeter Speaker Output (+) (w/U57)
10	D-BU/WH	149	Courtesy Lamp Supply Voltage	10	D-BU/WH	149	Courtesy Lamp Supply Voltage
11	GY	157	Courtesy Lamp Control	11	GY	157	Courtesy Lamp Control
12-13	--	--	Not Used	12-13	--	--	Not Used
14	BK	450	Ground	14	BK	450	Ground

C601 Right Front Door Harness to Right Front Door Trim Harness

Connector Part Information

OEM: 7283-4848-30
Service: 88956522
Description: 12-Way F Dock and Lock (WH)

Connector Part Information

OEM: 7282-4848-30
Service: 89046692
Description: 12-Way M Dock and Lock (BK)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 7, 8, 9
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 7, 8, 9
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C601 Right Front Door Harness to Right Front Door Trim Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	YE	1491	Backlight Lamps Control	1	YE	1491	Backlight Lamps Control
2	OG	1189	Power Window Switch Front Passenger Down Signal	2	BN	5295	Power Window Switch Front Passenger Down Signal
3	PU	2765	Power Window Switch Front Passenger Express Signal	3	PU	2765	Power Window Switch Front Passenger Express Signal
4	D-GN	1184	Power Window Switch Front Passenger Up Signal	4	D-GN	1184	Power Window Switch Front Passenger Up Signal
5	BK/WH	451	Ground	5	BK/WH	451	Ground
6	L-BU	244	Passenger Door Lock Switch Lock Signal	6	L-BU	244	Passenger Door Lock Switch Lock Signal
7	D-BU	245	Passenger Door Lock Switch Unlock Signal	7	D-BU	245	Passenger Door Lock Switch Unlock Signal
8	D-BU/WH	149	Courtesy Lamp Supply Voltage	8	D-BU/WH	149	Courtesy Lamp Supply Voltage
9	GY	157	Courtesy Lamp Control	9	GY	157	Courtesy Lamp Control
10-12	--	--	Not Used	10-12	--	--	Not Used

C700 Body Harness to Left Rear Door Harness

Connector Part Information

OEM: 7283-6447-40
Service: 88956524
Description: 14-Way F Yazaki Hybrid (GY)

Connector Part Information

OEM: 7282-6447-40
Service: 88956523
Description: 14-Way M Yazaki Hybrid (GY)

Terminal Part Information

Pins: 3
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 2, 4, 5, 6
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 1, 7
Terminal/Tray: 7116-4112-02/9
Core/Insulation Crimp: C/D
Release Tool/Test Probe: 12094430/J-35616-35 (VT)

Terminal Part Information

Pins: 2, 5, 6
Terminal/Tray: 7114-4101-08/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 3, 4
Terminal/Tray: 7114-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 1, 7
Terminal/Tray: 7114-4112-02/9
Core/Insulation Crimp: C/D
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

C700 Body Harness to Left Rear Door Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	RD/WH	1040	Battery Positive Voltage	1	RD/WH	1040	Battery Positive Voltage
2	RD/WH	840	Battery Positive Voltage	2	RD/WH	840	Battery Positive Voltage
3	PU	1807	Class 2 Serial Data	3	PU	1807	Class 2 Serial Data
4	BK/WH	351	Ground	4	BK/WH	351	Ground
5	TN	1859	Left Rear Midrange Speaker Output (+)	5	TN	1859	Left Rear Midrange Speaker Output (+)
6	WH	1959	Left Rear Midrange Speaker Output (-)	6	WH	1959	Left Rear Midrange Speaker Output (-)
7	BK	350	Ground	7	BK	350	Ground
8-14	--	--	Not Used	8-14	--	--	Not Used

C701 Left Rear Door Harness to Left Rear Door Trim Harness

Connector Part Information

OEM: 7283-4848-30
Service: 88956522
Description: 12-Way F Dock and Lock (WH)

Connector Part Information

OEM: 7282-4848-30
Service: 89046692
Description: 12-Way M Dock and Lock (BK)

Terminal Part Information

Pins: 1, 2, 3, 4, 5
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 6, 7
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Terminal Part Information

Pins: 1, 2, 3, 4, 5, 6, 7
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C701 Left Rear Door Harness to Left Rear Door Trim Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	YE	1491	Backlight Lamps Control	1	YE	1491	Backlight Lamps Control
2	YE	1187	Power Window Switch Left Rear Down Signal	2	YE	1187	Power Window Switch Left Rear Down Signal
3	WH	1185	Power Window Switch Left Rear Up Signal	3	WH	1185	Power Window Switch Left Rear Up Signal
4	BK/WH	351	Ground	4	BK/WH	351	Ground
5	L-GN	5048	Power Window Switch Left Rear Express Signal	5	L-GN	5048	Power Window Switch Left Rear Express Signal
6	TN	1859	Left Rear Midrange Speaker Output (+)	6	TN	1859	Left Rear Midrange Speaker Output (+)
7	WH	1959	Left Rear Midrange Speaker Output (-)	7	WH	1959	Left Rear Midrange Speaker Output (-)
8-12	--	--	Not Used	8-12	--	--	Not Used

C800 Body Harness to Right Rear Door Harness

Connector Part Information

OEM: 7283-6447-40
Service: 88956524
Description: 14-Way F Yazaki Hybrid (GY)

Connector Part Information

OEM: 7282-6447-40
Service: 88956523
Description: 14-Way M Yazaki Hybrid (GY)

Terminal Part Information

Pins: 3
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 2, 4, 5, 6
Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Pins: 1, 7
Terminal/Tray: 7116-4112-02/9
Core/Insulation Crimp: C/D
Release Tool/Test Probe: 12094430/J-35616-35 (VT)

Terminal Part Information

Pins: 2, 5, 6
Terminal/Tray: 7114-4101-08/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 3, 4
Terminal/Tray: 7114-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Pins: 1, 7
Terminal/Tray: 7114-4112-02/9
Core/Insulation Crimp: C/D
Release Tool/Test Probe: 12094430/J-35616-5 (PU)

C800 Body Harness to Right Rear Door Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	RD/WH	1040	Battery Positive Voltage	1	RD/WH	1040	Battery Positive Voltage
2	RD/WH	840	Battery Positive Voltage	2	RD/WH	840	Battery Positive Voltage
3	PU	1807	Class 2 Serial Data	3	PU	1807	Class 2 Serial Data
4	BK/WH	451	Ground	4	BK/WH	451	Ground
5	TN	1855	Right Rear Midrange Speaker Output (+)	5	TN	1855	Right Rear Midrange Speaker Output (+)
6	OG	1955	Right Rear Midrange Speaker Output (-)	6	OG	1955	Right Rear Midrange Speaker Output (-)
7	BK	450	Ground	7	BK	450	Ground
8-14	--	--	Not Used	8-14	--	--	Not Used

C801 Right Rear Door Harness to Right Rear Door Trim Harness

Connector Part Information

OEM: 7283-4848-30
Service: 88956522
Description: 12-Way F Dock and Lock (WH)

Connector Part Information

OEM: 7282-4848-30
Service: 89046692
Description: 12-Way M Dock and Lock (BK)

Terminal Part Information

Pins: 1, 2, 3, 4, 5
Terminal/Tray: 7116-4100-08/9
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Terminal/Tray: 7116-4101-08/9
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

C801 Right Rear Door Harness to Right Rear Door Trim Harness

Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
1	YE	1491	Backlight Lamps Control	1	YE	1491	Backlight Lamps Control
2	D-GN	1188	Power Window Switch Right Rear Down Signal	2	D-GN	1188	Power Window Switch Right Rear Down Signal
3	GY	1186	Power Window Switch Right Rear Up Signal	3	GY	1186	Power Window Switch Right Rear Up Signal
4	BK/WH	451	Ground	4	BK/WH	451	Ground
5	L-GN	5049	Power Window Switch Right Rear Express Signal	5	L-GN	5049	Power Window Switch Right Rear Express Signal
6	TN	1855	Right Rear Midrange Speaker Output (+)	6	TN	1855	Right Rear Midrange Speaker Output (+)
7	OG	1955	Right Rear Midrange Speaker Output (-)	7	OG	1955	Right Rear Midrange Speaker Output (-)
8-12	--	--	Not Used	8-12	--	--	Not Used
