Engine Controls Component Views. Cadillac CTS 2006

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2006 🢒 CTS 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 5L40-E/5L50-E 🢒 Engine Controls Component Views

Figure 1:


(1)	Left Front Frame Rail
(2)	Engine Control Module (ECM)
(3)	A/C Refrigerant Pressure Sensor

Figure 2:


(1)	Manifold Absolute Pressure (MAP) Sensor
(2)	Throttle Body Assembly
(3)	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
(4)	Knock Sensor (KS) 2
(5)	Engine Oil Level Switch
(6)	Crankcase Position (CKP) Sensor
(7)	Engine Oil Pressure (EOP) Sensor
(8)	Knock Sensor (KS) 1
(9)	Camshaft Position (CMP) Sensor
(10)	Engine Coolant Temperature (ECT) Sensor

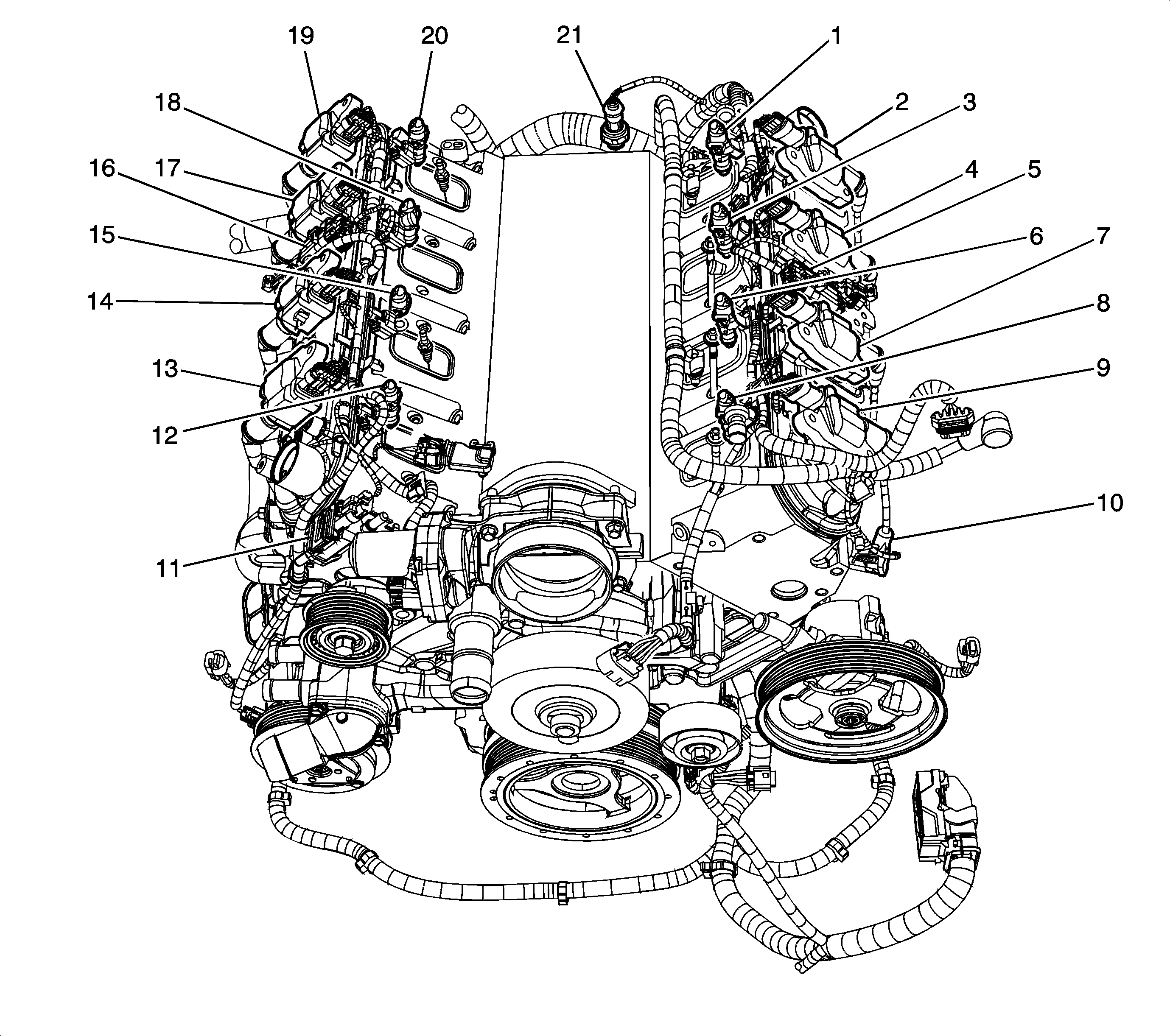

Figure 3:


(1)	Fuel Injector 7
(2)	Ignition Coil 7
(3)	Fuel Injector 5
(4)	Ignition Coil 5
(5)	C131
(6)	Fuel Injector 3
(7)	Ingnitioin Coil 3
(8)	Fuel Injector 1
(9)	Ignition Coil 1
(10)	Engine Coolant Temperature (ECT) Sensor
(11)	Canister Purge Solenoid
(12)	Fuel Injector 2
(13)	Ignition Coil 2
(14)	Ignition Coil 4
(15)	Fuel Injector 4
(16)	C132
(17)	Ignition Coil 6
(18)	Fuel Injector 6
(19)	Ignition Coil 8
(20)	Fuel Injector 8
(21)	Engine Oil Pressure (EOP) Sensor

Figure 4:


(1)	Mass Air Flow (MAF) and Intake Air Temperature (IAT) Sensors
(2)	Mass Air Flow (MAF) Connector

Figure 5:


(1)	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
(2)	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
(3)	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
(4)	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2

Figure 6:


(1)	Accelerator Pedal Position (APP) Sensor
(2)	Accelerator Pedal
(3)	Brake Pedal
(4)	Brake Pedal Position Sensor

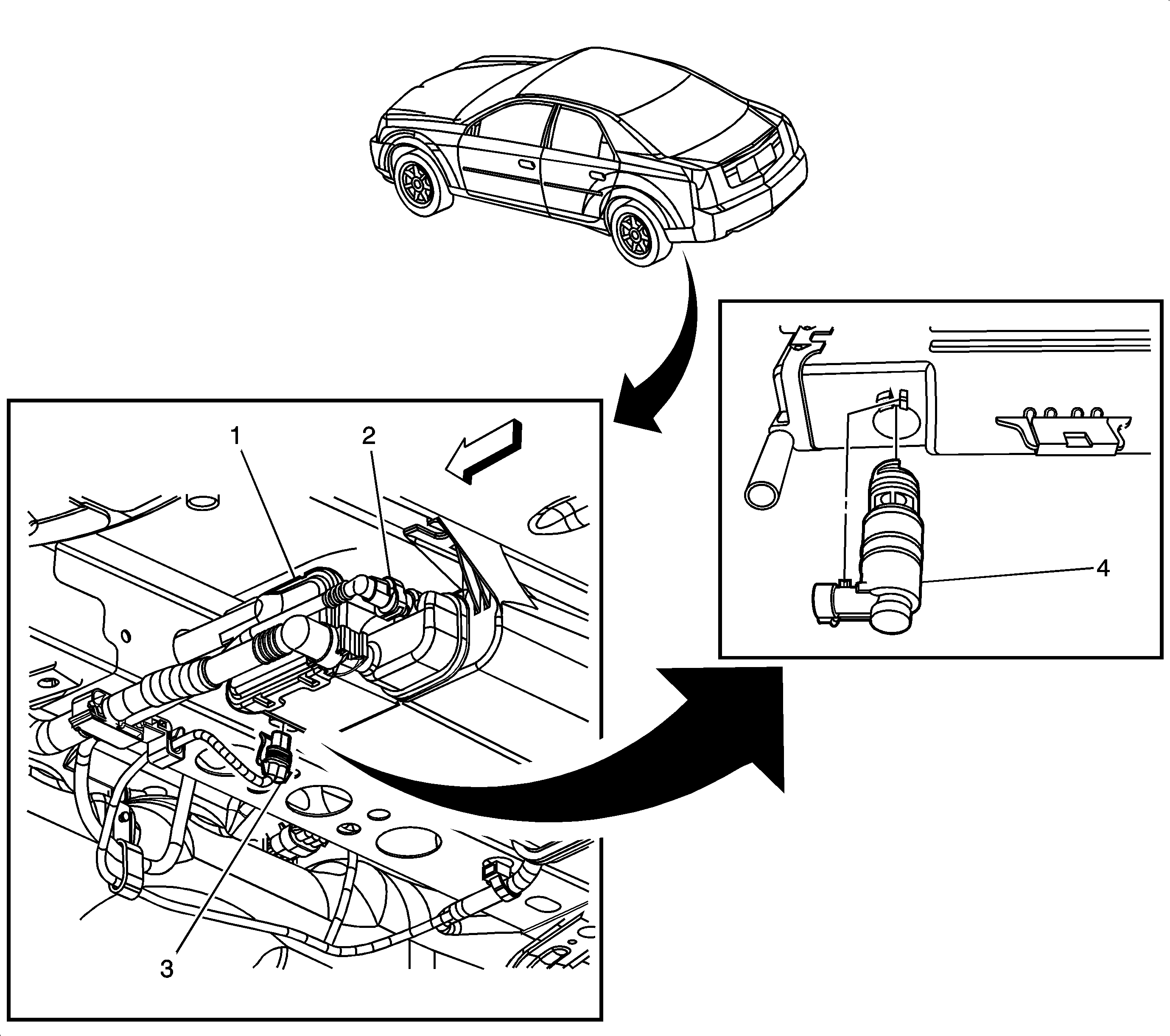

Figure 7:


(1)	EVAP Canister
(2)	Fuel Tank Pressure Sensor
(3)	EVAP Canister Vent Solenoid Valve Connector
(4)	EVAP Canister Vent Solenoid Valve

Figure 8:


(1)	Secondary Fuel Sender Assembly
(2)	Secondary Fuel Sender Assembly Connector
(3)	Secondary Fuel Sender Assembly (Removed from Fuel Tank)
(4)	Fuel Pump and Sender Assembly (Removed from Fuel Tank)
(5)	Fuel Pump and Sender Assembly
(6)	Fuel Pump and Sender Assembly Connector
