Rear Seat Belt Buckle Replacement. Cadillac CTS 2007

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2007 🢒 CTS 🢒 Safety and Security 🢒 Seat Belts 🢒 Rear Seat Belt Buckle Replacement

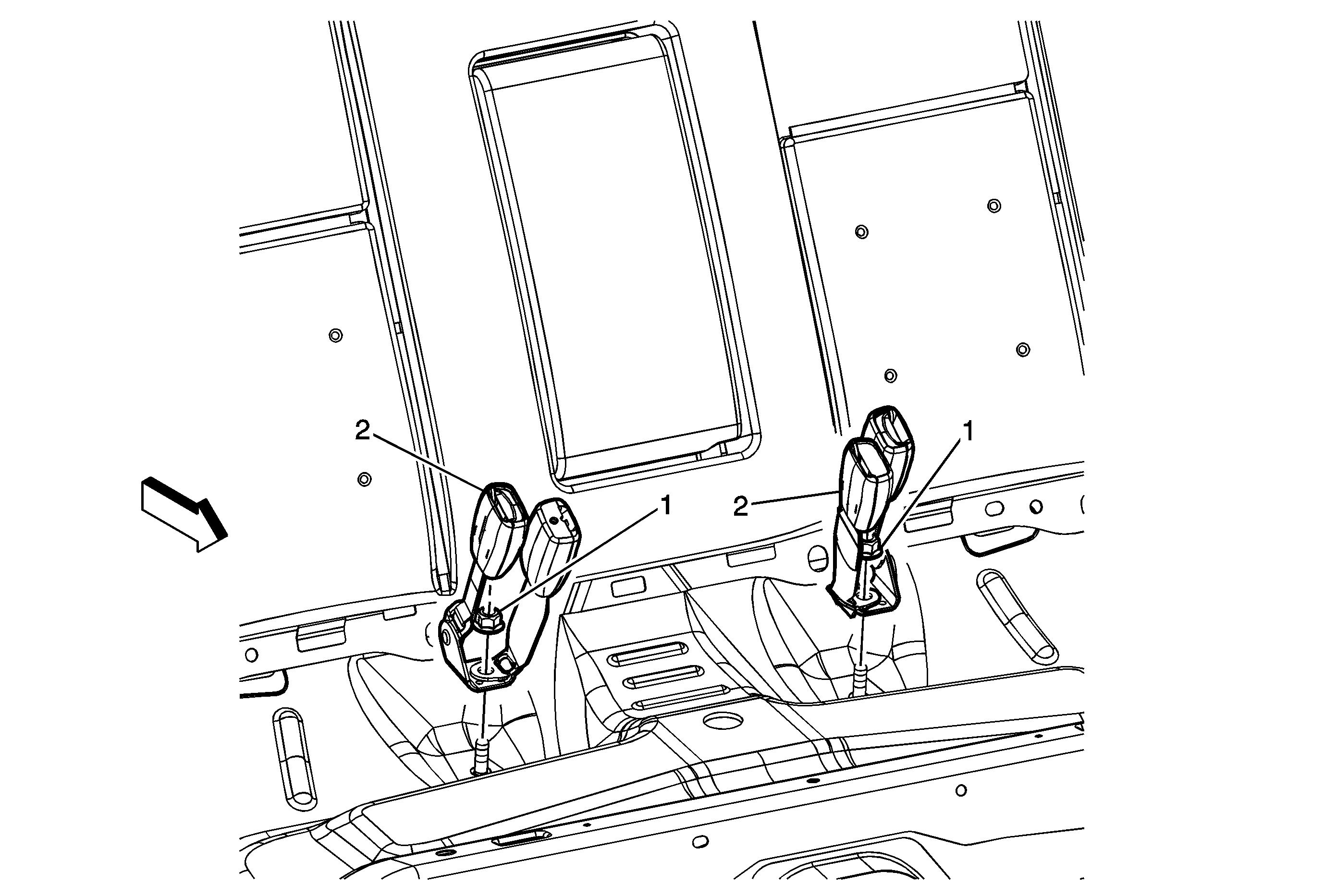

Rear Seat Belt Buckle Replacement w/Rear Folding Seat

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
1	Rear Seat Belt Buckle Nut (Qty: 2) Notice: Refer to Fastener Notice in the Preface section. Tighten 30 N·m (22 lb ft)
2	Rear Seat Belt Buckle Assembly (Qty: 2) Tip Disconnect the electrical connector.

Callout

Component Name

Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .

Rear Seat Belt Buckle Nut (Qty: 2)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
30 N·m (22 lb ft)

Rear Seat Belt Buckle Assembly (Qty: 2)

Tip
Disconnect the electrical connector.

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
1	Rear Seat Belt Buckle Nut (Qty: 2) Notice: Refer to Fastener Notice in the Preface section. Tighten 30 N·m (22 lb ft)
2	Rear Seat Belt Buckle Assembly (Qty: 2) Tip Disconnect the electrical connector.
