Headlights/Daytime Running Lights (DRL) Schematics. Cadillac CTS 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 CTS 🢒 Body Systems 🢒 Lighting 🢒 Headlights/Daytime Running Lights (DRL) Schematics

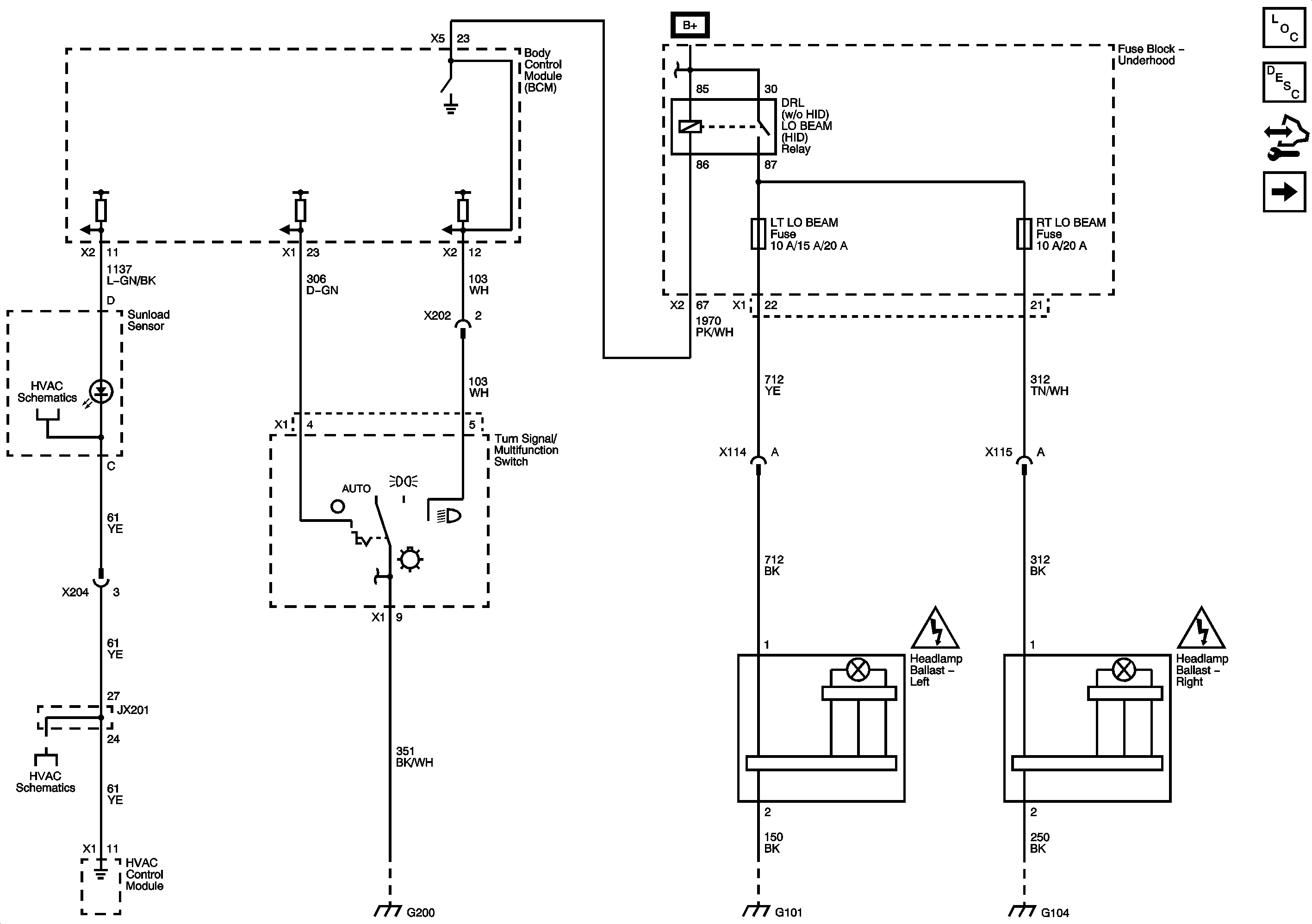

Figure 1:	Low Beams TT6/TT7/TT8 (1 of 5) Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Low Beams -TT6/TT7/TT8 (2 of 5)

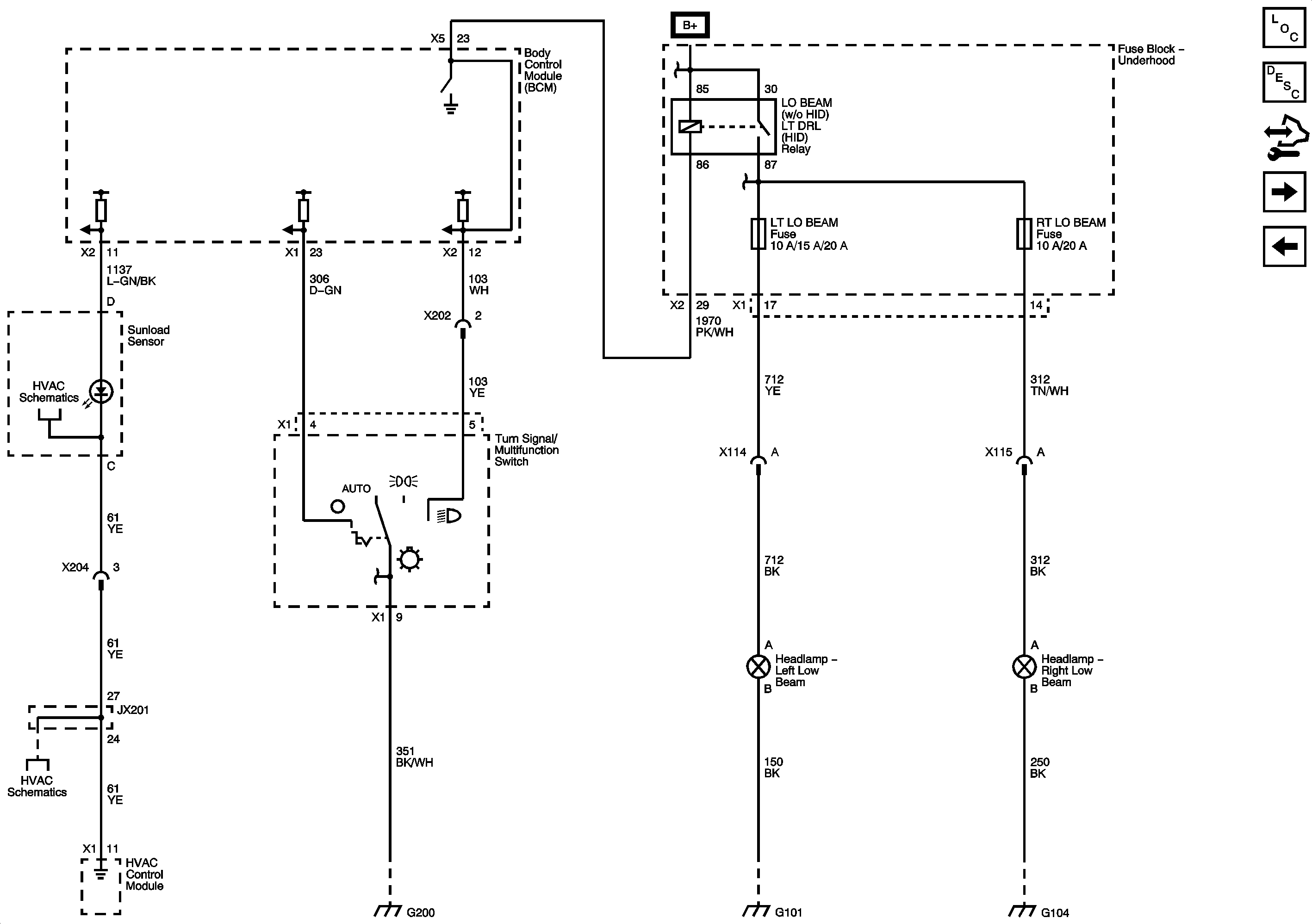

Figure 2:	Low Beams without TT6/TT7/TT8 (2 of 5) Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References High Beams (3 of 5) Low Beams +TT6/TT7/TT8 (1 of 5)

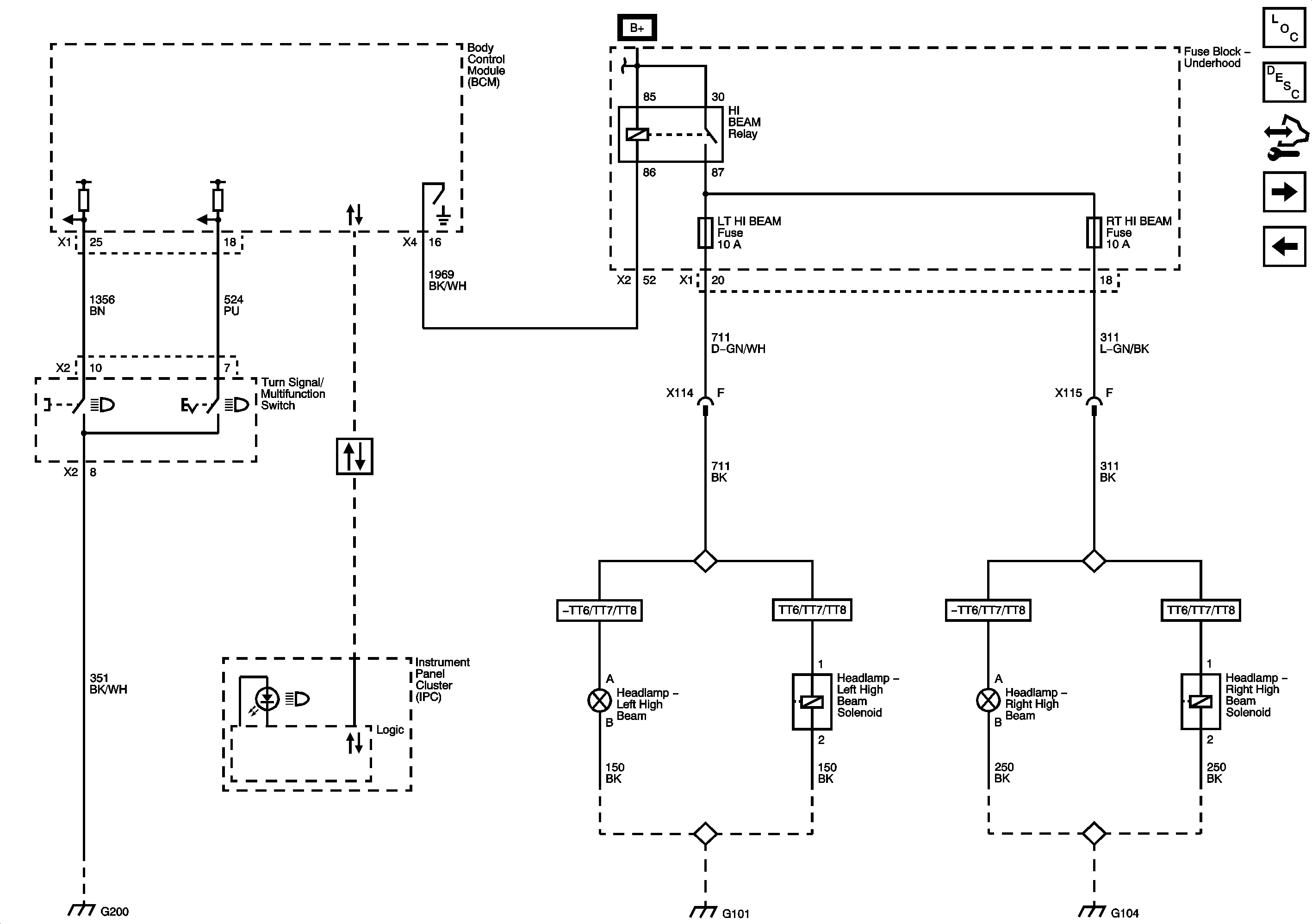

Figure 3:	High Beams (3 of 5) Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References -TT6/TT7/TT8 (4 of 5) Low Beams -TT6/TT7/TT8 (2 of 5)

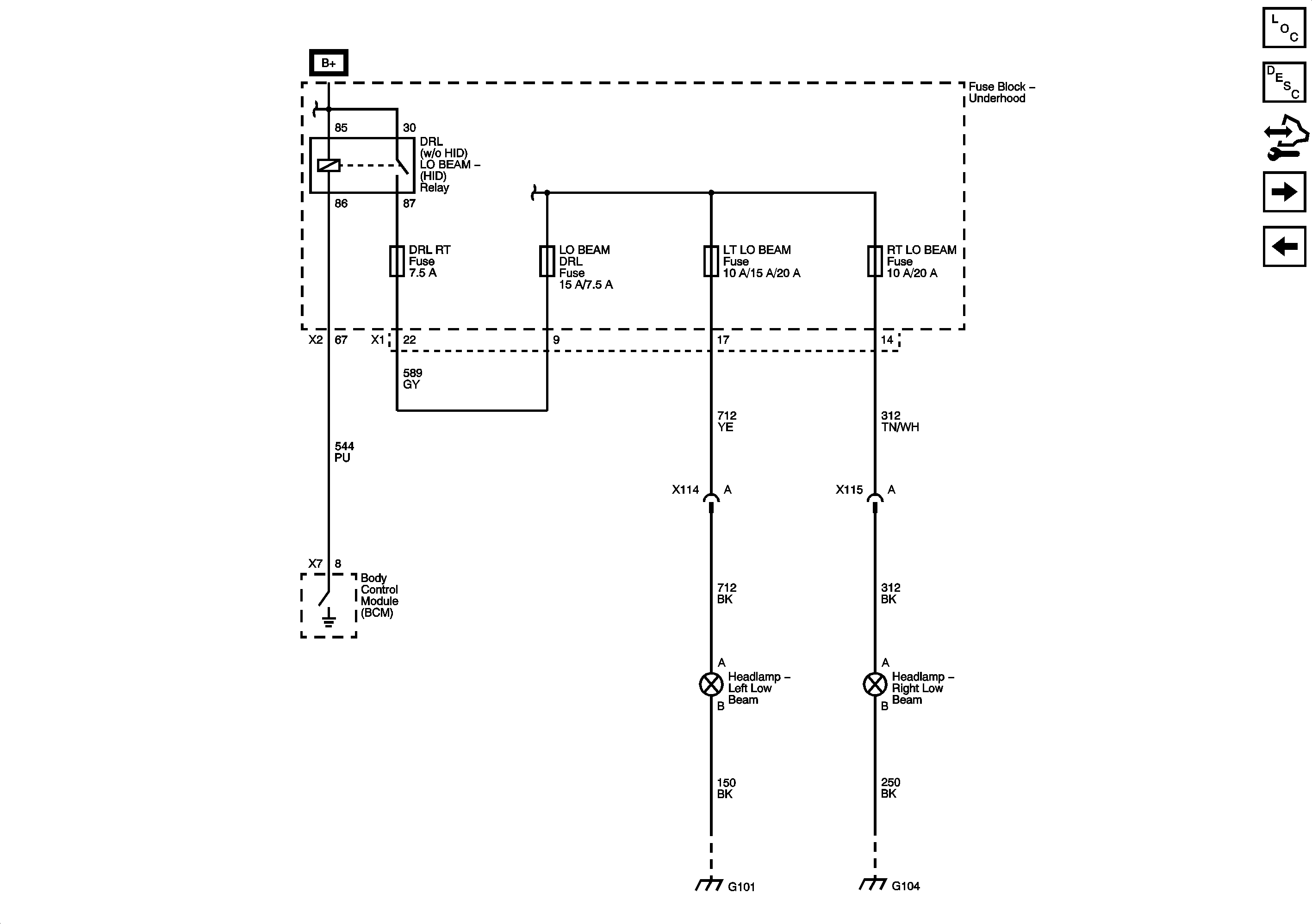

Figure 4:	without TT6/TT7/TT8 (4 of 5) Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References +TT6/TT7/TT8 (5 of 5) High Beams (3 of 5)

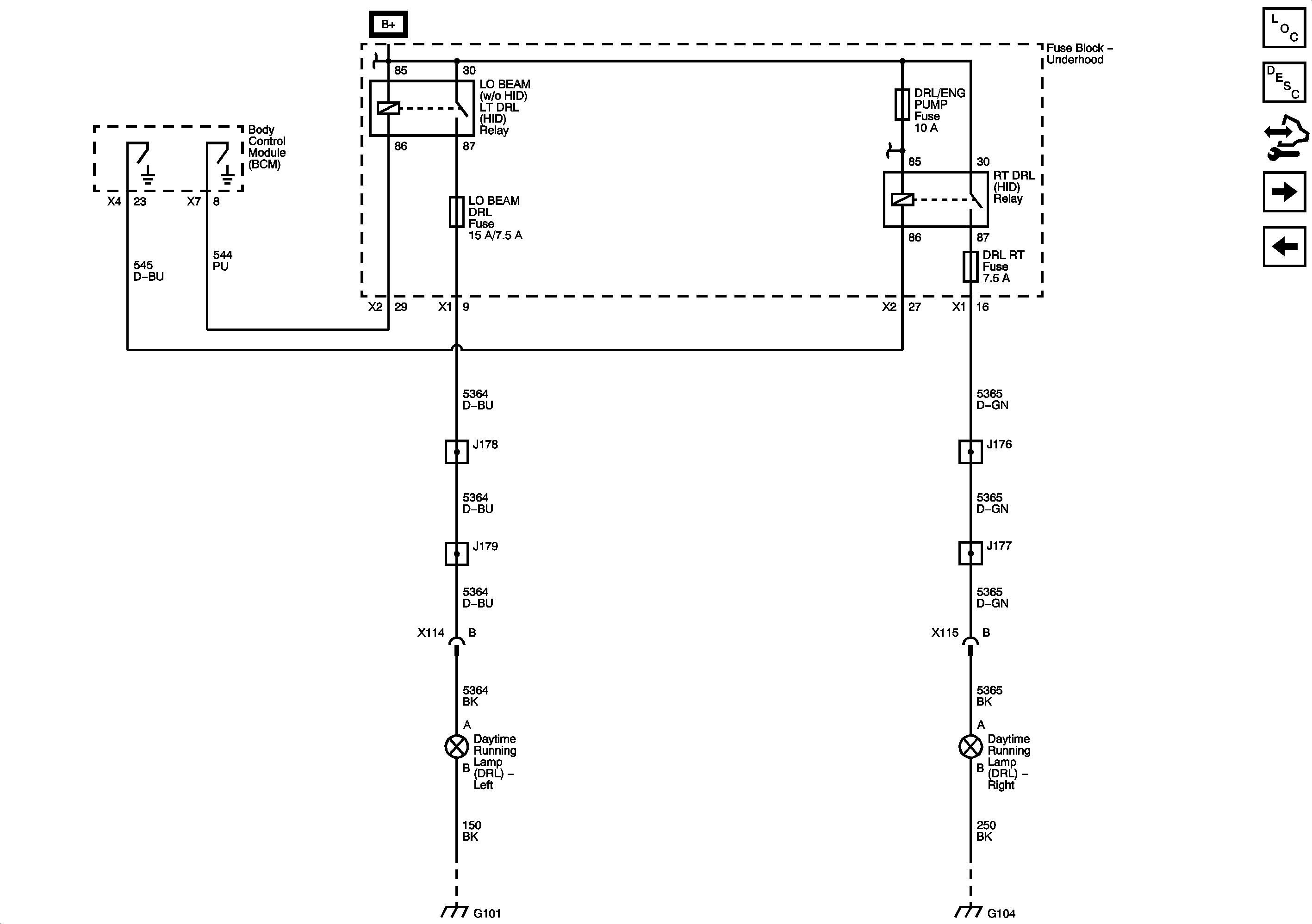

Figure 5:	TT6/TT7/TT8 (5 of 5) Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Adaptive Forward Lighting -TT6/TT7/TT8 (4 of 5)

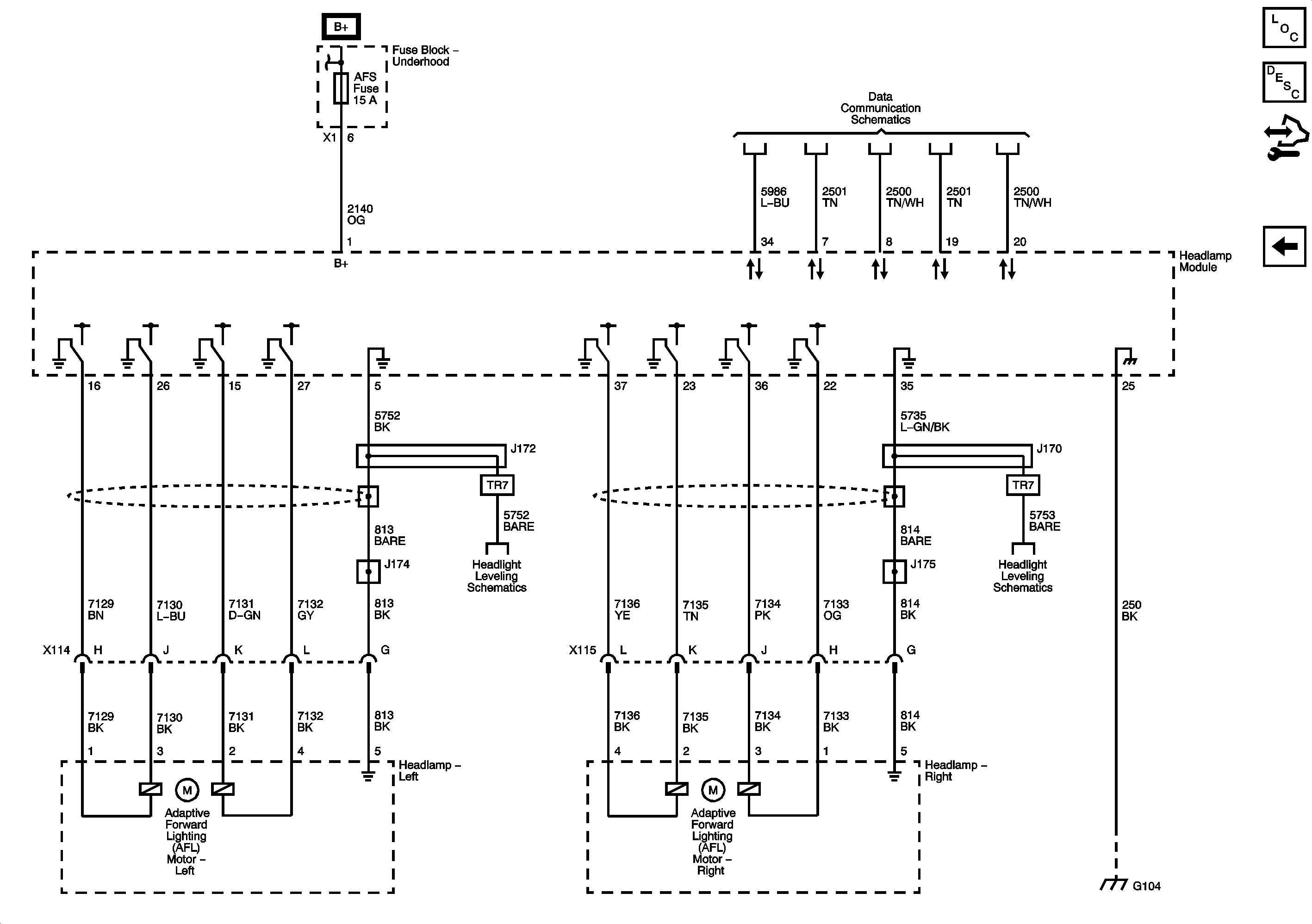

Figure 6:	Adaptive Forward Lighting Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References +TT6/TT7/TT8 (5 of 5)
