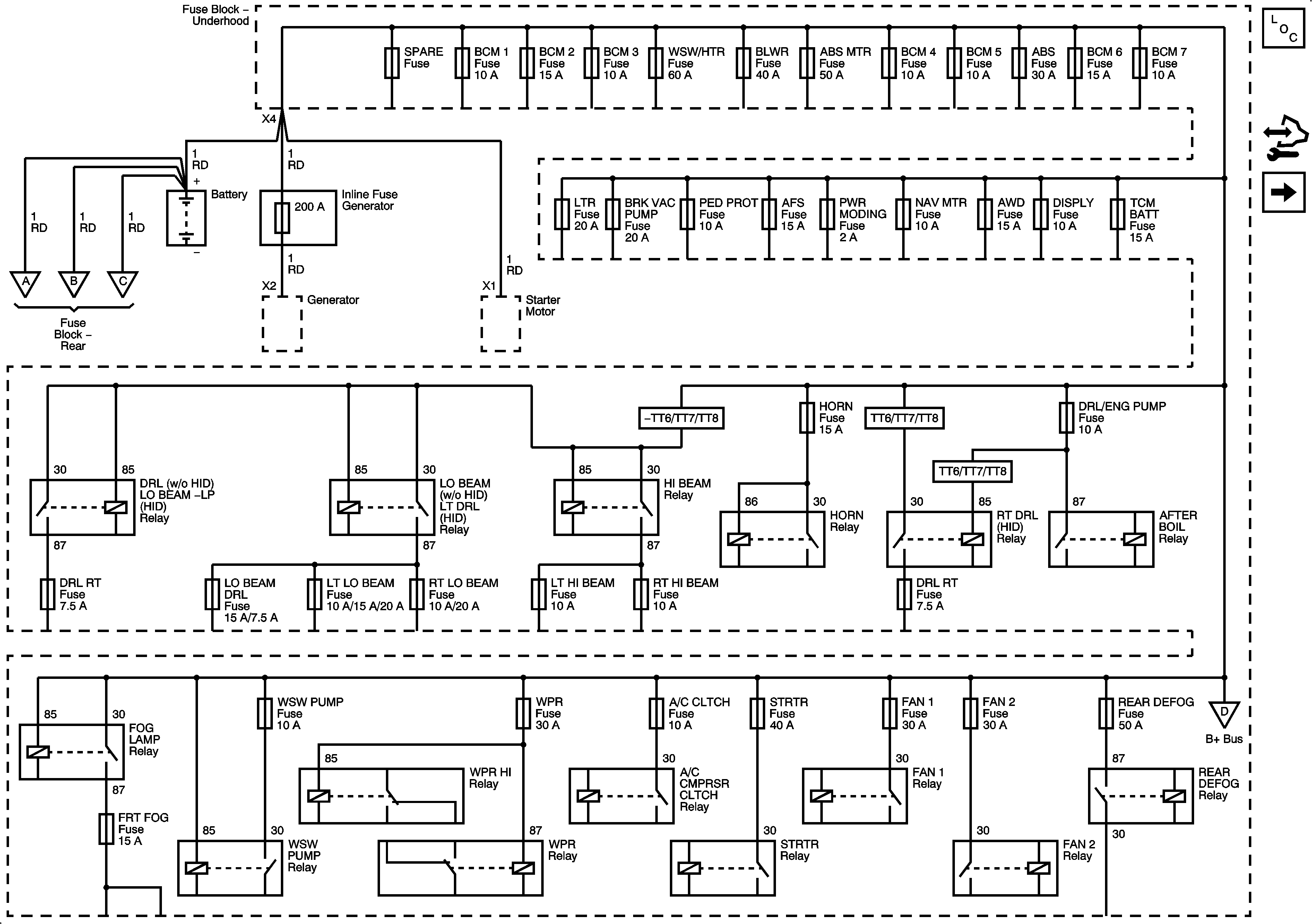

| Figure 1: |
B+ Bus 1 of 2
|
| Figure 2: |
B+ Bus 2 of 2
|

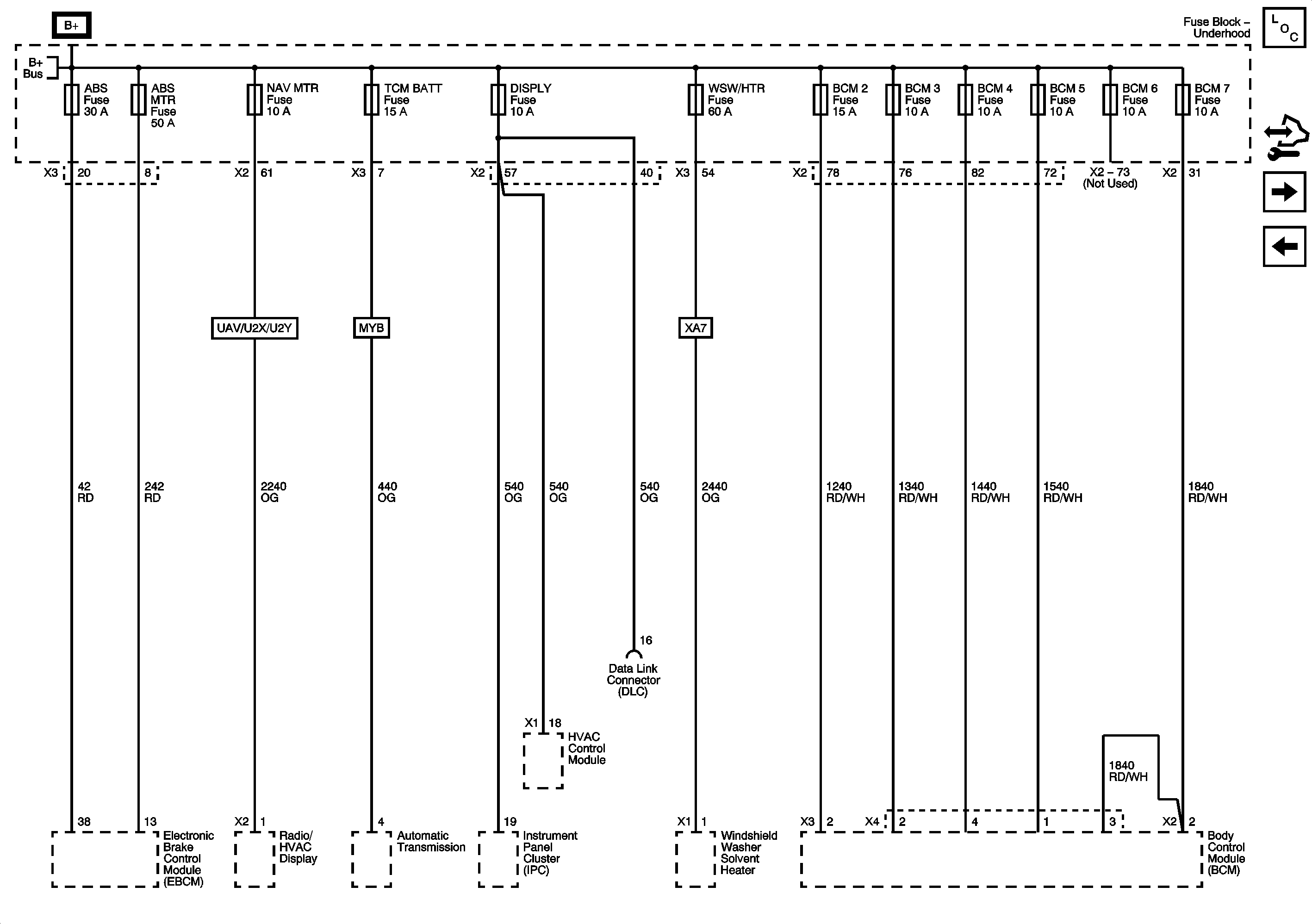

| Figure 3: |
ABS, ABS MTR, BCM 2, BCM 3, BCM 4, BCM 5, BCM 6, BCM 7, DISPLAY, HTD WASH, NAV MTR, and TCM BATT Fuses
|

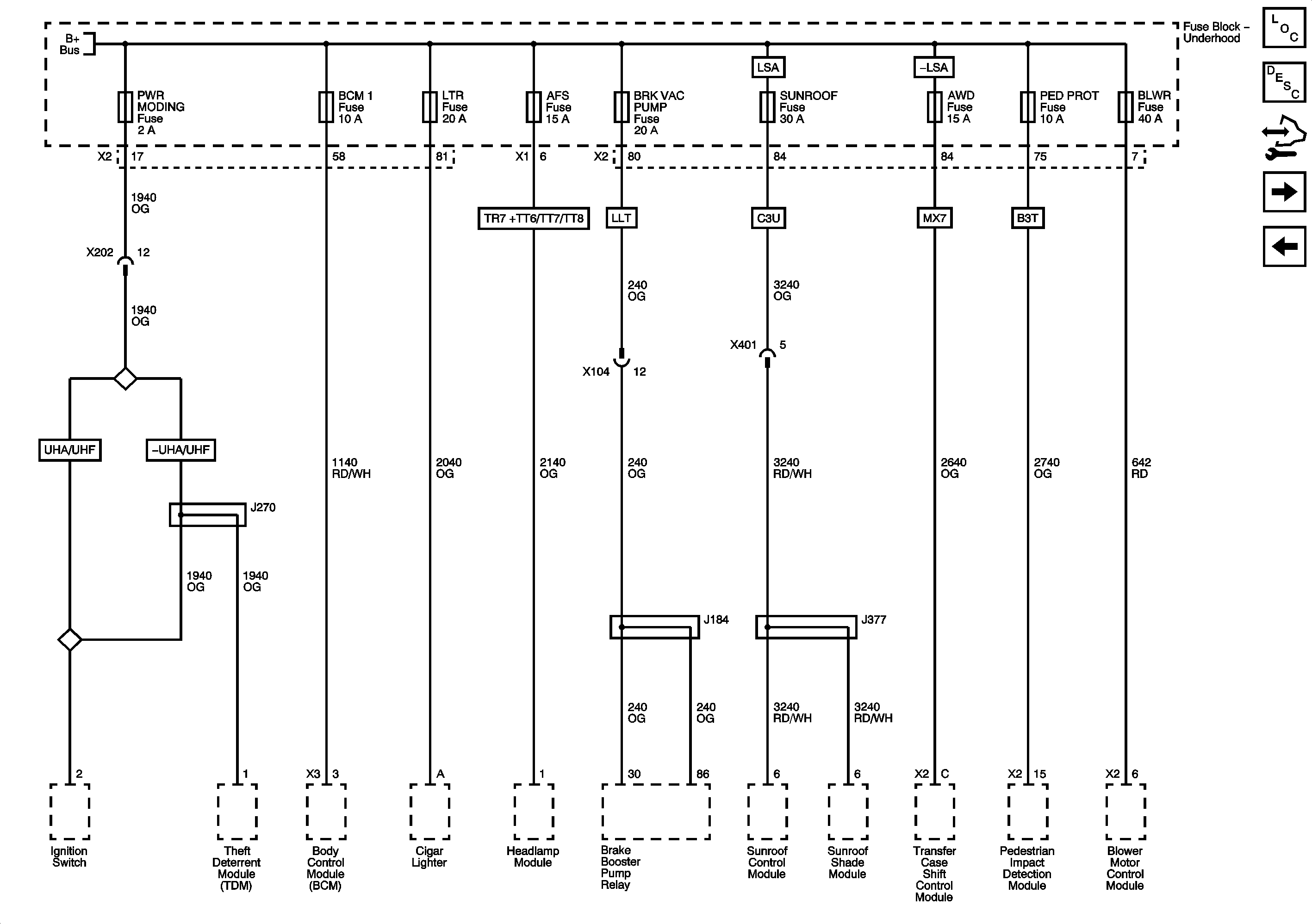

| Figure 4: |
AFS, AWD, BCM1, BLWR, CIG, PED PRO, PWR MODING, and TRANS PUMP Fuses
|

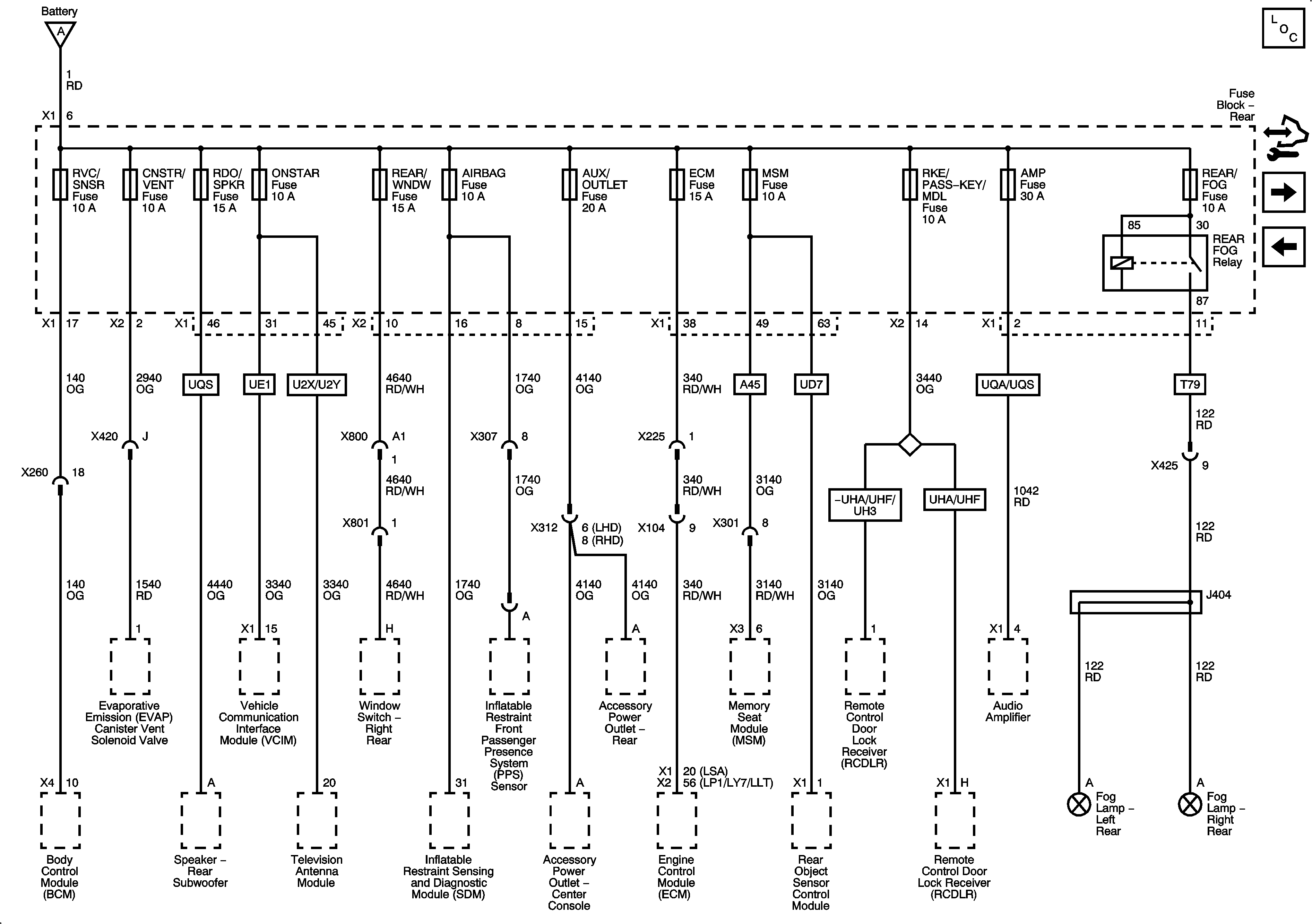

| Figure 5: |
AIRBAG, AMP, AUX OUTLET, CNSTR/VENT, ECM, MSM, ONSTAR, RDO/SPKR, REAR FOG, REAR/WNDW, RKE/PASS-KEY/MDL, and RVC/SNSR Fuses
|

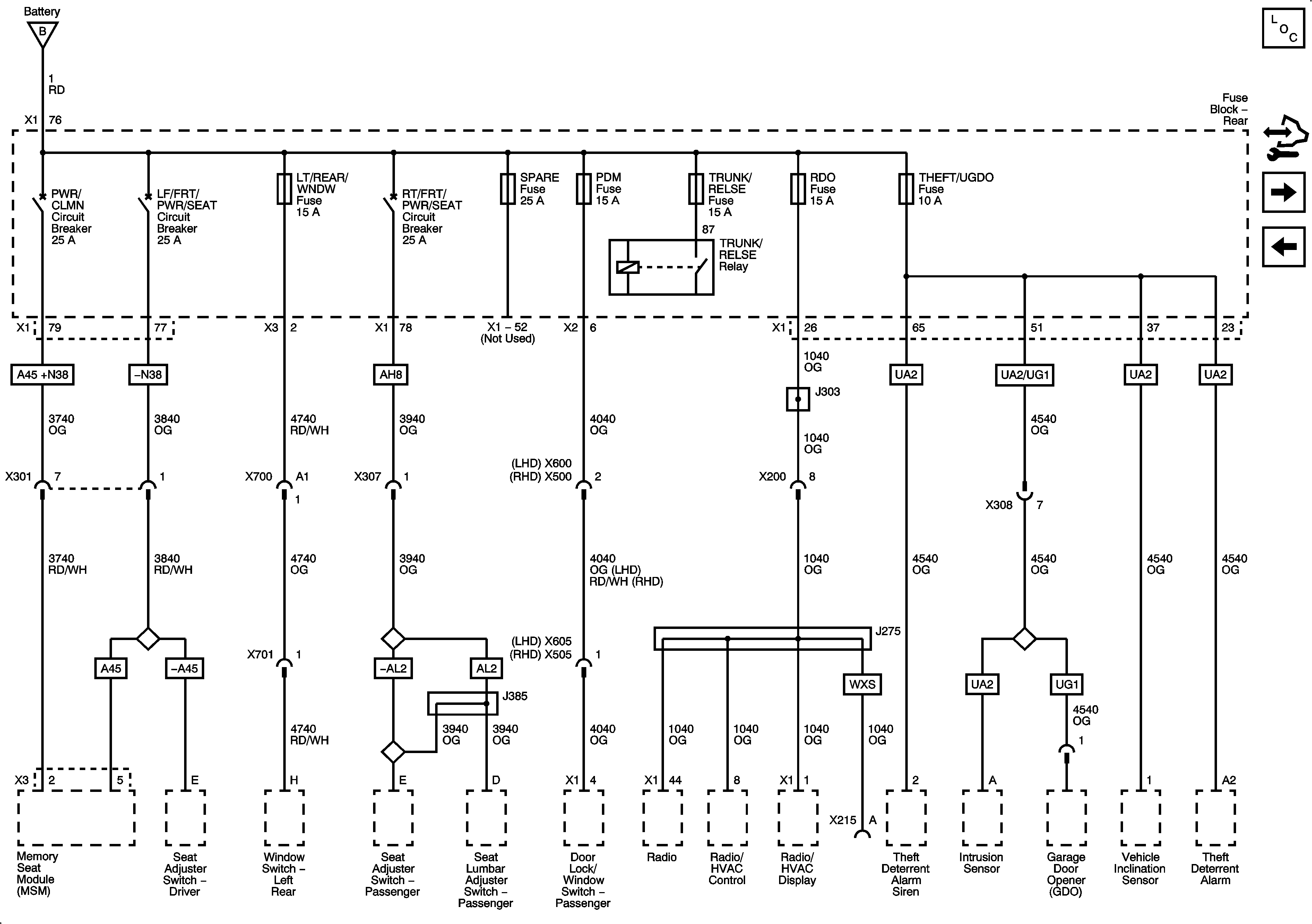

| Figure 6: |
LT/REAR/WNDW, PDM, RDO, SPARE, THEFT/UGDO, and TRUNK RELSE Fuses, LF/FRT/PWR/SEAT, PWR CLMN and RT/FRT/PWR/SEAT Circuit Breakers
|

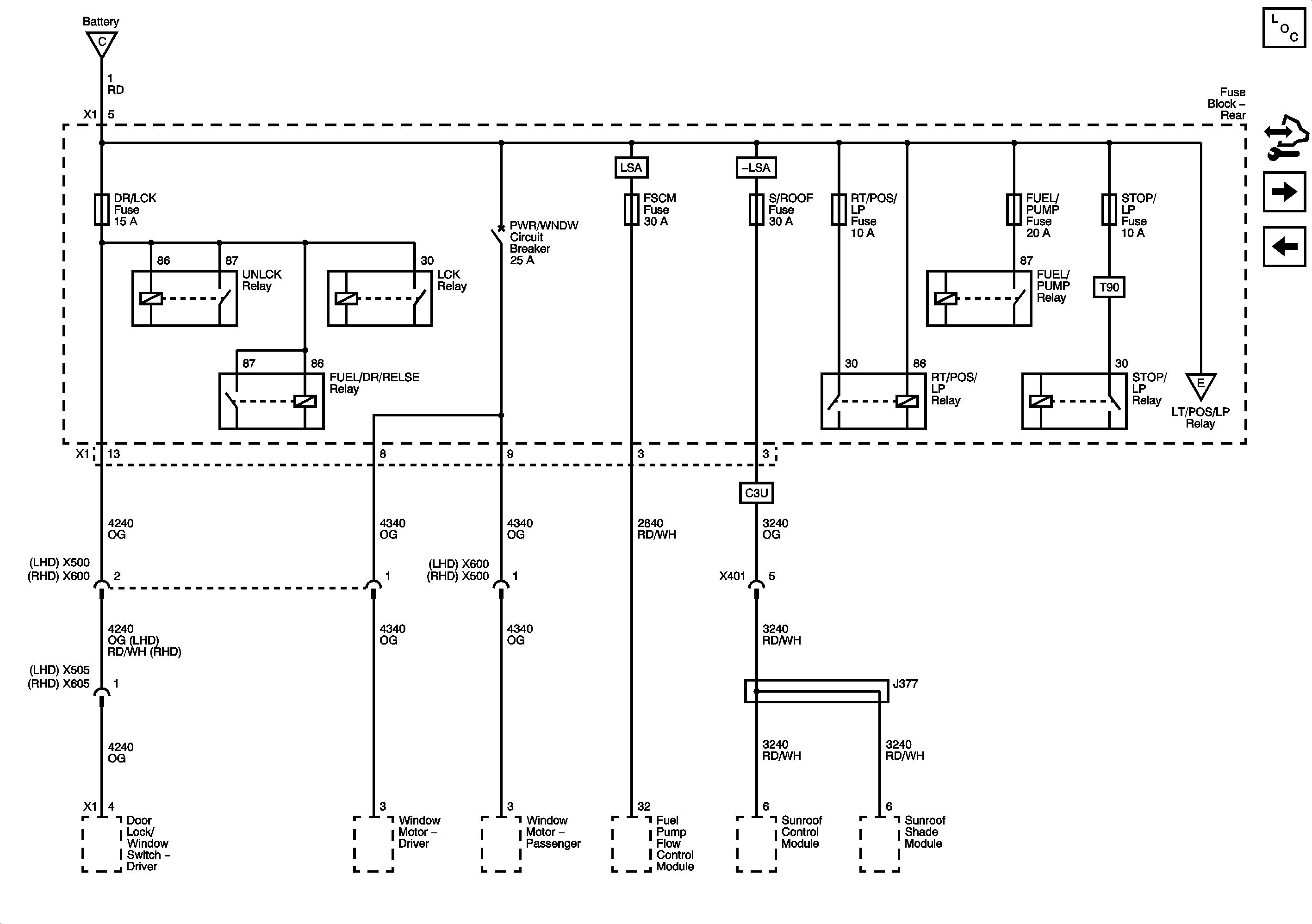

| Figure 7: |
DR/LCK, FUEL PUMP, RT/POS/LP, S/ROOF and STOP/LP Fuses, PWR/WNDW Circuit Breaker
|
| Figure 8: |
Ignition Switch
|

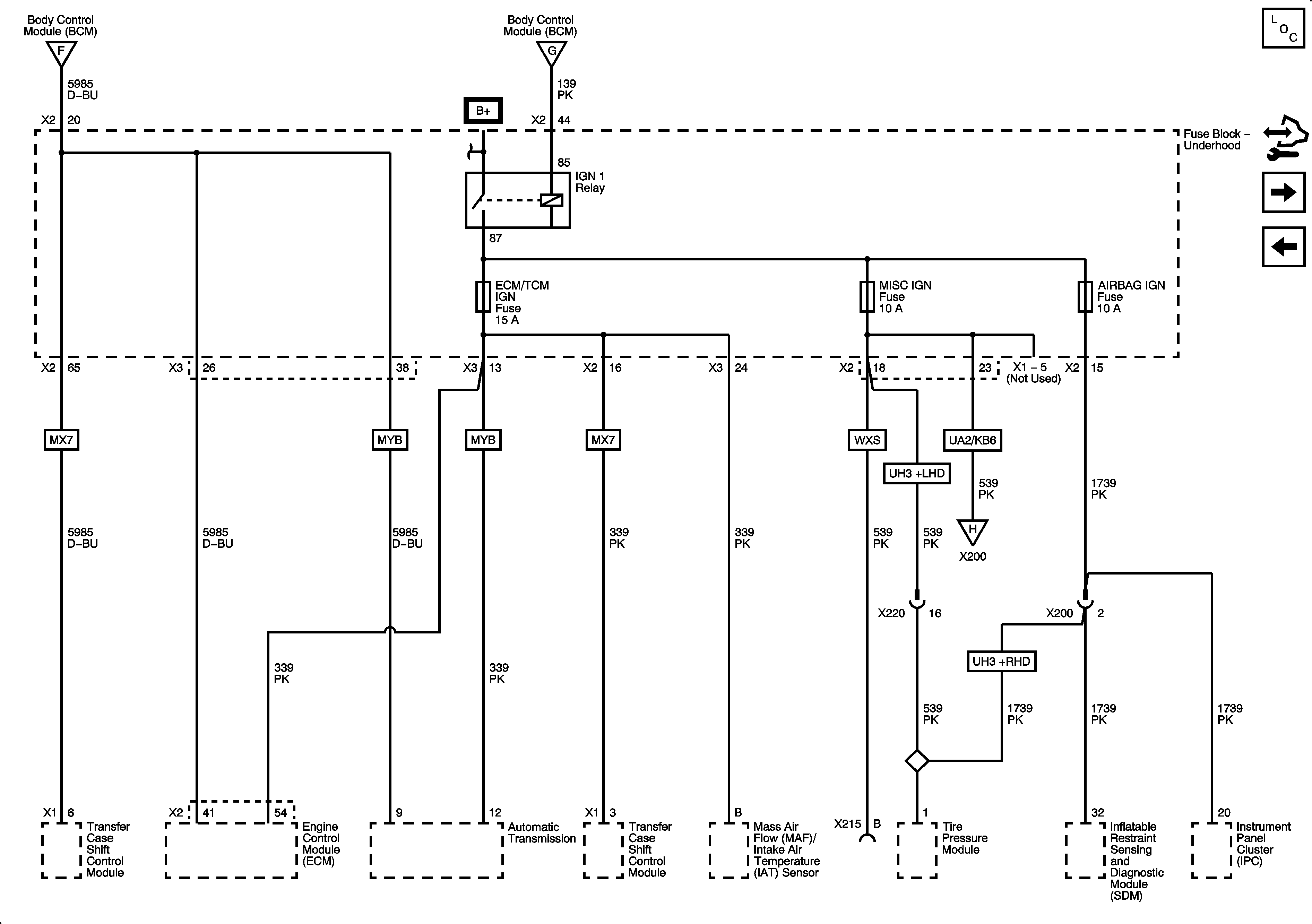

| Figure 9: |
ECM/TCM, MISC IGN 1 of 2 and SIR IGN Fuses, IGN I/II and II/III
|
| Figure 10: |
MISC IGN Fuse 2 of 2
|

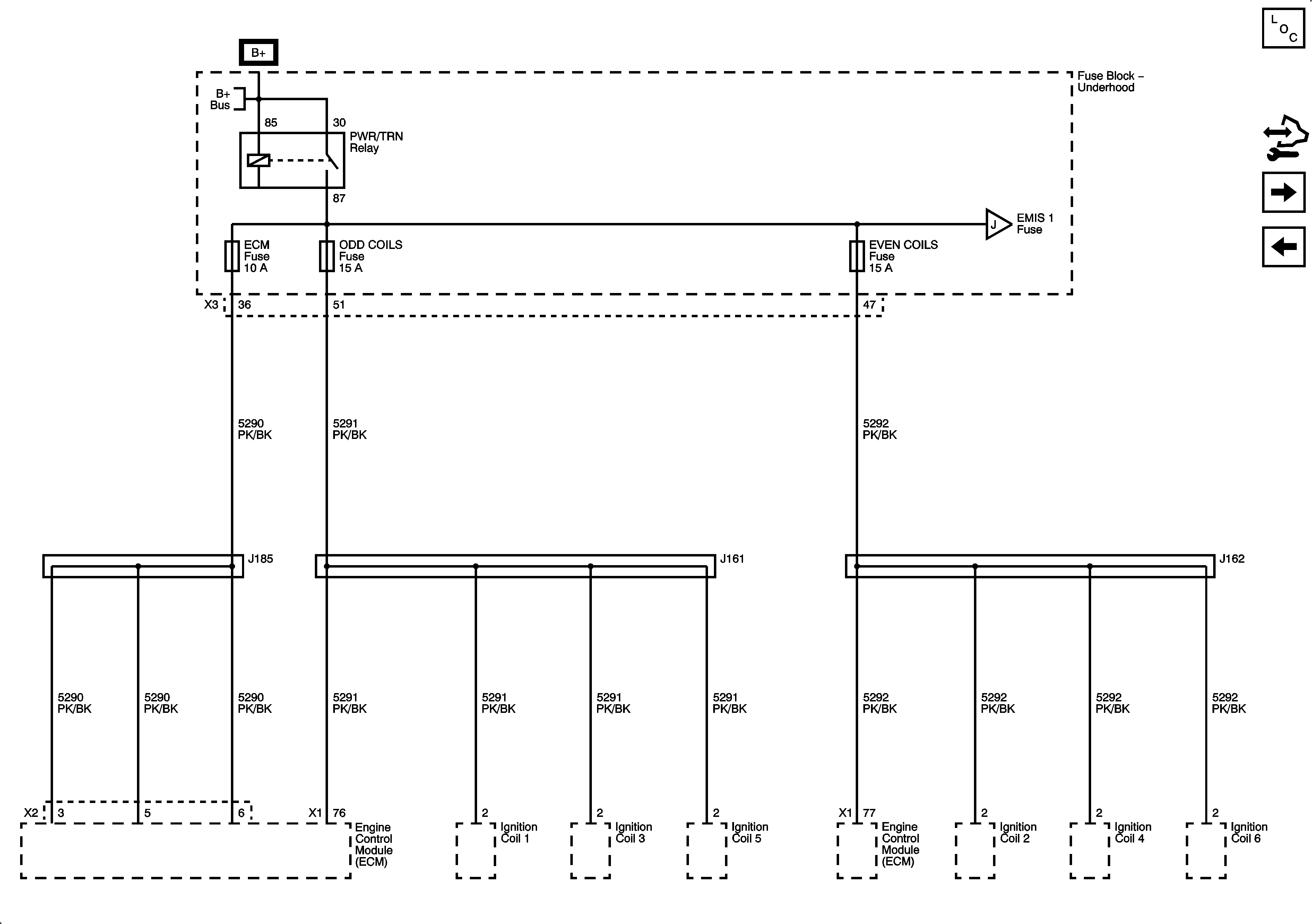

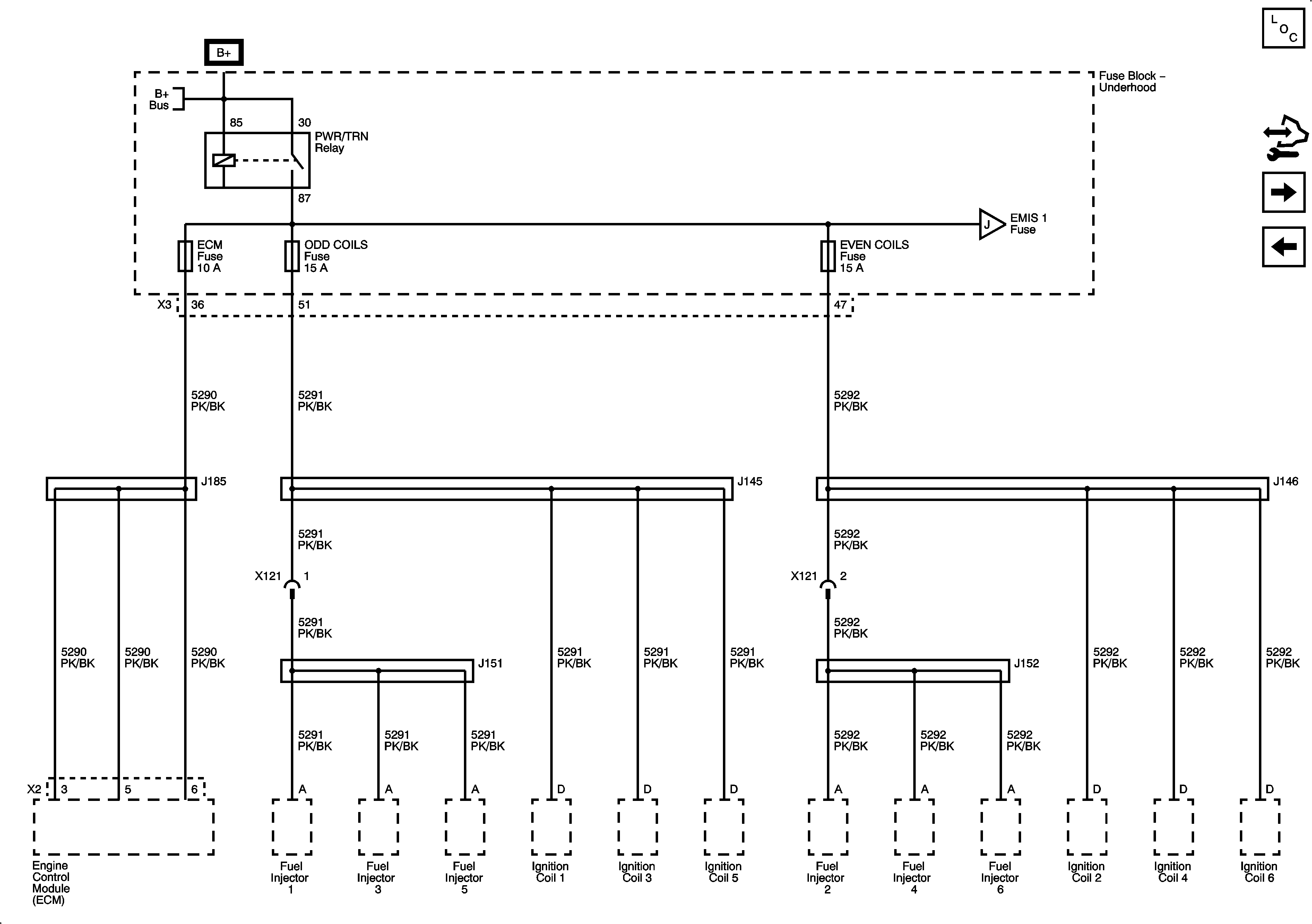

| Figure 11: |
EVEN COILS, ODD COILS and SPEED SNSR Fuses - LLT
|
| Figure 12: |
EVEN COILS, ODD COILS and SPEED SNSR Fuses - LP1/LY7
|
| Figure 13: |
EMISSION 1 and EMISSION 2 Fuses
|
| Figure 14: |
DRL, DRL RT, LO BEAM DRL LH, LT HI BEAM, LT LO BEAM, RT HI BEAM and RT LO Fuses
|
| Figure 15: |
LT/POS/LP and RT/POS/LP Fuses
|
