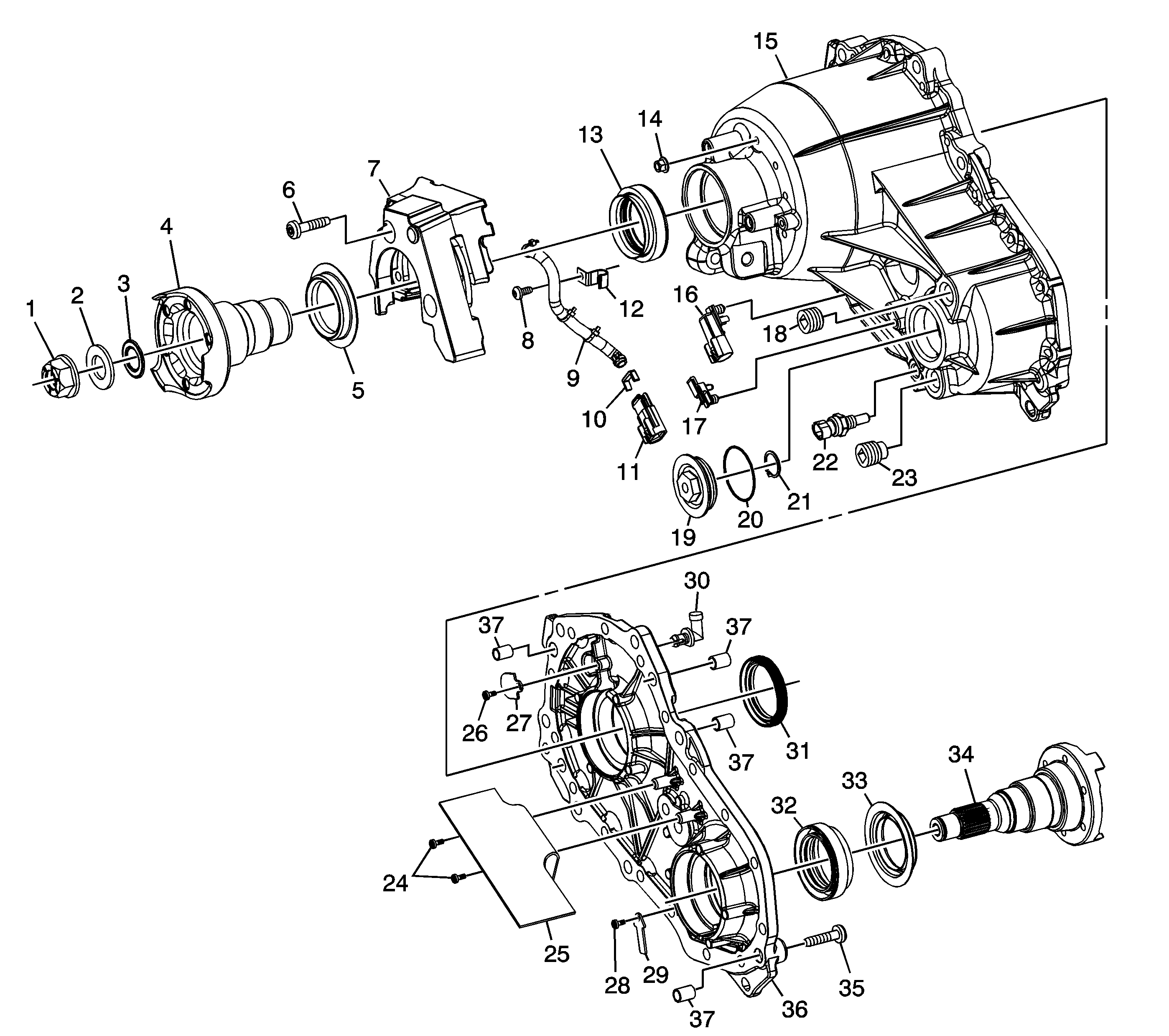

| (1) | Transfer Case Rear Output Shaft Flange Nut |
| (2) | Transfer Case Rear Output Shaft Thrust Washer |
| (3) | Transfer Case Rear Output Shaft Flange O-Ring Seal |
| (4) | Transfer Case Rear Output Shaft Flange Assembly |
| (5) | Transfer Case Rear Output Shaft Seal Dirt Deflector |
| (6) | Transfer Case Vibration Dampener Bolt |
| (7) | Transfer Case Vibration Dampener |
| (8) | Transfer Case J-Clip Bolt |
| (9) | Transfer Case Clutch Coil Harness Protector |
| (10) | Transfer Case Clip |
| (11) | Transfer Case Coil Connector Assembly |
| (12) | Transfer Case J-Clip |
| (13) | Transfer Case Rear Output Shaft Seal |
| (14) | Transfer Case Coil Nuts (Qty: 3) |
| (15) | Transfer Case - Rear Half |
| (16) | Transfer Case Clutch Resistor |
| (17) | Transfer Case Clip |
| (18) | Transfer Case Oil Fill Plug |
| (19) | Transfer Case Front Output Shaft Hole Plug |
| (20) | Transfer Case Front Output Shaft Hole Plug O-Ring Seal |
| (21) | Transfer Case Front Output Shaft Bearing Retaining Ring |
| (22) | Transfer Case Temperature Sensor Assembly |
| (23) | Transfer Case Oil Drain Plug - Magnetic |
| (24) | Transfer Case Front Output Shaft Drive Chain Snubber Bolts (Qty: 2) |
| (25) | Transfer Case Front Output Shaft Drive Chain Snubber |
| (26) | Transfer Case Vent Baffle Bolt |
| (27) | Transfer Case Vent Baffle |
| (28) | Transfer Case Oil Pump Suction Hose Bolt |
| (29) | Transfer Case Oil Pump Suction Hose Clamp |
| (30) | Transfer Case Vent Assembly |
| (31) | Transfer Case Front Output Shaft Seal |
| (32) | Transfer Case Input Shaft Seal |
| (33) | Transfer Case Front Output Shaft Seal Dirt Deflector |
| (34) | Transfer Case Front Output Shaft |
| (35) | Transfer Case Half Bolt |
| (36) | Transfer Case - Front Half |
| (37) | Transfer Case Half Location Pin |
| (37) | Transfer Case Location Pin |
| (37) | Transfer Case Location Pin |
| (37) | Transfer Case Location Pin |
