Front Fog Lamp Bezel Replacement. Cadillac CTS 2009

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2009 🢒 CTS 🢒 Body Repair 🢒 Frame and Underbody 🢒 Front Fog Lamp Bezel Replacement

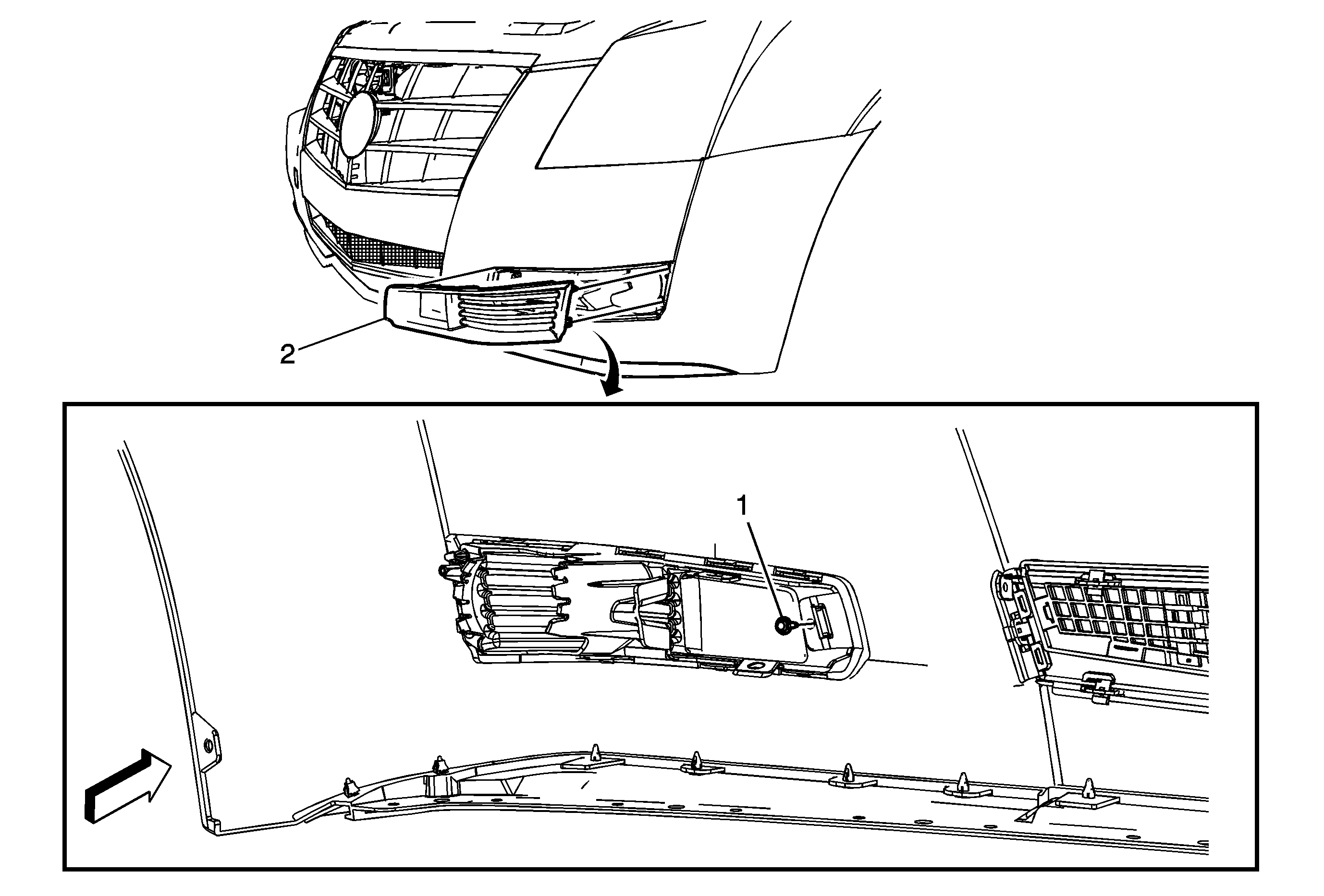

Front Fog Lamp Bezel Replacement w/o T96

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse extension. Refer to Wheelhouse Extension Replacement . Remove the front brake caliper cooling duct. Refer to Front Brake Caliper Cooling Duct Replacement .
1	Front Fog Lamp Bezel Screw Tip Hand tighten the screw only, no torque required.
2	Front Fog Lamp Bezel Tip Remove the bezel from the fascia by pushing the bezel outward from the front bumper fascia.

Callout

Component Name

Remove the front wheelhouse extension. Refer to Wheelhouse Extension Replacement .
Remove the front brake caliper cooling duct. Refer to Front Brake Caliper Cooling Duct Replacement .

Front Fog Lamp Bezel Screw

Tip
Hand tighten the screw only, no torque required.

Front Fog Lamp Bezel

Tip
Remove the bezel from the fascia by pushing the bezel outward from the front bumper fascia.

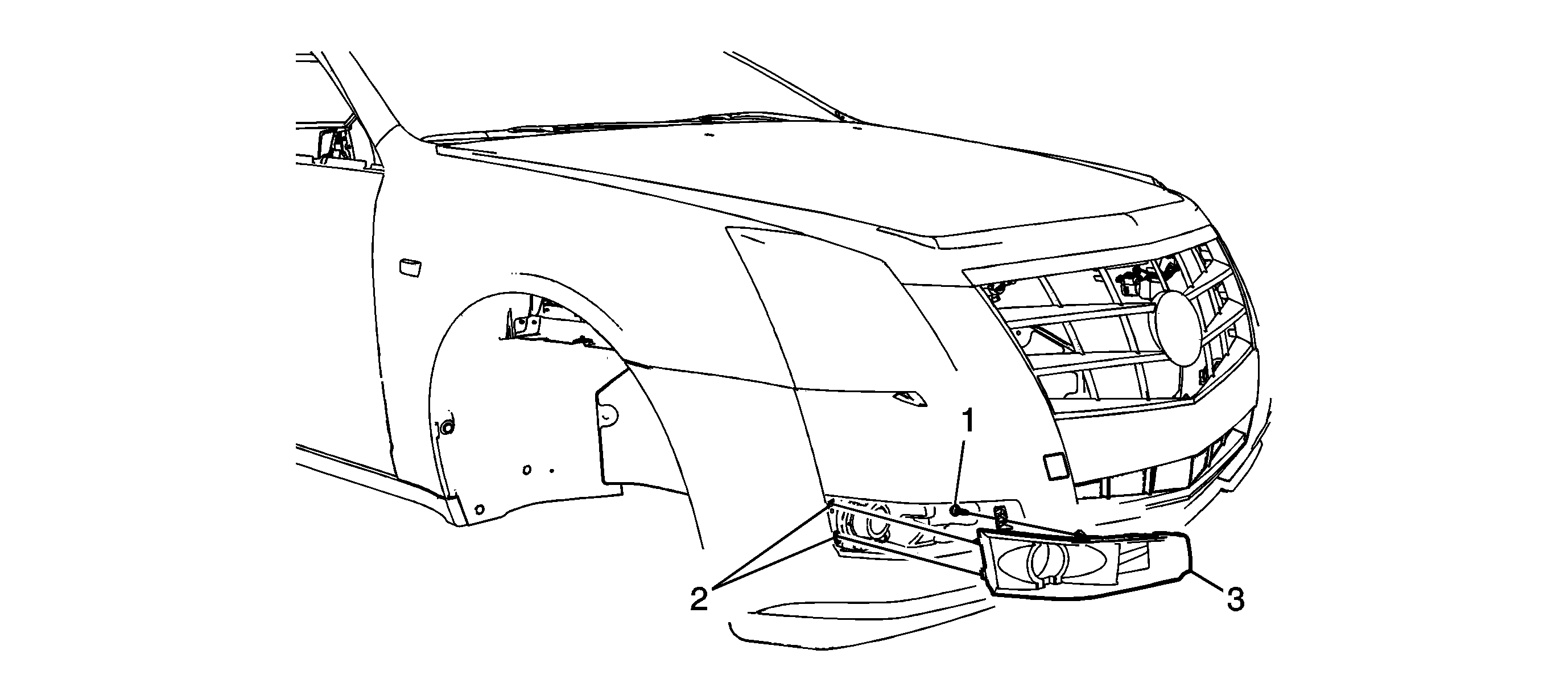

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse extension. Refer to Wheelhouse Extension Replacement. Remove the front brake caliper cooling duct. Refer to Front Brake Caliper Cooling Duct Replacement.
1	Front Fog Lamp Bezel Screw Caution: Refer to Fastener Caution in the Preface section. Tighten 1.3 N·m (12 lb in)
2	Front Fog Lamp Bezel Retention Clip (Qty: 2)
3	Front Fog Lamp Bezel Procedure Disengage the six inner retainer tabs securing the bezel to the front bumper fascia. Pull outward from the outer edge in order to release the outer retention clips securing the bezel to the front bumper fascia. Remove the front fog lamp bezel.
