Rear Seat Back Cushion Opening Panel Replacement. Cadillac CTS 2009

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2009 🢒 CTS 🢒 Seats 🢒 Seat Hardware, Trim, and Upholstery 🢒 Rear Seat Back Cushion Opening Panel Replacement

Rear Seat Back Cushion Opening Panel Replacement with 40 Percent Seat

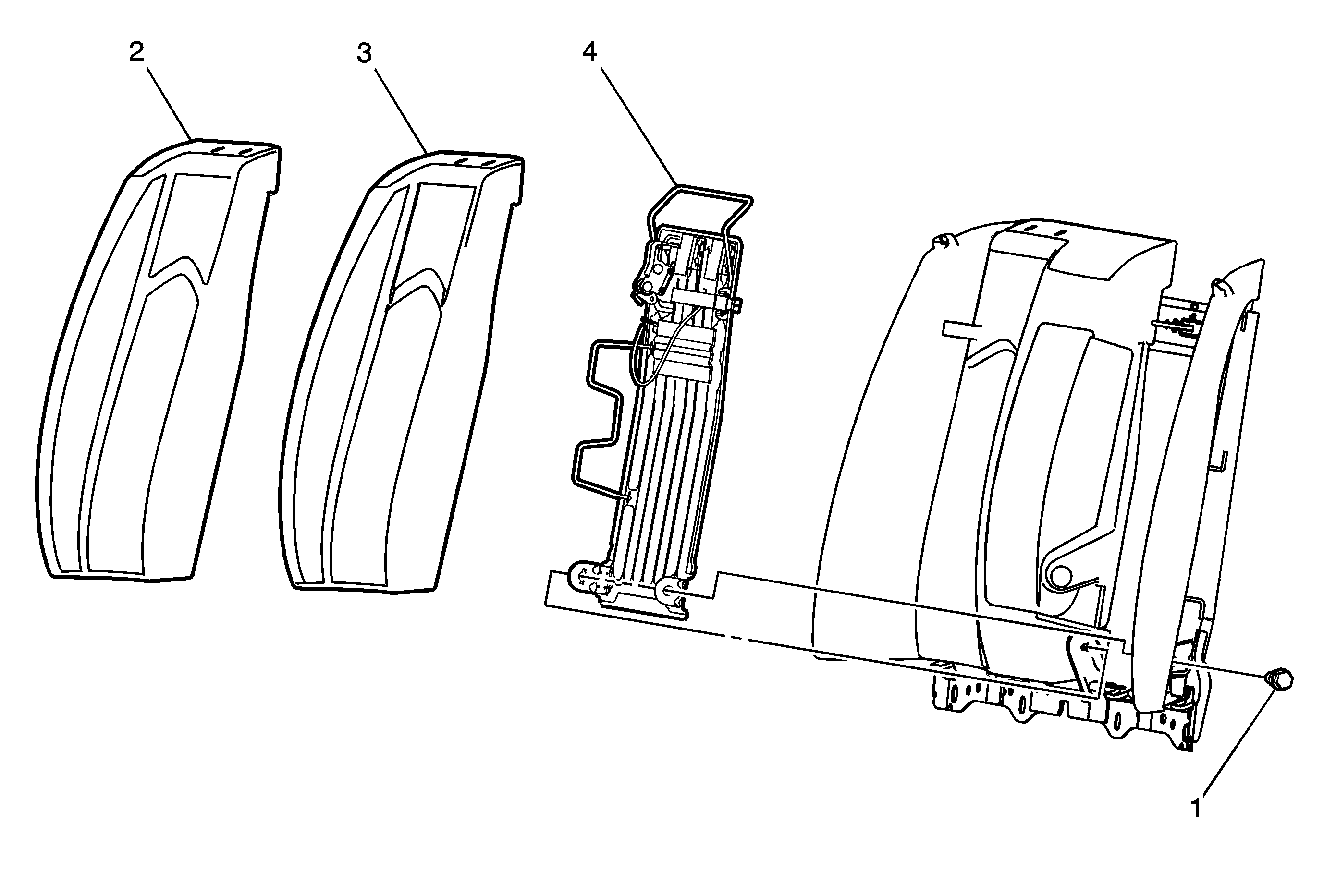

Object Number: 1970209 Size: MF

Callout	Component Name
Preliminary Procedure Remove the rear seat back. Refer to Rear Seat Back Replacement.
1	Rear Seat Back Panel Bolt Caution: Refer to Fastener Caution in the Preface section. Tighten 40 N·m (30 lb ft)
2	Rear Seat Back Cushion Cover Refer to Rear Seat Back Cushion Cover and Pad Replacement.
3	Rear Seat Back Cushion Pad
4	Rear Seat Back Cushion Panel

Rear Seat Back Cushion Opening Panel Replacement with 60 Percent Seat

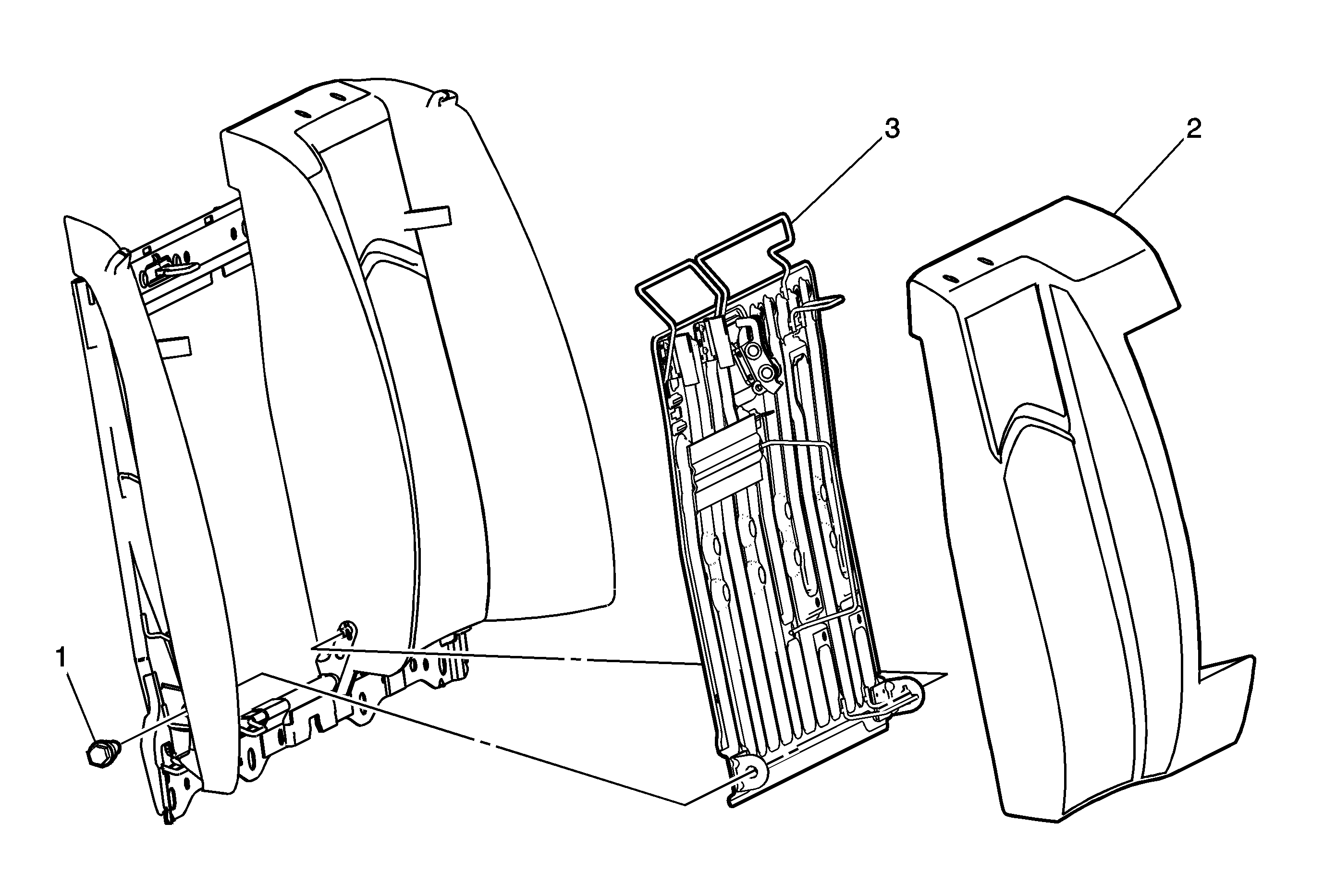

Object Number: 1970207 Size: MF

Callout	Component Name
Preliminary Procedure Remove the rear seat back. Refer to Rear Seat Back Replacement. Remove the rear seat back armrest, if equipped. Refer to Rear Seat Armrest Replacement.
1	Rear Seat Back Panel Bolt Caution: Refer to Fastener Caution in the Preface section. Tighten 40 N·m (30 lb ft)
2	Rear Seat Back Cushion Cover and Pad Refer to Rear Seat Back Cushion Cover and Pad Replacement.
3	Rear Seat Back Cushion Panel
